IHDT56CQ1Mobile Cellular/ PCS Transceiver (AMPS/ CDMA)

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CQ1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: Refer to exhibit 8A for specific rf exposure text for the user, and for the antenna installation guidelines. PUTTING SAFETY, SECURITY AND CONVENIENCE AT YOUR FINGERTIPS. OWNER’SGUIDE Activating OnStar Serv i c e s Your OnStar account needs to be activated before OnStar can begin providing services. If this hasn’t a l ready been done by your dealership, you can easily do it yourself. O n S t a r With the vehicle running, press the OnStar button. Wait until an Advisor answers, who will request the i n f o rmation we need to get you started. This pro c e s s will normally take between 10 and 15 minutes. Personal Calling/Vi rtual Advisor Check to see if Personal Calling has been activated by pressing the black button with the white dot. If the system says, “OnStar re a d y, ” d e t e rmine your phone number by saying, “My n u m b e r.“ If your system has n o tbeen activated, the system will respond with “Personal Calling U n a v a i l a b l e . “ If not active, you can request OnStar Personal Calling and OnStar Vi rtual Advisor at the same time you activate your OnStar account or at any future time by pressing the OnStar button and re q u e s t i n g these serv i c e s . OnStar Responses In Fre n c h OnStar can be programmed by your dealership to respond in French and to understand French commands. There may be a charge associated with this pro g r a m m i n g . Page i Activating OnStar Services Table of Contents Activating OnStar Servicesi OnStar Responses in Frenchi OnStar 3 The OnStar Call Center3 Your Onboard OnStar Panel (buttons and light)4 Volume Control5 Memo Recorder6 Steering Wheel Controls7 Contacting OnStar10 Contacting OnStar for Services10 Contacting OnStar Customer Care or Billing/Financial10 Personal Identification Number (PIN)11 OnStar Subscription Plans12 Safe & Sound Plan 12 Directions & Connections Plan 12 Luxury & Leisure Plan12 OnStar Services13 Automatic Notification of Air Bag Deployment13 Emergency Services13 Roadside Assistance13 Stolen Vehicle Location14 AccidentAssist14 Remote Door Unlock14 Remote Diagnostics15 OnStar MED-NET15 Route Support15 RideAssist16 Information and Convenience Services16 Online Concierge16 Personal Concierge16 Table of Contents OnStar Personal Calling17 Activating OnStar Personal Calling18 Placing a Call20 Receiving a Call21 Ending a Call21 Storing/Deleting Numbers in Memory22 Units (Minutes) – Verify or Add24 Setting Voice or Tone Response25 Security/Locking Your System26 OnStar Virtual Advisor27 Accessing Virtual Advisor28 Information Sites29 Financial Services29 Weather29 Traffic30 Sports Scores30 News Headlines30 Email31 Entertainment31 MyOnStar32 Voice Commands/Speech recognition33 General Tips for Better Recognition34 OnStar Information41 OnStar O n S t a r Welcome to OnStar. This owner’s guide gives you the information you need to get started using OnStar, with descriptions of the current OnStar serv i c e s , including Personal Calling, Vi rtual Advisor and the OnStar subscriber website. Please keep this guide in your vehicle for easy re f e rence. If you need information re g a rding operation or features of OnStar, you’ll have it readily at hand. Once you start using this guide, you’ll see how easy it is to take advantage of the s a f e t y, security and convenience of OnStar. For your s a f e t y, please do not read this guide while you are d r i v i n g . OnStar is a system designed to provide you with personal communication and information s e rvices while you are in your vehicle by combining technologies of cellular phones, a Global Positioning System and the OnStar Call Center. The OnStar Call Center The OnStar Call Center is the heart of your service – s t a ffed 24 hours a day, 7 days a week with knowledgeable OnStar Advisors. Even on weekends and holidays, there is always someone ready to help. When you contact OnStar, your Advisor can pinpoint your vehicle’s location. This way, he or she can provide you with a range of helpful services that p rovide you with information and help to protect you and your vehicle. Also, for some subscribers, depending on their OnStar service plans, our Advisors can access an extensive database to assist you with directions, make re s e rvations and other convenient services . Page 3 OnStar Your Onboard OnStar Panel OnStar Services Button –P ress this blue button, and you will be connected to an OnStar Advisor. You will hear a chime, followed by the words, “Connecting to OnStar.“ OnStar then generates a sequence of “tones“ during the connection process. The pro c e s s will normally take about 15 seconds. Your system is equipped with backup connection re t ry capabilities. If you do not immediately connect to OnStar, DO NOT DISCONNECT. A series of re t ry attempts will be made automatically. If you wish to cancel your call to the OnStar Center, simply press the OnStar Communication button (black with a white dot). The blue OnStar Services button is also used to contro l the “memo re c o rd“ feature during a call with OnStar. OnStar Emergency Button –In an emergency, press this button to connect with an OnStar Advisor. Your call will be given the highest priority, and you will hear a chime followed by the words, “Connecting to OnStar Emergency.“ The Advisor will attempt to locate your vehicle, find out what kind of assistance you require and contact a nearby emergency s e rvices provider to dispatch ambulance, fire , police or other emergency services. Please use this button only for true emergencies. If you press this button by mistake, please stay on the line and tell the Advisor that there is no emergency. OnStar Communication Button –P ress this button at the end of a call. You’ll hear the words, “OnStar Request Ended.“ Also, press this button to answer a call from the OnStar Center or cancel a call if one of the other buttons is accidentally pressed. This button is…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CQ1 Exhibit 8A OEM integrators and end-users will be provided with the following instructions to satisfy rf exposure requirements. Included in end-users operating manual: User Operation Do not operate your telephone when a person is within 8 inches (20 centimeters) of the antenna. A person or object within 8 inches (20 centimeters) of the antenna could impair call quality and may cause the phone to operate at a higher power level than necessary and expose that person to RF energy in excess of that established by the FCC RF Exposure Guidelines. IMPORTANT The telephone must be installed in a manner that provides a minimum separation distance of 20 cm or more between the antenna and persons to satisfy FCC RF exposure requirements for mobile transmitting devices. Included in instructions to equipment installer: Antenna Installation IMPORTANT: To comply with the FCC RF exposure limits and satisfy the categorical exclusion requirements for mobile transmitters, the following requirements must be met: 1. A minimum separation distance of 20 cm must be maintained between the antenna and all persons. 2. The transmitter effective radiated power must be less than:
800 MHz Band: 1.5 Watts ERP (2.45 Watts or 33.9 dBm EIRP)
1900 MHz (PCS) Band: 3.0 Watts ERP (4.9 Watts or 36.9 dBm EIRP). Based on the power output of the mobile phone transmitter, this requires that the combination of antenna gain and feed line loss does not exceed:
800 MHz Band: -0.9 dB (loss)
1900 MHz (PCS) Band: 12.6 dB (gain)

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CQ1 Exhibit 8A Revised 1-22-03 OEM integrators and end-users will be provided with the following instructions to satisfy rf exposure requirements. Included in end-users operating manual: User Operation Do not operate your telephone when a person is within 8 inches (20 centimeters) of the antenna. A person or object within 8 inches (20 centimeters) of the antenna could impair call quality and may cause the phone to operate at a higher power level than necessary and expose that person to RF energy in excess of that established by the FCC RF Exposure Guidelines. IMPORTANT The telephone must be installed in a manner that provides a minimum separation distance of 20 cm or more between the antenna and persons to satisfy FCC RF exposure requirements for mobile transmitting devices. Included in instructions to equipment installer: Antenna Installation IMPORTANT: To comply with the FCC RF exposure limits and satisfy the categorical exclusion requirements for mobile transmitters, the following requirements must be met: 1. The approved tri-mode antenna is installed on the roof, and a minimum separation distance of 20 cm must be maintained between the antenna and all persons. 2. The transmitter effective radiated power must be less than:
800 MHz Band: 1.5 Watts ERP (2.45 Watts or 33.9 dBm EIRP)
1900 MHz (PCS) Band: 3.0 Watts ERP (4.9 Watts or 36.9 dBm EIRP). Based on the power output of the mobile phone transmitter, this requires that the combination of antenna gain and feed line loss does not exceed:
800 MHz Band: -0.9 dB (loss)
1900 MHz (PCS) Band: 12.6 dB (gain) The approved tri-mode antenna and cable configurations meet these requirements.

APPLICANT: MOTOROLA, INC.FCC ID : IHDT56CQ1 EXHIBIT 2A SPECIFICATION COMPLIANCE STATEMENT Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT56CQ1) for trimode, dual band mobile station cellular use is capable of compliance with the TIA/EIA-95-B Mobile Station-Base Station Compatibility Standards for Dual-Mode Spread Spectrum Systems, December 1998. Alex Bahk Engineering Section Manager Automotive Communications and Electronics Systems John Spears Engineering Manager Automotive Communications and Electronics Systems APPLICANT : MOTOROLA, INC.FCC ID: IHDT56CQ1 EXHIBIT 2B STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. Alex Bahk Engineering Section Manager Automotive Communications and Electronics Systems I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. John Spears Engineering Manager Automotive Communications and Electronics Systems APPLICANT: MOTOROLA, INC.FCC ID : IHDT56CQ1 Exhibit 2C INFORMATION REGARDING ELECTRONIC SERIAL NUMBER (ESN) PROTECTION This telematic transceiver uses a microprocessor to control its call processing operation. This microprocessor accesses a programmable memory area, which is used to store an encrypted data block that contains the Electronic Serial Number (ESN). A proprietary scheme is used to create this data block whereby it is encrypted using methods similar to known public key cryptography methods. It is emphasized that the method used is similar to but different from these known methods and the actual method used is kept proprietary to provide the essential security for the ESN. Also, the transceiver will not operate unless the microprocessor is able to decrypt this data block correctly. Access is controlled to both the method of encryption and to the production/repair equipment that has the ability to program the encrypted data block. APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CQ1 EXHIBIT 2D 911 Call Processing Method Compliance Statement Method Used The Motorola CDMA phone uses the “Automatic A/B Roaming-IR” method for providing Enhanced 911 Emergency Calling support in compliance with the FCC mandate. User Interface While in the process of attempting to complete a 911 call the Motorola CDMA phone provides both audible and visual feedback to the caller per the FCC order. The display of the phone will show the text “Connecting Emergency” and a feedback tone of three short beeps sounded at 5- second intervals will indicate that the phone is attempting to find a carrier system to complete the call. When the call has been successfully established, the sounding of the feedback tone is terminated and the content of the display is changed to the normal in call display. System Description When a 911 call is initiated, the Motorola CDMA phone ignores all programmed restrictions with regard to which systems, both analog and digital are useable for completing the call. If the Motorola CDMA phone has acquired service on a system at the time the 911 call is initiated it will attempt to complete the call using that system. If the phone is not in service on a system it will initially attempt to complete the call using any available system it can find, which may exist on any frequency band or mode, supported by the handset. The phone’s scanning algorithm ensures that both analog sides are scanned at least once approximately every 15 seconds. The phone will continue attempting to complete the 911 call until the call is completed, the user has ended the call, or the battery is exhausted.

APPLICANT: MOTOROLA, INC.FCC ID : IHDT56CQ1 Exhibit 2C INFORMATION REGARDING ELECTRONIC SERIAL NUMBER (ESN) PROTECTION This telematic transceiver uses a microprocessor to control its call processing operation. This microprocessor accesses a programmable memory area, which is used to store an encrypted data block that contains the Electronic Serial Number (ESN). A proprietary scheme is used to create this data block whereby it is encrypted using methods similar to known public key cryptography methods. It is emphasized that the method used is similar to but different from these known methods and the actual method used is kept proprietary to provide the essential security for the ESN. Also, the transceiver will not operate unless the microprocessor is able to decrypt this data block correctly. Access is controlled to both the method of encryption and to the production/repair equipment that has the ability to program the encrypted data block. APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CQ1 EXHIBIT 2D 911 Call Processing Method Compliance Statement Method Used The Motorola CDMA phone uses the “Automatic A/B Roaming-IR” method for providing Enhanced 911 Emergency Calling support in compliance with the FCC mandate. User Interface While in the process of attempting to complete a 911 call the Motorola CDMA phone provides both audible and visual feedback to the caller per the FCC order. The display of the phone will show the text “Connecting Emergency” and a feedback tone of three short beeps sounded at 5- second intervals will indicate that the phone is attempting to find a carrier system to complete the call. When the call has been successfully established, the sounding of the feedback tone is terminated and the content of the display is changed to the normal in call display. System Description When a 911 call is initiated, the Motorola CDMA phone ignores all programmed restrictions with regard to which systems, both analog and digital are useable for completing the call. If the Motorola CDMA phone has acquired service on a system at the time the 911 call is initiated it will attempt to complete the call using that system. If the phone is not in service on a system it will initially attempt to complete the call using any available system it can find, which may exist on any frequency band or mode, supported by the handset. The phone’s scanning algorithm ensures that both analog sides are scanned at least once approximately every 15 seconds. The phone will continue attempting to complete the 911 call until the call is completed, the user has ended the call, or the battery is exhausted.

APPLICANT: MOTOROLAFCC ID: IHDT56CQ1 Exhibit 13 December 20, 2002 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56CQ1. Motorola is also the manufacturer of this equipment. This equipment is a subscriber unit installed in a vehicle (equipment class TNB). Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits:
Exhibit 4 Block Diagrams
Exhibit 5 Schematics
Exhibit 12 Operational Description Description: This equipment has the capability to operate in the conventional Analog Cellular standard in the 800 MHz cellular band, and the Digital CDMA standard in both the 800 MHz and the PCS bands, as outlined in EIA/TIA IS-95-A "Mobile Station – Base Station Compatibility Standard for Dual- Mode Wideband Spread Spectrum Cellular System”. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in Section 22.933 of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87-390, are detailed in Exhibit 12. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

1 Date: January 22, 2003 Subject: Request for additional information (FCC ID: IHDT56CQ1) Reference: Application Received:12/23/2002 (Amended 01/10/2003) Correspondence Reference Number:230121.IHD Confirmation Number:TC1414 Date of Original Email:01/21/2003 Prepared by: Steven Hauswirth Motorola Personal Communications Sector Product Safety Laboratory Harvard, Illinois Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois 2 Summary of FCC request for additional information 1) Clarification on the maximum power at the antenna terminal. The Analog max power states 3 W (34.76dBm) but the modulation plots indicate 34.65 dBm (unmodulated carrier). The CDMA power shown in the Operational Description Exhibit 12A listed 0.2 - 1 Watt and nominal 0.3dBm, however Exhibit 12B shows 0.26W. Please clarify the max. power for all frequency bands of operation. Response: The rated power output reported in Exhibit 6 (test report) is: 800 MHz Analog: 3.0 W 800 MHz Digital CDMA: 0.25 W 1900 MHz Digital CDMA: 0.27 W Minor power output discrepancies, in the test report, are due to rounding and truncating of the measured values. 2) Please specify the method of measurement of output power. Response: Conducted power output reported in exhibit 6 (test report) was measured using the following test equipment: Giga-Tronics 8652A Universal Power Meter Serial number: 1835324 Calibration due by: 03/14/03 2) Please supply MPE calculation at 20 cm. Recent FCC policy requires MPE exhibits for mobile devices. Response: Please refer to supplemental rf exposure report Exhibit 11A. 3) Please supply the maximum antenna gain and cable loss that is to be used with this device. Please indicate how this system loss will qualify for categorical exclusion requirements of Section 2.1091. Response: Antenna Gain: 0 to –1 dBi (-2.1 to –3.1 dBd) Cable loss 800 MHz: 1.7, 1.9, 2.2, or 2.5 dB (dependent upon installation configuration) Cable loss 1900 MHz: 2.1, 2.5, 2.9, or 3.3 dB (dependent upon installation configuration) 3 Based on rated conducted power output, the highest antenna gain, and the lowest line loss: Highest 800 MHz ERP = 34.77 dbm (3W conducted power) -2.1 dBd (antenna gain) -1.7 dB (line loss) 30.97 dBm (1.250 W ERP) Highest 1900 MHz ERP= 24.31 dbm (0.270W conducted power) -2.1 dBd (antenna gain) -2.1 dB (line loss) 20.11 dBm (0.103 W ERP) The categorical exclusion (Section 2.1091) applies to 800 MHz, since the maximum power is less than 1.5 W ERP. The categorical exclusion (Section 2.1091) applies to 1900 MHz, since the maximum power is less than 3.0 W ERP. 5) Please revise the antenna installation instruction information to include the antenna location on the vehicle with the appropriate RF exposure statement or supply MPE calculation for each antenna location, if appropriate. Response: Please refer to revised exhibit 8A. 6) Please confirm that this is not a user installed transmitter. Response: Motorola confirms that this is not an end user installed transmitter.

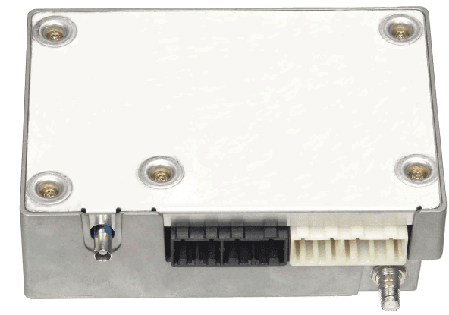

Front View FCC ID: IHDT56CQ1 Applicant Motorola Inc. Exhibit 3 Equipment ID Label located on Rear Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56CQ1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT56CQ1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CQ1 TCU Board (Top View) TCU Board (Bottom View) Exhibit 9 1 of 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CQ1 NAB Board (Top View) NAB Board (Bottom View) Exhibit 9 2 of 2

APPLICANT: MOTOROLA INC.FCC ID: IHDT56CQ1 EXHIBIT 10 1 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user adjustments or tuning in this mobile telematics transceiver. APPLICANT: MOTOROLA INC.FCC ID: IHDT56CQ1 EXHIBIT 10 2 REFERENCE SYMBOL PART NUMBER DESCRIPTION VALUE C10 2155168Q40 CAP 39pF C103 2155168B22 CAP 6.8pF C104 2155168G40 CAP 39pF C105 2155168B20 CAP 5.6pF C106 2155169H09 CAP 1000pF C107 2155168G40 CAP 39pF C108 2155169H09 CAP 1000pF C109 2155168B02 CAP 1pF C11 2155168K22 CAP 6.8pF C110 2155169H09 CAP 1000pF C111 2155168G40 CAP 39pF C112 2155168G40 CAP 39pF C113 2155169H21 CAP .01uF C114 2155169H09 CAP 1000pF C115 2155169H09 CAP 1000pF C118 2155169H09 CAP 1000pF C119 2155169H09 CAP 1000pF C12 2155169Q34 CAP 0.1uF C120 2155168G50 CAP 100pF C121 2155169H09 CAP 1000pF C122 2155169H09 CAP 1000pF C123 2155169H09 CAP 1000pF C125 2155168G50 CAP 100pF C126 2155168G50 CAP 100pF C127 2155169H09 CAP 1000pF C128 2155169H09 CAP 1000pF C129 2155168B18 CAP 4.7pF C140 2155168G50 CAP 100pF C141 2155169H09 CAP 1000pF C142 2155168B18 CAP 4.7pF C143 2155169H09 CAP 1000pF C144 2155169H09 CAP 1000pF C145 2155168B12 CAP 2.7pF C146 2155168B02 CAP 1pF C147 2155168G28 CAP 12pF C150 2155168G40 CAP 39pF C151 2113928N01 CAP 0.1uF C152 2113928P04 CAP 1.0uF C154 2155169H09 CAP 1000pF C156 2155169H09 CAP 1000pF C157 2113928P04 CAP 1.0uF C158 2113928N01 CAP 0.1uF C160 2155168G50 CAP 100pF C161 2113928N01 CAP 0.1uF C162 2113743K16 CAP 0.22uF C163 2155168G50 CAP 100pF C164 2155168G50 CAP 100pF C165 2155168B22 CAP 6.8pF APPLICANT: MOTOROLA INC.FCC ID: IHDT56CQ1 EXHIBIT 10 3 C168 2155169H09 CAP 1000pF C169 2155168G40 CAP 39pF C170 2155169H09 CAP 1000pF C171 2155168G34 CAP 22pF C172 2155168G32 CAP 18pF C173 2155168B24 CAP 8.2pF C174 2155168K14 CAP 3.3pF C175 2113928P04 CAP 1.0uF C177 2155168Q28 CAP 12pF C178 2155169L09 CAP 1000pF C201 2155169C01 CAP 220pF C202 2155168G50 CAP 100pF C203 2155169C01 CAP 220pF C204 2155169H09 CAP 1000pF C207 2155168G40 CAP 39pF C208 2155168G40 CAP 39pF C209 2155168G50 CAP 100pF C210 2155169H09 CAP 1000pF C211 2155168B19 CAP 5.1pF C214 2155168G32 CAP 18pF C215 2155168B19 CAP 5.1pF C216 2155168B12 CAP 2.7pF C217 2155169H09 CAP 1000pF C218 2155169H09 CAP 1000pF C220 2155168G50 CAP 100pF C221 2113928N01 CAP 0.1uF C223 2155169D15 CAP 3300pF C224 2155169C05 CAP 470pF C225 2155168G50 CAP 100pF C226 2155169H09 CAP 1000pF C227 2155168G40 CAP 39pF C228 2155168G42 CAP 47pF C232 2155168G50 CAP 100pF C233 2155168B09 CAP 2pF C250 2113928N01 CAP 0.1uF C251 2113928P04 CAP 1.0uF C252 2155168G28 CAP 12pF C253 2113928C04 CAP 4.7uF C254 2155169H09 CAP 1000pF C255 2155169H09 CAP 1000pF C256 2155168G50 CAP 100pF C257 2155169H09 CAP 1000pF C31 2113928N01 CAP 0.1uF C32 2155168G28 CAP 12pF C33 2155169D15 CAP 3300pF C351 2113928C04 CAP 4.7uF C352 2155169H21 CAP .01uF C353 2113928N01 CAP 0.1uF C408 2155168Q40 CAP 39pF C410 2155168G40 CAP 39pF C411 2113928P04 CAP 1.0uF APPLICANT: MOTOROLA INC.FCC ID: IHDT56CQ1 EXHIBIT 10 4 C412 2155168Q40 CAP 39pF C413 2155169L09 CAP 1000pF C42 2155168Q40 CAP 39pF C43 2155168K19 CAP 5.1pF C45 2155168K16 CAP 3.9pF C46 2155168K26 CAP 10pF C47 2155169L09 CAP 1000pF C48 2155169Q34 CAP 0.1uF C500 2113928P04 CAP 1.0uF C501 2155169H17 CAP 4700pF C502 2113928N01 CAP 0.1uF C503 2113928N01 CAP 0.1uF C504 2113928N01 CAP 0.1uF C505 2155169H21 CAP .01uF C506 2113928N01 CAP 0.1uF C507 2155169H21 CAP .01uF C508 2113928N01 CAP 0.1uF C509 2155169H21 CAP .01uF C51 2155168K19 CAP 5.1pF C510 2155169H21 CAP .01uF C511 2113928N01 CAP 0.1uF C512 2155169H17 CAP 4700pF C513 2155169H21 CAP .01uF C514 2113928N01 CAP 0.1uF C515 2155169H21 CAP .01uF C52 2155168K24 CAP 8.2pF C54 2155168Q50 CAP 100pF C55 2155168Q40 CAP 39pF C550 2113928N01 CAP 0.1uF C551 2113928N01 CAP 0.1uF C552 2113928N01 CAP 0.1uF C553 2113928N01 CAP 0.1uF C56 2155169L09 CAP 1000pF C57 2155169Q25 CAP .022uF C58 2155168Q30 CAP 15pF C59 2155168Q50 CAP 100pF C60 2113928C04 CAP 4.7uF C600 2113928C04 CAP 4.7uF C601 2155169H21 CAP .01uF C602 2155169H21 CAP .01uF C603 2155169H21 CAP .01uF C604 2155169H21 CAP .01uF C605 2155169H21 CAP .01uF C606 2113928P04 CAP 1.0uF C607 2155169H09 CAP 1000pF C608 2155168G30 CAP 15pF C609 2155168G30 CAP 15pF C61 2113928N01 CAP 0.1uF C610 2155169H21 CAP .01uF C611 2113928P04 CAP 1.0uF C612 2113928P04 CAP 1.0uF APPLICANT: MOTOROLA INC.FCC ID: IHDT56CQ1 EXHIBIT 10 5 C613 2113928P04 CAP 1.0uF C614 2113928E03 CAP 2.2uF C615 2113928C04 CAP 4.7uF C616 2113928C04 CAP 4.7uF C617 2113928C04 CAP 4.7uF C618 2113928P04 CAP 1.0uF C619 2113928E03 CAP 2.2uF C62 2113928N01 CAP 0.1uF C700 2113928N01 CAP 0.1uF C701 2113928N01 CAP 0.1uF C702 2113928N01 CAP 0.1uF C703 2113928N01 CAP 0.1uF C704 2113928N01 CAP 0.1uF C705 2113928N01 CAP 0.1uF C800 2155169N27 CAP .033uF C803 2311049F47 CAPP 6.8uF C804 2155141F25 CAP 0.1uF C822 2155169N27 CAP .033uF CR150 4809877C28 BBY58_06W CR201 4809877C29 BBY58_05W CR202 4809877C29 BBY58_05W D550 4809606E08 RB715F FL102 9187790J01 856027 FL121 9187788J01 855893 FL141 9187792J01 42L10 FL170 9187787J01 B4225 FL194 5887802J01 CEO521R FL200 9187791J01 LFB32 FL21 9187786J01 CER0023 FL22 9187785J01 LFDP15N0039 FL23 9185619K01 19K01 FL401 9187793J01 13K16 FL41 5887804J01 SI7SG J10 0985733K02 CONN_J J100 2844714U15 CONN_J L103 2455186U12 IDCTR 10.0nH L104 2455186U18 IDCTR 33.0nH L105 2455186U11 IDCTR 8.2nH L106 2455186U06 IDCTR 3.3nH L107 2455186U09 IDCTR 5.6nH L108 2455186U12 IDCTR 10.0nH L109 2455186U10 IDCTR 6.8nH L110 2455186U24 IDCTR 100nH L111 2455186U18 IDCTR 33.0nH L113 2455186U07 IDCTR 3.9nH L121 2455186U20 IDCTR 47.0nH L122 2455186U20 IDCTR 47.0nH L123 2456120C15 IDCTR 72nH L124 2456120C15 IDCTR 72nH L140 2455186U22 IDCTR 68.0nH L141 2455186U22 IDCTR 68.0nH APPLICANT: MOTOROLA INC.FCC ID: IHDT56CQ1 EXHIBIT 10 6 L142 2456120C30 IDCTR 180nH L143 2456120C14 IDCTR 68nH L150 2456120C07 IDCTR 18nH L160 7641904U15 BLM11A102S L161 7641904U15 BLM11A102S L200 7641904U15 BLM11A102S L201 2455186U17 IDCTR 27.0nH L202 2455186U17 IDCTR 27.0nH L203 2455186U13 IDCTR 12.0nH L206 2456120C03 IDCTR 6.8nH L207 24…

Text truncated - open the document above for the full version.

1 1 December 18, 2002 SAR Test Report for Motorola the mobile cellular phone (FCC ID IHDT56CQ1). Prepared by: Steven Hauswirth, Principal Staff Engineer Motorola Personal Communications Sector Product Safety & Compliance Laboratory Libertyville, Illinois The Motorola Personal Communications Sector Product Safety & Compliance Laboratory has evaluated the mobile cellular phone, FCC ID IHDT56CQ1, for the need to conduct SAR evaluation. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons.” The mobile cellular phone FCC ID IHDT56CQ1 is intended to be installed into a vehicle such that the unit is physically secured at one location. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 centimeters from the user. Thus, the mobile cellular phone FCC ID IHDT56CQ1 is a “mobile device” as defined in section § 2.1091 paragraph (b). The transmitter has two transmit frequency bands of operation. For the 800MHz frequency band, the transceiver’s transmit frequency is below 1.5 GHz and its ERP is below 1.5 W. Thus, the mobile cellular phone FCC ID IHDT56CQ1 is “categorically excluded from routine environmental evaluation” per § 2.1091 paragraph (c) and SAR evaluation is not required. For the 1900MHz frequency band, the transceiver’s transmit frequency is above 1.5 GHz and its ERP is below 3W. Thus, the mobile cellular phone FCC ID IHDT56CQ1 is “categorically excluded from routine environmental evaluation” per § 2.1091 paragraph (c) and SAR evaluation is not required. The users manual contains information specifying that all persons remain at least 20 centimeters from the antenna. In addition, separate installation instructions provide antenna system details required to ensure the mobile exclusion.

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CQ1 E E x x h h i i b b i i t t 1 1 1 1 A A January 22, 2003 SAR Test Report for Motorola Mobile Cellular Phone FCC ID IHDT56CQ1. Prepared by: Steven Hauswirth, Principal Staff Engineer Motorola Personal Communications Sector Product Safet…

Text truncated - open the document above for the full version.
