IHDT56CU1Portable Cellular / PCS GSM Transceiver

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CU1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: P R E L IMI N A RY Motorola C350 GSM Mobile Phone User Guide Review Draft January 8, 2003 UG.C330.GSM.book Page 1 Wednesday, January 8, 2003 2:00 PM P R E L IMI N A R Y UG.C330.GSM.book Page 2 Wednesday, January 8, 2003 2:00 PM 1 P R E L IMI N A RY Welcome Earpiece Internal Antenna USB Connector Insert data cable. Right Soft Key Perform functions identified by right display prompt. Menu Key Open a menu when you see G in the display Power/End Key Press & hold to power phone on & off. Press & release to end phone calls, exit menu system. Send/Answer Key Make and answer calls; press in idle to see recent dialed calls. Navigation Key Scroll through lists, set volume. Left Soft Key Perform functions identified by left display prompt. Microphone Headset Connector Power Connector Insert charger. Your C350 Series phone lets you change covers and keypads (see “Changing Your Phone’s Cover” on page 15). Your phone may not appear exactly as the phone image above. Note that all key locations, sequences and functions remain the same with any of the various covers. UG.C330.GSM.book Page 1 Wednesday, January 8, 2003 2:00 PM 2 P R E L IMI N A R Y Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2002. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number:6809457A28-O Cover number:8988485L49-O UG.C330.GSM.book Page 2 Wednesday, January 8, 2003 2:00 PM 3 P R E L IMI N A RY Contents Safety and General Information. . . . . . . . . . . . . . . . . . . . 6 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 What’s in the Box?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Changing Your SIM Card. . . . . . . . . . . . . . . . . . . . . . . . 13 Changing Your Phone’s Cover. . . . . . . . . . . . . . . . . . . . 15 Resetting Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Charging the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . 19 Adjusting the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 22 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 23 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Using the 4-Way Navigation Key . . . . . . . . . . . . . . . . . . 26 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Locking and Unlocking Your Phone. . . . . . . . . . . . . . . . 36 Changing a Code or Password . . . . . . . . . . . . . . . . . . . 38 If You Forget a Code or Password . . . . . . . . . . . . . . . . . 39 Locking and Unlocking the Keypad . . . . . . . . . . . . . . . . 39 Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . 40 Storing Your Name and Phone Number . . . . . . . . . . . . 40 Setting the Time and Date. . . . . . . . . . . . . . . . . . . . . . . 40 Setting a Ring Style. . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Setting Answer Options . . . . . . . . . . . . . . . . . . . . . . . . . 41 UG.C330.GSM.book Page 3 Wednesday, January 8, 2003 2:00 PM 4 P R E L IMI N A R Y Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . . 42 Selecting a Screen Saver . . . . . . . . . . . . . . . . . . . . . . . . 42 Zooming In and Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Setting Display Contrast . . . . . . . . . . . . . . . . . . . . . . . . . 43 Adjusting the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Conserving Battery Power . . . . . . . . . . . . . . . . . . . . . . . 44 Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Changing the Active Line . . . . . . . . . . . . . . . . . . . . . . . . 45 Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Using Automatic Redial. . . . . . . . . . . . . . . . . . . . . . . . . . 45 Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Canceling an Incoming Call . . . . . . . . . . . . . . . . . . . . . . 47 Turning Off a Call Alert . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC FCC ID: IHDT56CU1 EXHIBIT 2 1 ATTESTATION STATEMENTS The transceiver of type IHDT56CU1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 1500 Gateway Boulevard, Boynton Beach, Florida and 2001 N. Division Street, Harvard Illinois. NAME: KEVIN FREISEN TITLE: ENGINEERING DIRECTOR, PERSONAL COMMUNICAITONS SECTOR APPLICANT MOTOROLA INC FCC ID: IHDT56CU1 EXHIBIT 2 2 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. NAME : Mauricio Flores TITLE : RESOURCE MANAGER PCS Development Date : 1/10/03 The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56CU1) is in compliance with all applicable parts of the FCC Rules. The following is a statement of my qualifications: NAME : Rod Whaley TITLE : PRINCIPAL STAFF ENG. PCS Development Date : 1/10/03

APPLICANT: MOTOROLAFCC ID: IHDT56CU1 Exhibit 13A Revised 2/3/03 January 17, 2003 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56CU1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits:
Exhibit 4 Block Diagrams
Exhibit 5 Schematics
Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in both the 850 MHz and 1900 MHz PCS bands. Contact Information: Please contact me by telephone at (847) 523-6167,or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

APPLICANT: MOTOROLA INC.FCC ID: IHDT56CU1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. IHDT56CU1

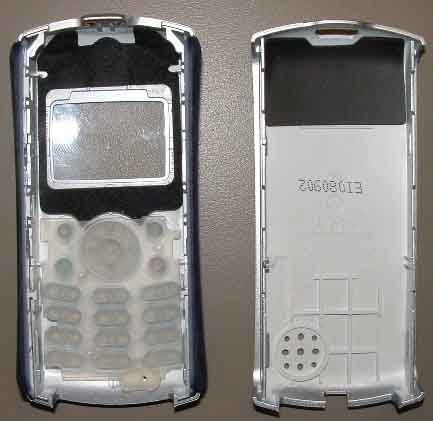

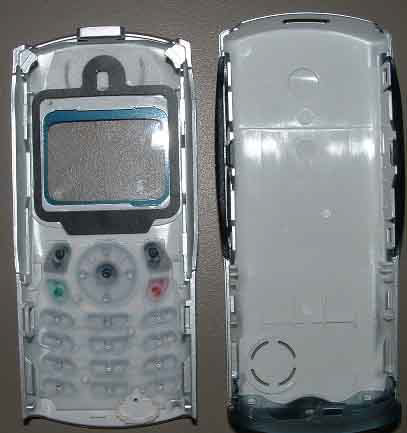

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CU1 EXHIBIT 9B "Hour Glass" Housing Internal View 1 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CU1 EXHIBIT 9B "Metal Box" Housing Internal View 2 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CU1 EXHIBIT 9B "Mini" Housing Internal View 3 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CU1 EXHIBIT 9B "Peanut" Housing Internal View 4 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CU1 EXHIBIT 9B "Premium" Housing Internal View 5 of 5

APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CU1 EXHIBIT 10 1 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CU1 EXHIBIT 10 2 Part NumberReference Designator Component Value 8486660P01PCBPCB,COMP,TA02 C370 COLOR 2113743N10C104CAP CHIP 2.2 PF +/-.25PF COG 2113743N16C121CAP CHIP 3.9 PF +/-.25PF COG 2113743N16C122CAP CHIP 3.9 PF +/-.25PF COG 2113947B05C131CAP DL ARRAY 33.0PF 50V 0504 2311049A76C133CAP TANT CHIP 2.2UF 10% 6V 2113928C04C134CAP CER CHIP 4.7UF 6.3V10%0805 2113743L50C145CAP CHIP 33000 PF 10% 0809084T42C150CAP,FILM,6800PF,,,50V-DC,,CHIP 2113743L13C151CAP CHIP 680 PF 10% X7R 2113743L07C152CAP CHIP 390 PF 10% X7R 2113743L11C153CAP CHIP 560 PF 10% X7R 2113743L19C154CAP CHIP 1200 PF 10% X7R 0809084T43C155CAP,FILM,8200PF,+5%,-5% 2113743N24C156CAP CHIP 8.2 PF +/-.5PF COG 2113743N54C157CAP CHIP 150 PF 5% COG 2113743N52C159CAP CHIP 120 PF 5% COG 2113743N42C160CAP CHIP 47.0 PF 5% COG 2113743N40C175CAP CHIP 39.0 PF 5% COG 2113743L41C176CAP CHIP 10000 PF 10% X7R 2113743N40C177CAP CHIP 39.0 PF 5% COG 2113928P04C178CAP,CER,1UF,,+20%,-20%,,0603 2113743N40C179CAP CHIP 39.0 PF 5% COG 2113743L41C2001CAP CHIP 10000 PF 10% X7R 2113743L41C2002CAP CHIP 10000 PF 10% X7R 2113743L41C2003CAP CHIP 10000 PF 10% X7R 2113743N40C301CAP CHIP 39.0 PF 5% COG 2113743N40C302CAP CHIP 39.0 PF 5% COG 2113743N42C303CAP CHIP 47.0 PF 5% COG 2113743F18C314CAP CHIP 2.2 UF 16V +80-20% 2113743N28C315CAP CHIP 12.0 PF 5% COG 2113743N40C330CAP CHIP 39.0 PF 5% COG 2113743N40C331CAP CHIP 39.0 PF 5% COG 2113743N40C332CAP CHIP 39.0 PF 5% COG 2113743N40C333CAP CHIP 39.0 PF 5% COG 2113743N40C334CAP CHIP 39.0 PF 5% COG 2113743N40C335CAP CHIP 39.0 PF 5% COG 2113928P04C401CAP,CER,1UF,,+20%,-20%,,0603 2113928P04C402CAP,CER,1UF,,+20%,-20%,,0603 2113928P04C403CAP,CER,1UF,,+20%,-20%,,0603 2113928P04C404CAP,CER,1UF,,+20%,-20%,,0603 2113743N40C502CAP CHIP 39.0 PF 5% COG APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CU1 EXHIBIT 10 3 2113743N40C505CAP CHIP 39.0 PF 5% COG 2113743N40C508CAP CHIP 39.0 PF 5% COG 2113928C03C602CAP CER CHIP 1.0 UF 6.3V 10% 2113743L41C701CAP CHIP 10000 PF 10% X7R 2113743N38C702CAP CHIP 33.0 PF 5% COG 2113743L41C705CAP CHIP 10000 PF 10% X7R 2113928P04C712CAP,CER,1UF,,+20%,-20%,,0603 2113928C03C801CAP CER CHIP 1.0 UF 6.3V 10% 2113928C03C802CAP CER CHIP 1.0 UF 6.3V 10% 2113928C03C803CAP CER CHIP 1.0 UF 6.3V 10% 2113928C03C805CAP CER CHIP 1.0 UF 6.3V 10% 2113743L41C806CAP CHIP 10000 PF 10% X7R 2113743E20C808CAP CHIP .10 UF 10% 2113743E20C809CAP CHIP .10 UF 10% 2113928P04C810CAP,CER,1UF,,+20%,-20%,,0603 2113743L41C811CAP CHIP 10000 PF 10% X7R 2113743L41C812CAP CHIP 10000 PF 10% X7R 2113743L41C813CAP CHIP 10000 PF 10% X7R 2113928C04C814CAP CER CHIP 4.7UF 6.3V10%0805 2113743L41C815CAP CHIP 10000 PF 10% X7R 2113743L41C816CAP CHIP 10000 PF 10% X7R 2113743E20C818CAP CHIP .10 UF 10% 2113743N28C819CAP CHIP 12.0 PF 5% COG 2113743N40C820CAP CHIP 39.0 PF 5% COG 2113743E20C821CAP CHIP .10 UF 10% 2113743M24C825CAP CHIP 100000 PF +80-20% Y5V 2113743M24C826CAP CHIP 100000 PF +80-20% Y5V 2113928C03C827CAP CER CHIP 1.0 UF 6.3V 10% 2113743L41C828CAP CHIP 10000 PF 10% X7R 2113743M24C834CAP CHIP 100000 PF +80-20% Y5V 2113743L17C835CAP CHIP 1000 PF 10% X7R 2113743N26C837CAP CHIP 10.0 PF 5% COG 2113928C12C840CAP,CER,10UF,,+10%,-10%,,0805 2113743N28C841CAP CHIP 12.0 PF 5% COG 2113928C03C890CAP CER CHIP 1.0 UF 6.3V 10% 2113743N30C900CAP CHIP 15.0 PF 5% COG 2113743N30C901CAP CHIP 15.0 PF 5% COG 2113743N26C902CAP CHIP 10.0 PF 5% COG 2113743N26C903CAP CHIP 10.0 PF 5% COG 2113743M24C907CAP CHIP 100000 PF +80-20% Y5V 2113743M24C908CAP CHIP 100000 PF +80-20% Y5V 2113928C04C909CAP CER CHIP 4.7UF 6.3V10%0805 2113928C04C910CAP CER CHIP 4.7UF 6.3V10%0805 2113928N01C911CAP CER CHIP 0.1UF 10% 6.3 2113928N01C912CAP CER CHIP 0.1UF 10% 6.3 2113947H01C915CAP DL ARRAY 100,000PF 6.3V 05 APPLICANT: MOTOROLA, INC.FCC ID: IHDT56CU1 EXHIBIT 10 4 2113928P04C917CAP,CER,1UF,,+20%,-20%,,0603 2113947B05C919CAP DL ARRAY 33.0PF 50V 0504 2113928C04C921CAP CER CHIP 4.7UF 6.3V10%0805 2113928C04C922CAP CER CHIP 4.7UF 6.3V10%0805 2113743L21C926CAP CHIP 1500 PF 10% X7R 2113743M24C927CAP CHIP 100000 PF +80-20% Y5V 2113743N26C928CAP CHIP 10.0 PF 5% COG 2113743N26C929CAP CHIP 10.0 PF 5% COG 2113948E11C930CAP,NTWK,,,+20%,-20%,10V-DC 2113743N40C931CAP CHIP 39.0 PF 5% COG 2113743N40C932CAP CHIP 39.0 PF 5% COG 2113928C04C933CAP CER CHIP 4.7UF 6.3V10%0805 2113928C04C934CAP CER CHIP 4.7UF 6.3V10%0805 2113743N40C935CAP CHIP 39.0 PF 5% COG 2113743N40C936CAP CHIP 39.0 PF 5% COG 2113743N26C937CAP CHIP 10.0 PF 5% COG 2113928C12C940CAP,CER,10UF,,+10%,-10%,,0805 2113743N40C941CAP CHIP 39.0 PF 5% COG 2113743L41C942CAP CHIP 10000 PF 10% X7R 2113743M24C943CAP CHIP 100000 PF +80-20% Y5V 2113928C04C945CAP CER CHIP 4.7UF 6.3V10%0805 2113928N01C946CAP CER CHIP 0.1UF 10% 6.3 2113928C12C948CAP,CER,10UF,,+10%,-10%,,0805 2113928C12C949CAP,CER,10UF,,+10%,-10%,,0805 2113928N01C950CAP CER CHIP 0.1UF 10% 6.3 2113928N01C951CAP CER CHIP 0.1UF 10% 6.3 2113743N26C952CAP CHIP 10.0 PF 5% COG 2113743N26C953CAP CHIP 10.0 PF 5% COG 4870370A26DS502LED ARRAY,LED,,,,,,WHITE,REVER 4870370A26DS507LED ARRAY,LED,,,,,,WHITE,REVER 6589735L01F100FUSE FAST 32V 2.0A 0603 9109474K05FL130FLTR,SAW 0988612M01J100CONN,RCPT,,,,RF SWITCH, SMT 0970312B16J600TA02-MINI-USB CONNECTOR 3970350D01J800CONN,,,,,SIM CARD RB 0985882K01J900RECPT CHRG 3POSTN SMD 0987837L04J931CONN JACK 2409646M81L101IN CER MULTILYR 10 NH 1608 2409646M82L102IN CER MULTILYR 12 NH 1608 2409154M40L121IND CER MLTILYR 22.0NH 1005 2409154M36L151IND CER MLTILYR 10.0NH 1005 2489970L37L152IDCTR,WW,270NH,2,,,,,,HI_Q_160 2409154M73L804IND CER MLTILYR 68.0NH 1005 3986595P01M100BATTERY CONNECTOR,,,3-CONTACT 5987772L02M900MOTOR VIB 5 X 4 MM FLAT…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CU1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56CU1 Date of test: Date of Report: December 12-29, 2002 Jan 17, 2003 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 2001 N. Division Room: AS228 Harvard, Illinois 60033 Test Responsible: Steven Hauswirth Principal Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following electromagnetic exposure tests: System Validation & Interlaboratory Comparison Simulated Tissue Specifications and Procedure EME Cellular Phone Testing Procedure On the following types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56CU1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2002 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CU1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 4 5) System Accuracy Verification 5 6) Test Results 6 6.1 Head Adjacent Test Results 6 6.1.1 Head Adjacent Test Results with Premium Housing 8 6.1.2 Head Adjacent Test Results with Hourglass Housing 9 6.1.3 Head Adjacent Test Results with Peanut Housing 10 6.1.4 Head Adjacent Test Results with Mini Housing 11 6.1.5 Head Adjacent Test Results with “Metal” Box Housing 12 6.2 Body-Worn Test Results 13 6.3 Summary of SAR Test Results 15 References: Appendix 1: SAR distribution comparison for the system accuracy verification 16 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 17 Appendix 3: SAR distribution plots for Body Worn Configuration 20 Appendix 4. Probe Calibration Certificate 22 Appendix 5. Dipole Characterization Certificate 23 Appendix 6: Measurement Uncertainty Budget 24 Appendix 7. Photographs of the device under test 27 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CU1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56CU1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type Internal Antenna Location Back of Phone Length 20mm Dimensions Width 35mm Device description FCC ID Number IHDT56CU1 Serial number J0223F & J0228C Mode(s) of Operation GSM 850 GSM 1900 Modulation Mode(s) GSM GSM Maximum Output Power Setting 30.00 dBm 30.00 dBm Duty Cycle 1:8 1:8 Transmitting Frequency Rang(s) 824.20 - 848.80 MHz 1850.20 – 1909.80 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±11.7% (K=1) with an expanded uncertainty of ±23.0% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4 W/kg to 10 W/kg. The list of calibrated equipment used for the measurements is shown below. Description Serial Number Cal Due Date DASY3 DAE3 V1 SN385 20-Mar-02 E-Field Probe ET3DV6 SN1515 25-Jul-02 Dipole Validation Kit, D900V2 SN078 23-Aug-03 S.A.M. Phantom used for 800MHz TP-1106 Dipole Validation Kit, D1800V2 SN273TR 17-Jul-04 S.A.M. Phantom used for 1900MHz TP-1235 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56CU1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04844 19-Jan-03 Power Meter E4419B GB39511088 18-Jan-03 Power Sensor #1 – E9301A US39210918 11-Feb-03 Power Sensor #2 - E9301A US39211006 14-Feb-03 Network Analyzer HP8753ES US39171846 2-May-03 Dielectric Probe Kit HP85070C US99360074 N/A 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with the HP85070 Dielectric Probe Kit These values, along with the temperature of the tissue simulate are shown in the table below. The recommended limits for maximum permittivity and minimum conductivity are also shown. These come from the Federal Communication Commission, OET Bulletin 65 Supplement C 01-01. It is seen that the measured parameters are satisfactory for compliance testing. Diel…

Text truncated - open the document above for the full version.

Date: March 27, 2003 Subject: Request for additional information (FCC ID: IHDT56CU1) Reference: Correspondence Reference Number: 7056 731 Confirmation Number: TC810898 Date of Original Email: 2/27/2003 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Summary of FCC request for additional information: Please provide SAR test setup photographs for all devices that were tested with a body-worn accessory. Response: Please refer to the following SAR bodyworn test setup photographs. Figure 1. Test setup photograph of phone with body-worn accessory Figure 2. Test setup photograph of phone with body-worn accessory

APPLICANT: MOTOROLA INC FCC ID: IHDT56CU1 EXHIBIT 6 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 8942-1 Report Date – November 21, 2002 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . SignatureName: _Kirby Munroe__ Title: Compliance Engineer Date : _ 11/21/02 ____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 APPLICANT: MOTOROLA INC FCC ID: IHDT56CU1 Test Report Number: 8942-1EXHIBIT 6 2 Table of Contents Description Page Test Report Details3 Applicable Standards3 Summary of Testing4 General and Special Conditions4 Equipment and Cable Configurations4 Measuring Equipment and Calibration Information5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP)7 Occupied Bandwidth8 GSM 850 Mid Band Reference Plot9 GSM 850 Mid Band Plot9 GSM 850 Lower Band Edge10 GSM 850 Upper Band Edge10 GSM 1900 Mid Band Reference Plot11 GSM 1900 Mid Band Plot11 GSM 1900 Lower Band Edge12 GSM 1900 Upper Band Edge12 Spurious Emissions at Antenna Terminals13 GSM 850 Tabular and Graphical Data14 GSM 850 Cellular Base Station Frequency Range Plot15 GSM 1900 Tabular and Graphical Data16 Field Strength of Spurious Emissions17 GSM 850 Tabular and Graphical Data18 GSM 1900 Tabular and Graphical Data19 Frequency Stability20 GSM 850 Tabular and Graphical Data21 GSM 1900 Tabular and Graphical Data22 Field Strength of Spurious Emissions From Unintentional Radiators 23 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement24 Figure A.2 – Substitution Measurement24 APPLICANT: MOTOROLA INC FCC ID: IHDT56CU1 Test Report Number: 8942-1EXHIBIT 6 3 Test Report Details Tests Performed By:Motorola Personal Communications Sector Product Safety and Compliance Group 1500 Gateway Boulevard Boynton Beach, FL 33426 PH (561) 739-2179 Fax (561) 739-2131 FCC Registration Number: 100000 Industry Canada Number: IC3908 Tests Requested By:Motorola Inc. Personal Communications Sector 3301 Quantum Boulevard Boynton Beach, FL 33426 Product Type:Cellular Phone Signaling Capability:GSM 850, GSM 1900 Model Number:SUG2835AA Serial Numbers:003 Received Date:11/15/2002 Testing Start Date:11/15/2002 Testing Complete Date:11/21/2002 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: ANSI 63.4 2000, RSS-132, RSS-133 APPLICANT: MOTOROLA INC FCC ID: IHDT56CU1 Test Report Number: 8942-1EXHIBIT 6 4 Summary of Testing Test Test Name # Pass/Fail 1RF Power OutputNA 2ERP (Effective Radiated Power)NA 3Occupied BandwidthPass 4Spurious Emissions at Antenna TerminalPass 5Field Strength of Spurious EmissionsPass 6Frequency StabilityPass 7Field Strength of Spurious EmissionsPass from Unintentional Radiators TestTest Name Margin with respect # to the Limit_________ 1RF Power Output NA 2ERP (Effective Radiated Power) NA 3Occupied Bandwidth NA 4Spurious Emissions at Antenna Terminal 15.6 dB 5Field Strength of Spurious Emissions 12.4 dB 6Frequency Stability 28.06 Hz 7Field Strength of Spurious Emissions > 20dB from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Multiple housings (5) were evaluated for radiated emissions and the worst case housing data is shown in this report. APPLICANT: MOTOROLA INC FCC ID: IHDT56CU1 Test Report Number: 8942-1EXHIBIT 6 5 Measuring Equipment and Calibration Information ManufacturerItemItem Version/Serial CALI BRATION NameNameMode l #NumberDUE DATE Descri pt i on Rohde & SchwarzEMI Test ReceiverESI26838386/0106/28/2003 Rohde & SchwarzEMI Test ReceiverESI26838786/0102/26/2003 Hewlett PackardEMC AnalyzerE7405US402402193/27/2003 Hewlett PackardRF Amplifier8347A3307A0200112/20/2002 Hewlett PackardPre-Amplifier8449B3008A0134312/20/2002 AgilentMobile Test Set8960GB423609069/10/2003 A.H. Systems Inc.DRG Horn AntennaSAS-200/5712658/28/2003 ETSDRG Horn Antenna311562229/30/2003 ETSLog-Periodic Antenna3148118812/6/2002 ETSLog-Periodic Antenna314811891/2/2003 ETSBiconical Antenna3110B336912/15/2002 Compliance DesignBiconical AntennaB1003857/16/2003 Compliance DesignBiconical AntennaB2003127/22/2003 Compliance DesignBiconical AntennaB3003217/22/2003 AttenuatorWeinschel AS-6667510/9/2003 AttenuatorWeinschel AS-6667710/11/2003 Hewlett PackardSignal Generator83623B 3844A011951/16/2003 ThermotronEnvironmental ChamberS-43158012/20/2002 GigatronicsPower meter8651A86505611/28/2003 GigatronicsPower meter8651A86505087/10/2003 All equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT56CU1 Test Report Number: 8942-1EXHIBIT 6 6 Measurement Procedures and Dat…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56CU1 EXHIBIT 6 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 8942-1 Report Date – November 21, 2002 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . SignatureName: _Kirby Munroe__ Title: Compliance Engineer Date : _ 11/21/02 ____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 APPLICANT: MOTOROLA INC FCC ID: IHDT56CU1 Test Report Number: 8942-1EXHIBIT 6 2 Table of Contents Description Page Test Report Details3 Applicable Standards3 Summary of Testing4 General and Special Conditions4 Equipment and Cable Configurations4 Measuring Equipment and Calibration Information5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP)7 Occ…

Text truncated - open the document above for the full version.
