IHDT56DB1Mobile Cellular/PCS GSM Transceiver Module

Developer’s Guide 98-08901C66-O © Motorola Communications Ltd., 2003 A subsidiary of Motorola Inc. All rights reserved. g20 Cellular Engine Module Description REVISION HISTORY RevisionDatePurpose March 2003 © Motorola Inc., 200398-08901C66-O g20 Cellular Engine Module Description CONTENTS REVISION HISTORY ................................................................................................................................................................ii PREFACE 1.1 SCOPE OF THIS MANUAL .................................................................................................................................................1 1.2 WHO SHOULD USE THIS MANUAL.................................................................................................................................1 1.3 APPLICABLE DOCUMENTS ..............................................................................................................................................1 1.3.1 Documents...................................................................................................................................................................1 1.3.2 Standards .....................................................................................................................................................................1 1.4 HOW THIS MANUAL IS ORGANIZED..............................................................................................................................1 INTRODUCTION 2.1 GENERAL DESCRIPTION ...................................................................................................................................................3 2.2 TERMS AND ABBREVIATIONS ........................................................................................................................................3 2.3 PRODUCT SPECIFICATIONS .............................................................................................................................................5 2.4 MODELS DESCRIPTION .....................................................................................................................................................7 2.5 REGULATORY APPROVALS .............................................................................................................................................7 2.6 REGULATORY STATEMENT.............................................................................................................................................7 2.7 SAFETY PRECAUTIONS .....................................................................................................................................................7 2.7.1 User Operation ............................................................................................................................................................7 2.7.2 Antenna Installation ....................................................................................................................................................8 HARDWARE DESCRIPTION 3.1 G20 BLOCK DIAGRAM DESCRIPTION AND OPERATION OVERVIEW ....................................................................9 3.1.1 g20 Block Diagram .....................................................................................................................................................9 3.1.2 Basic RS232 and Analog Audio Connectivity .......................................................................................................... 11 3.1.3 Basic RS232 and Digital Audio Connectivity........................................................................................................... 11 3.1.4 Additional Recommended Connections....................................................................................................................12 3.1.5 G20 for Handset Configuration................................................................................................................................. 13 3.2 POWER SUPPLY AND CURRENT CONSUMPTION ..................................................................................................... 13 3.2.1 Power Supply Design ................................................................................................................................................ 13 3.2.2 G20 Current Consumption ........................................................................................................................................ 14 3.2.3 Turning the Unit On/Off ........................................................................................................................................... 15 iv98-08901C66-O 3.2.4 Sleep Mode Options ................................................................................................................................................. 16 3.3 COMMUNICATION INTERFACES.................................................................................................................................. 18 3.3.1 RS232 ....................................................................................................................................................................... 18 3.3.2 USB .......................................................................................................................................................................... 20 3.3.3 SIM ........................................................................................................................................................................... 21 3.3.4 SPI ............................................................................................................................................................................ 22 3.3.5 Unique g20 Interfaces............................................................................................................................................... 22 3.4 AUDIO INTERFACES......................…

Text truncated - open the document above for the full version.

Developer’s Guide 98-08901C67-O © Motorola Communications Ltd., 2003 A subsidiary of Motorola Inc. All rights reserved. g20 Developer’s Kit REVISION HISTORY RevisionDatePurpose March 2003 © Motorola Inc., 200398-08901C67-O g20 Developer’s Kit CONTENTS REVISION HISTORY ................................................................................................................................................................ii PREFACE 1.1 SCOPE OF THIS MANUAL .................................................................................................................................................1 1.2 WHO SHOULD USE THIS MANUAL.................................................................................................................................1 1.3 DISCLAIMER ........................................................................................................................................................................1 1.4 REGULATORY REQUIREMENTS .....................................................................................................................................1 1.5 REGULATORY STATEMENT.............................................................................................................................................1 1.6 SAFETY .................................................................................................................................................................................2 1.6.1 User Operation ............................................................................................................................................................2 1.6.2 Antenna Installation ....................................................................................................................................................2 1.7 APPLICABLE DOCUMENTS ..............................................................................................................................................2 1.8 HOW THIS MANUAL IS ORGANIZED..............................................................................................................................2 INTRODUCTION 2.1 GENERAL DESCRIPTION ...................................................................................................................................................3 2.2 TERMS AND ABBREVIATIONS ........................................................................................................................................3 2.3 SAFETY PRECAUTIONS .....................................................................................................................................................3 DEVELOPER BOARD AND INTERFACES DESCRIPTION 3.1 GENERAL ..............................................................................................................................................................................5 3.1.1 Developer Board Features ...........................................................................................................................................6 3.1.2 Developer Board Connectivity....................................................................................................................................7 3.1.3 Quick Start...................................................................................................................................................................8 3.2 COMMUNICATIONS INTERFACES ................................................................................................................................ 10 3.2.1 RS232 ........................................................................................................................................................................ 10 3.2.2 USB ........................................................................................................................................................................... 11 3.2.3 SPI ............................................................................................................................................................................. 11 3.3 CONNECTORS DESCRIPTION ......................................................................................................................................... 12 3.3.1 UUT Interface Connector.......................................................................................................................................... 13 3.4 POWER CONNECTIONS ................................................................................................................................................... 15 3.4.1 DC Power Source Operation ..................................................................................................................................... 15 iv98-08901C67-O 3.4.2 AC Adapter Operation .............................................................................................................................................. 16 3.4.3 Battery Operation ..................................................................................................................................................... 16 3.4.4 Power Source Selection ............................................................................................................................................ 16 3.5 SWITCHES AND JUMPERS.............................................................................................................................................. 17 3.6 LED INDICATORS ............................................................................................................................................................. 18 3.7 MMI ..................................................................................................................................................................................... 19 3.7.1 Display ...............................................................…

Text truncated - open the document above for the full version.

98-08901C66-H 2.8 SAFETY PRECAUTIONS 2.8.1 User Operation Do not operate your unit when a person is within 8 inches (20 centimeters) of the antenna. A person or object within 8 inches (20 centimeters) of the antenna could impair call quality and may cause the phone to operate at a higher power level than necessary. IMPORTANT: The unit must be installed in a manner that provides a minimum separation distance of 20 cm or more between the antenna and persons to satisfy FCC RF exposure requirements for mobile transmitting devices. IMPORTANT: To comply with the FCC RF exposure limits and satisfy the categorical exclusion requirements for mobile transmitters, the following requirements must be met: 2.8.2 Antenna Installation The antenna installation must provide a minimum separation distance of 20 cm from users and nearby persons, and must not be co-located or operating in conjunction with any other antenna or transmitter. The conducted output power and combined cable loss and antenna gain must not exceed 1.5 W ERP (Cellular) and 3.0 W ERP (PCS) to qualify for the rf exposure categorical exclusion requirements of 2.1091. Additionally, the 1900 MHz (PCS) 24.232(b) radiated power limit is 2 Watts EIRP. OEM installers must be provided with antenna installation instruction and transmitter operating conditions for satisfying RF exposure compliance. Maximum Antenna System Gain 800 MHz (Cellular) 1900 MHz (PCS) FCC ID: IHDT56DB1 (800 MHz PC5) 12.6 dBi 3.9 dBi FCC ID: IHDT56DB2 (800 MHz PC4 2W) 7.9 dBi 3.4 dBi

98-08901C67-E 1.4.2 User Operation Do not operate your unit when a person is within eight inches (20 centimeters) of the antenna. A person or object within eight inches (20 centimeters) of the antenna could impair call quality and may cause the unit to operate at a higher power level than necessary, as well as expose that person to RF energy in excess of that established by the FCC RF Exposure Guidelines. IMPORTANT: The unit must be installed in a manner that provides a minimum separation distance of eight inches (20 centimeters) or more between the antenna and persons in order to satisfy FCC RF exposure requirements for mobile transmitting devices. IMPORTANT: To comply with the FCC RF exposure limits and to satisfy the categorical exclusion requirements for mobile transmitters, the requirements described in the following section must be met. 2.8.2 Antenna Installation The antenna installation must provide a minimum separation distance of 20 cm from users and nearby persons, and must not be co-located or operating in conjunction with any other antenna or transmitter. The conducted output power and combined cable loss and antenna gain must not exceed 1.5 W ERP (Cellular) and 3.0 W ERP (PCS) to qualify for the rf exposure categorical exclusion requirements of 2.1091. Additionally, the 1900 MHz (PCS) 24.232(b) radiated power limit is 2 Watts EIRP. OEM installers must be provided with antenna installation instruction and transmitter operating conditions for satisfying RF exposure compliance. Maximum Antenna System Gain 800 MHz (Cellular) 1900 MHz (PCS) FCC ID: IHDT56DB1 (800 MHz PC5) 12.6 dBi 3.9 dBi FCC ID: IHDT56DB2 (800 MHz PC4 2W) 7.9 dBi 3.4 dBi 1.5 APPLICABLE DOCUMENTS g20 Cellular Engine Module Description: 9808901C66-H g20 AT Commands: 9808901C68-G 1.6 TRADEMARKS MOTOROLA and the Stylized M Logo are registered in the U.S. Patent and Trademark Office. All other product and service names are the property of their respective owners. © Motorola, Inc. 2005

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DB1 SPECIFICATION COMPLIANCE STATEMENT Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission The transceiver of type IHDT56DB1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. Reuven Konevky Engineering HW Manager OEM embedded modules Design Center Efi Rushinek Engineering Manager OEM embedded modules Design Center 1 Exhibit 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DB1 2 Exhibit 2 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duty certified. SIGNATURE: (signed) Reuven Konevky NAME: Reuven Konevky DATE: 04/09/03 POSITION: Engineering HW Manager I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: SIGNATURE: (signed) Efi Rushinek NAME: Efi Rushinek DATE: 04/09/03 POSITION: Engineering Manager

APPLICANT: MOTOROLA FCC ID: IHDT56BD1 May 8, 2003 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56BD1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment is an OEM module (similar to FCC ID: IHDT6AC1 & IHDT56CW1), and can transfer data or voice over cellular and PCS networks. It has the capability to operate in 850 MHz & 1900 MHz GSM bands. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

TCB GRANT OF EQUIPMENT AUTHORIZATION TCB Certification Issued Under the Authority of the Federal Communications Commission By: PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 Date of Grant: 11/30/2005 Application Dated: 11/30/2005 Motorola Inc Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Attention: Andrew Bachler , FCC Liaison NOT TRANSFERABLE EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. FCC IDENTIFIER: IHDT56DB1 Name of Grantee: Motorola Inc Equipment Class: PCS Licensed Transmitter Notes:Mobile Cellular/ PCS GSM Transceiver Module Grant Notes FCC Rule Parts Frequency Range (MHZ) Output Watts Frequency Tolerance Emission Designator 22H824.2 - 848.80.63300.0 Hz250KGXW 24E1850.2 - 1909.80.8070.1 PM250KGXW Class II Permissive Change. Output power listed is conducted. The antenna installation must provide a minimum separation distance of 20 cm from users and nearby persons and must not be co-located or operate in conjunction with any other antenna or transmitter. The combined cable loss and antenna gain must not exceed +14.9 dBi and total system output must not exceed 1.5 W ERP in the Cellular band to qualify for the categorical exclusion of 2.1091. The combined cable loss and antenna gain must not exceed +3.92 dBi and total system output must not exceed 2.0 W EIRP in the PCS band in order to comply with the EIRP limit of 24.232(b). OEM installers must be provided with antenna installation instruction and transmitter operating conditions for satisfying RF exposure compliance. Use with co-located transmitters is limited to the handheld terminal FCC ID:AZ489FT7010, as specified in this filing. This device contains 900 MHz GSM and 1800 MHz DCS functions that are not operational in U.S. territories. This filing is only applicable for 835/1900 MHz GSM operations.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56DB1 Equipment ID Label Location Front View Rear View 1 EXHIBIT 3

APPLICANT: MOTOROLA INC. FCC ID: IHDT56DB1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56DB1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

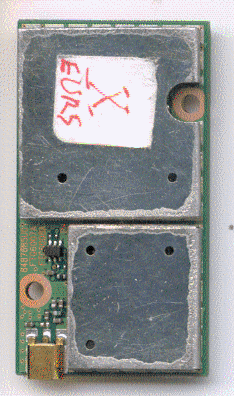

APPLICANT: MOTOROLA INC. FCC ID: IHDT56DB1 Front View (Shields Removed) Rear View (Shields Removed) 1 EXHIBIT 9 APPLICANT: MOTOROLA INC. FCC ID: IHDT56DB1 2 EXHIBIT 9 Front View (With Shield) Rear View (With Shield)

APPLICANT: MOTOROLA INC FCC ID: IHDT56DB1 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. EXHIBIT 10 1 APPLICANT: MOTOROLA INC FCC ID: IHDT56DB1 PART LIST Reference Symbol Part Number Description C120 2113743N03 CAP-1pF C121 2113743N16 CAP-3.9pF C122 2113743N16 CAP-3.9pF C130 2113743N03 CAP-1pF C131 2113743N38 CAP-33.p C132 2113743N38 CAP-33.p C133 2311049A76 CAPP-2.2u C134 2113928C04 CAP-4.7u C135 2113743N40 CAP-39.p C136 2113743N40 CAP-39.p C145 2113743L50 CAP-33.n C150 0809084T43 CAP-8200pF C151 2113743L13 CAP-680.p C152 2113743L05 CAP-330.p C153 2113743L11 CAP-560.p C154 2113743L21 CAP-1.5n C155 0809084T43 CAP-8200pF C156 2113743N24 CAP-8.2p C157 2113743N54 CAP-150.p C158 2113743N26 CAP-10.p C159 2113743N52 CAP-120.p C160 2113743N42 CAP-47.p C175 2113743N40 CAP-39.p C176 2113743L41 CAP-.01uF C177 2113743N40 CAP-39pF C178 2113928C03 CAP-1.0uF C179 2113743N40 CAP-39.p C301 2113743N40 CAP-39.p C302 2113743N40 CAP-39.p C309 2113743F18 CAP-2.2uF C314 2113743F18 CAP-2.2uF C330 2113743N26 CAP-10.p C331 2113743L17 CAP-1.n C333 2113743N40 CAP-39.p C334 2113743N40 CAP-39.p C600 2113928N01 CAP-100.n C701 2113743L41 CAP-.01uF C705 2113743L41 CAP-.01uF C801 2113928C03 CAP-1.0uF EXHIBIT 10 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56DB1 C802 2113928C03 CAP-1.0uF C803 2113928C03 CAP-1.0uF C804 2113928N01 CAP-100.n C805 2113928C03 CAP-1.0uF C806 2113743L41 CAP-.01uF C807 2113743L41 CAP-.01uF C808 2113928N01 CAP-100n C809 2113928N01 CAP-100n C810 2113928N01 CAP-100.n C811 2113928N01 CAP-100.n C812 2113928N01 CAP-100.n C813 2113928N01 CAP-100.n C814 2113928C04 CAP-4.7uF C815 2113743L41 CAP-.01uF C816 2113928N01 CAP-100.n C820 2113743N40 CAP-39.p C821 2113928N01 CAP-100n C822 2113928C12 CAP-10.u C823 2113743L41 CAP-.01uF C825 2113743M24 CAP-100.n C826 2113743M24 CAP-100.n C827 2113928C03 CAP-1.0uF C828 2113743L41 CAP-.01uF C900 2113743N30 CAP-15pF C901 2113743N30 CAP-15pF C904 2113928N01 CAP-100.n C905 2113743N41 CAP-43pF C906 2113743N41 CAP-43pF C907 2113928N01 CAP-100.n C908 2113928N01 CAP-100.n C909 2113928C04 CAP-4.7uF C910 2113928C04 CAP-4.7uF C915 2113928N01 CAP-100.n C916 2113928N01 CAP-0.1uF C917 2113928P04 CAP-1.0uF C919 2113743N40 CAP-39pF C920 2113743N40 CAP-39pF C921 2113928C04 CAP-4.7uF C922 2113928C04 CAP-4.7uF C924 2113743N40 CAP-39p C925 2113743N40 CAP-39p C926 2113743L21 CAP-1500pF C927 2113928N01 CAP-100.n EXHIBIT 10 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56DB1 C928 2113743N26 CAP-10.p C930 2113928A02 CAP-0.47u C931 2113928N01 CAP-100.n C932 2113928N01 CAP-100.n C933 2113928C04 CAP-4.7uF C934 2113928C04 CAP-4.7uF C935 2113743N26 CAP-10.p C936 2113928N01 CAP-100.n C938 2113928N01 CAP-100.n C943 2113928N01 CAP-100.n C944 2113743L21 CAP-1500pF C945 2113928C04 CAP-4.7uF C948 2113928C12 CAP-10uF C949 2113928C12 CAP-10uF C951 2113743M24 CAP-100n C953 2113928C03 CAP-1.0uF C956 2113743L41 CAP-10.n C957 2113743N40 CAP-39p C958 2113928N01 CAP-100.n C959 2113928N01 CAP-100.n C960 2113743N42 CAP-47.p C961 2113743N26 CAP-10.p C962 2113743N26 CAP-10.p C963 2113743L41 CAP-10.n C964 2113743N40 CAP-39.p C965 2113743N40 CAP-39.p C967 2113743N40 CAP-39.p C969 2113743N40 CAP-39.p C970 2113743N40 CAP-39.p C971 2113743N40 CAP-39.p C972 2113743N40 CAP-39.p C974 2113743N24 CAP-8.2p C975 2113743N24 CAP-8.2p C976 2113743N24 CAP-8.2p C977 2113743N40 CAP-39.p C978 2113743N40 CAP-39.p FL130 9109474K02 74K02 L121 2409154M40 IDCTR-22.0nH L131 2409154M40 IDCTR-22.0nH L132 2409154M42 IDCTR-33n L133 2409154M42 IDCTR-33n L151 2409154M36 IDCTR-10.0nH L152 2489970L37 IDCTR-270nH EXHIBIT 10 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56DB1 L947 2113743Q07 CAP-1.5p L948 2409154M20 IDCTR-39n Q1 4809939C05 UMC5NTL Q2 4809939C05 UMC5NTL Q3 4809579A42 HN1K02 R150 0662057M70 RES-680. R151 0662057M78 RES-1.5K R152 0662057M66 RES-470. R153 0662057M50 RES-100. R154 0662057M64 RES-390. R155 0662057N19 RES-68.K R301 0662057M65 RES-430.0 R302 0662057M01 RES-0. R303 0662057M65 RES-430.0 R304 0662057M65 RES-430.0 R305 0662057M01 RES-0. R306 0662057M65 RES-430.0 R310 0687578N09 THERM-470 R311 0662057M81 RES-2.K R312 0662057M01 RES-0. R313 0662057M72 RES-820. R601 0662057M78 RES-1.5K R602 0662057U39 RES-33. R605 0662057U39 RES-33. R701 0662057M01 RES-0 R702 0662057M01 RES-0 R707 0662057M01 RES-0 R710 0662057N15 RES-47K R711 0662057M01 RES-0 R712 0662057M01 RES-0 R800 0662057M92 RES-5.6K R801 0662057M92 RES-5.6K R803 0662057M01 RES-0. R805 0662057M98 RES-10K R806 0662057M92 RES-5.6K R810 0662057M74 RES-1.K R903 0662057W13 RES-3.3 R904 0662057M57 RES-200. R906 0662057N31 RES-220.K R911 0662057M90 RES-4.7K R912 0662057N33 RES-270.K R916 0662057M90 RES-4.7K R917 0662057N01 RES-12.K EXHIBIT 10 5 APPLICANT: MOTOROLA INC FCC ID: IHDT56DB1 EXHIBIT 10 6 R919 0662057M01 RES-0. R922 0662057M01 RES-0. R924 0662057M90 RES-4.7K R927 0662057N15 RES-47K R928 0662057M98 RES-10K R939 0662057N15 RES-47K R940 0662057N15 RES-47.K R941 0662057N15 RES-47.K R944 0662057N10 RES-30K R949 0662057N15 RES-47.K R963 0662057N47 RES-1MEG R964 0662057M92 RES-5.6K R965 2113743Q07 CAP-1.5p R967 0662057M01 RES-0. R969 0662057M01 RES-0. R972 0662057M01 RES-0 R973 0662057M01 RES-0. R975 0662057N23 RES-100.K R976 0662057M01 RES-0. R982 0662057M01 RES-0. R983 0662057M01 RES-0. RT900 0685660C01 RES-47.K SH1 2687523V06 SHIELD SH2 2687523V04 SHIELD SH3 2687523V03 SHIELD SH4 2687523V01 SHIELD U150 5109923D60 VLC40_49PIN U300 5189227L01 27L01 U600 5187970L15 ISP1104 U701 5199491A01 28F640W18 U705 5109509A43 K6F8016U6A U901 5186311J23 NC7SZ126L6X U902 4889526L03 FLTR U903 5186311J23 NC7SZ126L6X U904 5186311J23 NC7SZ126L6X U905 5186311J23 NC7SZ126L6X U906 2409154M42 IDCTR-33n VR1 4886182U05 UMZ6.8EN Y900 4809995L08 95L08 Y901 4809612J43 XTAL

May 15, 2003 SAR Test Report for Motorola Mobile Cellular Phone FCC ID IHDT56DB1. Prepared by: Steven Hauswirth, Principal Staff Engineer Motorola Personal Communications Sector Product Safety & Compliance Laboratory Libertyville, Illinois The Motorola Personal Communications Sector Product Safety & Compliance Laboratory has evaluated the mobile cellular phone, FCC ID IHDT56DB1, for the need to conduct SAR evaluation. Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because Motorola neither manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons.” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Motorola has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 centimeters from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Table 1 (B) of 47 CFR §1.1310 lists the limits for MPE for the General Population. Since the mobile cellular phone operates in the 800MHz cellular band and 1900MHz PCS band, the listed limit of f/1500 applies. The lowest transmit frequency for this product is 824.04 MHz, resulting in a MPE limit of 0.549 mW/cm 2 . Since Motorola neither manufactures or supplies the antenna(s) that will be used in the installation of this product, it is not possible to measure the MPE of the actual device as it is installed per the installation manual. Therefore a calculation of MPE will be described in the next paragraph. The MPE of a radiating structure can be calculated by knowing the transmit EIRP and the distance at which MPE is being calculated. In this case MPE will be calculated at 20 cm, which is the minimum separation between the body of the user and nearby persons and the antenna. The maximum sourced based t…
