IHDT56DJ1Portable Cellular/ PCS Transceiver (AMPS/CDMA)

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DJ1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 P R E L IMI N A RY Welcome Earpiece USB Connector Insert data cable. Right Soft Key Perform functions identified by right display prompt. Menu Key Open a menu when G appears. Power/End Key Press & hold to turn phone on & off. Press & release to end phone calls, exit menu. Send/Answer Key Make and answer calls; press in idle to see recent dialed calls. Navigation Key Scroll through lists, set volume. Left Soft Key Perform functions identified by left display prompt. Microphone Headset ConnectorPower Connector Insert charger. You can change your C340 Series phone’s covers and keypads (see “Changing Your Phone’s Cover” on page 18). Your phone may not appear exactly as the phone image above. All key locations, sequences and functions remain the same with any of the various covers. 2 P R E L IMI N A R Y Motorola, Inc., Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. TrueSync, Starfish, and the Stylized Starfish Logo are registered trademarks of Starfish Software, Inc., a wholly owned subsidiary of Pumatech, Inc. © Motorola, Inc. 2002. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: TBD Cover number:8988485L61-O 3 P R E L IMI N A RY Menu Map Main Menu This is the standard main menu layout. Menu organization and feature names may vary on your phone. Not all features may be available for all users. zRecent Calls • Received Calls • Dialed Calls • Notepad • Call Times àPhonebook gDatebook UMessages •Voicemail • Create Message •Inbox • Outbox • Quick Notes •Drafts • Message Settings • Cleanup Messages sRing Styles :Shortcuts /Settings (see next page) ZGetItNow • Get It Now Shop èBrowser •Home • Go To URL •Mark Site • Reload • About Openwave •Advanced >More aCalculator vPicture Viewer Shortcuts Change display zoom: Press M, then press and hold M Change ringer alert: Press S down to switch to silent alert. Press up to reset to ring alert. Display my phone number: Press M# Display dialed calls list: Press N Exit menu system: Press O 4 P R E L IMI N A R Y Settings Menu •Ring Styles •Style •Style Detail • My Tones • Phone Status •My Tel. Numbers • Active Line • Battery Meter • Other Information •Browser Setup • Connection • Incoming Call • In-Call Setup • In-Call Timer • Answer Options • Security • Phone Lock • Lock Keypad • Lock Application • Restrict Calls •New Passwords • Location • Other Settings • Personalize •Main Menu •Keys • Color Style •Greeting • Wallpaper • Screen Saver • Banner • Initial Setup • Time and Date • Auto PIN Dial • Auto Redial • Backlight •Zoom • TTY Setup •Scroll • Animation • Language • Contrast •DTMF •Master Reset • Master Clear •Network • Current Network •Set Mode •Srvc Status • Service Tone • Call Drop Tone • Car Settings • Auto Answer • Auto Handsfree • Power-Off Delay •Charger Time • Headset 5 Contents Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 What’s in the Box?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 About this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Changing Your Phone’s Cover. . . . . . . . . . . . . . . . . . . . 18 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . 21 Adjusting the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 22 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 23 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Using the 4-Way Navigation Key . . . . . . . . . . . . . . . . . . 25 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Locking and Unlocking Your Phone. . . . . . . . . . . . . . . . 37 Changing a Code or Password . . . . . . . . . . . . . . . . . . . 39 If You Forget a Code or Password . . . . . . . . . . . . . . . . . 39 Locking and Unlocking the Keypad . . . . . . . . . . . . . . . . 40 Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . 41 Storing Your Name and Phone Number . . . . . . . . . . . . 41…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT56DJ1 ATTESTATION STATEMENTS Transceiver type IHDT56DJ1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 North U.S. Highway 45, Libertyville, IL NAME: Tom Daniel TITLE: ENGINEERING MANAGER, PERSONAL COMMUNICAITONS SECTOR Page 1 of 2 EXHIBIT 2 APPLICANT MOTOROLA INC. FCC ID: IHDT56DJ1 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56DD1) is in compliance with all applicable parts of the FCC Rules. NAME: ROD WHALEY TITLE: PRINCIPAL STAFF ENG. PCS Development Date: 7/31/03 Page 2 of 2 EXHIBIT 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DJ1 911 Call Processing Method Compliance Statement Method Used Pursuant to 47 CFR Sec. 22.921, this Motorola CDMA phone at the time of commercial distribution will use a call completion method for 911 calls that is approved or endorsed by the FCC. At this time Motorola intends that this phone will incorporate either the Automatic A/B- Intelligent Retry method or the Automatic A/B-Intelligent Retry, Version 2 method for providing 911 emergency calling support. Exhibit 2b APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DJ1 Exhibit 2c INFORMATION REGARDING ELECTRONIC SERIAL NUMBER (ESN) PROTECTION This cellular transceiver uses a microprocessor to control its call processing operation. This microprocessor accesses a programmable memory area, which is used to store an encrypted data block that contains the Electronic Serial Number (ESN). A proprietary scheme is used to create this data block whereby it is encrypted using methods similarto known public key cryptography methods. It is emphasized that the method used is similar to but different from these known methods and the actual method used is kept proprietary to provide the essential security for the ESN. Also, the transceiver will not operate unless the microprocessor is able to decrypt this data block correctly. Access is controlled to both the method of encryption and to the production/repair equipment that has the ability to program the encrypted data block.

Date: August 22, 2003 Subject: Request for additional information (FCC ID: IHDT56DJ1) Reference: Applicant Received: 8/8/2003 Correspondence Reference Number: 230822.IHD Confirmation Number: TC3198 Date of Original Email: 8/22/2003 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois 1. Please provide the following missing Exhibit’s: a) Exhibit 3 – External Photos b) Exhibit 5 – Schematics c) Exhibit 9 – Internal Photos Response: The exhibits listed above are resubmitted on 8-22-03. 1

APPLICANT: MOTOROLA FCC ID: IHDT56DJ1 August 8, 2003 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56DJ1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the conventional Analog Cellular standard in the 800 MHz cellular band, and the Digital CDMA standard in both the 800 MHz and the PCS bands, as outlined in EIA/TIA IS-95-A "Mobile Station – Base Station Compatibility Standard for Dual- Mode Wideband Spread Spectrum Cellular System”. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in Section 22.933 of the Commission's rules) related to Type Acceptance of this equipment, as noted in paragraphs 31 and 32 of the Report and Order in FCC GEN. Docket No. 87-390, are detailed in Exhibit 12. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

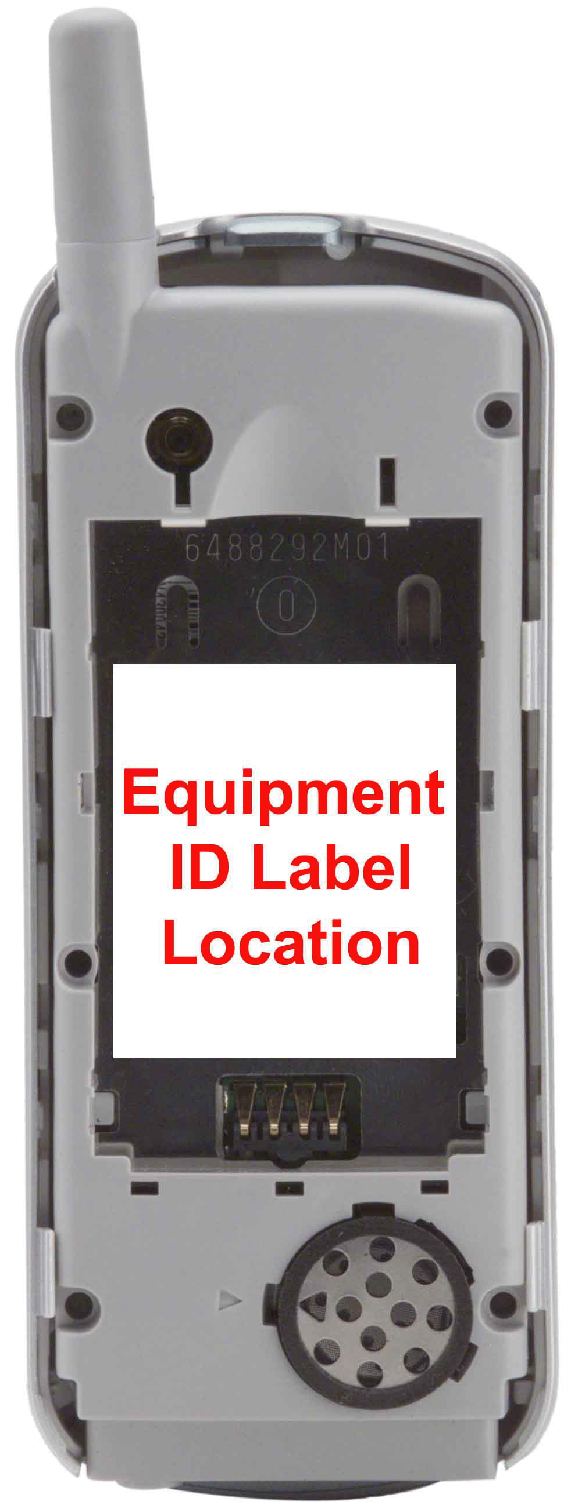

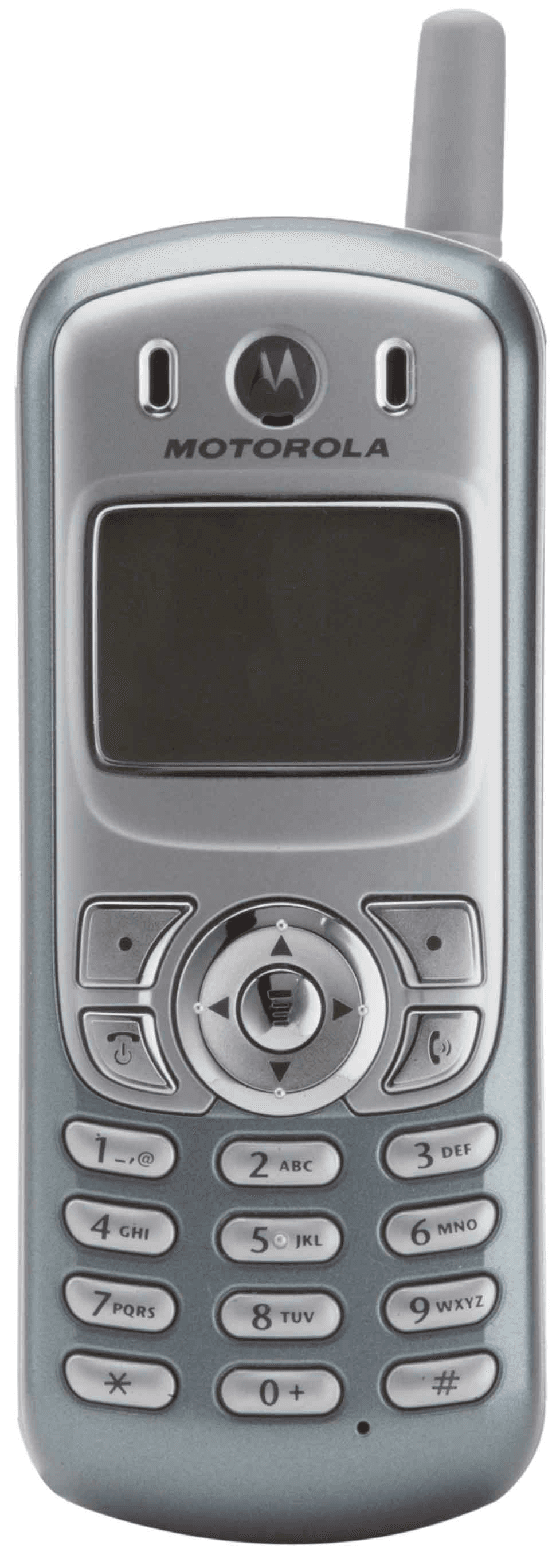

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DJ1 EXHIBIT 3 Front View Rear View, with Battery Removed to Show Equipment ID Label

APPLICANT: MOTOROLA INC. FCC ID: IHDT56DJ1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION IHDT56DJ1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA INC. FCC ID: IHDT56DJ1 FRONT VIEW (WITH SHIELDS) REAR VIEW (WITH SHIELDS) MAINBOARD MAINBOARD Exhibit 9 1 APPLICANT: MOTOROLA INC. FCC ID: IHDT56DJ1 FRONT VIEW (WITH SHIELDS REMOVED) REAR VIEW (WITH SHIELDS REMOVED) MAINBOARD MAINBOARD Exhibit 9 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56DJ1 FRONT VIEW KEYBOARD REAR VIEW KEYBOARD Exhibit 9 3 APPLICANT: MOTOROLA INC. FCC ID: IHDT56DJ1 REAR ENDO HOUSING FRONT VIEW FRONT ENDO HOUSING FRONT VIEW Exhibit 9 4 APPLICANT: MOTOROLA INC. FCC ID: IHDT56DJ1 FRONT HOUSING FRONT VIEW KEYPAD REAR HOUSING FRONT VIEW Exhibit 9 5

Applicant: Motorola, Inc. FCC ID: IHDT56DJ1 Transceiver Adjustments/Tune-Up Procedure There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. Exhibit 10 1 Applicant: Motorola, Inc. FCC ID: IHDT56DJ1 Parts List Reference Symbol Part Number Description C100 21-13743L17 1000pF C1000 21-13928N01 0.1uF C1001 21-13743L41 .01uF C1002 21-13928N01 0.1uF C1003 21-13743L41 .01uF C1004 21-13928N01 0.1uF C1005 21-13743L41 .01uF C1008 21-13928N01 0.1uF C101 21-13743L17 1000pF C102 21-13743L17 1000pF C1031DNP 21-13743N40 39pF C1034DNP 21-13743N40 39pF C1060 21-13928N01 0.1uF C1061 21-13928N01 0.1uF C112 21-13743L41 .01uF C1124 21-13743N40 39pF C113 21-13743N03 1pF C114 21-13743N12 2.7pF C115 21-13743N40 39pF C117 21-13743L41 .01uF C119 21-13743N40 39pF C120 21-13743L41 .01uF C1200 21-13743L41 .01uF C1201 21-13743L33 4700pF C121 21-13743N40 39pF C122 21-13743N10 2.2pF C124 21-13743L41 .01uF C125 21-13743N07 1.5pF C131 21-13743N03 1pF C134 21-13743N10 2.2pF C135 21-13743L41 .01uF C136 21-13743N50 100pF C137 21-13743L41 .01uF C140 21-13743N07 1.5pF C1403 21-13743L41 .01uF C150 21-13743N44 56pF C1500 21-13743L41 .01uF C1501 21-13743L33 4700pF C2000 21-13928N01 0.1uF C2001 21-13928N01 0.1uF C2002 21-13928N01 0.1uF C2003 21-13928N01 0.1uF C2005 21-13928N01 0.1uF C2006 21-13928N01 0.1uF C201 21-13928P04 1.0uF C202 21-13743L41 .01uF Exhibit 10 2 Applicant: Motorola, Inc. FCC ID: IHDT56DJ1 C203 21-13928N01 0.1uF C204 21-13743N50 100pF C206 21-13743L41 .01uF C207 21-13928N01 0.1uF C208 21-13743N50 100pF C209 21-13928N01 0.1uF C210 21-13743L17 1000pF C211 21-13743L17 1000pF C212 21-13743L17 1000pF C219dnp 21-13928N01 0.1uF C220 21-13743L17 1000pF C223 21-13928N01 0.1uF C224 21-13743L17 1000pF C225 21-13743L17 1000pF C226 21-13743L17 1000pF C227 21-13743N50 100pF C230 21-13743L41 .01uF C231 21-13928N01 0.1uF C232 21-13743N16 3.9pF C233 21-13743N50 100pF C234 21-13743N50 100pF C250DNP 21-13743N60 5pF C253 21-13743L17 1000pF C254 21-13743N01 0.5pF C255DNP 21-13743N01 0.5pF C270 21-13743L17 1000pF C271 21-13743N19 5.1pF C272 21-13743N50 100pF C273 21-13743N36 27pF C274 21-13743N36 27pF C280 21-13743L17 1000pF C281 21-13743L17 1000pF C290 21-13743N07 1.5pF C291 21-13743N50 100pF C292 21-13743L17 1000pF C293 21-13743L17 1000pF C294 21-13743N26 10pF C295 21-13743N10 2.2pF C296 21-13743N18 4.7pF C297 21-13743L17 1000pF C300 23-11049A69 10.0uF C3000 21-13743N26 10pF C3001 21-13743N26 10pF C3002 21-13743L41 .01uF C3003 21-13928P04 1.0uF C3004 21-13743L41 .01uF C3005 21-13743L41 .01uF C3006 21-13743L41 .01uF Exhibit 10 3 Applicant: Motorola, Inc. FCC ID: IHDT56DJ1 C3007 21-13743L41 .01uF C3008 21-13743L41 .01uF C3009 21-13743L41 .01uF C301 21-13743N50 100pF C3010 21-13928C04 4.7uF C3014 21-13743L17 1000pF C3015 21-13743N40 39pF C3016 21-13928C04 4.7uF C302 21-13928N01 0.1uF C303 21-13743L41 .01uF C304 21-13743L17 1000pF C305 21-13743N40 39pF C306 21-13928C04 4.7uF C308 21-13743L17 1000pF C3100 21-13928P04 1.0uF C312 21-13743L33 4700pF C313 21-13743N50 100pF C314 21-13743L33 4700pF C315 21-13743N26 10pF C3150 21-13928E03 2.2uF C316dnp 21-13743N26 10pF C3200 21-13928C04 4.7uF C3250 21-13928C04 4.7uF C3300 21-13928E03 2.2uF C3350 21-13928C04 4.7uF C3400 21-13928P04 1.0uF C3450 21-13743A24 0.33uF C3802 21-13743A31 1uF C3803 21-13928C12 10uF C3804 21-13928C12 10uF C3820 21-13947B05 33pF C400 21-13743N22 6.8pF C401 21-13743N38 33pF C402 21-13928C04 4.7uF C4102 21-13947H01 0.1uF C4110 21-13928N01 0.1uF C4111 21-13743L03 270pF C4112 21-13928N01 0.1uF C4113 21-13743L03 270pF C412 21-13743N30 15pF C420 21-13928C04 4.7uF C4200 21-13743N40 39pF C421 21-13743Q22 6.8pF C422 06-62057M01 0 C423 21-13743L41 .01uF C430 21-13743L41 .01uF C4301 21-13928C12 10uF C4302 21-13947H01 0.1uF Exhibit 10 4 Applicant: Motorola, Inc. FCC ID: IHDT56DJ1 C431 21-13743N28 12pF C4312 23-11049A89 22uF C4320 21-13928P04 1.0uF C440 21-13743N40 39pF C4400 21-13928N01 0.1uF C4401 21-13928N01 0.1uF C4402 21-13928N01 0.1uF C4403 21-13928N01 0.1uF C4430 21-13928P04 1.0uF C4431 21-13743N40 39pF C490 21-13928N01 0.1uF C491 21-13743L29 3300pF C492 21-13743N28 12pF C500 21-13743N50 100pF C5000 21-13928N01 0.1uF C5001 21-13928N01 0.1uF C5002 21-13743N40 39pF C501 21-13928N01 0.1uF C502 21-13743N40 39pF C503 21-13743L29 3300pF C504 21-13743N50 100pF C505 21-13743L01 220pF C506 21-13743L01 220pF C507 21-13743L17 1000pF C508 21-13743N40 39pF C509 21-13743N50 100pF C50dnp 21-13743N10 2.2pF C51 21-13743N12 2.7pF C510 21-13743N65 8pF C5100 21-13947H01 0.1uF C511 21-13743N60 5pF C513 21-13743N50 100pF C516 21-13743N32 18pF C517 21-13743N32 18pF C518 21-13743N03 1pF C519 21-13743L21 1500pF C52 21-13743L41 .01uF C520 21-13743L05 330pF C5200dnp 21-13743L17 1000pF C521 21-13928N01 0.1uF C522 21-13743L17 1000pF C524 21-13743L17 1000pF C53 21-13743L41 .01uF C530 21-13743N44 56pF C5300 21-13928N01 0.1uF C5301 21-13928C04 4.7uF C531 21-13743N50 100pF C532 21-13743N65 8pF Exhibit 10 5 Applicant: Motorola, Inc. FCC ID: IHDT56DJ1 C54 21-13743N40 39pF C550 21-13743N50 100pF C590 21-13928C04 4.7uF C604 21-13743N40 39pF C620 21-13743L41 .01uF C621 21-13743L41 .01uF C630 21-13743N40 39pF C631 21-13743N40 39pF C650 21-13928C04 4.7uF C6509 21-13743N40 39pF C651 21-13743N50 100pF C6510 21-13743N40 39pF C6512 21-13743N40 39pF C6515 21-13743N40 39pF C6516 21-13743N40 39pF C6518 21-13743N40 39pF C6519 21-13743N40 39pF C652 21-13743L41 .01uF C6520 21-13743N40 39pF C6521 21-13743N40 39pF C6522 21-13743N40 39pF C6523 21-13743N40 39pF C6524 21-13743N40 39pF C6526 21-13743N40 39pF C653 21-13743L41 .01uF C654 21-13928P04 1.0uF C7002 21-13928N01 0.1uF C7003 21-13928N01 0.1uF C7004 21-13928P04 1.0uF C7005 21-13743L01 220pF C7006DNP 21-13928C04 4.7uF C7007 21-13743L17 1000pF C7008 21-13743L17 1000pF C7009 21-13743L17 1000pF C7012 21-13743L17 1000pF…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DJ1 E E x x h h i i b b i i t t 1 1 1 1 Exhibit 11: SAR Test Report IHDT56DJ1 Date of test: Date of Report: 18-24, July, 2003 31 July, 2003 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Steven Hauswirth Principal Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56DJ1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DJ1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 4 5) System Accuracy Verification 5 6) Test Results 5 6.1 Head Adjacent Test Results 6 6.2 Body-Worn Test Results 9 References: Appendix 1: SAR distribution comparison for the system accuracy verification 12 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 13 Appendix 3: SAR distribution plots for Body Worn Configuration 16 Appendix 4. Probe Calibration Certificate 18 Appendix 5. Dipole Characterization Certificate 19 Appendix 6: Measurement Uncertainty Budget 20 Appendix 7. Photographs of the device under test 23 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DJ1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56DJ1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type Stubby Location Right Side Length 17mm Dimensions Width 6mm Configuration Stubby Device description FCC ID Number IHDT56DJ1 Serial number 42CCFE68 & 42CD03C0 Mode(s) of Operation AMPS800 CDMA800 CDMA1900 Modulation Mode(s) AMPS CDMA CDMA Maximum Output Power Setting 27.80 dBm 25.00 dBm 25.00 dBm Duty Cycle 1:1 1:1 1:1 Transmitting Frequency Rang(s) 824-849MHz 824-849MHz 1851-1909MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall RSS uncertainty of the measurement system is ±11.7% (K=1) with an expanded uncertainty of ±23.0% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4 W/kg to 10 W/kg. The list of calibrated equipment used for the measurements is shown below. Description Serial Number Cal Due Date DASY3 DAE V1 SN437 18-Mar-04 E-Field Probe ET3DV6R SN1501 16-Apr-03 Dipole Validation Kit, D900V2 SN079 24-Jun-04 S.A.M. Phantom used for 800MHz TP-1132 Dipole Validation Kit, D1800V2 SN246TR 24-Jun-04 S.A.M. Phantom used for 1900MHz TP-1160 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DJ1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04633 11-Oct-04 Power Meter E4419B US37360825 21-Apr-04 Power Sensor #1 - 8481A US337296475 05-Nov-03 Power Sensor #2 - 8481A US3318A25036 05-Nov-03 Network Analyzer HP8753ES US39172529 18-Jun-04 Dielectric Probe Kit HP85070B US33020235 4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with the HP85070 Dielectric Probe Kit These values, along with the temperature of the tissue simulate are shown in the table below. The recommended limits for maximum permittivity and minimum conductivity are also shown. These come from the Federal Communication Commission, OET Bulletin 65 Supplement C 01-01. It is seen that the measured parameters are satisfacto…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56DJ1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 11484-1 Report Date – August 11, 2003 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date : _ 2003-08-11____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. EXHIBIT 6 A2LA Certificate Number: 1846-01 APPLICANT: MOTOROLA INC FCC ID: IHDT56DJ1 Table of Contents Description Page Test Report Details 4 Applicable Standards 4 Summary of Testing 5 General and Special Conditions 5 Equipment and Cable Configurations 6 Measuring Equipment and Calibration Information 6 Measurement Procedures and Data RF Power Output 7 Radiated Power (ERP) 8 Occupied Bandwidth 10 800 AMPS Occupied Band Plot 10 800 AMPS Signal 11 800 AMPS Unmodulated 11 800 AMPS Voice 12 800 AMPS Wide Band Data 12 800 AMPS A*(Lower) Min. Block Edge 13 800 AMPS A*(Lower) Max/A Min. Block Edge 13 800 AMPS A Max/B Min. Block Edge 14 800 AMPS B Max/A*(Upper) Min. Block Edge 14 800 AMPS B* Min./ A*(Upper) Max Block Edge 15 800 AMPS B* Max Block Edge 15 800 CDMA Reference Plot 16 800 CDMA Bandwidth Plot 16 800 CDMA Lower Band Edge 17 800 CDMA Upper Band Edge 17 1900 CDMA Occupied Band 18 1900 CDMA Reference Plot 18 1900 CDMA Lower Band Edge 19 1900 CDMA Upper Band Edge 19 1900 CDMA A Min. Block Edge 20 1900 CDMA A Max. Block Edge 20 1900 CDMA B Min. Block Edge 21 1900 CDMA B Max. Block Edge 21 1900 CDMA C Max. Block Edge 22 1900 CDMA C1 Min. Block Edge 22 1900 CDMA C2 Max. Block Edge 23 1900 CDMA C3 Max Block Edge 23 1900 CDMA C4 Min. Block Edge 24 1900 CDMA C4 Max Block Edge 24 1900 CDMA C5 Min. Block Edge 25 Test Report Number: 11484-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56DJ1 1900 CDMA C, C2, C3 Min. Block Edge 25 1900 CDMA D Min. Block Edge 26 1900 CDMA D Max Block Edge 26 1900 CDMA E Min. Block Edge 27 1900 CDMA E Max. Block Edge 27 1900 CDMA F Min. Block Edge 28 1900 CDMA F Max. Block Edge 28 Spurious Emissions at Antenna Terminals 29 AMPS Tabular and Graphical Data 30 CDMA 800 Tabular and Graphical Data 31 CDMA 1900 Tabular and Graphical Data 32 Field Strength of Spurious Emissions 33 AMPS Tabular and Graphical Data 34 CDMA 800 Tabular and Graphical Data 35 CDMA 1900 Tabular and Graphical Data 36 Frequency Stability 37 AMPS Tabular and Graphical Data 38 CDMA 800 Tabular and Graphical Data 39 CDMA 1900 Tabular and Graphical Data 40 Field Strength of Spurious Emissions From Unintentional Radiators 41 AMPS Tabular and Graphical Data 42 CDMA 800 Tabular and Graphical Data 43 CDMA 1900 Tabular and Graphical Data 44 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 45 Figure A.2 – Substitution Measurement 45 Test Report Number: 11484-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56DJ1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: AMPS, 800 CDMA, 1900 CDMA Model Number: Serial Numbers: Testing Complete Date: August 3, 2003 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 11484-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56DJ1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 11.8 dB 6 Field Strength of Spurious Emissions 9.1dB 7 Frequency Stability 142 Hz 8 Field Strength of Spurious Emissions 5.2 dB from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which …

Text truncated - open the document above for the full version.
