IHDT56DK1Portable Cellular/PCS GSM Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DK1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: DIGITAL WIRELESS TELEPHONE User's Guide > 1 Welcome Earpiece Internal Antenna USB Connector Insert data cable. Right Soft Key Perform functions identified by right display prompt. Menu Key Open a menu when G is in the display. Power/End Key Press & hold to turn phone on & off. Press & release to end phone calls, exit menu system. Send/Answer Key Make and answer calls; press in idle to list recently dialed calls. Navigation Keys S Scroll through lists, set volume. Left Soft Key Perform functions identified by left display prompt. Microphone Headset Connector Power Connector Insert charger. You can change covers and keypads on your C350 Series phone (see page 19). Your phone may not appear exactly as the phone image above. Note that all key locations, sequences, and functions remain the same with any of the covers. 2 Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. Acrobat and Acrobat Reader are registered trademarks of Adobe Systems Incorporated. © Motorola, Inc. 2003 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number:6809459A20-O Cover number:8988485L61-O 3 Menu Map Main Menu mVoice Dial zRecent Calls • Received Calls • Dialed Calls • Notepad • Call Times • Call Cost •Data Times •Data Volumes oChat * vMedia Center •Theme •My Tones • MotoMixer •Picture Viewer wRing Styles •Alert •alert Detail •My Tones êWebAccess •Web Browser • Bookmarks • Stored Pages •History • Go to URL • Browser Setup -Games èBrowser * qAIM 6Office Tools • Datebook •Calculator More> ã Settings • (see next page) rPhonebook dWeb Sessions * :MyMenu UMessages * • Create Message •Voicemail •Text Msgs • Browser Msgs • Info Services • Quick Notes • Outbox •Drafts 7SIM Applications * QFixed Dial 9Service Dial * RQuick Dial Note: Select More when it appears in the menu to see additional menu items. This is the standard phone menu layout. Menu organization and feature names may vary on your phone. Not all features may be available for all users. *optional network, SIM card, or subscription-dependent features 4 Settings Menu Call Forward * • Voice Calls •Fax Calls • Data Calls • Cancel All • Forward Status Phone Status •My Tel. Numbers* • Credit Info/Available* • Active Line • Battery Meter • Other Information In-Call Setup • In-Call Timer • Call Cost Setup* • My Caller ID • Talk and Fax* • Answer Options • Call Waiting* Security • Phone Lock • Lock Keypad • Lock Application • Fixed Dial • Call Barring* • SIM PIN •New Passwords Other Settings • Personalize •Main Menu •Keys • Color Style •Greeting * • Wallpaper • Screen Saver •Quick Dial* • Initial Setup • Time and Date • 1-Touch Dial • Backlight •Zoom • TTY Setup •Scroll • Animation • Language • Battery Save • Contrast •DTMF •Master Reset • Master Clear •Network •New Network • Network Setup • Available Networks • My Network List • Service Tone • Call Drop Tone • Car Settings • Headset Shortcuts Open Phonebook: Press S d or e in idle Set Ring Volume: Press S b or c in idle Display My Number: Press M# in idle Change Display Zoom: Press M, then hold M Lock Keypad: Press M* Note: This is the standard phone menu layout. Menu organization and feature names may vary on your phone. Not all features may be available for all users. *optional network, SIM card, or subscription-dependent features 5 Contents Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 What’s in the Box?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Changing Your SIM Card. . . . . . . . . . . . . . . . . . . . . . . . 17 Changing Your Phone’s Cover. . . . . . . . . . . . . . . . . . . . 19 Resetting Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . 22 Adjusting the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 24 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 26 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC FCC ID: IHDT56DK1 ATTESTATION STATEMENTS The transceiver of type IHDT56DK1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 North U.S. Highway 45, Libertyville, Illinois. I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. NAME: Darrell Pfeffer TITLE: DIRECTOR, ADVANCED SYSTEMS PERSONAL COMMUNICAITONS SECTOR Date: 6/19/03 The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56DK1) is in compliance with all applicable parts of the FCC Rules. The following is a statement of my qualifications: NAME: Stephen Lloyd TITLE: SENIOR STAFF ENG. PCS Development Date: 6/19/03 EXHIBIT 2

APPLICANT: MOTOROLA FCC ID: IHDT56DK1 June 12, 2003 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56DK1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in both the 850 MHz and 1900 MHz PCS bands. This equipment is essentially identical to FCC ID IHDT56CU1, except the power output on the 850 MHz band is increased (power class 4). Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: June 26, 2003 Subject: Request for additional information (FCC ID: IHDT56DK1) Reference: Logged-In Date: 6/12/2003 (EMC Report 6/20/03) Correspondence Reference Number: 230626.IHD Confirmation Number: TC3153 Date of Original Email: 6/26/2003 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Summary of request for additional information: 1) Please confirm the conversion factors used for Probe S/N: 1522. The calibration certificate shows CF 4.5/4.6 and the SAR test plots shows CF 4.7. Please note that the max. SAR values may change due to the different CF used. Response: An earlier certificate was submitted in error. Please refer to the attached certificate for probe SN: 1522 (submitted 6-26-03). 2) The calibration date shown on the certificate for Probe S/N: 1522 is April 25, 2002. The SAR tests were conducted in June 2003. Please amend accordingly. Response: An earlier certificate was submitted in error. Please refer to the attached certificate for probe SN: 1522 (submitted 6-26-03). 1

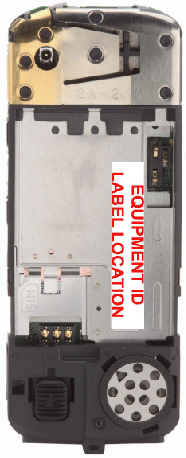

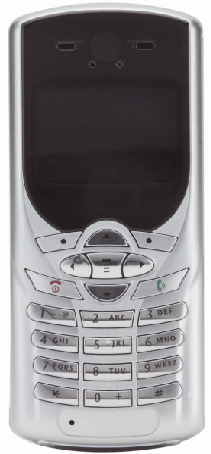

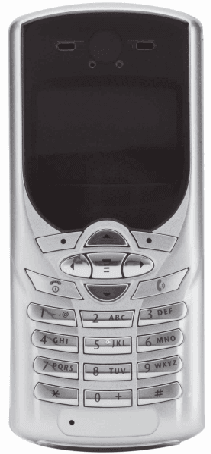

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DK1 EXHIBIT 3 Front View Premium Housing Rear View with Battery Removed to Show Equipment ID Label Front View "Metal" Housing

APPLICANT: MOTOROLA INC. FCC ID: IHDT56DK1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. IHDT56DK1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DK1 EXHIBIT 9 Internal Front View Premium Housing Rear View Internal Front View "Metal" Housing

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DK1 EXHIBIT 10 1 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DK1 EXHIBIT 10 2 Part NumberReference Designator Component Value 8486660P01PCBPCB,COMP,TA02 C370 COLOR 2113743N10C104CAP CHIP 2.2 PF +/-.25PF COG 2113743N16C121CAP CHIP 3.9 PF +/-.25PF COG 2113743N16C122CAP CHIP 3.9 PF +/-.25PF COG 2113947B05C131CAP DL ARRAY 33.0PF 50V 0504 2311049A76C133CAP TANT CHIP 2.2UF 10% 6V 2113928C04C134CAP CER CHIP 4.7UF 6.3V10%0805 2113743L50C145CAP CHIP 33000 PF 10% 0809084T42C150CAP,FILM,6800PF,,,50V-DC,,CHIP 2113743L13C151CAP CHIP 680 PF 10% X7R 2113743L07C152CAP CHIP 390 PF 10% X7R 2113743L11C153CAP CHIP 560 PF 10% X7R 2113743L19C154CAP CHIP 1200 PF 10% X7R 0809084T43C155CAP,FILM,8200PF,+5%,-5% 2113743N24C156CAP CHIP 8.2 PF +/-.5PF COG 2113743N54C157CAP CHIP 150 PF 5% COG 2113743N52C159CAP CHIP 120 PF 5% COG 2113743N42C160CAP CHIP 47.0 PF 5% COG 2113743N40C175CAP CHIP 39.0 PF 5% COG 2113743L41C176CAP CHIP 10000 PF 10% X7R 2113743N40C177CAP CHIP 39.0 PF 5% COG 2113928P04C178CAP,CER,1UF,,+20%,-20%,,0603 2113743N40C179CAP CHIP 39.0 PF 5% COG 2113743L41C2001CAP CHIP 10000 PF 10% X7R 2113743L41C2002CAP CHIP 10000 PF 10% X7R 2113743L41C2003CAP CHIP 10000 PF 10% X7R 2113743N40C301CAP CHIP 39.0 PF 5% COG 2113743N40C302CAP CHIP 39.0 PF 5% COG 2113743N42C303CAP CHIP 47.0 PF 5% COG 2113743F18C314CAP CHIP 2.2 UF 16V +80-20% 2113743N28C315CAP CHIP 12.0 PF 5% COG 2113743N40C330CAP CHIP 39.0 PF 5% COG 2113743N40C331CAP CHIP 39.0 PF 5% COG 2113743N40C332CAP CHIP 39.0 PF 5% COG 2113743N40C333CAP CHIP 39.0 PF 5% COG 2113743N40C334CAP CHIP 39.0 PF 5% COG 2113743N40C335CAP CHIP 39.0 PF 5% COG 2113928P04C401CAP,CER,1UF,,+20%,-20%,,0603 2113928P04C402CAP,CER,1UF,,+20%,-20%,,0603 2113928P04C403CAP,CER,1UF,,+20%,-20%,,0603 2113928P04C404CAP,CER,1UF,,+20%,-20%,,0603 2113743N40C502CAP CHIP 39.0 PF 5% COG APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DK1 EXHIBIT 10 3 2113743N40C505CAP CHIP 39.0 PF 5% COG 2113743N40C508CAP CHIP 39.0 PF 5% COG 2113928C03C602CAP CER CHIP 1.0 UF 6.3V 10% 2113743L41C701CAP CHIP 10000 PF 10% X7R 2113743N38C702CAP CHIP 33.0 PF 5% COG 2113743L41C705CAP CHIP 10000 PF 10% X7R 2113928P04C712CAP,CER,1UF,,+20%,-20%,,0603 2113928C03C801CAP CER CHIP 1.0 UF 6.3V 10% 2113928C03C802CAP CER CHIP 1.0 UF 6.3V 10% 2113928C03C803CAP CER CHIP 1.0 UF 6.3V 10% 2113928C03C805CAP CER CHIP 1.0 UF 6.3V 10% 2113743L41C806CAP CHIP 10000 PF 10% X7R 2113743E20C808CAP CHIP .10 UF 10% 2113743E20C809CAP CHIP .10 UF 10% 2113928P04C810CAP,CER,1UF,,+20%,-20%,,0603 2113743L41C811CAP CHIP 10000 PF 10% X7R 2113743L41C812CAP CHIP 10000 PF 10% X7R 2113743L41C813CAP CHIP 10000 PF 10% X7R 2113928C04C814CAP CER CHIP 4.7UF 6.3V10%0805 2113743L41C815CAP CHIP 10000 PF 10% X7R 2113743L41C816CAP CHIP 10000 PF 10% X7R 2113743E20C818CAP CHIP .10 UF 10% 2113743N28C819CAP CHIP 12.0 PF 5% COG 2113743N40C820CAP CHIP 39.0 PF 5% COG 2113743E20C821CAP CHIP .10 UF 10% 2113743M24C825CAP CHIP 100000 PF +80-20% Y5V 2113743M24C826CAP CHIP 100000 PF +80-20% Y5V 2113928C03C827CAP CER CHIP 1.0 UF 6.3V 10% 2113743L41C828CAP CHIP 10000 PF 10% X7R 2113743M24C834CAP CHIP 100000 PF +80-20% Y5V 2113743L17C835CAP CHIP 1000 PF 10% X7R 2113743N26C837CAP CHIP 10.0 PF 5% COG 2113928C12C840CAP,CER,10UF,,+10%,-10%,,0805 2113743N28C841CAP CHIP 12.0 PF 5% COG 2113928C03C890CAP CER CHIP 1.0 UF 6.3V 10% 2113743N30C900CAP CHIP 15.0 PF 5% COG 2113743N30C901CAP CHIP 15.0 PF 5% COG 2113743N26C902CAP CHIP 10.0 PF 5% COG 2113743N26C903CAP CHIP 10.0 PF 5% COG 2113743M24C907CAP CHIP 100000 PF +80-20% Y5V 2113743M24C908CAP CHIP 100000 PF +80-20% Y5V 2113928C04C909CAP CER CHIP 4.7UF 6.3V10%0805 2113928C04C910CAP CER CHIP 4.7UF 6.3V10%0805 2113928N01C911CAP CER CHIP 0.1UF 10% 6.3 2113928N01C912CAP CER CHIP 0.1UF 10% 6.3 2113947H01C915CAP DL ARRAY 100,000PF 6.3V 05 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DK1 EXHIBIT 10 4 2113928P04C917CAP,CER,1UF,,+20%,-20%,,0603 2113947B05C919CAP DL ARRAY 33.0PF 50V 0504 2113928C04C921CAP CER CHIP 4.7UF 6.3V10%0805 2113928C04C922CAP CER CHIP 4.7UF 6.3V10%0805 2113743L21C926CAP CHIP 1500 PF 10% X7R 2113743M24C927CAP CHIP 100000 PF +80-20% Y5V 2113743N26C928CAP CHIP 10.0 PF 5% COG 2113743N26C929CAP CHIP 10.0 PF 5% COG 2113948E11C930CAP,NTWK,,,+20%,-20%,10V-DC 2113743N40C931CAP CHIP 39.0 PF 5% COG 2113743N40C932CAP CHIP 39.0 PF 5% COG 2113928C04C933CAP CER CHIP 4.7UF 6.3V10%0805 2113928C04C934CAP CER CHIP 4.7UF 6.3V10%0805 2113743N40C935CAP CHIP 39.0 PF 5% COG 2113743N40C936CAP CHIP 39.0 PF 5% COG 2113743N26C937CAP CHIP 10.0 PF 5% COG 2113928C12C940CAP,CER,10UF,,+10%,-10%,,0805 2113743N40C941CAP CHIP 39.0 PF 5% COG 2113743L41C942CAP CHIP 10000 PF 10% X7R 2113743M24C943CAP CHIP 100000 PF +80-20% Y5V 2113928C04C945CAP CER CHIP 4.7UF 6.3V10%0805 2113928N01C946CAP CER CHIP 0.1UF 10% 6.3 2113928C12C948CAP,CER,10UF,,+10%,-10%,,0805 2113928C12C949CAP,CER,10UF,,+10%,-10%,,0805 2113928N01C950CAP CER CHIP 0.1UF 10% 6.3 2113928N01C951CAP CER CHIP 0.1UF 10% 6.3 2113743N26C952CAP CHIP 10.0 PF 5% COG 2113743N26C953CAP CHIP 10.0 PF 5% COG 4870370A26DS502LED ARRAY,LED,,,,,,WHITE,REVER 4870370A26DS507LED ARRAY,LED,,,,,,WHITE,REVER 6589735L01F100FUSE FAST 32V 2.0A 0603 9109474K05FL130FLTR,SAW 0988612M01J100CONN,RCPT,,,,RF SWITCH, SMT 0970312B16J600TA02-MINI-USB CONNECTOR 3970350D01J800CONN,,,,,SIM CARD RB 0985882K01J900RECPT CHRG 3POSTN SMD 0987837L04J931CONN JACK 2409646M81L101IN CER MULTILYR 10 NH 1608 2409646M82L102IN CER MULTILYR 12 NH 1608 2409154M40L121IND CER MLTILYR 22.0NH 1005 2409154M36L151IND CER MLTILYR 10.0NH 1005 2489970L37L152IDCTR,WW,270NH,2,,,,,,HI_Q_160 2409154M73L804IND CER MLTILYR 68.0NH 1005 3986595P01M100BATTERY CONNECTOR,,,3-CONTACT 5987772L02M900MOTOR VIB 5 X 4 MM …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56DK1 Date of test: Date of Report: 06/04/2003 – 06/17/2003 06/19/2003 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Firass Badaruzzaman Senior RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56DK1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2002 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Equipment 3 3.1 Dosimetric system 3 3.2 Additional equipment used 4 4) Electrical parameters of the tissue simulating liquid 4 5) System Accuracy Verification 5 6) Test Results 6 6.1 Head Adjacent Test Results 6 6.1.1 Head Adjacent Test Results with “Butterfly Housing 8 6.1.2 Head Adjacent Test Results with Hourglass Housing 9 6.1.3 Head Adjacent Test Results with “Metal” Box Housing 9 6.1.4 Head Adjacent Test Results with Mini Housing 10 6.1.5 Head Adjacent Test Results with Peanut Housing 11 6.1.6 Head Adjacent Test Results with Premium Housing 11 6.2 Body-Worn Test Results 12 6.3 Summary of SAR Test Results 15 References: Appendix 1: SAR distribution comparison for the system accuracy verification 16 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 17 Appendix 3: SAR distribution plots for Body Worn Configuration 20 Appendix 4. Probe Calibration Certificate 22 Appendix 5. Dipole Characterization Certificate 23 Appendix 6: Measurement Uncertainty Budget 24 Appendix 7. Photographs of the device under test 27 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56DK1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test Antenna description Type Internal Antenna Location Back of Phone Length 20mm Dimensions Width 35mm Device description FCC ID Number IHDT56DK1 Serial number L350150199 & L350150179 Mode(s) of Operation GSM 850 GSM 1900 Modulation Mode(s) GSM GSM Maximum Output Power Setting 32.50 dBm 29.60 dBm Duty Cycle 1:8 1:8 Transmitting Frequency Rang(s) 824.20 - 848.80 MHz 1850.20 – 1909.80 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±11.7% (K=1) with an expanded uncertainty of ±23.0% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4 W/kg to 10 W/kg. The list of calibrated equipment used for the measurements is shown below. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56DK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 Description Serial Number Cal Due Date SN365 10-Dec-03 SN434 19-Feb-04 DASY3 DAE3 V1 SN383 2-Sep-03 SN1502 27-Sep-03 SN1522 21-Mar-04 E-Field Probe ET3DV6 SN1523 17-Jan-04 SN078 23-Aug-03 Dipole Validation Kit, D900V2 SN425tr 13-Nov-04 TP-1106 S.A.M. Phantom used for 800MHz TP-1005 SN272tr 14-Nov-04 Dipole Validation Kit, D1800V2 SN273tr 17-Jul-04 S.A.M. Phantom used for 1900MHz TP-1250 3.2 Additional Equipment Description Serial Number Cal Due Date 3847A04822 6-Feb-05 3847A04845 5-Nov-04 Signal Generator HP8648C 3847A04633 11-Oct-04 GB39511807 6-Feb-04 GB39511086 6-Feb-04 Power Meter E4419B US39250622 5-Nov-03 US39210929 6-Feb-04 US37296471 5-Nov-03 Power Sensor #1 – E9301A US37296475 5-Nov-03 US39210933 6-Feb-04 US37296473 5-Nov-03 Power Sensor #2 - E9301A 3318A25036 5-Nov-03 Network Analyzer HP8753ES US39172529 18-Jun-03 Dielectric Probe Kit HP85070C …

Text truncated - open the document above for the full version.

Interim Dipole Correlation Certificate FCD-0359, Rev.001 Dipole Serial Number: 425(TR) Last Calibration Date:13-Nov-02 Dipole Type (MHz): 835MHz dipole with Teflon rings Calibration Due:13-Nov-04 Manufacturer:SPEAG -Manufacturer’s Original Calibration Information- Dipole to be correlated: [Serial Number: 425TR ] 1g SAR normalized to 1W forward power (mW/g): 9.2 mW/g Relative Dielectric: 43.05 Conductivity: 0.90 Probe Serial Number: 1507 Forward Power: 250 mW Primary Dipole Referenced: [Serial Number: 423tr ] 1g SAR normalized to 1W forward power (mW/g): 10.04 mW/g Relative Dielectric: 41.9 Conductivity: 0.89 Probe Serial Number: 1507 Forward Power: 250mW -Correlation Method Utilized- per DOI-1265 (select one) By Similarity: By Transfer Calibration: -Measured Data- Probe S/N: 1522 Conductivity (meas.): 0.94 Robot Cell #: PCS-3 Permittivity (meas.): 43.1 Primary Standard (average of 0-degree & 90-degree 1g cubes): 2.79 mW/g (1W) (if required) (if required) Secondary Standard (average of 0-degree & 90-degree 1g cubes): 2.76 mW/g (1W) (if required) (if required) -NEW Correlated Target- 1g SAR normalized to 1W forward power (mW/g): 10.04 mW/g Relative Dielectric: 41.9 Conductivity: 0.89 Approved by: Date: 12/12/2002 Comments: Correlated to get worst case extrapolation targets. Secondary measured within 1% of the primary standard. X

Interim Dipole Correlation Certificate FCD-0359, Rev.001 Dipole Serial Number: 272(TR) Last Calibration Date:14-Nov-02 Dipole Type (MHz): D1800V2 w Teflon rings Calibration Due:14-Nov-04 Manufacturer:SPEAG -Manufacturer’s Original Calibration Information- Dipole to be correlated: [Serial Number: 272TR ] 1g SAR normalized to 1W forward power (mW/g): 36.4 mW/g Relative Dielectric: 40.2 Conductivity: 1.35 Probe Serial Number: 1507 Forward Power: 250 Primary Dipole Referenced: [Serial Number: 246TR ] 1g SAR normalized to 1W forward power (mW/g): 38.8 mW/g Relative Dielectric: 39.6 Conductivity: 1.37 Probe Serial Number: 1507 Forward Power: 250 -Correlation Method Utilized- per DOI-1265 (select one) By Similarity: By Transfer Calibration: -Measured Data- Probe S/N: 1515 Conductivity (meas.): 1.38 Robot Cell #: PCS-2 Permittivity (meas.): 40.7 Primary Standard (average of 0-degree & 90-degree 1g cubes): 9.84 mW/g (if required) (if required) Secondary Standard (average of 0-degree & 90-degree 1g cubes): 9.96 mW/g (if required) (if required) -NEW Correlated Target- 1g SAR normalized to 1W forward power (mW/g): 38.8 mW/g Relative Dielectric: 39.6 Conductivity: 1.37 Approved by: Date: 1/10/03 Comments: Correlated to get worst case extrapolation targets. Secondary measured within 2% of the primary standard. X

Interim Dipole Correlation Certificate FCD-0359, Rev.001 Dipole Serial Number: 273(TR) Last Calibration Date:July 17, 2002 Dipole Type (MHz): D1800V2 w/ Teflon Rings Calibration Due:July 17, 2004 Manufacturer:SPEAG -Manufacturer’s Original Calibration Information- Dipole to be correlated: [Serial Number: 273(TR) ] 1g SAR normalized to 1W forward power (mW/g): 39.6 mW/g Relative Dielectric: 40.3 Conductivity: 1.36 Probe Serial Number: 1507 Forward Power: 250mW Primary Dipole Referenced: [Serial Number: 246(TR) ] 1g SAR normalized to 1W forward power (mW/g): 38.8 mW/g Relative Dielectric: 39.6 Conductivity: 1.37 Probe Serial Number: 1507 Forward Power: 250mW -Correlation Method Utilized- per DOI-1265 (select one) By Similarity: By Transfer Calibration: -Measured Data- Probe S/N: 1515 Conductivity (meas.): 1.36 Robot Cell #: PCS-2 Permittivity (meas.): 38.9 Primary Standard (average of 0-degree & 90-degree 1g cubes): 9.805 mW/g (if required) (if required) Secondary Standard (average of 0-degree & 90-degree 1g cubes):Mayo Tic 9.900 mW/g (if required) (if required) -NEW Correlated Target- 1g SAR normalized to 1W forward power (mW/g): 38.8 mW/g Relative Dielectric: 39.6 Conductivity: 1.37 Approved by: Date: 7-Nov-02 Comments: Secondary dipole measured +1% from primary dipole. (this correlation required for use with Teflon ring endcaps.) X

APPLICANT: MOTOROLA INC FCC ID: IHDT56DK1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 11242-1 Report Date – June 16, 2003 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature: Name: _Michael E. Hill Title: Senior Electrical Engineer Date: _ 6/16/03____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56DK1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 4 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 GSM 850 Mid Band Plot 9 GSM 850 Lower Band Edge 9 GSM 850 Upper Band Edge 10 GSM 1900 Mid Band Plot 11 GSM 1900 Lower Band Edge 11 GSM 1900 Upper Band Edge 12 Spurious Emissions at Antenna Terminals 13 GSM 850 Tabular and Graphical Data 14 GSM 850 Cellular Base Station Frequency Range Plot 15 GSM 1900 Tabular and Graphical Data 16 Field Strength of Spurious Emissions 17 GSM 850 Tabular and Graphical Data 18 GSM 1900 Tabular and Graphical Data 19 Frequency Stability 20 GSM 850 Tabular and Graphical Data 21 GSM 1900 Tabular and Graphical Data 22 Field Strength of Spurious Emissions From Unintentional Radiators 23 GSM 850 Tabular and Graphical Data 24 GSM 1900 Tabular and Graphical Data 25 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 26 Figure A.2 – Substitution Measurement 26 Test Report Number: 11242-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56DK1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900 Model Number: SUG3039AA Serial Numbers: L350120022, L350120064, L350120038, L350120033 Received Date: June 1, 2003 Testing Start Date: June 1, 2003 Testing Complete Date: June 15, 2003 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Ra…

Text truncated - open the document above for the full version.
