IHDT56HQ1Cellular/ PCS GSM Transceiver Module

Motorola Mobility LLC
Cellular/ PCS GSM Transceiver Module - FCC ID IHDT56HQ1 - Motorola Mobility LLC
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Aug 15, 2007
Application Purpose
Original Equipment
Date of Application
Aug 15, 2007
Equipment Note
Cellular/ PCS GSM Transceiver Module
Frequency Range
1850.20000000 - 1909.80000000
Company
Motorola Mobility LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HQ1 INSTRUCTION MANUAL • A preliminary draft copy of the User’s Manual follows this cover page. • The User’s Manual will have the following text added to it: "NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant t o Part 15 of the FCC Rules. These limits are designed to pro vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help." EXHIBIT 8 Technical Information MOTOROLA G24 DEVELOPER’S GUIDE MODULE HARDWARE DESCRIPTION ENGLISH MAY 31, 2007 6889192V27-F SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Notice While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Motorola products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Motorola intends to announce such Motorola products, programming, or services in your country. Copyrights This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and its licensors certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted material of Motorola and its licensors contained herein or in the Motorola products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product. Computer Software Copyrights The Motorola and 3rd Party supplied Software (SW) products described in this instruction manual may include copyrighted Motorola and other 3rd Party supplied computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and other 3rd Party supplied SW certain exclusive rights for copyrighted computer programs, including the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola or other 3rd Party supplied SW computer programs contained in the Motorola products described in this instruction manual may not be copied (reverse engineered) or reproduced in any manner without the express written permission of Motorola or the 3rd Party SW supplier. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola or other 3rd Party supplied SW, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product. VENDOR COPYRIGHT Apache Software Foundation Copyright 2004-2005 All Rights Reserved Usage and Disclosure Restrictions License Agreements The software described in this document is the property of Motorola, Inc. and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Motorola, Inc. High Risk Materials Components, units, or third-party products used in the product described herein are NOT fault-tolerant and are NOT designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments requiring fail-safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication …

Text truncated - open the document above for the full version.

Attestation Statements

1 Exhibit 2 Applicant: Motorola, INC. FCC ID: IHDT56HQ1 SPECIFICATION COMPLIANCE STATEMENT Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission The transceiver of type IHDT56HQ1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 3 Kremenetski Street, Tel-Aviv Israel. Nimrod Zarmi Engineering HW Manager Wireless modules Design Center Carlos Dyk Engineering Manager Wireless modules Design Center DATE: July 1 st , 2007 2 Exhibit 2 Applicant: Motorola, INC. FCC ID: IHDT56HQ1 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duty certified. SIGNATURE: (signed) Nimrod Zarmi NAME: Nimrod Zarmi DATE: July 1 st , 2007 POSITION: Engineering HW Manager I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: SIGNATURE: (signed) Carlos Dyk NAME: Carlos Dyk DATE: July 1 st , 2007 POSITION: Engineering Manager

Cover Letter(s)

APPLICANT: MOTOROLA FCC ID: IHDT56HQ1 Exhibit 13 August 13, 2007 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56HQ1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is an OEM GSM/GPRS transceiver module, which operates in both 850 and 1900 MHz PCS bands. The unit may be connected to a computer via a USB connection (Part 15 Class B Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. territories. This filing is only applicable for US operations. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail (A.Bac [email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

Cover Letter(s)

1 Date: August 13, 2007 Subject: Request for additional information regarding FCC ID: IHDT56HQ1 Reference: Correspondence Reference Number: IHD7665 Confirmation Number: 707230665-66 Dat of Original Email: August 10 , 2007 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Pursuant to FCC policy, a licensed transmitter cannot be authorized as a portable module with undefined end-use configurations, but must be approved either in specific final products or as a mobile device (wrt RFx). Please clarify your intent wrt the EUT. Response: Please refer to attached revised Exhibit 13: “HQ-EX13 Revised.pdf”. 2. Please address RF exposure compliance. If the EUT is considered a mobile device (see question #1), please submit MPE data. Response: MPE data are provided in the 3 rd paragraph of Exhibit 11, SAR Test Report. 3. To whom will the EUT be marketed? Typically, such devices are limited to sale to OEM integrators only- is that the case here? If so, please submit the installation instructions that will be provided to the OEM integrators. Please note that these instructions must provide the installer with information regarding RF exposure, and instruct him that, in order to comply with FCC RFx requirements, the EUT must be installed such that a minimum separation distance of 20 cm is maintained between the antennas and all persons during normal use. This information must also be presented to the end-user . Response: Please refer to page 16 of attached revised Exhibit 8: “HQ-EX08 Revised.pdf”.

External Photos

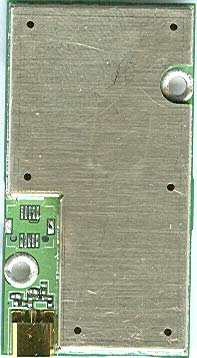

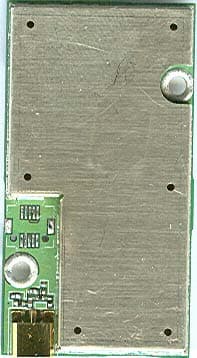

1 EXHIBIT 3 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HQ1 Front View (With Shield) Rear View (With Shield) Equipment ID Label Location

Internal Photos

Motorola Confidential Proprietary 1 EXHIBIT 9 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HQ1 Front View (Shields Removed) Rear View (Shields Removed) Motorola Confidential Proprietary 2 EXHIBIT 9 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HQ1 Front View (With Shield) Rear View (With Shield)

RF Exposure Info

Exhibit 11 July 23, 2007 SAR Test Report for Motorola Mobile Cellular/PCS GSM Transceiver Module (FCC ID: IHDT56HQ1) Prepared by: Steven Hauswirth, Principal Staff Engineer Motorola Personal Communications Sector Product Safety & Compliance Laboratory Libertyville, Illinois The Motorola Personal Communications Sector Product Safety & Compliance Laboratory has evaluated the G24-L / G24-LC Cellular/PCS GSM Transceiver Module, FCC ID: IHDT56HQ1, for the need to conduct SAR evaluation. Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because Motorola neither manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons.” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Motorola has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 centimeters from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Table 1 (B) of 47 CFR §1.1310 lists the limits for MPE for the General Population. Since the mobile cellular phone operates in the 800MHz cellular band and 1900MHz PCS band, the listed limit of f/1500 applies. The lowest transmit frequency for this product is 824.04 MHz, resulting in a MPE limit of 0.549 mW/cm 2 . Since Motorola neither manufactures or supplies the antenna(s) that will be used in the installation of this product, it is not possible to measure the MPE of the actual device as it is installed per the installation manual. Therefore a calculation of MPE will be described in the next paragraph. The MPE of a radiating structure can be calculated by knowing the transmit EIRP and the distance at which MPE is being calculated. In this case MPE will be calculated at 20 cm, which is the minimum separation between the body of the user and nearby persons and the antenna. The maximum sourced based peak transmit power for this product is 2.280 Watts in GSM850 mode and 1.197 Watts in GSM1900 mode. The maximum sourced based time-averaged transmit power for this product is 0.570 Watts in the GSM850 mode and 0.300 Watts in the GSM1900 mode. At 824.04MHz, when installed using a combined cable loss and antenna gain of a maximum of 6.8 dBi the maximum ERP will be less than 7.0 Watts. The model used for calculating power density in OET Bulletin 65, Edition 97-01, is the spherical model. Using this spherical model, 0.543 mW/cm 2 is achieved at a distance of 20 cm from the antenna at 824.04MHz. This is below the limit of 0.55 mW/cm 2 . At 1850.2 MHz, when installed using a combined cable loss and antenna gain of a maximum of 2.20 dBi, the maximum EIRP will be less than 2.0 Watts. Using the spherical model, 0.253 mW/cm 2 is achieved at a distance of 20 cm from the antenna at 1850.2 MHz. This is below the limit of 1.00 mW/cm 2 . Therefore, by requiring the user and nearby persons to remain at least 20 cm from the antenna, the MPE is not exceeded.

Test Report

Hermon Laboratories Ltd. P.O.Box 23, Binyamina 30500, Israel Tel. +972 4628 8001 Fax. +972 4628 8277 E-mail: [email protected] Page 1 of 150 Report ID: MOTRAD_FCC.17967.doc Date of Issue: July 2007 Electrical 839.01 TEST REPORT ACCORDING TO: FCC parts 22, 24 and part 15 subpart B FOR: Motorola Israel Ltd. QuadBand GSM/GPRS module Model:G24-L This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: MOTRAD_FCC.17967.doc Date of Issue: July 2007 Page 2 of 150 Table of contents 1 Applicant information..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details.................................................................................................................................................................... 3 5 Tests summary.............................................................................................................................................................. 4 6 EUT description............................................................................................................................................................. 5 6.1 General information....................................................................................................................................................... 5 6.2 Support and test equipment .......................................................................................................................................... 5 6.3 Operating frequencies ................................................................................................................................................... 5 6.4 Changes made in the EUT ............................................................................................................................................ 5 6.5 Test configuration.......................................................................................................................................................... 6 6.6 Transmitter characteristics ............................................................................................................................................ 7 7 Transmitter tests according to 47CFR part 22 requirements......................................................................................... 8 7.1 Peak output power ........................................................................................................................................................ 8 7.2 Occupied bandwidth test ............................................................................................................................................. 11 7.3 Spurious emissions at RF antenna connector test ...................................................................................................... 16 7.4 Field strength of spurious emissions ........................................................................................................................... 33 7.5 Frequency stability test................................................................................................................................................ 60 8 Transmitter tests according to 47CFR part 24 requirements....................................................................................... 63 8.1 Peak output power ...................................................................................................................................................... 63 8.2 Occupied bandwidth test ............................................................................................................................................. 66 8.3 Spurious emissions at RF antenna connector test ...................................................................................................... 71 8.4 Field strength of spurious emissions ........................................................................................................................... 91 8.5 Frequency stability test.............................................................................................................................................. 119 9 Emissions tests according to FCC 47CFR part 15 subpart B requirements .............................................................. 124 9.1 Conducted emissions ................................................................................................................................................ 124 9.2 Radiated emission measurements ............................................................................................................................ 128 9.3 Spurious emissions at RF antenna connector ........................................................................................................... 135 10 APPENDIX A Test equipment and ancillaries used for tests..................................................................................... 137 11 APPENDIX B Measurement uncertainties................................................................................................................. 138 12 APPENDIX C Test laboratory description ..........................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Applicant: Motorola Inc. FCC ID:IHDT56HQ1 Exhibit 7 Page 1 of 10 EXHIBIT 7 SETUP PHOTOGRAPHS This document contains 9 photographs Applicant: Motorola Inc. FCC ID:IHDT56HQ1 Exhibit 7 Page 2 of 10 Photograph No.1 Peak output power, occupied bandwidth, conducted spurious emissions test setup Applicant: Motorola Inc. FCC ID:IHDT56HQ1 Exhibit 7 Page 3 of 10 Photograph No.2 Frequency stability test setup Applicant: Motorola Inc. FCC ID:IHDT56HQ1 Exhibit 7 Page 4 of 10 Photograph No.3 Frequency stability test setup Applicant: Motorola Inc. FCC ID:IHDT56HQ1 Exhibit 7 Page 5 of 10 Photograph No.4 Radiated emissions measurement setup in the anechoic chamber with loop antenna Applicant: Motorola Inc. FCC ID:IHDT56HQ1 Exhibit 7 Page 6 of 10 Photograph No.5 Radiated emissions measurement setup in the anechoic chamber with double ridged guide antenna Applicant: Motorola Inc. FCC ID:IHDT56HQ1 Exhibit 7 Page 7 of 10 Photograph No.6 Radiated emissions measurement setup in the anechoic chamber EUT close view Applicant: Motorola Inc. FCC ID:IHDT56HQ1 Exhibit 7 Page 8 of 10 Photograph No.7 Conducted emission measurements setup Applicant: Motorola Inc. FCC ID:IHDT56HQ1 Exhibit 7 Page 9 of 10 Photograph No.8 Unintentional radiated emission measurements setup Applicant: Motorola Inc. FCC ID:IHDT56HQ1 Exhibit 7 Page 10 of 10 Photograph No.9 Unintentional radiated emission measurements setup EUT close view

Contact Information

Applicant

Jeff Narducci(Director Product Compliance)
[email protected]847-687-6928Fax: 847-687-6928

Technical Contact

PCTEST Engineering Laboratory, Inc.Randy Ortanez
[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

Motorola Inc.Albert Patapack
[email protected]847-523-3670Fax: 847-523-4538

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.91 GHz1.197 W278KGXW2.5 ppm
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. Approval is limited to OEM installation only. This device is approved as a mobile device with respect to RF exposure compliance. The antennas used for this transmitter must be installed to provide a minimum separation distance of 20 cm from all persons, and must not be co-located or operate in conjunction with any other antenna or transmitter. The antenna gain, including cable loss, must not exceed 6.8 dBi at 850 MHz / 2.2 dBi at 1900 MHz for mobile operating configurations. Separate approval is required for all other operating configurations not described in filings under this FCC ID, including portable configurations with respect to 2.1093 and different antenna configurations. Compliance of this device in all final host configurations is the responsibility of the Grantee. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations.
