IHDT56HR1Portable Cellular/PCS GSM Transceiver w/ Bluetooth

User’s Guide motorola W395 W395.book Page 2 Monday, August 27, 2007 7:22 PM 1 HELLOMOTOWelcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola W395 wireless phone. Right Soft KeyClear KeyTurn on & off,hang up, exitmenus.Store pictures, video, and music.Plug in your headphones. Open menus. Make & answer calls. Charge battery and connect accessories. Left Soft Key Volume Keys Go online. Navigate menus. Volume Keys Externaldisplay.Camera lens W395.book Page 1 Monday, August 27, 2007 7:22 PM 2 Home Screen Main Menu Press & hold the power key P until the display lights up, to turn on your phone. 2 Press thecenter key s to select it. 4 Press thenavigation key S up/down/left /right to scroll to a menu feature. 3 Press the center key s to open the Main Menu . 1 6Îì PH. BOOK t e s n WED 8/23/06 8:45am MESSAGE 6Îì n Phonebook e Messages s Recent Calls á WebAccess h Multimedia Main Menu SELECT EXIT W395.book Page 2 Monday, August 27, 2007 7:22 PM 3 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.com1-800-331-6456 (United States)1-888-390-6456 (TTY/TDD United States for hearing impaired)1-800-461-4575 (Canada)Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider’s network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user’s guide, are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners.© Motorola, Inc., 2007. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user's authority to operate the equipment. Software Copyright NoticeThe Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Fishermen, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.Part number: 68XXXXX261-O W395.book Page 3 Monday, August 27, 2007 7:22 PM 4 contents contentsmenu map . . . . . . . . . . . . 6FCC notice . . . . . . . . . . . 13Use and care . . . . . . . . . 14EU Conformance . . . . . . 15Recycling Information . . 16essentials . . . . . . . . . . . . 17 about this guide. . . . . . 17SIM card . . . . . . . . . . . 18battery . . . . . . . . . . . . . 18turn it on & off . . . . . . . 22make a call. . . . . . . . . . 23answer a call . . . . . . . . 23store a phone number . . . . . . . . . . . . 23call a stored phone number . . . . . . . . . . . . 23your phone number . . . 24 main attractions . . . . . . 25 Bluetooth® wireless . . 25audio player . . . . . . . . . 27take & send photos . . . 28record & send a video . 30make a voice recording . . . . . . . . . . . 31manage pictures, sounds and videos . . . . . . . . . . 32text messages . . . . . . . 32instant messaging . . . . 34cable connections . . . . 35phone software updates . . . . . . . . . . . . 36memory card . . . . . . . . 36 basics . . . . . . . . . . . . . . . 38 display . . . . . . . . . . . . . 38text entry . . . . . . . . . . . 41 volume. . . . . . . . . . . . . 44navigation key . . . . . . . 45external display . . . . . . 45handsfree speaker . . . . 45codes & passwords . . . 45lock & unlock phone . . 46 customize . . . . . . . . . . . . 47 ring style . . . . . . . . . . . 47time & date . . . . . . . . . 48wallpaper . . . . . . . . . . . 48screen saver . . . . . . . . 48themes . . . . . . . . . . . . 49display appearance . . . 49answer options . . . . . . 50 calls. . . . . . . . . . . . . . . . . 51 turn off a call alert . . . . 51recent calls . . . . . . . . . 51redial . . . . . . . . . . . . . . 52 W395.book Page 4 Monday, August 27, 2007 7:22 PM 5 contents return a call . . . . . . . . . 53notepad . . . . . . . . . . . 53hold or mute a call . . . 53call waiting . . . . . . . . . 54caller ID . . . . . . . . . . . 54emergency calls . . . . . 54international calls . . . . 551-touch dial . . . . . . . . . 55voicemail . . . . . . . . . . 56 other features . . . . . . . . 57 advanced calling . . . . . 57java settings . . . . 59 phonebook . . . . . . . . . 60messages . . . . . . . . . . 66personalizing. . . . . . . . 68call times & costs . . . . 70handsfree . . . . . . . . . . 71memory card . . . . . . . 71data & fax calls . . . . . . 72network . . . . . . . . . . . 73personal organizer . . . 73security. . . . . . . . . . . . 75 fun & games. . . . . . . . 75airplane mode. . . . . . . 79 service & repairs. . . . . . 80S…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA, INC. FCC ID: IHDT56HR1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56HR1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business DATE: June 28, 2007 Exhibit 2 APPLICANT MOTOROLA INC. FCC ID: IHDT56HR1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56HR1) is in compliance with all applicable parts of the FCC Rules. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business DATE: June 28, 2007 Exhibit 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HR1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business DATE: June 28, 2007 Exhibit 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HR1 ATTESTATION STATEMENT Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance for FCC ID: IHDT56HR1. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business DATE: June 28, 2007 Exhibit 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HR1 June 21, 2007 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellu lar Transce iver, FCC ID: IHDT56HR1. Motorola is also the manufacturer of this equipment. Confidentiality : Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver which operates in the 850 and 1900 MHz PCS band. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247) and employs GPRS Class 10. The unit may be connected to a computer via a USB connection ( Part 15, Class B, Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: September 17, 2007 Subject: Request for additional information regarding FCC ID: IHDT56HR1 Reference: Correspondence Reference Number: IHD7578 731 Confirmation Number: 706270578-80 Date of Original Email: September 10, 2007 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. Please resubmit the user’s manual, including the HAC language required by the FCC. Response: Please refer to page 83 of the revised draft copy of the user’s manual. 2. Please submit an Operational Description for the Bluetooth transmitter. Response: Please refer to “TI_brf6100_6150.pdf”. 3. The schematic diagrams submitted list a different FCC ID at the top of each page. Please address. Response: Please refer to HR-EX05-1.pdf. 4. Several items in the 22/24 EMC report are listed as being past their cal due date- please address. Response: At the time of testing, all items were within their specified calibration dates. 1 5. The Recommended Limit (Target Value) for the 1800 MHz SAR System Verification should be the “Grand Average” value from the Dipole Characterization Certificate, as it was for the 900 MHz measurement. Please correct, and also submit the Dipole Characterization Certificate for the 1800 MHz dipole used in the System Verification tests. Response: Please refer to the attached 1800 MHz dipole certificate and the following system accuracy verification data: Dielectric Parameters f (MHz) Description SAR (W/kg), 1gram ε r σ (S/m) Ambient Temp (°C) Tissue Temp (°C) Measured, 11-May-2007 11.93 41.5 0.97 21.3 20.9 900 Recommended Limits 11.24 41.5 ±5% 0.97 ±5% 18-25 18-25 Measured, 11-May-2007 37.88 39.5 1.36 21.8 21.0 Measured, 14-May-2007 36.20 39.9 1.37 21.2 20.8 1800 Recommended Limits 37.5 40.0 ±5% 1.4 ±5% 18-25 18-25 2 Certification of System Performance Check Targets Based on WI-0396 -Historical Data- 1800MHz IEEE1528 Target:38.1(W/kg) Measurement Uncertainty (k=1): 9.0% Measurement Period: 10-May-06 to 18-April-07 # of tests performed:1314 Grand Average: 37.5(W/kg) % Delta (Average - IEEE1528 Target) -1.6% Is % Delta <= Expanded Measurement Uncertainty (k=2)? Yes Accept/Reject Average as new system performance check target? ACCEPT Applies to Dipole SN's: 246tr, 250tr, 251tr, 259tr, 263tr, 271tr, 272tr, 276tr, 277tr, 279tr, 280tr, 281tr, 283tr, 284tr, 2d128, 2d129 -New System Performance Check Targets- per WI-0396 (based on analysis of historical data) FrequencySAR Target (W/kg)PermittivityConductivity (S/m) 1800MHz37.540.0 ± 5%1.40 ± 5% -Approvals- Submitted by:Date:24-Apr-07 Signed: Approved by:Date:1-May-07 Signed: Marge Kaunas Comments: Comments: Mark Douglas Spreadsheet detailing referenced historical measurements is available upon request.

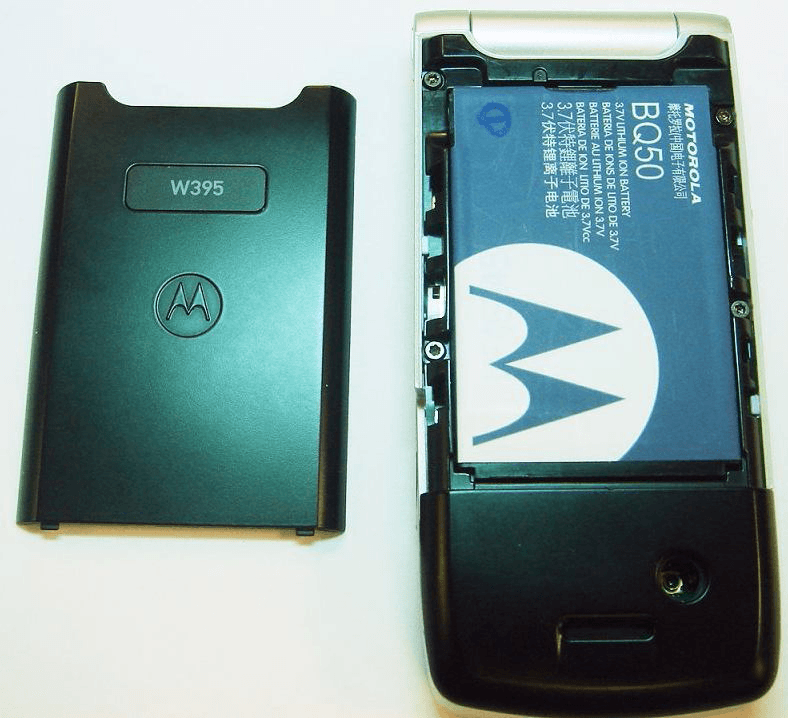

1. Close Front 2. Close Back Equipment ID Label Location APPLICANT: MOTOROLA, INC.FCC ID: IHDT56HR1 1 of 2EXHIBIT 3 3. Open Front & Back APPLICANT: MOTOROLA, INC.FCC ID: IHDT56HR1 2 of 2EXHIBIT 3

APPLICANT: MOTOROLA INC. FCC ID: IHDT56HR1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56HR1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

Internal APPLICANT: MOTOROLA, INC.FCC ID: IHDT56HR1 1 of 3EXHIBIT 9 Main Board with shield Sub Board with shield APPLICANT: MOTOROLA, INC.FCC ID: IHDT56HR1 2 of 3EXHIBIT 9 Main Board without shield Sub Board without shield APPLICANT: MOTOROLA, INC.FCC ID: IHDT56HR1 3 of 3EXHIBIT 9

0 0 Portable Cellular Phone SAR Test Report Test Report #: 20385-1F Date of Report: 29-May-2007 Date of Test: 11-May-2007 through 14-May-2007 FCC ID #: IHDT56HR1 Generic Name: CQ3-4411B21 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 11th Floor, Hibrand Living Hall, 215, Yangae-Dong, Seocho-Gu, Seoul, South Korea, 137-130 Report Author: Jon Park Senior Staff Engineer Accreditation: TESTING CERT #2518-03 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 (2001) CENELEC EN 50361 (2001) ARIB Std. T-56 (2002) On the following products or types of products: On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2007 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20385-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 9 References 11 Appendix 1: SAR distribution comparison for system accuracy verification 12 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 13 Appendix 3: SAR distribution plots for Body Worn Configuration 14 Appendix 4: Probe Calibration Certificate 15 Appendix 5: Measurement Uncertainty Budget 16 Appendix 6: Photographs of the device under test 18 Appendix 7: Dipole Characterization Certificate 22 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20385-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. For ANSI / IEEE C95.1 (1g), the final SAR reading for this phone is 1.23 W/kg for head adjacent use and 0.46 W/kg for body worn use. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Bottom of the transceiver Length 37.95 mm Dimensions Width 8.60 mm Configuration FJA 2.2 Device description Serial Number 00401022802702 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 Bluetooth Modulation Mode(s) GMSK GMSK GMSK GMSK GMSK GMSK GMSK GMSK GFSK Maximum Output Power Setting 32.50 dBm 32.50 dBm 30.00 dBm 29 .00 dBm 32.50 dBm 32.50 dBm 30.00 dBm 29 .00 dBm 4.0 dBm Duty Cycle 1:8 1:8 1:8 1:8 2:8 2:8 2:8 2:8 1:1 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2- 1909.8 MHz 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2- 1909.8 MHz 2400.0 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20385-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date DASY4™ DAE 3 385 14-Mar-2008 E-Field Probe ETDV6 1501 10-Mar-2008 Dipole Validation Kit, DV900V2…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56HR1 Test Report Number: 20391-2 EXHIBIT 6 1 of 31 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 20391-2 Report Date – July 5, 2007 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: July 5, 2007 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDT56HR1 Test Report Number: 20391-2 EXHIBIT 6 2 of 31 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 9 Spurious Emissions at Antenna Terminals 13 Measurement results 14 Field Strength of Spurious Emissions 16 Measurement results 17 Frequency Stability 18 Measurement results 19 Field Strength of Spurious Emissions -Unintentional Radiators 21 Measurement results 22 AC Line Conducted Emissions 24 Measurement results 25 APPLICANT: MOTOROLA INC FCC ID: IHDT56HR1 Test Report Number: 20391-2 EXHIBIT 6 3 of 31 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900, Bluetooth FCC ID : IHDT56HR1 Serial Numbers: 004401022802645, 004401022802652 004401022802637, 355063010000221, E73LFT0816 Testing Complete Date: July 5, 2007 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) APPLICANT: MOTOROLA INC FCC ID: IHDT56HR1 Test Report Number: 20391-2 EXHIBIT 6 4 of 31 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators 9 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT56HR1 Test Report Number: 20391-2 EXHIBIT 6 5 of 31 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 838786/010 3/19/2008 Rohde Schwarz Receiver ESI26 100001 5/02/2008 Hewlett Packard EMC Analyzer E7405 US39440191 1/24/2008 Hewlett Packard Signal Generator 83623B 3844A00935 3/18/2008 ETS Horn Antenna 3115 6222 3/21/2008 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/24/2008 ETS Log-Periodic Antenna 3148 1189 9/12/2007 ETS Biconical Antenna 3110B 3369 9/12/2007 Attenuator Weinschel AS-6 7075 6/29/2007 Attenuator Weinschel AS-6 7074 6/29/2007 Thermotron Environmental Chamber S-4 31580 1/29/2008 Agilent Power Meter E4416A GB41293263 12/27/2008 Agilent Power Sensor E4412B MY44420342 12/28/2007 ETS LISN 3810/2 23630 6/26/2007 ETS LISN 3810/2 2179 6/26/2007 Note that the Agilent power meter on a two-year calibration cycle. All other equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT56HR1 Test Report Number: 20391-2 EXHIBIT 6 6 of 31 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of an Agilent power meter through a 20dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Measurement Results GSM 850 Frequency (MHz) Power (dBm) 824.2 32.58 836.6 32.55 848.8 32.55 GSM 1900 Frequency (MHz) Power (dBm) 1850.2 29.16 1880.0 29.53 1909.8 29.61 APPLICANT: MOTOROLA INC FCC ID: IHDT56HR1 Test Report Number:…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HR1 P P a a g g e e 1 1 E E x x h h i i b b i i t t 6 6 B B - - 1 1 HAC Test Report for Near Field Emissions IHDT56HR1 Date of test: Date of Report: June 27 – June 28, 2007 July 6, 2007 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Katerina Royzen Engineer Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC IHDT56HR1 to which this declaration relates, complies with recommendations and guidelines FCC 47 CFR §20.19. The measurements were performed to ensure compliance to the ANSI C63.19-2006. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) Results Summary: M Category = M3 ©Motorola, Inc. 2007 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HR1 P P a a g g e e 2 2 E E x x h h i i b b i i t t 6 6 B B - - 1 1 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................4 4. VALIDATION .........................................................................................................................................................5 5. PROBE MODULATION FACTOR ......................................................................................................................6 6. TEST RESULTS......................................................................................................................................................8 APPENDIX 1: DETAILS JUSTIFYING THE CONVERSION TO PEAK .......................................................11 A1.1 Procedure for PMF measurements ...................................................................................................12 A1.2 0 Span Spectrum Plots for PMF measurements ..............................................................................13 APPENDIX 2: HAC DISTRIBUTION PLOTS FOR VALIDATION ................................................................15 APPENDIX 3: HAC DISTRIBUTION PLOTS FOR E-FIELD AND H-FIELD ...............................................16 APPENDIX 4: MOTOROLA UNCERTAINTY BUDGET .................................................................................17 A4.1 Motorola Uncertainty Budget for RF HAC Testing .......................................................................18 A4.2 Probe Rotation Contributions to Isotropy Error ............................................................................18 APPENDIX 5: PICTURES OF TEST SETUP ..........…
