IHDT56ZM3

Motorola Mobility LLC

Mobile Cellular Phone

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jan 03, 2021
Application Purpose: Original Equipment
Date of Application: Dec 29, 2020
Equipment Note: Mobile Cellular Phone
Frequency Range: 1715.00000000 - 1775.00000000
Company: Motorola Mobility LLC
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

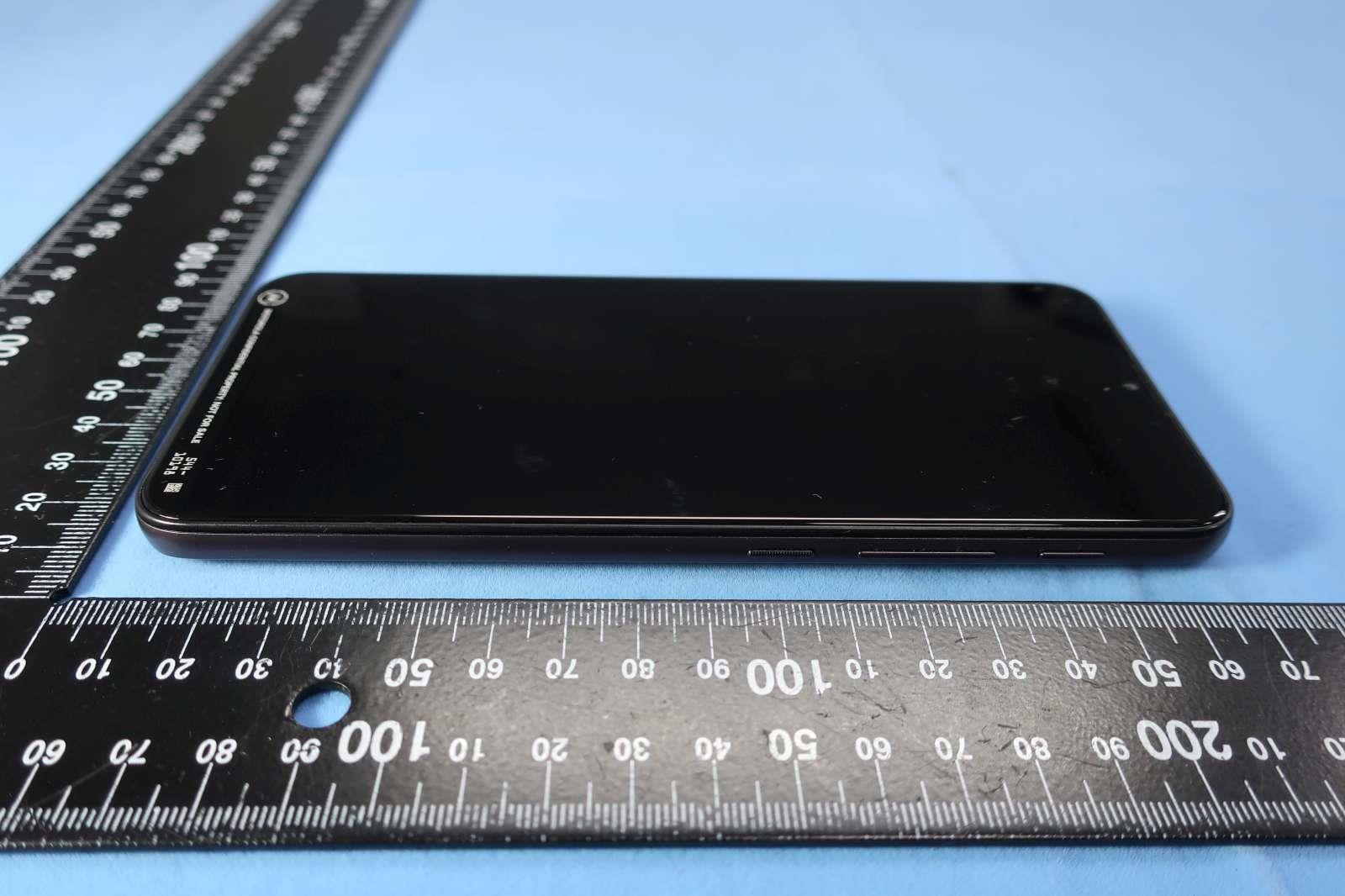

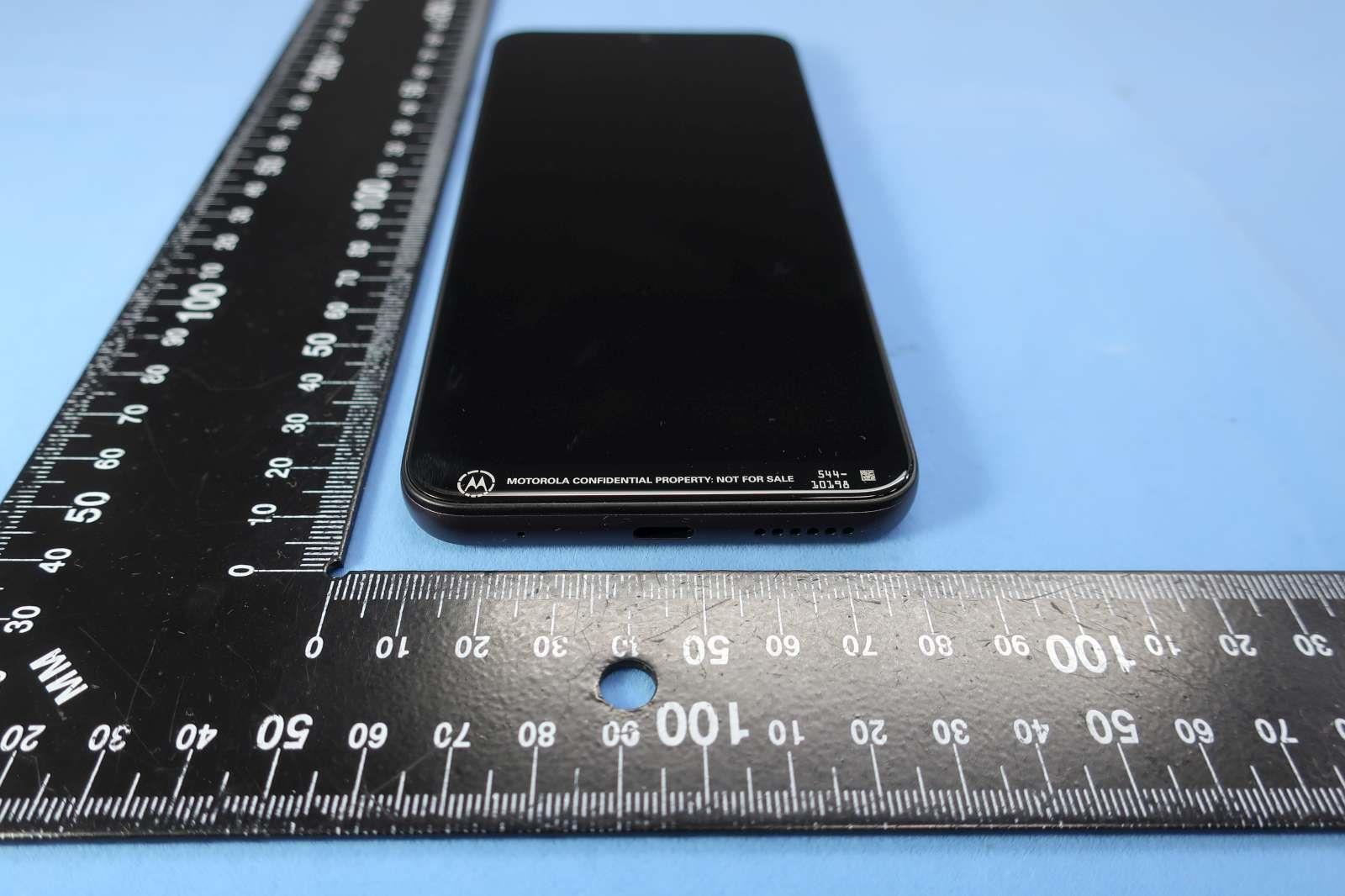

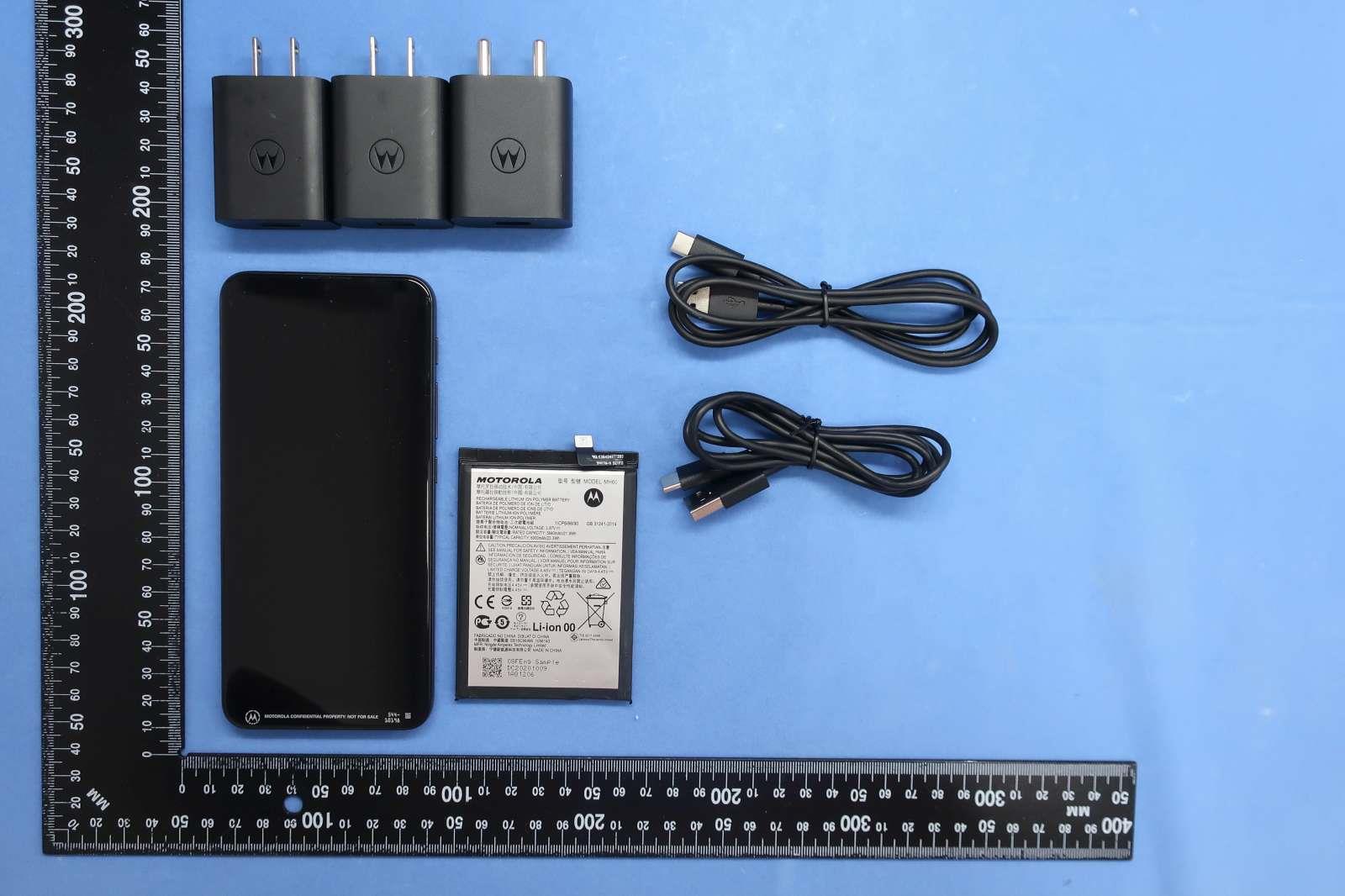

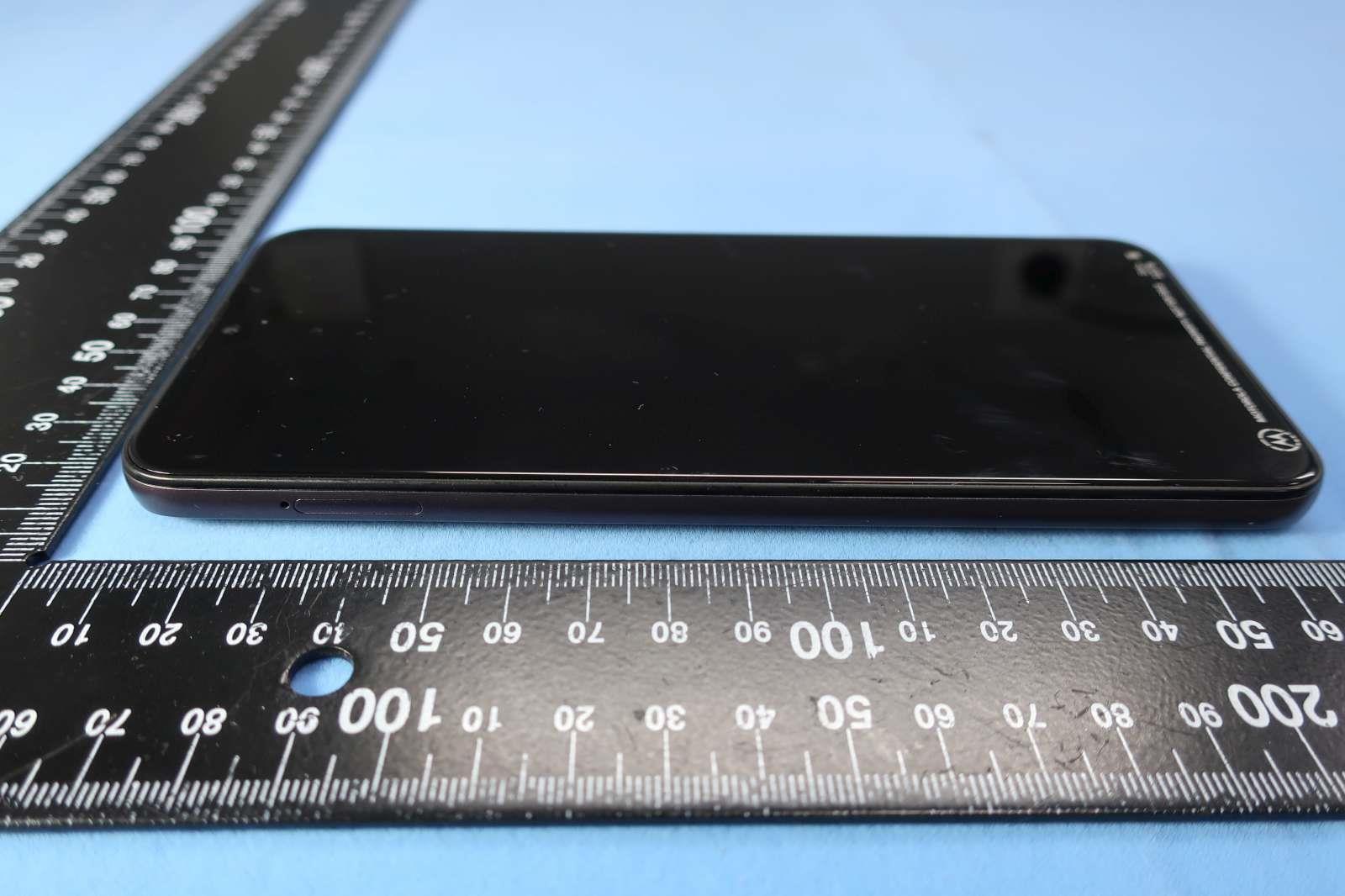

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
25	27	1.72 GHz - 1.77 GHz	191.00 mW	9M01W7D	0.0036 ppm

Confidentiality

Long Term

Grant Notes

Output Power is EIRP and ERP for above and below 1 GHz, respectively. SAR compliance for body-worn operating configurations is limited to belt-clips and holsters that have no metallic components in the assembly and cause the device to operate with the minimum separation distance of 5.0 mm, as described in this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), simultaneous transmission and product specific (10g SAR) exposure conditions are 0.42 W/kg, 1.44 W/kg, 1.44 W/kg, 1.58 W/kg and 3.50 W/kg, respectively. This device supports LTE of 1.4, 3, 5, 10, 15 and 20 MHz bandwidth modes for FDD LTE Bands 2, 4 and 66; LTE of 5, 10, 15 and 20 MHz bandwidth modes for FDD LTE Band 7; LTE of 1.4, 3, 5 and 10 MHz bandwidth modes for FDD LTE Band 5; and LTE of 5, 10, 15 and 20 MHz bandwidth modes for TDD LTE Band 41. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for U.S. operations.
