IHDT56ZM4Mobile Cellular Phone

motorola.com read me read me2 Let’s get started Before using your phone, please read the legal, safety, and regulatory information provided with your product. Main Camera Depth Camera Ultra-wide Camera Flash Front Camera SIM & microSD Card Tray Headset Jack Volume Buttons Power Button USB-C/Charger Speaker Microphone Fingerprint Sensor Macro Camera Google Assiatant Button * Press: Say a command or ask a question. Note: This feature may not be available in all languages. * Put in the cards & power on Nano SIM 1 Insert the SIM tool into the tray hole to pop out the tray. Make sure you use the correct size SIM card and don’t cut the SIM card. or Two SIM model SIM2 SIM1 2 Insert the SIM card(s) with the gold contacts down, then gently push the tray into the slot. Add a microSD card for additional storage.* 3 Press and hold the Power button, then follow the prompts to get started. *microSD card is optional, sold separately. pt-BR Help & more Get answers, updates, and info: •Help is here: From the home screen, swipe up and tap Settings > Help to learn how to use your phone and get support. •Get more: Get software, user guides, and more at www.motorola.com/mymotog. •Get apps: Tap Play Store to browse and download apps. •Contact us: For metropolitan areas and national capitals, call 4002-1244. For other locations, call 0800-773-1244. Legal information. This guide provides important legal, safety, and regulatory information that you should read before using your product. For the complete legal information, from the home screen swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Water repellent. Your phone is not waterproof. For more about your phone’s water-repellent design and care, swipe up and tap Settings > Help. Battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service center or similar skilled personnel. If your phone becomes unresponsive, press and hold the Power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger. Use of other chargers is not recommended. Don’t charge your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). For more, see the “Legal information” section of this guide, or visit www.motorola.com/device-legal. Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning shows. Tap OK to dismiss it, or wait one to five seconds, then press the Volume Up button to dismiss the alert and enable the volume to continue to be adjusted. Disposal & recycling. For help recycling products and packaging responsibly, visit www.motorola.com/recycling. Extreme heat or cold. Don’t use your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). Don’t store/transport your phone in temperatures below -20°C (-4°F) or above 60°C (140°F). Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/charges may apply. Product specifications and other information contained in this guide are believed to be accurate at the time of printing. Motorola reserves the right to correct or change any information without notice. Arbitration. Your purchase is governed by a binding arbitration clause. For more information and how to opt-out, see the legal guide that came with your phone. ANATEL: model ____________ This product is approved by ANATEL in accordance with the regulated procedures for assessing the conformity of telecommunications products, and meets the applied technical requirements, including the exposure limits of the Specific Absorption Rate for radio frequency, electric, magnetic and electromagnetic fields. “This equipment is not entitled to the protection from harmful interference and may not cause interference with duly authorized systems.” www.anatel.gov.br For more information about your phone’s SAR (Specific Absorption Rate), visit www.motorola.com/sar. Click on the Brazilian flag, then choose your phone from the list. This product contains lithium ion batteries approved by ANATEL. In accordance with ANATEL rules, the respective approval seal will be applied in the manual for products where the battery is not accessible by the final user. Copyright & trademarks. MOTOROLA, the stylized M logo, MOTO, and the MOTO family of marks are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, Android, Google Play and other related marks and logos are trademarks of Google LLC. microSD Logo is a trademark of SD-3C, LLC. All other product or service names are the property of their respective owners. © 2020 Motorola Mobility LLC. All rights reserved. Product ID: moto g 10 (Model XT2127-1) Manual Number: XXXXXXXX-A

Motorola Mobility LLC 222 W. Merchandize Mart Plaza, Chicago Il US www.motorola.com Date: November 29, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: IHDT56ZM2 FCC ID: IHDT56ZM3 FCC ID: IHDT56ZM4 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting confidentiality for exhibits filed with the commission supporting the application of equipment authorization for those items referenced above. Motorola Mobility respectfully requests the Commission to withhold indefinitely from public disclosure the following attachments under Long-Term Confidentiality. ⚫ Schematic Diagrams ⚫ Block Diagrams ⚫ Part List ⚫ Operational Description ⚫ Tune-up Procedure The above listed documents contain detailed system and equipment descriptions that are proprietary and confidential information under Motorola trade secret protection. Public disclosure of above documents would be harmful to our company and would provide competitors an unfair advantage. This information is not made publicly available even after commercial release of the device. In additional to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We request the commission to grant short-term confidentiality request on the following attachments for 180 days after the grant as outlined in Public Notice DA 04-1705. ⚫ External Photos ⚫ Internal Photos ⚫ Test Setup Photos ⚫ User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and that information will be available for public review once the grant of equipment authorization is issued. Sincerely, Jeff Narducci Director, Global Regulatory Compliance [email protected]

Motorola Mobility LLC 222 W. Merchandize Mart Plaza, Chicago Il US www.motorola.com Date: November 29, 2020 To whom it may concern, Please be notified that I, Jeff Narducci, have designated Jones Tsai of Sporton International Inc. and Dai Lihua of Motorola Mobility LLC as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out in their professional capacity by Jones Tsai of Sporton International Inc. and Dai Lihua of Motorola Mobility LLC in connection with all processes required for FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the following product, and shall remain in place until completion of the certification, or until revoked, whichever is earlier: FCC ID: IHDT56ZM2 FCC ID: IHDT56ZM3 FCC ID: IHDT56ZM4 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please don’t hesitate to contact me. Sincerely yours, Jeff Narducci Director, Global Regulatory Compliance [email protected]

FCC E-Label Information A. Images of the e-label screen are provided below: B. Access to the required information on the e-label Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: Settings> , then type Regulatory No any special accessories, access codes, or SIM card are required to go through the above steps. C. Devices have physical labels at point of marketing/sale visible to the purchaser (or in the alternative, on the packaging), and at time of importation? At the time of importation, marketing, and sale, the device will have the required physical label on the packaging, which will include the device’s FCC ID. D. Electronic labeling information is programmed into the device by the manufacturer at the time of manufacture. Yes. E. Electronic labeling information not modifiable by any third party. The e-label of the device is programmed by the grantee and secured in such a manner that it cannot be modified by third parties. F. All the applicable regulatory information required on the packaging or user instructions is provided according to the rules. Applicable regulatory information not found in the e-label is contained in the user manual.

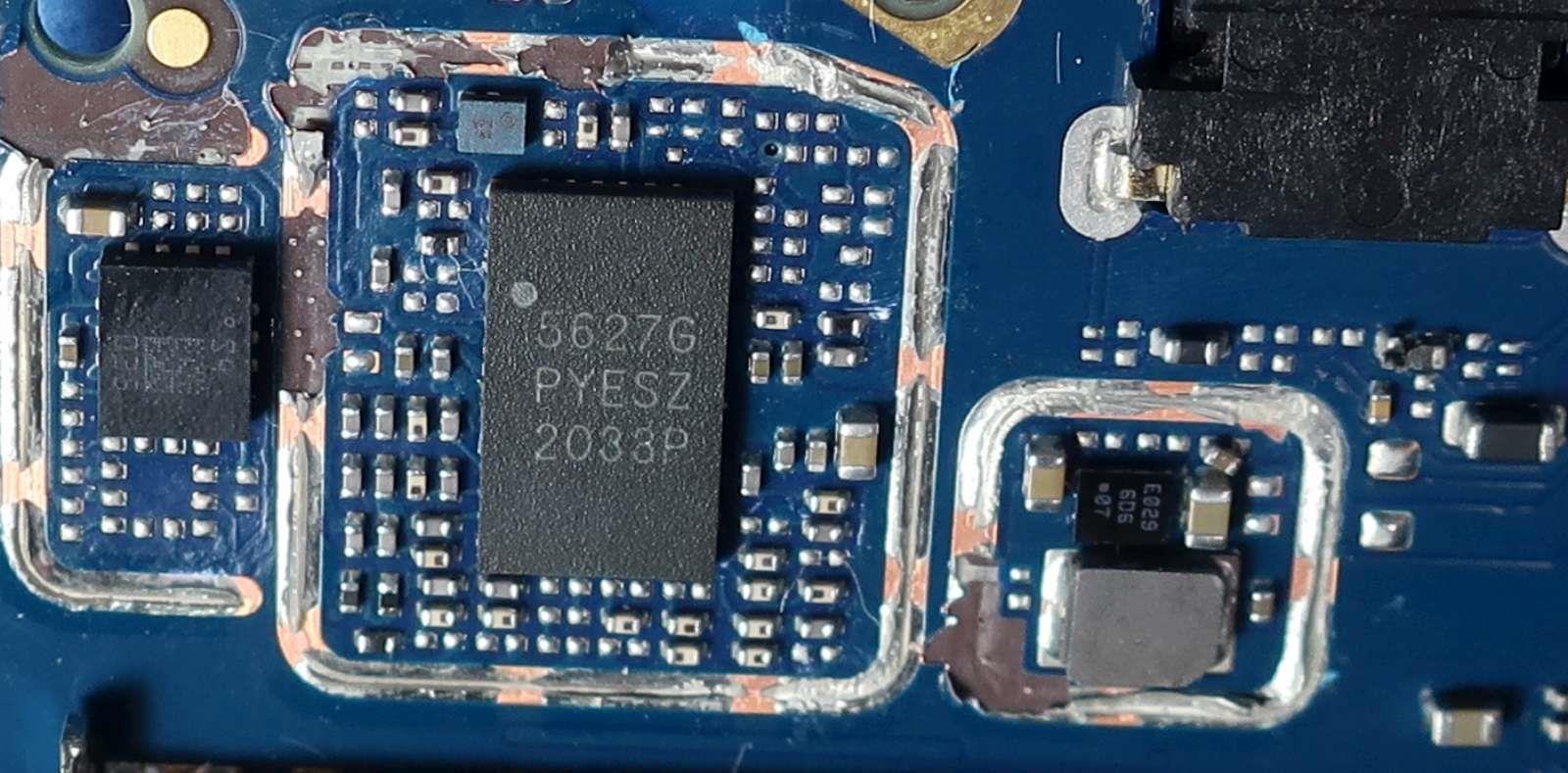

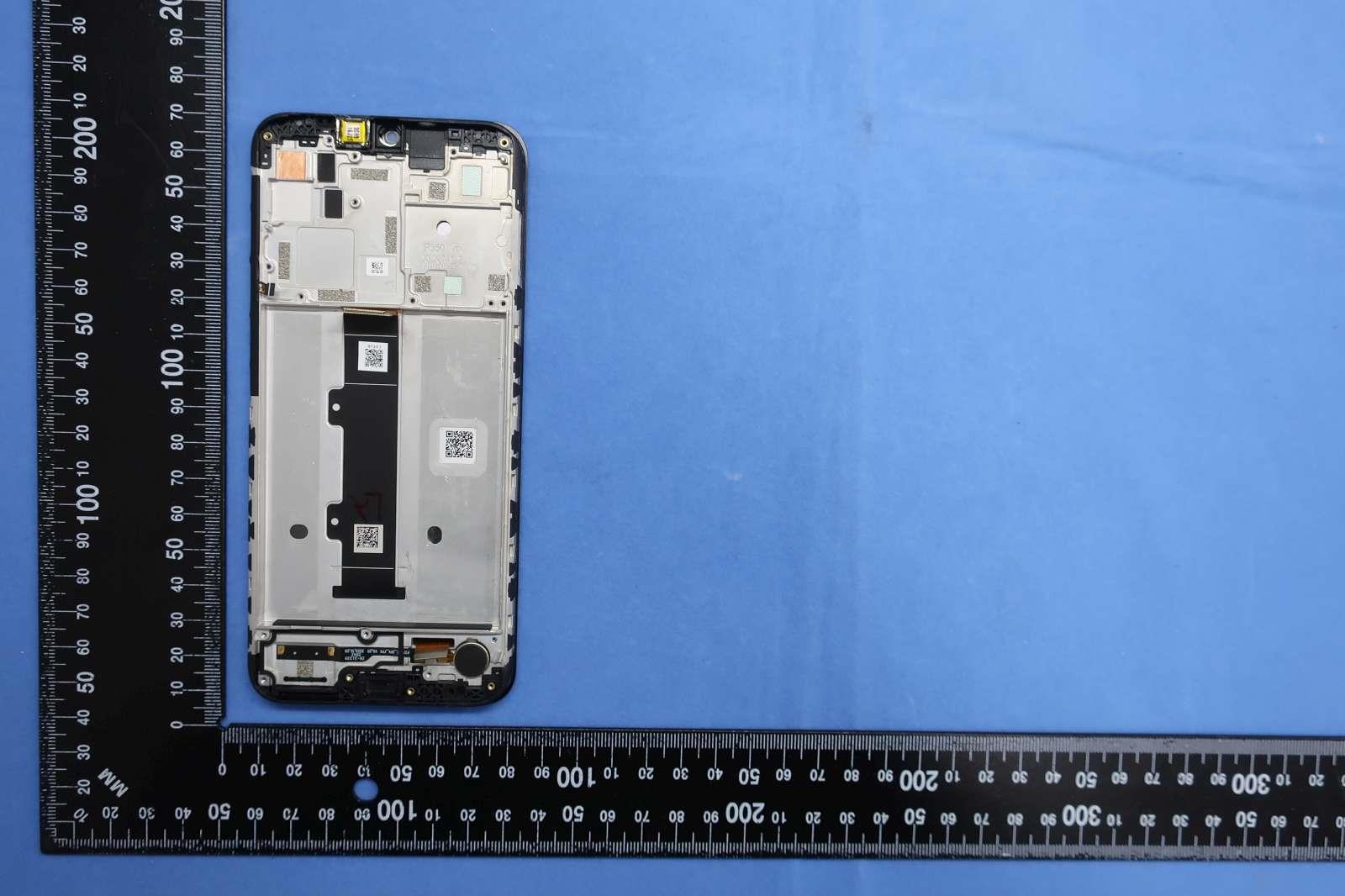

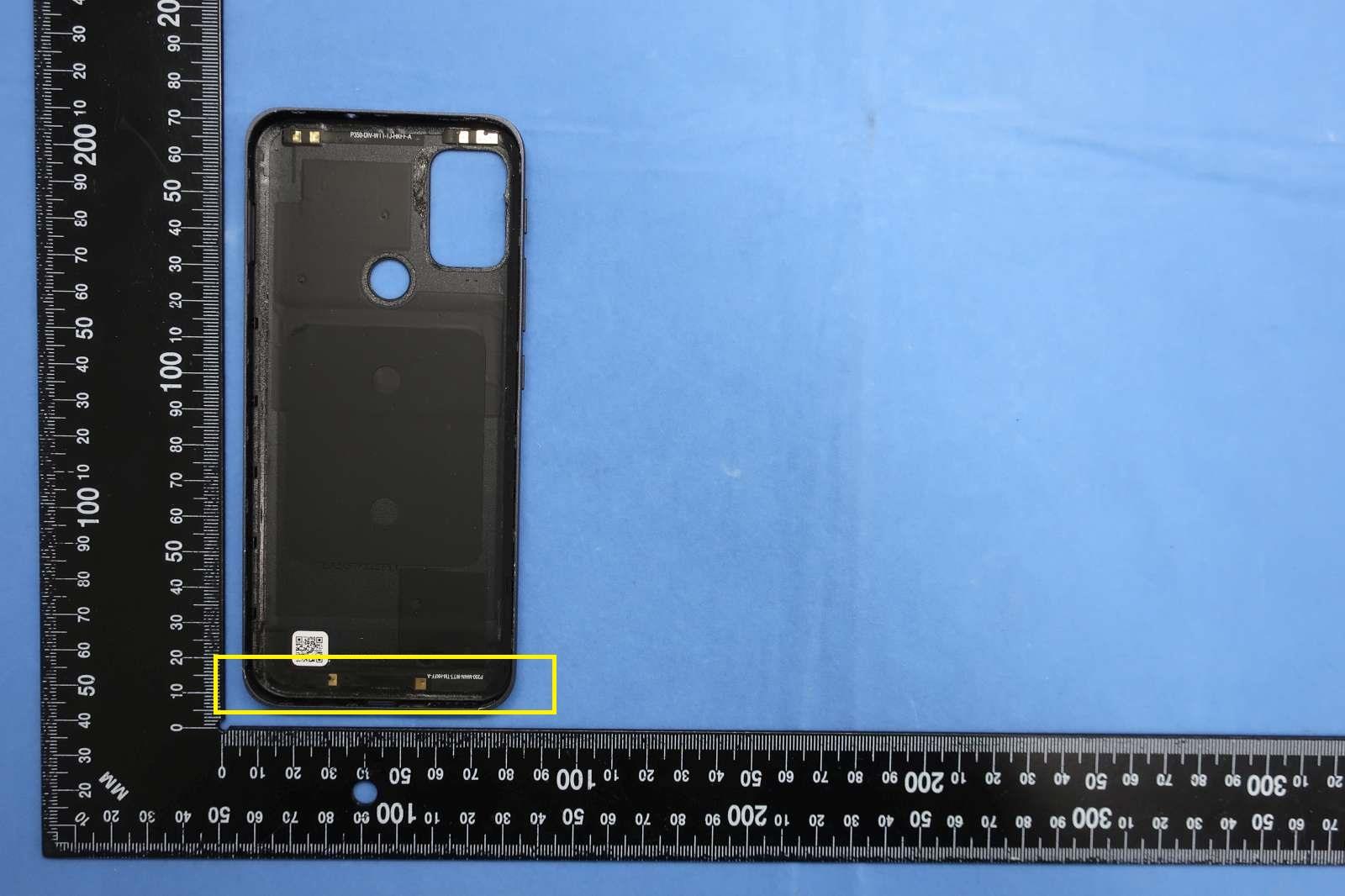

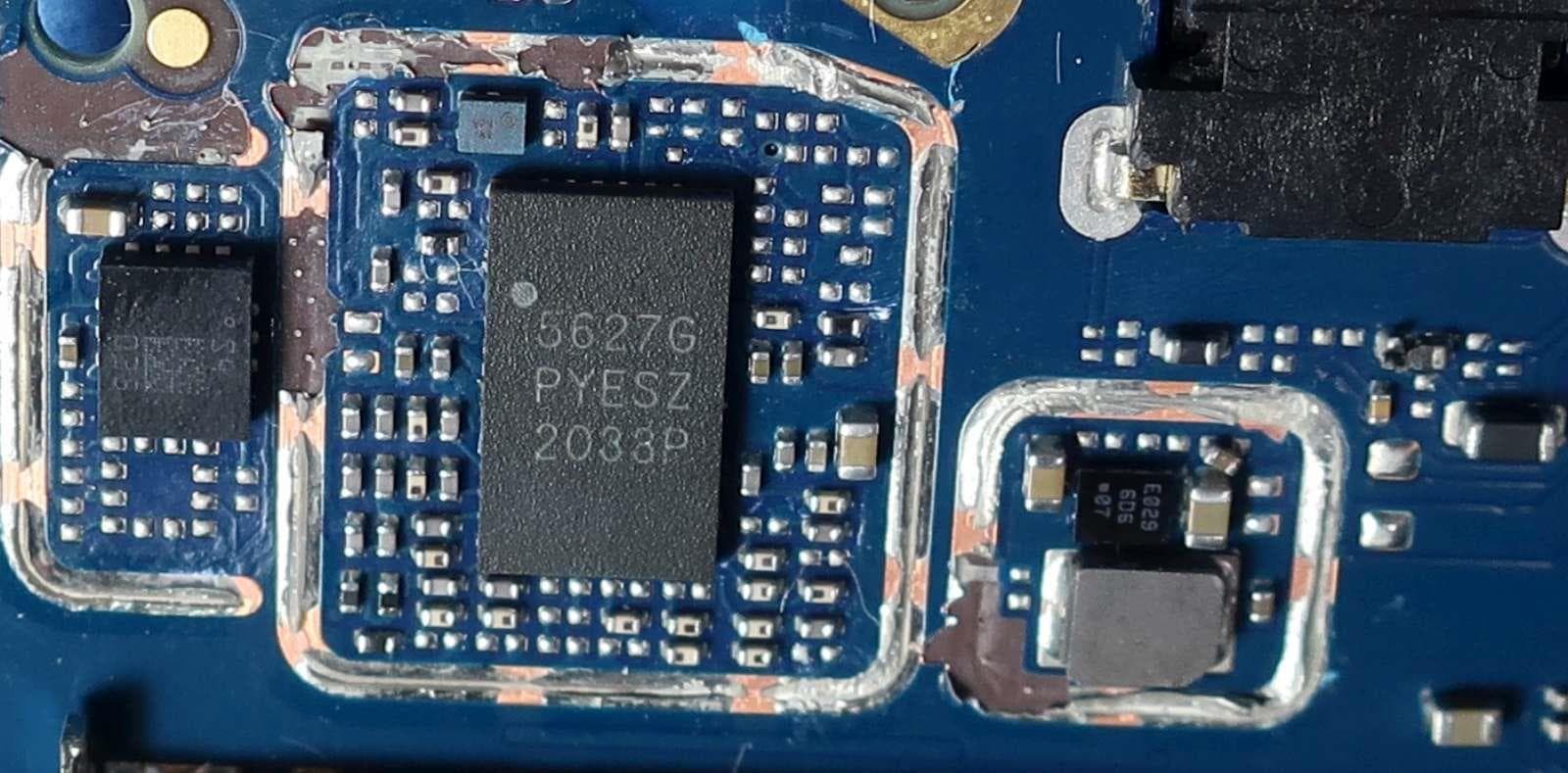

Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 31 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 3. Internal Photograph of EUT Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 32 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 WLAN 5G Antenna WWAN Main Antenna WWAN Diversity Antenna Bluetooth & WLAN 2.4G Antenna GNSS Antenna Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 33 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 34 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 35 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 36 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 37 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 38 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 39 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 40 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 41 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 42 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 43 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 44 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 45 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 46 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 47 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 48 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 49 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 50 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 51 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 52 of 74 TEL : 86-75…

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 68 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 69 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 70 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 71 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 WWAN Main Antenna Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 72 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 WWAN Diversity Antenna Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 73 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 Bluetooth & WLAN 2.4G Antenna GNSS Antenna Photographs of EUT Report No.: EP0O2013-01 Brand Name: Motorola; Model Name: XT2127-1 Sporton International (ShenZhen) Inc. Page Number : 74 of 74 TEL : 86-755-8637-9589 Report Issued Date : Dec. 11, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZM4 WLAN 5G Antenna

Sporton International (Shenzhen) Inc. TEL : +86-755-86379589 / FAX : +86-755-86379595 Issued Date : Dec. 11, 2020 FCC ID : IHDT56ZM4 Page 1 of 73 Form version. : 200414 FCC SAR Test Report Report No. : FA0O2013-01 FCC SAR Test Report APPLICANT : Motorola Mobility LLC EQUIPMENT : Mobile Cellular Phone BRAND NAME : Motorola MODEL NAME : XT2127-1 FCC ID : IHDT56ZM4 STANDARD : FCC 47 CFR Part 2 (2.1093) The product was received on Oct. 20, 2020 and testing was started from Nov. 11, 2020 and completed on Dec. 02, 2020. We, Sporton International (ShenZhen) Inc, would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (ShenZhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Hank Huang / Supervisor Approved by: Johnny Chen / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. TEL : +86-755-86379589 / FAX : +86-755-86379595 Issued Date : Dec. 11, 2020 FCC ID : IHDT56ZM4 Page 2 of 73 Form version. : 200414 FCC SAR Test Report Report No. : FA0O2013-01 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Applied .......................................................................................................................................................... 5 4. Equipment Under Test (EUT) Information ................................................................................................................... 6 4.1 General Information................................................................................................................................................ 6 4.2 General LTE SAR Test and Reporting Considerations ........................................................................................... 7 5. Proximity Sensor Triggering Test ................................................................................................................................ 9 5.1 Proximity sensor triggering distances(Per KDB616217§6.2) .................................................................................. 9 6. RF Exposure Limits ..................................................................................................................................................... 15 6.1 Uncontrolled Environment .................................................................................................................................... 15 6.2 Controlled Environment ........................................................................................................................................ 15 7. Specific Absorption Rate (SAR) ................................................................................................................................. 16 7.1 Introduction .......................................................................................................................................................... 16 7.2 SAR Definition ...................................................................................................................................................... 16 8. System Description and Setup ................................................................................................................................... 17 8.1 E-Field Probe ....................................................................................................................................................... 18 8.2 Data Acquisition Electronics (DAE) ...................................................................................................................... 18 8.3 Phantom ............................................................................................................................................................... 19 8.4 Device Holder ....................................................................................................................................................... 20 9. Measurement Procedures ........................................................................................................................................... 21 9.1 Spatial Peak SAR Evaluation ............................................................................................................................... 21 9.2 Power Reference Measurement ........................................................................................................................... 22 9.3 Area Scan ............................................................................................................................................................. 22 9.4 Zoom Scan ........................................................................................................................................................... 23 9.5 Volume Scan Procedures ..................................................................................................................................... 23 9.6 Power Drift Monitoring .......................................................................................................................................... 23 10. Test Equipment List .................................................................................................................................................. 24 11. System Verification .....................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.11.22 13_WLAN5GHz_802.11ac-VHT80 MCS0_Left Tilted_Ch155 Communication System: UID 0, WIFI (0); Frequency: 5775 MHz;Duty Cycle: 1:1.078 Medium: HSL_5750_201122 Medium parameters used: f = 5775 MHz; σ = 5.161 S/m; ε r = 35.462; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3826; ConvF(4.68, 4.68, 4.68); Calibrated: 2020.05.20; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2020.07.27 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch155/Area Scan (101x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.616 W/kg Ch155/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 4.538 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 1.07 W/kg SAR(1 g) = 0.241 W/kg; SAR(10 g) = 0.076 W/kg Maximum value of SAR (measured) = 0.605 W/kg 0 dB = 0.605 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.11.18 14_Bluetooth_DH5 1Mbps_Left Cheek_Ch39 Communication System: UID 0, Bluetooth (0); Frequency: 2441 MHz;Duty Cycle: 1:1.293 Medium: HSL_2450_201118 Medium parameters used: f = 2441 MHz; σ = 1.861 S/m; ε r = 38.158; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3826; ConvF(7.12, 7.12, 7.12); Calibrated: 2020.05.20; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2020.07.27 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch39/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.152 W/kg Ch39/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.113 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.230 W/kg SAR(1 g) = 0.090 W/kg; SAR(10 g) = 0.042 W/kg Maximum value of SAR (measured) = 0.147 W/kg 0 dB = 0.147 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.11.15 15_GSM850_GPRS(2 Tx slots)_Back_5mm_Ch251 Communication System: UID 0, GPRS/EDGE10 (0); Frequency: 848.8 MHz;Duty Cycle: 1:4.15 Medium: HSL_835_201115 Medium parameters used: f = 849 MHz; σ = 0.928 S/m; ε r = 42.563; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3826; ConvF(9.12, 9.12, 9.12); Calibrated: 2020.05.20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2020.07.27 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch251/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.43 W/kg Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.19 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 2.21 W/kg SAR(1 g) = 1.08 W/kg; SAR(10 g) = 0.578 W/kg Maximum value of SAR (measured) = 1.54 W/kg 0 dB = 1.54 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.11.11 16_GSM1900_GPRS(2 Tx slots)_Bottom Side_5mm_Ch512 Communication System: UID 0, GPRS/EDGE10 (0); Frequency: 1850.2 MHz;Duty Cycle: 1:4.15 Medium: HSL_1900_201111 Medium parameters used: f = 1850.2 MHz; σ = 1.393 S/m; ε r = 38.818; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3826; ConvF(7.67, 7.67, 7.67); Calibrated: 2020.05.20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2020.07.27 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch512/Area Scan (41x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.36 W/kg Ch512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.058 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 2.02 W/kg SAR(1 g) = 1 W/kg; SAR(10 g) = 0.485 W/kg Maximum value of SAR (measured) = 1.56 W/kg 0 dB = 1.56 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.11.15 17_WCDMA V_RMC 12.2Kbps_Back_5mm_Ch4233 Communication System: UID 0, UMTS (0); Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium: HSL_835_201115 Medium parameters used: f = 847 MHz; σ = 0.926 S/m; ε r = 42.578; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3826; ConvF(9.12, 9.12, 9.12); Calibrated: 2020.05.20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2020.07.27 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch4233/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.33 W/kg Ch4233/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.01 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 2.00 W/kg SAR(1 g) = 0.980 W/kg; SAR(10 g) = 0.538 W/kg Maximum value of SAR (measured) = 1.47 W/kg 0 dB = 1.47 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.11.11 18_WCDMA IV_RMC 12.2Kbps_Bottom Side_5mm_Ch1513 Communication System: UID 0, UMTS (0); Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium: HSL_1750_201111 Medium parameters used: f = 1753 MHz; σ = 1.38 S/m; ε r = 41.343; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3826; ConvF(7.98, 7.98, 7.98); Calibrated: 2020.05.20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2020.07.27 - Pha…

Text truncated - open the document above for the full version.

Dipole Verification Data> D1900V2, serial no. 5d182 1900MHz – Head----2019.11.25 1900MHz – Body----2019.11.25 1900MHz – Head----2020.11.25 1900MHz – Body----2020.11…

Text truncated - open the document above for the full version.
