IHDT56ZP1

Motorola Mobility LLC

Mobile Cellular Phone

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Aug 25, 2021
Application Purpose: Original Equipment
Date of Application: Aug 03, 2021
Equipment Note: Mobile Cellular Phone
Frequency Range: 3470.01000000 - 3529.98000000
Company: Motorola Mobility LLC
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

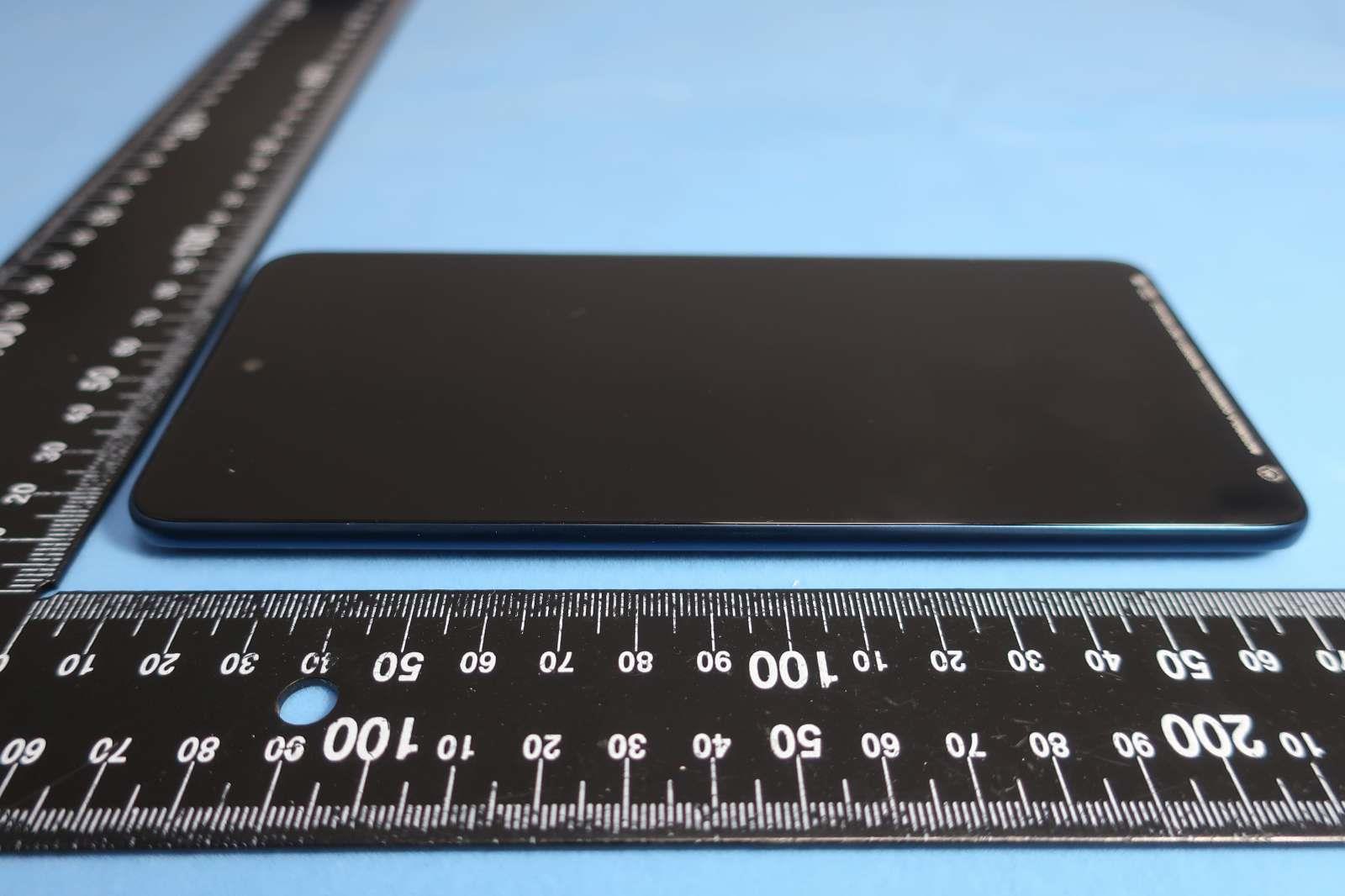

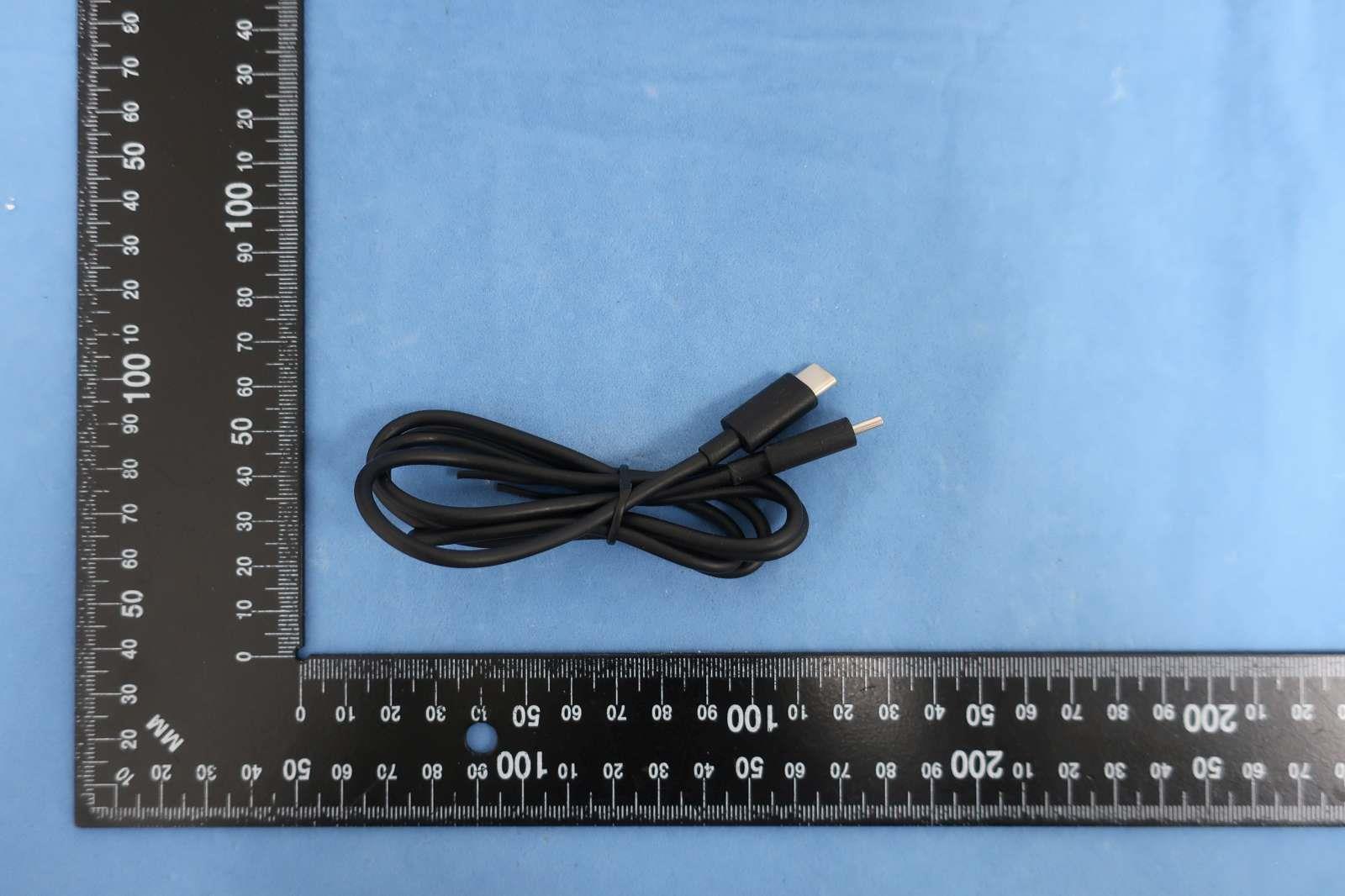

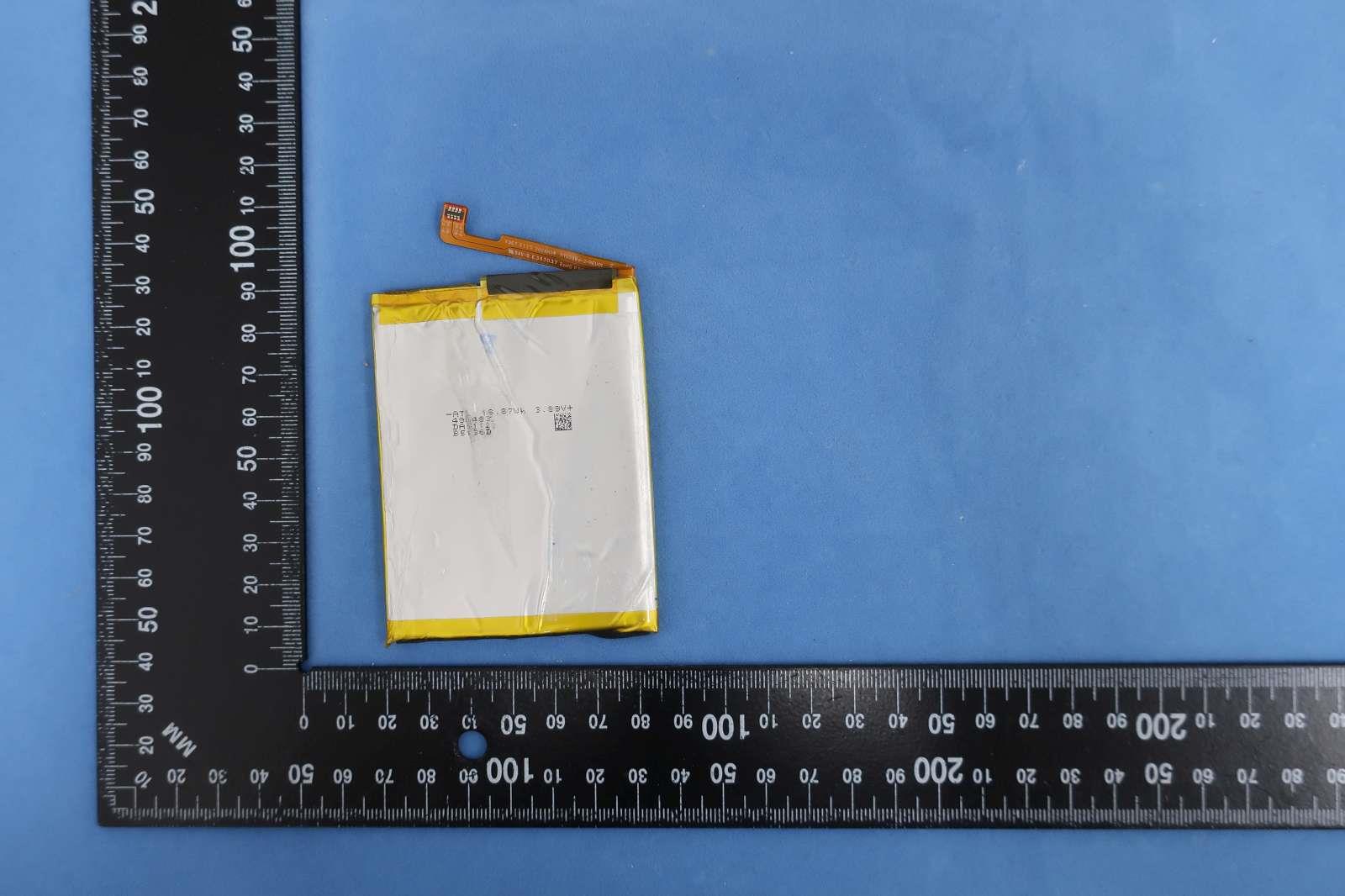

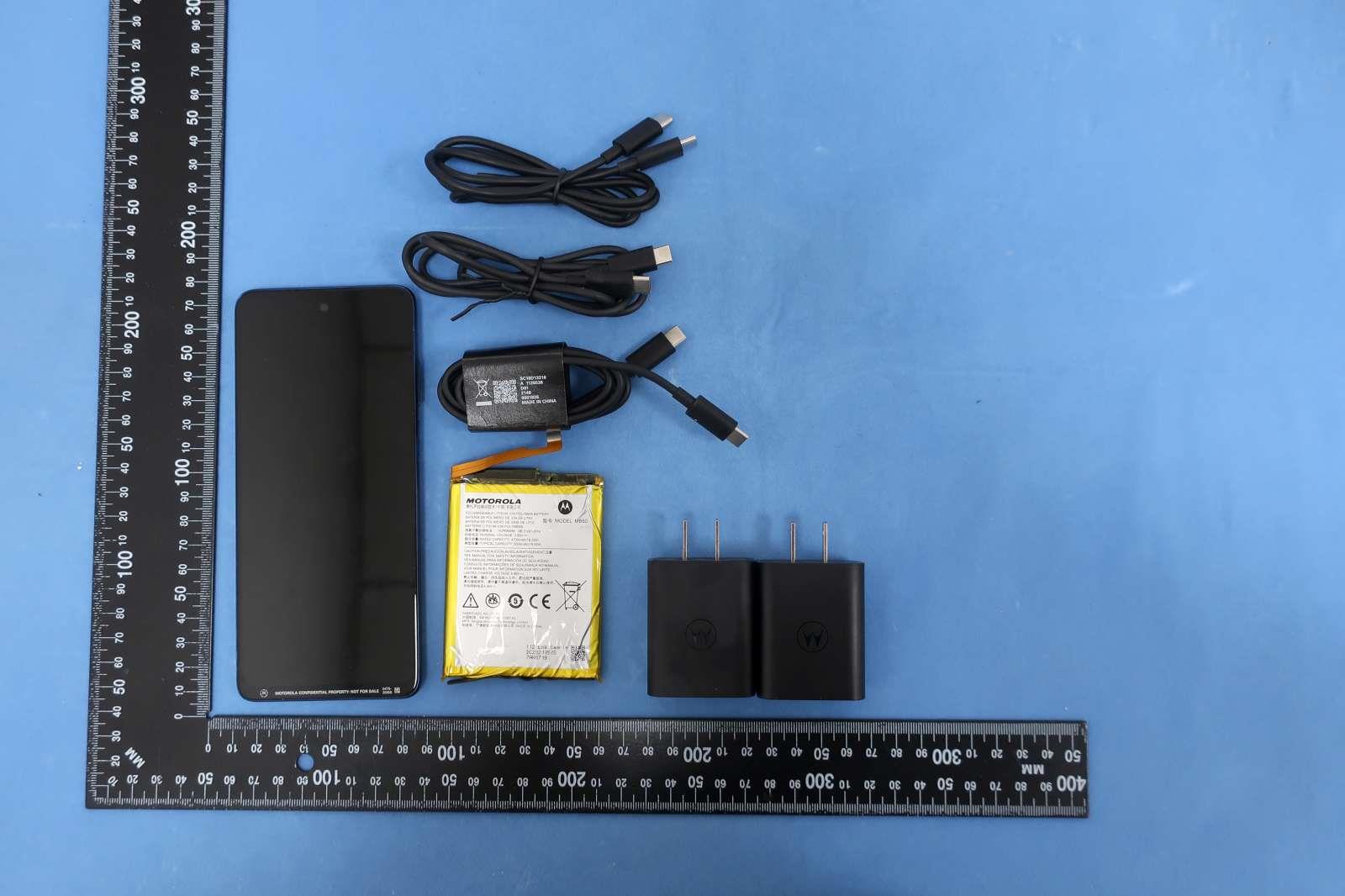

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
47	27	3.47 GHz - 3.53 GHz	235.10 mW	38M2W7D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output Power is EIRP and ERP for above and below 1 GHz, respectively. SAR compliance for body-worn operating configurations is limited to or belt-clips and holsters that have no metallic components in the assembly and cause the device to operate with the minimum separation distance of 5.0 mm, as described in this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), simultaneous transmission and product specific (10g SAR) exposure conditions are 1.25 W/kg, 1.26 W/kg, 1.26 W/kg, 1.58 W/kg and 3.18 W/kg, respectively. This device supports LTE of 1.4, 3, 5, 10, 15 and 20 MHz bandwidth modes for FDD LTE Bands 2, 4 and 66; LTE of 5, 10, 15 and 20 MHz bandwidth modes for FDD LTE Band 7; LTE of 1.4, 3, 5 and 10 MHz bandwidth modes for FDD LTE Bands 5 and 12; and LTE of 5 and 10 MHz bandwidth modes for FDD LTE Bands 13 and 17. This device also supports LTE uplink carrier aggregation as described in this filing. This device also supports Frequency Range 1 5G NR modes of 5, 10, 15, and 20 MHz bandwidth for FDD Bands n2 and n5; 5, 10, 15, 20, 30 and 40 MHz bandwidth for FDD Band n66; and 20, 30, 40, 50, 60, 70, 80, 90 and 100 MHz bandwidth modes for TDD Bands n77 and n78. Certification of 3GPP 5G NR band n77/n78 operations is limited to the 3.7 GHz segment under Part 27.5(m). Frequency Range 1 5G NR ENDC modes are supported by this device, as described in this filing. HAC Rating: M3 T3: 2011. T-coil 5G sub 6 bands appraised as equivalent LTE connections. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for U.S. operations.
