IHDT56ZP2Mobile Cellular Phone

1 en-US Legal, safety, and regulatory Legal information. This guide provides important legal, safety, and regulatory information that you should read before using your product. For the complete legal information, from the home screen swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Water repellent. Your phone is not waterproof. For more about your phone’s water-repellent design and care, see the user guide. Regulatory information (e-label). To view regulatory information for this phone, from the home screen swipe up and tap Settings > , then type Regulatory, or visit www.motorola.com/device-legal. Battery safety. Your phone uses a removable battery. Don’t use tools, sharp objects, or excessive force to insert or remove the battery. This may damage the battery and could cause burning and injury. Battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service center or similar skilled personnel. If your phone becomes unresponsive, press and hold the Power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger. Use of other chargers is not recommended. Don’t charge your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). For more, see the “Legal information” section of this guide, or visit www.motorola.com/device-legal. Driving precautions. Responsible and safe driving is your primary responsibility when driving a vehicle. Always obey local laws and regulations. For more, see the “Legal information” section of this guide to find the complete legal information, or visit www.motorola.com/device-legal. Seizures, blackouts, eyestrain & discomfort. This device may display flashing images or loud sounds. For more, see the “Legal information” section of this guide to find the complete legal information, or visit www.motorola.com/device-legal. Medical devices. This device may interfere with pacemakers and other medical devices. For more, see the “Legal information” section of this guide to find the complete legal information, or visit www.motorola.com/device-legal. Class 1 Laser. This device is classified as a Class 1 Laser product, which is safe in normal use per IEC60825-1:2007 and IEC60825-1:2014. This device complies with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice 50, dated June 24, 2007. Do not attempt to modify or disassemble. Extreme heat or cold. Don’t use your phone in temperatures below 2 en-US -20°C (-4°F) or above 45°C (113°F). Don’t store/transport your phone in temperatures below -20°C (-4°F) or above 60°C (140°F). SAR information (on e-label). To view specific absorption rate (SAR) values for t phone, from the home screen swipe up and tap Settings > , then type Regulatory, or visit www.motorola.com/sar. Operational warnings. Obey all local restrictions when using mobile devices in public areas, such as hospitals, airplanes, or schools. • Potentially explosive areas: Potentially explosive areas are often, but not always, posted and can include blasting areas, fueling stations, fueling areas (such as below decks on boats), fuel or chemical transfer or storage facilities, or areas where the air contains chemicals or particles, such as grain dust, or metal powders. Turn off your phone before entering such an area, and do not charge batteries. In such areas, sparks can occur and cause an explosion or fire. • Symbol key: Your charger, phone, battery (if user-removable), phone display, user’s guide, or packaging may contain symbols, defined as follows: Important safety information follows. The package and paper products that came with your phone can be recycled. Don’t dispose of your battery or phone with your household waste. See “Disposal & recycling” for more information. Don’t dispose of your battery or phone in a fire. For indoor use only. Listening at high volume to music or voice through a headset or headphone may damage your hearing. Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long 3 en-US periods. Disposal & recycling. For help recycling products and packaging responsibly, go to www.motorola.com/recycling. Usage. This phone supports apps and services that could use a lot of data, so make sure your data plan meets your needs. Contact your service provider for details. Certain apps and features may not be available in all countries. Warranty. This product is covered by Motorola’s limited warranty. o review the warranty on your phone, swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. You may also obtain a copy of the warranty by contacting Motorola at: Motorola Mobility LLC, Attention Customer Service—Warranty Request, 222 West Merchandise Mart Plaza, Suite 1800, Chicago, IL 60654. Arbitration & opt-out. Except where prohibited by law, any controversy or claim arising out of or relating to any Motorola product will be resolved by binding arbitration, instead of in court, unless you opt-out. To opt-out, send a written rejection notice within 30 days of purchase that includes your name, address, phone number, phone, and phone serial number, and tells Motorola that you are rejecting this Arbitration provision to: Motorola Mobility LLC, 222 West Merchandise Mart Plaza, Suite 1800, Attn: Arbitration Provision Opt-Out, Chicago, IL 60654 or [email protected]. To locate your phone’s serial (IMEI) number, from the home screen swipe up and tap Settings > , then type IMEI. For more information on this arbitration provision, on your phone, swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/ charges may apply. Features, functionality, and other product specifications, as well as the i…

Text truncated - open the document above for the full version.

Put in the cards & power on Nano SIM 1 Insert the SIM tool into the tray hole to pop out the tray. Make sure you use the correct size SIM card and don’t cut the SIM card. Nano SIM 2 Insert the SIM card with the gold contacts up, then gently push the tray into the slot. 3 Press and hold the Power button, then follow the prompts to get started. Meet Your XT2141-1, XT2141-2 Main Camera Ultra-wide/ Macro Camera Flash Front Camera SIM Card Tray Volume Buttons Microphone Telephoto Camera Proximity Sensor Microphone USB-C®/Charger/Headset Jack Power Button / Fingerprint Sensor Speaker Microphone Help & more Get answers, updates, and info: •Help is here: From the home screen, swipe up and tap Settings > Help to learn how to use your phone and get support. •Get more: Get software, user guides, and more at www.motorola.com/mymotoedge. •Get apps: Tap Play Store to browse and download apps. •Use a headset: To use a headset, you’ll need one with a USB-C connector. If using a 3.5mm headset, you’ll need an adapter to connect a 3.5mm connector to USB-C. •Connect with 5G: 5G service plan and 5G network coverage required; available only in select areas; device not compatible with all 5G networks. Contact your service provider for details. Legal information. This guide provides important legal, safety, and regulatory information that you should read before using your product. For the complete legal information, from the home screen swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Water repellent. Your phone is not waterproof. For more about your phone’s water-repellent design and care, swipe up and tap Settings > Help. Battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service center or similar skilled personnel. If your phone becomes unresponsive, press and hold the Power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger. Use of other chargers is not recommended. Don’t charge your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). For more, see the “Legal information” section of this guide, or visit www.motorola.com/device-legal. Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning shows. Tap OK to dismiss it, or wait one to five seconds, then press the Volume Up button to dismiss the alert and enable the volume to continue to be adjusted. Disposal & recycling. For help recycling products and packaging responsibly, visit www.motorola.com/recycling. Extreme heat or cold. Don’t use your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). Don’t store/transport your phone in temperatures below -20°C (-4°F) or above 60°C (140°F). Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/charges may apply. Product specifications and other information contained in this guide are believed to be accurate at the time of printing. Motorola reserves the right to correct or change any information without notice. Arbitration. Your purchase is governed by a binding arbitration clause. For more information and how to opt-out, see the legal guide that came with your phone. Copyright & trademarks. MOTOROLA, the stylized M logo, MOTO, and the for Your phone works with Ready For, a new platform that extends your phone’s experience to any compatible TV: • Mobile gaming on the big screen, • Video calls larger than life and with better quality, • A larger, uncluttered workspace. To learn more, scan the QR code. Connect and use Ready For You’ll need a TV/monitor with Miracast® compatibility. On your phone, swipe the status bar or lock screen down, and tap Ready For. Then, follow the steps. Tip: You can also connect a dock and Bluetooth® compatible accessories, such as, keyboard, mouse or gaming controller (sold separately), but these are not required. MOTO family of marks are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, Android, Google Play and other related marks and logos are trademarks of Google LLC. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum. All other product or service names are the property of their respective owners. © 2021 Motorola Mobility LLC. All rights reserved. Product ID: XT2141-1, XT2141-2 Manual Number: TBD-A Protect your phone with Moto Care Extended warranty and Accident protection. Visit motorola.com/motocare. care FCC/CE motorola.com FCC/CE

Motorola Mobility LLC 222 W. Merchandize Mart Plaza, Chicago Il US www.motorola.com Date: June 29, 2021 To whom it may concern, Please be notified that I, Jeff Narducci, have designated Jones Tsai of Sporton International Inc. and Dai Lihua of Motorola Mobility LLC as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out in their professional capacity by Jones Tsai of Sporton International Inc. and Dai Lihua of Motorola Mobility LLC in connection with all processes required for FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the following product, and shall remain in place until completion of the certification, or until revoked, whichever is earlier: FCC ID: IHDT56ZP3 FCC ID: IHDT56ZP2 FCC ID: IHDT56ZP1 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please don’t hesitate to contact me. Sincerely yours, Jeff Narducci Director, Global Regulatory Compliance [email protected]

Motorola Mobility LLC 222 W. Merchandize Mart Plaza, Chicago Il US www.motorola.com Date: June 29, 2021 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: IHDT56ZP3 FCC ID: IHDT56ZP2 FCC ID: IHDT56ZP1 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting confidentiality for exhibits filed with the commission supporting the application of equipment authorization for those items referenced above. Motorola Mobility respectfully requests the Commission to withhold indefinitely from public disclosure the following attachments under Long-Term Confidentiality. ⚫ Schematic Diagrams ⚫ Block Diagrams ⚫ Part List ⚫ Operational Description ⚫ Tune-up Procedure The above listed documents contain detailed system and equipment descriptions that are proprietary and confidential information under Motorola trade secret protection. Public disclosure of above documents would be harmful to our company and would provide competitors an unfair advantage. This information is not made publicly available even after commercial release of the device. In additional to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We request the commission to grant short-term confidentiality request on the following attachments for 180 days after the grant as outlined in Public Notice DA 04-1705. ⚫ External Photos ⚫ Internal Photos ⚫ Test Setup Photos ⚫ User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and that information will be available for public review once the grant of equipment authorization is issued. Sincerely, Jeff Narducci Director, Global Regulatory Compliance [email protected]

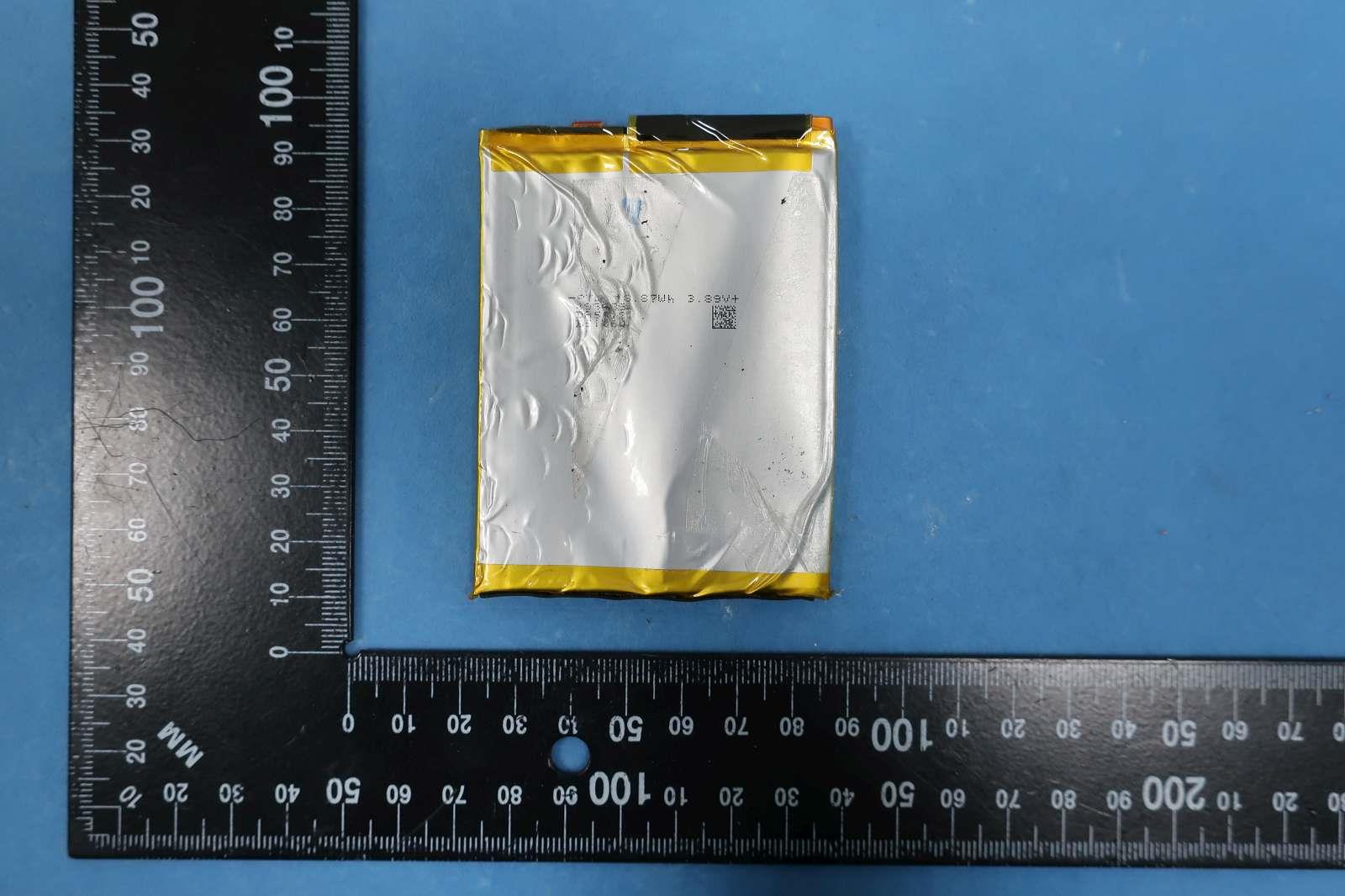

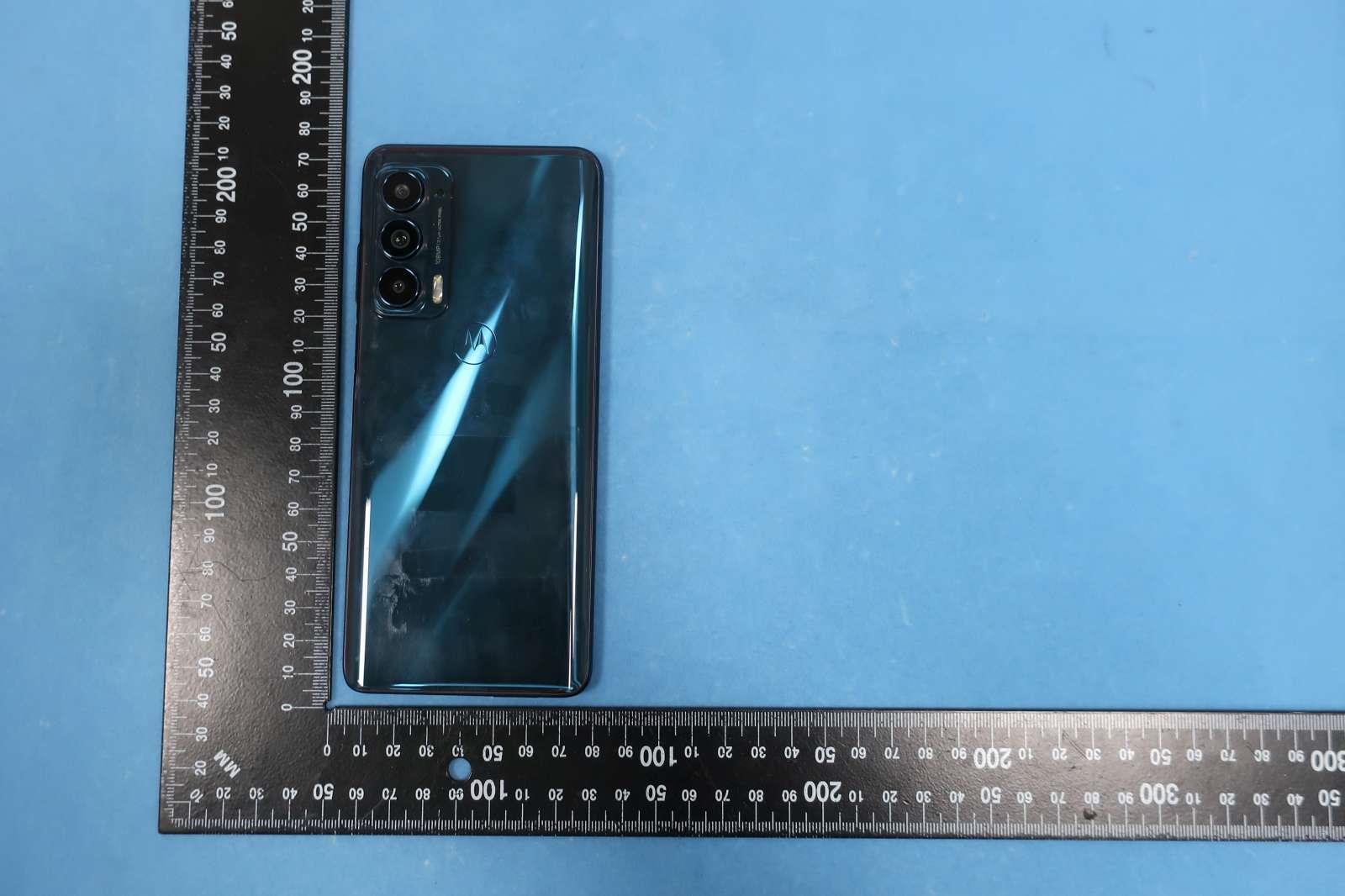

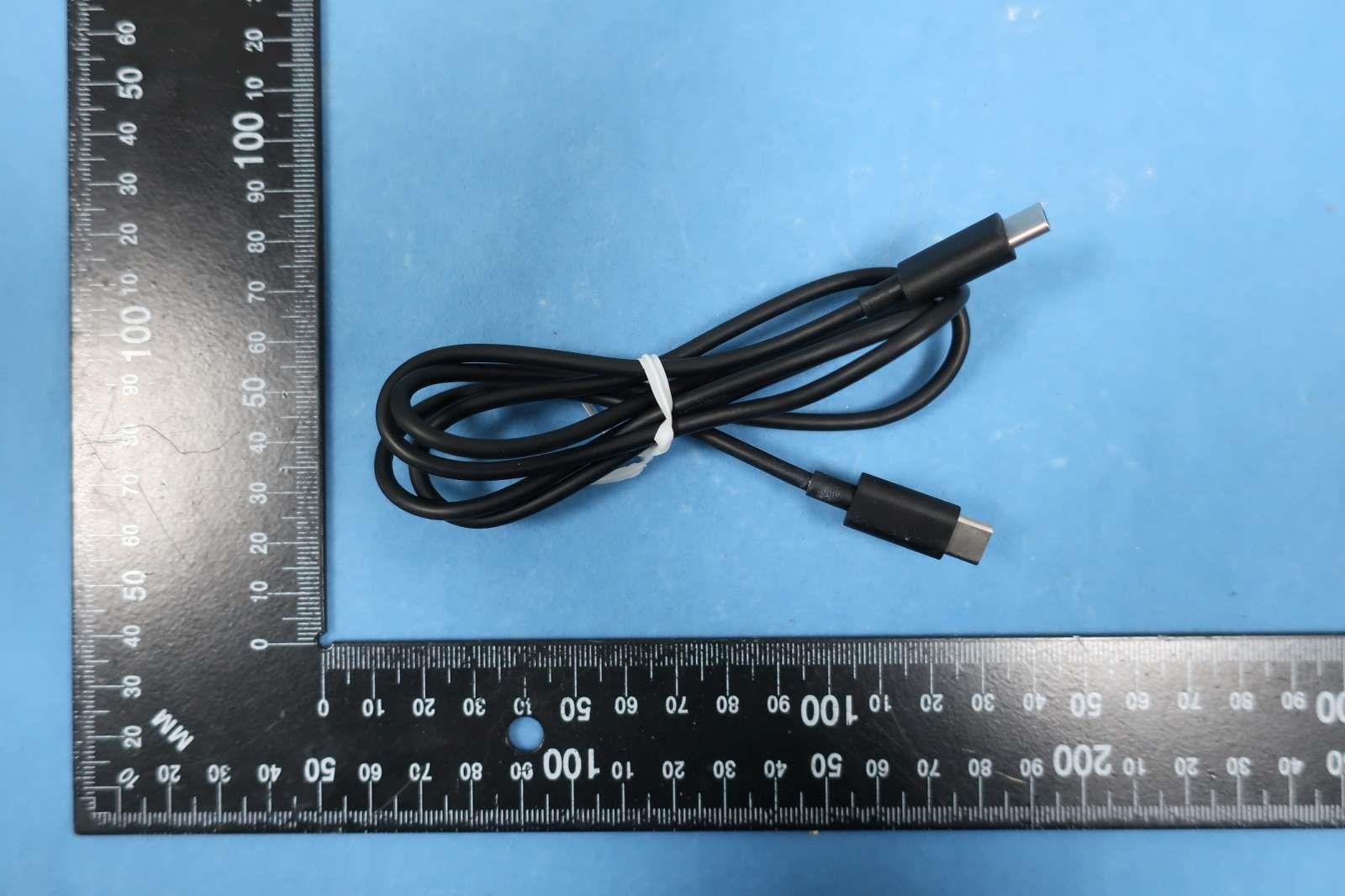

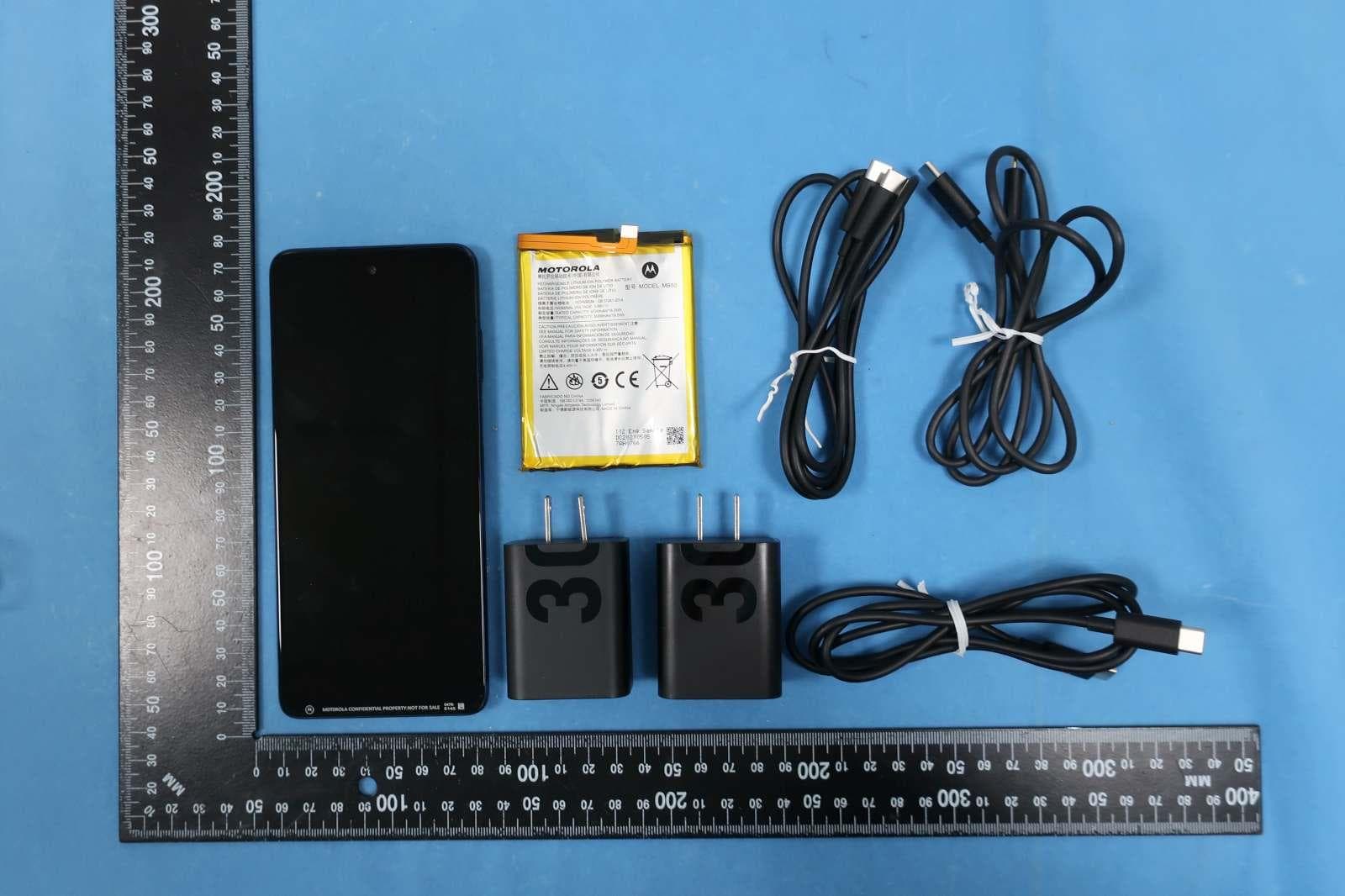

Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 1 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 1. External Photograph of EUT Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 2 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 3 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 4 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 5 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 6 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 7 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 List of Accessory： Specification of Accessory AC Adapter 1 Brand Name Motorola(Salom) Model Name MC-301 AC Adapter 2 Brand Name Motorola(Acbel) Model Name MC-301 Battery Brand Name Motorola(ATL) Model Name MB50 USB Cable 1 Brand Name Motorola(Luxshare) Model Name SC18D13217 USB Cable 2 Brand Name Motorola(Saibao) Model Name SC18D13215 USB Cable 3 Brand Name Motorola(Cabletech) Model Name SC18D13216 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 8 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 9 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 AC Adapter 1 Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 10 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 AC Adapter 2 Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 11 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 Battery Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 12 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 13 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 USB Cable 1 Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 14 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 USB Cable 2 Photographs of EUT Report No.: EP151701-01B Brand Name: Motorola / Model Name: XT2141-2 Sporton International (Shenzhen) Inc. Page Number : 15 of 64 TEL : 86-755-8637-9589 Report Issued Date : Jul. 12, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP2 USB Cable 3

In Collaboration ^ith s p e a CAU BftAHON LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing,100191, China Tel: +86-lo-62304633-2079 Fax: +86-lo-62304633-2504 E-mail: [email protected]://www.chinattl.cn Date:120620l8 DASY5 Validation Reportfor Body TSLDate:12.0 Test Laboratory: CTTL, Beijing, China DUT: Dipole 2600 MHz; Type: D2600V2; Serial: D2600V2 - SN:1070 Communication System: UID 0, CW; Frequency: 2600 MHz; Duty Cycle:1:1 Medium parameters used:f = 2600 MHz; a = 2.181 S/m; sr = 51.03;p = 1000 kg/m3 Phantom section: Right Section DASY5 Configuration: . Probe: EX3DV4 - SN7514; ConvF(7.06, 7.06, 7.06) @ 2600 MHz; Calibrated 8/27/2018 @Sensor-Surface:1.4mm (Mechanical Surface Detection) . Electronics: DAE4 Snl 555; Calibrated: 8/20/2018 @Phantom: MFPV5.1C ; Type: QD 000 P51CA; Serial:1062 . Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7450) Dipole Calibration/Zoom Scan (7x7x7)(7x7x7)/Cube 0: Measurement grid: dx=5 dy=5mm, dz=5mm Reference Value = 87.90 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 29.5 W/kg SAR(1 g) = 13.8 W/kg; SAR(lo g) = 6.18 W/kg Maximum value of SAR (measured) = 23.6 W/kg -4.58 9i6 -13.74 -18.32 -^2.90 0 dB = 23.6 W/kg = 13.73 dBW/kg Certificate No: Zl 8-60537 Page 7 of 8 I n ollaboration with - Add: No.51 Xueyuan Road, Haidian District, Beijing,100191, China Tel: +86-lo-62304633-2079 Fax: +86-lo-62304633-2504 E-mail: [email protected]://www.chinattl.cn Impedance Measurement Plotfor Body TSL Trs 50-0 0 4000 3o00 2000 lo00 o£¬o00£¬ -looo 000 -3000 0.00 5O0Q @sismith R+@X)scale 1.000U [Fl D] Certificate No: Zl8-60537 Page 8 of 8 Log Mag IQ.QQd/ Ref O.OOOdB [Fl] 2.6000000 GHZ 422.057 '| : -£¬---¡£-- ------------ i ------i-- -------£¬- ------£¬---¡ ̧--- "¡£"; D2600V2, Serial No. 1070 Extended Dipole Calibrations Referring to KDB 865664 D01 v01r02, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. D2600V2 – serial no. 1070 2600 Head 2600 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2018.12.7 -23.7 48.6 -6.33 -22.1 44.8 -5.36 2019.11.25 -23.1 2.5 48.6 0 -6.82 -0.49 -22.0 0.5 45.3 0.5 -4.65 0.71 2020.11.25 -23.5 0.8 48.8 0.2 -5.93 0.4 -22.0 0.5 44.5 -0.3 -5.04 0.32 <Justification of the extended calibration> The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data> D2600V2, serial no. 1070 2600MHz – Head----2019.11.25 2600MHz – Body----2019.11.25 2600MHz – Head----2020.11.25 2600MHz – Body----2020.11.25 Calibration Laboratory of Schmid & Partner Engineering AG Zeughausstrasse 43, 8004 Zurich, Switzerland Accredited by the Swiss Accreditation Service (SAS) The Swiss Accreditation Service is one ofthe signatories to the EA Multilateral Agreementforthe recognition of calibration certificates S c S Schweizerischer Kalibrierdienst Service suisse d'etalonnage Servizio svizzero ditaratura Swiss Calibration Service Accreditation No.: SCS 0108 Power meter E4419B Power sensor HP 8481A Power sensor HP 8481A RF generator R&S SMT-06 Network Analyzer Agilent E8358A SN:GB39512475 SN: US37292783 SN: MY41092317 SN:100972 SN: US41080477 Calibrated by Name Michael Weber 07-Oct-15 (in house check Feb-19) 07-Oct-15 (in house check Oct-18) 07-Oct-15 (in house check Oct-18) 15-Jun-15 (in house check Oct-18) 31-Mar-14 (in house check Oct-18) In house check: Oct-20 In house check: Oct-20 In house check: Oct-20 In house check: Oct-20 In house check: Oct-19 Approved by Katja Pokovic Signature This calibration certificate shall not be reproduced exceptin full without written approval ofthe laboratory Issued: April 29, 2019 Certificate No: D3500V2-1076_Apr19 Page 1 of 6 CALIBRATION CERTIFICATE ObjectD3500V2 - SN:1076 Calibration procedure(s)QA CAL-22.v4 Calibration Procedure for SAR Validation Sources between 3-6 GHz Calibration date:April 29, 2019 This calibration certificate documents the traceability to national standards, which realize the physical units of measurements (SI). The measurements and the uncertainties with confidence probability are given on the following pages and are part ofthe certificate. All calibrations have been conducted in the closed laboratory facility: environmenttemperature (22 3)C and humidity < 70%. Calibration Equipment used (M&TE criticalfor calibration) Primary Standards|ID#Cal Date (Certificate No.)Scheduled Calibration Power meter NRP Power sensor NRP-Z91 Power sensor NRP-Z91 Reference 20 dB Attenuator Type-N mismatch combination Reference Probe EX3DV4 DAE4 Secondary Standards SN:10477803-Apr-19 (No. 217-02892/02893)Apr-20 SN:10324403-Apr-19 (No. 217-02892)Apr-20 SN:10324503-Apr-19 (No. 217-02893)Apr-20 SN: 5058 (20k)04-Apr-19 (No. 217-02894)Apr-20 SN: 5047.2 / 0632704-Apr-19 (No. 217-02895)Apr-20 SN:350325-Mar-19 (No. EX3-3503_Marl9)Mar-20 SN:60104-Oct-18(No. DAE4-601^Oct18)Oct-19 ID#Check Date (in house)Scheduled Check Calibration Laboratory of Schmid & Partner Engineering AG Zeughausstrasse 43, 8004 Zurich, Switzerland Accredited by the Swiss Accreditation Service (SAS) The Swiss Accreditation Service is one ofthe signatories to the EA Multilateral Agreementforthe recognition of calibration certificates Glossary: TSL ConvF N/A tissue simulating liquid sensitivity in TSL / NORM x,y,z not applicable or not measured S c S Schweizerischer Kalibrierdienst Service suisse d'etalonnage Servizio svizzero ditaratura Swiss Calibration Service Accreditation No.: SCS 0108 Calibration is Performed According to the Following Standards: a)IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak Spatial- Averaged Specific …

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/6/4 90_LTE Band 41_20M_QPSK_1RB_99Offset_Bottom Side_0mm_Ch40185 Communication System: UID 0, LTE (0); Frequency: 2549.5 MHz;Duty Cycle: 1:2.331 Medium: HSL_2600_210604 Medium parameters used: f = 2549.5 MHz; σ = 1.999 S/m; ε r = 38.309; ρ = 1000 kg/m 3 Ambient Temperature：23.4°C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7375; ConvF(7.4, 7.4, 7.4); Calibrated: 2020/12/21 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn918; Calibrated: 2020/6/22 - Phantom: SAM (Front) with CRP v5.0; Type: QD000P40CD; Serial: TP:1795 - Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Ch40185/Area Scan (41x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 14.7 W/kg Ch40185/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 47.08 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 21.8 W/kg SAR(1 g) = 7.38 W/kg; SAR(10 g) = 2.35 W/kg Maximum value of SAR (measured) = 14.3 W/kg Ch40185/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 47.08 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 13.9 W/kg SAR(1 g) = 5.41 W/kg; SAR(10 g) = 1.85 W/kg Maximum value of SAR (measured) = 10.7 W/kg 0 dB = 10.7 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/6/13 91_N66_40M_BPSK_1RB_1Offset_DFT-15_Top Side_0mm_Ch349000 Communication System: UID 0, 5G NR (0); Frequency: 1745 MHz;Duty Cycle: 1:1 Medium: HSL_1750_210613 Medium parameters used: f = 1745 MHz; σ = 1.371 S/m; ε r = 41.572; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7577; ConvF(8.62, 8.62, 8.62); Calibrated: 2020/9/30 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn360; Calibrated: 2020/11/6 - Phantom: SAM (Front) with CRP v5.0; Type: QD000P40CD; Serial: TP:1795 - Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Ch349000/Area Scan (41x71x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.3 W/kg Ch349000/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 81.35 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 14.9 W/kg SAR(1 g) = 6 W/kg; SAR(10 g) = 2.57 W/kg Maximum value of SAR (measured) = 11.4 W/kg 0 dB = 11.4 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/6/11 92_N25_40M_BPSK_108RB_54Offset_DFT-15_Top Side_0mm_Ch379000 Communication System: UID 0, 5G NR (0); Frequency: 1895 MHz;Duty Cycle: 1:1 Medium: HSL_1900_210611 Medium parameters used: f = 1895 MHz; σ = 1.441 S/m; ε r = 39.109; ρ = 1000 kg/m 3 Ambient Temperature：23.5°C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7577; ConvF(8.34, 8.34, 8.34); Calibrated: 2020/9/30 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn360; Calibrated: 2020/11/6 - Phantom: SAM (Front) with CRP v5.0; Type: QD000P40CD; Serial: TP:1795 - Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Ch379000/Area Scan (41x71x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 9.17 W/kg Ch379000/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 66.70 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 16.4 W/kg SAR(1 g) = 6.07 W/kg; SAR(10 g) = 2.5 W/kg Maximum value of SAR (measured) = 12.5 W/kg 0 dB = 12.5 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/6/15 93_N41_100M_BPSK_1RB_1Offset_DFT-30_Bottom Side_0mm_Ch528000 Communication System: UID 0, 5G NR (0); Frequency: 2640 MHz;Duty Cycle: 1:1 Medium: HSL_2600_210615 Medium parameters used: f = 2640 MHz; σ = 1.931 S/m; ε r = 39.145; ρ = 1000 kg/m 3 Ambient Temperature：23.3°C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7577; ConvF(7.66, 7.66, 7.66); Calibrated: 2020/9/30 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn360; Calibrated: 2020/11/6 - Phantom: SAM (Front) with CRP v5.0; Type: QD000P40CD; Serial: TP:1795 - Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Ch528000/Area Scan (51x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 16.0 W/kg Ch528000/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.22 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 23.9 W/kg SAR(1 g) = 7.66 W/kg; SAR(10 g) = 2.48 W/kg Maximum value of SAR (measured) = 16.2 W/kg Ch528000/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.22 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 14.2 W/kg SAR(1 g) = 5.35 W/kg; SAR(10 g) = 1.84 W/kg M…
