IHDT56ZP3Mobile Cellular Phone

read me en-US | pt-BR | en-US | es-US | pt-BR en-US | en-US | en-US | en-US | en-US | en-US FCC/CE 2 English Motorola edge20 Language ....................................................3 Language ...................................................15 FCC/CE 3 Let’s get started Before using your phone, please read the legal, safety, and regulatory information provided with your product. Note: Google Assistant may not be available in all languages. Main Camera Ultra-wide/ Macro Camera Flash Front Camera SIM Card Tray Volume Buttons Microphone Telephoto Camera Proximity Sensor Google Assistant Button Microphone USB-C®/Charger/Headset Jack Power Button / Fingerprint Sensor Speaker Microphone English FCC/CE 4 Put in the cards & power on 1 Insert the SIM tool into the tray hole to pop out the tray. Make sure you use the correct size SIM card and don’t cut the SIM card. 2 Insert the SIM card(s) with the gold contacts down, then gently push the tray into the slot. Note: Make sure SIM1 faces up. 3 Press and hold the Power button, then follow the prompts to get started. Nano SIM SIM1 SIM2 Turn the tray over. FCC/CE 5 for Your phone works with Ready For, a new platform that extends your phone’s experience to any compatible TV: • Mobile gaming on the big screen, • Video calls larger than life and with better quality, • A larger, uncluttered workspace. To learn more, scan the QR code. Connect and use Ready For You’ll need a TV/monitor with Miracast® compatibility. On your phone, swipe the status bar or lock screen down, and tap Ready For. Then, follow the steps. Tip: You can also connect a dock and Bluetooth® compatible accessories, such as, keyboard, mouse or gaming controller (sold separately), but these are not required. FCC/CE 6 Help & more Get answers, updates, and info: • Help is here: From the home screen, swipe up and tap Settings > Help to learn how to use your phone and get support. • Get more: Get software, user guides, and more at www.motorola.com/mymotoedge. • Get apps: Tap Play Store to browse and download apps. • Use a headset: To use a headset, you’ll need one with a USB-C connector. If using a 3.5mm headset, you’ll need an adapter to connect a 3.5mm connector to USB-C. • Connect with 5G: 5G service plan and 5G network coverage required; available only in select areas; device not compatible with all 5G networks. Contact your service provider for details. Legal information. This guide provides important legal, safety, and regulatory information that you should read before using your product. For the complete legal information, from the home screen swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Water repellent. Your phone is not waterproof. For more about your phone’s water-repellent design and care, swipe up and tap Settings > Help. Battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service center or similar skilled personnel. If your phone becomes unresponsive, press and hold the Power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger. Use of other chargers is not recommended. Don’t charge your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). For more, see the “Legal information” section of this guide, or visit www.motorola.com/device-legal. Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning shows. Tap OK to dismiss it, or wait one to five seconds, then press the Volume Up button to dismiss the alert and enable the volume to continue to be adjusted. Disposal & recycling. For help recycling products and packaging responsibly, visit www.motorola.com/recycling. Extreme heat or cold. Don’t use your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). Don’t store/transport your phone in temperatures below -20°C (-4°F) or above 60°C (140°F). Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/ charges may apply. Product specifications and other information contained in this guide are believed to be accurate at the time of printing. Motorola reserves the right to correct or change any FCC/CE 7 information without notice. Arbitration. Your purchase is governed by a binding arbitration clause. For more information and how to opt-out, see the legal guide that came with your phone. SAR information (on e-label). To view specific absorption rate (SAR) values for this phone, from the home screen swipe up and tap Settings > , then type Regulatory labels, from your phone’s dialpad, type *#07#, or visit www.motorola.com/sar. Supported frequencies and power. This phone is capable of operation on the following frequencies, subject to location and network availability. Model: XT2143-1 Copyright & trademarks. MOTOROLA, the stylized M logo, MOTO, and the MOTO family of marks are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, Android, Google Play and other related marks and logos are trademarks of Google LLC. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum. All other product or service names are the property of their respective owners. © 2021 Motorola Mobility LLC. All rights reserved. Product ID: Motorola edge20 (Model XT2143-1) Manual Number: XXXXXXXX-A FCC/CE motorola.com With moto care, extend your warranty coverage up to three years, and take advantage of features like accidental damage protection. Avec moto care, prolongez votre garantie jusqu'à trois ans et bénéficiez de services uniques comme la protection contre les dommages accidentels. Verlängere mit moto care deine Garantie auf bis zu drei Jahre und profitiere beispielsweise vom Schutz vor versehentlichen Beschädigungen. Grazie a moto care potrai estend…

Text truncated - open the document above for the full version.

1 en-US Legal, safety, and regulatory Legal information. This guide provides important legal, safety, and regulatory information that you should read before using your product. For the complete legal information, from the home screen swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Water repellent. Your phone is not waterproof. For more about your phone’s water-repellent design and care, see the user guide. Regulatory information (e-label). To view regulatory information for this phone, from the home screen swipe up and tap Settings > , then type Regulatory, or visit www.motorola.com/device-legal. Battery safety. Your phone uses a removable battery. Don’t use tools, sharp objects, or excessive force to insert or remove the battery. This may damage the battery and could cause burning and injury. Battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service center or similar skilled personnel. If your phone becomes unresponsive, press and hold the Power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger. Use of other chargers is not recommended. Don’t charge your phone in temperatures below -20°C (-4°F) or above 45°C (113°F). For more, see the “Legal information” section of this guide, or visit www.motorola.com/device-legal. Driving precautions. Responsible and safe driving is your primary responsibility when driving a vehicle. Always obey local laws and regulations. For more, see the “Legal information” section of this guide to find the complete legal information, or visit www.motorola.com/device-legal. Seizures, blackouts, eyestrain & discomfort. This device may display flashing images or loud sounds. For more, see the “Legal information” section of this guide to find the complete legal information, or visit www.motorola.com/device-legal. Medical devices. This device may interfere with pacemakers and other medical devices. For more, see the “Legal information” section of this guide to find the complete legal information, or visit www.motorola.com/device-legal. Class 1 Laser. This device is classified as a Class 1 Laser product, which is safe in normal use per IEC60825-1:2007 and IEC60825-1:2014. This device complies with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice 50, dated June 24, 2007. Do not attempt to modify or disassemble. Extreme heat or cold. Don’t use your phone in temperatures below 2 en-US -20°C (-4°F) or above 45°C (113°F). Don’t store/transport your phone in temperatures below -20°C (-4°F) or above 60°C (140°F). SAR information (on e-label). To view specific absorption rate (SAR) values for t phone, from the home screen swipe up and tap Settings > , then type Regulatory, or visit www.motorola.com/sar. Operational warnings. Obey all local restrictions when using mobile devices in public areas, such as hospitals, airplanes, or schools. • Potentially explosive areas: Potentially explosive areas are often, but not always, posted and can include blasting areas, fueling stations, fueling areas (such as below decks on boats), fuel or chemical transfer or storage facilities, or areas where the air contains chemicals or particles, such as grain dust, or metal powders. Turn off your phone before entering such an area, and do not charge batteries. In such areas, sparks can occur and cause an explosion or fire. • Symbol key: Your charger, phone, battery (if user-removable), phone display, user’s guide, or packaging may contain symbols, defined as follows: Important safety information follows. The package and paper products that came with your phone can be recycled. Don’t dispose of your battery or phone with your household waste. See “Disposal & recycling” for more information. Don’t dispose of your battery or phone in a fire. For indoor use only. Listening at high volume to music or voice through a headset or headphone may damage your hearing. Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long 3 en-US periods. Disposal & recycling. For help recycling products and packaging responsibly, go to www.motorola.com/recycling. Usage. This phone supports apps and services that could use a lot of data, so make sure your data plan meets your needs. Contact your service provider for details. Certain apps and features may not be available in all countries. Warranty. This product is covered by Motorola’s limited warranty. o review the warranty on your phone, swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. You may also obtain a copy of the warranty by contacting Motorola at: Motorola Mobility LLC, Attention Customer Service—Warranty Request, 222 West Merchandise Mart Plaza, Suite 1800, Chicago, IL 60654. Arbitration & opt-out. Except where prohibited by law, any controversy or claim arising out of or relating to any Motorola product will be resolved by binding arbitration, instead of in court, unless you opt-out. To opt-out, send a written rejection notice within 30 days of purchase that includes your name, address, phone number, phone, and phone serial number, and tells Motorola that you are rejecting this Arbitration provision to: Motorola Mobility LLC, 222 West Merchandise Mart Plaza, Suite 1800, Attn: Arbitration Provision Opt-Out, Chicago, IL 60654 or [email protected]. To locate your phone’s serial (IMEI) number, from the home screen swipe up and tap Settings > , then type IMEI. For more information on this arbitration provision, on your phone, swipe up and tap Settings > , then type Legal information, or visit www.motorola.com/device-legal. Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/ charges may apply. Features, functionality, and other product specifications, as well as the i…

Text truncated - open the document above for the full version.

Motorola Mobility LLC 222 W. Merchandize Mart Plaza, Chicago Il US www.motorola.com Date: June 29, 2021 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: 5G Sub-6GHz OTT VoIP HAC Attestation FCC ID: IHDT56ZP3 FCC ID: IHDT56ZP2 FCC ID: IHDT56ZP1 To Whom It May Concern, Attests that this handset as designed is expected to exhibit similar audio intensity levels between OTT VoIP calls over 4G LTE data connections and 5G Sub-6GHz data connections, and a voce call placed over a VoLTE connection and over a 5G Sub-6GHz connection. And the results using ABM1 values obtained from OTT connections over LTE bands for OTT VOIP, obtained from VoLTE connections over LTE bands for VONR and ABM2 values for 5G Sub-6GHz connections over the same bands, while maintaining a S+N/N margin of 3db or greater from the rating threshold is a reasonable representation of the HAC rating over these 5G Sub-6GHz connections. Should you have any questions comments about the above, please contact the undersigned. Sincerely, _________________________ Jeff Narducci Director, Global Regulatory Compliance [email protected]

Motorola Mobility LLC Motorola Mobility LLC, 222 W. Merchandise Mart Plaza, Chicago, Illinois 60654, United States Declaration - MIF for HAC RF Interference Evaluation To whom it may concern: This device, with FCC ID: IHDT56ZP3, Hearing Aid Compatibility Requirement is going to be certified under ANSI C63.19 2011 version per Part 20.19. For Radio Frequency Interference, Speag’s Audio Interference Analyzer (AIA) or other indirect or direct measurement was not used to determine the M rating. The M rating was determined by measuring the maximum steady state average E-field values in dB (V/m) or average antenna input power as documented in HAC test report exhibit, and adding the MIF value in dB. The MIF values below for the worst-case operation mode for all air interfaces are pre-determined values provided by Speag. UID Communication System Name MIF(dB) 10021 GSM-FDD(TDMA,GMSK) 3.63 10025 EDGE-FDD (TDMA, 8PSK, TN 0) 3.75 10460 UMTS-FDD(WCDMA, AMR) -25.43 10225 UMTS-FDD (HSPA+) -20.39 10170 LTE-FDD(SC-FDMA,1RB,20MHz,16-QAM) -9.76 10173 LTE-TDD (SC-FDMA, 1 RB, 20 MHz, 16-QAM) -1.44 10769 5G NR (CP-OFDM, 1 RB, 15 MHz, QPSK, 15 kHz) -12.08 10061 IEEE 802.11b WiFi 2.4 GHz (DSSS, 11 Mbps) -2.02 10077 IEEE 802.11g WiFi 2.4 GHz (DSSS/OFDM, 54 Mbps) 0.12 10427 IEEE 802.11n (HT Greeneld, 150 Mbps, 64-QAM) -13.44 10069 IEEE 802.11a/h WiFi 5 GHz (OFDM, 54 Mbps) -3.15 10616 IEEE 802.11ac WiFi (40MHz, MCS0, 90pc duty cycle) -5.57 10671 IEEE 802.11ax (20MHz, MCS0, 90pc duty cycle) -5.58 10973 5G NR (DTF-S-OFDM, 1 RB, 100 MHz, QPSK, 30 kHz) -1.64 We confirmed that the Speag simulation provided represents all the air interface modes applicable for a HAC rating for this handset. Sincerely, Jeff Narducci [email protected]

Motorola Mobility LLC 222 W. Merchandize Mart Plaza, Chicago Il US www.motorola.com Date: June 29, 2021 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: IHDT56ZP3 FCC ID: IHDT56ZP2 FCC ID: IHDT56ZP1 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting confidentiality for exhibits filed with the commission supporting the application of equipment authorization for those items referenced above. Motorola Mobility respectfully requests the Commission to withhold indefinitely from public disclosure the following attachments under Long-Term Confidentiality. ⚫ Schematic Diagrams ⚫ Block Diagrams ⚫ Part List ⚫ Operational Description ⚫ Tune-up Procedure The above listed documents contain detailed system and equipment descriptions that are proprietary and confidential information under Motorola trade secret protection. Public disclosure of above documents would be harmful to our company and would provide competitors an unfair advantage. This information is not made publicly available even after commercial release of the device. In additional to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We request the commission to grant short-term confidentiality request on the following attachments for 180 days after the grant as outlined in Public Notice DA 04-1705. ⚫ External Photos ⚫ Internal Photos ⚫ Test Setup Photos ⚫ User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and that information will be available for public review once the grant of equipment authorization is issued. Sincerely, Jeff Narducci Director, Global Regulatory Compliance [email protected]

Motorola Mobility LLC 222 W. Merchandize Mart Plaza, Chicago Il US www.motorola.com Date: June 29, 2021 To whom it may concern, Please be notified that I, Jeff Narducci, have designated Jones Tsai of Sporton International Inc. and Dai Lihua of Motorola Mobility LLC as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out in their professional capacity by Jones Tsai of Sporton International Inc. and Dai Lihua of Motorola Mobility LLC in connection with all processes required for FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the following product, and shall remain in place until completion of the certification, or until revoked, whichever is earlier: FCC ID: IHDT56ZP3 FCC ID: IHDT56ZP2 FCC ID: IHDT56ZP1 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please don’t hesitate to contact me. Sincerely yours, Jeff Narducci Director, Global Regulatory Compliance [email protected]

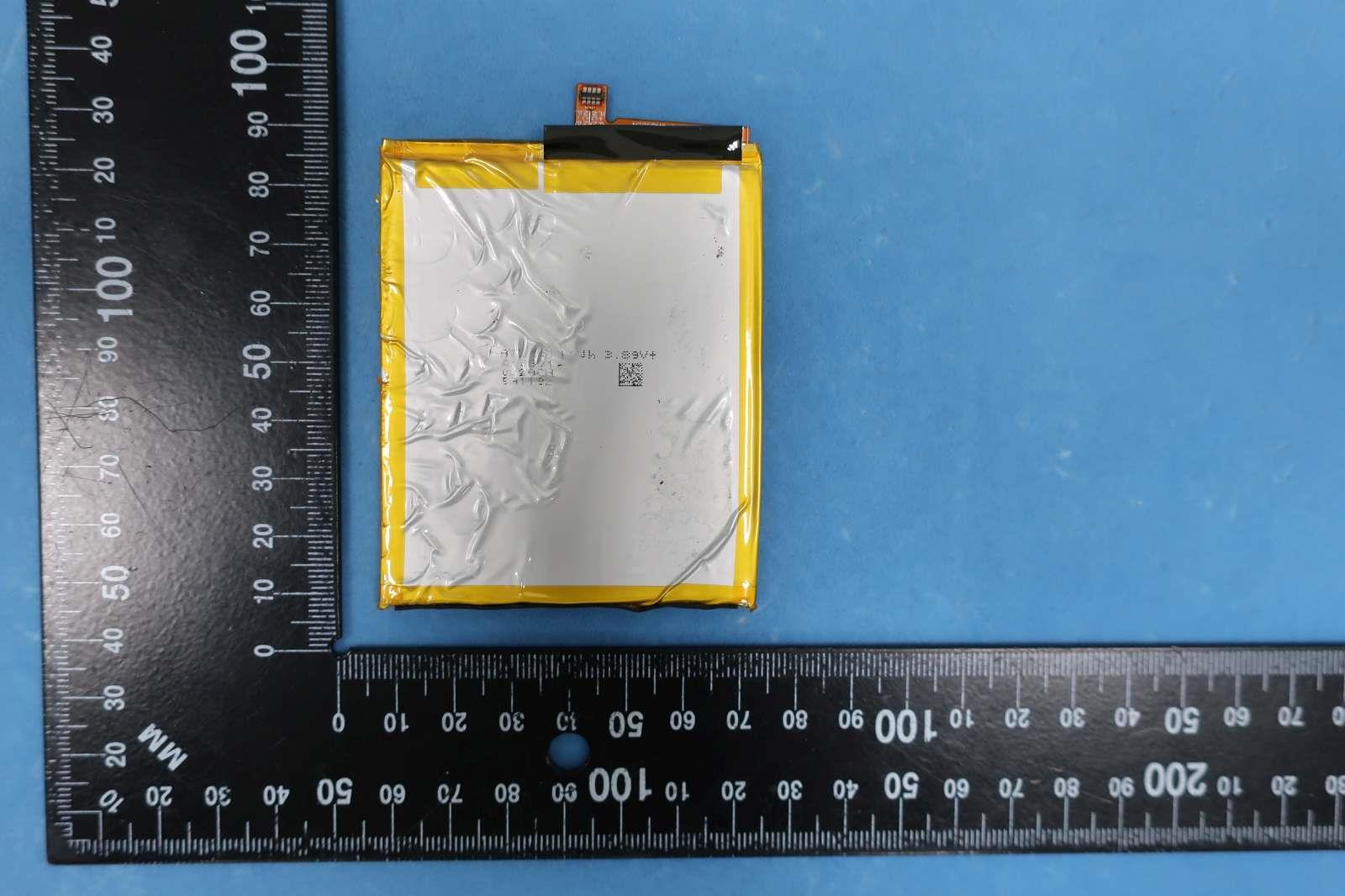

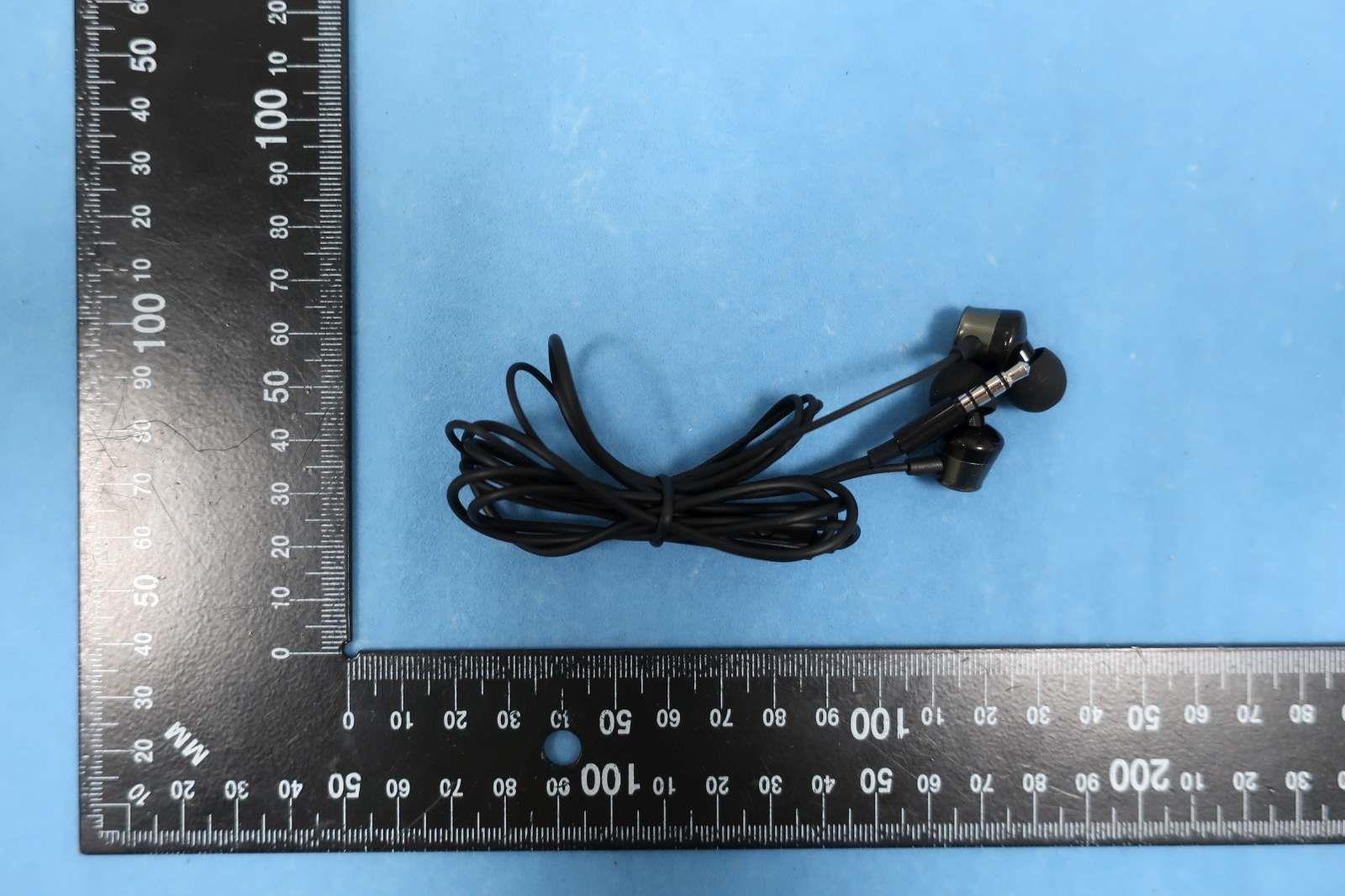

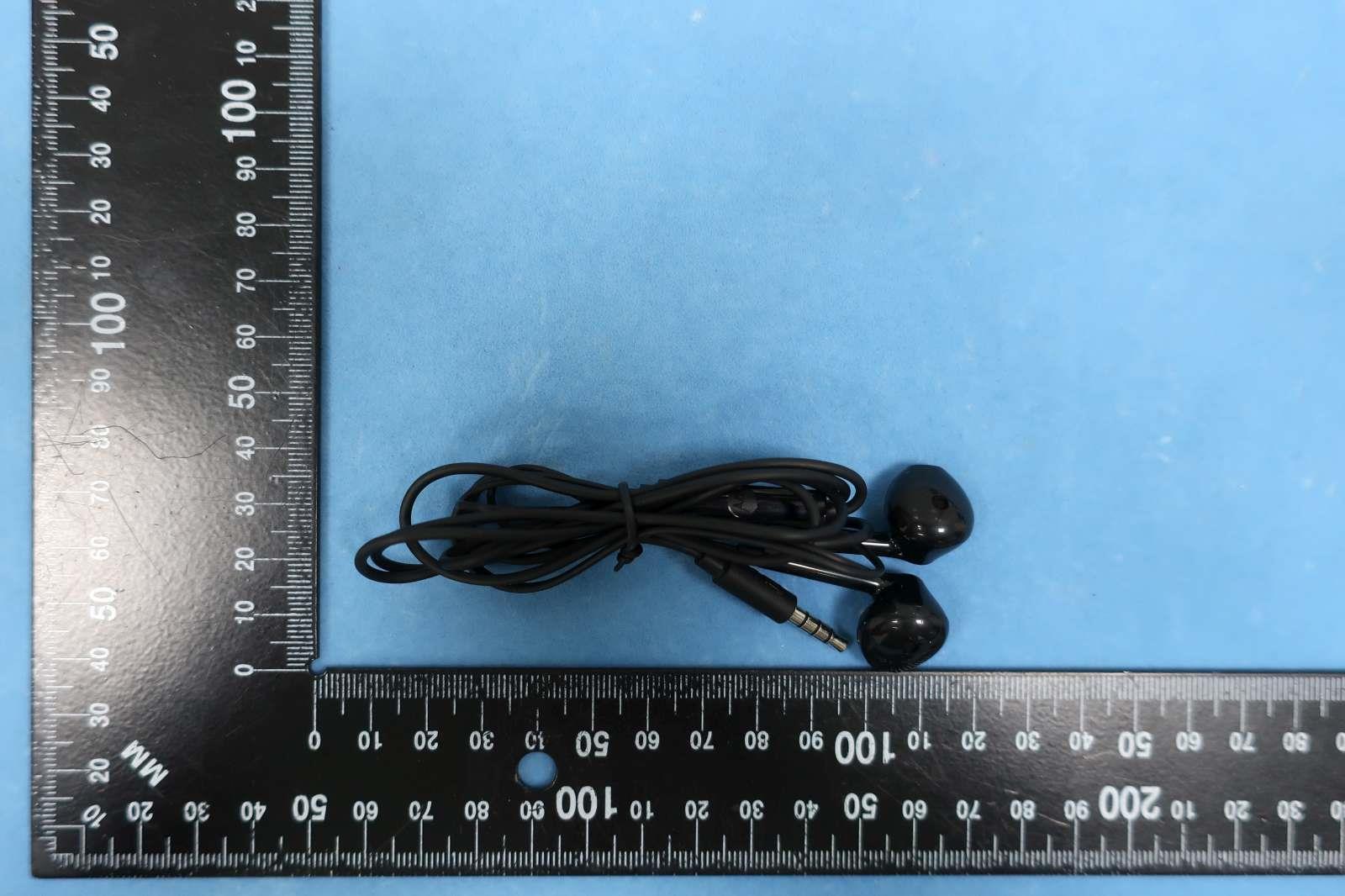

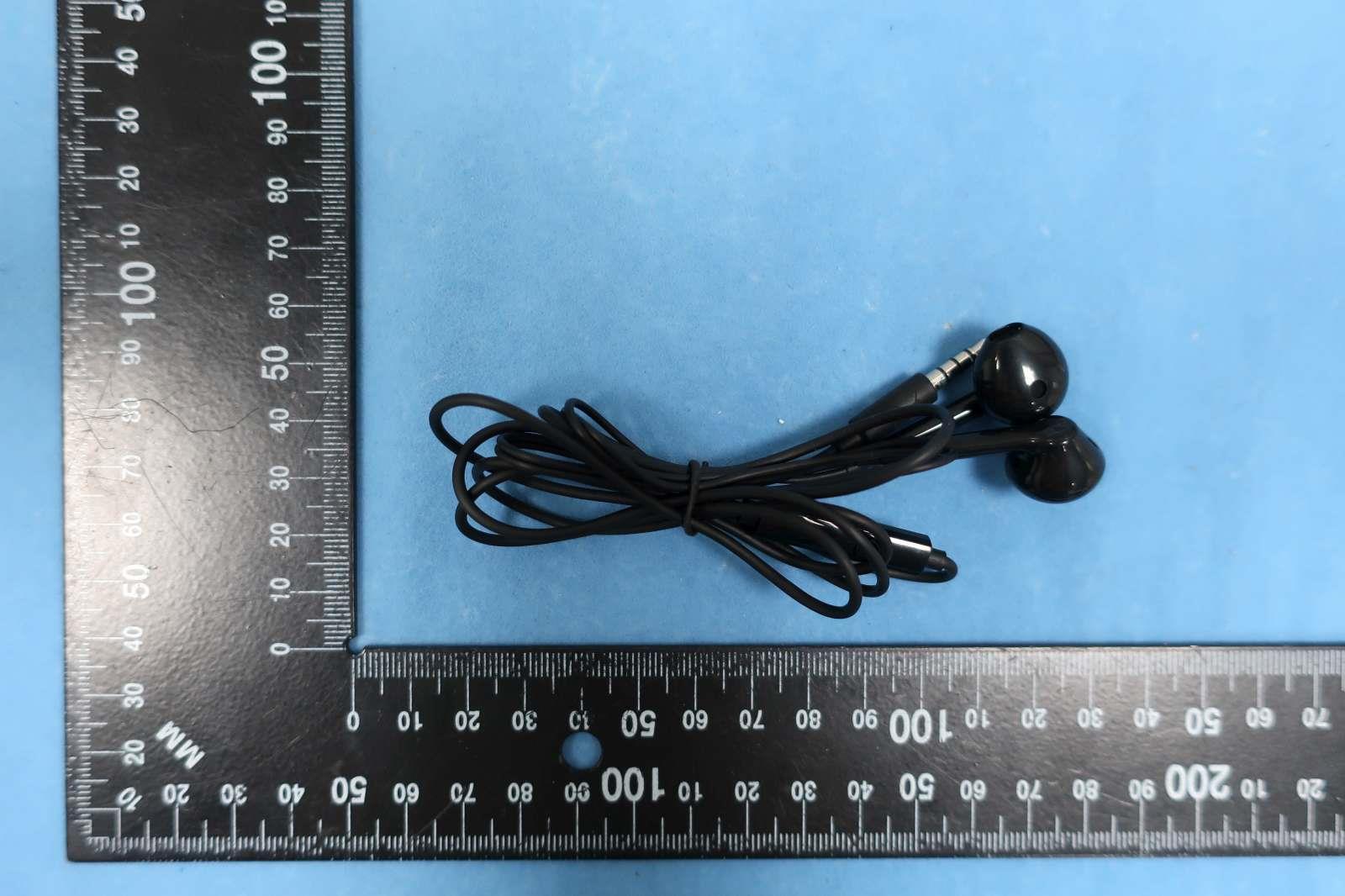

Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 1 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 1. External Photograph of EUT Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 2 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 3 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 4 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 5 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 6 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 7 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 List of Accessory： Specification of Accessory AC Adapter 1(US) Brand Name Motorola(Salom) Model Name MC-301 AC Adapter 1(EU) Brand Name Motorola(Salom) Model Name MC-302 AC Adapter 1(UK) Brand Name Motorola(Salom) Model Name MC-303 AC Adapter 1(Brazil) Brand Name Motorola(Salom) Model Name MC-307 AC Adapter 1(AU) Brand Name Motorola(Salom) Model Name MC-305 AC Adapter 2(US) Brand Name Motorola(Acbel) Model Name MC-301 AC Adapter 2(EU) Brand Name Motorola(Acbel) Model Name MC-302 AC Adapter 2(UK) Brand Name Motorola(Acbel) Model Name MC-303 AC Adapter 2(AU) Brand Name Motorola(Acbel) Model Name MC-305 AC Adapter 2(IN) Brand Name Motorola(Acbel) Model Name MC-304 AC Adapter 3(Brazil) Brand Name Motorola(Flex) Model Name MC-307 Battery Brand Name Motorola(ATL) Model Name MB40 Earphone 1 Brand Name Motorola(Lyand) Model Name MH191(SH38C81577) Earphone 2 Brand Name Motorola(LCHSE) Model Name MH191(SH38C81576) Earphone 3 (Brazil only) Brand Name Motorola(Lyand) Model Name MH181(SH38C37773) Earphone 4 (Brazil only) Brand Name Motorola(Cosonic) Model Name MH181(SH38C44959) USB Cable 1 Brand Name Motorola(Luxshare) Model Name SC18D13217 USB Cable 2 Brand Name Motorola(Saibao) Model Name SC18D13215 USB Cable 3 Brand Name Motorola(Cabletech) Model Name SC18D13216 Type C to audio cable Brand Name Motorola(Luxshare) Model Name SC18C27844 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 8 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 9 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 AC Adapter 1 (Brazil) Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 10 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 AC Adapter 1 (AU) Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 11 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 AC Adapter 1 (EU) Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 12 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 AC Adapter 1 (UK) Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 13 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 AC Adapter 1 (US) Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 14 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 AC Adapter 2 (AU) Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 15 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 AC Adapter 2 (EU) Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 16 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 AC Adapter 2 (IN) Photographs of EUT Report No.: EP15170B Brand Name:…

Text truncated - open the document above for the full version.

FCC E-Label Information A. Images of the e-label screen are provided below: B. Access to the required information on the e-label Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: Settings> , then type Regulatory No any special accessories, access codes, or SIM card are required to go through the above steps. C. Devices have physical labels at point of marketing/sale visible to the purchaser (or in the alternative, on the packaging), and at time of importation? At the time of importation, marketing, and sale, the device will have the required physical label on the packaging, which will include the device’s FCC ID. D. Electronic labeling information is programmed into the device by the manufacturer at the time of manufacture. Yes. E. Electronic labeling information not modifiable by any third party. The e-label of the device is programmed by the grantee and secured in such a manner that it cannot be modified by third parties. F. All the applicable regulatory information required on the packaging or user instructions is provided according to the rules. Applicable regulatory information not found in the e-label is contained in the user manual.

Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 30 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 3. Internal Photograph of EUT ANT 2 GPS/ WIFI-2.4G/BT ANT 1 Main Antenna TX0(Low band) DIV Antenna RX1(Middle&High band) ANT 0 Main Antenna TX0(Middle&High band) DIV Antenna RX1(Low band) ANT 5 NR MIMO Antenna ANT 6 MIMO Antenna ANT 3 NR&LTE Mimo ANT 4 WIFI MIMO ANT 7 NR MIMO ANT 11 NFC ANT 12 WIFI-5G/6E Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 31 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 32 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 33 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 34 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 35 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 36 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 37 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 38 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 39 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 40 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 41 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 42 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: XT2143-1 Sporton International (Shenzhen) Inc. Page Number : 43 of 85 TEL : 86-755-8637-9589 Report Issued Date : Jun. 29, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : IHDT56ZP3 Photographs of EUT Report No.: EP15170B Brand Name: Motorola / Model Name: X…

Text truncated - open the document above for the full version.
