IHDT6AA3TURBOPOWER 15W WIRELESS CHARGING STAND

TurboPower 15W Wir eless Charging Stand Lets get started Befor e using your Qi-certified wireless charging stand, please read the safety, regulatory and legal information at the back of this guide. Use your wireless charging stand for fas t charging or as a hands free stand for your phone to watch videos, make video calls and more. Charge your phone Note: 1 Connect a Motor ola approved USB-C® cable/charger (sold separately) to your wireless charging stand and the other end to a power supply. Tip: Connect with a Motor ola 68W or Motor ola 125W charger for best charging performance. 2 Place the back of your compatible wireless charging phone on the wireless charging stand. You can place it in a portrait or landscape position. Tip: Make sure your phone is center ed on the stand. 3 On your phone tap Settings > Batt ery > Wir eless Charging Stand t o cus tomise your stand settings: Stand light When the base light on the bottom of the stand is: read me en-GB | es-US Connect to power supply USB-C® port Base (LED) light Use caseLED ColorWorking Status During wireless charging On and o breathing and repeat 1 circle in 4 seconds (phone can control on/o) On and o breathing and repeat 1 circle in 4 seconds After 30s o Always on (phone can control on/o) On and o repeat 2 circles in 1 seconds Always o Third Party Phone Charging Charging full Charging error cases(For example, unusual objects are attached ) Error cases(For example, the phone is not put at the right position or the charger doesn’t work etc) White White Red NA White • : turns on the stand base light when phone is charging. Tap the motorola.com Help & more Legal information. This guide provides important legal, safety, and regulatory information that you should read befor e using your product. Water repellent. Y our stand is not waterproof. Disposal & rec ycling. For help rec ycling products and packaging responsibly, visit www.motor ola.com/rec ycling. Don’t dispose of your stand with your household was te. Legal disclaimers. F ea tures, functionality, and other product specifications, as well as the information contained in this guide, are based upon the lates t available information and believed to be accur ate at the time of printing. Motor ola reserves the right to correct or change any information without notice. Arbitration & opt-out. Except where prohibited by law, any controversy or claim arising out of or relating to any Motor ola product will be resolved by binding arbitration, instead of in court, unless you opt-out. To opt-out, send a written rejection notice within 30 days of purchase that includes your name, addres s, phone number, and stand QR code, and tells Motor ola that you are rejecting this Arbitration provision to: Motor ola Mobility LLC, 222 Wes t Merchandise Mart Plaza, Attn: Arbitration Provision Opt-Out, Chicago, IL 60654 or arbitrat@motor ola.com. Important. This product contains magnets. Always keep products with magnets more than 20 cm (8 in.) from magnetic field. Also, k eep products with magnets away from credit cards, ID cards and other media that use magnetically encoded information. This product is intended for indoor use on a desk, table or other flat surfac e; not suitable for use in vehicles. Warranty. T his product is cover ed by Motor ola’s limited warranty. T o review the warranty visit www.motor ola.com/device-legal. Y ou may also obtain a copy of the warranty by contacting Motor ola at: Motor ola Mobility LLC, Att ention Customer Service—Warranty Request, 222 Wes t Merchandise Mart Plaza, Chicago, IL 60654. Electrical requirements. For electrical requirements, visit: www.motor ola.com.mx/IFT (r ef er to the web manual). Use & care. T o care for your Motor ola stand, please observe the following: Liquids. Don’t expose your stand to water , r ain, extreme humidity, s wea t, or other liquids. Drying. In the event your stand is exposed to water , dry your stand and ports thoroughly with a soft, clean cloth. Don’t put your stand in a microwave oven, conventional oven, or dryer . Extreme heat or cold. Don’t use your stand in temperatures below -10°C (14°F) or above 40°C (104°F). Don’t stor e/ tr ansport your stand in temperatures below -20°C (-4°F) or above 60°C (140°F). Dust and dirt. Don’t expose your stand to dust, dirt, sand, food, or similar materials. Cleaning. To clean your stand, use only a dry soft cloth. Don’t use alcohol or other cleaning solutions. Shock and vibration. Don’t drop your stand or expose it to str ong vibration. Pr ot ection. To help prot ect your stand, always make sure that any available connectors are secur e, and avoid carrying it with hard objects such as keys or coins. Objects. Do not place any object between the phone and the stand. A magnetic support, prot ective case, metallic item, or an object containing an NFC or RFID chip such as a room card, bus card, bank card, or passport between the phone and the stand may cause the phone not to be properly charged, induce additional heat, or damage the object. Befor e charging, take out the object, if any, t o ensure that it is not placed between the phone and the stand. European conformance (CE and UKCA). T he following information is applicable to products that carry a CE or UKCA mark. C ontact point: Regulatory Compliance, Motor ola Mobility UK Ltd., Redwood, Crockfor d Lane, Chineham Business Park, Basingstok e, RG24 8WQ, UK. Hereby, Motor ola Mobility LLC declares that the radio equipment model as defined in the Read me guide (and box label) supplied with this product: Bearing the CE mark is in compliance with Directive 2014/53/EU; And bearing the UKCA mark is in compliance with the Radio Equipment Regulations 2017 . The full DoC can be found at www.motor ola.com/red. This device has been tes ted and meets applicable limits for radio frequency (RF) exposure. Exposure value is 0.3767A/m at 15cm distance. LED light safety. F or products with an LED light source, a void looking directly at the LED, which may cause disc…

Text truncated - open the document above for the full version.

Motorola Mobility LLC 222 W. Merchandize Mart Plaza, Chicago Il US www.motorola.com Date: November 23, 2022 To whom it may concern, Please be notified that I, Jeff Narducci, have designated Tracey Lyu of TÜV Rheinland (Shenzhen) Co., Ltd and Yufei Tong of Motorola Mobility LLC as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out in their professional capacity by Tracey Lyu of TÜV Rheinland (Shenzhen) Co., Ltd and Yufei Tong of Motorola Mobility LLC in connection with all processes required for FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the following product, and shall remain in place until completion of the certification, or until revoked, whichever is earlier: FCC ID: IHDT6AA3 If you have any acknowledgement and response, please send it to TÜV Rheinland (Shenzhen) Co., Ltd. directly. Should you have any questions or comments regarding this matter, please don’t hesitate to contact me. Sincerely yours, Jeff Narducci Director, Global Regulatory Compliance [email protected]

FinePage1of7 FINEELECTRONICSINDUSTRIAL(HK)LIMITED 泛亞電子實業(香港)有限公司TEL：0769-22490287FAX：0769-22499451FY-GZ001 承認書 SPECIFICATIONFORAPPROVAL 客戶： CUSTOMER: SZ152 客戶料號： CUSTP/N: 96-05000002624 泛亞料號： FINEP/N: FYS152002 産品型號： DESC: FYS15222091901 日期： DATE: 2022/10/27 版本： Version: A.1 擬制 PREPAREDBY 審核 CHECKEDBY 批准 APPROVEDBY 客戶承認 CUSTOMERAPPROVE 卢梦杰蔡纪雨丁保元 泛亞電子實業（HK）有限公司 FINEELECTRONICSINDUSTRIAL （ HK ） LIMITED 工廠地址：東莞市石碣鎮四甲工業區 TEL ： 0769-22490287/22452492 FAX ： 0769-22499451 E-mail ： [email protected] FinePage2of7 FINEELECTRONICSINDUSTRIAL(HK)LIMITED 泛亞電子實業(香港)有限公司TEL：0769-22490287FAX：0769-22499451FY-GZ001 版本變更履歷 VersionChangeHistory 版本 Rev. 變更前 Before Change 變更後 AfterChange 更改日期 ChangeDate 批准 ApprovedBy A.0 新发行 ----2022.9.19丁保元 A.1 更新版本 1.变更线圈出线方式；2.下线圈起线点胶 固定；3.上线圈和下线圈起线做红色标 识。 2022.10.27丁保元 FinePage3of7 FINEELECTRONICSINDUSTRIAL(HK)LIMITED 泛亞電子實業(香港)有限公司TEL：0769-22490287FAX：0769-22499451FY-GZ001 SPECIFICATION 産品型號： DESC FYS15222091901 版本 Rev：A.1 客戶CUST: SZ152 泛亚料号FineP/N： FYS152002 客户料号CUSTP/N: 96-05000002624 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATICDIAGRAM: A 94.64±0.8 B 52.71±0.5 C 4.0Max（不含离型纸） D 40.25±0.5 E 30±1.5（四根引线磁片测） F 3±1 G 3±2（含引线点位测） H 3.0±0.5 I 2.3±2 J 2.3±0.5 K 1.0±0.1 1.线圈贴磁片用φ47*0.15mm（ref） 中间开孔的3M9448A背胶； 2.硬磁片尺寸F94.64*52.71*1.0mm， 一面贴哑光黑膜一面贴 F93*51.2*0.15mm带手撕位 3M9448A蓝色背胶。 3.下线圈出线位置贴8mm宽高温胶。 4.上线圈和下线圈感值之间差异不 超过0.8uH，起线做红色标识。 5.出线位置点胶固定。 三、绕线参数 WindingSpecification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection 1 SF 丝包线 0.08*105P 12Ts（上线圈） CCW 2 SF丝包线0.08*105P 12Ts（下线圈） CW 四、电气特性ELECTRICALCHARACTERISTICS: 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS L1线圈 IND.S-F10uH±5%加磁片100KHz/1.0VLCZMETER1062B L2线圈 IND.S-F10uH±5%加磁片100KHz/1.0VLCZMETER1062B L1/L2线圈 DCRS-F 60mΩMax 1KHz/0.25VTH2810 L1/L2 线圈 ACRS-F 65mΩMax 1KHz/0.25VTH2810 L1/L2 线圈 Q值S-F85Min100KHz/1.0VLCZMETER1062B 擬制/日期PREPAREDBY/DATE審核/日期CHECKEDBY/DATE 卢梦杰 2022/10/27 蔡纪雨 2022/10/27 FinePage4of7 FINEELECTRONICSINDUSTRIAL(HK)LIMITED 泛亞電子實業(香港)有限公司TEL：0769-22490287FAX：0769-22499451FY-GZ001 SPECIFICATION 産品型號： DESC FYS15222091901 上线圈 版本 Rev：A.1 客戶CUST: SZ152 泛亚料号FineP/N： FYS152002 客户料号CUSTP/N: 96-05000002624 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATICDIAGRAM: A 19±0.5 B 19±0.5 C 48±1.0 D 48±1.0 E 75ref F 3±1 G 1.25Max 注： 1.线圈不交叉出线； 三、绕线参数WindingSpecification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection 1SF丝包线0.08*105P12TsCCW 四、电气特性ELECTRICALCHARACTERISTICS: 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS 1IND.S-F5.8uH±10%单独线圈100KHz/1.0VLCZMETER1062B 2 DCRS-F 60mΩMax LCZMETER502B 擬制/日期PREPAREDBY/DATE審核/日期CHECKEDBY/DATE 卢梦杰 2022/10/27 蔡纪雨 2022/10/27 FinePage5of7 FINEELECTRONICSINDUSTRIAL(HK)LIMITED 泛亞電子實業(香港)有限公司TEL：0769-22490287FAX：0769-22499451FY-GZ001 SPECIFICATION 産品型號： DESC FYS15222091901 下线圈 版本 Rev：A.1 客戶CUST: SZ152 泛亚料号FineP/N： FYS152002 客户料号CUSTP/N: 96-05000002624 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATICDIAGRAM: A 19±0.5 B 19±0.5 C 48±1.0 D 48±1.0 E 33ref F 3±1 G 1.25Max 注： 1. 线圈出线位置贴 8mm 宽高温 胶。 三、绕线参数WindingSpecification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection 1SF丝包线0.08*105P12TsCW 四、电气特性ELECTRICALCHARACTERISTICS: 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS 1IND.S-F5.8uH±10%单独线圈100KHz/1.0VLCZMETER1062B 2DCRS-F 60mΩMax LCZMETER502B 擬制 / 日期 PREPAREDBY/DATE 審核 / 日期 CHECKEDBY/DATE 卢梦杰2022/10/27蔡纪雨2022/10/27 FinePage6of7 FINEELECTRONICSINDUSTRIAL(HK)LIMITED 泛亞電子實業(香港)有限公司TEL：0769-22490287FAX：0769-22499451FY-GZ001 SPECIFICATION 産品型號： DESC FYS15222091901 版本 Rev：A.1 客戶CUST: SZ152 泛亚料号FineP/N： FYS152002 客户料号CUSTP/N: 96-05000002624 五、包装PACKING: 5.1包装图片Packingpictures: 5.2包装数量及规格PackingQuantity: 5.3包装以现有包装盘为参照标准，以实际出货包装为准,如有特需要求可以定制。 Thepackagingshallbebasedontheexistingpackingplateandtheactualdeliverypackageshallprevail.If thereisanyrequirement,wecancustomizeit. 六、推荐焊锡曲线RecommendedSolderingTechnologies 项目Item数量Quantity材料规格Material 盒Box一格3PCS,一盒78PCS370*265*55mm 箱BigCarton 一箱5盒，一箱390PCS400*280*310mm 擬制/日期PREPAREDBY/DATE審核/日期CHECKEDBY/DATE 卢梦杰2022/10/27蔡纪雨2022/10/27 FinePage7of7 FINEELECTRONICSINDUSTRIAL(HK)LIMITED 泛亞電子實業(香港)有限公司TEL：0769-22490287FAX：0769-22499451FY-GZ001 SPECIFICATION 産品型號： DESC FYS15222091901 版本 Rev：A.1 客戶CUST: SZ152 泛亚料号FineP/N： FYS152002 客户料号CUSTP/N: 96-05000002624 七、材料清单MaterialList: 序号 NO. 材料名称Material name 品名描述 Description 制造商 Martnumber UL号码 ULFileNO. 1丝包线0.08*105P，线圈 Shenzhen Fushifaying E303260 2无铅锡条高温NanruiJueyuan 3磁片+黑膜 F94.64*52.71*1.0mm，95材 Huizhoukeli 4 3M9448A背胶F93*51.2*0.15mm DongguanNanrui 5胶水结构胶 ShiHong 6高温胶8mm宽高温胶 DongguanNanrui 7 3M9448A背胶47x0.15mm DongguanNanrui 8 3M9448A背胶47x0.15mm DongguanNanrui 9记号笔红色 10 11 12 13 14 15 擬制/日期PREPAREDBY/DATE審核/日期CHECKEDBY/DATE 卢梦杰 2022/10/27 蔡纪雨 2022/10/27

Motorola Mobility LLC 222 W. Merchandize Mart Plaza, Chicago Il US www.motorola.com Date: November 23, 2022 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: IHDT6AA3 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting confidentiality for exhibits filed with the commission supporting the application of equipment authorization for those items referenced above. Motorola Mobility respectfully requests the Commission to withhold indefinitely from public disclosure the following attachments under Long-Term Confidentiality. ⚫ Schematic Diagrams ⚫ Block Diagrams ⚫ Part List ⚫ Operational Description ⚫ Tune-up Procedure The above listed documents contain detailed system and equipment descriptions that are proprietary and confidential information under Motorola trade secret protection. Public disclosure of above documents would be harmful to our company and would provide competitors an unfair advantage. This information is not made publicly available even after commercial release of the device. In additional to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We request the commission to grant short-term confidentiality request on the following attachments for 180 days after the grant as outlined in Public Notice DA 04-1705. ⚫ External Photos ⚫ Internal Photos ⚫ Test Setup Photos ⚫ User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and that information will be available for public review once the grant of equipment authorization is issued. Sincerely, Jeff Narducci Director, Global Regulatory Compliance [email protected]

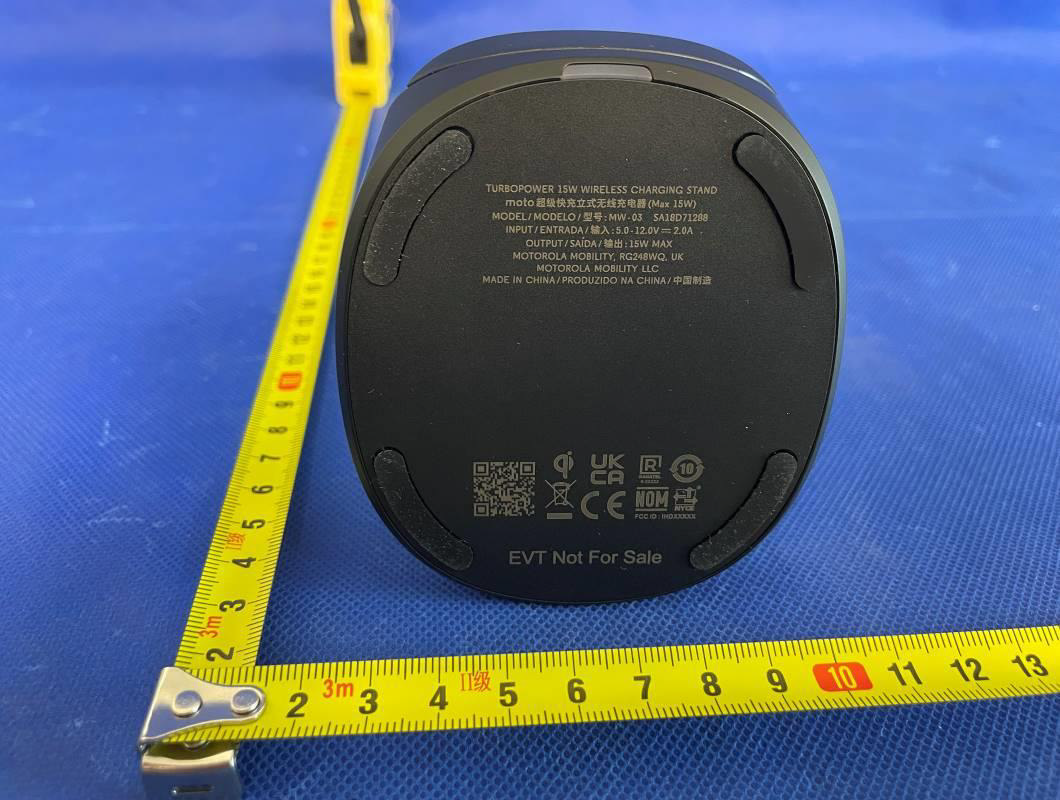

備注: 1;.此銘板為鐳射打標,字體須清晰 2.CASECSAD0682-D;使用為 3.內容及位置等須參照檔Artwork; .SECC-E1-294本零件的所有環境管理物質依照執行. 本零件要求不含鹵. 5.二维码内参考--容CLAB2074TX 鐳射銘板 TURBOPOWER 15W WIRELESS CHARGING STAND MODEL / MODELO / : MW - 03 SA18D71288 型号 INPUT / ENTRADA / : 5.0 - 12.0V 2.0A 输入 OUTPUT / SAIDA / : 15W MAX 输出 MOTOROLA MOBILITY, RG248WQ, UK MOTOROLAMOBILITYLLC moto (Max 15W) 超级快充立式无线充电器 H-XXXXX MADE IN CHINA / PRODUZIDO NA CHINA / 中国制造 FCC ID: IHDT6AA3

Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN22643P 001 Seite 18 von 23 Page 18 of 23 6Safety Human Exposure 6.1Radio Frequency Exposure Compliance 6.1.1Electromagnetic Fields RESULT:Pass Test Specification Test standard: CFR47 FCC Part 2: Subpart J Section 1.1310 FCC CFR 47 Part 1(1.1310) KDB 680106 D01 v03 According to the table 1 of FCC Part 2.1310, the reference limit as below: Test Setup: Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN22643P 001 Seite 19 von 23 Page 19 of 23 Test Result: Table: H-Field Strength at 15 cm from the edges surrounding the EUT and 20cm from the top surface of the EUT Measured H-Field Strength Values (A/m) EUT Test Mode Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limit (A/m) Limit (A/m)Result Device working at the maximum power 0.07350.11030.08170.1023 0.37670.8151.63Pass

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN22643P 001 Auftrags-Nr.: Order no.: 168395336 Seite 1 von 23 Page 1 of 23 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-10-18 Auftraggeber: Client: Motorola Mobility LLC 222 W. Merchandise Mart Plaza, Chicago, IL 60654, United States Prüfgegenstand: Test item: TURBOPOWER 15W WIRELESS CHARGING STAND Bezeichnung / Typ-Nr.: Identification / Type no.: MW-03 (Trademark: ) Auftrags-Inhalt: Order content: Type test Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 CFR47 FCC Part 15: Subpart B Section 15.107 CFR47 FCC Part 15: Subpart B Section 15.109 Wareneingangsdatum: Date of sample receipt: 2022-10-28 Refer to photos document Prüfmuster-Nr.: Test sample no.: A003361759-001 to 011 Prüfzeitraum: Testing period: 2022-11-04 – 2022-11-10 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Alex Lan genehmigt von: authorized by: X Signed by: Hardy Suo Datum: Date: 2022-11-24 Ausstellungsdatum: Issue date: 2022-11-24 Stellung / Position Assistant Project Manager Stellung / Position Reviewer Sonstiges / Other: FCC ID: IHDT6AA3 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged: * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhalt P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specifications(s) F(ail) = failed a.m. test specifications(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be V05 duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] W eb: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN22643P 001 Seite 2 von 23 Page 2 of 23 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 20DB BANDWIDTH RESULT: Pass 5.1.3 RADIATED SPURIOUS EMISSION RESULT: Pass 5.1.4 CONDUCTED EMISSION ON AC MAINS RESULT: Pass 5.1.5 RADIATED EMISSION RESULT: Pass 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN22643P 001 Seite 3 von 23 Page 3 of 23 Contents 1 GENERAL REMARKS ......................................................................................................................4 1.1 COMPLEMENTARY MATERIALS ........................................................................................................4 2 TEST SITES ...................................................................................................................................4 2.1 TEST FACILITIES ............................................................................................................................4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS .............................................................................5 2.3 TRACEABILITY ...............................................................................................................................7 2.4 CALIBRATION ................................................................................................................................7 2.5 MEASUREMENT UNCERTAINTY ........................................................................................................7 2.6 LOCATION OF ORIGINAL DATA ........................................................................................................7 2.7 STATUS OF FACILITY USED FOR TESTING .........................................................................................7 3 GENERAL PRODUCT INFORMATION ..................................................................................................8 3.1 PRODUCT FUNCTION AND INTENDED USE .........................................................................................8 3.2 RATINGS AND SYSTEM DETAILS ......................................................................................................8 3.3 INDEPENDENT OPERATION MODES ..................................................................................................9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ......................................................................9 3.5 SUBMITTED DOCUMENTS ................................................................................................................9 4 TEST SET-UP AND OPERATION MODES .......................................................................................... 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION .................................................................................... 10 4.2 TEST OPERATION AND TEST SOFTWARE ........................................................................................ 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ....................................................................... 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ..................................................................... 10 4.5 TEST SETUP DIAGRAM ...................................…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN22643P 001 Seite 20 von 23 Page 20 of 23 7Photographs of the Test Set-Up Photograph 1: Set-up for Radiated Spurious Emissions, below 30MHz Photograph 2: Set-up for Radiated Spurious Emissions, above 30MHz Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN22643P 001 Seite 21 von 23 Page 21 of 23 Photograph 3: Set-up for Conducted Emissions Photograph 4: Set-up for Radiated Emissions, below 1GHz Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN22643P 001 Seite 22 von 23 Page 22 of 23 Photograph 5: Set-up for RF Exposure
