IHDT6BC1PCS portable transceiver

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6BC1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: Note: Upon FCC approval, the users manual will include the following SAR information for FCC ID: IHDT6BC1. 0.77mW/g (head) 0.56mW/g (body worn) PRELIMINARY This is a preliminary version of the Panther 2 GSM user guide. In particular, color-coded text describes new R1.1 features for which the software is not yet fully developed. Please use this draft as reference only. It is not yet ready for review. If you want to provide feedback, contact John Arminio or Bill Bernie. Motorola Timeport 280 Tri-Band Mobile Phone User’s Guide Interim Draft March 9, 2001 PRELIMINARY 1 PRELIMINARY Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola V 280 wireless phone. Display Headset Jack Insert headset accessory. End Key End phone calls, exit menu system. Left Soft Key Perform functions identified by left display prompt. Earpiece Menu Key Voice Key Record voice notes, phonebook and shortcut names. Right Soft Key Perform functions identified by right display prompt. 4-Way Navigation Key Scroll through menus and lists, set feature values. Send Key Send and answer calls, view recent dialed calls list. Accessory Connector Port Insert charger and phone accessories. Antenna Microphone Power Key Volume Keys Adjust earpiece and ringer volume. 2 PRELIMINARY Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. TrueSync is a trademark of Starfish, Inc., a wholly owned independent subsidiary of Motorola, Inc. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. All other product or service names are the property of their respective owners. © 2001 Motorola, Inc. All rights reserved. Printed in the U.S.A. Computer Program Copyrights The Motorola products described in this manual may include Motorola computer programs stored in semiconductor memories or other media that are copyrighted with all rights reserved worldwide to Motorola. Laws in the United States and other countries preserve for Motorola, Inc. certain exclusive rights to the copyrighted computer progr ams, including the exclusive right to copy, reproduce, modify, decompile, disassemble, and reverse-engineer the Motorola computer progr ams in any manner or form without Motorola's prior written consent. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license or rights under the copyrights, patents, or patent applications of Motorola, except for a nonexclusive license to use the Motorola product and the Motorola computer programs with the Motorola product. Manual number: 9888873L01-O Cover number: 8988485L01-O 3 " PRELIMINARY Menu Map Main Menu • Recent Calls • Received Calls • Dialed Calls • Notepad • Call Times • Call Cost • Service Dial • Fixed Dial • Phonebook • Datebook • Quick Dial • Radio • Messages • Voicemail • Text Msgs • Browser Alerts • Quick Notes • Outbox • Drafts • Shortcuts • Voice Notes • SIM Applications • Browser • Calculator • Games • Settings (see next page) Note: This is the standard menu layout. You or your service provider may have modified the menu structure or changed some feature names. Not all features may be available for all users. For example, the Radio feature is displayed only when the FM Stereo Radio Headset accessory is plugged into the accessory connector port on your phone. Shortcuts Change display zoom: Press M, then press and hold M Lock/unlock keypad: Press M * Display my phone number: Press M # Go to dialed calls list: Press N 4 " PRELIMINARY Settings Menu • Ring/Vibrate • Alert • Alert Detail • Call Forward • Voice Calls • Fax Calls • Data Calls • Cancel All • Forward Status • Phone Status • My Tel. Number • Credit Available • Credit Info • Battery Meter • Phone: Line 1/2 • Other Information • Connection • IrDA Link • Incoming Call • In-Call Setup • In-Call Timer • Call Cost Setup • My Caller ID • Talk and Fax • Answer Options • Call Waiting • Security • Phone Lock • Lock Keypad • Lock Application • Fixed Dial • Call Barring • SIM Pin • New Passwords • Other Settings • Personalize • Main Menu • Keys • Greeting • Banner • Quick Dial • Initial Setup • Time and Date • One-Touch Dial • Auto Redial • Backlight • Zoom • Scroll • Language • Preferred Card • Battery Save • Contrast Setting • Master Reset • Master Clear • Network • Car Settings • Headset 5 PRELIMINARY Contents Menu Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Safety and General Information. . . . . . . . . . . . . . . . . . . 12 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 What’s in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Removing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Sending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Displaying Your Phone Number . . . . . . . . . . . . . . . . . . . . 26 About Your Phone . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT6BC1 EXHIBIT 2A SPECIFICATION COMPLIANCE STATEMENT The transceiver type IHDT6BC1 has been tested in accordance with the requirements contained in the appropriate Commission regulations . To the best of my knowledge , these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards . Each unit manufactured imported or marketed , will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis . I further certify that the necessary measurements were made at Motorola , located at 600 North U.S. Highway 45 , Libertyville , Illinois; or at Motorola, located at 1500 Gateway Boulevard, Boynton Beach, Florida; or at Motorola, located at 2001 N. Division Street, Harvard, Illinois. NAME:Bernie Knych TITLE : Engineering Manager PCS Development Signed: Date:March 12, 2001 APPLICANT MOTOROLA INC. FCC ID: IHDT6BC1 EXHIBIT 2B STATEMENT OF CERTIFICATION The technical data supplied with this application , was taken under my supervision is hereby duly certified . I also certify that this transmit equipment (FCC ID : IHDT6BC1) compliance with all applicable parts of the FCC Rules . NAME : Mohammad Banihani TITLE : Senior Engineer PCS Development Signed: Date:March 12, 2001 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief , the facts set forth in this application and accompanying technical data are true and correct . NAME :Andrew Lundholm TITLE : Section Manager PCS Development Signed: Date : March 12, 2001

APPLICANT: MOTOROLAFCC ID: IHDT6BC1 Exhibit 13 March 8, 2001 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization (FCC Form 731-October 1992 with integrated Fee Processing Form, Fee Codes EFT and EBC), application fee in the amount of $640, and Exhibits; for Certification of a PCS Transceiver, FCC ID: IHDT6BC1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 1900 MHz PCS band Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

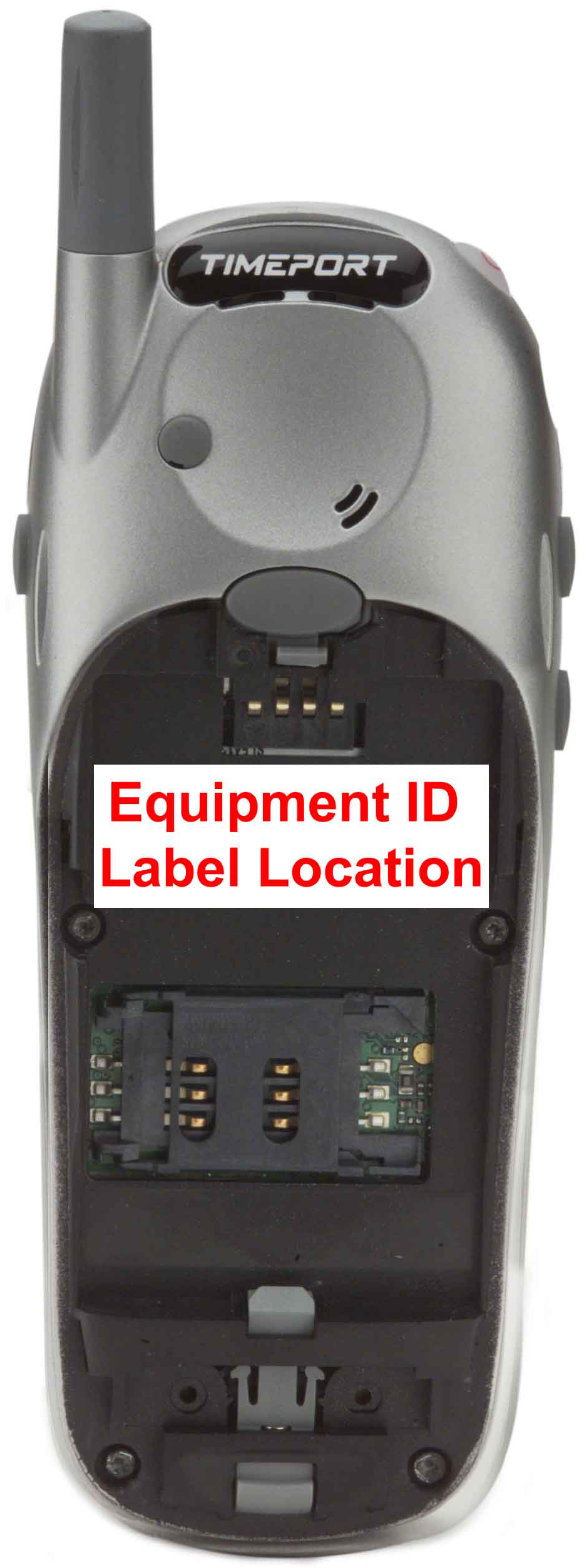

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BC1 EXHIBIT 3 Front View Rear View with Battery Removed to Show Equipment ID Label

APPLICANT: MOTOROLA INC.FCC ID: IHDT6BC1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT6BC1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BC1 EXHIBIT 9 Front View (Shields Removed) Rear View (Shields Removed)

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6BC1 EXHIBIT 10 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BC1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report: IHDT6BC1 Date of test: 3/9/ - 3/12/2001 Laboratory: Motorola Personal Communications Sector Product Safety Laboratory 2001 N. Division Room: AS228 Harvard, Illinois 60033 Test Responsible: Steven Hauswirth Staff Engineer Accreditation: ISO Guide 25 Accredited Lab, A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT6BC1 to which this declaration relates, is in conformity with the appropriate RF exposure standards, recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: ©Motorola This test report shall not be reproduced in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BC1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Results 3 4) Test Equipment 4 4.1 Dosimetric system 4 4.2 Additional equipment used 5 5) Electrical parameters of the tissue simulating liquid 5 6) System Accuracy Verification 5 Reference Notes Appendix 1: SAR distribution comparison for the system accuracy verification 6 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 7 Appendix 3: SAR distribution plots for Body Worn Configuration 8 Appendix 4: Photographs of the device under test 9 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BC1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT6BC1. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with the latest available test guidelines. The SAR values found for the portable cellular phone (FCC ID IHDT6BC1) are below the maximum recommended levels of 1.6 W/kg. Detailed procedures of the test are described in the Motorola Exhibit 11 Reference SAR Test Report. 2. Description of the Device Under Test Antenna description Type Fixed Tri-band Location Top and Right Side Length 21mm Dimensions Width at base 9mm Configuration Stub Device description FCC ID Number IHDT6BC1 Serial number L210059 Mode(s) of Operation GSM1900 Modulation Mode(s) GSM Maximum Output Power Setting 29.5dBm Duty Cycle 1:8 Transmitting Frequency Rang(s) 1850-1910MHz 3. Test Results The SAR results shown in tables 1 and 2 are maximum SAR values averaged over 1 gram of phantom tissue. Also shown are the measured conducted output powers and the temperature of the test facility during the test. The test sample was operated in a test mode that allows control of the transmitter without the need to place actual phone calls. For the purposes of this test the unit is commanded to test mode and manually set to the proper channel, transmitter power level and transmit mode of operation. The phone was then placed in the SAR measurement system with a fully charged battery. A full data set output of the test conditions with the highest SAR values from each side of the head adjacent position from the Dasy measurement system is included as appendix 2. A full data set output of two test conditions with the highest SAR values from the body worn configuration from the Dasy measurement system is included as appendix 3. The test conditions included are indicated as bold numbers in the following table. All other test conditions measured lower SAR values than those included. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BC1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 SAR, 1g (W/kg) Left Head Right Head f (MHz) Description Conducted Output Power (dBm) Ant Fixed Ant Fixed Channel 512 29.21 0.77 0.61 Channel 661 29.38 0.72 0.63 Digital 1900MHz Channel 810 29.33 0.71 0.65 Table 1: SAR measurement results for the portable cellular telephone FCC ID IHDT6BC1 at highest possible output power. Measured against the head. SAR, 1g (W/kg) Phone Clip f (MHz) Description Conducted Output Power (dBm) Ant Fixed Channel 512 29.21 0.56 Channel 661 29.38 0.51 Digital 1900MHz Channel 810 29.33 0.46 Table 2: SAR measurement results for the portable cellular telephone FCC ID IHDT6BC1 at highest possible output power. Measured against the body. 4. Test Equipment Used 4.1 Dosimetric System The Motorola Personal Communications Sector Product Safety Laboratory utilizes a Dosimetric Assessment System (Dasy3™) SAR measurement system manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±12.0% (K=1). Description Serial Number Cal Due Date DASY3 DAE V1 SN365 7/25/01 E-Field Probe ETDV6 SN1375 10/27/01 Dipole Validation Kit, DV1800V2 SN250 9/01 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BC1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 5 5 4.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04845 10/5/02 Power Meter E4419B GB39511085 10/6/01 Power Sensor E9301A US39211006 1/24/02 5. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with HP85070 Dielectric Probe Kit These values are shown in the table below. The mass density, ρ, used by the dosimetric…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INCFCC ID: IHDT6BC1 EXHIBIT 6 TEST REPORT SUBMITTED MEASURED DATA INDEX RF Output Power.................................................................6A EIRP......................................................................................6B Final Amplifier Voltages and Currents..............................6C Radiated Spurious Emission.............................................6D Occupied Bandwidth...........................................................6E Conducted Spurious Emissions........................................6F Frequency Stability..............................................................6G APPLICANT: MOTOROLA INCFCC ID: IHDT6BC1 EXHIBIT 6A EXHIBIT 6A RF Output Power Exhibit Summary: Exhibit 6A contains both average and peak output powers for the mobile station. In all cases, the peak output power is within the required mask (this mask is specified in the JTC standards, TIA PN3389 Vol. 1, Chap. 7, and is not an FCC requirement). Contents: Method of Measurement Measurement Limit Average Output Powers EIRP Method of Measurement: 1.Setup the mobile station for maximum output power with pseudo random data modulation. 2.Use HP 8991A Peak Power Analyzer to obtain peak and average output power levels. 3.Repeat measurements for carrier frequencies at 1850.2 MHz, 1880 MHz, and 1909.8 MHz. Channels 512, 661, and 810 respectively (bottom, middle, and top of operational frequency range). Measurement Limits: PowerNominal Peak StepOutput PowerTolerance (dBm)(dB) 029.00+/- 1.0 Conducted Power Measurements: FrequencyPowerPeakAverage (MHz)StepOutput PowerOutput Power (dBm)(dBm) 1850.2029.0520.53 1880029.120.57 1909.8029.0220.51 APPLICANT: MOTOROLA INCFCC ID: IHDT6BC1 EXHIBIT 6B EXHIBIT 6B EIRP Test The phone was tested in a 16' cubical anechoic chamber with a 2-axis position system that permits taking complete spherical scans of the AUT's radiation patterns. For all tests, the phone was supported in a free-space type environment, vertically oriented in the chamber. Tests were done on three PCS frequencies (1850.2, 1880.0 and 1909.8 Mhz) with antenna fixed. GSM measurements were made with the phone placed in a call using the HP8922M mobile station test set. The phone was weakly coupled to the test set and configured to transmit in full data rate mode, with a nominal output power setting of 29.5 dBm for 1900. Radiated power was measured at every 15 degree step from theta=0 to 165 degrees and phi=0 to 360 degrees. The radiated power was measured using a Gigatronics 8542C power meter in "Burst Avg" mode. From these measurements, the software calculates the angle at which maximum radiated power occurs for each case, and the radiated power at this angle was extracted from the data. The max radiated power results for IHDT6BC1 follows, as EIRP in dBm. To get ERP (effective radiated power referenced to a half-wave dipole), subtract 2.1 dB from these numbers. EIRP data for PCS 1900: Channel 5121850.2 Mhz: < 32.74 dBm Channel 6611880.0 Mhz: <32.89 dBm Channel 8101909.8 Mhz <32.79 dBm For all measurement, calibration was performed via gain substitution with a half- wave dipole. Result: Maximum EIRP is 32.89 dBm in PCS 1900 mode APPLICANT: MOTOROLA INCFCC ID: IHDT6BC1 EXHIBIT 6C EXHIBIT 6C Voltages and Currents into Final Amplifying Devices Exhibit Summary: Exhibit 6C contains the voltages and currents applied to the TX Driver and TX Final Power Amplifier for the entire mobile station operating power range. Power Step Output Power Spec (dBm) Measured Output Power (dBm) Vcc for PA IC (VDC) PA Currect (mA) 029+/-129.033.8231 128+/-228.033.8221 226+/-2263.8203 324+/-2243.8188 422+/-2223.8176 520+/-319.93.8166 618+/-317.943.8159 716+/-316.053.8154 814+/-314.043.8150 912+/-412.63.8147 1010+/-411.133.8145 118+/-49.693.8143 126+/-47.963.8141 134+/-46.723.8140 142+/-45.173.8139 150+/-43.853.8138 APPLICANT: MOTOROLA INCFCC ID: IHDT6BC1 EXHIBIT 6D EXHIBIT 6D RADIATED SPURIOUS EMISSION Radiated Spurious and Harmonic Emissions: PCS 1900 Frequency (MHz) FCC Maximum Limit (dBm) Horizontal Measured Emission Equiv. Pwr Into Ideal Dipole (dBm) Vertical Measured Emission Equiv Pwr Into Ideal Dipole (dBm) 2nd harmonic-13-40.2-41.0 3rd harmonic-13-36.0-41.5 4th harmonic-13-30.2-31.9 5th harmonic-13*-37.9 6th harmonic-13-30.0* 7th harmonic-13** 8th harmonic-13** 9th harmonic-13** 10th harmonic-13** Notes: 1. * Indicates the spurious emission could not be detected due to noise limitations or ambients. 2. Each emission reported reflects the highest absolute level at the specific harmonic for the low, mid, and high channels at maximum power. 3. The Spectrum was investigated from 30 kHz to the tenth harmonic of the fundamental. Radiated Spurious Emissions -70 -60 -50 -40 -30 -20 -10 0 Frequency (MHz) Horizontal Measured Emission Equiv. Pwr Into Ideal Dipole (dBm) Vertical Measured Emission Equiv Pwr Into Ideal Dipole (dBm) FCC Maximum Limit (dBm) APPLICANT: MOTOROLA INCFCC ID: IHDT6BC1 EXHIBIT 6E EXHIBIT 6E OCCUPIED BANDWIDTH Exhibit Summary: Exhibit 6E contains measurement data pertaining to occupied bandwidth. For each carrier frequency measured, the plots show the modulation spectrum of the carrier measured by two methods: the 99% power bandwidth, and the -26 dBC bandwidth. The following figures illustrate the results of both bandwidth definitions as measured using a Hewlett Packard spectrum analyzer. Contents: Measurement Procedure Occupied Bandwidth Results Occupied Bandwidth Plots 1850.2 MHz 99% Power BandwidthFigure 6E.1 1850.2 MHz -26 dBc Power BandwidthFigure 6E.2 1881.8 MHz 99% Power BandwidthFigure 6E.3 1881.8 MHz -26 dBc Power BandwidthFigure 6E.4 1909.8 MHz 99% Power BandwidthFigure 6E.5 1909.8 MHz -26 dBc Power BandwidthFigure 6E.6 Measurement Procedure: This section describes the procedures used to measure occupied bandwidth. A theoretical occupied bandwidth of approximately 246.0 kHz was determined as described in EXHIBIT 12. 1.Determine the measurement bandwidth: Part 24.238 (…
