IHDT6BD1PCS portable transceiver

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6BD1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: PRELIMINARY Please focus this Phoenix formal review on reviewing the green color-coded text, which describes new Phoenix GSM information and generic GSM software text that still needs to be reviewed and approved for all GSM products: Phoenix, Sapphire, and Panther 2. To provide feedback, contact Dayna Schocke. Motorola V. Series Model 60g Tri-Band Mobile Phone User’s Guide Formal Review May 24, 2001 PRELIMINARY 1 PRELIMINARY Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola V ™ Series 60g wireless phone. Earpiece Headset Jack Insert headset accessory for hands-free use. Status Light See incoming call and service status. Volume Keys Adjust earpiece and ringer volume. Smart Key Select menu items, send and end calls. Voice Key Record voice notes, phonebook and shortcut names. Display Microphone Accessory Connector Port Insert charger and phone accessories. Power Key Right Soft Key Perform functions identified by right display prompt. Menu Key End Key End phone calls, exit menu system. Scroll Key Move through menus and lists. Left Soft Key Perform functions identified by left display prompt. Send Key Send and answer calls, view recent dialed calls list. 2 PRELIMINARY Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. TrueSync, Sidekick, Starfish and the Stylized Starfish Logo are registered trademarks of Starfish Software, Inc., a wholly owned independent subsidiary of Motorola, Inc. All other product or service names are the property of their respective owners. © 2001 Motorola, Inc. All rights reserved. Printed in the U.S.A. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted softw are. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to gr ant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party softw are provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: 6809435A87-O Cover number: 8988485L07-O 3 PRELIMINARY ✂ Menu Map Main Menu • Recent Calls • Received Calls • Dialed Calls • Notepad • Call Times • Call Cost • Service Dial • Fixed Dial • Phonebook • Datebook • Quick Dial • Radio • Messages • Voicemail • Text Msgs • Browser Alerts • Info Services • Quick Notes • Outbox • Drafts • Shortcuts • Voice Notes • SIM Applications • Browser • Calculator • Games • Settings (see next page) Note: This is the standard phone menu layout. You or your service provider may have changed the menu layout or changed some feature names. Not all features may be available for all users. For example, the Radio feature on the main menu (left) is displayed only when the optional FM Stereo Radio Headset accessory is plugged into the accessory connector port on your phone (see phone illustration, page 1). Shortcuts Change display zoom: Press M, then press and hold M Lock/unlock keypad: Press M * Display my phone number: Press M # Go to dialed calls list: Press N 4 PRELIMINARY ✂ Settings Menu • Ring/Vibrate • Alert • Alert Detail • My Tones • Call Forward • Voice Calls • Fax Calls • Data Calls • Cancel All • Forward Status • Phone Status • My Tel. Number • Credit Info/Available • Phone: Line 1/2 • Battery Meter • Other Information • In-Call Setup • In-Call Timer • Call Cost Setup • My Caller ID • Talk and Fax • Answer Options • Call Waiting • Security • Phone Lock • Lock Application • Fixed Dial • Call Barring • SIM Pin • New Passwords • Other Settings • Personalize • Main Menu • Keys • Greeting • Quick Dial • Initial Setup • Time and Date • 1-Touch Dial • Auto Redial • Backlight • Status Light • Zoom • Scroll • Animation • Language • Battery Save • Contrast Setting • DTMF • Master Reset • Master Clear • Network • Car Settings • Headset 5 PRELIMINARY Contents Menu Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Safety and General Information. . . . . . . . . . . . . . . . . . . 12 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 What’s in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Sending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Displaying Your Phone Number . . . . . . . . . . . . . . . . . . . . 25 About Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Display . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC FCC ID: IHDT6BD1 EXHIBIT 2 ATTESTATION STATEMENTS The transceiver type IHDT6BD1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 North U.S. Highway 45, Libertyville, Illinois; or at Motorola, located at 1500 Gateway Boulevard, Boynton Beach, Florida; or at Motorola, located at 2001 N. Division Street, Harvard, Illinois; or at Motorola, located at 1900 Winchester, Libertyville, Illinois. NAME:K. David Konczal TITLE: Engineering Manager PCS Development Date:June 25, 2001 The technical data supplied with this application , was taken under my supervision is hereby duly certified. I also certify that this transmit equipment (FCC ID : IHDT6BD1) compliance with all applicable parts of the FCC Rules . NAME: Chad Kurszewski TITLE: Lead Engineer PCS Development Date: June 25, 2001 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief , the facts set forth in this application and accompanying technical data are true and correct. NAME:Chad Kurszewski TITLE:Lead Engineer PCS Development Date:June 25, 2001

APPLICANT: MOTOROLAFCC ID: IHDT6BD1 Exhibit 13 June 26, 2001 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization (FCC Form 731-October 1992 with integrated Fee Processing Form, Fee Codes EFT and EBC), application fee in the amount of $640, and Exhibits; for Certification of a PCS Transceiver, FCC ID: IHDT6BD1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 1900 MHz PCS band Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

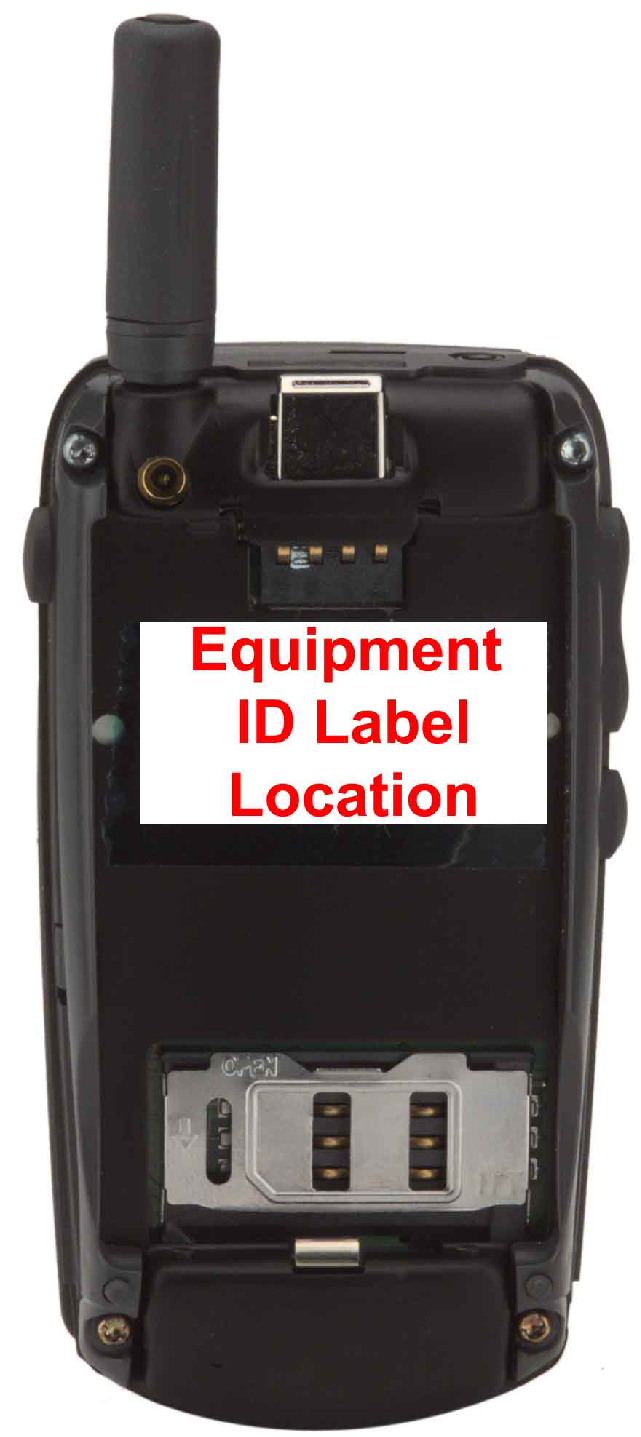

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BD1 EXHIBIT 3 Front View with Flip Open Rear View with Battery Removed to Show Equipment ID Label

APPLICANT: MOTOROLA INC.FCC ID: IHDT6BD1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT6BD1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BD1 EXHIBIT 9 Front View (Shields Removed) Rear View (Shields Removed)

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6BD1 EXHIBIT 10 TRANSCEIVER ADJUSTMENTS / TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BD1 ReferencePart_numberValueSymbolGeometry C979DNP00DNP00001DNPRESres0805 C904DNP00DNP00002DNPDNPcap1206 R2756DNP00DNP00037DNPRESres0402 R701DNP00DNP00037DNPRESres0402 R703DNP00DNP00037DNPRESres0402 R706DNP00DNP00037DNPRESres0402 R709DNP00DNP00037DNPRESres0402 R871DNP00DNP00037DNPRESres0402 R872DNP00DNP00037DNPRESres0402 R9180613744L11.24RESres0805 R7130662057M010 OHMRESres0402 R9100662057M010 OHMRESres0402 R9150662057M010 OHMRESres0402 R9200662057M010 OHMRESres0402 R9220662057M010 OHMRESres0402 R9360662057M195.1RESres0402 R2500662057M4351RESres0402 R2510662057M4351RESres0402 R2520662057M4351RESres0402 R2530662057M4351RESres0402 R9210662057M4668RESres0402 R8620662057M50100RESres0402 R9310662057M50100RESres0402 R9080662057M68560RESres0402 R9120662057M68560RESres0402 R4510662057M70680RESres0402 R8640662057M741KRESres0402 R8650662057M741KRESres0402 R9300662057M883.9KRESres0402 R27780662057M904.7KRESres0402 R8040662057M904.7KRESres0402 R9090662057M904.7KRESres0402 R9230662057M904.7KRESres0402 R9450662057M925.6KRESres0402 R27660662057M9810KRESres0402 R7020662057M9810KRESres0402 R9070662057M9810KRESres0402 R9160662057M9810KRESres0402 R9240662057M9810KRESres0402 R9250662057M9810KRESres0402 R9400662057M9810KRESres0402 R9410662057M9810KRESres0402 R9480662057M9810KRESres0402 R9290662057N0315KRESres0402 R9110662057N0620KRESres0402 R9280662057N0620KRESres0402 R8660662057N0927KRESres0402 R9320662057N0927KRESres0402 R9040662057N1339KRESres0402 R8610662057N1547KRESres0402 R9270662057N1547KRESres0402 R9190662057N1968KRESres0402 R8520662057N23100KRESres0402 R9260662057N32240KRESres0402 R9500662057N32240KRESres0402 R8630662057N33270KRESres0402 R9470662057N34300KRESres0402 EXHIBIT 10B APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BD1 R9010687874L02.1RESres0603 J8500987636K05CE BUS CONCONN_Jconn0987636k05_20pin J8000987816K04BD-BD CONCONN_Jconn0987816k04_14pin J6500987837L02HEADSET JACK 5pinsCONN_Jconn0987837l02_5pin C9552113743E03.015UFCAPcap0603 C8622113743E200.1UFCAPcap0603 C4532113743L171000PFCAPcap0402 C7122113743L171000PFCAPcap0402 C9572113743L191200PFCAPcap0402 C29522113743L41.01UFCAPcap0402 C29572113743L41.01UFCAPcap0402 C7262113743L41.01UFCAPcap0402 C7002113743M240.1UFCAPcap0402 C7012113743M240.1UFCAPcap0402 C7022113743M240.1UFCAPcap0402 C7032113743M240.1UFCAPcap0402 C7042113743M240.1UFCAPcap0402 C7052113743M240.1UFCAPcap0402 C7062113743M240.1UFCAPcap0402 C7072113743M240.1UFCAPcap0402 C7082113743M240.1UFCAPcap0402 C7092113743M240.1UFCAPcap0402 C7102113743M240.1UFCAPcap0402 C7162113743M240.1UFCAPcap0402 C7172113743M240.1UFCAPcap0402 C7182113743M240.1UFCAPcap0402 C7192113743M240.1UFCAPcap0402 C7202113743M240.1UFCAPcap0402 C7222113743M240.1UFCAPcap0402 C8632113743M240.1UFCAPcap0402 C9142113743M240.1UFCAPcap0402 C9262113743M240.1UFCAPcap0402 C9292113743M240.1UFCAPcap0402 C9302113743M240.1UFCAPcap0402 C9422113743M240.1UFCAPcap0402 C9492113743M240.1UFCAPcap0402 C9502113743M240.1UFCAPcap0402 C9562113743M240.1UFCAPcap0402 C9672113743M240.1UFCAPcap0402 C4512113743N163.9PFCAPcap0402 C8642113743N2610PFCAPcap0402 C8652113743N2610PFCAPcap0402 C8662113743N2610PFCAPcap0402 C7112113743N3015PFCAPcap0402 C9102113743N3015PFCAPcap0402 C9112113743N3015PFCAPcap0402 C4542113743N3627PFCAPcap0402 C29562113743N3833PFCAPcap0402 C8682113743N3833PFCAPcap0402 C8692113743N3833PFCAPcap0402 C9282113743N3833PFCAPcap0402 C9312113743N3833PFCAPcap0402 C9442113743N3833PFCAPcap0402 C9452113743N3833PFCAPcap0402 C9462113743N3833PFCAPcap0402 C9582113743N3833PFCAPcap0402 C9632113743N3833PFCAPcap0402 C9642113743N3833PFCAPcap0402 EXHIBIT 10B APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BD1 C9652113743N3833PFCAPcap0402 C9662113743N3833PFCAPcap0402 C9692113743N3833PFCAPcap0402 C2502113743N4039PFCAPcap0402 C2512113743N4039PFCAPcap0402 C2522113743N4039PFCAPcap0402 C2532113743N4039PFCAPcap0402 C9512113743N4039PFCAPcap0402 C9532113743N4039PFCAPcap0402 C9542113743N4039PFCAPcap0402 C20522113928C044.7UFCAPcap0805 C29532113928C044.7UFCAPcap0805 C9022113928C044.7UFCAPcap0805 C9062113928C044.7UFCAPcap0805 C9122113928C044.7UFCAPcap0805 C9152113928C044.7UFCAPcap0805 C9172113928C044.7UFCAPcap0805 C9182113928C044.7UFCAPcap0805 C9192113928C044.7UFCAPcap0805 C9202113928C044.7UFCAPcap0805 C9212113928C044.7UFCAPcap0805 C9222113928C044.7UFCAPcap0805 C9242113928C044.7UFCAPcap0805 C927DNP2113928C044.7UFCAPcap0805 C9392113928C044.7UFCAPcap0805 C947DNP2113928C044.7UFCAPcap0805 C970DNP2113928C044.7UFCAPcap0805 C971DNP2113928C044.7UFCAPcap0805 C972DNP2113928C044.7UFCAPcap0805 C975DNP2113928C044.7UFCAPcap0805 C976DNP2113928C044.7UFCAPcap0805 C9782113928C044.7UFCAPcap0805 C9402113928J0810UFCAPcap1210 C9412113928J0810UFCAPcap1210 C8522113928N010.1UFCAPcap0402 C8612113928N010.1UFCAPcap0402 C7212113928P041.0UFCAPcap0603 C9052113928P041.0UFCAPcap0603 C9322113928P041.0UFCAPcap0603 C9372113928P041.0UFCAPcap0603 C9342113928V0810UFCAPcap1210 C9352113928V0810UFCAPcap1210 C9362113928V0810UFCAPcap1210 C9432311049A8922UFCAPPcapp3216 L122409154M1515.0NHIDCTRind1005 L9602409646M1339NHIDCTRind1_60x0_80 L9012503778K0715UHIDCTRind6_00x5_00 SH8252609827G10DOG HOUSESHIELDshield2609827g10-2pin SH8262609827G10DOG HOUSESHIELDshield2609827g10-2pin SH8272609827G10DOG HOUSESHIELDshield2609827g10-2pin SH900DNP2687960K03LOGIC SHSHIELDshield2687960k03 DWN4087635K01DWNSWITCHsw4087635k01_4pin SMART4087635K01DWNSWITCHsw4087635k01_4pin UP4087635K01DWNSWITCHsw4087635k01_4pin VA4087635K01DWNSWITCHsw4087635k01_4pin CR8504808612Y01RB751V-40RB751V-40sod323 CR9504808612Y01RB751V-40RB751V-40sod323 CR8064809118D02LNJ115W8P0MTLNJ115W8P0MTled1_60x1_25 EXHIBIT 10B APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BD1 Q9324809579E29SI3443SI3443tsop3_00x1_50p6 Q9384809579E29SI3443SI3443tsop3_00x1_50p6 Q9464809579E33SI6963DQSI6963DQtssop3_00x4_40_p8 Q4504809579E49SI6467DQSI6467DQtssop3_00x4_40_p8 CR9324809653F07MBRM120ET3MBRM120ET3dio1_90x1_90 CR9404809653F07MBRM120ET3MBRM120ET3dio1_90x1_90 VR19484809788E06UDZTE-176.8BUDZTE-176.8Bsod1_70x1_25 VR9404809788E06UDZTE-176.8BUDZTE-176.8Bsod1_70x1_25 CR9034…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BD1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report: IHDT6BD1 Date of test: June 13–19, 2001 Laboratory: Motorola Personal Communications Sector Product Safety Laboratory 2001 N. Division Room: AS228 Harvard, Illinois 60033 Test Responsible: Steven Hauswirth Staff Engineer Accreditation: ISO Guide 25 Accredited Lab, A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT6BD1 to which this declaration relates, is in conformity with the appropriate RF exposure standards, recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: ©Motorola This test report shall not be reproduced in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BD1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Results 3 4) Test Equipment 4 4.1 Dosimetric system 4 4.2 Additional equipment used 5 5) Electrical parameters of the tissue simulating liquid 5 6) System Accuracy Verification 5 Reference Notes Appendix 1: SAR distribution comparison for the system accuracy verification 6 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 7 Appendix 3: SAR distribution plots for Body Worn Configuration 9 Appendix 4: Photographs of the device under test 11 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BD1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT6BD1. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with the latest available test guidelines. The SAR values found for the portable cellular phone (FCC ID IHDT6BD1) are below the maximum recommended levels of 1.6 W/kg. Detailed procedures of the test are described in the Motorola Exhibit 11 Reference SAR Test Report. 2. Description of the Device Under Test Antenna description Type Fixed Stub Location Right Side Length 31mm Dimensions Width at Base 9mm Configuration Helix Device description FCC ID Number IHDT6BD1 Serial number F7W0011 Mode(s) of Operation GSM 1900 Maximum Output Power Setting 29.20 dBm Duty Cycle 1:8 Transmitting Frequency Rang(s) 1850.2 –1909.8 MHz 3. Test Results The SAR results shown in tables 1 and 2 are maximum SAR values averaged over 1 gram of phantom tissue. Also shown are the measured conducted output powers and the temperature of the test facility during the test. The test sample was operated using a Hewlett Packard 8922M and placing phone into a call. The unit was manually set to the proper channel, transmitter power level and transmit mode of operation. The phone was then placed in the SAR measurement system with a fully charged battery. A full data set output of two test conditions with the highest SAR values from the Dasy measurement system is included as appendix 1 and 2. The test conditions included are indicated as bold numbers in the following table. All other test conditions measured lower SAR values than those included. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BD1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 SAR, 1g (W/kg) f (MHz) Description Conducted Output Power (dBm) Left Head Right Head Channel 512 29.23 0.33 0.35 Channel 660 29.15 0.31 0.31 Digital 1900MHz Channel 812 29.20 0.30 0.27 Table 1: SAR measurement results for the portable cellular telephone FCC ID IHDT6BD1 at highest possible output power. Measured against the head. SAR, 1g (W/kg) f (MHz) Description Conducted Output Power (dBm) Body Worn Channel 512 29.23 0.23 Channel 660 29.15 0.20 Digital 1900MHz Channel 812 29.20 0.20 Table 2: SAR measurement results for the portable cellular telephone FCC ID IHDT6BD1 at highest possible output power. Measured against the body. 4. Test Equipment Used 4.1 Dosimetric System The Motorola Personal Communications Sector Product Safety Laboratory utilizes a Dosimetric Assessment System (Dasy3™) SAR measurement system manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±12.0% (K=1). Description Serial Number Cal Due Date DASY3 DAE V1 SN383 3/2002 E-Field Probe ETDV6 SN1506 10/2001 Dipole Validation Kit, DV1800V2 SN250 9/2001 4.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04832 1/18/2003 Power Meter E4419B GB39511087 1/19/2002 Power Sensor 8481A US39210917 1/24/2002 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BD1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 5 5 5. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, ε r , and the conductivity, σ, of the tissue simulating liquids were measured with HP85070 Dielectric Probe Kit. These values are shown in the table below. The mass density, ρ, used by the dosimetric system is also given. Recommended limits for maximum permittivity, minimum conductivity and maximum mass density are also shown. These come from the Federal Communication Commission, “Tissue Dielectric Properties” web site at http://www.fcc.gov/fcc-bin/dielec.sh. It is seen that the measured parameters are satisfactory for compliance testing. Diele…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6BD1 EXHIBIT 11A Figure 1A. Phone with the Belt Clip Against the Flat Phantom Figure 1B Phone with the Belt Clip Against the Flat Phantom Figure 1 C Phone with the Belt Clip Against the Flat Phantom

August 8, 2001 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6BD1). Prepared by: Steven Hauswirth, Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Contents 1. Corrected SAR measurement results for the portable cellular telephone FCC ID IHDT6BD1 at highest possible output power measured against the head. The SAR measurement results were incorrectly inputted in the table that was included in the original filing report. However the SAR measurements shown on the DASY3 scans provided in the original report are correct. Below is the table with the correct SAR values for the left side head along with their DASY plots. 1. Corrected SAR measurement results for the portable cellular phone at highest possible output power measured against the head. SAR, 1g (W/kg) f (MHz) Description Conducted Output Power (dBm) Left Head Right Head Channel 512 29.23 0.492 0.35 Channel 660 29.15 0.407 0.31 Digital 1900MHz Channel 812 29.20 0.358 0.27 Table 1: SAR measurement results for the portable cellular telephone FCC ID IHDT6BD1 at highest possible output power. Measured against the head. S/N F7W0011 Ch#512 / Pwr Step:0 / Antenna Position: Fixed Robot 2 Clyde (Left Head) Phantom; Left Head Section; Position: (80°,180°); Frequency: 1851 MHz Probe: ET3DV6 - SN1506 - Head ( Glycol ); ConvF(5.59,5.59,5.59); Crest factor: 8.0; Head Glycol 1900 MHz: σ = 1.45 mho/m ε r = 39.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.492 mW/g, SAR (10g): 0.217 mW/g, (Worst-case extrapolation) Coarse: Dx = 10.0, Dy = 10.0, Dz = 10.0 Penetration depth: 7.1 (6.5, 8.7) [mm] Powerdrift: -0.91 dB SAR Tot [mW/g] 2.79E-2 8.37E-2 1.40E-1 1.95E-1 2.51E-1 3.07E-1 3.63E-1 4.19E-1 4.74E-1 5.30E-1 06/13/01 Motorola, Inc. S/N F7W0011 Ch# 660 / Pwr Step: 0 / Antenna Position: Fixed Robot 2 Clyde (Left Head) Phantom; Left Head Section; Position: (80°,180°); Frequency: 1880 MHz Probe: ET3DV6 - SN1506 - Head ( Glycol ); ConvF(5.59,5.59,5.59); Crest factor: 8.0; Head Glycol 1900 MHz: σ = 1.45 mho/m ε r = 39.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.407 mW/g, SAR (10g): 0.184 mW/g, (Worst-case extrapolation) Coarse: Dx = 10.0, Dy = 10.0, Dz = 10.0 Penetration depth: 7.1 (6.6, 8.6) [mm] Powerdrift: -1.34 dB SAR Tot [mW/g] 2.35E-2 7.03E-2 1.17E-1 1.64E-1 2.11E-1 2.58E-1 3.05E-1 3.52E-1 3.99E-1 4.46E-1 06/13/01 Motorola, Inc. S/N F7W0011 Ch# 810 / Pwr Step: 0 / Antenna Position: Fixed Robot 2 Clyde (Left Head) Phantom; Left Head Section; Position: (80°,180°); Frequency: 1910 MHz Probe: ET3DV6 - SN1506 - Head ( Glycol ); ConvF(5.59,5.59,5.59); Crest factor: 8.0; Head Glycol 1900 MHz: σ = 1.45 mho/m ε r = 39.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.358 mW/g, SAR (10g): 0.171 mW/g, (Worst-case extrapolation) Coarse: Dx = 10.0, Dy = 10.0, Dz = 10.0 Penetration depth: 7.5 (7.0, 8.7) [mm] Powerdrift: -1.49 dB SAR Tot [mW/g] 2.16E-2 6.49E-2 1.08E-1 1.52E-1 1.95E-1 2.38E-1 2.81E-1 3.25E-1 3.68E-1 4.11E-1 06/13/01 Motorola, Inc.

APPLICANT: MOTOROLA INCFCC ID: IHDT6BD1 1EXHIBIT 6 TEST REPORT SUBMITTED MEASURED DATA INDEX RF Output Power........................................6A EIRP...........................................................6B Final Amplifier Voltages and Currents........6C Radiated Spurious Emission.......................6D Occupied Bandwidth...................................6E Conducted Spurious Emissions..................6F Frequency Stability.....................................6G APPLICANT: MOTOROLA INCFCC ID: IHDT6BD1 2EXHIBIT 6 EXHIBIT 6A RF Output Power Exhibit Summary: Exhibit 6A contains both average and peak output powers for the mobile station. In all cases, the peak output power is within the required mask (this mask is specified in the JTC standards, TIA PN3389 Vol. 1, Chap. 7, and is not an FCC requirement). Contents: Method of Measurement Measurement Limit Average Output Powers EIRP Method of Measurement: 1.Setup the mobile station for maximum output power with pseudo random data modulation. 2.Use HP 8991A Peak Power Analyzer to obtain peak and average output power levels. 3.Repeat measurements for carrier frequencies at 1850.2 MHz, 1880 MHz, and 1909.8 MHz. Channels 512, 661, and 810 respectively (bottom, middle, and top of operational frequency range). Measurement Limits: PowerNominal Peak StepOutput PowerTolerance (dBm)(dB) 029.2+/- 1.0 Conducted Power Measurements: FrequencyPowerPeakAverage (MHz)StepOutput PowerOutput Power (dBm)(dBm) 1850.2029.2320.08 1880029.1520.02 1909.8029.2020.06 APPLICANT: MOTOROLA INCFCC ID: IHDT6BD1 3EXHIBIT 6 EXHIBIT 6B EIRP Test The phone was tested in a 16' cubical anechoic chamber with a 2-axis position system that permits taking complete spherical scans of the radiation patterns. For all tests, the phone was supported in a free-space type environment, vertically oriented in the chamber. Tests were done for PCS 1900 three frequencies (1850.2, 1880.0 and 1909.8 MHz). All measurements were made with the phone placed in a call using the HP8922M mobile station test set. The phone was weakly coupled to the test set and configured to transmit in full data rate mode, with a nominal conducted output power setting of 29 dBm. Radiated power was measured at every 15 degree step from theta=0 to 165 degrees and phi=0 to 360 degrees. The radiated power was measured using a Gigatronics 8542C power meter in "Burst Avg" mode. From these measurements, the software calculates the angle at which maximum radiated power occurs for each case, and the radiated power at this angle was extracted from the data. The radiated power results follows, as EIRP in dBm. To get ERP (effective radiated power referenced to a half-wave dipole), subtract 2.1 dB from these numbers. For all measurements, calibration was performed via gain substitution with a half-wave dipole Rated Power Output is 32.9dBm (1.95 Watts) EIRP. . APPLICANT: MOTOROLA INCFCC ID: IHDT6BD1 4EXHIBIT 6 EXHIBIT 6C Voltages and Currents into Final Amplifying Devices Exhibit Summary: Exhibit 6C contains the voltages and currents applied to the TX Driver and TX Final Power Amplifier for the entire mobile station operating power range. Channel 661 (Frequency 1880 MHz) Power Step Output Power Spec (dBm) Measured Output Power (dBm) Vcc for PA IC (VDC) PA Currect (mA) 029+/-129.183.8235 128+/-227.673.8215 226+/-226.143.8199 324+/-224.283.8181 422+/-222.253.8167 520+/-320.183.8154 618+/-318.133.8145 716+/-316.263.8139 814+/-314.33.8133 912+/-412.223.8128 1010+/-410.533.8125 118+/-48.453.8122 126+/-46.453.8120 134+/-45.173.8118 142+/-44.43.8118 150+/-43.53.8117 APPLICANT: MOTOROLA INCFCC ID: IHDT6BD1 5EXHIBIT 6 EXHIBIT 6D RADIATED SPURIOUS EMISSION PCS 1900 Radiated Spurious and Harmonic Emissions Frequency (MHz) FCC Maximum Limit (dBm) Horizontal Measured Emission Equiv. Pwr Into Ideal Dipole (dBm) Vertical Measured Emission Equiv Pwr Into Ideal Dipole (dBm) 2nd harmonic-13-38.4-36.2 3rd harmonic-13-36.2-39.6 4th harmonic-13** 5th harmonic-13** 6th harmonic-13** 7th harmonic-13** 8th harmonic-13** 9th harmonic-13** 10th harmonic-13** Notes: 1. * Indicates the spurious emission could not be detected due to noise limitations or ambients. 2. Each emission reported reflects the highest absolute level at the specific harmonic for the low, mid, and high channels at maximum power. 3. The Spectrum was investigated from 30 kHz to the tenth harmonic of t…

Text truncated - open the document above for the full version.
