IHDT6BK1PCS portable transceiver

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6BK1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: Table of Contents i Table of Contents INTRODUCTION............................................................................................1 SAFETY AND GENERAL INFORMATION........................................................3 Important Information on Safe and Efficient Operation.....................................3 Read this Information before using your Personal Communicator.................3 Portable Personal Communicator Operation and EME Exposure..................4 Electromagnetic Interference / Compatibility...................................................4 Facilities............................................................................................4 Aircraft..............................................................................................4 Medical Devices.................................................................................5 Safety and General...................................................................................5 Use in Vehicles..................................................................................5 Operational Warnings..........................................................................6 Operational Cautions...........................................................................6 European Union Directives Conformance Statement........................................7 Total Customer Satisfaction........................................................................8 Warranty Information..................................................................................9 How to get Warranty Service................................................................9 GETTING STARTED....................................................................................13 Checklist...............................................................................................13 Inserting Your SIM Card...........................................................................15 Installing the Battery...............................................................................16 Charging the Battery................................................................................17 Battery Performance and Maintenance.......................................................17 Low Battery Warning...............................................................................18 Battery Indicators...................................................................................18 Turning Your Device On - General..............................................................18 Turning Your Device On...........................................................................19 Turning Your Device On - Phone Mode.................................................19 Turning Your Device On - PDA Mode...................................................19 Complete Process of Turning On Your Device........................................20 Selecting the Handset Operation Mode................................................22 Turning OFF the phone......................................................................22 Screen Displays and Operation...........................................................22 Icons....................................................................................................23 ii Table of Contents Status Display Icons.........................................................................23 Phone Mode Function........................................................................23 Function Display Icons.............................................................................25 Main Menu Function Icons.......................................................................26 Buttons.................................................................................................28 The Function Selection Button............................................................28 Title................................................................................................28 Key-in Area......................................................................................29 Pull Down Selection Box....................................................................29 Single Selection Box.........................................................................29 Scroll Bar........................................................................................30 Dialogue Box....................................................................................30 How to Enter Words..........................................................................30 Handwriting Script Board....................................................................31 English and Numeric Keyboard............................................................32 Numeric Keypad................................................................................32 Terms Used In this Guide.........................................................................33 "Tap" or "Press"................................................................................33 "Edit" or "Enter"................................................................................33 "Select"...........................................................................................33 "Highlight"........................................................................................33 "Select Character".............................................................................33 PHONE FUNCTIONS....................................................................................35 Making a Phone Call................................................................................35 GSM Emergency Phone Call...............................................................36 Receiving a Phone Call...........................................................…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6BK1 EXHIBIT 2A SPECIFICATION COMPLIANCE STATEMENT The transceiver of type IHDT6BK1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 1500 Gateway Boulevard, Boynton Beach, Florida. Name:William Tan Title:Director Of Beijing Design Center Date:Dec 4, 2001 APPLICANT: MOTOROLA, INC.FCC ID: IHDT6BK1 EXHIBIT 2B STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. Name:Jeff Qian Title: Engineer Manager Date:Dec 4, 2001 The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT6BK1) is in compliance with all applicable parts of the FCC Rules. Name:Joseph Chen Title:RF Engineer Date:Dec 4, 2001

APPLICANT: MOTOROLAFCC ID: IHDT6BK1 Exhibit 13 December 6, 2001 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization (FCC Form 731-October 1992 with integrated Fee Processing Form, Fee Codes EFT and EBC), application fee in the amount of $640, and Exhibits; for Certification of a PCS Transceiver, FCC ID: IHDT6BK1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment is a “tri-band” GSM portable transceiver, which operates in the 1900 MHz PCS band. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

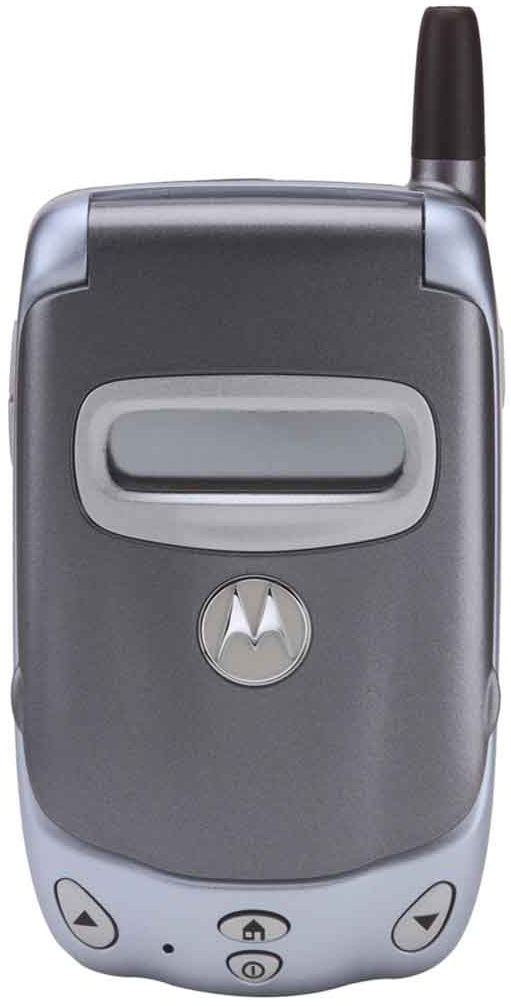

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BK1 EXHIBIT 3 Front View with Flip Open Rear View with Battery Removed to Show Equipment ID Label Front View with Flip Closed

APPLICANT: MOTOROLA, INC.FCC ID : IHDT6BK1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the radio telephone as shown below. Other information may also be included on this label. FCC ID: IHDT6BK1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BK1 EXHIBIT 9 Front View (Shields Removed) Rear View (Shields Removed)

APPLICANT: MOTOROLA INC.FCC ID: IHDT6BK1 EXHIBIT 101 TRANSCEIVER ADJUSTMENTS/TUNE-UP PROCEDURE There are no user adjustments or tuning in this mobile cellular transceiver. APPLICANT: MOTOROLA INC.FCC ID: IHDT6BK1 EXHIBIT 102 PARTS LIST REFPART_NoVALUE A103904575R01Antenna Clip C102104801Z162.7pF C1002113743N50CAP CHIP 100 PF 5% COG C100002113743N3833pf C1012113743N30CAP CHIP 15.0 PF 5% COG C1022113743N30CAP CHIP 15.0 PF 5% COG C1062113743N38CAP CHIP 33.0 PF 5% COG C1072113743N05CAP CHIP 1.2 PF +-.25PF COG C1082113743N10CAP CHIP 2.2 PF +-.25PF COG C1092113743N18CAP CHIP 4.7 PF +-.25PF COG C112113743N34CAP CHIP 22.0 PF 5% COG C1102113743N12CAP CHIP 2.7 PF +-.25PF COG C1112113743N18CAP CHIP 4.7 PF +-.25PF COG C1122113743L33CAP CHIP 4700 PF 10% X7R C1132113743N38CAP CHIP 33.0 PF 5% COG C1142113743L17CAP CHIP 1000 PF 10% X7R C1152113743N50CAP CHIP 100 PF 5% COG C1162113743N50CAP CHIP 100 PF 5% COG C1172113743N50CAP CHIP 100 PF 5% COG C1182104801Z08CAP CER NPO 1.2PF 16V 1005 SMD C1192104801Z08CAP CER NPO 1.2PF 16V 1005 SMD C122113743N26CAP CHIP 10.0 PF 5% COG C1202113743N40CAP CHIP 39.0 PF 5% COG C1212113743N50CAP CHIP 100 PF 5% COG C1232113743N42CAP CHIP 47.0 PF 5% COG C1242113743N18CAP CHIP 4.7 PF +-.25PF COG C1252113743L41CAP CHIP 10000 PF 10% X7R C12592113743M240.1uf C1262113743L17CAP CHIP 1000 PF 10% X7R C1272113743N50CAP CHIP 100 PF 5% COG C1282113743L17CAP CHIP 1000 PF 10% X7R C132113743N50CAP CHIP 100 PF 5% COG C142113743N50CAP CHIP 100 PF 5% COG C152113743N50CAP CHIP 100 PF 5% COG C162113743N50CAP CHIP 100 PF 5% COG C182113743N38CAP CHIP 33.0 PF 5% COG C192113743N40CAP CHIP 39.0 PF 5% COG C2002113743N36CAP CHIP 27.0 PF 5% COG C2012113743N24CAP CHIP 8.2 PF + -.5PF COG C2022113743N07CAP CHIP 1.5 PF +-.25PF COG C2032113743N20CAP CHIP 5.6 PF + -.5PF COG C2042113743N20CAP CHIP 5.6 PF + -.5PF COG C2052113743N20CAP CHIP 5.6 PF + -.5PF COG C2062113743L17CAP CHIP 1000 PF 10% X7R C2072113743N44CAP CHIP 56.0 PF 5% COG APPLICANT: MOTOROLA INC.FCC ID: IHDT6BK1 EXHIBIT 103 C2082109622N01CAP CER CHIP NPO CLASS I C2092113743M24CAP CHIP 100000 PF +80-20% Y5V C212113743N36CAP CHIP 27.0 PF 5% COG C2102113743L41CAP CHIP 10000 PF 10% X7R C2112113743L41CAP CHIP 10000 PF 10% X7R C2122113743L41CAP CHIP 10000 PF 10% X7R C2132113743L17CAP CHIP 1000 PF 10% X7R C2142409154M07IND CER MLTILYR 3.3NH 1005 C2152113928A01CAP CER CHIP 1.0 UF 10V C2162113928N01CAP CER CHIP 0.1UF 10% 6.3 C2172113743M24CAP CHIP 100000 PF +80-20% Y5V C2182113743N38CAP CHIP 33.0 PF 5% COG C2192113743N38CAP CHIP 33.0 PF 5% COG C222113743N14CAP CHIP 3.3 PF +-.25PF COG C2202113743N3422pF C2212113743L41CAP CHIP 10000 PF 10% X7R C2222113743N34CAP CHIP 22.0 PF 5% COG C2232113928A01CAP CER CHIP 1.0 UF 10V C2242113743G26CAP CHIP 4.7 UF 16V +80-20% C2262113743L41CAP CHIP 10000 PF 10% X7R C2272113928P04CAP CER CHIP 1.0UF 20% 6.3V C232113743N10CAP CHIP 2.2 PF +-.25PF COG C2302113743N28CAP CHIP 12.0 PF 5% COG C2312113743L17CAP CHIP 1000 PF 10% X7R C2322113743M24CAP CHIP 100000 PF +80-20% Y5V C2332113743N52CAP CHIP 120 PF 5% COG C2342113743N52CAP CHIP 120 PF 5% COG C2352113743N50CAP CHIP 100 PF 5% COG C2362113741F28CAP CHIP CL2 X7R REEL 1300 C2372113743L41CAP CHIP 10000 PF 10% X7R C242113743N28CAP CHIP 12.0 PF 5% COG C2402113740F65CAP CHIP CL1 +/-30 390 5% C2410809084T38CAP CHIP FLIM 330 NF 50 2012 C2420809084T38CAP CHIP FLIM 330 NF 50 2012 C2432113740F71CAP CHIP CL1 820.0 PF 5% C2442113743N10CAP CHIP 2.2 PF +-.25PF COG C3002113928N01CAP CER CHIP 0.1UF 10% 6.3 C3012113743N16CAP CHIP 3.9 PF +-.25PF COG C3022113740F61CAP CHIP REEL CL1 +/130 270 C3042113743N38CAP CHIP 33.0 PF 5% COG C3052113743N38CAP CHIP 33.0 PF 5% COG C3502113740F51CAP CHIP REEL CL1 +/-30 100 C3542113743M24CAP CHIP 100000 PF +80-20% Y5V C3562113743N16CAP CHIP 3.9 PF +-.25PF COG C3572113743N42CAP CHIP 47.0 PF 5% COG C3602113743N40CAP CHIP 39.0 PF 5% COG C3612113743L41CAP CHIP 10000 PF 10% X7R C3622113743L41CAP CHIP 10000 PF 10% X7R C3632113743N3833pF APPLICANT: MOTOROLA INC.FCC ID: IHDT6BK1 EXHIBIT 104 C3642113743N3833pF C4002409154M105.6nH C4012113743N50CAP CHIP 100 PF 5% COG C4022113743N34CAP CHIP 22.0 PF 5% COG C4042113743N54CAP CHIP 150 PF 5% COG C4052113743N34CAP CHIP 22.0 PF 5% COG C4062113743L17CAP CHIP 1000 PF 10% X7R C4072113743L05CAP CHIP 330 PF 10% X7R C4082113743N34CAP CHIP 22.0 PF 5% COG C4102113743N54CAP CHIP 150 PF 5% COG C4502113743N3833pF C4512113743N3833pF C4522113743N3833pF C4532113743L17CAP CHIP 1000 PF 10% X7R C4542113743N36CAP CHIP 27.0 PF 5% COG C5012113743M24CAP CHIP 100000 PF +80-20% Y5V C5022113743N38CAP CHIP 33.0 PF 5% COG C5042113743L17CAP CHIP 1000 PF 10% X7R C5062113743N50CAP CHIP 100 PF 5% COG C5082113743N50CAP CHIP 100 PF 5% COG C5092113743N50CAP CHIP 100 PF 5% COG C5102113743N38CAP CHIP 33.0 PF 5% COG C5112113743N50CAP CHIP 100 PF 5% COG C5122113743N50CAP CHIP 100 PF 5% COG C5132113743L17CAP CHIP 1000 PF 10% X7R C5152113743N26CAP CHIP 10.0 PF 5% COG C5202113740F15CAP CHIP REEL CL1 +/-30 3.3 C5212113743N20CAP CHIP 5.6 PF + -.5PF COG C5222113743N24CAP CHIP 8.2 PF + -.5PF COG C5232113743N28CAP CHIP 12.0 PF 5% COG C5252113743N3833pF C5262113743N05CAP CHIP 1.2 PF +-.25PF COG C5272113743N38CAP CHIP 33.0 PF 5% COG C5302113743N26CAP CHIP 10.0 PF 5% COG C5312113743N26CAP CHIP 10.0 PF 5% COG C5322113743N50CAP CHIP 100 PF 5% COG C5402113743N38CAP CHIP 33.0 PF 5% COG C5512113743L17CAP CHIP 1000 PF 10% X7R C5522113743N30CAP CHIP 15.0 PF 5% COG C5552113743N50CAP CHIP 100 PF 5% COG C5562113743N50CAP CHIP 100 PF 5% COG C5592113743N30CAP CHIP 15.0 PF 5% COG C5602113743N54CAP CHIP 150 PF 5% COG C5612113743N50CAP CHIP 100 PF 5% COG C5632113743L17CAP CHIP 1000 PF 10% X7R C5642113743L17CAP CHIP 1000 PF 10% X7R C5702113743N03CAP CHIP 1.0 PF +-.25PF COG C5712113743N08CAP CHIP 1.6 PF +-.25PF COG C5722113743N13CAP CHIP 3.0 PF +-.25PF COG APPLICANT: MOTOROLA INC.FCC ID: IHDT6BK1 EXHIBIT 105 C5732113743N16CAP CHIP 3.9 PF +-.25PF COG C5752113743L17CAP CHIP 1000 PF 10% X7R C5762104801Z01CAP CER NPO 0.5PF 16V 1005 SMD C81012113743N50100pF C81022113743N50100pf C81032113743N50100pF C8104…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report: IHDT6BK1 Date of test: 10/30/01-11/01/01 Laboratory: Motorola Personal Communications Sector Product Safety Laboratory 2001 N. Division Room: AS228 Harvard, Illinois 60033 Test Responsible: Firass Badaruzzaman SAR RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following electromagnetic exposure tests: System Validation & Interlaboratory Comparison Simulated Tissue Specifications and Procedure EME Cellular Phone Testing Procedure On the following types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT6BK1 to which this declaration relates, is in conformity with the appropriate RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola This test report shall not be reproduced in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1) Introduction 3 2) Description of the Device Under Test 3 Antenna description 3 Device description 3 3) Test Results 3 3.1 Head Adjacent Test Results 3 3.2 Body-worn Test Results 5 4) Test Equipment 5 4.1 Dosimetric system 5 4.2 Additional equipment used 6 5) Electrical parameters of the tissue simulating liquid 6 6) System Accuracy Verification 6 Reference Notes Appendix 1: SAR distribution comparison for the system accuracy verification 7 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 8 Appendix 3: SAR distribution plots for Body Worn Configuration 10 Appendix 4: Photographs of the device under test 12 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT6BK1. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with the latest available test guidelines. The SAR values found for the portable cellular phone (FCC ID IHDT6BK1) are below the maximum recommended levels of 1.6 W/kg. Detailed procedures of the test are described in the Motorola Exhibit 11 Reference SAR Test Report. 2. Description of the Device Under Test Antenna description Type Fixed Stub Location Right Side Length 24 mm Dimensions Width Base 9 mm Configuration Helix Device description FCC ID Number IHDT6BK1 Serial number 350652800000300 Mode(s) of Operation GSM 1900 Modulation Mode(s) GSM Maximum Output Power Setting 29.50 dBm Duty Cycle 1:8 Transmitting Frequency Rang(s) 1850.2-1909.8 MHz 3. Test Results The test sample was operated in a test mode that allows control of the transmitter without the need to place actual phone calls. For the purposes of this test the unit is commanded to test mode and manually set to the proper channel, transmitter power level and transmit mode of operation. The phone was then placed in the SAR measurement system with a fully charged battery. 3.1 Head Adjacent Test Results The SAR results shown in tables 1 and 2 are maximum SAR values averaged over 1 gram of phantom tissue. Also shown are the measured conducted output powers during the test. The SAR measurements were performed using the Motorola phantoms listed in section 3.1. The device holder used was the supplied Motorola device holder. A full data set output of the test conditions with the highest SAR values from the Dasy measurement system is included as appendix 2. The test conditions included are indicated as bold numbers in the following table. All other test conditions measured lower SAR values than those included. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 Cheek/Touch Position SAR, 1g Left Head f Ant Fixed (MHz) Description Conducted Output Power (dBm) Measured (W/kg) Drift (dB) Extrapolated (W/kg) Channel 512 29.47 0.737 0.08 0.74 Channel 660 29.44 0.684 0.03 0.68 Digital 1900MHz Channel 810 29.45 0.673 0.03 0.67 Table 1: SAR measurement results for the portable cellular telephone FCC ID IHDT6BK1 at highest possible output power. Measured against the left head. Cheek/Touch Position SAR, 1g Right Head f Ant Fixed (MHz) Description Conducted Output Power (dBm) Measured (W/kg) Drift (dB) Extrapolated (W/kg) Channel 512 29.47 0.63 -0.03 0.63 Channel 660 29.44 0.62 -0.08 0.63 Digital 1900MHz Channel 810 29.45 0.63 -0.06 0.64 Table 2: SAR measurement results for the portable cellular telephone FCC ID IHDT6BK1 at highest possible output power. Measured against the right head. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6BK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 5 5 3.2 Body-Worn Test Results The SAR results shown in table 3 are maximum SAR values averaged over 1 gram of phantom tissue. Also shown are the measured conducted output powers during the test. The same “flat” phantom used for the system accuracy verification in section 5 was used for the body-worn tests. The same device holder described in section 6 was used for positioning the phone. …

Text truncated - open the document above for the full version.

January 16, 2002 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6BK1). Prepared by: Steven Hauswirth, Senior Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois 1. Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6BF1) dated June 12, 2001. The requested information may be summarized as follows: 1.) What is the conducted power after the SAR test. Only one data point is needed to compare the conducted power before and after the test. 2.) Verify that there is only one battery type used with this phone. 3.) Supplement C requires touch and tilt positions for SAR measurements. Please submit tilt data. 4.) On page 6 of SAR test report your tissue type body measured 47.8 and recommended limits is 53.3 Supplement C requires 5% you measured 10%. Your conductivity for body measured 1.65 and recommended limits is 1.52. Supplement C requires 5% you measured 7.87%. Please estimate the change in SAR when using the target parameters. 5.) Please provide probe calibration certificate data. 6.) Please explain why liquid parameter in system verification are different from liquid used with device. 7.) Please justify your target SAR values in system verification. Example calibration certificate. 8.) Please verify your liquid depth with photo or z-axis scan plots. 9.) Is there a car antenna option with this device? 2. Request for Conducted Power after SAR test The value of the SAR drift can be found on the SAR contour plots contained in the report. This follows the guidelines indicated at the FCC – TCB training workshop held during June 2001. 3. Battery Options There is only one battery available with this cellular phone. This is the battery that was used to demonstrate compliance in the SAR report. 4. Tilt Measurements 4.1. Results of 15° Tilted Position SAR Measurements A full data set output of two test conditions with the highest SAR values from the Dasy measurement system is included as appendix 4. The test conditions included are indicated as bold numbers in the following table. All other test conditions measured lower SAR values than those included. SAR, 1g in the 15° Tilted Position Left Head f Ant Fixed (MHz) Description Conducted Output Power (dBm) Measured (W/kg) Drift (dB) Extrapolated (W/kg) Channel 512 29.47 0.317 -0.03 0.32 Channel 660 29.44 0.308 -0.05 0.31 Digital 1900MHz Channel 810 29.45 0.301 0.03 0.30 Table 1: SAR measurement results for the portable cellular telephone FCC ID IHDT56BJ1 at highest possible output power. Measured against the Left head in the 15° Tilted Position. SAR, 1g in the 15° Tilted Position Right Head f Ant Fixed (MHz) Description Conducted Output Power (dBm) Measured (W/kg) Drift (dB) Extrapolated (W/kg) Channel 512 29.47 0.267 -0.09 0.27 Channel 660 29.44 0.192 -0.08 0.20 Digital 1900MHz Channel 810 29.45 0.181 -0.06 0.18 Table 2: SAR measurement results for the portable cellular telephone FCC ID IHDT56BJ1 at highest possible output power. Measured against the Right head in the 15° Tilted Position. 4.2. Dosimetric System Equipment Description Serial Number Cal Due Date DASY3 DAE V1 SN1522 11-May-02 E-Field Probe ETDV6 SN378 27-Jul-02 Dipole Validation Kit, DV1800V2 SN280 4-Jan-03 4.3. Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04848 19-Jan-03 Power Meter E4419B GB39511090 28-Nov-02 Power Sensor E9301A US39210934 24-Jan-02 4.4. Electrical parameters of the tissue simulating liquid Prior to conducting SAR measurements, the relative permittivity, e r , and the conductivity, s, of the tissue simulating liquids were measured with HP85070 Dielectric Probe Kit These values are shown in the table below. The mass density, ?, used by the dosimetric system is also given. Recommended limits for maximum permittivity, minimum conductivity and maximum mass density are also shown. It is seen that the measured parameters are satisfactory for compliance testing. f Dielectric Parameters (MHz) Tissue type Limits / Measured ε r σ (S/m) ρ (g/cm 3 ) Measured, 01/14/02 38.2 1.48 1.00 1900 Head Recommended Limits 40.0 1.40 1.03 4.5. System Accuracy Verification A system accuracy verification of the DASY3 was performed using the measurement equipment listed in Section 1.3. The test was conducted on the same day as the measurement of the DUT. The obtained results are displayed in the table below. The distributions of SAR compare well with those of the reference measurements (see Appendix 2). f Dielectric Parameters (MHz) Description SAR (W/kg), 1gram ε r σ (S/m) Temp (°C) Measured, 01/14/02 46.03 39.40 1.75 20.0 1900 Recommended Limits 44.40 40.00 1.71 NA 4.6 Pictures of the Device Under Test Figure1. Phone Against the Head in a 15° Tilt Position 5. Tissue Simulate Targets The body tissue simulates do exceed the 5% tolerance but in the direction that overestimates SAR. According to the sensitivities published by Schmid & Partner Engineering AG in the Application Note: SAR Sensitivities (attached as appendix 1): The difference in conductivity between the Oct 30th filing and Supplement C 01- 01 yields a overestimate in SAR of ~5.4%. The difference in permittivity between the Oct 30th filing and Supplement C 01- 01 yields a overestimate in SAR of ~6.9%. 6. Please provide probe calibration certificate. The Probe calibration certificates and the additional conversion factors certificates that cover the permittivity and conductivity that were used in the original filing are attached as appendix 2. 7. System Verification Tissue Simulate Parameters Our supplier of the system verification dipoles (SPEAG™) did not use tissue simulate parameters that conform to Supplement C 01-01 when they characterized the system verification dipole. We use these tissue simulate parameters to verify the SAR measurement system daily. We did have the probe cali…

Text truncated - open the document above for the full version.

Appendix 3 Dipole Calibration Certificate Dipole 1800 MHz 1800 MHz Dipole Validation / Dipole Sn# 280 / Forward Power = 252mW / Simulant Temp at time of measurement 20c R5 Amy Twin Phantom 2.3 Phantom; Section2 Section; Position: (90°,180°); Frequency: 1800 MHz Probe: ET3DV6 - SN1522 Validation; ConvF(5.40,5.40,5.40); Crest factor: 1.0; Validation 1800 MHz: σ = 1.75 mho/m ε r = 39.4 ρ = 1.00 g/cm 3 Cubes (2): SAR (1g): 11.6 mW/g ± 0.13 dB, SAR (10g): 5.71 mW/g ± 0.11 dB, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Penetration depth: 7.0 (6.7, 7.7) [mm] Powerdrift: -0.00 dB SAR Tot [mW/g] 1.06E+0 2.12E+0 3.18E+0 4.24E+0 5.29E+0 6.35E+0 7.41E+0 8.47E+0 9.53E+0 1.06E+1 01/14/02 Motorola, Inc. Appendix 4 SAR Distribution Plot for Tilted Head Position SN# 350652800000300 Ch# 512/ Pwr Step:00 - testmode 15 degree / Antenna Position:Fixed R5 Skipper Left Head (Glycol) Phantom; Left Head Section; Position: (80°,180°); Frequency: 1850 MHz Probe: ET3DV6 - SN1522 Brain (Glycol); ConvF(5.16,5.16,5.16); Crest factor: 8.0; Head Glycol 1900 MHz: σ = 1.48 mho/m ε r = 38.2 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.317 mW/g, SAR (10g): 0.189 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 15.0 Penetration depth: 9.8 (8.7, 11.3) [mm] Powerdrift: -0.03 dB SAR Tot [mW/g] 3.32E-2 6.64E-2 9.96E-2 1.33E-1 1.66E-1 1.99E-1 2.32E-1 2.66E-1 2.99E-1 3.32E-1 01/14/02 Motorola, Inc. SN# 350652800000300 Ch# 512/ Pwr Step:00 - testmode 15 degree / Antenna Position:Fixed R5 Ginger Right Head (Glycol) Phantom; Right Head Section; Position: (80°,180°); Frequency: 1850 MHz Probe: ET3DV6 - SN1522 Brain (Glycol); ConvF(5.16,5.16,5.16); Crest factor: 8.0; Head Glycol 1900 MHz: σ = 1.48 mho/m ε r = 38.2 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.267 mW/g, SAR (10g): 0.169 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 15.0 Penetration depth: 11.1 (9.9, 12.6) [mm] Powerdrift: -0.09 dB SAR Tot [mW/g] 2.92E-2 5.84E-2 8.76E-2 1.17E-1 1.46E-1 1.75E-1 2.04E-1 2.34E-1 2.63E-1 2.92E-1 01/14/02 Motorola, Inc.

January 16, 2002 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6BK1). Prepared by: St…

Text truncated - open the document above for the full version.
