IHDT6EG1GSM PCMCIA Card

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EG1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: Operation Guide D1000 PCMCIA CARD 68P02974C25-O 68P02974C25-O @6802974C25@ July 2004 ii Disclaimer Statements included in this manual indicating support pro- vided by Motorola are subject to changes at any time. Motorola reserves the right to make changes to this manual. Regulatory Requirements The Federal Communications Commission (FCC) requires application for certification of digital devices in accordance with CFR Title 47, Part 2 and Part 15. This includes Elec- tromagnetic Energy Exposure (EME) testing. As the D1000 PCMCIA modem is not a stand-alone transceiver but is a PC card, the D1000 cannot be tested by itself for EME cer- tification and was tested while it is inserted in a Laptop Per- sonal Computer. Regulatory Statement The following safety precautions must be observed during all phases of the operation, usage, service or repair of any D1000 modem. Users of the D1000 modem are advised to convey the fol- lowing safety information to users and operating personnel supplied with the product. Failure to comply with these pre- cautions violate safety standards of design, manufacture and intended use of the product. Motorola assumes no lia- bility for customer failure to comply with these precautions. 1.The D1000 must not be mechanically nor electrically changed. 2.The D1000 has been designed the meet the EMC requirements of ETS 300 342. 3.The D1000 meets the safety requirements of EN60950. 4.Systems using the D1000 will be subject to mandatory EMC testing under directive 89/336/EEC. THIS RADIO PRODUCT MEETS THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless radio product is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on stand- ards that were developed by independent scientific organi- zations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regard- less of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are conducted using standard operating positions reviewed by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the radio device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a radio product is available for sale to the public, it must be tested and certified to the FCC that is does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g. at the ear and worn on the body) as required by FCC for each model. The highest SAR value for this radio product when tested for use during packet data is 1.52 W/kg. The FCC has granted an Equipment Authorization for this model phone with the FCC and can be found under the Display Grant section of http:/ /www.fcc.gov/oet/fccid after searching on FCC ID IHDT6EG1. The standard incorporates a substan- tial margin of safety to give with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file web-site at http://www.wow-com.com. Additional informa- tion on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. additional protection for the public and to account for any variations in measure- ments. Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFI- CIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR RADIO PRODUCT. The information provided in this document supersedes the general safety information in user's guides published prior to December 1, 2002. Exposure To Radio Frequency (RF) Energy Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you com- municate with your phone, the system handling your call controls the power level at which your phone transmits. Your Motorola phone is designed to comply with local reg- ulatory requirements in your country concerning exposure of human beings to RF energy. Operational Precautions To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set iii forth in the relevant standards, always adhere to the follow- ing procedures. External Antenna Care • Use only the supplied or Motorola-approved replace- ment antenna. Unauthorized antennas, modifications, or attachments could damage the phone. •When using any approved accessory antenna, position it at least eight inches (20cm) from any part of any per- son. DO NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory require- ments in your country. PC Card Operation IMPORTANT: After using the D1000 make sure to per- form a proper shut down within the software, while allow- ing the m…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EG1 EXHIBIT 2 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. This is a statement of my qualifications: BTECH 1996 The College Of Judea and Samaria Israel. 7 years experience as a Radio Frequency Engineer. SIGNATURE: NAME: David Dror DATE: 18/5/04 POSITION:Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. SIGNATURE: NAME: Cohen Menashe DATE: 18/5/04 POSITION:Engineering Manager

APPLICANT: MOTOROLA FCC ID: IHDT6EG1 July 27, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a PCS Transceiver, FCC ID: IHDT6EG1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a PCMCIA card data module which operates in the 1900 MHz PCS band. Note: This device contains 900 MHz & 1800 MHz GSM, and 2100 MHz WCDMA functions which are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Personal Communications Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

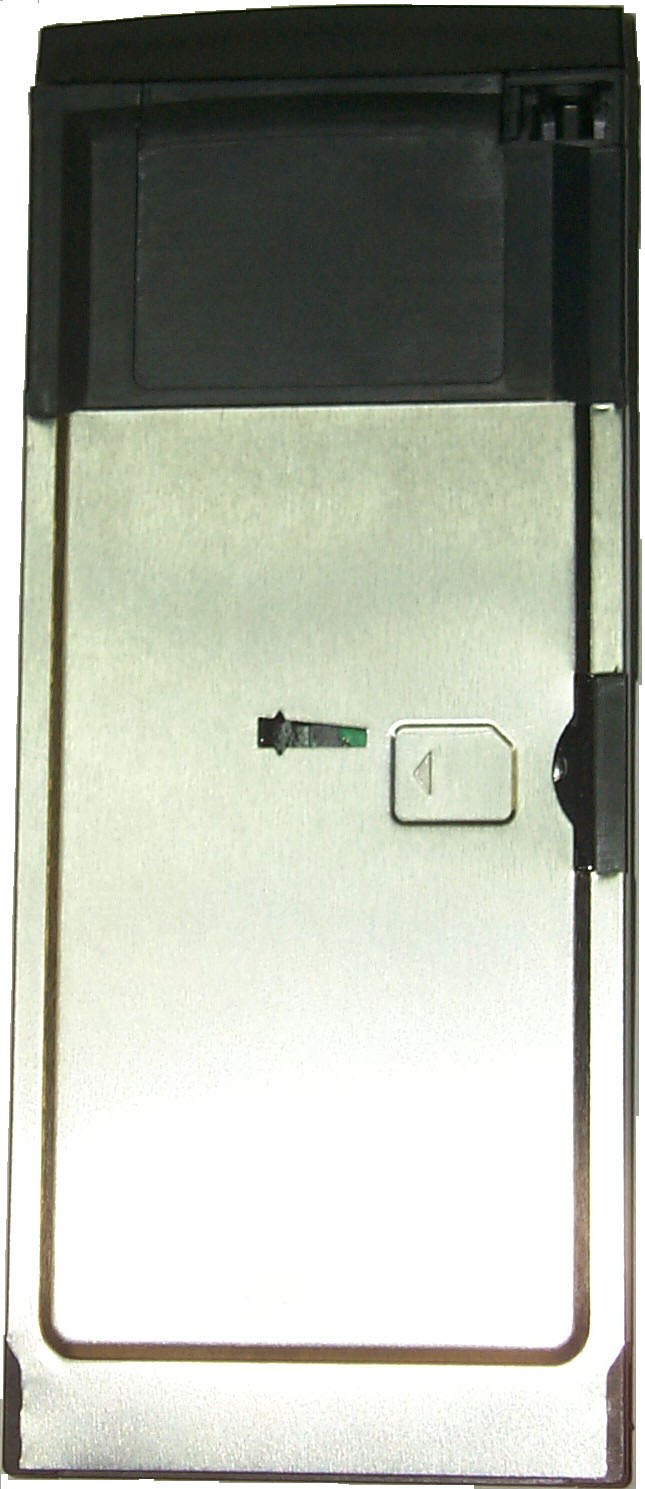

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EG1 Rear View Front View Equipment ID Label Location EXHIBIT 3

APPLICANT: MOTOROLA INC. FCC ID: IHDT6EG1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT6EG1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EG1 Top View With Shields Bottom View With Shields EXHIBIT 9 1 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EG1 Top View (Shields removed) Bottom View (Shields Removed) EXHIBIT 9 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EG1 Top Housing Internal View Bottom Housing Internal View EXHIBIT 9 3

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT6EG1 Date of test: Date of Report: 7 & 8 August, 2004 26 August, 2004 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Steven Hauswirth Principal Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT6EG1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2004 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION...................................................................................................................................... 3 2. DESCRIPTION OF THE DEVICE UNDER TEST.................................................................................... 3 2.1 Antenna description.................................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED........................................................................................................................ 3 3.1 Dosimetric System .................................................................................................................................................3 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID............................................. 4 5. SYSTEM ACCURACY VERIFICATION.................................................................................................. 4 6. TEST RESULTS........................................................................................................................................ 5 6.1 Body Worn Test Results .......................................................................................................................................5 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION...... 7 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION............................. 8 APPENDIX 3: PROBE CALIBRATION CERTIFICATE............................................................................ 9 APPENDIX 4: DIPOLE CHARACTERIZATION CERTIFICATE............................................................ 10 APPENDIX 5: MEASUREMENT UNCERTAINTY BUDGET................................................................... 11 APPENDIX 6: PHOTOGRAPHS OF DEVICE UNDER TEST ................................................................... 14 APPLICANT: MOTOROLA, INC. FCC ID: IHDT6EG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT6EG1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type External – Rotating About Endpoint Location End of Unit Length 50mm Dimensions Width 8mm Configuration Helix 2.2 Device description FCC ID Number IHDT6EG1 Serial number 4400005932072 & 4400005932379 Mode(s) of Operation EGSM900 GSM 1800 GSM 1900 UMTS Modulation Mode(s) GSM GSM GSM WCDMA Maximum Output Power Setting 33.00dBm 30.00dBm 29.70dBm 22.00dBm Duty Cycle 1:8 1:8 1:8 1:1 Transmitting Frequency Rang(s) 880.2- 914.8MHz 1710.2- 1784.8MHz 1850.2- 1909.8MHz 1920.3- 1979.7MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3 Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclo…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT6EG1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 14298-1 Report Date – September 14, 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date: September 14, 2004 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT6EG1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 GSM 1900 Reference Plot 10 GSM 1900 Occupied Bandwidth Plot 11 GSM 1900 Ch512 Lower Band Edge 12 GSM 1900 Ch810 Upper Band Edge 12 Spurious Emissions at Antenna Terminals 13 GSM 1900 Tabular and Graphical Data 14 Field Strength of Spurious Emissions 15 GSM 1900 Tabular and Graphical Data-C640 16 GSM 1900 Tabular and Graphical Data-C600 17 GSM 1900 Tabular and Graphical Data-Thinkpad 18 Frequency Stability 19 GSM 1900 Tabular and Graphical Data 20 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 21 Figure A.2 – Substitution Measurement 21 Test Report Number: 14298-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT6EG1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 1900 Model Number: D1000 Version: F3024AA Serial Numbers: 004400005932031, 004400005932023, 004400005932049 Testing Complete Date: August 23, 2004 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: Part 15 Subpart B – Unintentional Radiators Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 14298-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT6EG1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 27.1 dB 6 Field Strength of Spurious Emissions 6.2 dB 7 Frequency Stability 167.00 Hz The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 14298-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT6EG1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ManufacturerEquipment TypeModel No.Serial NumberCal. Due Date Rohde & SchwarzReceiverESI26838786/0105/17/2005 Hewlett-PackardEMC Analyzer8593EM3536A0011810/2/2004 Hewlett-PackardEMC Analyzer7405US3944019111/13/2004 MiteqPreamplifier 0.1-26.5GHzNSP2650-NF-S9663501/8/2005 ETSDRG Horn Antenna31156222 9/29/2004 A.H. Systems Inc.DRG Horn AntennaSAS-2--/57136512/17/2004 ETSLog-Periodic Antenna314811883/5/2005 ETSBiconical Antenna3110B337011/14/2004 AttenuatorWeinschelAS-6667510/14/2004 AttenuatorWeinschelAS-6667711/4/2004 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett-PackardSignal Generator83623B3844A011956/20/2004 ThermotronEnvironmental ChamberS-4315801/5/2005 Hewlett-PackardPre-Amplifier8347A3307A0200111/4/2004 AgilentPower MeterEE4418BGB4020638812/5/2004 AgilentPower SensorE4412BUS3848632111/23/2004 Hewlett-PackardPre-Amplifier8447F2805A034195/19/2005 All equipment is on a one-year calibration cycle. Since the D1000 is a PCMIA card, it was tested in three different notebook computers: • Dell Latitude C640, SN: CN04P240-48643-32H-2153 • Dell Latitude D600, SN: 0x2034-48643-3BQ-8495 • IBM Thinkpad 2373, SN: 99-VRVKD Test Report Number: 14298-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT6EG1 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a HPE4406A Vector Signal Analyzer through a 10dB passive attenuator, adaptor…
