IHDT6ZA1Personal PCS Transceiver

APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 1 of 1EXHIBIT 14 EXHIBIT 14 Instruction Manual Exhibit Summary: This mobile station transceiver is based on the design of a European GSM model. The user functionality and features are nearly identical to that GSM model. The user instruction manual that is included in this submission is a version of the manual for that GSM model. If necessary, a final version, as updated for this product and intended for the North American market, can be provided upon request. English Options Menu Quick Access Menu ‡ Quick Reference mod2_en.bk : qkref.fm5 Page 1 Wednesday, January 13, 1999 12:57 PM English Special Keys S Press to turn phone on and off. O Press to accept call, setting, option,... C Press to reject call, setting, option,... E Press to enter the Quick Access features. [] Press to move through the menu and feature choices, or to edit an SMS message. Making a Call Enter C O . Receiving a Call Press O or open the flip (only on models with flip when the ‘Key Answer Only’ feature is set to Off). Ending a Call Press O or close the flip (models with flip only). Making an Emergency Call Enter 112O . The call will be directed to a central emergency operator. Quick Access Features Press E followed by the appropriate key, or press E , scroll to the feature and press O to select. Redialling the Last Number Called 1 Press O to display the last number dialled. 2 Press O to call the number. One-Touch Dialling Press and hold the appropriate digit key 1 to 9 . Storing Numbers in the Phone Book Press E2 to store a number on the SIM card. Dialling Phone Book Numbers Enter G #O Quick Reference mod2_en.bk : qkref.fm5 Page 2 Wednesday, January 13, 1999 12:57 PM Introduction 1 English Introduction Welcome Congratulations on your purchase of a phone from Motorola , the world leader in cellular technology. The phones are packed with features that put you in control and give you unrivalled power, whilst remaining discrete. Control • Customisable Quick Access Menu E - Place nine of your most frequently used features in your own personal menu so that they can be accessed with just two key presses. Icons make each feature easy to identify. Power • Superb battery performance G - Each phone is capable of several hours conversation or several days standby, but is still small and light. • Dual Band - ‘versions include the powerful dual band feature which means that they can use both 900 and 1800 MHz bands for greater call success and allow wider roaming opportunities. ! Before you use your phone, please see the ‘Your Battery’ section for important information on charging a new battery. Discretion • Wearable Holster - Wear your phone in a stylish holster on your belt. It is small enough and light enough to keep with you almost anywhere. Personality™ This cellular telephone incorporates Personality ™. Unique to Motorola , Personality ™ removes the complexity of cellular communications by guiding you through the features and presenting you with simple choices every step of the way. Personality ™ also allows you to personalise the way you use your phone - for example, different ringer tones, a phone book and network selection preferences - all presented with clarity and simplicity. In this manual, each of the Personality ™ features is identified with an j symbol to indicate that it is customisable to meet your requirements. mod2_en.bk : intro.fm5 Page 1 Wednesday, January 13, 1999 12:57 PM Introduction 2 English Understanding this Manual Many of your phone options are accessed by a simple menu system. A full description of the menus and how to move around them is covered in the next section Menu Navigation . When the manual describes the use of each menu item, it will be assumed that you are familiar with the menu system. Key Presses Key presses are represented in this manual using symbols so that you may locate and use the required sequence quickly. A sequence of key presses may be shown as follows:]OCThis means that you should press the ] key followed by the O key and then the C key, in sequence, not simultaneously.A The key shapes represented in this manual may differ from the keys on your phone. Entering Information When you are requested to enter information, such as the number of the phone you wish to call, this is represented in bold type. For example:C - enter the required telephone number. A - enter your Personal Identification Number. B - enter your unlock code. G - enter the Phone Book location number. Prompts and Messages Your phone responds to key presses by displaying either easy to understand prompts that guide you to the next action, or simple messages confirming that your action is complete. Prompts and messages are represented in this manual in LCD style, for example:Enter PIN or Completed . Other Symbols You will find the following symbols used throughout this manual:A A Note contains additional information which is relevant to the feature/item. ! A Caution contains important additional information which is relevant to the efficient and/or safe usage of your phone. i This symbol indicates a short key sequence for the feature. mod2_en.bk : intro.fm5 Page 2 Wednesday, January 13, 1999 12:57 PM Introduction 3 English Menu Navigation A large number of your phone's options are accessed by using menus which use a common approach for selection, change and cancellation.Please read this section carefully before attempting to access a menu option. When you understand the common approach to menu navigation and how the menus are shown on the page, you will be able to access and change options with ease. Entering the Menus E enters the Quick Access menu. Once entered, the menus use the [ , ] , O and C keys in a common manner to access, select and change individual options. Leaving the Menus To leave any of the menus, you can either press and hold the C key or repeatedly press the C key. Both of these actions will return your phone to the standby mode. i Alternatively, a quicke…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 1 of 1 ATTESTATION OF COMPLIANCE TESTING The transceiver type IHDT6ZA1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 North U.S. Highway 45, Libertyville, Illinois with the exception of Radiated Spurious Emissions testing which took place at Elite Electronic Engineering Company, located at 1516 Centre Circle, Downers Grove, Illinois. NAME:Rashid Osmani TITLE:Senior Resource Manager PCS Development EMEACSG SIGNATURE: DATE:02/04/1999

APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 1 of 1 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT6ZA1) for mobile station Wideband PCS System use is in full compliance with all applicable parts of the FCC Rules. The following is a statement of my qualifications: NAME:Andrew Thillainathan TITLE:Electrical Engineer PCS Development EMEACSG SIGNATURE: DATE: 02/04/1999 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. NAME:Andrew Senycial TITLE:Section Manager PCS Development EMEACSG SIGNATURE: DATE:02/04/1999

APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 1 of 1 ATTESTATION OF COMPLIANCE TESTING The transceiver type IHDT6ZA1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 North U.S. Highway 45, Libertyville, Illinois with the exception of Radiated Spurious Emissions testing which took place at Elite Electronic Engineering Company, located at 1516 Centre Circle, Downers Grove, Illinois. NAME:Rashid Osmani TITLE:Senior Resource Manager PCS Development EMEACSG SIGNATURE: DATE:02/04/1999

APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 1 of 1 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT6ZA1) for mobile station Wideband PCS System use is in full compliance with all applicable parts of the FCC Rules. The following is a statement of my qualifications: NAME:Andrew Thillainathan TITLE:Electrical Engineer PCS Development EMEACSG SIGNATURE: DATE: 02/04/1999 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. NAME:Andrew Senycial TITLE:Section Manager PCS Development EMEACSG SIGNATURE: DATE:02/04/1999

February 5, 1999 REQUEST FOR CONFIDENTIALITY CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re:Application for Broadband PCS Transceiver Equipment Authorization (Certification) Gentlemen: Motorola, Inc., Cellular Subscriber Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-5343 herein submits "Electronic" Application for Equipment Authorization (to be followed by submission of Check Number 119-649230 in the amount of $610.00 along with Form 159) for Certification of a Broadband Personal Communications Services Transceiver under FCC Rule Part 24(E), FCC ID: IHDT6ZA1. Motorola is also the manufacturer of this equipment. In addition to confidentiality for the entire application prior to grant (per 47CFR0.457(d)(1) (ii) ), Motorola requests, pursuant to 47CFR0.459, post-grant confidentiality for portions of the material contained in this application such that the identified material will be withheld from public inspection following the grant of this authorization. This material, as indicated by request for confidentiality of the items during the electronic submission process and further identified by their listing in RED on the List of Exhibits attached hereto, includes: Motorola Exhibit 2, Description of Modulation System (submitted to EAS as "Operational Description"); Motorola Exhibit 3, Means for Stabilizing Frequency (submitted to EAS as "Operational Description"); and Motorola Exhibit 4, Circuit Diagram (submitted to EAS as "Schematics"). Specifically, these exhibits contain information relating to circuit function and complexity which could be of benefit to competitors. This material contains Motorola's confidential information and trade secrets which Motorola does not customarily release to the public and which is otherwise not generally available to the public. Please contact me by telephone at (847) 523-7373, by facsimile at (847) 523-2350 or by correspondence at the address herein if there are any further questions or additional information needed concerning this filing. Regards, (signed, John A. Kalenowsky) John A. Kalenowsky Patent Engineer/FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Enclosures APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 1 of 1INDEX List of Exhibits EXHIBIT 1:General Certification Information EXHIBIT 2:Description of Modulation System* EXHIBIT 3:Means for Stabilizing Frequency* EXHIBIT 4:Circuit Diagrams* EXHIBIT 5:Voltages and Currents into Final Amplifying Devices EXHIBIT 6:RF Output Power Measurements EXHIBIT 7:Radiated Spurious Emissions Measurements EXHIBIT 8:Occupied Bandwidth Measurements EXHIBIT 9:Conducted Spurious Emissions Measurements EXHIBIT 10:Frequency Stability Measurements EXHIBIT 11:FCC Labeling Information EXHIBIT 12:Equipment Photographs (External) EXHIBIT 13:Equipment Photographs (Internal) EXHIBIT 14:Instruction Manual Supplemental Exhibits (Un-numbered) Attestation of Compliance Testing Certification of Data RF Exposure Evaluation Statement * These Exhibits submitted with Request for Post Grant Confidentiality.

APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 1 of 3EXHIBIT 12 EXHIBIT 12 Equipment Photographs (External) Exhibit Summary: EXHIBIT 12 contains external photographs of the transceiver. Contents: Front View............................................................................2 Back View.............................................................................3 APPLICANT: MOTOROLA INC. FCC ID: IHDT6ZA1 Page 2 of 3 EXHIBIT 12 APPLICANT: MOTOROLA INC. FCC ID: IHDT6ZA1 Page 3 of 3 EXHIBIT 12

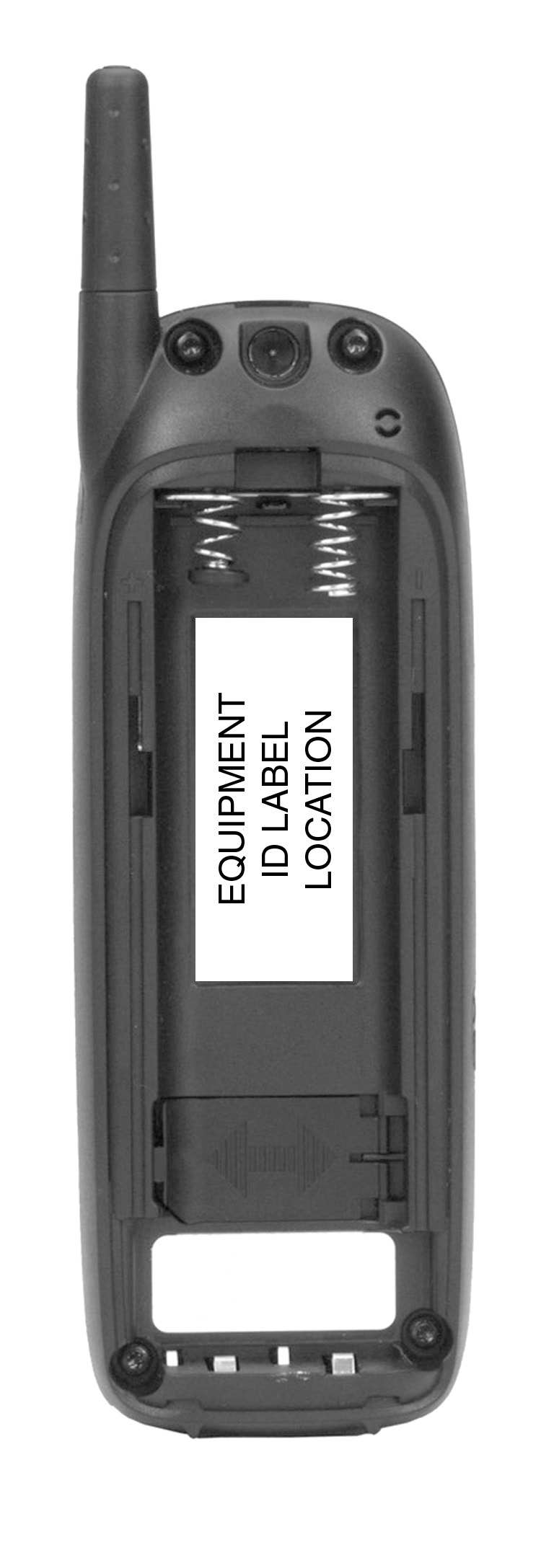

APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 1 of 2EXHIBIT 11 EXHIBIT 11 FCC Labeling Information Exhibit Summary: EXHIBIT 11 contains a diagram of the label that will be placed on the back of each mobile station transceiver. Contents: Mobile Station FCC Label...........................................................2 APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 2 of 2EXHIBIT 11 Mobile Station FCC Label: A label similar to the one shown below will be permanently affixed to the back of each mobile station transceiver produced (see EXHIBIT 12, page 3 for placement on the transceiver). The label as shown is aproximately 2:1 scale. FCC ID: IHDT6ZA1

APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 1 of 3EXHIBIT 13 EXHIBIT 13 Equipment Photographs (Internal) Exhibit Summary: EXHIBIT 13 contains internal photographs of the main transceiver board. Contents: Face Side.............................................................................2 Back Side.............................................................................3 APPLICANT: MOTOROLA INC. FCC ID: IHDT6ZA1 Page 2 of 3 EXHIBIT 13 APPLICANT: MOTOROLA INC. FCC ID: IHDT6ZA1 Page 3 of 3 EXHIBIT 13

APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 1 of 6EXHIBIT 1 Certification Requirements The information in this exhibit is in accordance with requirements for certification as outlined in the FCC Rules and Regulations, 47 CFR Part 2; Sections 2.1033(c), 2.1046 - 2.1057, and Part 24, Sections 24.52, 24.235 and 24.238. Section 2.1033(c):Application for Certification (1) Name of Applicant: Motorola Inc., Motorola is also the manufacturer of the equipment described herein. Mailing address indicated on Form 731. (2)Identification of Equipment: IHDT6ZA1 (3)Instruction Manual: Refer to EXHIBIT 14. Because the mobile station transceiver is based on the design of a European GSM model and since the user functionality and features are nearly identical to this GSM model, the user instruction manual that is included in this submission is a copy of the GSM manual and should be viewed as a preliminary version user manual in a state very near that of the final version intended to ship with the equipment. If necessary, when available, the final version can be provided upon request. (4) Types of Emissions: Designator 250KGXW (and determination of Emission Designator, per 2.201) The transceiver transmits a Gaussian Minimal Shift Keying (GMSK) modulated carrier having a BT product of 0.3. The bandwidth of a GMSK modulated carrier having a BT of 0.3 is 250 kHz (see EXHIBIT 2). This results in 250K for the first four characters of the emissions designator. GMSK is the same as Minimal Shift Keying (MSK) except that the NRZ data has been filtered prior to modulation. As a result, GMSK, like MSK can generally be thought of as frequency shift keying (FSK), or Offset Quadrature Phase Shift Keying (OQPSK), and can be modulated and demodulated using either of these techniques. Motorola's transceiver is based off of the OQPSK technique, which is a type of phase modulation. This corresponds to G, for Types of Modulation. APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 2 of 6EXHIBIT 1 The transceiver uses a digital signal representing sampled, quantized voice or other audio information or command data to modulate the main carrier in a Time Division Multiple Access (TDMA) fashion. This corresponds to X for nature of modulating signals. The symbol 1 excludes time-division multiplex, and the other choices for digital modulating signals either state “Two or more channels containing quantized or digital information” or “Composite system with one or more channels containing quantized or digital information, together with one or more channels containing analogue information. The information transmitted is a combination of command data and telephony (sampled quantized voice or other audio signals). This corresponds to W for Types of Information Transmitted, defined as “Combination of above” which would be the combination of symbol D, “Data transmission, telemetry, telecommand”, and symbol E, “Telephony (including sound broadcasting)”. (5) Frequency Range This equipment is designed to transmit from 1850 - 1910 MHz. This frequency range corresponds to Blocks A, D, B, E, F and C of the US Wideband PCS frequency band. (6) Range of Operating Powers The transmitter output power range is 0 dBm to +30 dBm. This range of output power is controlled to sixteen discrete levels in increments of 2 dBm. This is a dynamic adjustment carried out under the command and supervision of the cellular base station and is used to control the uplink power from the transceiver during operation as the position of the transceiver changes within a cell. Transmit power tuning adjustments are made at all sixteen levels and are based on conducted power measurements: Refer to EXHIBIT 6. (7) Maximum Power Rating (Sec. 24.232) In no case may the peak “in the burst” output power of a mobile station transmitter exceed 33 dBm (2 Watts) EIRP. The Equivalent Isotropic Radiated Power (EIRP) for the unit tested was 32.97 dBm (1.98 Watts). (Refer also to EXHIBIT 6.) APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 3 of 6EXHIBIT 1 (8)The dc voltages applied to and dc currents into the Final Amplifying Device: Refer to EXHIBIT 5. (9) Tune-Up Procedure There are no user accessible adjustments or tuning in this portable Wideband PCS transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. (10) A Schematic Diagram: Refer to EXHIBIT 4 and a description of all circuitry and devices provided for: (i) Determining and Stabilizing Frequency: Refer to EXHIBIT 3. (ii) Suppressing Spurious Radiation Spurious and harmonic suppression is achieved through multiple means. 1. Radio Architecture: a.Selection of local oscillator frequencies and intermediate frequencies (IF) to minimize spurious products. b.Minimization of broadband noise both in- band and out-of-band through the combination of gain/noise figure architecture in the transmitter exciter stages and proper control of the transmitter's gain. 2. Physical Construction and Circuit Design Techniques: a. Sources of spurious radiation such as frequency source circuitry and high gain circuitry within the equipment are assembled under grounded conductive shields forming a localized shielded enclosure within the unit. APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 4 of 6EXHIBIT 1 b.Physical separation of frequency sources from high gain circuitry. c.Multilayer PC boards allow use of stripline for routing signals. (iii) Limiting Modulation The carrier is modulated with Gaussian Minimal Shift Keying (GMSK) having a BT product of 0.3. By definition, the peak frequency deviation of GMSK is one-fourth of the bit rate, or 270.833/4 = 67.7083 kHz. There is a theoretical phase trajectory that any given bit stream should ideally follow over the period of one time slot. However, imperfections in the modulation process can introduce errors, which produce variations from …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC.FCC ID: IHDT6ZA1 Page 1 of 1 Radiofrequency Energy Exposure Evaluation Statement. Motorola, Inc., Personal Communications Sector, hereby certifies that, when used as stated in the operating instructions supplied, this Wideband PCS Portable Transceiver, FCC ID: IHDT6ZA1, complies with the FCC’s Radiofrequency energy exposure limits for General Population/Uncontrolled environment, per FCC Rule 47CFR2.1093.

P P a a g g e e 1 1 April 21, 1999 SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6ZA1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Contents 1) Introduction 2) Applicable Regulations 3) Description of Test Sample 4) Description of Motorola SAR Test Facility 5) Test Sample Conditions 6) Method of Measurement 7) Measurement Uncertainty 8) SAR Test Results 9) Summary Appendix A: Included data Appendix B: Measurement Probe Calibration Certificate Appendix C: Printout from the Dasy measurement system validation test Appendix D: Dasy Users Manual (First page) P P a a g g e e 2 2 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT6ZA1. The Specific Absorption Rate (SAR) of this product was measured. This report details the test setup and equipment as well as the results of those tests. 2. Applicable Regulations Federal Communications Commission rule §2.1093(d)(2), the ANSI/IEEE C95.1 1992 and the NCRP Report Number 86 specify the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20cm of the user in the uncontrolled environment. 3. Description of Test Sample A prototype unit serial number 54581459 was measured. This unit is identical in physical construction, maximum radiated power levels and antenna structure to units that will be in production. It transmits in the frequency range of 1850 to 1910 MHz using GSM digital mode only. The reported maximum peak transmit EIRP for this test unit is 1.98 Watts as defined in FCC Rule §24.232. The unit was tested at its maximum transmitter power, which is nominally a peak conducted power of 1.0 Watt (average conducted power of 0.125 Watt using the 1/8 duty cycle of the GSM system). The unit is equipped with a fixed antenna that serves as both a receive and transmit antenna. The antenna has a single operating position as shown in figure 1. Figure 1. Figure 2 shows the test unit as it is placed onto the phantom. For the purposes of the actual SAR tests the Motorola phantom head is tilted on its side by 90 degrees so that a vertically oriented measurement probe can easily scan an area where the phone is in close contact with the phantom and the SAR will be the highest. P P a a g g e e 3 3 Figure 2. 4. SAR Test Facility The Motorola test facility utilized for the SAR testing of this product is the Personal Communications Sector Product Safety Laboratory, in Libertyville Illinois. The laboratory utilizes a Dosimetric Assessment System (Dasy™) SAR measurement system manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. This system utilizes a computer controlled six axis robot to move a measurement probe to measure the SAR. A photo of the Dasy system with the Motorola phantom is shown in figure 3. Probe serial number 1005 was used for the measurements. It was calibrated at SPEAG™, and has a calibration date June 12, 1998. A copy of the calibration certificate is included as appendix B. Dipole Validation Kit type D900V2, serial number 036 was used to validate the system accuracy. The validation SAR value is 9.56 mW/g normalized to 1 Watt, and the Dasy system used for the test phone measured 9.18 mW/g normalized to 1 Watt. This is within the required accuracy, and thus the measured SAR values are considered correct. See appendix C for printout of the validation test from the Dasy measurement system. The measurement methodology is described in IEEE Transactions on P P a a g g e e 4 4 Vehicular Technology, vol. 44, no. 3, August 1995, titled Electromagnetic Energy Exposure of Simulated users of Portable Cellular Telephones. The Dasy system is operated per the instructions in the Dasy Users Manual. A copy of the title page of this manual is included as appendix D. The entire manual is available directly from SPEAG. Figure 3. 5. Test Sample Conditions For the purposes of these tests the subject phone was positioned on the measurement phantom per the instructions in the Motorola users manual for the subject phone. The position used for the tests is the 3-point contact position. In this position the test sample contacts the phantom’s ear and cheek and is positioned with a repeatability of better than ±6%. Since the antenna is not located on the center of the phone, the SAR was measured with the phone on both the left and right side talk positions (See figure 2). Due to the construction of the phone, the base of the antenna is 23 mm away from the phantom for the left side head, which is the closest. P P a a g g e e 5 5 The test sample is capable of operation in a test mode that allows control of the transmitter without the need to place actual phone calls. This guarantees that the unit does not change its transmitter power, and that the resultant SAR values will not be affected by external connections. For the purposes of this test the unit is commanded to test mode and manually set to the proper channel, transmitter power level and transmit mode of operation. Since the test sample uses the 1/8 duty cycle of the GSM system, the crest factor (the ratio between peak and average power) is set to 8. The phone is then placed in the SAR measurement system with a fully charged battery. At the end of each test the Dasy system measures the drift of the SAR at a fixed point in the phantom so as to ensure that the test sample has not changed in transmitter power. For the purposes of these tests, the transmitter was operated at the highest transmitter output and with the phone on both left and right side talk positions. 6. Method of Measurement The system is instructed to scan as much of the face of the phone as is in close proximity to the phantom. Using the information gained about the general region of highest SAR, the system th…

Text truncated - open the document above for the full version.

April 28, 1999 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6ZA1). Prepared by: Paul Moller, Principal Staff Engineer The following is additional information pertaining to of portable cellular phone FCC ID IHDT6ZA1. Unit serial number 54581459 was used for these tests. 1. Table A shows the conducted transmit power output for the three channels where SAR was measured. ChannelPower (Watts) 521 0.794 661 0.631 810 0.562 Table A 2. The original report dated April 21, 1999 showed validation data taken on the SAR measurement system at 900 MHz. Following is validation data taken on the same SAR system at 1800 MHz. Probe serial number 1005 was used for the measurements. It was calibrated at SPEAG™, and has a calibration date June 12, 1998. A copy of the calibration certificate is included as appendix B in the report dated April 22, 1999. Dipole Validation Kit type D1800V2, serial number 226 was used to validate the system accuracy. The validation SAR value is 39.9 mW/g normalized to 1 Watt, and the Dasy system used for the test phone measured 40.4 mW/g normalized to 1 Watt. This is within the required accuracy, and thus the measured SAR values are considered correct. The following plot is a printout of the validation test from the Dasy measurement system. 1800 MHz Validation Dipole 250 mW CW input power MOT FLAT; MOTO FLAT Probe: ET3DV4 - SN1005 (DAE2); ConvF(5.10,5.10,5.10); Crest factor: 1.0; Brain 1800 MHz: σ = 1.71 [mho/m] ε r = 41.0 ρ = 1.00 [g/cm 3 ] Cube 5x5x7: Peak: 19.5 [mW/g], SAR (1g): 10.1 [mW/g], SAR (10g): 5.09 [mW/g], (Worst-case extrapolation) Penetration depth: 7.3 (7.1, 8.0) [mm] SAR Tot [mW/g] 2.83E-1 8.48E-1 1.41E+0 1.98E+0 2.54E+0 04/27/99 Motorola, Inc.

P P a a g g e e 1 1 May 26, 1999 SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6ZA1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Contents 1) Introduction 2) Applicable Regulations 3) Description of Test Sample 4) Description of Motorola SAR Test Facility 5) Test Sample Conditions 6) Method of Measurement 7) Measurement Uncertainty 8) SAR Test Results 9) Summary Appendix A: Included data Appendix B: Measurement Probe Calibration Certificate Appendix C: Printout from the Dasy measurement system validation test Appendix D: Dasy Users Manual (First page) P P a a g g e e 2 2 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT6ZA1. The Specific Absorption Rate (SAR) of this product was measured. This report details the test setup and equipment as well as the results of those tests. 2. Applicable Regulations Federal Communications Commission rule §2.1093(d)(2), the ANSI/IEEE C95.1 1992 and the NCRP Report Number 86 specify the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices b…

Text truncated - open the document above for the full version.
