IHDT6ZT1PCS Transceiver

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6ZT1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 Welcome Thank you for choosing Motorola—a global leader in communications technology. All Motorola phones are designed and manufactured to meet Motorola’s exacting specifications and world-class quality standards. During development, our laboratory testing team took the durable digital V. Series ™ phone through its paces. They cooked it, steamed it, shook it, shocked it, dusted it, and dropped it—and the phone still worked! We are confident that the one you purchased can meet your own exacting standards. Thank you for choosing Motorola, and we hope you enjoy your digital V8162 wireless phone! 2 Guide Overview Okay, you’ve got a brand new phone with a bunch of nifty features. Now what? Afraid you’ll press the wrong key? Or forget a feature or two? Don’t sweat it! We’ve designed this guide to take you step-by-step through each feature of your new digital V. Series ™ phone. We’ll show you what key to press and what happens when you press it. Follow along, chapter-by-chapter, and you’ll find it’s as easy as 1-2-3. Here’s an idea of what you’ll learn in each chapter: Getting Started First things first. Once the box is open, this section will show you where to begin. We will explain what came with your new phone and show you how to use the battery. Turn to page 10 to get started. The Basics What do all those buttons and lights mean? How do I make my first phone call? In this section, we’ll answer those questions and teach you everything necessary to start using your new phone. Begin learning “The Basics” on page 22. Using Memory Read “Using Memory,” beginning on page 36, and we will explain how to make the most of your new phone’s internal Phone Book. You’ll learn how to save time with dialing shortcuts and memory features that make it easy to place quick calls. 3 Guide Overview Using Messaging * This digital V. Series ™ phone supports optional messaging services, like Caller ID, which allows you to see who is calling before you answer. It can even receive alphanumeric messages just like a pager and tell you when you have Voicemail. Turn to page 52 to begin “Using Messaging.” Using the Minibrowser and Data Features * With a service subscription, your phone can access up to the minute information with the Minibrowser! You can use the phone to retrieve on demand weather reports, sports scores, stock reports, and much more. See page 106. With the addition of the Motorola Data Connectivity Kit, you can hook your phone up to a compatible computer and send and receive faxes and data. See page 114. The Works When you are ready to learn the advanced features of your new phone, turn to page 60 for “The Works.” We will explain everything from navigating the menu system to electronically locking your phone. So relax! Let us show you what your Digital V Series phone can do! * Network and service dependent feature. Not available in all areas. 4 Contents Introduction Guide Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Getting Started Package Content Options . . . . . . . . . . . . . . . . . . . . . . 10 Introduction to Batteries . . . . . . . . . . . . . . . . . . . . . . 12 Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Charging Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Using the Smart Button . . . . . . . . . . . . . . . . . . . . . . . 21 The Basics Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . 22 Reading the Indicators . . . . . . . . . . . . . . . . . . . . . . . . 25 Placing and Ending Calls . . . . . . . . . . . . . . . . . . . . . 28 Redialing Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Basic Tone Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Your Phone & Its Shortcuts . . . . . . . . . . . . . . . . . . . . 34 Using Memory Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Making the Most of Memory . . . . . . . . . . . . . . . . . . . 37 Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Entering Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Recalling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Editing Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Pause Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Using Calling Cards . . . . . . . . . . . . . . . . . . . . . . . . . . 50 5 Contents Using Messaging Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 Receiving Messages . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Viewing Your Caller IDs . . . . . . . . . . . . . . . . . . . . . . . .54 Checking Your Voicemail. . . . . . . . . . . . . . . . . . . . . . .56 Reading Your Messages . . . . . . . . . . . . . . . . . . . . . . . .58 The Works Introducing the Menu Features. . . . . . . . . . . . . . . . . .60 The Internal Phone Book . . . . . . . . . . . . . . . . . . . . . .62 Store and recall numbers Using Call Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . .70 Monitor the length of your calls Setting Tone Controls. . . . . . . . . . . . . . . . . . . . . . . . . .76 Adjust your phone’s tone controls Lock/Security Features. . . . . . . . . . . . . . . . . . . . . . . . .84 Control access to your phone Phone Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92 Personalize your phone’s operation Using the Minibrowser. . . . . . . . . . . . . . . . . . . . . . . .106 Access valuable information with your phone Using Data Features. . . . . . . . . . . . . . . . . . . . . . . . . .114 Make …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID : IHDT6ZT1 EXHIBIT 2A SPECIFICATION COMPLIANCE STATEMENT Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT6ZT1) for mobile station cellular use is capable of compliance with TIA/EIA-95-B Mobile Station-Base Station Compatibility Standard for Dual-Mode Spread Spectrum Systems, December 1998. (Signed – Steve Geske) Steve Geske Engineering Section Manager Cellular Subscriber Equipment (Signed – Mike Cruz) Mike Cruz Sr. Resource Manager Cellular Subscriber Equipment APPLICANT: MOTOROLA, INC.FCC ID : IHDT6ZT1 EXHIBIT 2B STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: BSEE 1983 University of Illinois, Urbana-Champaign MSEE 1991 Arizona State University, Tempe 16 years RF/Cellular Design Experience SIGNATURE: (signed) Steven C. Geske NAME: Steven C. Geske DATE: 3/6/00 POSITION: Engineering Section Manager I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: SIGNATURE: (signed) Michael Cruz NAME: Michael Cruz DATE: 3/6/00 POSITION: Sr. Resource Manager

APPLICANT: MOTOROLAFCC ID: IHDT5ZT1 Exhibit 13A March 13, 2000 CORRECTION TO FORM 731 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Application: IHDT6ZT1 (EA96990) Submitted 3/8/00. Description of Correction: Originally, Item 12 indicated the rated rf power output in Watts as 0.44. This should be changed to 0.28 Watts (EIRP). Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

APPLICANT: MOTOROLAFCC ID: IHDT5ZT1 Exhibit 13 March 11, 2000 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization (FCC Form 731-October 1992 with integrated Fee Processing Form, Fee Codes EFT and EBC), application fee in the amount of $610, and Exhibits; for Certification of a Cellular Transceiver, FCC ID: IHDT5ZT1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description Description: This equipment has the capability to operate using the Digital CDMA standard in the PCS band. Contact Information: Please contact me by telephone at (847) 523-6167, by facsimile at (847) 523-2519, or by e-mail ([email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

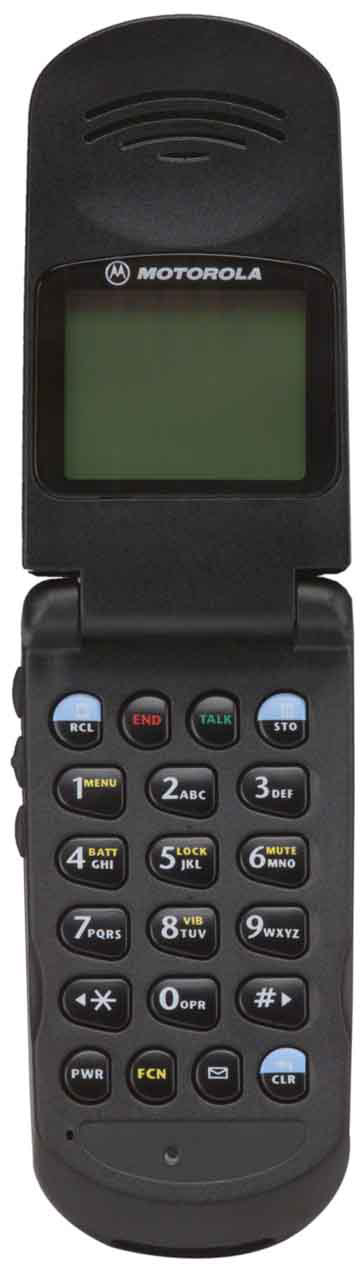

APPLICANT: MOTOROLA, INC. FCC ID: IHDT6ZT1 EXHIBIT 3 Front View with Flip Open Back View Battery Removed to Show Equipment ID

APPLICANT: MOTOROLA, INC.FCC ID : IHDT6ZT1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the radio telephone as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT6ZT1

APPLICANT: MOTOROLA, INC.FCC ID : IHDT6ZT1 EXHIBIT 10 Transceiver Adjustments / Tune-Up Procedure There are no user accessible adjustments or tuning in this portable cellular transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process, using special equipment required to perform such adjustments.

March 3, 2000 SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6ZT1). Prepared by: Paul Moller, Principal Staff Engineer Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Contents 1) Introduction 2) Applicable Regulations 3) Description of Test Sample 4) Description of Motorola SAR Test Facility 5) Test Sample Conditions 6) Method of Measurement 7) Measurement Uncertainty 8) SAR Test Results 9) SAR in the hand measurements 10) Body Worn Configuration 11) Battery Options 12) Summary Appendix A: Included data from Against the Phantom Head Appendix B: Included data from Body Worn Configuration Appendix C: Printout from the Dasy™ measurement system validation test P P a a g g e e 2 2 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID IHDT6ZT1. The Specific Absorption Rate (SAR) of this product was measured. This report details the test setup and equipment as well as the results of those tests. 2. Applicable Regulations Federal Communications Commission rule §2.1093(d)(2), the ANSI/IEEE C95.1 1992 and the NCRP Report Number 86 specify the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20cm of the user in the uncontrolled environment. 3. Description of Test Sample A prototype unit serial number Y15026V was measured. This unit is identical in physical construction, maximum radiated power levels and antenna structure to units that will be in production. It transmits in the frequency range of 1850 to 1910 MHz using CDMA mode. The unit was tested at its maximum transmitter power. The unit is equipped with a telescoping antenna that serves as both a receive and transmit antenna. The antenna has a retracted and an extended operating position as shown in figures 1 and 2 respectively. Figure 1. Showing Retracted Antenna Figure 2. Showing Extended Antenna P P a a g g e e 3 3 Figure 3 shows the test unit as it is placed onto the Motorola phantom. For the purposes of the actual SAR tests the Motorola phantom head is tilted on its side by 90 degrees so that a vertically oriented measurement probe can easily scan an area where the phone is in close contact with the phantom and the SAR will be the highest. Figure 3. Phone against side of Phantom Head. 4. SAR Test Facility The Motorola test facility utilized for the SAR testing of this product is the Personal Communications Sector Product Safety Laboratory, in Libertyville Illinois. The laboratory utilizes a Dosimetric Assessment System (Dasy™) SAR measurement system manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. This system utilizes a computer controlled six axis robot to move a measurement probe to measure the SAR. A photo of the Dasy™ system with the Motorola phantom is shown in figure 4. Probe serial number 1506 was P P a a g g e e 4 4 used for the measurements. It was calibrated at SPEAG™, and has a calibration date October 28, 1999. Dipole Validation Kit type D1900V2, serial number 505 was used to validate the system accuracy. The validation SAR value is 40.4 mW/g normalized to 1 Watt, and the Dasy™ system used for the test phone measured 39.9 mW/g normalized to 1 Watt. This is within the required accuracy, and thus the measured SAR values are considered correct. See appendix C for printout of the validation test from the Dasy™ measurement system. The measurement methodology is described in IEEE Transactions on Vehicular Technology, vol. 44, no. 3, August 1995, titled Electromagnetic Energy Exposure of Simulated users of Portable Cellular Telephones. The Dasy™ system is operated per the instructions in the Dasy™ Users Manual. The entire manual is available directly from SPEAG™. Figure 4. Dasy™ System 5. Test Sample Conditions For the purposes of these tests the subject phone was positioned on the measurement phantom per the instructions in the Motorola users manual for the subject phone. The position used for the tests is the 3-point contact position. In this position the test sample contacts the phantom’s ear and cheek and is positioned with a repeatability of better than ±6%. Since the antenna is not located on the center of the phone, the SAR was measured with the phone on both the left and P P a a g g e e 5 5 right side talk positions (See figure 3). Due to the construction of the phone, the base of the antenna is 14 mm away from the phantom for the left side head, which is the closest. For the purposes of the CDMA mode tests, the unit is placed in a phone call using an HP8924 and is commanded to the highest possible power by means of the “always up” command. The phone is then placed in the SAR measurement system with a fully charged battery. At the end of each test the Dasy™ system measures the drift of the SAR at a fixed point in the phantom so as to ensure that the test sample has not changed in transmitter power. For the purposes of these tests, the transmitter was operated at the highest transmitter output and with the phone and module on both left and right side talk positions. 6. Method of Measurement The system is instructed to scan as much of the face of the phone as is in close proximity to the phantom. Using the information gained about the general region of highest SAR, the system then automatically scans a smaller area centered around the location of peak spatial SAR. During this scan the system automatically measures the fall off of electric field strength as the measurement probe is moved away from the inner surface of the phantom in the direction of the local normal to the phantom surface. Using appropriate probe calibration techniques, the SAR in 1 gram of phantom tissue is then calculated. The phantom head, shown in figure 3, was filled with a liquid having relative dielectric constant equal to 39.9 and conductivity equal to 1.45 S/m. This …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6ZT1 EXHIBIT 6 SUBMITTED MEASURED DATA INDEX EXHIBITMEASUREMENT 6ARF Power Output 6BOccupied Bandwidth - Graph 6CConducted Spurious and Harmonic Emissions - Graph 6DRadiated Spurious and Harmonic Emissions - Graph 6EFrequency Change vs. Temperature - Graph 6FFrequency Change vs. Supply Voltage - Graph APPLICANT: MOTOROLA, INC.FCC ID: IHDT6ZT1 EXHIBIT 6A RF POWER OUTPUT DATA The input supply to the transmitter was set at 3.6 Volts. The RF power output was measured with the indicated voltage and current applied into the final RF amplifying device(s). The values measured for RF Output, DC Current and RF Input Power are all average values which reflect a 100% transmit duty cycle in CDMA operation. Measured RF output: 0.251 W Measured DC voltage: 3.6 V Measured DC current: 641 mA Measured RF input: 0.55 mW EFFECTIVE ISOTROPIC RADIATED POWER Since the unit is intended for use with a provided antenna (and “non standard” RF connector), EIRP is measured. The dipole antenna substitution method was used. The result indicated is the maximum EIRP found over the channels and radio orientations tested. Maximum Effective Isotropic Radiated Power: 24.5 dBm (0.282 W) APPLICANT: MOTOROLA, INC.FCC ID: IHDT6ZT1 EXHIBIT 6B BANDWIDTH MEASUREMENT DATA FOR TRANSMITTER TYPES F9W DEVIATION OF THE CARRIER WITH OQPSK MODULATION HORIZONTAL SCALE = 0.5 MHz / DIVISION VERTICAL SCALE = 10 dB / DIVISION (ATTENUATION) RESOLUTION BANDWIDTH = 30 kHz VIDEO BANDWIDTH = 1 kHz POWER LEVEL = 0.250W (Average Power in transmitter) 1. Modulate the transmitter with OQPSK modulation, using pseudo random data. Obtain image on spectrum analyzer. COMMENTS: Modulation products in a bandwidth of 30 kHz, centered +/- 1.25 MHz from the channel center frequency, should be at least 42 dB below the mean output power level. APPLICANT: MOTOROLA, INC.FCC ID: IHDT6ZT1 EXHIBIT 6C CONDUCTED SPURIOUS AND HARMONIC EMISSIONS – GRAPH -100 -80 -60 -40 -20 0 -10-505101520253035 FREQUENCY FROM CARRIER (MHz) HARMONICS OF CARRIER SPURIOUS LEVEL (dBc) -75.5 -55.5 -35.5 -15.5 4.5 24.5 SPURIOUS LEVEL (dBm) SPEC LIMIT (For 0.28 W) = -37.5 dBc (-13 dBm) DIGITAL CARRIER @ 0.28 WATTS Digital Transmitter Conducted Spurious Emissions Carrier Power: 0.28 W to 0.00001 mW. Carrier Frequency: 1851.25 to 1908.75 MHz in 50KHz steps * Each reported emission reflects the highest absolute level found among all power levels, channels, power amplifier configurations tested. * All emissions not reported are more than 20 dB below the FCC specification * No signals greater than -80 dBm were found in the 1930 to 1990 MHz band * Spectrum was searched from 30 kHz to the 10th Harmonic of the transmitter 2 3 4 5 6 7 8 9 10 Harmonics of the Carrier APPLICANT: MOTOROLA, INC.FCC ID: IHDT6ZT1 EXHIBIT 6D RADIATED SPURIOUS AND HARMONIC EMISSIONS –GRAPH -100 -80 -60 -40 -20 0 -10-505101520253035 FREQUENCY FROM CARRIER (MHz) HARMONICS OF CARRIER SPURIOUS LEVEL (dBc) -75.5 -55.5 -35.5 -15.5 4.5 24.5 SPURIOUS LEVEL (dBm) 2 3 4 5 6 7 8 9 10 Harmonics of the Carrier Log Pages: 149023-149030 Date: 10/13/1999 SPEC LIMIT (For 0.282 W) = -37.5 dBc (-13 dBm) DIGITAL CARRIER @ 0.282 WATTS Digital Transmitter Radiated Spurious Emissions Carrier Power: 0.282 W to 0.00001 mW. Carrier Frequency: 1851.25 to 1908.75 MHz in 50KHz steps * Each reported emission reflects the highest absolute level found among all power levels, channels, power amplifier configurations tested. * All emissions not reported are more than 20 dB below the FCC specification * No signals greater than -80 dBm were found in the 1930 to 1990 MHz band * Spectrum was searched from 30 kHz to the 10th Harmonic of the transmitter APPLICANT: MOTOROLA, INC.FCC ID: IHDT6ZT1 EXHIBIT 6E Frequency Change vs. Temperature – Graph TX Freq. Error Vs. Temperature Limit = +/- 150 Hz -150 -100 -50 0 50 100 150 -40-20020406080 Temperature ( C ) TX Freq. Error (Hz) APPLICANT: MOTOROLA, INC.FCC ID: IHDT6ZT1 EXHIBIT 6F Frequency Change vs. Supply Voltage - Graph TX Freq. Error Vs. Supply Voltage Limit = +/- 150 Hz -150 -100 -50 0 50 100 150 33.544.555.5 Supply Voltage ( Volts ) TX Freq. Error ( Hz )

APPLICANT: MOTOROLA, INC.FCC ID: IHDT6ZT1 EXHIBIT 6B1 Channel 25 conducted spurious, narrowband Channel 25 conducted spurious, wideband APPLICANT: MOTOROLA, INC.FCC ID: IHDT6ZT1 EXHIBIT 6B2 Channel 1175 conducted spurious, narrowband Channel 1175 conducted spurious, wideband
