II627903Walkie Talkie

Page 2.pdf

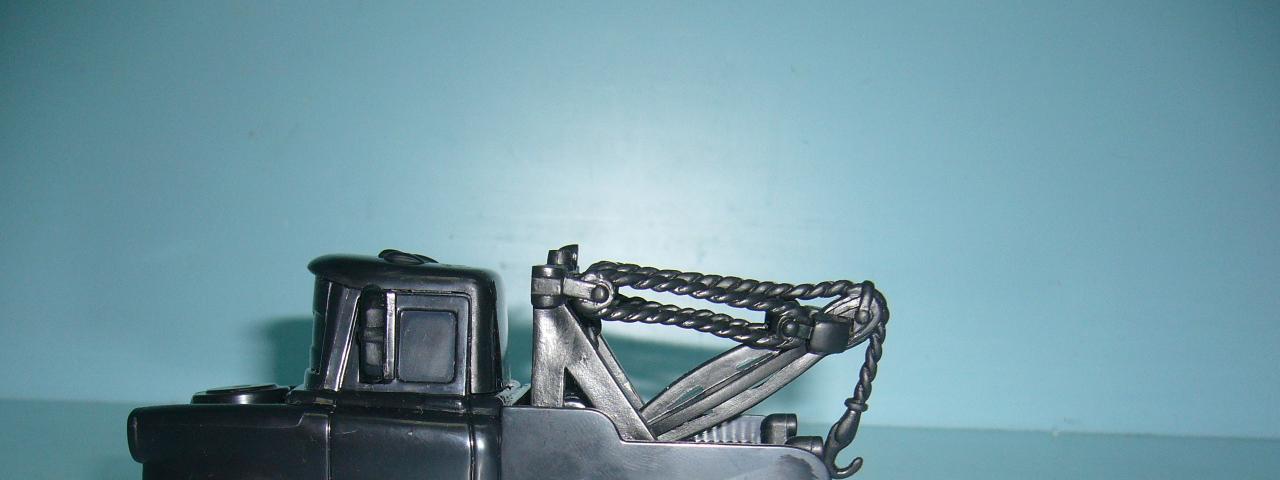

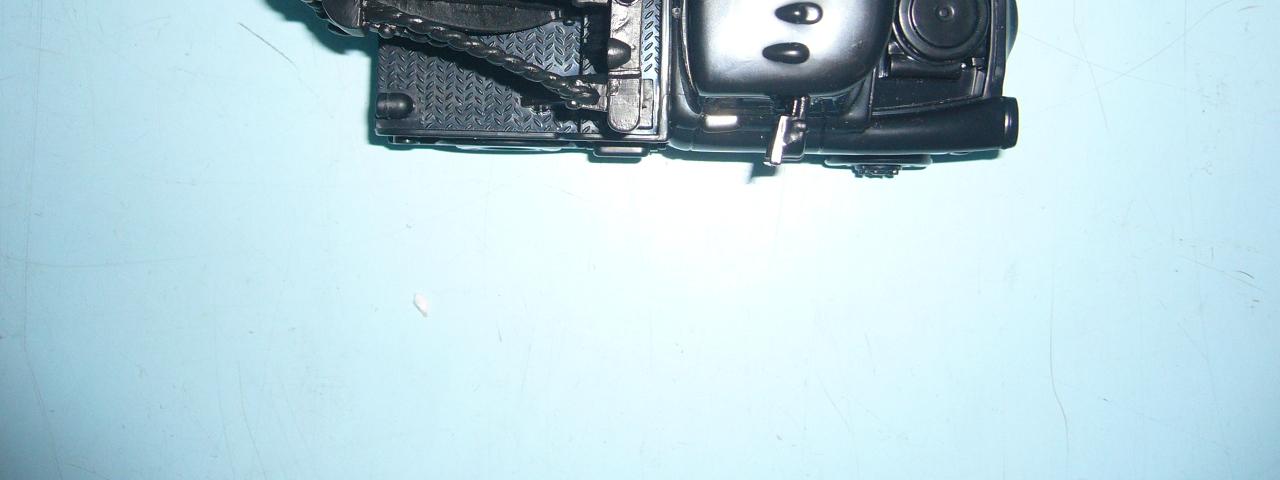

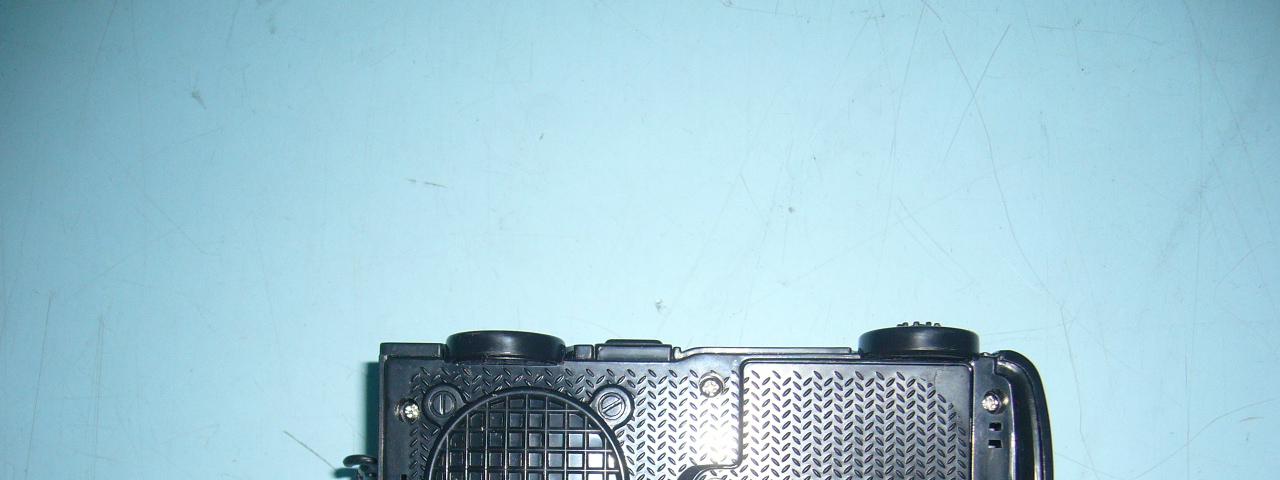

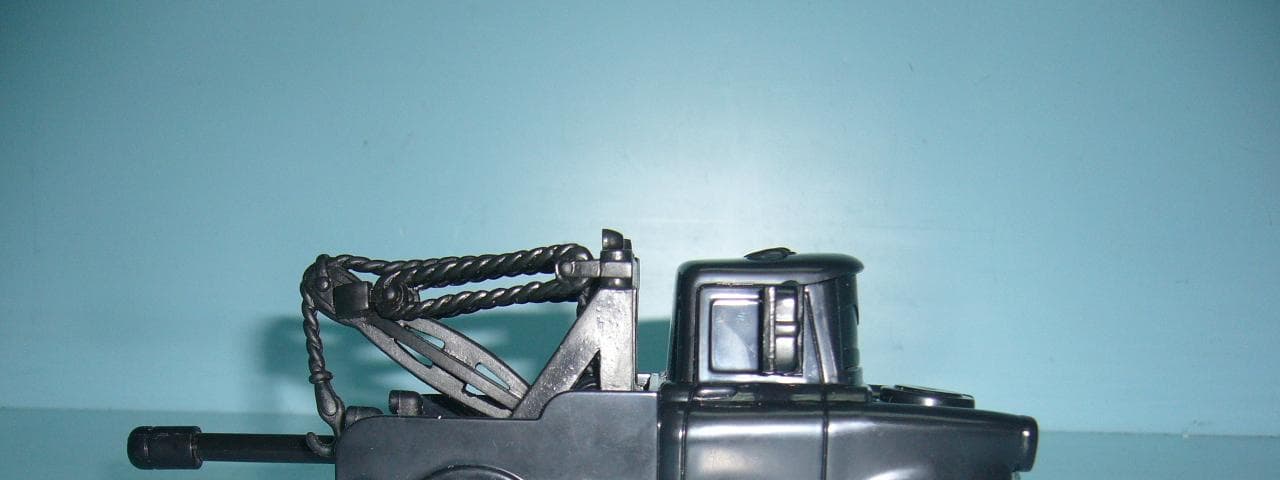

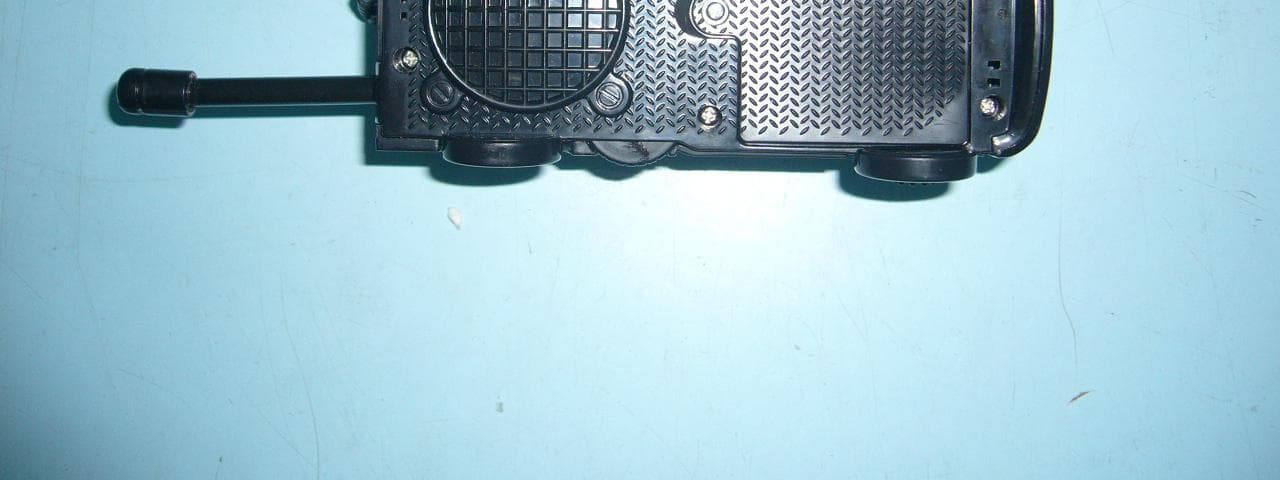

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

SUPERSONIC ELECTRONICS COMPANY BLOCK C, 4 TH FLOOR, GEE CHANG INDUSTRIAL BUILDING, 108 LOK SHAN ROAD, TOKWAWAN, KOWLOON, HONG KONG. TEL: (852) 27657263 FAX: (852) 27643419 FCC ID LABEL FCC ID: II627903 MADE IN CHINA We engrave the label on the rear cabinet as follow. Please see the below diagram

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID: II627903 Circuit Description The 49.86MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by Mic. The output of Q1 has the matching network consisting of C3, C4, C5, C6 and L1, L3, IFT1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 11cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 6 Volt (“AAA” size battery x 4) primary battery Operation Descriptions The transmitter is a Walkie Talkie operating at 49.86MHz band. The transmitter is powered by a 6V battery (“AAA” size battery x 4) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form amplitude modulating signal on the 49.86MHz carrier frequency. Remarks: The transmitter is a button transmitter. The EUT continues to transmit while button is being pressed. It is button transmitter, Modulation by Microphone; and type is amplitude modulation.

Page 7.pdf

STC Test Report Date : 2011-02-17 Page 1 of 14 No. : HM166290 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (SUE004): SUPERSONICS ELECTRONICS COMPANY PHASE II, BLOCK C, 4 TH FLOOR, GEE CHANG IND. BLDG., 108 LOK SHAN ROAD, TOKWAWAN, KOWLOON, HONG KONG Manufacturer: Supersonics Electronics Toys (Shenzhen) Co., Ltd. Block 1 & 2, Xin Tian Village, Xin Feng Ind. Area, Guan Lan, Bao an, Shenzhen, China Description of Sample(s): Submitted Sample(s) said to be: Product: WALKIE TALKIE Brand Name: DISNEY Model Number: 27903 FCC ID: II627903 Date Sample(s) Received: 2011-02-07 Date Tested: 2011-02-11 to 2011-02-16 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4:2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen, Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2011-02-17 Page 2 of 14 No. : HM166270 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 14 Content Page 2 of 14 1.0 General Details 1.1 Test Laboratory Page 3 of 14 1.2 Equipment Under Test [EUT] Page 3 of 14 Description of EUT operation 1.3 Description of EUT Operation Page 3 of 14 1.4 Date of Order Page 3 of 14 1.5 Submitted Sample(s) Page 3 of 14 1.6 Test Duration Page 3 of 14 1.7 Country of Origin Page 3 of 14 2.0 Technical Details 2.1 Investigations Requested Page 4 of 14 2.2 Test Standards and Results Summary Page 4 of 14 3.0 Test Results 3.1 Emission Page 5-8 of 14 3.2 Bandwidth Measurement Page 9-11 of 14 Appendix A List of Measurement Equipment Page 12 of 14 Appendix B Photographs Page 13-14 of 14 STC Test Report Date : 2011-02-17 Page 3 of 14 No. : HM166270 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Equipment Under Test [EUT] Description of Sample(s) Submitted sample(s) said to be: Product: WALKIE TALKIE Manufacturer: Supersonics Electronics Toys (Shenzhen) Co., Ltd. Brand Name: DISNEY Model Number: 27903 Input Voltage: 6Vd.c. (“AAA” size battery x 4) 1.3 Description of EUT Operation The Equipment Under Test (EUT) is a SUPERSONICS ELECTRONICS COMPANY, WALKIE TALKIE. The transmitter is a button transmitter. The EUT continues to transmit while button is being pressed. Modulation by IC and type is pulse modulation. 1.4 Date of Order 2011-02-07 1.5 Submitted Sample(s): 2 Sample(s) 1.6 Test Duration 2011-02-11 to 2011-02-16 1.7 Country of Origin China STC Test Report Date : 2011-02-17 Page 4 of 14 No. : HM166270 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15:2009 and ANSI C63.4:2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2009 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2009 N/A Note: N/A - Not Applicable STC Test Report Date : 2011-02-17 Page 5 of 14 No. : HM166270 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions (30 – 1000MHz) Test Requirement: FCC 47CFR 15.209 Test Method: ANSI C63.4:2009 Test Date: 2011-02-11 Mode of Operation: Tx mode Test Method: The sample was placed 0.8m above the ground plane on a standard radiated emission test site. Measurements in both horizontal and vertical polarities were performed. During the…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
