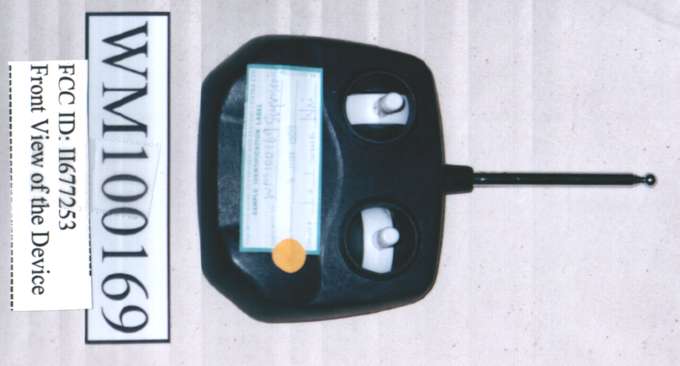

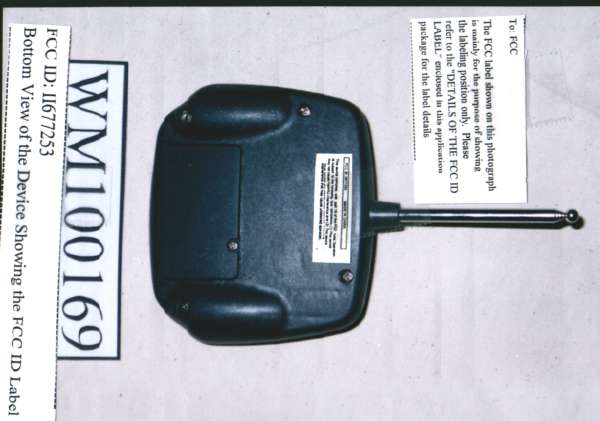

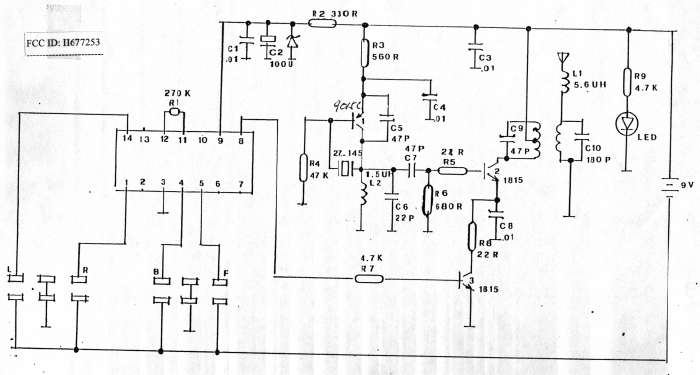

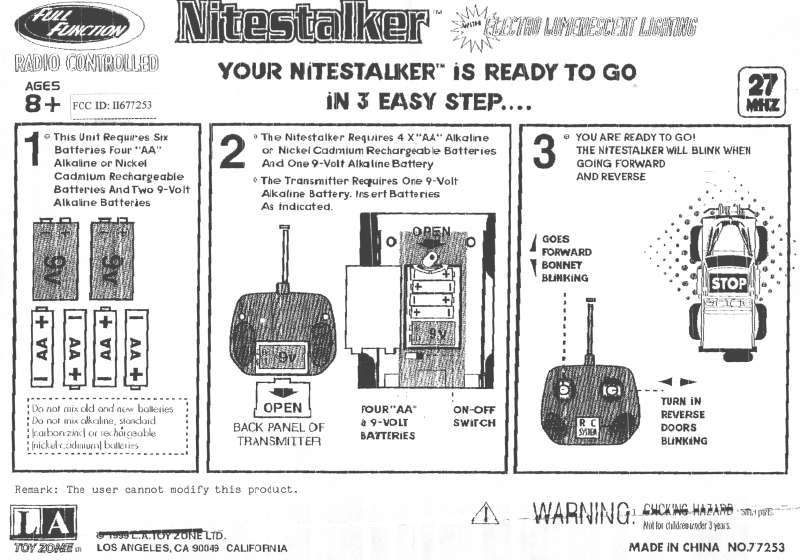

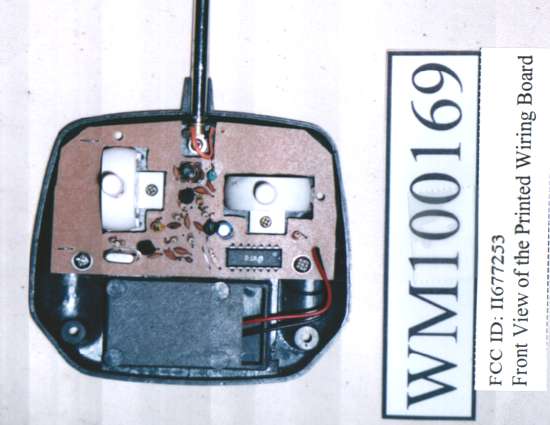

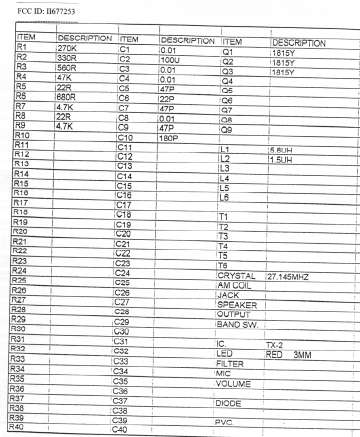

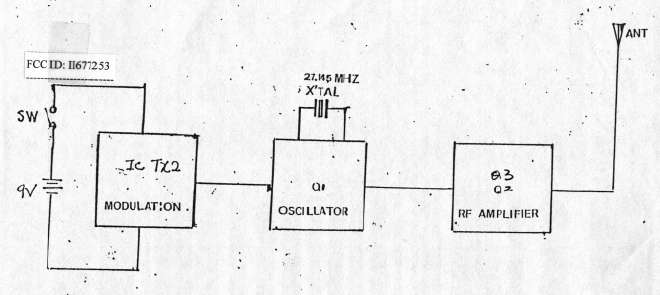

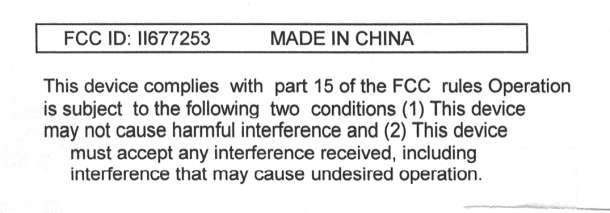

II677253R/C Toy Transmitter

Date: 1999-06-17TEST REPORTPage 1 of 7 No.: WM100169 ___Law Man Kit____ ____Kitty Choy___ _____Patrick Wong__ Patrick Wong Testing EngineerVerify byfor Managing Director Conditions in issuance of Test Report 1. This Report is issued in confidence to the client and it will be strictly treated as such by the Hong Kong Standards and Testing Centre Ltd. It may not be reproduced either in its entirety or in part and it may not be used for advertising. The client to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Hong Kong Standards and Testing Centre Ltd. to his customer, supplier or other persons directly concerned. The Hong Kong Standards and Testing Centre Ltd. will not, without the consent of the client, enter into any discussion or correspondence with any third party concerning the contents of the Report. 2. The report refers only to the sample tested and does not apply to the bulk, unless the sampling has been carried out by the Hong Kong Standards and Testing Centre Ltd. and is stated as such in the Report. 3. In the event of the improper use of the report, the Hong Kong Standards and Testing Centre Ltd. reserves the rights to withdraw it, and to adopt any other remedies which may be appropriate. 4. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Hong Kong Standards and Testing Centre Ltd. 5. The Hong Kong Standards and Testing Centre Ltd. will not be liable for or accept responsibility for any loss or damage howsoever arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations6Applicants wishing to use the Report in court proceedings or APPLICANT: (Code:SUE001) SUPERSONICS ELECTRIC COMPANY BLK. D, 6TH FLOOR, GEE CHANG IND. BLDG., 108 LOK SHAN ROAD, KOWLOON, HONG KONG. DATE OF SAMPLES RECEIVED: 1999.06.09 DATE OF TESTING: 1999.06.15 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:CONTROLLER BOX Manufacturer:Guan Lan Teemable Electronics Fty.` Model Number: 77253 Brand Name:N/A Rating:9Vd.c. ("6F22" size battery × 1) Origin:China INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK:Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the clause 15.227 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 1999-06-17TEST REPORTPage 2 of 7 No.: WM100169 T E S T S U M M A R Y *** INTENTIONAL RADIATOR *** (1) Measurement of Emission of RF energy on the carrier frequency..............Satisfactory Measurement of the out-of band emissions including harmonics...............Satisfactory (2) Measurement of Emission Within Band Edges.......................................... Satisfactory (3)Measurement of Line-Conducted Voltage onto AC Power Line................ Not applicable T E S T D A T A Please refer to the attached result sheets. Date: 1999-06-17TEST REPORTPage 3 of 7 No.: WM100169 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference ============================== TEST REFERENCE: FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION : Normal TEST DATE : 1999.06.15. Emission of RF energy on the carrier frequency -- 27.145 MHz (PEAK VALUE) ======================================================================== EmissionMeter PolarizationAntenna Field StrengthFCC Limit Frequency Reading Factor (at 3m) MHz dB(μV) H-V dB dB(μV/m) μV/m μV/m 27.1 54.3 V + 48.5 72.8 4365.16 100000 Emission of RF energy on the carrier frequency -- 27.145 MHz (AVERAGE VALUE) ======================================================================== EmissionMeter PolarizationAntenna Field StrengthFCC Limit Frequency Reading Factor (at 3m) MHz dB(μV) H-V dB dB(μV/m) μV/m μV/m 27.1 49.2 V + 18.5 67.7 2426.6 10000 ... to be continued Date: 1999-06-17TEST REPORTPage 4 of 7 No.: WM100169 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. ============================================ TEST REFERENCE: FCC Rules Part 15 Section 15.227 (26.96-27.28 MHz) TEST CONDITION : Normal TEST DATE : 1999.06.15 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) ===================================================== EmissionMeter PolarizationAntenna Field StrengthFCC Limit Frequency Reading Factor (at 3m) MHz dB(μV) H-V dB dB(μV/m) μV/m μV/m 54.323.1V+12.936.063.1100 81.420.3V+8.929.228.8100 108.618.4V+12.227.323.2150 135.715.1V+10.825.919.7150 162.919.3V+9.528.827.5150 190.021.1V+11.132.240.7150 217.226.9V+12.239.190.2200 244.320.2V+13.533.748.4200 271.515.4V+16.031.437.2200 298.6<1.0+16.5<17.5<7.5200 325.7<1.0+16.6<17.6<7.6200 352.9<1.0+16.7<17.7<7.7200 380.0<1.0+17.4<18.4<8.3200 407.2<1.0+18.2<19.2<9.1200 434.3<1.0+19.5<20.5<10.6200 461.5<1.0+20.1<21.1<11.4200 488.6<1.0+20.3<21.3<11.6200 515.8<1.0+20.9<21.9<12.4200 542.9<1.0+22.1<23.1<14.3200 570.0<1.0+22.8<23.8<15.5200 597.2<1.0+23.3<24.3<16.4200 624.3<1.0+23.4<24.4<16.6200 651.5<1.0+23.6<24.6<17.0200 678.6<1.0+24.9<25.9<19.7200 705.8<1.0+25.1<26.1<20.2200 732.9<1.0+25.4<26.4<20.9200 760.1<1.0+26.4<27.4<23.4200 787.2<1.0+26.8<27.8<24.5200 814.4<1.0+26.7<27.7<24.3200 ... to be continued Date: 1999-06-17TEST REPORTPage 5 of 7 No.: WM100169 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. ============================================ TEST REFERENCE: FCC Rules Part 15 Section 15.227 (26.96-27.28 MHz) TEST CONDITION : Normal TEST DATE : 1999.06.15 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) ===================================================== EmissionMeter PolarizationAntenna Field StrengthFCC Limit Frequency Reading Factor (at 3m)…

Text truncated - open the document above for the full version.

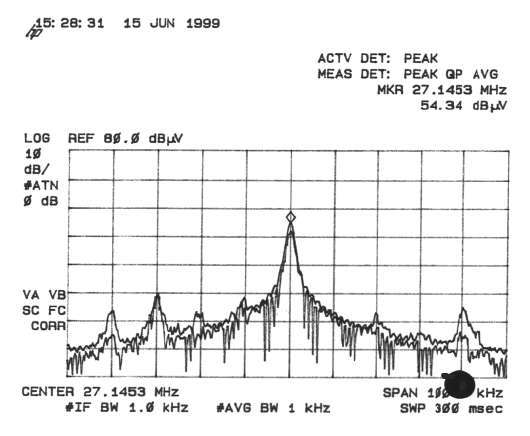

Date:1999-06-17APPENDIX APage A1 of A1 No.: WM100169 TEST EQUIPMENT AUDIT Radiated Emission EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL EM007SPECTRUM ANALYZERH PHP85660B3144A2119211/06/99 EM008SPECTRUM ANALYZER DISPLAYH PHP85662A3144A2051411/06/99 EM009QUASI PEAK ADAPTORH PHP85650A3303A0170211/06/99 EM010RF PRESELECTORH PHP85685A3221A0141011/06/99 EM011ATTENNUATOR/SWITCHH PHP11713A2508A1059511/06/99 EM012PRE-AMPLIFIERH PHP8449B3008A0026211/06/99 EM013CONTROLLER (COMPUTER), COLOR MONITOR, KEYBOARD & MOUSE FLOPPY DRIVE H P H P H P HP9000 HP A1097C HP9133L 6226A60314 3151J39517 2623A02468 CM EM016ANTENNAARA INC.LPB-2513/A106930/12/97 EM072SIGNAL GENERATORHP8640B1948A1189230/03/98 EM083HKSTC OPEN AREA TEST SITEHKSTCN/AN/A25/02/99 ABBREVIATIONS: CM = Corrective Maintenance N/A = Not Applicable
