II680020Lightronix Stage Mike (Model: 88020)

DOC-FCC009 4/14/2005 Page 1 of 2 FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0934 Expires 02/28/2005 Item 1. Applicant's complete, legal business name: Supersonics Electric Company Item 2. Applicant's mailing address Line 1: Block C, 4 th Floor, Gee Chang Industrial Building, Line 2: 108 Lok Shan Road, Tokwawan, P.O.Box: City: Kowloon, State: Country (if foreign address): HONG KONG Zip/Postal Code: 852 Item 3. FCC ID: Grantee code: II6 Equipment Product Code (14 characters maximum): II680020 Item 4. Person at the applicant's address to receive grant or for contact: First Name: KC Mail Stop: Last Name: Lee Telephone: 852 26661807 Ext: Title: Manager E-mail: [email protected] Fax No: Item 5. Instead of Applicant, the original Grant is authorized to be mailed to: The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Tai Po Industrial Estate, N.T., Hong Kong. Contact: KC Lee E-mail: [email protected] Item 6. Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 7. Non-Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. (please mark as appropriate) x No Item 9. Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) If so, specify date when grant may be issued (MM/DD/YYYY format): Item 10. * Equipment Class: DXX * Description of Product as it is Marketed: Part 15 Low Power Communication Device Transmitter (NOTE: Lightronix Stage Mike) Item 11. * Application is for: (please mark as appropriate) x Original Equipment (See instructions) Ο Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Ο Class II permissive change or modification of presently authorized equipment (See instructions) Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 12(c). Ο Yes x No Ο Yes x No DOC-FCC009 4/14/2005 Page 2 of 2 (c) The related application: Ο has been granted under the FCC ID listed to the right Ο is in the process of being filed under the FCC ID listed to the right Ο is pending with the FCC under the FCC ID listed to the right FCC ID Item 13. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: The Hong Kong Standards & Testing Centre Ltd. Last Name: KC Telephone 26661852 Ext Fax No. 26650848 E-mail: [email protected] Item 14. Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization. Read each certification carefully before answering and signing this application Equipment Specifications: Rule Part Frequency Range (MHz) Power (W) Frequency Tolerance and Units Emission Designator Note Codes 15 99.989- 100.029 WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. *SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? x Yes Ο No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves…

Text truncated - open the document above for the full version.

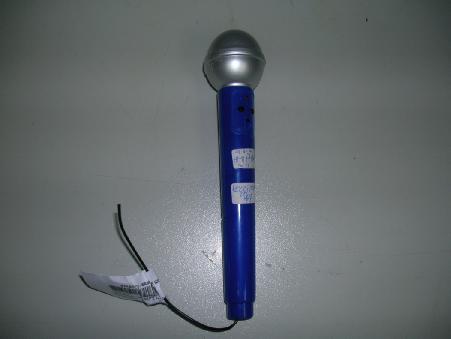

Front View of the product . Rear View of the product

Front View of the product Front View of the product

FCC ID: II680020 Circuit Description The 99.989 and 100.029MHz LCR oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by MIC. The output of Q2 has the matching network consisting of L2 and R10 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 13cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AA” size battery x 2) primary battery. Remarks: The transmitter is a voice transmitter. The EUT continues to transmit while Trigger is being pressed. It is Voice transmitter, Modulation by Microphone; and type is Frequency modulation.

Date: 2006-09-08 Page 1 of 1 No.: HM157164 Applicant: SUPERSONICS ELECTRIC COMPANY PHASE II, BLOCK C, 4 TH FLOOR, GEE CHANG IND. BLDG., 108 LOK SHAN ROAD, KOWLOON, HONG KONG. Description of Samples: Model name: LIGHTRONIX STAGE MIKE Model no.: 88020 Brand name: KAWASAKI FCC ID: II680020 Date Samples Received: 2006-08-02, 2006-08-14, 2006-09-05 Date Tested: 2006-08-16 to 2006-09-06 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: For additional models details, see page 5. TSANG Chi Ho, Steven, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date: 2006-09-08 Page 2 of 2 No.: HM157164 CONTENT: Cover Page 1 of 18 Content Page 2-3 of 18 1.0 General Details 1.1 Test Laboratory Page 4 of 18 1.2 Applicant Details Page 4 of 18 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 18 Description of EUT operation 1.4 Date of Order Page 5 of 18 1.5 Submitted Samples Page 5 of 18 1.6 Test Duration Page 5 of 18 1.7 Country of Origin Page 5 of 18 2.0 Technical Details 2.1 Investigations Requested Page 6 of 18 2.2 Test Standards and Results Summary Page 6 of 18 3.0 Test Results 3.1 Emission Page 7-12 of 18 3.2 Bandwidth Measurement Page 13-15 of 18 Date: 2006-09-08 Page 3 of 3 No.: HM157164 Appendix A List of Measurement Equipment Page 16 of 18 Appendix B Photographs Page 17-18 of 18 Date: 2006-09-08 Page 4 of 4 No.: HM157164 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant SUPERSONICS ELECTRIC COMPANY PHASE II, BLOCK C, 4 TH FLOOR, GEE CHANG IND. BLDG., 108 LOK SHAN ROAD, KOWLOON, HONG KONG. Manufacturer Supersonics Electronics Toys (Shenzhen) Co., Ltd. BLOCK 1 & 2, XIN TIAN VILLAGE, XIN FENG IND. AREA, GUAN LAN, BAO AN, SHENZHEN, CHINA Date: 2006-09-08 Page 5 of 5 No.: HM157164 1.3 Equipment Under Test [EUT] Description of Sample Model Name: LIGHTRONIX STAGE MIKE Manufacturer: Supersonics Electronics Toys (Shenzhen) Co., Ltd. Brand Name: KAWASAKI Model Number: 88020 Additional Model Number: 80020 Additional Brand Name NIL Input Voltage: 3Vd.c. (“AA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a SUPERSONICS ELECTRIC COMPANY, LIGHTRONIX STAGE MIKE. The transmitter is a voice transmitter; The EUT continues to transmit while trigger is being pressed. It is voice transmitter, modulation by microphone and type is frequency modulation. 1.4 Date of Order 2006-08-02, 2006-08-14, 2006-09-05 1.5 Submitted Sample(s): 3 Samples per model 1.6 Test Duration 2006-08-16 to 2006-09-06 1.7 Country of Origin CHINA Date: 2006-09-08 Page 6 of 6 No.: HM157164 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2005 and ANSI C63.4: 2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.239 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 Class B Note: N/A - Not Applicable Date: 2006-09-08 Page 7 of 7 No.: HM157164 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions (30 – 1000MHz) Test Requirement: FCC 47CFR 15.239 Test Method: ANSI C63.4:2003 Test Date: 2006-09-06 Mode of Operation: Tx mode Test Method: The sample was placed 0.8m above the ground plane on a standard radiated emission test site. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: On a standard radiated emission test site located at HKSTC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657 or 607756. Test Setup: EUT Pre-Amplifier Distance = 3m Receiver Turn Table Computer Ground Plane Date: 2006-09-08 Page 8 of 8 No.: HM157164 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.239]: Frequency Range of Fundamental Peak Limits Average Limits [MHz] [μV/m] [μV/m] 88-108 2,500 250 Results of Tx mode (Low) : PASS FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdB/m 99.9926.309.535.861.72,500Horizontal Field Strength Field Strength of Fundamental Emissions Peak Value Measured Level @3m Field Strength FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdB/m 99.9925.709.535.257.5250Horizontal Field Strength of Fundamental Emissions Average Value Measured Level @3m Field Strength Field Strength Remarks: Correction Factor included Antenna Factor and Cable Attenuation. Calculated measurement uncertainty : 30MHz to 1GHz ±4.1dB According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated unless a different peak emission limit is otherwise specified in the rules. Date: 2006-09-08 Page 9 of 9 No.: HM157164 Limits for Radiated Emissions [FCC 47 CF…

Text truncated - open the document above for the full version.

Measurement of Radiated Emission Test Set Up .
