II680045Wireless FM Microphone

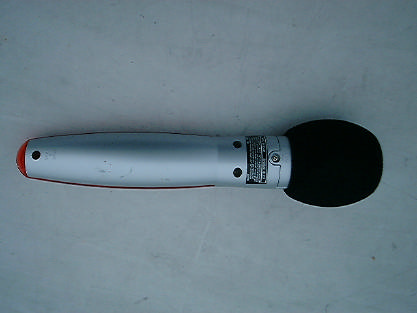

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: II680045 Circuit Description The 99.4MHz LCR oscillator drives the base of Q9018 the final/buffer amplifier. The modulation provided by Mic. The output of Q9018 has the matching network consisting of L2 and C6 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AA” size battery x 2) primary battery

Date: 2002-05-31 TEST REPORT Page 1 of 19 No.: HM107278 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.:HM107278 Equipment Under Test [EUT]:FM Lite Up Mike Model Number:80045 Applicant:Supesonics Elect. Co. FCC ID :II680045 Date: 2002-05-31 TEST REPORT Page 2 of 19 No.: HM107278 CONTENT: Cover Page 1 of 19 Content Page 2-3 of 19 Conclusion Page 4 of 19 1.0General Details 1.1Test Laboratory Page 5 of 19 1.2Applicant Details Page 5 of 19 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 19 Description of EUT operation 1.4Date of Order Page 6 of 19 1.5Submitted Sample Page 6 of 19 1.6Test Duration Page 6 of 19 1.7Country of Origin Page 6 of 19 1.8 Additional Information of EUT Page 7 of 19 2.0Technical Details 2.1Investigations Requested Page 8 of 19 2.2Test Standards and Results Summary Page 8 of 19 3.0Test Results 3.1Emission Page 9-13 of 19 3.2Bandwidth Measurement Page 14-16 of 19 Date: 2002-05-31 TEST REPORT Page 3 of 19 No.: HM107278 Appendix A List of Measurement Equipment Page 17 of 19 Appendix B Modification Method Page 18 of 19 Appendix C Photographs Page 19 of 19 Date: 2002-05-31 TEST REPORT Page 4 of 19 No.: HM107278 CONCLUSION The submitted product was deemed to have COMPLIED after modification with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verify byPatrick Wong for Chief Executive Date: 2002-05-31 TEST REPORT Page 5 of 19 No.: HM107278 1.0General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant SUPERSONICS ELECT. CO. Blk D, 6 th Floor, Gee Change Ind. Bldg., 108 Lok Shan Road, Kowloon, Hong Kong. Telephone:852 2765 7263 Fax:852 2764 3419 HKSTC Code Number for ApplicantSUE001 Manufacturer SUPERSONICS ELECTRONICS TOYS (SHENZHEN) COMPANY LTD. Block 1 & 2, Xin Tian Village, Xin Feng Industrial Area, Guan Lan, Bao An, Shenzhen, China Telephone:86 755 7994280 Fax:86 755 7994262 Date: 2002-05-31 TEST REPORT Page 6 of 19 No.: HM107278 1.3Equipment Under Test [EUT] Description of Sample Product:FM Lite Up Mike Manufacturer:Supersonics Electronics Toys (Shenzhen) Company Ltd. Brand Name:N/A Model Number:80045 Input Voltage:3Vd.c (“AA” size battery x 2) 1.3.1Description of EUT Operation The Equipment Under Test(EUT) is an Supersonics Elect. Co., FM Lite Up Mike. The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by Mic. and tape is frequency modulation. 1.4Date of Order 2002-03-21 1.5Submitted Sample(s): 3 Samples per model 1.6Test Duration 2002-05-29 1.7Country of Origin China Date: 2002-05-31 TEST REPORT Page 7 of 19 No.: HM107278 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2002-05-31 TEST REPORT Page 8 of 19 No.: HM107278 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2000 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPassFailedN/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.239ANSI C63.4:2000N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209ANSI C63.4:2000Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:2000Class B Note: N/A - Not Applicable Date: 2002-05-31 TEST REPORT Page 9 of 19 No.: HM107278 3.0Test Results 3.1Emission 3.1.1Radiated Emissions Test Requirement:FCC 47CFR 15.239 Test Method:ANSI C63.4:2000 Test Date:2002-05-29 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT distance = 3m Pre -Amplifier Receiver Turn Table Computer Ground plane Date: 2002-05-31 TEST REPORT Page 10 of 19 No.: HM107278 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.239]: Frequency Range of Fundamental Peak LimitsAverage Limits [MHz][μV/m][μV/m] 88-1082,500250 Results: FrequencyCorrectionLimit @3mAntenna FactorPolarity MHzdB μ V/m μ V/m 99.4026.212.538.786.12,500Horizontal dB μ V/m Field Strength Field Strength of Fundamental Emissions Peak Value Measured Level @3m dB μ V/m Field Strength μ V/m FrequencyCorrectionLimit @3mAntenna FactorPolarity MHzdB μ V/m μ V/m 99.4025.712.538.281.3250Horizontal μ V/mdB μ V/m Field Strength Field Strength of Fundamental Emissions Average Value* Measured Level @3m dB μ V/m Field Strength Remarks: Correction Factor included Antenna Factor and Cable Attenuation. Calculated measurement uncertainty=30MHz to 300MHz±3.7dB 300MHz to 1GHz+3.0dB / -2.7dB According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated unless a different peak emission limit is…

Text truncated - open the document above for the full version.

(1) Frequncy range values on the x axis Answer: (1) Frequncy range values on the x axis

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
