IKQ-NEXS1NEXS1 Single channel Camera

FCC Warning This device complies with part 15 of the FCC rules. Operation is subj ect to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operati on. Changes or modifications not expressly approved by the party responsi ble for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits fo r a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installati on. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installat ion. If this equipment does cause harmful interferenceto radio or television reception, which can be det ermined by turning the equipment off and on, the user is encouraged to try to correct the interfe rence by one or more of the following measures: Ь Reorient or relocate the receiving antenna. Ь Increase the separation between the equipment and receiver. Ь Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Ь Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an unc ontrolled environment. This equipment should be installed and operated with minimum distance 2 0cm between the radiator and your body. ISED Statement ϋ English: This device complies with Industry Canada license ϋ exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may no t cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. ϋ French: Le pr l sentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautoris l e aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélec triquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. This radio transmitter has been approved by Industry Canada to operate with the antenna types listed with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. dŚŝƐĞƋƵŝƉŵĞŶƚĐŽŵƉůŝĞƐǁŝƚŚ/ƌĂĚŝĂƚŝŽŶĞdžƉŽƐƵƌĞůŝŵŝƚƐƐĞƚĨŽƌƚŚĨŽƌĂŶƵŶĐŽŶƚƌŽůůĞĚĞŶǀŝƌŽŶŵĞŶƚ͘dŚŝƐĞƋƵŝƉŵĞŶƚƐŚŽƵůĚďĞŝŶƐƚĂůůĞĚĂŶĚŽƉĞƌĂƚĞĚǁŝƚŚŵŝŶŝŵƵŵĚŝƐƚĂŶĐĞϮϬĐŵďĞƚǁĞĞŶƚŚĞƌĂĚŝĂƚŽƌĂŶĚLJŽƵƌďŽĚLJ͘ĞƚĠƋƵŝƉĞŵĞŶƚĞƐƚĐŽŶĨŽƌŵĞĂƵdžůŝŵŝƚĞƐĚΖĞdžƉŽƐŝƚŝŽŶĂƵdžƌĂLJŽŶŶĞŵĞŶƚƐ/ĠƚĂďůŝĞƐƉŽƵƌƵŶĞŶǀŝƌŽŶŶĞŵĞŶƚŶŽŶĐŽŶƚƌƀůĠ͘ĞƚĠƋƵŝƉĞŵĞŶƚĚŽŝƚġƚƌĞŝŶƐƚĂůůĠĞƚƵƚŝůŝƐĠĂǀĞĐƵŶŵŝŶŝŵƵŵĚĞϮϬĐŵĚĞĚŝƐƚĂŶĐĞĞŶƚƌĞůĂƐŽƵƌĐĞĚĞƌĂLJŽŶŶĞŵĞŶƚĞƚǀŽƚƌĞĐŽƌƉƐ͘

C5266091_X8_Ed.1 1/1 Letter of Authorization Scosche Industries Inc Company: Scosche Industries Inc Address: 1550 Pacific Ave., Oxnard, CA 93033, USA Product Name: NEXS1 Single channel Camera Model Number: NEXS1 FCC Identifier: IKQ-NEXS1 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Date: March 24, 2020 Title: SR Product Manager Signature of applicant: Mark Larson

C5266091_X10_Ed.1 1/1 Scosche Industries Inc Office of Engineering Technology Federal Communications Commission 7075 Flying Cloud Dr. Eden Prairie, MN 55344 USA Date: March 24, 2020 Subject: Request for Confidentiality FCC ID: IKQ-NEXS1 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Tune up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Mark Larson Title: SR Product Manager

C5266091_X13_Ed.1 Scosche Industries IncFCC Software Configuration Control Declaration Date: March 24, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OETDept. Product Name: NEXS1 Single channel Camera Model Number: NEXS1 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has beencertified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Signature of applicant Name: Mark Larson 1/1

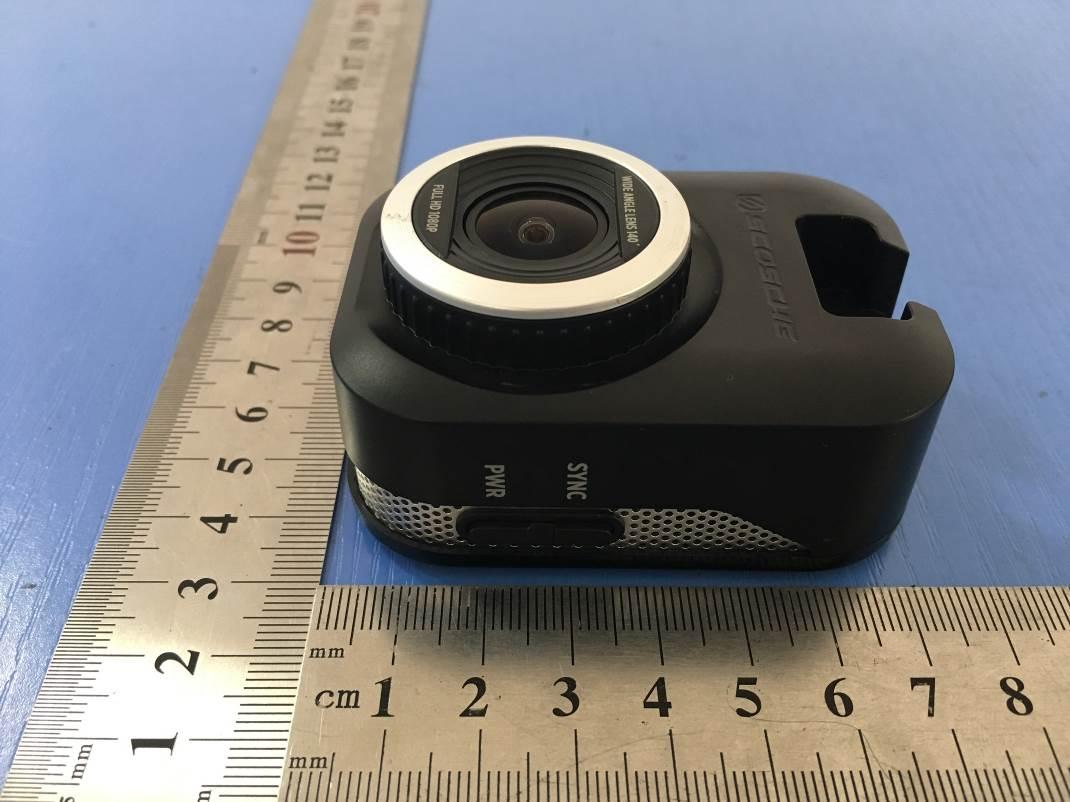

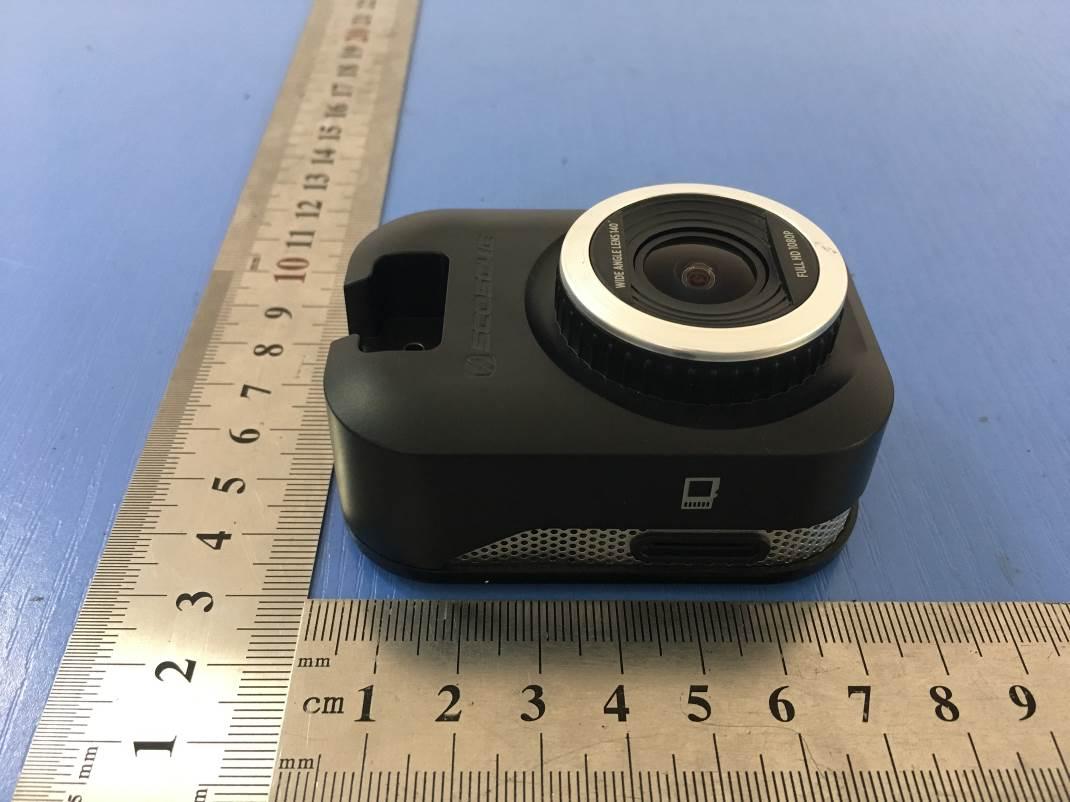

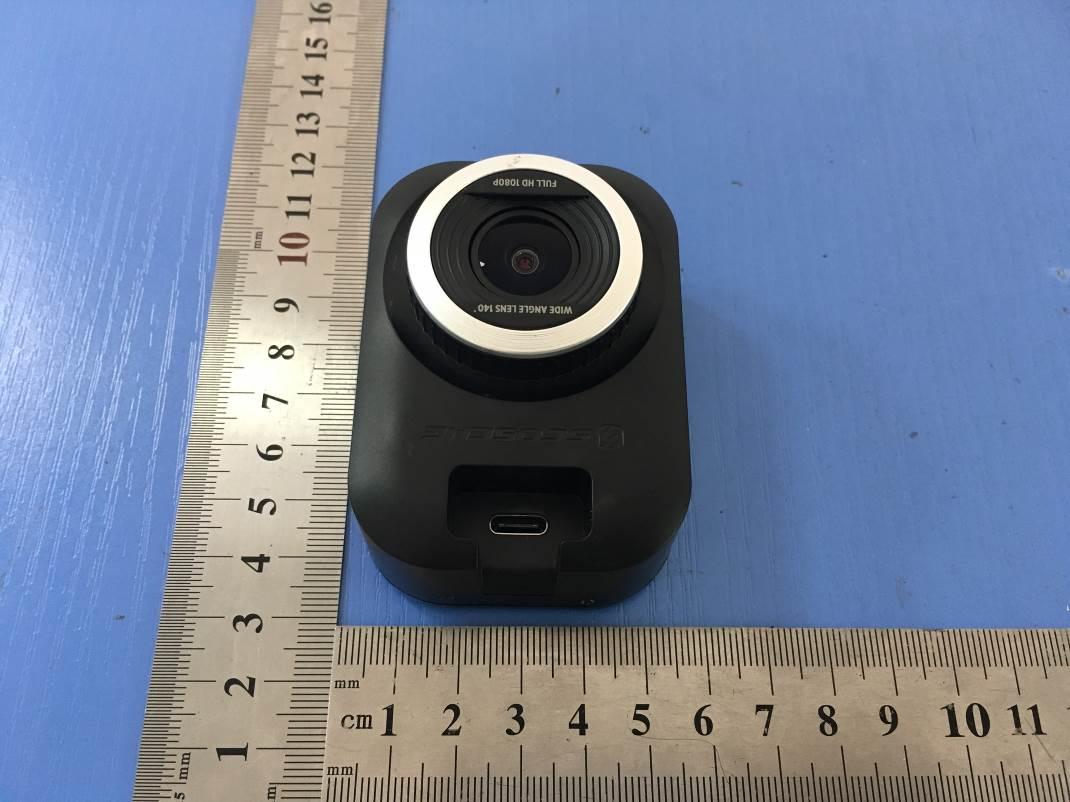

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC ID: 6955A-NEXS1 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC ID: 6955A-NEXS1 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC ID: 6955A-NEXS1 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC ID: 6955A-NEXS1 Fig. 7 Fig. 8

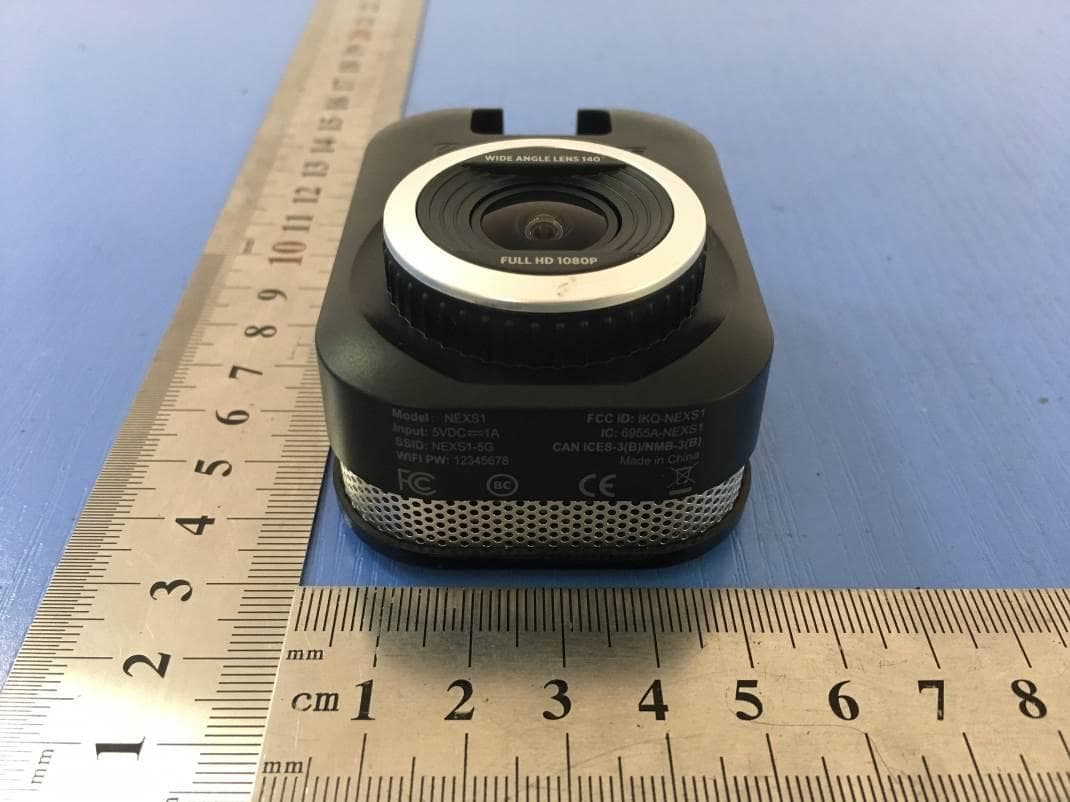

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location NEXS1 Single channel Camera Model No.: NEXS1 FCC ID: IKQ-NEXS1

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC ID: 6955A-NEXS1 1.INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC ID: 6955A-NEXS1 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC ID: 6955A-NEXS1 Fig. 5 Fig. 6 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC ID: 6955A-NEXS1 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC ID: 6955A-NEXS1 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC ID: 6955A-NEXS1 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC ID: 6955A-NEXS1 Fig. 13 Fig. 14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC ID: 6955A-NEXS1 Fig. 15 Fig. 16 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC ID: 6955A-NEXS1 Fig. 17

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: IKQ-NEXS1 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 FCC RF Exposure Evaluation 1. Product Information FCC ID: IKQ-NEXS1 Product name NEXS1 Single channel Camera Model number NEXS1 Power supply Input: DC 12-24V Output: 5V/2.4A DC 3.7V By lithium ion polymer battery(400mAh) Operation frequency IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz Bluetooth: 2402MHz-2480MHz 5.2GHz Band:5180~5240MHz Modulation Type IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK,BPSK) GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.2 (DSS) GFSK for Bluetooth V4.2 (DTS) IEEE 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) Channel Number 11 Channels for 20MHz bandwidth(2412~2462MHz) 79 Channels for Bluetooth V4.2(BDR/EDR) 40 channels for Bluetooth V4.2(BT LE) 4 channels for 20MHz bandwidth(5180MHz-5240MHz) Antenna Type Internal Antenna Antenna Gain 2.0dBi(Max.) Hardware version NEXS1_MMB-A12A25_PCB6L_V12_20191009A Software version NEXS1-V1.0.0-T6.5 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Protable Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: IKQ-NEXS1 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: IKQ-NEXS1 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information NEXS1 can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Antenna 0 Internal Antenna 2000 MHz – 2500 MHz 2 dBi BT/WiFi Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: IKQ-NEXS1 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 7 6.Conducted Power Results Mode Channel Frequency(MHz) Conducted Output Power (dBm) GFSK 0 2402 3.772 39 2441 3.812 78 2480 3.137 π/4DQPSK 0 2402 1.867 39 2441 2.222 78 2480 1.191 8DPSK 0 2402 1.878 39 2441 2.489 78 2480 1.427 GFSK(BLE) 0 2402 -0.929 19 2440 -0.429 39 2480 -1.573 IEEE 8…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 Report No.: LCS191219014AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 38 FCC TEST REPORT For Scosche Industries Inc. NEXS1 Single channel Camera Test Model: NEXS1 Prepared for : Scosche Industries Inc. Address : 1550 Pacific Ave., Oxnard, CA 93033, USA Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : January 02, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : January 02, 2020 ~ January 15, 2020 Date of Report : February 28, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 Report No.: LCS191219014AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 38 FCC TEST REPORT FCC CFR 47 PART 15E (15.407) Report Reference No. ................. : LCS191219014AED Date of Issue .................................. : February 28, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Scosche Industries Inc. Address ........................................... : 1550 Pacific Ave., Oxnard, CA 93033, USA Test Specification Standard ......................................... : FCC CFR 47 PART 15E (15.407) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : NEXS1 Single channel Camera Trade Mark ..................................... : SCOSCHE Test Model ...................................... : NEXS1 Ratings ............................................ : Input: DC 12-24V Output: 5V/2.4A DC 3.7V By lithium ion polymer battery(400mAh) Result ............................................ : Positive Compiled by: Supervised by: Approved by: Ray Yang / File administrators Jin Wang/ Technique principal Gavin Liang / Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 Report No.: LCS191219014AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 38 FCC -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS191219014AED February 28, 2020 Date of issue EUT......................................... : NEXS1 Single channel Camera Test Model............................... : NEXS1 Applicant............................... : Scosche Industries Inc. Address.................................. : 1550 Pacific Ave., Oxnard, CA 93033, USA Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Haotek Technology Co., Ltd Address................................... : Rm303, 3# Floor, 19# Bld, the Liuxian 3rd Road 71# District, Bao'an, Shenzhen, China. 518100 Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Haotek Technology Co., Ltd Address................................... : Rm303, 3# Floor, 19# Bld, the Liuxian 3rd Road 71# District, Bao'an, Shenzhen, China. 518100 Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 Report No.: LCS191219014AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 38 Revision History Revision Issue Date Revisions Revised By 000 February 28, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 Report No.: LCS191219014AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 38 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 6 1.3. EXTERNAL I/O PORT ........................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY .........................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 1 of 34 Appendix D RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: NEXS1 Single channel Camera Trade Mark: SCOSCHE Test Model: NEXS1 Environmental Conditions Temperature: 24.3  C Relative Humidity: 53.7% ATM Pressure: 100.0 kPa Test Engineer: David.Luo Supervised by: Tom.Liu D.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 92.98 0.32 0.01 11N20 SISO 5200 92.63 0.33 0.01 11AC20 SISO 5200 92.59 0.33 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 2 of 34 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 3 of 34 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 4 of 34 D.2 Maximum Conduct Output Power Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 13.24 0.32 13.55 24 Pass 40 5200 13.22 0.32 13.54 Pass 48 5240 13.44 0.32 13.76 Pass 11N20 SISO 36 5180 13.17 0.33 13.5 24 Pass 40 5200 13 0.33 13.33 Pass 48 5240 13.18 0.33 13.51 Pass 11AC20 SISO 36 5180 13.05 0.33 13.38 24 Pass 40 5200 13.15 0.33 13.48 Pass 48 5240 13.26 0.33 13.59 Pass Maximum Conducted Output Power IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 5 of 34 IEEE 802.11a / Channel 40 / 5200MHz IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 6 of 34 Maximum Conducted Output Power IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 7 of 34 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 8 of 34 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 9 of 34 IEEE 802.11ac20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 10 of 34 D.3 Power Spectral Density Test Mode Channe l Frequenc y (MHz) Power Density (dBm/MHz) Duty Cycle Factor(d B) Report Power Density (dBm/MHz) Limit (dBm/MH z) Verdic t 11A 36 5180 3.71 0.32 4.03 11 Pass 40 5200 3.57 0.32 3.89 Pass 48 5240 4.00 0.32 4.32 Pass 11N2 0 SISO 36 5180 3.01 0.33 3.34 11 Pass 40 5200 3.52 0.33 3.85 Pass 48 5240 3.64 0.33 3.97 Pass 11AC 20 SISO 36 5180 3.13 0.33 3.46 11 Pass 40 5200 3.19 0.33 3.52 Pass 48 5240 3.41 0.33 3.74 Pass Power Spectral Density IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 11 of 34 IEEE 802.11na / Channel 40 / 5200MHz IEEE 802.11na / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 12 of 34 Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 13 of 34 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 14 of 34 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 15 of 34 IEEE 802.11ac20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 16 of 34 D.4 Emission Bandwidth Test Mode Channel Frequency (MHz) 26dB Bandwidth (MHz) 99% Bandwidth (MHz) Limit (MHz) Verdict 11A 36 5180 29.88 17.886 No Limit Pass 40 5200 29.82 17.660 Pass 48 5240 30.85 17.901 Pass 11N20 SISO 36 5180 28.78 18.131 No Limit Pass 40 5200 30.28 18.221 Pass 48 5240 29.63 18.256 Pass 11AC20 SISO 36 5180 29.79 18.184 No Limi Pass 40 5200 29.66 18.134 Pass 48 5240 29.43 18.253 Pass 26dB Bandwidth IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 17 of 34 IEEE 802.11a / Channel 40 / 5200MHz IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 18 of 34 26dB Bandwidth IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 19 of 34 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 20 of 34 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 21 of 34 IEEE 802.11ac20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 22 of 34 99% Occupied Bandwidth IEEE 802.11a / Channel 36 / 5180MHz IEEE 802.11a / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 23 of 34 IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 24 of 34 99% Occupied Bandwidth IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 25 of 34 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 26 of 34 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 Page 27 of 34 IEEE 802…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: IKQ-NEXS1 IC : 6955A-NEXS1 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2
