IKQBT102AWireless Earbuds

(2) (3) Sets soft ear cushions (S, M, L) BT102A V5.0 HFP, HSP, A2DP and AVRCP 10 meters 4.5 hours 300 hours 2-3 hours DC 5.0V /500mA Double-tap MFB Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. FCC& IC Radiation Exposure Statement: This equipment complies with FCC and Canada radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Déclaration d’IC sur l’exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux radiations définies par le Canada pour des environnements non contrôlés. Cet émetteur ne doit pas être installé au même endroit ni utilisé avec une autre antenne ou un autre émetteur.

June 4, 2020 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: IKQBT102A To Whom It May Concern: We, the undersigned, hereby authorize ​SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch and Kobe Jian in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch, ​to act on our behalf in all matters in order to apply to the Federal Communications Commission on our equipment and therefore be responsible to sign the form 731 and other documentation. Any and all acts carried out by Kobe Jian in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch, on our behalf shall have the same effect as acts of our own. This authorization is limited to this product; ​FCC ID: IKQBT102A ​and expires on ​June 4, 2021. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Scosche Industries, Inc., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Mark Larson Sr. Business Manager on behalf of Scosche Industries 805/486-4450 ext. 127 Mailing: PO Box 2901, Oxnard, CA 93034 Corporate: 1550 Pacific Ave, Oxnard, CA 93033 t: 800.363.4490 f: 805.486.9996 www.scosche.com

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Scosche Industries Inc Address 1550 Pacific Ave ,Oxnard,California,93033,United States Grantee Code IKQ FCC ID BT102A Authorized Contact Name Mark Larson Contact Email [email protected] Contact Phone (805) 486-4450 154 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html

June 4, 2020 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, GA FCC ID: IKQBT102A LONG TERM CONFIDENTIALITY: Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. ●Schematic(s) ●Block Diagrams ●Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Mark Larson Sr. Business Manager on behalf of Scosche Industries 805/486-4450 ext. 127 Mailing: PO Box 2901, Oxnard, CA 93034 Corporate: 1550 Pacific Ave, Oxnard, CA 93033 t: 800.363.4490 f: 805.486.9996 www.scosche.com

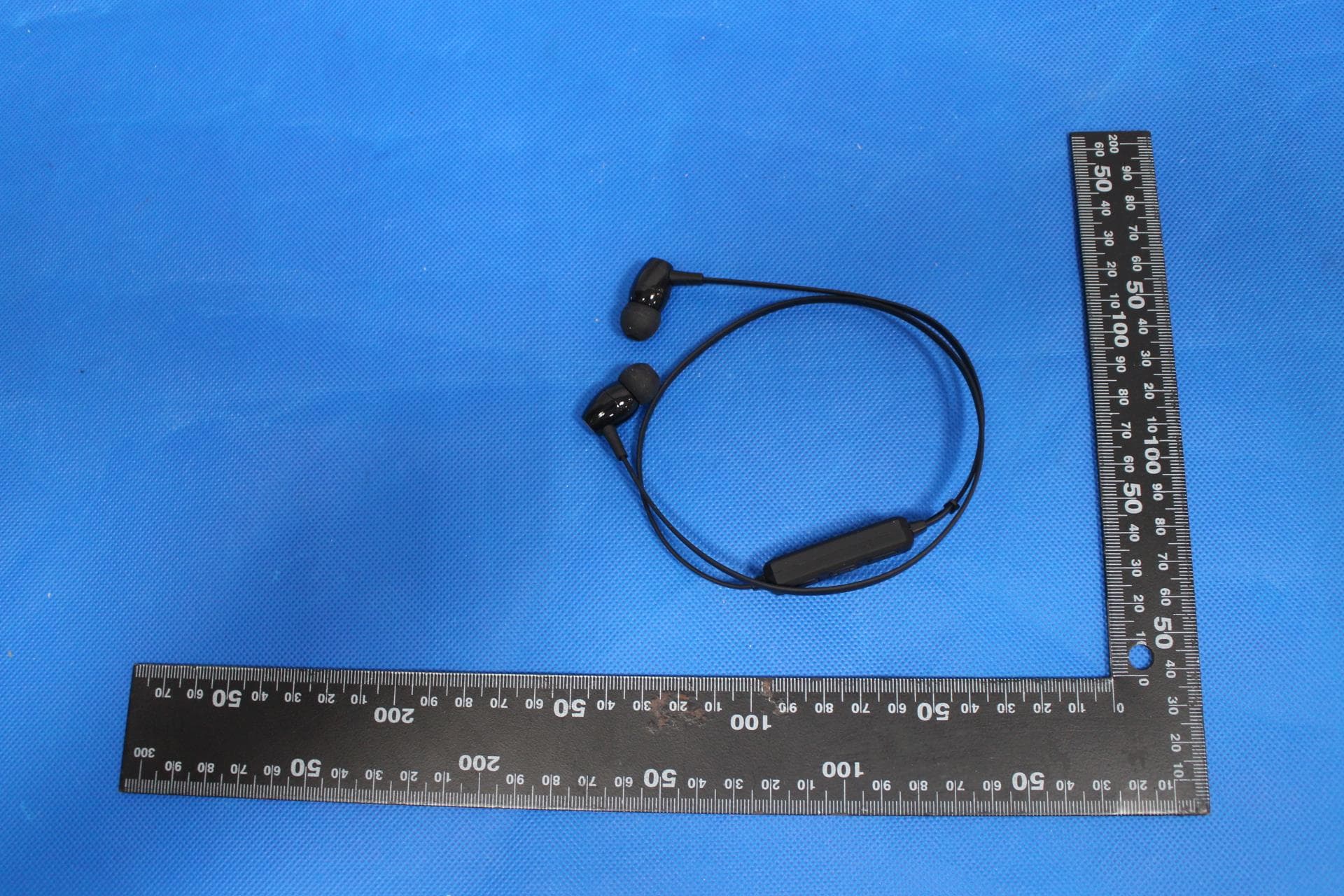

External photo

Internal photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230902 Page: 1 of 11 FCC ID: IKQBT102A Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2005012309CR Applicant: SCOSCHE INDUSTRIES, INC. Address of Applicant: 1550 Pacific Avenue, Oxnard CA 93033 United States Of America Manufacturer: SCOSCHE INDUSTRIES, INC. Address of Manufacturer: 1550 Pacific Avenue, Oxnard CA 93033 United States Of America Factory: Besstec Electronics (Zhongshan) Co., Ltd. Address of Factory: 4/F, Yujing Industrial District, No.106 Qihao Road, Huoju Development District, Zhongshan City, Guangdong Equipment Under Test (EUT): EUT Name: Wireless Earbuds Model No.: BT102A Trade Mark: SCOSCHE Standard(s): 47 CFR Part 1.1307, Part 2.1093, KDB 447498 Date of Receipt: 2020-05-14 Date of Test: 2020-05-29 Date of Issue: 2020-06-17 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230902 Page: 2 of 11 Revision Record Version Chapter Date Modifier Remark 01 2020-06-17 Original Authorized for issue by: Tested By 2020-05-29 Lily_Kuang /Project Engineer Date Checked By 2020-06-17 Ricky Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230902 Page: 3 of 11 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result RF Exposure 47 CFR Part 1.1307, Part 2.1093, KDB 447498 CFR 47 Part 2.1093 CFR 47 Part 2.1093 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230902 Page: 4 of 11 3 Contents Page 1 Cover Page .................................................................................................................................................... 1 2 Test Summary ............................................................................................................................................... 3 3 Contents ........................................................................................................................................................ 4 4 General Information ..................................................................................................................................... 5 4.1 Details of E.U.T. ..................................................................................................................................... 5 4.2 Description of Support Units .................................................................................................................. 5 4.3 Measurement Uncertainty ...................................................................................................................... 6 4.4 Test Location ......................................................................................................................................... 6 4.5 Test Facility ............................................................................................................................................ 7 4.6 Deviation from Standards ...................................................................................................................... 8 4.7 Abnormalities from Standard Conditions ............................................................................................... 8 5 Equipment List .............................................................................................................................................. 9 6 Radio Spectrum Technical Requirement ................................................................................................. 10 6.1 RF Exposure ........................................................................................................................................ 10 6.1.1 Test Requirement: ........................................................................................................................... 10 6.1.2 Conclusion ....................................................................................................................................... 10 7 Photographs ............................................................................................................................................... 11 7.1 EUT Constructional Details .................................................................................................................. 11 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230902 Page: 5 of 11 4 General Information 4.1 Details of E.U.T. Power Supply: DC 3.7V powered by built-in battery as below: Model: JYZ 350926 Rated: DC 3.7 V, 0.2035Wh DC 5V for charging mode by USB port Ports: Micro USB ports Antenna Gain: 0 dBi Antenna Type: PCB antenna Channel Spacing: 1MHz Modulation Type: GFSK, π/4DQPSK, 8DPSK Number of Channels: 79 Operation Frequency: 2402MHz to 2480MHz Spectrum Spread Technology: Frequency Hopping Spread Spectrum(FHSS) Hardware Version: 35B1306_0510A Firmware Version: V1.00 S/N: SP-20200520701 Test Software Version: BT_Tool V1.0.6 Power setting level -1 dBm 4.2 Description of Support Units Description Manufacturer Model No. Serial No. Notebook IBM T30 S/N78-3VMLX 06/01 BT test board SGS EMC RF 07 RF 07 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230902 Page: 6 of 11 4.3 Measurement Uncertainty No. Item Measurement Uncertainty 1 Radio Frequency ±5.5 x 10 -8 2 Duty cycle ±0.57% 3 Occupied Bandwidth ±3% 4 RF Conducted power ±0.68dB 5 RF Power Density ±1.50dB 6 Conducted Spurious Emissions ±1.04dB 7 RF Radiated Power ±4.5dB (below 1GHz) ±4.8dB (above 1GHz) 8 Radiated Spurious Emission Test ±4.5dB (30MHz-1GHz) ±4.8dB (1GHz-18GHz) 9 Temperature ±0.4°C 10 Humidity ±1.3% 11 Supply Voltages ±1.5% 12 Time ±3% 4.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou Branch EMC Labora…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 1 of 110 FCC ID: IKQBT102A Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2005012309CR Applicant: SCOSCHE INDUSTRIES, INC. Address of Applicant: 1550 Pacific Avenue, Oxnard CA 93033 United States Of America Manufacturer: SCOSCHE INDUSTRIES, INC. Address of Manufacturer: 1550 Pacific Avenue, Oxnard CA 93033 United States Of America Factory: Besstec Electronics (Zhongshan) Co., Ltd. Address of Factory: 4/F, Yujing Industrial District, No.106 Qihao Road, Huoju Development District, Zhongshan City, Guangdong Equipment Under Test (EUT): EUT Name: Wireless Earbuds FCC ID: IKQBT102A Model No.: BT102A Trade Mark: SCOSCHE Standard(s): 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-05-14 Date of Test: 2020-05-29 to 2020-06-15 Date of Issue: 2020-06-17 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 2 of 110 Revision Record Version Chapter Date Modifier Remark 01 2020-06-17 Original Authorized for issue by: Tested By 2020-05-29 to 2020-06-15 Lily_Kuang /Project Engineer Date Checked By 2020-06-17 Ricky Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 3 of 110 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(c) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.5 47 CFR Part 15, Subpart C 15.247(b)(1) Pass 20dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.6 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.8 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 4 of 110 3 Contents Page 1 Cover Page .................................................................................................................................................... 1 2 Test Summary ............................................................................................................................................... 3 3 Contents ........................................................................................................................................................ 4 4 General Information ..................................................................................................................................... 6 4.1 Details of E.U.T. ..................................................................................................................................... 6 4.2 Description of Support Units .................................................................................................................. 6 4.3 Measurement Uncertainty ...................................................................................................................... 7 4.4 Test Location ......................................................................................................................................... 7 4.5 Test Facility ............................................................................................................................................ 8 4.6 Deviation from Standards ...................................................................................................................... 9 4.7 Abnormalities from Standard Conditions ............................................................................................... 9 5 Equipment List ............................................................................................................................................ 10 6 Radio Spectrum Technical Requirement ................................................................................................. 14 6.1 Antenna Requirement .......................................................................................................................... 14 6.1.1 Test Requirement: ........................................................................................................................... 14 6.1.2 Conclusion ....................................................................................................................................... 14 6.2 Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence ................... 15 6.2.1 Test Requirement: .................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 81 of 110 Dwell Time_3DH3_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 82 of 110 Dwell Time_3DH3_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 83 of 110 Dwell Time_3DH3_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 84 of 110 Dwell Time_3DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 85 of 110 Dwell Time_3DH5_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 86 of 110 Dwell Time_3DH5_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 87 of 110 5.Hopping Channel Number Test Mode Test Channel Number of Hopping Channel[N] Limit[N] Verdict DH5 all hopping channels. 79 >=15 PASS 2DH5 79 >=15 PASS 3DH5 79 >=15 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 88 of 110 TEST PLOT Hopping Channel Number_DH5_2402 Hopping Channel Number_2DH5_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 89 of 110 Hopping Channel Number_3DH5_2402 6.Band-edge for RF Conducted Emissions Test Mode Test Channel Hopping Carrier Power[dBm] Max. Spurious Level [dBm] Limit[dBm] Verdict DH5 2402 On -3.451 -48.290 -23.45 PASS DH5 2402 Off -3.312 -48.525 -23.31 PASS DH5 2480 On -5.017 -48.449 -25.02 PASS DH5 2480 Off -5.939 -48.055 -25.94 PASS 2DH5 2402 On -4.433 -48.180 -24.43 PASS 2DH5 2402 Off -3.634 -48.934 -23.63 PASS 2DH5 2480 On -5.274 -47.958 -25.27 PASS 2DH5 2480 Off -6.288 -48.015 -26.29 PASS 3DH5 2402 On -3.596 -47.425 -23.6 PASS 3DH5 2402 Off -3.675 -48.970 -23.68 PASS 3DH5 2480 On -6.027 -48.044 -26.03 PASS 3DH5 2480 Off -6.025 -48.312 -26.03 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 90 of 110 TEST PLOT Band-edge for RF Conducted Emissions_DH5_2402_Hopping On Band-edge for RF Conducted Emissions_DH5_2402_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 91 of 110 Band-edge for RF Conducted Emissions_DH5_2480_Hopping On Band-edge for RF Conducted Emissions_DH5_2480_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 92 of 110 Band-edge for RF Conducted Emissions_2DH5_2402_Hopping On Band-edge for RF Conducted Emissions_2DH5_2402_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 93 of 110 Band-edge for RF Conducted Emissions_2DH5_2480_Hopping On Band-edge for RF Conducted Emissions_2DH5_2480_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 94 of 110 Band-edge for RF Conducted Emissions_3DH5_2402_Hopping On Band-edge for RF Conducted Emissions_3DH5_2402_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 95 of 110 Band-edge for RF Conducted Emissions_3DH5_2480_Hopping On Band-edge for RF Conducted Emissions_3DH5_2480_Hopping Off SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 96 of 110 7.RF Conducted Spurious Emissions Test Mode Test Channel StartFre [MHz] StopFre [MHz] RBW [kHz] VBW [kHz] Pref[dBm] Max. Level [dBm] Limit [dBm] Verdict DH5 2402 30 10000 100 300 -3.234 -54.242 <-23.234 PASS DH5 2402 10000 26000 100 300 -3.234 -50.446 <-23.234 PASS DH5 2441 30 10000 100 300 -4.721 -54.722 <-24.721 PASS DH5 2441 10000 26000 100 300 -4.721 -51.150 <-24.721 PASS DH5 2480 30 10000 100 300 -5.961 -50.161 <-25.961 PASS DH5 2480 10000 26000 100 300 -5.961 -51.313 <-25.961 PASS 2DH5 2402 30 10000 100 300 -3.683 -54.316 <-23.683 PASS 2DH5 2402 10000 26000 100 300 -3.683 -52.246 <-23.683 PASS 2DH5 2441 30 10000 100 300 -5.096 -54.465 <-25.096 PASS 2DH5 2441 10000 26000 100 300 -5.096 -51.237 <-25.096 PASS 2DH5 2480 30 10000 100 300 -6.519 -46.280 <-26.519 PASS 2DH5 2480 10000 26000 100 300 -6.519 -51.612 <-26.519 PASS 3DH5 2402 30 10000 100 300 -3.418 -54.699 <-23.418 PASS 3DH5 2402 10000 26000 100 300 -3.418 -51.036 <-23.418 PASS 3DH5 2441 30 10000 100 300 -4.937 -53.455 <-24.937 PASS 3DH5 2441 10000 26000 100 300 -4.937 -49.701 <-24.937 PASS 3DH5 2480 30 10000 100 300 -6.107 -54.607 <-26.107 PASS 3DH5 2480 10000 26000 100 300 -6.107 -51.450 <-26.107 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 97 of 110 TEST PLOT RF Conducted Spurious Emissions_DH5_2402 Pref CSE_1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 98 of 110 CSE_2 RF Conducted Spurious Emissions_DH5_2441 Pref SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 99 of 110 CSE_1 CSE_2 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 100 of 110 RF Conducted Spurious Emissions_DH5_2480 Pref CSE_1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 101 of 110 CSE_2 RF Conducted Spurious Emissions_2DH5_2402 Pref SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 102 of 110 CSE_1 CSE_2 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 103 of 110 RF Conducted Spurious Emissions_2DH5_2441 Pref CSE_1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page: 104 of 110 CSE_2 RF Conducted Spurious Emissions_2DH5_2480 Pref SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501230901 Page…

Text truncated - open the document above for the full version.

Test Setup photo 1.1 RF test Setup 1.2 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup 1.3 Radiated Emissions which fall in the restricted bands & Radiated Spurious Emissions Test Setup
