IKQBT1200Bluetooth Carkit

• Electronics Box • Keypad Control • Microphone • Power / Speaker / Mute (ISO harness) • Low-level connection harness • Instruction manual • Hardware bag BEFORE BEGINNING Check all vehicle manufacturer cautions and warnings regarding electrical service (AIR BAGS, ABS BRAKES, ENGINE/BODY COMPUTER AND BATTERY). PLAN OUT YOUR INSTALLATION You should pre-determine the location of the microphone, keypad controller and electronics box. This will save time and ease the installation process. USE A VOLT/OHM METER We recommend the use of a Volt/Ohm meter to test and locate all connections. Test lights could possibly damage a vehicle’s computer system or cause an airbag to deploy. DO NOT ROUTE ANY WIRING THAT MAY BECOME ENTANGLED with the brake/gas pedals, steering column, or any other moving parts in the vehicle. MICROPHONE For best performance, the BT1200 microphone must be pointed toward the direction of the driver’s voice. We recommend choosing a location between the rear-view mirror and sun visor. The microphone can also be mounted near the top of the A-pillar (windshield post). ELECTRONICS BOX Mount the BT1200 electronics box behind the stereo. Do not mount the electronics box near sources of high heat, moisture or moving parts. Hardware is included to attach the BT1200 box to the vehicle. KEYPAD CONTROLLER The keypad is designed to easily mount in a blank switch plate, dash panel or center console. Carefully INSTALLATION CAUTIONS & WARNINGS MICROPHONE ELECTRONICS BOX KEYPAD CONTROLLER BT1200 BLUETOOTH TM HANDS-FREE UNIVERSAL CAR KIT ©2010 SCOSCHE INDUSTRIES, INC.300BT1200 01/10 PARTS INCLUDED 1 2 3 FIGURE 1 2 INSTALLATION OVERVIEW LEGEND: 1. Handsfree microphone 2. Control keypad 3. Electronics box CALLS HEARD THROUGH FACTORY SPEAKERS IMPORTANT: INSTALL THE ELECTRONICS BOX BEHIND THE GLOVE COMPARTMENT OR BEHIND THE FACTORY RADIO. MAKE ALL PROPER CONNECTIONS AND ROUTE ALL CABLES PRIOR TO HIDING THE ELECTRONICS BOX. FIGURE 2 3 WIRE CHART (20-pin MOLEX to ISO Power, Mute and Speaker In/Out) LOC. COLOR FUNCTION P1 Brown Negative (-) Mute output P2 Black Ground P3 Gray/Black Front Right Negative (-) speaker input (From car stereo) P4 Gray Front Right Positive (+) speaker input (To car stereo) P5 White/Black Front Left Negative (-) speaker input (To car stereo) P6 White Front Left Positive (+) speaker input (To car stereo) P7 Violet/Black Rear Right Negative (-) speaker input (To car stereo) P8 Violet Rear Right Positive (+) speaker input (To car stereo) P9 Green/Black Rear Left Negative (-) speaker input (To car stereo) P10 Green Rear Left Positive (+) speaker input (To car stereo) P11 Red +12v Switched Accessory (Fused 2A) P12 Yellow +12v Battery Constant (Fused 2A) P13 Gray/Black Front Right Negative (-) speaker output (To car speaker) P14 Gray Front Right Positive (+) speaker output (To car speaker) P15 White/Black Front Left Negative (-) speaker output (To car speaker) P16 White Front Left Positive (+) speaker output (To car speaker) P17 Violet/Black Rear Right Negative (-) speaker output (To car speaker) P18 Violet Rear Right Positive (+) speaker output (To car speaker) P19 Green/Black Rear Left Negative (-) speaker output (To car speaker) P20 Green Rear Left Positive (+) speaker output (To car speaker) WIRE CHART (8-pin Preamp Line-Level Audio 2CH In/Out) P1 Gray/Black Right Channel Negative (-) output (To car amplifier) P2 Gray Right Channel Positive (+) output (To car amplifier) P3 White Left Channel Positive (+) output (To car amplifier) P4 White/Black Left Channel Negative (-) output (To car amplifier) P5 Gray/Black Right Channel Negative (-) input (To car stereo) P6 Gray Right Channel Positive (+) input (To car stereo) P7 White Left Channel Positive (+) input (To car stereo) P8 White/Black Left Channel Negative (-) input (To car stereo) CONNNECTIONS FIGURE 3 4 INSTALLATION STANDARD INSTALLATION Use the Speaker Input/Output connections on the 20-PIN Speaker / Power / Mute ISO connector. NOTE: Option ISO-to-Vehicle specific harness connector kits are available to make the BT1200 a plug and play installation. These harness connector kits sold separately and not included with the BT1200 (See T-Harness section on page 5). 1. Locate the 4 speakers outputs of the vehicles stereo. 2. Cut and connect input wires of the BT1200 (Pin#3-#10) to the vehicle’s speaker outputs coming directly from the stereo side. 3. Connect the BT1200 speaker output wires (Pin#13-#20) to the remaining speaker leads that go directly to the vehicles front and rear speakers. OPTIONAL MUTE CONNECTION The BT1200 provides a Negative (-) Mute output for use with stereo’s that have a compatible Negative (-) “Mute” input to attenuate the Audio during Hands-free kit use. See the DIAGRAM for typical connec- tion types. The BROWN Mute wire provides a Negative (-) output when there is an active incoming or outgo- ing call. MUTE FUNCTION (Brown Negative Trigger Wire) The BT1200 supports mute func- tionality ensuring that the stereo will not play audio during cellular use. If you’ve installed the BT1200 in the standard method using the input/ output speaker wires provided, then your stereo should automati- cally be muted by the BT1200. If you have a Premium sound system with additional speakers like one or more subwoofers, you may be able to utilize the Negative MUTE output provided by the BT1200. Check your Stereo’s documentation to determine whether it has a designated Negative Mute INPUT. If this is the case, then tap the Brown wire of the BT1200 to the MUTE wire of your stereo. During phone calls the BT1200 will send a Negative Ground signal to the BROWN wire. MUTE WIRE FACTORY AMP INPUT OUTPUT White: Audio Left + White/Black: Audio Left - Grey: Audio Right + Grey/Black: Audio Right - White: Audio Left + White/Black: Audio Left - Grey: Audio Right + Grey/Black: Audio Right - FACTORY RADIO FACTORY SPEAKERS BT1200 8-PIN PRE-AMP LINE LEVEL INSTALLATION HARNESS FIGURE 4 INSTALLATION (cont’d) 5 LOW-LEVEL AUDIO INSTALLATION Use the L…

Text truncated - open the document above for the full version.

To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: FCC ID: IKQBT1200 We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf, as our agent, in the following matters related to the FCC approval of our product: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by SGS within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Jack DeBiasio Sr. Product Manager New Technology

December 30, 2009 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: IKQBT1200 Pursuant to Sections 0.457 and 0.459 of the CFR47, we hereby request permanent confidential treatment of information accompanying this application: 1. Block Diagrams 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Jack DeBiasio Senior Project Manager New Technology

To Whom It May Concern: Please be advised that although I, Peter Butcher, am named on FCC correspondence as the contact of Scosche Industries, Jack DeBiasio has authorization to sign any necessary forms on behalf of Scosche Industries. If you require anything further from me, please do not hesitate to contact me at extension 112. Sincerely, Peter Butcher Vice President of Operations

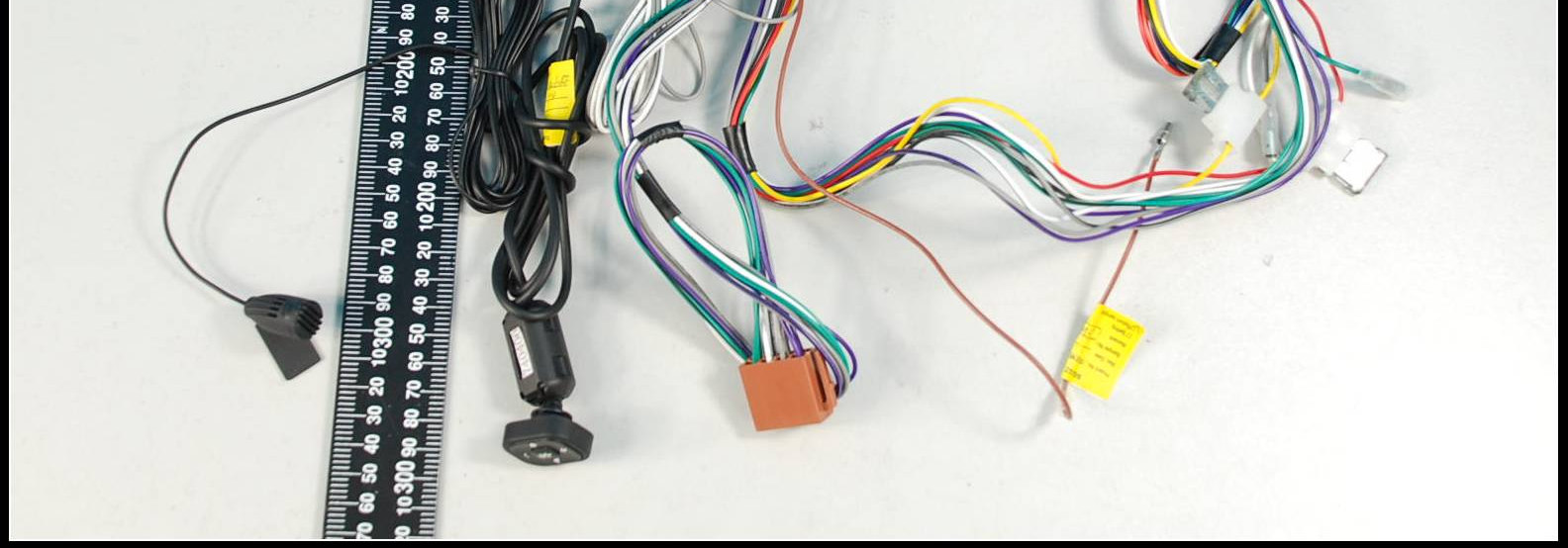

External photos

Internal photos

SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GLEMO09120406201 Page: 1 of 2 FCC ID: IKQBT1200 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. RF Exposure Compliance Requirement 1. Standard requirement Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times
E
2
,H
2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times
E
2
,H
2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/500 30 1500-100000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GLEMO09120406201 Page: 2 of 2 FCC ID: IKQBT1200 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2. MPE Calculation Method E (V/m)=(30*P*G) 0.5 /d Power Density: Pd(W/m 2 )=E 2 /377 E=Electric Field (V/m) P=Peak RF output Power (W) G=EUT Antenna numeric gain (numeric) d= Separation distance between radiator and human body (m) The formula can be changed to Pd= (30*P*G)/(377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 3. Calculated Result and Limit Normal mode: Frequency (MHz) Antenna Gain (dBi) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.402 0 3.63 2.307 0.00046 1 Complies 2.441 0 3.95 2.483 0.00049 1 Complies 2.480 0 3.59 2.286 0.00045 1 Complies EDR mode: Frequency (MHz) Antenna Gain (dBi) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.402 0 3.59 2.286 0.00045 1 Complies 2.441 0 2.86 1.932 0.00038 1 Complies 2.480 0 2.03 1.596 0.00032 1 Complies

5858 Report No.:GLEMO09120406201 Page: 1 of 58 FCC ID: IKQBT1200 Authorized Signature: Stephen Guo Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only SGS-CSTC Standards Technical Services Ltd. 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, Guangdong, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No.: GLEMO091204062RF Applicant: Scosche Industries Inc. Manufacturer: Sunitec Enterprise Co., Ltd. Equipment under Test (EUT) Name: Bluetooth Carkit Model No.: IKQBT1200 FCC ID: IKQBT1200 Radio Function: Bluetooth Standards: FCC PART 15 Subpart C: 2008 Date of Test: 2009-12-28 to 2010-03-23 Date of Issue: 2010-03-24 Test Result : PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Please refer to section 3 of this report for further detail. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GLEMO09120406201 Page: 2 of 58 FCC ID: IKQBT1200 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2 Version Version No. Date Description 00 2010-03-24 Original Prepared By: Celia Xiang Date 2010-03-24 Project Engineer Check By: Jeffrey Chen Date 2010-03-24 Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GLEMO09120406201 Page: 3 of 58 FCC ID: IKQBT1200 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 3 Test Summary Test Test Requirement Standard Paragraph Result Antenna Requirement FCC PART 15 :2008 Section 15.247 (c) PASS Occupied Bandwidth FCC PART 15 :2008 Section 15.247 (a1) PASS Carrier Frequencies Separated FCC PART 15 :2008 Section 15.247(a)(1) PASS Hopping Channel Number FCC PART 15 :2008 Section 15.247(a)(1)(iii) PASS Dwell Time FCC PART 15 :2008 Section 15.247(a)(1)(iii) PASS…

Text truncated - open the document above for the full version.

Radiated Spurious Emission Test Setup Below 1GHz: Above 1GHz:
