IKQBT4Scosche BOOMBOTTLE SPLASH

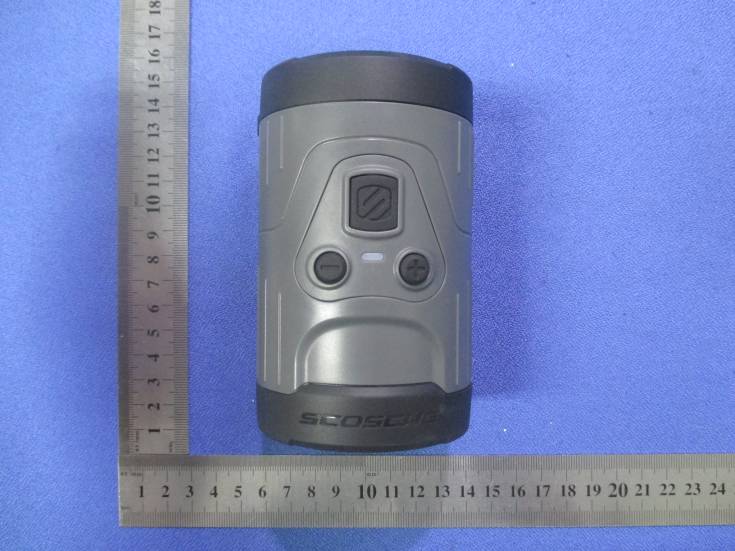

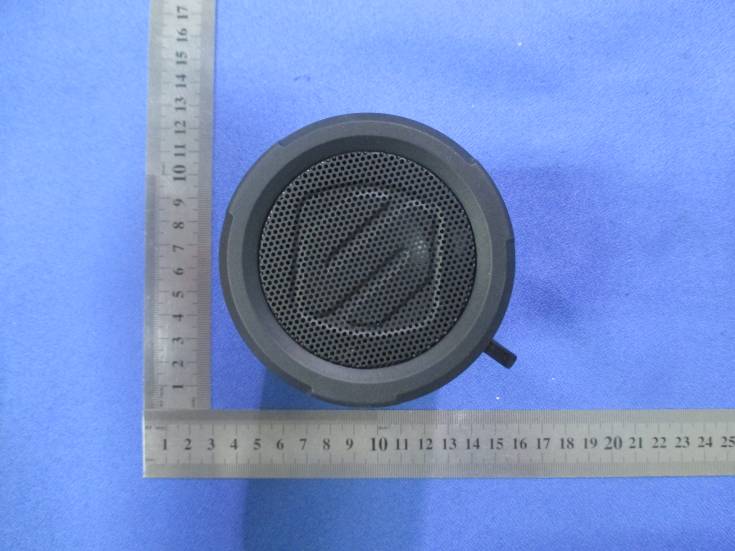

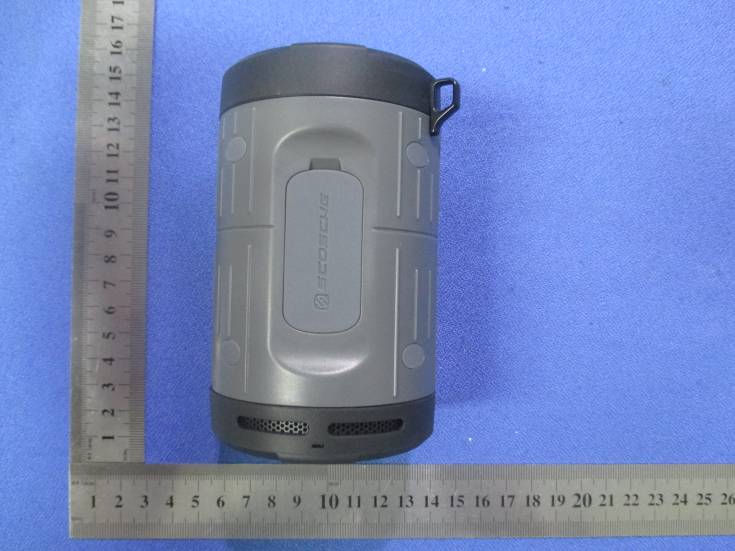

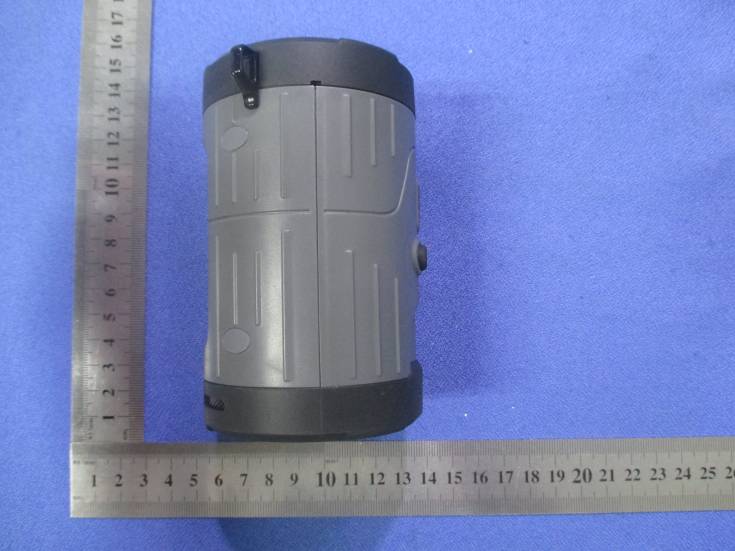

©2014 SCOSCHE INDUSTRIES, INC. SI 300BT4 12/13 RUGGED SPLASHPROOF WIRELESS SPEAKER BOOMBOTTLE TM SPLASH BT4 FEATURES • Listen to music with integrated Bluetooth technology. • Wireless range of up to 33 ft. • Durable IPX4 weatherproof construction. • Rugged outdoor design with shock absorbing silicone body and TPU speaker covers • Floating design for safe, easy retrieval • 3.5mm audio jack for directly connecting virtually any audio player. Works with: Most smartphones and tablets with A2DP streaming audio. Bluetooth is a registered trademark of Bluetooth SIG, Inc. Register your product online at www.scosche.com/register 2 SPECIFICATIONS Audio Input: Bluetooth & 3.5mm auxiliary Battery: 2200mAh li-ion polymer, rechargeable Continuous use time: Up to 8 hrs. Operating range: 33 ft. (10m) Power output: 5W(3Ω 1kHz) Amplifier output: 4Ω 5W Frequency response: 190Hz-20kHz Bluetooth version 4.0 Class 2; AVRCP, A2DP Dimensions: 115 mm H x 72 mm D Waterproof Rating: IPX4 weatherproof PARTS INCLUDED (1) Speaker (1) micro-USB to USB charge cable 1. SPEAKER 2. CARABINER ANCHOR 3. MFB (MULTIFUNCTION BUTTON) 4. VOLUME DOWN (-) 5. VOLUME UP (+) 6. CONNECTION STATUS LED 7. ACCESS PANEL COVER 8. ACCESS PANEL 9. micro-USB INPUT PORT 10. LED CHARGING INDICATOR 11. 3.5mm AUDIO INPUT 12. micro-USB to USB CHARGING CABLE 3 1 9 5 4 2 3 8 11 7 6 12 10 4 OPERATION Power on/Pairing: Press the multifunction button (MFB) to turn on the BOOMBOTTLE SPLASH. A tone prompt will sound, and the unit will immediately search for and pair with previously connected devices. I. In your device’s Bluetooth menu, search for and select “Scosche boomBOTTLE Splash”. II. While in search mode the Blue LED flashes 2 times then pauses for 2 seconds. If pairing is successful the Blue LED flashes 3 times then pauses for 2 seconds. III. If no previously connected device is found, unit will automatically enter pairing mode to connect to a new device. The Blue LED flashes 4 times/sec. If pairing is successful the Blue LED flashes 3 times then pauses for 2 seconds. Power off: Press and hold the MFB for 5 seconds to turn off the unit. A tone prompt will sound. Re-pairing: To change the connected device, press and hold the MFB for 3 seconds, then release the button. The last connected device will be disconnected, and the BOOMBOTTLE SPLASH will enter pairing mode. The Blue LED flashes 4 times/sec. If pairing is successful the Blue LED flashes 3 times then pauses for 2 seconds. Volume Control: Adjust the volume up/down (+/-) buttons. If the volume is already at maximum, there will be a beep when you press the volume (+) button. Reset Device: Hold the MFB button for 10 seconds. Auto shut-off: BOOMBOTTLE SPLASH will shut down after 10 minutes with no Bluetooth or 3.5mm connection. If there is a Bluetooth connection the BOOMBOTTLE SPLASH will not shut off automatically. 5 OPERATION (cont’d) Playback with Bluetooth connection Play/Pause: Press MFB once. I. During playback: Blue LED flashes 2 times then pauses for 1 sec. II. During pause: Blue LED flashes 3 times then pauses for 2 secs. Track forward: Press MFB twice. Track back: Press MFB 3 times. Playback with 3.5mm Aux connection Note: When the 3.5mm audio cable is connected to the BOOMBOTTLE SPLASH the Bluetooth will be disconnected and shut down with POWER OFF prompt tone. I. During 3.5mm connection the LED indicator light will change to Green, and the BOOMBOTTLE SPLASH will have no prompt sounds. II. With 3.5mm connection, all functions can only be controlled by the connected device (not the speaker). III. When the 3,5mm audio cable is removed, the POWER ON prompt tone will sound, Bluetooth will be turned on, and the BOOM- BOTTLE SPLASH will connect to the latest device automatically. Charging the BOOMBOTTLE SPLASH I. When the battery level falls below 10% the LED will flash RED. When the battery level falls below 5%, the unit will shut off automatically. II. Use the included micro-USB to USB cable to charge the unit from a USB power source. III. The LED will show solid Red during charging. IV. When the battery is fully charged, the Red LED will shut off. 6 FCC AUTHORIZATION This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: 1) This device may not cause interference, and 2) this device must accept any interference that may be received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. Such modification could void the user’s authority to operate the equipment. FCC ID: IKQBT4 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. IC: 6955A-BT4 IC NOTE 7 LIMITED WARRANTY Scosche Industries Inc. warrants this product to be free from defects in material and workmanship for a period of 90 days from purchase. This Scosche product is sold with the understanding that the purchaser has independently determined the suitability of this product. This warranty is offered to the original purchaser of the product only. This warranty does not cover the product if physically damaged, subject to negligence or misuse, abuse, alteration, accident, or an act of GOD. This warranty does not apply to product which has water or physically damaged by accident or which has been misused, disassembled or altered. T…

Text truncated - open the document above for the full version.

Scosche Industries Inc 1550 Pacific Ave, Oxnard, CA, United States 93033 TEL: 805-486-4450 FAX: 805-486-9996 DATE 07-25-2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: IKQBT4 Product Name: Scosche BOOMBOTTLE SPLASH Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 07-25-2014 By: Peter Butcher Signature Printed Title: VP, Operations On behalf of : Scosche Industries Inc Telephone: 805-486-4450

Scosche Industries Inc 1550 Pacific Ave, Oxnard, CA,United States 93033 TEL: 805-486-4450 FAX: 805-486-9996 Series Models Description FCC ID:IKQBT4 IC:6955A-BT4 Date: July 19, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: To whom concern: The device (Product Name: Scosche BOOMBOTTLE SPLASH) Models Name: BT4, BT4GY, BT4Y, BT4BL, BT4G, BT4P, BT4SG, BT4SO have same electrical, PCB and BOM, only the model’s name and color are different for marketing requirements. Sincerely, Peter Butcher / VP, Operations

Scosche Industries Inc 1550 Pacific Ave, Oxnard, CA, United States 93033 TEL: 805-486-4450 FAX: 805-486-9996 USB Port Statement FCC ID: IKQBT4 Date: July 19, 2014 To whom it may concern: We, the undersigned, state that the device's (Model: BT4, BT4GY, BT4Y, BT4BL, BT4G, BT4P, BT4SG, BT4SO) USB port only used for charge, no any data transfer to PC. Sincerely, Peter Butcher / VP, Operations

FCC ID Label Information 1. Label location: 2. FCC ID&IC ID Label: Scosche Industries, Inc. Scosche BOOMBOTTLE SPLASH Model: BT4 FCC ID: IKQBT4 IC: 6955A-BT4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 72.89 dBuV/m @3m Ant gain 0dBi ;so Ant numeric gain=1 So pt={ [10 (72.89 /20) /10 6 x3] 2 /30x1 }x1000 mW =0.006Mw So (0.006mW/5mm)x √2.480GHz = 0.002 <3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C & RSS-210 TEST REPORT Report Reference No......................: CTL1402130174-WF Compiled by ( position+printed name+signature)..: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Tracy Qi Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: July 24, 2014 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Applicant’s name............................: Scosche Industries, Inc. Address.............................................: 1550 Pacific Ave, Oxnard, CA, United States 93033 Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. RSS-210 Issue 8 (2010): Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Scosche BOOMBOTTLE SPLASH Trade Mark .......................................: SCOSCHE Models/Type reference.....................: BT4, BT4GY, BT4Y, BT4BL, BT4G, BT4P, BT4SG, BT4SO Modulation .......................................: FHSS Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: IKQBT4 IC ......................................................: 6955A-BT4 Result................................................: Positive V1.0 Page 2 of 35 Report No.: CTL1402130174-WF T E S T R E P O R T Test Report No. : CTL1402130174-WF July 24, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Scosche BOOMBOTTLE SPLASH Model /Type : BT4 Listed Modes : BT4GY, BT4Y, BT4BL, BT4G, BT4P, BT4SG, BT4SO Difference Description : Only the color and model's name is different. Applicant : Scosche Industries, Inc. Address : 1550 Pacific Ave, Oxnard, CA, United States 93033 Manufacturer Shenzhen CCA Electronic Factory Address Building 120-121th, Pinghuan Industrial Area, Pingshan Town, Longgang District, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 35 Report No.: CTL1402130174-WF Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 6 2.5. EUT configuration 6 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 7 3.6. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. Conducted Emissions Test 10 4.2. Radiated Emission Test 13 4.3. Band Edge Measurement 20 4.4. Occupied Bandwidth Measurement 24 5. ANTENNA REQUIREMENT ....................................................... 26 6. TEST SETUP PHOTOS OF THE EUT .......................................... 27 7. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 30 V1.0 Page 4 of 35 Report No.: CTL1402130174-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 RSS-210 Issue 8 (2010): Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment V1.0 Page 5 of 35 Report No.: CTL1402130174-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : July 13, 2014 Testing commenced on : July 13, 2014 Testing concluded on : July 23, 2014 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ● Other (specified in blank below) DC 3.7V from battery 2.3. Short description of the Equipment under Test (EUT) The EUT is a Scosche BOOMBOTTLE SPLASH work at 2402~2480 MHz. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 …

Text truncated - open the document above for the full version.
