IKQBTRHBluetooth Audio Receiver

BTRH Bluetooth audio receiver User’s manual Content
Brief introduction...............................................................1 1. Bluetooth wireless communication technology............................1 2. About BTRH....................................................................1
Basic operation...................................................................1 1. Overview...........................................................................1 2. The steps of operation...........................................................2 3. Paired with Bluetooth device...................................................2 1) How to enter paired mode.......................................................2 2) Pairing with Bluetooth phone..................................................2 3) Pairing with Bluetooth transmitter............................................3 4. Supply power for other device charging....................................3 5. LED indicator.....................................................................4
Care and maintenance.......................................................4
FAQs................................................................................5
Specifications...................................................................5 Welcome to use this Bluetooth audio receiver BTRH. Please read this user’s manual carefully before use.
Brief introduction 1. Bluetooth wireless communication technology Bluetooth is a standard of close range wireless communication technology that was drawn up by Ericsson, IBM, Intel, Nokia and Toshiba in May, 1998. With Bluetooth technology, we can achieve the highest transmission rate among cell phones, computers, printers, PDAs and other devices. The max transmission range of class II is 10 meters while the max transmission ranges of class I can reach up to 100 meters. 2. About BTRH BTRH is a stereo Bluetooth receiver with power pin, it has following features:  Enjoy stereo music wireless with device which support Bluetooth A2DP profile;  It can supply DC5V-1A to other device for charging.
Basic operation 1. Overview 1 1 USB charging jack 2 Power pin 3 Status indicator light 4 3.5mm audio line-out jack 2. The steps of operation  The receiver will turned on automatically when plug it into standard AC socket, and it will enter pairing mode  Paired with Bluetooth phone or Bluetooth transmitter  Connected receiver and external audio device through 3.5 to 3.5mm audio line  It can transfer music from phone or transmitter to external audio device 3. Paired with Bluetooth device 1) How to enter pairing mode Function Operation LED indicator Entering pairing mode After turned on, it will enter pairing mode automatically Blue LED flash continuously Remarks: The pairing mode will last 2 minutes, BTRH will switch to standby mode automatically, if no devices can be connected after 2 minutes 2) Pairing with Bluetooth phone Prior to using the receiver for the first time, you have to pair it with a Bluetooth phone. Please make sure your phone has Bluetooth function and it is available. The pairing procedures are subject to different models of cell phones. Please refer to your cell phone user’s manual for further information. The general pairing procedures are as follows:    Keep your receiver and phone within 1 meter when pairing;    Make the receiver enter pairing mode(please refer to “How to enter pairing mode”)    Activate your cell phone’s Bluetooth function and set your cell phone to search for Bluetooth devices within range, and select “BTRH” from the list of devices shown;    According to the indication, enter password or PIN No: “0000”, and press “YES” or “Confirm”; 2    If prompted by your cell phone to connect, select “Yes” (this will vary among cell phone models). After successful connecting, blue LED will flash twice every 4 seconds. Remarks:  The receiver can remember 8 paired devices. When the number of devices exceeds 8, the first one will be replaced.  If the phone and receiver over range, the receiver will disconnect and enter standby mode. It will connect automatically if phone and receiver back to available range in 5 minutes. You also can select BTRH on the phone after 5 minutes. 3) Pairing with Bluetooth transmitter You can pair receiver with Bluetooth transmitter to enjoy wirelessly music. Hereby take BTT001 (Bluetooth transmitter for iPod, not included) for example. The pairing steps are as follows:  Keep the Bluetooth transmitter and the receiver within 1 meter when pairing;  Make the receiver enter pairing mode (please refer to “How to enter pairing mode);  Plug the Bluetooth transmitter into cell phone and activate it. The transmitter will search device automatically and start pairing;  When the receiver requests PIN No., the Bluetooth transmitter will respond “0000” automatically;  After successful pairing and connecting, blue LED of the receiver blinks twice every 4 seconds. Note:  The pairing password of the receiver is “0000”. So, the receiver can only pair with a Bluetooth transmitter whose pairing password is “0000”.  If pairing still fails after several tries, please refer to the Bluetooth transmitter’s user’s manual for further information. 4. Supply power for other device charging The USB port of receiver can provide DC5V-1A for other device charging. You also can charge your device by BTRH through USB cable. 3 Remarks:  Please use standard USB cable which compatible with your device  The USB port can only provide DC5V-1A, please make sure the charging voltage of your device is DC5V and the max charging current no higher than 1A 5. LED indicator Status of receiver LED indicator Pairing mode Blue LED flash continuously Standby mode(not connect device) Blue LED flash once every 2 seconds Standby mode(has already connected device) Blue LED flash twice every four seconds



Care and maintenance Read the following recommendations carefully befor…

Text truncated - open the document above for the full version.

Date: 2012.12.06 Federal Communications Commission Authorization and Evaluation Division FCC ID: IKQBTRH Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name：Peter Butcher Company name: Scosche Industries Inc Tel.：805-486-4450 Fax：805-486-9996

AGENCY AUTHORIZATION LETTER FCC ID: IKQBTRH Date: 2012.12.06 To whom it may concern: We, the undersigned, hereby authorize Bureau Veritas Shenzhen Co. Ltd Dongguan Branch., to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by BVDG within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name：Peter Butcher Company name: Scosche Industries Inc Tel.：805-486-4450 Fax：805-486-9996

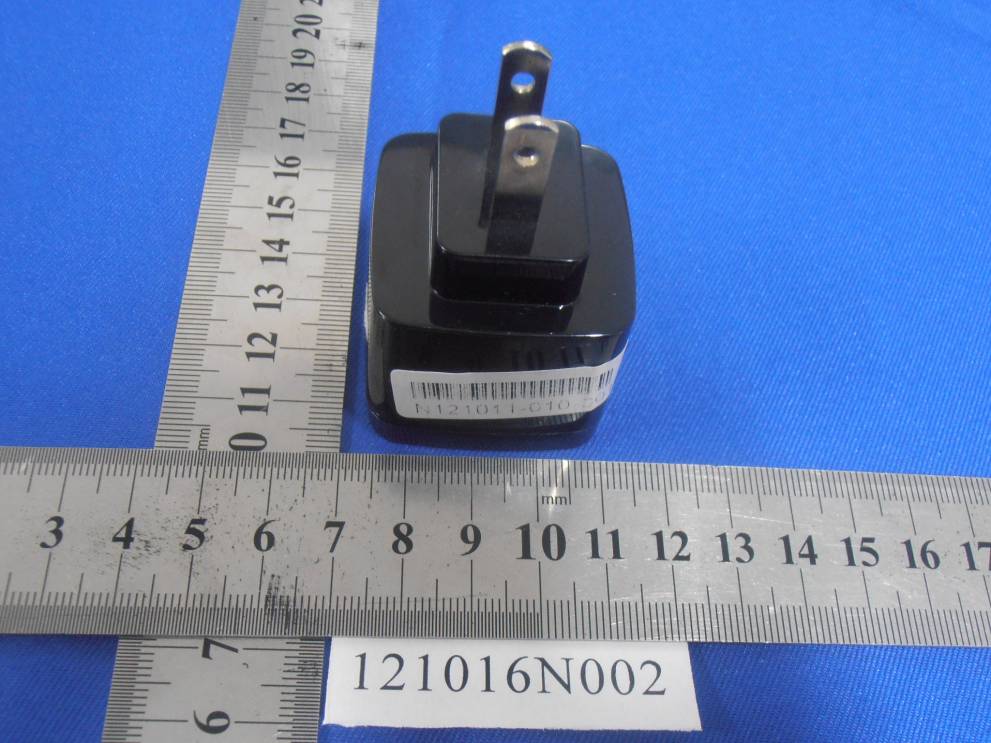

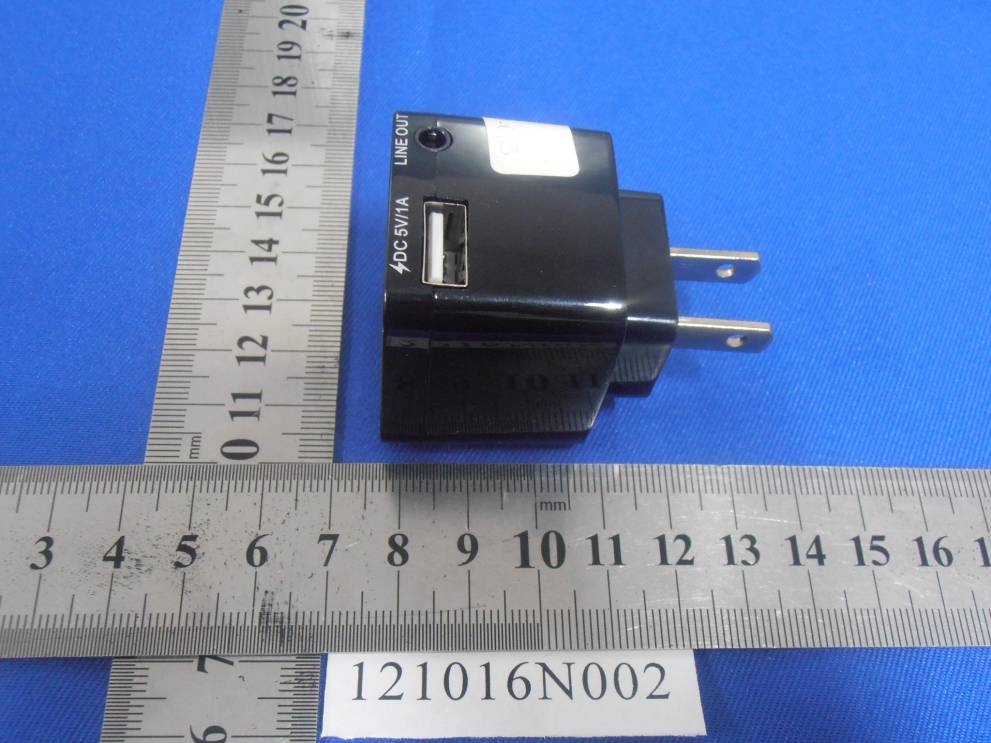

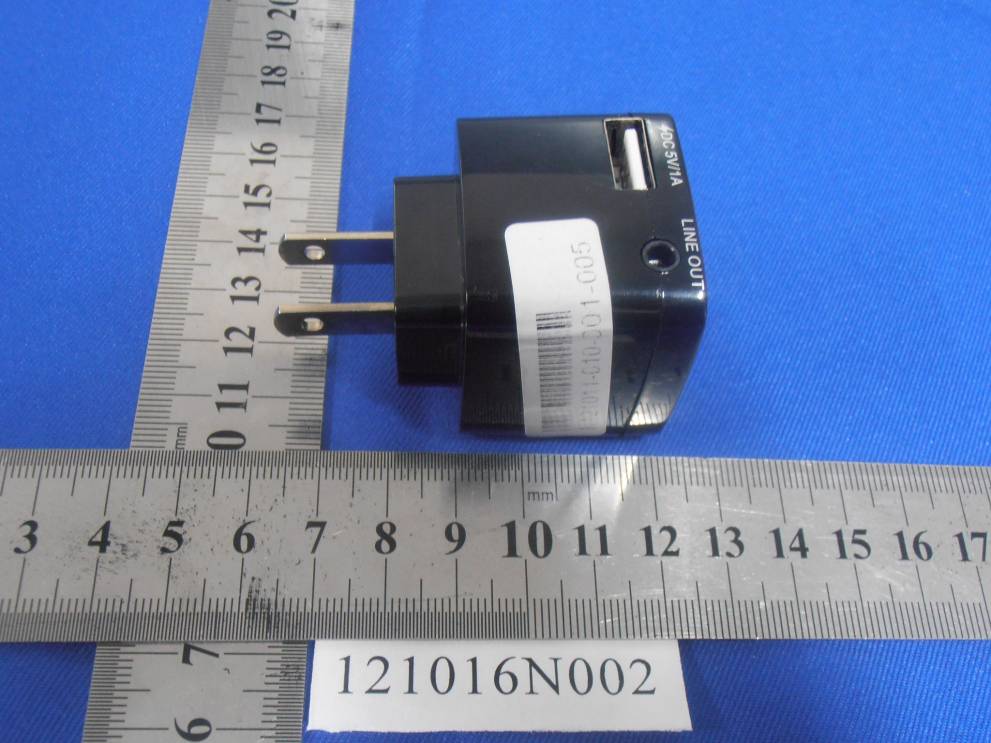

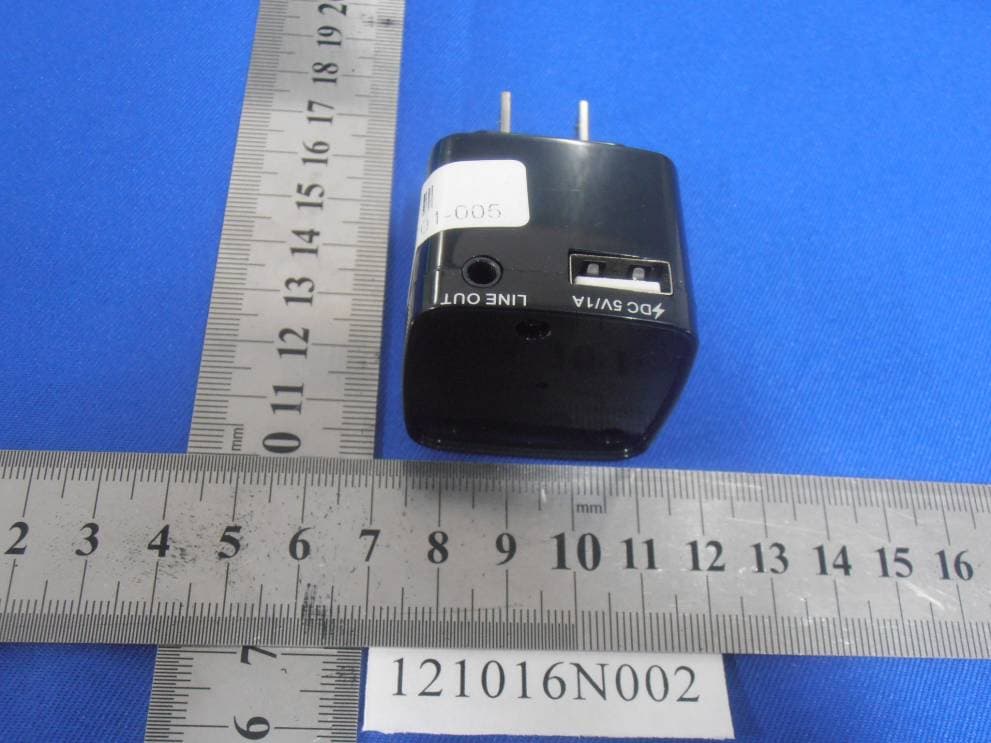

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Test Report No.: RF121205N024 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Test Report No.: RF121205N024 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Test Report No.: RF121205N024

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Test Report No.: RF121205N024 PHOTOGRAPHS OF THE EUT ANT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Test Report No.: RF121205N024 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Test Report No.: RF121205N024

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 34 Report Version 1 Test Report No.: RF121205N024 TEST REPORT Applicant Scosche Industries, Inc. Address 1550 Pacific Ave, Oxnard, CA 93033 Manufacturer or Supplier Zhongshan K-mate General Electronics Co., Ltd Address B1 Building, Fuwan Ind. Zone, Fuwan Nan Road, East District, Zhongshan, China Product Bluetooth Audio Receiver Brand Name SCOSCHE Model BTRH Additional Model & Model Difference: N/A Date of tests Oct. 17 ~Oct. 26, 2012 The tests have been carried out according to the requirements of the following standard: FCC PART 15, SUBPART C (SECTION 15.249) CONCLUSION: The submitted sample was found to COMPLY with the test requirement Prepared by Grace Ren Project Engineer / EMC Department Approved by Sam Tung Manager / EMC Department Date: Dec. 06, 2012 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 34 Report Version 1 Test Report No.: RF121205N024 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 4 1 SUMMARY OF TEST RESULTS.................................................................................................... 5 2 MEASUREMENT UNCERTAINTY................................................................................................. 5 3 GENERAL INFORMATION ............................................................................................................6 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 6 3.2 DESCRIPTION OF TEST MODES ............................................................................................. 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 8 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................... 8 4. TEST TYPES AND RESULTS........................................................................................................ 9 4.1 CONDUCTED EMISSION MEASUREMENT ............................................................................. 9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................................. 9 4.1.2 TEST INSTRUMENTS....................................................................................................... 9 4.1.3 TEST PROCEDURES ..................................................................................................... 10 4.1.4 DEVIATION FROM TEST STANDARD ........................................................................... 10 4.1.5 TEST SETUP....................................................................................................................11 4.1.6 EUT OPERATING CONDITIONS .....................................................................................11 4.1.7 TEST RESULTS .............................................................................................................. 12 4.2 RADIATED EMISSION MEASUREMENT ................................................................................ 14 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................................... 14 4.2.2 TEST INSTRUMENTS..................................................................................................... 15 4.2.3 TEST PROCEDURES ..................................................................................................... 16 4.2.4 DEVIATION FROM TEST STANDARD ........................................................................... 16 4.2.5 TEST SETUP................................................................................................................... 17 4.2.6 EUT OPERATING CONDITIONS .................................................................................... 17 4.2.7 TEST RESULTS .............................................................................................................. 18 4.3 20dB BANDWIDTH MEASUREMENT...................................................................................... 26 4.3.1 LIMITS OF 20dB BANDWIDTH MEASUREMENT.......................................................... 26 4.3.2 TEST INSTRUMENTS..................................................................................................... 26 …

Text truncated - open the document above for the full version.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 2 Report Version 1 Test Report No.: RF121205N024 SET-UP FOR CONDUCTED EMISSION TEST Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 2 Report Version 1 Test Report No.: RF121205N024 SET-UP FOR RADIATED EMISSION TEST <Frequency Range Below 1GHz> <Frequency Range Above 1GHz>
