IKQBTTRNS02Bluetooth Transmitter � Universal

IUBTT IPOD / UNIVERSAL BLUETOOTH ® TRANSMITTER IUBTT OVERVIEW © 2006 SCOSCHE INDUSTRIES, INC. OXNARD, CA 93033 300IUBTT5/06 Rev A If you have any further questions, all our TOLL-FREE number: TECHNICAL HELP line 1-800-621-3695 x3 4 Congratulations on your purchase of the Scosche IUBTT. This unit incorporates the latest Bluetooth ® technology for seamless integration with most Bluetooth ® A2DP enabled products. Before using, please read this manual carefully. FEATURES: • Lithium-ion 8 hour Rechargeable Battery • 3.5mm to 2.5mm micro jack adapter • 3.5mm to ¼" HiFi headphone jack adapter • Wireless Range: Up to 30 feet (10 Meters) • Bluetooth ® V1.2 (Class 2) • Works with Scosche Bluetooth ® Receivers: -IUBCKH-UBRH -IPBCK-UBCK -UBR-UBHP 1. Dual RED/BLUE LED Indicators 2. Power Button 3. 3.5MM Audio Input cable 4. Charging jack This product may not be compatible with all Bluetooth ® features on all Bluetooth ® enabled products. Please consult your Bluetooth ® A2DP enabled product operation manual for specific features and instructions. • Supported Profile: Advanced Audio Distribution Profile (A2DP) • Frequency Range: 2.4GHz _ 2.4835GHz • Dimensions 55x40x10mm • Weight 30 grams • Certifications: BQB / FCC LIMITED WARRANTY Scosche Industries Inc. warrants this product to be free from defects in material and workmanship for a period of 90 days from purchase. This Scosche product is sold with the understanding that the purchaser has independently determined the suitability of this product. This warranty is offered to the original purchaser of the product only. This warranty does not cover the product if physically damaged, subjected to negligence or misuse, abuse, alteration, accident, or an act of God. This warranty does not apply to product which has been water or physically damaged, damaged by accident or which has been misused, disassembled or altered. The original dated sales slip or proof of purchase will establish warranty eligibility. If the product should prove defective within the warranty period, return the product with proof of purchase to Scosche Industries Inc. Scosche, at it's option, will replace or repair the product free of charge and return the product postage paid. In no event shall Scosche Industries, Inc. be responsible for claims beyond the replacement value of the defective product, or in any way be liable or responsible for consequential or incidental damages. No express warranties and no implied warranties, whether for fitness or any particular use, or otherwise, except as set forth above (which is made expressly in lieu of all other warranties) shall apply to products sold by Scosche. Scosche Industries cannot be held responsible for discrepancies/inconsistencies that may occur due to automotive manufacturing changes or options. This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: 1) This device may not cause interference, and (2) this device must accept any interference that may be received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. Such modification could void the user’s authority to operate the equipment. 4 1 3 2 CHARGING THE BATTERY NOTE: Before using the IUBTT for the first time, charge the battery for a full 2 hours. 1. Plug the mini cable charger into charging jack as shown in Illustration 2. 2. Connect USB Cable to an available PC or LAPTOP USB port 3. Charge Battery for 2 hours (LED with illuminate RED when charging) 4. The Red LED will turn off when charging is complete. Unplug the IUBTT and enjoy up to 7.5 hours of use. SCOSCHE IUBTT SCOSCHE IUBTT TROUBLE SHOOTING PROBLEMTIP/SOLUTION Red LED Indicator Light is brightLOW Battery - recharge necessary Unit drops wireless link less than 30 feet awayThe Connection range varies on the surrounding environment. Range is not guaranteed to be 30 feet in all cases. Range can be reduced by other competing electronic devices include cordless telephones, microwaves and typical household electronic. Range can also be reduced by low battery power. Unit looses wireless link for no reasonCheck for other competing Bluetooth ® or 2.4Ghz electronic devices in close proximity to the IUBTT. Power down these competing devices IUBTT wont pair with my deviceMake sure both devices enter pairing mode at or near the same time. Make sure your Bluetooth ® device allows auto-pairing. Make sure your Bluetooth ® device uses a Pass code of "0000" and has A2DP profile enabled. No audio heard from transmitterCheck to make sure the two products are successfully paired and both devices are powered ON. Make sure you are within range of the IUBTT. Make sure source volume is not muted. Ensure BT receiver cables are securely hooked to steeo and stereo is in AUX/input mode. ILLUSTRATION 1 ILLUSTRATION 2 2 3 PAIRING THE TRANMITTER WITH BLUETOOTH DEVICES INITIAL PAIRING: 1. Power on your Bluetooth ® receiving device [such as Wireless Headphones or Scosche IUBCKH/UBRH Bluetooth ® receiver]. Make sure your Bluetooth ® device is in pairing mode [look for nearby Bluetooth ® devices]. If needed, consult your Bluetooth ® products manual for information on pairing or discovering other Bluetooth ® devices. 2. Press and hold the Power button on the IUBTT for approximately 1-3 seconds. The Blue LED indicator light will begin to flash indicating the unit is in pairing mode. 3. Initial pairing can take up to 2 minutes. If pairing is successful, the IUBTT’s LED will stop flashing and illuminate solid Blue. If unsuccessful, the IUBTT will time out for 10 seconds and then go back into pairing mode automatically. (LED with flash 2x/off/2x/off with timed out) A. If you are prompted for a passcode, then enter "0000". 4. Test the connection by plugging the IUBTT into your portable device’s headphone jack with an audio selection playing. You should hear the audio through your Bluetooth ® r…

Text truncated - open the document above for the full version.

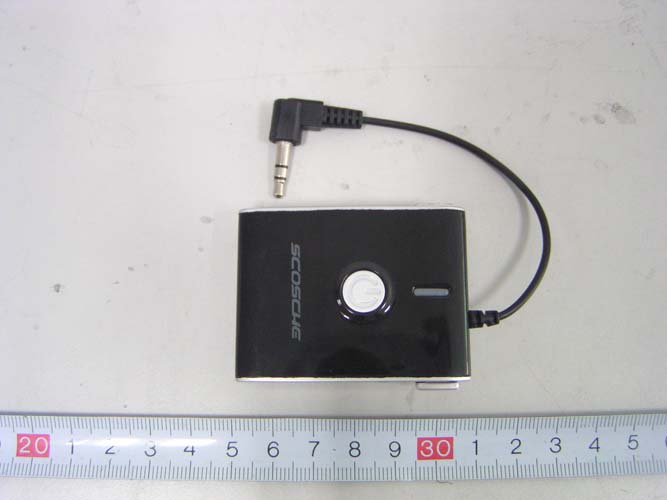

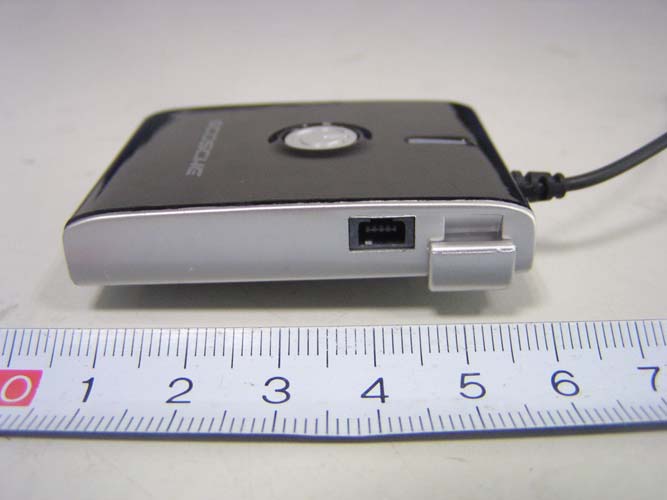

External Photos EUT-Front View EUT-Rear View EUT- Side View

LABELING REQUIREMENT FCC § 2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code ID Label Requirements as per FCC § 15.19 (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. Suggested Content on FCC ID Label As per FCC §15.17 (b)(4), the label shall not be a stick-on, paper label. The label on these products shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase, as described in Section 2.925(d) of this chapter. "Permanently affixed" means that the label is etched, engraved, stamped, silk-screened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable. Model: IUBTT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: IKQBTTRNS02 Scosche Industries, Inc. IC: 6955A-BTTRNS02 Proposed Label Location on EUT (Additional requirement found in user’s manual) PLACEMENT OF FCC LABEL

Internal Photos EUT-Uncovered View EUT-Inside View EUT-PCB Front View EUT-PCB Back View Battery -Front View Battery -Back View

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratory Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government 1) FCC PART 15 SUBPART C MEASUREMENT AND TEST REPORT For Scosche Industries, Inc. P.O. Box 2901 Oxnard, CA 93034 FCC ID: IKQBTTRNS02 This Report Concerns: Original Report Equipment Type: Universal Bluetooth Transmitter Test Engineer: Andy Yan Lisa Zhu Report Number: R0608302 Test Date: 2007-04-23 to 2007-04-27 Report Date: 2007-04-28 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Laboratory Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Scosche Industries, Inc. FCC ID: IKQBTTRNS02 Report # R0608302 Page 2 of 45 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 EUT PHOTO.................................................................................................................................................................4 MECHANICAL DESCRIPTION.........................................................................................................................................4 OBJECTIVE...................................................................................................................................................................5 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................5 TEST METHODOLOGY..................................................................................................................................................5 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 HOST SYSTEM CONFIGURATION LIST AND DETAILS....................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................7 CONFIGURATION OF TEST SETUP.................................................................................................................................8 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................8 SUMMARY OF TEST RESULTS ...............................................................................................................................9 §15.247(b) - RF EXPOSURE ......................................................................................................................................10 LIMIT.........................................................................................................................................................................10 §15.203 - ANTENNA REQUIREMENT....................................................................................................................11 STANDARD APPLICABLE............................................................................................................................................11 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................11 §15.207 (a)- CONDUCTED EMISSIONS..................................................................................................................12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 EUT SETUP................................................................................................................................................................12 EMI TEST RECEIVER SETUP.......................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST RESULTS SUMMARY..................................................................................................................................…

Text truncated - open the document above for the full version.

Te s t S e t u p P h o t o s Conducted Emissions-Front View Conducted Emissions-Side View Radiated Emissions - Front View (30-1000MHz) Radiated Emissions - Rear View (30-1000MHz) Radiated Emissions - Front View (Above 1GHz) Radiated Emissions – Rear View (Above 1GHz)
