CBH CELLULAR BLUETOOTH ® HEADSET WITH HANDS FREE KIT SYSTEM OVERVIEW © 2006 SCOSCHE INDUSTRIES, INC. OXNARD, CA 93033300CBH 3/06 Rev A If you have any further questions, all our TOLL-FREE number:TECHNICAL HELP line 1-800-621-3695 x3 4 Congratulations on your purchase of CBH Cellular Bluetooth ® Hands Free kit. This system incorporates the latest Bluetooth ® technology for seamless integration with most Bluetooth ® enable cell phones. Before using, please read this manual carefully. FEATURES: • Cigarette Lighter Dock/Charger Station• Rechargeable Battery with up to 8 hours talk time and 210 hours stand-bytime. • Call Functions: Send, End, Reject, Redial, and Voice dial • Seamless switching between headset and phone HEADSET DIAGRAM: 1. Switch ON/OFF Headset, Answer Call, Reject Call (Multi-Function Button) 2. Volume Up, pair the headset with Bluetooth ® Device 3. Volume Down4. Ear Hook (2 sizes included) 5 1 4 3 2 8 7 9 6 5. LED Indicator (RED/BLUE)6. Headset Speaker7. Microphone8. Mini USB Port (charge the battery)9. Contact Pins for Dock Station HANDS-FREE CAR KIT (Headset placed in vehicle dock) Install the Docking Station into an available cigarette lighter socket or 12V DC power outlet in the vehicle.Place the headset into the dock MIC first (nose first).NOTE: Ear hook may need to be rotated out of the way to allow a good fit into the dock. Make sure the headset sits flat in the dock and makes contact with the row of tiny pins. Your CBH Bluetooth ® Headset will function as a hands-free car kit when the headset docked. Your hands-free conversations will utilize the MICand SPEAKER built into the dock. POWER ON:Press the Power Button. The GREEN indicator will turn on indicating the dock has power.HEADSET CHARGE:Your CBH Bluetooth ® Headset battery will re-charge when docked into the base. VOLUME:During conversation, use the volume dial on the right side of the dock to increase or decrease the speakervolume.OPERATION:You can perform the following functions accessing the power button on the CBH Headset while it is docked inthe base: • Call Answer • Call End • Call Reject • Voice Dial • Last number redial • Call Swap This product may not be compatible with all Bluetooth ® features on all Bluetooth ® enabled cell phones. This may or may not include send/end control functions, volume adjustment and voice dialing. Please consult yourBluetooth ® enabled cell phone operation manual for specific features and instructions. • Microphone mute • 3-Way calling (on supported phones) • Call-back last incoming call (on supported phones) • USB charging cable included • 2 ear hooks included / works with LEFT or RIGHT ear (Universal) CIGARETTE LIGHTER DOCK/CHARGER STATION: 10. Contact Pins for Headset11. Power ON/OFF Switch12. Volume Dial 11 13 14 12 10 15 16 13. MIC14. Power LED15. Built-In-Speaker16. Lighter Probe OPERA TION / HEADSET (Cont'd) CALL BACK (LAST INCOMING)Press the Volume (+) AND Volume (-) Buttons until a beep is heard. Redialing the last INCOMING callshould begin automatically.NOTE: Your Bluetooth ® phone must support last incoming call capability to use this feature. Consult your phone’s user guide for information specific to your phone. LED/COLOR STATUS Blue LED blinks every 5 seconds Connected with mobile phone (Standby) Blue LED blinks every 1 second Connected with mobile phone (Conversion/Call) Blue LED blinks quickly Pairing mode Red LED Solid Battery Charge Red LED Off Charging Complete LED CHART LIMITED WARRANTY Scosche Industries Inc. warrants this product to be free from de fects in material and workmanship for a period of 90 days from purchase. This Scosche product is sold with the understanding that the purchaser has independently determined the suitabilityof this product. This warranty is offered to the original purchaser of the product only. This warranty does not cover the produ ct if physically damaged, subjected to negligence or misuse, abuse, alteration, accident, or an act of God. This warranty does notapply to product which has been water or physically damaged, damaged by accident or which has been misused,disassembled or altered.The original dated sales slip or proof of purchase will establish warranty eligibility. If the product should prove defective w ithin the warranty period, return the product with proof of purchase to Scosche Industries I nc. Scosche, at i t's option, will replace or repair the product free of charge and return the product postage paid.In no event shall Scosche Industries, Inc. be responsible for claims beyond the replacement value of the defective product, or in any way be liable or responsible for consequential or incidental damages.No express warranties and no implied warr anties, whether for fitness or any particular use, or otherwise, except as set forth above (which is made expressly in lieu of all other warranties) shall apply to products sold by Scosche. Scosche Industries cannot be held responsible for discrepancies/inconsistencies that may occur due to automotive manufacturing changes oroptions. This device complies with FCC Rules Part 15. Operation is subject to the following tw o conditions: 1) This de vice may not cause interference, and (2) this device must accept any interference that may be received, including interference that may cause unde sired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this eq uipment. Such modification could void the user’s authority to operate the equipment. 2 3 GETTING STARTED ASSEMBLING THE CIGARETTE LIGHTER DOCK STATION: 1. Align the notches on the top of the lighter probe with the notches in the bottom of docking station and slide forward to lock into place as shown. ASSEMBLING THE EAR HOOK: 1. Test fit the 2 ear hooks over your left or right ear and choose theone that fits comfortably. 2. Rotate the ear hook 90 degrees and simply snap onto theheadset as shown. 3. Point headset (MIC) in the direction of your mouth for bestoperat…

Text truncated - open the document above for the full version.

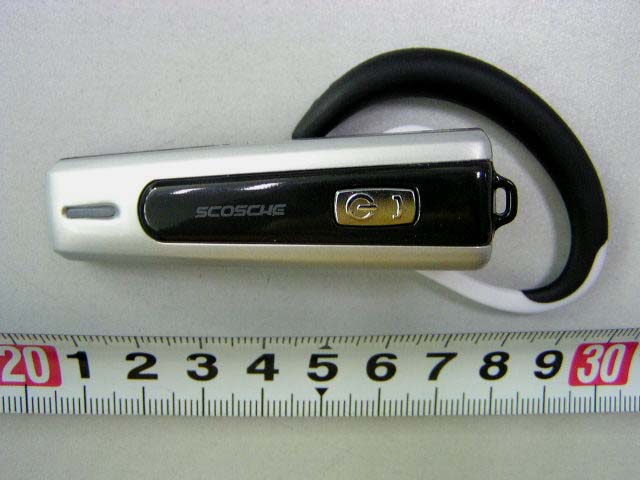

External Photos EUT-Front View EUT-Rear View EUT-Side View (1) EUT-Side View (2)

ID Label/Location Label FCC ID: IKQCBH Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow. PLACEMENT OF FCC LABEL

Internal Photos EUT-Uncovered View EUT-PCB Front View EUT-PCB Rear View

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratory Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. FCC PART 15.247 EMI MEASUREMENT AND TEST REPORT For Scosche Industries, Inc. P.O. Box 2901 Oxnard, CA 93034, U.S.A. FCC ID: IKQCBH This Report Concerns: Original Report Equipment Type: Bluetooth Headset Test Engineer: Lisa Zhu Henry Yang Report No.: R0608301 Test Date: 2007-01-05 to 2007-02-15 Report Date: 2007-02-15 Reviewed By: Bonni Baniqued: EMC Manager Prepared By: Bay Area Compliance Laboratory Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China. Tel: +86-755-33320018 Fax: +86-755-33320008 Scosche Industries, Inc. FCC ID: IKQCBH Report #: R0608301 Page 2 of 43 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 HOST SYSTEM CONFIGURATION LIST AND DETAILS....................................................................................................5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................5 EXTERNAL I/O CABLE..................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 CONFIGURATION OF TEST SETUP.................................................................................................................................7 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §15.247(b) - RF EXPOSURE ........................................................................................................................................9 LIMIT...........................................................................................................................................................................9 §15.203 - ANTENNA REQUIREMENT....................................................................................................................10 STANDARD APPLICABLE............................................................................................................................................10 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................10 §15.207 (a) - CONDUCTED EMISSIONS.................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 EUT SETUP................................................................................................................................................................11 EMI TEST RECEIVER SETUP.......................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST RESULTS SUMMARY..........................................................................................................................................12 TEST DATA................................................................................................................................................................13 PLOT(S) OF TEST DATA..............................................................................................................................................13 §15.…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions - Front View (30-1000MHz) Radiated Emissions - Rear View (30-1000MHz) Radiated Emissions - Front View (Above 1GHz) Radiated Emissions – Rear View (Above 1GHz)
