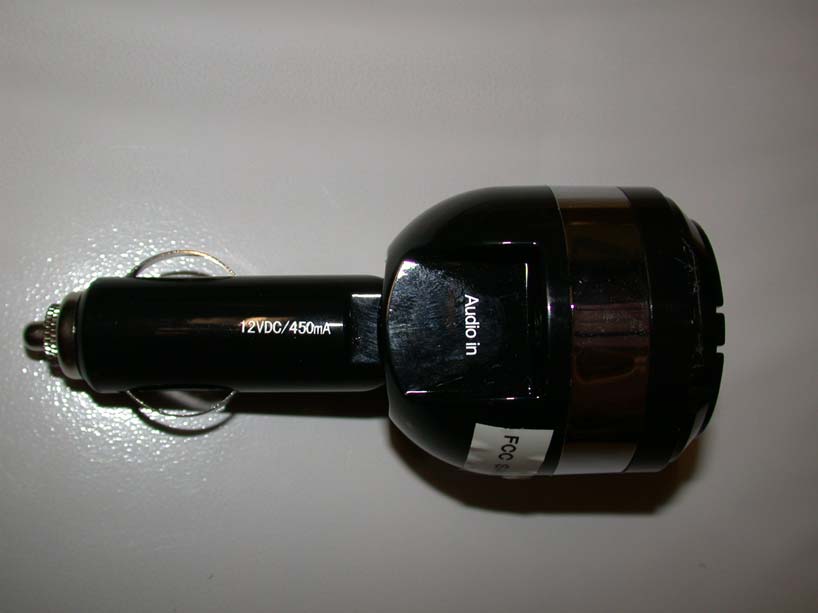

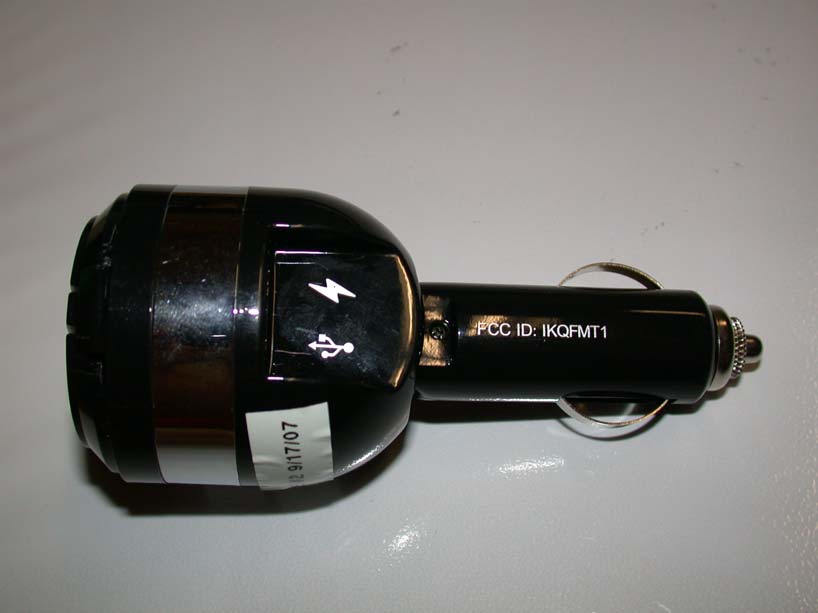

IKQFMT1Wireless FM Transmitter

Scosche Industries FMT1 FCC ID: IKQFMT1 IC: 6955A-FMT1

Professional Testing (EMI), Inc. Project 08170-10 Page 1 of 14 Project Number: 08170-10 Prepared for: Scosche Industries, Inc. 1550 Pacific Ave Oxnard, CA 93033 By Professional Testing (EMI), Inc. 1601 FM 1460, Suite B Round Rock, Texas 78664 December 2007 CERTIFICATION Electromagnetic Interference Test Report Scosche Industries, Inc. FMT1 Professional Testing (EMI), Inc. Project 08170-10 Page 2 of 14 Table of Contents Title Page .........................................................................................................................................1 Table of Contents .............................................................................................................................2 Certificate of Compliance ................................................................................................................3 1.0 EUT Description ..................................................................................................................4 1.1 Applicable Documents.....................................................................................................4 1.2 EUT Operation.................................................................................................................4 2.0 Electromagnetic Emissions Testing.....................................................................................5 2.1 Radiated Emissions Measurements .................................................................................5 2.1.1 Test Procedure .........................................................................................................5 2.1.2 Test Criteria .............................................................................................................6 2.1.3 Test Results ..............................................................................................................6 3.0 Occupied Bandwidth Measurements ...................................................................................7 3.1 Test Procedure .................................................................................................................7 3.2 Test Criteria .....................................................................................................................7 3.3 Test Results ......................................................................................................................7 4.0 Antenna Requirement ..........................................................................................................7 4.1 Evaluation Procedure .......................................................................................................7 4.2 Evaluation Criteria ...........................................................................................................8 4.3 Evaluation Results ...........................................................................................................8 5.0 Modifications to Equipment ................................................................................................8 6.0 List of Test Equipment.........................................................................................................8 FIGURES Figure 1 Radiated Emissions Test Setup .........................................................................................9 APPENDICES Appendix A Emissions Data ..........................................................................................................10 THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF PROFESSIONAL TESTING (EMI), INC. Professional Testing (EMI), Inc. Project 08170-10 Page 3 of 14 Applicant: Scosche Industries, Inc. Applicant’s Address: 1550 Pacific Ave Oxnard, CA 93033 FCC ID: IKQFMT1 IC Number 6955A-FMT1 Project Number: 08170-10 Test Dates: December 06, 2007 I, Jason Anderson, for Professional Testing (EMI), Inc., being familiar with the FCC and IC rules and test procedures have reviewed the test setup, measured data and this report. I believe them to be true and accurate. The Scosche Industries, Inc., FMT1 was tested to and found to be in compliance with FCC Part 15 Subpart C and IC RSS 210 for an Intentional Radiator. The highest emissions generated by the above equipment are listed below: Frequency (MHz) Level (dBμV/m) Limit (dBμV/m) Margin (dB) Fundamental 107.9 42.9 48.0 -5.1 Spurious 336 37.6 46 -8.4 Occupied Bandwidth 187.7 kHz Jason Anderson Director of Testing Services This report has been reviewed and accepted by Scosche Industries, Inc. The undersigned is responsible for ensuring that Scosche Industries, Inc., FMT1 will continue to comply with the FCC and IC rules. Certificate Of Compliance Professional Testing (EMI), Inc. Project 08170-10 Page 4 of 14 1.0 EUT Description The Scosche Industries, Inc. FMT1 enables you to play your digital music through your FM radio. The FMT1 wirelessly broadcasts the audio signal to your FM radio in your car. No additional wiring is necessary. The broadcast frequency is adjustable to channels including: 88.1, 88.3, 107.7, 107.9 MHz. The system tested consisted of the following: Manufacturer & Model FCC Number IC Number Scosche Industries, Inc., FMT1 IKQFMT1 6955A-FMT1 1.1 Applicable Documents Guidelines FCC Rule Parts Part 15 IC Rule Parts Transmitter Characteristics 15.239 RSS-210 A2.8 Spurious Radiated Power 15.205, 15.209, 15.239 RSS-210 2.7 Table 2 Antenna Requirement 15.203 RSS-Gen 7.1.4 1.2 EUT Operation The EUT was operated in continuous transmit mode at max power frequency modulated with music generated from an MP3 player to measure fundamental, harmonics, and spurious radiation. 1.3 Applicable Documnets ANSI C63.4 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low Voltage Electrical and Electronic Equipment. 2003 47 CFR Part 15 – Radio Frequency Devices Subpart C RSS-210 Issue 7 Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment Jun…
