FMT4R FM Transmitter User’s manual Contents 1. Overview....................................................................1 2. Getting started............................................................1 3. Basic operation............................................................2 4. Care and maintenance...................................................3 5. Frequently asked questions..............................................3 6. Technical parameter.....................................................4 It is one Universal Wireless FM Transmitter. One cable connected with AUX Jack and the antenna gain is 0.5dbi shown as bellowing picture. 1. Overview ① ①① ① ON/OFF switch ④ ④④ ④ Battery cover ② ②② ② Multi-function button (MFB) ⑤ ⑤⑤ ⑤ LED frequency indicator ③ ③③ ③ 3.5mm cable 2. Getting started 1) Install two 1.5V AAA batteries into the FM transmitter; 2) Insert 3.5mm cable into music player; 3) Turn ON/OFF switch to ON to turn on the FM transmitter; 4) Set up the frequency of the FM transmitter (please refer to “Basic operation”); 5) Adjust the frequency of your FM radio to be the same as the frequency of the FM transmitter, then the music will be transmitted to your FM radio. 1 FM transmitter FM radio 3. Basic operation Operation Function Turn ON/OFF switch to ON Turn on the FM transmitter Turn ON/OFF switch to OFF Turn off the FM transmitter Short press MFB button Select the decimal of the transmitting frequency: Short press MFB button once, the frequency will switch among 0.1MHz, 0.3 MHz, 0.5 MHz, 0.7 MHz and 0.9 MHz, and the corresponding LED is on Press and hold MFB button Select the integer of the transmitting frequency: Press and hold MFB button, the frequency will switch among 88MHz, 90MHz, 106MHz and 107MHz, please release the MFB button after selecting frequency well, and the corresponding LED is on 2 4. Care and maintenance Read the following recommendations before using FMT4R. Following these you will be able to enjoy the product for many years.
Do not expose the transmitter to liquid, moisture or humidity to avoid the product’s internal circuit being affected.
Don’t use abrasive cleaning solvents to clean the transmitter.
Do not expose the transmitter to extremely high or low temperatures as this will shorten the life of electronic devices, destroy the battery or distort certain plastic parts.
Don’t dispose of the transmitter in a fire as it will result in an explosion.
Don’t expose the transmitter to contact with sharp objects as this will cause scratches and damage.
Don’t let the transmitter fall down onto the floor. The internal circuit might get damaged.
Don’t attempt to disassemble the transmitter as it may get damaged if you are not professional. In case the transmitter doesn’t function properly, send it to the store you bought it. The staff will help you to solve the problem. 5. Frequently asked questions 1. What to do when can’t turn on the FM transmitter? a) Please make sure you have already installed batteries into the FM transmitter; b) Replace batteries with new one. 2. What to do when is there other audio interference? a) Please make sure there are no other broadcasting radio stations in the current set frequency, or you have to re-set a frequency; b) Please make sure there are no other electronic devices near the transmitter. 3. What to do when is there no music? a) Please make sure the music player is playing music; b) Please ensure the FM transmitter connects well with the music player; c) Please make sure the frequency of FM radio coincides with the frequency of the transmitter; d) Please adjust the volume of the FM radio. 3 6. Technical parameter Frequency range 88.1MHz - 107.9MHz How many channels 20 channels Frequency input response range 25-15000Hz Power supply 2×1.5V AAA Battery Working current <30mA Working temperature -10～45°C Storage temperature -20～60°C Dimensions 62.5×37.5×20.5mm Weight 25.35g This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioé lectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. 4

Authority to Act as Agent April 17, 2015 FCC ID: IKQFMT4R American Certification Body, Inc. 6731 Whittier Avenue, Suite C McLean, VA 22101 To Whom It May Concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. to act on our behalf in for applications to American Certification Body, Inc. (ACB). Any and all acts carried out by SGS-CSTC Standards Technical Services Co., Ltd. on our behalf shall have the same effect as acts of our own. This authorization expires on April 17, 2016. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Scosche Industries, Inc., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party (as defined in §1.2002(b) of CFR 47,2004) to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Mark Larson Sr. Product Manager on behalf of: Scosche Industries 805/486-4450 ext. 127 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Request for Confidentiality Date: 2015-04-16 Subject: Confidentiality Request for: FCC ID:___ IKQFMT4R _____ IC: 6955A-FMT4R ____ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics _____Scosche Industries, Inc_____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 1 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Mr Mark Larson,.SR Product Manager The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 1 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf complete details. 1

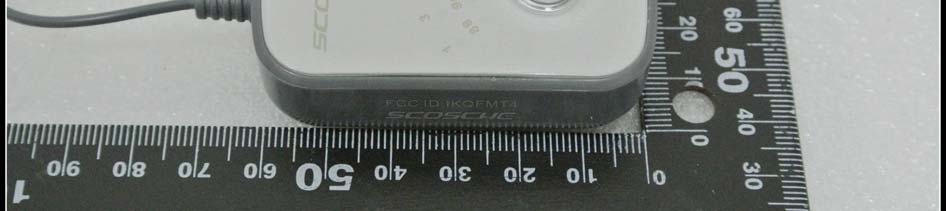

External Photo

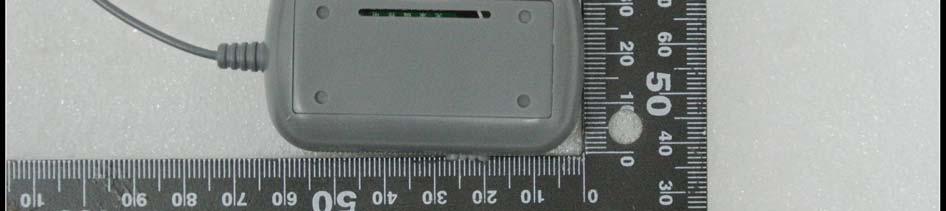

Internal Photo
