IKQIPRFDOCHome Wireless RF Remote Kit for iPod

IPRFDOC HOME WIRELESS RF REMOTE KIT FOR iPod 3 RD /4 TH /5 TH GEN/iPod PHOTO If you have any further questions, call our toll free technical help line at: 1-800-621-3695x3 © 2006 SCOSCHE INDUSTRIES, INC. SI 12/05-IPRFDOC (300IPRFDOC 12/05) RF RECEIVER SETUP PARTS LIST iPod® RF Receiver Set-up: (FIG. 1)Plug the RF receiver into the bottom dock of your iPod. SeeFig. 1. A self diagnostic will automatically be run and yourwireless remote will be ready for operation within 30seconds. Plug in the Male end of the 3.5MM-to-RCA cablefor home use, or your personal Ear Buds for portable use.Advanced Low Power Mode:Your Scosche iPod RF receiver uses an advanced powerdown mode which minimizes current draw on your iPodbattery if you are not connected to a constant powersource. After 20 minutes of sensing no music playing or noremote commands, the unit will go into an advancedbattery save mode. The receiver will automaticallyre-power itself when it detects music playing,(If there was none before) or it sees a remotebutton being pressed for more than 0.6seconds. 7 BUTTON RF REMOTE CONTROL Track Back:Press and release this button to movetrack BACKWARDS. Press and HOLDthis button to rewind through the track.Pause/Play/Sleep:Press and release to togglebetween Pause and Play. Pressand HOLD for 2 full seconds to putthe iPod into sleep mode. If youpress and hold this button for longerthan 1 second but less than 2seconds the receiver will ignoreyour request. Track Forward:Press and release this button tomove track FORWARD. Press andHOLD this button to forward throughthe track. Shuffle Play:Press this button to randomly playthe songs on your iPod. Volume Up:Press and HOLD this button toincrease the volume. Play List Song Select:First press the play list button,then with-in 5 seconds presseither Track Forward or the TrackBack button to select a song fromyour play list. Volume Down:Press and HOLD this reduce thevolume This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: 1) This device maynot cause interference, and (2) this device must accept any interference that may be received, including interferencethat may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused byunauthorized modification to this equipment. Such modification could void the user's authority to operate theequipment. iPod is a registered trademark of Apple Computer, Inc. All rights reserved.Congratulations on your choice of a SCOSCHE wireless RF iPod remote control home kit! This systemprovides you with maximum control of your iPod from over 100 feet away.• 7 Button RF Remote• Universal 3.5MM Headphone to RCA Audio Cable • RF Receiver (Designed for iPod 3 rd /4 th/5th Gen) RF Receiver VEHICLE3.5mm to RCAcable/headphonesourse iPod(3rd/4th/5th Gen) FIG. 1 For portable use:Plug in 3.5mm earbudsor headphone here. IPRFDOC HOME WIRELESS RF REMOTE KIT FOR iPod 3 RD /4 TH /5 TH GEN/iPod PHOTO If you have any further questions, call our toll free technical help line at: 1-800-621-3695x3 © 2006 SCOSCHE INDUSTRIES, INC. SI 12/05-IPRFDOC (300IPRFDOC 12/05) RF RECEIVER SETUP PARTS LIST iPod® RF Receiver Set-up: (FIG. 1)Plug the RF receiver into the bottom dock of your iPod. SeeFig. 1. A self diagnostic will automatically be run and yourwireless remote will be ready for operation within 30seconds. Plug in the Male end of the 3.5MM-to-RCA cablefor home use, or your personal Ear Buds for portable use.Advanced Low Power Mode:Your Scosche iPod RF receiver uses an advanced powerdown mode which minimizes current draw on your iPodbattery if you are not connected to a constant powersource. After 20 minutes of sensing no music playing or noremote commands, the unit will go into an advancedbattery save mode. The receiver will automaticallyre-power itself when it detects music playing,(If there was none before) or it sees a remotebutton being pressed for more than 0.6seconds. 7 BUTTON RF REMOTE CONTROL Track Back:Press and release this button to movetrack BACKWARDS. Press and HOLDthis button to rewind through the track.Pause/Play/Sleep:Press and release to togglebetween Pause and Play. Pressand HOLD for 2 full seconds to putthe iPod into sleep mode. If youpress and hold this button for longerthan 1 second but less than 2seconds the receiver will ignoreyour request. Track Forward:Press and release this button tomove track FORWARD. Press andHOLD this button to forward throughthe track. Shuffle Play:Press this button to randomly playthe songs on your iPod. Volume Up:Press and HOLD this button toincrease the volume. Play List Song Select:First press the play list button,then with-in 5 seconds presseither Track Forward or the TrackBack button to select a song fromyour play list. Volume Down:Press and HOLD this reduce thevolume This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: 1) This device maynot cause interference, and (2) this device must accept any interference that may be received, including interferencethat may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused byunauthorized modification to this equipment. Such modification could void the user's authority to operate theequipment. iPod is a registered trademark of Apple Computer, Inc. All rights reserved.Congratulations on your choice of a SCOSCHE wireless RF iPod remote control home kit! This systemprovides you with maximum control of your iPod from over 100 feet away.• 7 Button RF Remote• Universal 3.5MM Headphone to RCA Audio Cable • RF Receiver (Designed for iPod 3 rd /4 th/5th Gen) RF Receiver VEHICLE3.5mm to RCAcable/headphonesourse iPod(3rd/4th/5th Gen) FIG. 1 For portable use:Plug in 3.5mm earbudsor headphone here.

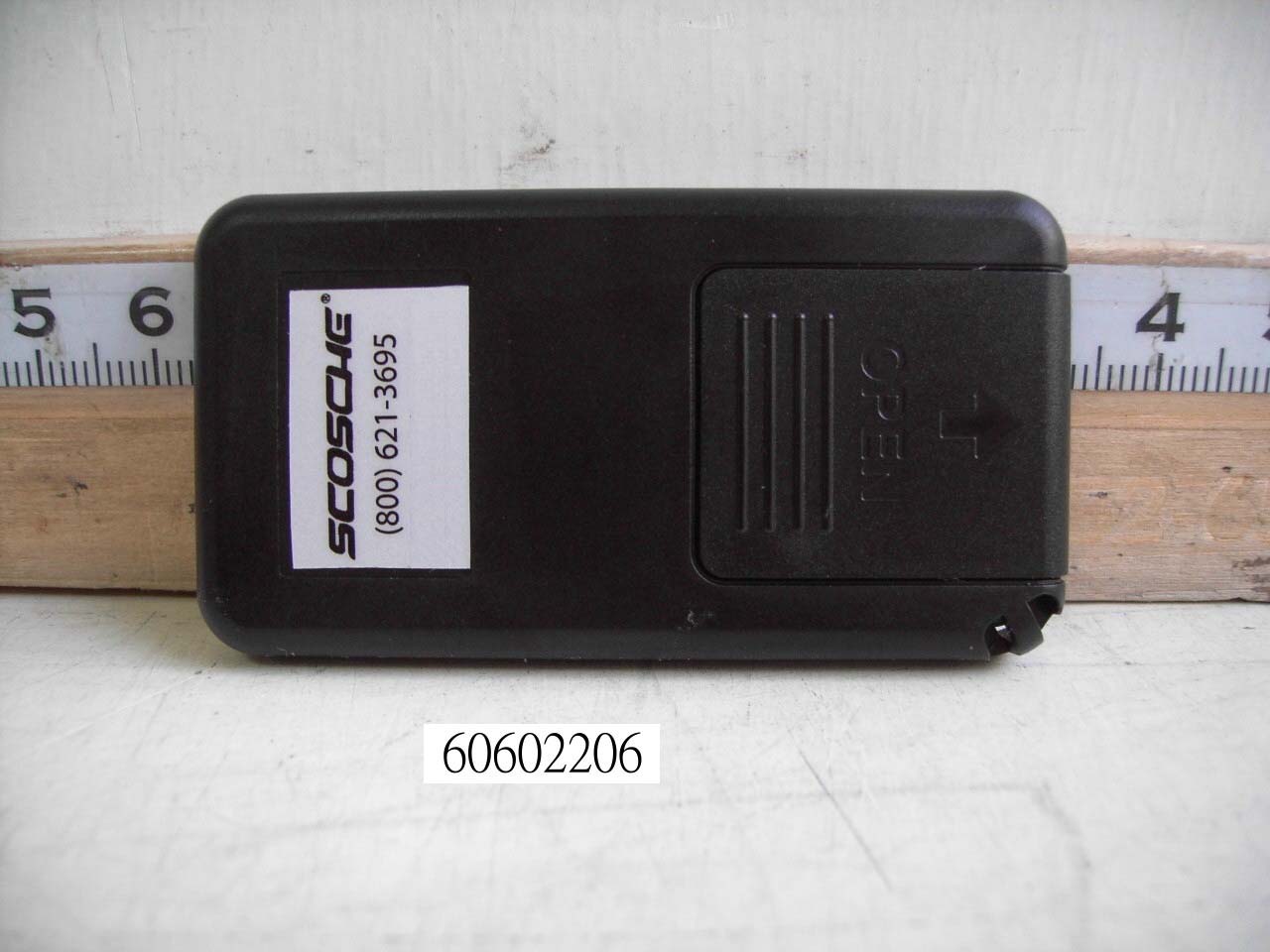

Compliance Certification Services Inc. Report No.: 60602206 Date of Issue: July 26, 2006 Page 1 Total Page: 5 Rev. 00 PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60602206 Date of Issue: July 26, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 60602206 Date of Issue: July 26, 2006 Page 3 Rev. 00

FCC ID LABEL FORMAT AND LOCATION Applicant: Scosche Industries Inc. FCC ID: IKQIPRFDOC FCC ID: IKQIPRFDOC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 60602206 Date of Issue: July 26, 2006 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 60602206 Date of Issue: July 26, 2006 Page 5 Rev. 00

Compliance Certification Services Inc. Report No.: 60602206-RP1 FCC ID: IKQIPRFDOC Date of Issue: July 26, 2006 Page 1 of 20 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of HOME WIRELESS RF REMOTE KIT FOR iPod FCC ID Number : IKQIPRFDOC Trade Name : Scosche Model Number : IPRFDOC Agency Series : N/A Report Number : 60602206-RP1 Date : July 26, 2006 Prepared to： Scosche Industries Inc. 1550 Pacific Ave Oxnard CA93033 Prepared by： Compliance Certification Services Inc. No. 165, Chung Sheng Road, Hsin Tien City, Taipei Hsien, Taiwan, R. O. C. TEL: (02)2217-0894 FAX: (02)2217-1029 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 60602206-RP1 FCC ID: IKQIPRFDOC Date of Issue: July 26, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE........................................................ 3 2. PRODUCT DESCRIPTION........................................................................ 4 3. TEST FACILITY.......................................................................................... 4 4. MEASUREMENT STANDARDS ............................................................... 4 5. TEST METHODOLOGY............................................................................ 4 6. MEASUREMENT EQUIPMENT USED................................................... 5 7. POWERLINE RFI LIMIT .......................................................................... 5 8. RADIATED EMISSION LIMITS .............................................................. 6 9. SYSTEM TEST CONFIGURATION......................................................... 6 10. TEST PROCEDURE.................................................................................. 7 11. Equipment Modifications .......................................................................... 8 12. TEST RESULT ........................................................................................... 9 12.1 Maximum Modulation Percentage (M%) ............................................... 9 12.2 The Emissions Bandwidth ........................................................................ 9 APPENDIX I ................................................................................................... 10 Compliance Certification Services Inc. Report No.: 60602206-RP1 FCC ID: IKQIPRFDOC Date of Issue: July 26, 2006 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Scosche Industries Inc. 1550 Pacific Ave Oxnard CA93033 CONTACT PERSON : Kasidy Alves (Vice President Sales / Marketing) TELEPHONE NO. : 800-621-3695 EUT DESCRIPTION : HOME WIRELESS RF REMOTE KIT FOR iPod MODEL NAME/NUMBER : IPRFDOC FCC ID : IKQIPRFDOC DATE TESTED : July 16, 2006 & July 18, 2006 REPORT NUMBER : 60602206-RP1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE HOME WIRELESS RF REMOTE KIT FOR iPod MEASUREMENT PROCEDURE ANSI 63.4 / 2003 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 60602206-RP1 FCC ID: IKQIPRFDOC Date of Issue: July 26, 2006 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92MHz Power Source 3V Battery Transmitting Time Periodic < 5 seconds Associated Receiver Model: iJet mini RX (DoC) 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2003. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Compliance Certification Services Inc. Report No.: 60602206-RP1 FCC ID: IKQIPRFDOC Date of Issue: July 26, 2006 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Open Area Test Site # K Name of Equipment Manufacturer Model Serial Number Calibration Due SITE NSA CCS K Site N/A 10/01/2006 MEASURE RECEIVER SCHAFFNER SCR3501 412 05/18/2007 SPECTRUM ANALYZER ADVANTEST R3132 120900029 No Calibration Required ANTENNA SCHAFFNER CBL 6112B 2846 05/26/2007 PRE- AMPLIFIER SCHAFFNER CPA9231A 3639 10/08/2006 CABLE SUHNER RG 214 N-TYPE #K2 02/17/2007 THERMO- HYGRO METER TFA N/A NO.4 02/08/2007 Above 1GHz Used EMC ANALYZER (100Hz-22GHz) HP 8566B 2937A06102 07/04/2007 ANTENNA (1-18GHz) EMCO 3115 00022256 01/12/2007 AMPLIFIER (1-18GHz) HP 8449B 3008A01266 02/06/2007 CABLE (1-18GHz) JYEBAO LL142 SMA#RS1 02/06/2007 CABLE (1-18GHz) HUBER +SUHNER SUCOFLEX 104 SMA#RS3 02/06/2007 CABLE (1-18GHz) JYEBAO LL142 SMA#C1 02/06/2007 Remark: Each piece of equipment is scheduled for calibration once a year. 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER C…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60602206-RP1 FCC ID: IKQIPRFDOC Date of Issue: July 26, 2006 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X, Y and Z axis. To activate continuous transmitting & receiving, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up
