IKQIPTRNS01FM Audio Transmitter

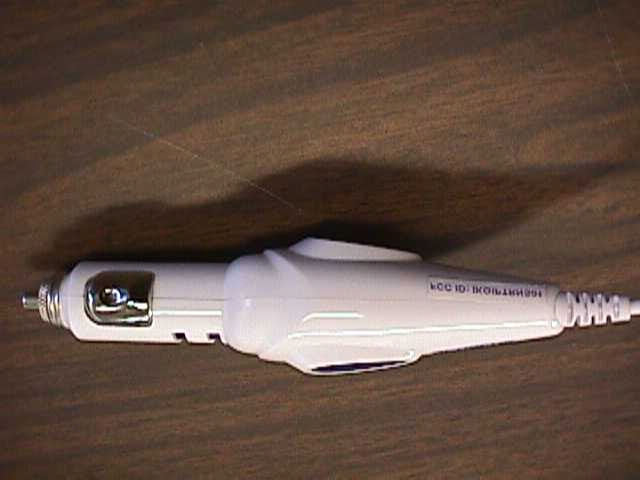

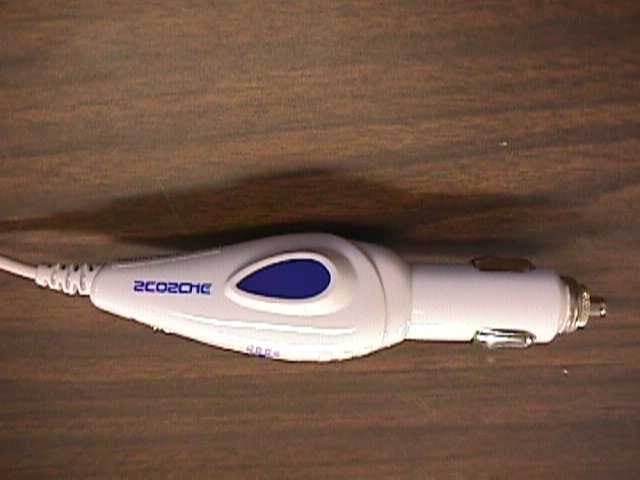

FCC ID: IKQIPTRNS01 TOP VIEW FCC ID: IKQIPTRNS01 LEFT SIDE FCC ID: IKQIPTRNS01 RIGHT SIDE FCC ID: IKQIPTRNS01 BOTTOM VIEW

FCC ID: IKQIPTRNS01 COVER REMOVED FCC ID: IKQIPTRNS01 PC BOARD SIDE 1 FCC ID: IKQIPTRNS01 PC BOARD SIDE 1 CLOSE UP RIGHT SIDE FCC ID: IKQIPTRNS01 PC BOARD SIDE 1 CLOSE UP LEFT SIDE FCC ID: IKQIPTRNS01 PC BOARD SIDE 2 FCC ID: IKQIPTRNS01 PC BOARD SIDE 2 CLOSE UP RIGHT SIDE FCC ID: IKQIPTRNS01 PC BOARD SIDE 2 CLOSE UP LEFT SIDE

Circuit Description The 88.1, 88.3, 88.5, 88.7mHz and IC oscillator drives the base of IC2 the final/buffer amplifier. The modulation provided by Audio Input. The output of IC2 has the matching network consisting of L5 and C23 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. Electric current is supplied by the vehicle 12VDC lighter plug. Installation and Operating Instructions: 1. Plug in the IPTRNS01 into the cigarette lighter or 12V DC power socket In your dash. 2. Plug in the 3.5 mm mini jack to the portable audio device.(ie.MP3 player, CD player, DVD player, etc.) NOTE: Some devices have a LINE OUT and HEADPHONE JACK audio output. The HEADPHONE JACK output is recommended because the audio volume can be adjusted. 3. Once all connections are made, turn on radio and tune to either 88.1 MHz, 88.3 MHz, 88.5 MHz, or 88.7MHz as selected by the switch on the top of the FMTRNS01 unit. For future use, set the selected FM station as a “preset” on your stereo. 4. Power up and play your auxiliary device. You should hear the audio from your auxiliary device playing through your car stereo speakers.

FCC ID: IKQIPTRNS01 Report Number: A50311F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA, 91301 • PH: (818) 597-0600 FX: (818) 597-1187 Page 1 of 17 FCC PART 15, SUBPART C TEST REPORT for FM AUDIO TRANSMITTER M/N: IPTRNS01 FCC ID: IKQIPTRNS01 Prepared for SCOSCHE INDUSTRIES INC. 1550 PACIFIC AVENUE OXNARD, CA 93033 Prepared by: _____________________ REYNALD O. RAMIREZ Approved by: ____________________ RUBY A. HALL COMPATIBLE ELECTRONICS INC. 2337 TROUTDALE DRIVE AGOURA, CALIFORNIA 91301 (818) 597-0600 DATE: MARCH 16, 2005 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 2 11 17 51 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. FCC ID: IKQIPTRNS01 Report Number: A50311F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA, 91301 • PH: (818) 597-0600 FX: (818) 597-1187 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Photograph of Test Configuration - EMI 8 4.1.2 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions Test 14 7.1.3 RF Emissions Test Results 15 7.1.4 Sample Calculations 16 8. TEST PROCEDURE DEVIATIONS 17 9. CONCLUSIONS 17 FCC ID: IKQIPTRNS01 Report Number: A50311F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA, 91301 • PH: (818) 597-0600 FX: (818) 597-1187 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts and Photos • Test Setup Diagrams • Antenna and Amplifier Gain Factors • Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Test Site FCC ID: IKQIPTRNS01 Report Number: A50311F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA, 91301 • PH: (818) 597-0600 FX: (818) 597-1187 Page 4 of 17 GENERAL REPORT SUMMARY This electromagnetic emission report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form except in full, without the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: FM Audio Transmitter Model Number: IPTRNS01 SN: Sample 1 Product Description: This is an FM Audio Transmitter. Modifications: The EUT was not modified during the testing. Manufacturer: Scosche Industries Inc. 1550 Pacific Avenue Oxnard, CA 93033 Test Dates: March 11, 14 & 16, 2005 Test Specifications: EMI requirements FCC CFR Title 47, Part 15 Subpart A, B and C sections 15.31 (e), 15.109, 15.205, 15.209 and 15.239 Test Procedure: ANSI C63.4: 2003. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz. This is a DC powered device that does not plug into AC Mains therefore this test was deemed unnecessary. 2 Radiated RF Emissions, 9 kHz – 1000 MHz. Complies with the limits of FCC CFR Title 47, Part 15 Subpart C 15.205, 15.209 and 15.239 and the requirements of 15.31(e). FCC ID: IKQIPTRNS01 Report Number: A50311F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA, 91301 • PH: (818) 597-0600 FX: (818) 597-1187 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the FM Audio Transmitter Model Number: IPTRNS01. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 2003. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined in FCC CFR Title 47, Part 15 Subpart A (15.31e), Subpart B, 15.109 Subpart C 15.205, 15.209 and 15.239. FCC ID: IKQIPTRNS01 Report Number: A50311F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA, 91301 • PH: (818) 597-0600 FX: (818) 597-1187 Page 6 of 17 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 2337 Troutdale Drive, Agoura, California 91301. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST). 2.3 Cognizant Personnel Scosche Industries Inc. Jack DeBiasio Project Manager Compatible Electronics Inc. Andre D. Khan Test Technician Reynald O. Ramirez Sr. Test Engineer Ruby A. Hall Lab Manager 2.4 Date Test Sample was Received The test sample was received on March 11, 2005. 2.5 Disposition of the Test Sample The test sample remains at Compatible Electronics Inc. 2.6 Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RF Radio Frequency EMI Electromagnetic Interference EUT Equipment Under Test P/N Part Number S/N Serial Number HP Hewlett Packard ITE Information Technology Equipment CML Corrected Meter Limit LISN Line Impedance Stabilization Network FCC ID: IKQIPTRNS01 Report Number: A50311F1 2337 TROUTDALE…

Text truncated - open the document above for the full version.

COMPATIBLE ELECTRONICS Test Location:Page:Compatible Electronics1/1 Customer:Date:Jack DeBiasio03/16/2005 Manufacturer:Time:Scosche Industries Inc.08:10:18 AM Eut name:Lab:FM Audio TransmitterF Model:Test Distance:IPTRNS01 3.00 Meters Serial #:Sample 1 Specification:FCC Pt. 15- Class B Distance correction factor (20 * log(test/spec)): 0.00 Test Mode:Qualification Tx. Freq. 88.1 Test Engineer: R. Ramirez PolFreqReadingCableAntennaAmplifierCorr'dLimitDelta lossfactorgainrdg = R= LR-L MHzdBuVdBdBdBdBuV/mdBuV/mdB 1V 87.976 47.50 2.70 8.2635.1823.2940.00-16.71 2V 88.000 49.30 2.70 8.2735.1825.0940.00-14.91 3V 88.159 56.20 2.70 8.2835.1732.0143.50-11.49 4V 88.198 51.20 2.70 8.2835.1727.0143.50-16.49 ------------------------------------------------------------------------- COMPATIBLE ELECTRONICS Test Location:Page:Compatible Electronics1/1 Customer:Date:Jack DeBiasio03/16/2005 Manufacturer:Time:Scosche Industries Inc.08:19:24 AM Eut name:Lab:FM Audio TransmitterF Model:Test Distance:IPTRNS01 3.00 Meters Serial #:Sample 1 Specification:FCC Pt. 15- Class B Distance correction factor (20 * log(test/spec)): 0.00 Test Mode:Qualification Tx. Freq. 88.3 Test Engineer: R. Ramirez PolFreqReadingCableAntennaAmplifierCorr'dLimitDelta lossfactorgainrdg = R= LR-L MHzdBuVdBdBdBdBuV/mdBuV/mdB 1V 88.186 49.70 2.70 8.2835.1725.5143.50-17.99 2V 88.225 50.40 2.70 8.2835.1726.2143.50-17.29 3V 88.359 51.10 2.70 8.2935.1626.9343.50-16.57 4V 88.396 46.80 2.70 8.2935.1622.6343.50-20.87 ------------------------------------------------------------------------- COMPATIBLE ELECTRONICS Test Location:Page:Compatible Electronics1/1 Customer:Date:Jack DeBiasio03/16/2005 Manufacturer:Time:Scosche Industries Inc.08:27:05 AM Eut name:Lab:FM Audio TransmitterF Model:Test Distance:IPTRNS01 3.00 Meters Serial #:Sample 1 Specification:FCC Pt. 15- Class B Distance correction factor (20 * log(test/spec)): 0.00 Test Mode:Qualification Tx. Freq. 88.5 Test Engineer: R. Ramirez PolFreqReadingCableAntennaAmplifierCorr'dLimitDelta lossfactorgainrdg = R= LR-L MHzdBuVdBdBdBdBuV/mdBuV/mdB 1V 88.390 48.70 2.70 8.2935.1624.5343.50-18.97 2V 88.406 49.60 2.70 8.2935.1625.4343.50-18.07 3V 88.427 52.80 2.70 8.3035.1628.6443.50-14.86 4V 88.616 44.50 2.70 8.3135.1520.3643.50-23.14 5V 88.578 48.60 2.70 8.3135.1524.4543.50-19.05 ------------------------------------------------------------------------- COMPATIBLE ELECTRONICS Test Location:Page:Compatible Electronics1/1 Customer:Date:Jack DeBiasio03/16/2005 Manufacturer:Time:Scosche Industries Inc.08:31:54 AM Eut name:Lab:FM Audio TransmitterF Model:Test Distance:IPTRNS01 3.00 Meters Serial #:Sample 1 Specification:FCC Pt. 15- Class B Distance correction factor (20 * log(test/spec)): 0.00 Test Mode:Qualification Tx. Freq. 88.7 Test Engineer: R. Ramirez PolFreqReadingCableAntennaAmplifierCorr'dLimitDelta lossfactorgainrdg = R= LR-L MHzdBuVdBdBdBdBuV/mdBuV/mdB 1V 88.580 45.00 2.70 8.3135.1520.8543.50-22.65 2V 88.603 46.60 2.70 8.3135.1522.4543.50-21.05 3V 88.625 47.70 2.70 8.3135.1523.5643.50-19.94 4V 88.643 49.90 2.70 8.3135.1525.7643.50-17.74 5V 88.758 51.30 2.70 8.3235.1527.1743.50-16.33 6V 88.776 47.40 2.70 8.3235.1523.2743.50-20.23 7V 88.811 51.50 2.70 8.3235.1527.3843.50-16.12 -------------------------------------------------------------------------

FCC ID: IKQIPTRNS01 FRONT VIEW FCC ID: IKQIPTRNS01 REAR VIEW
