IKQSBTFM1Bluetooth FM Wireless hands free car kit

(2).You can adjust the music Volume/Play/Pause/Previous/Nest on mobile phone, or on the device. 7.Switching Music File Sources It can play the music from TF card and device with Bluetooth function, switch the file source between TF card and devices with Bluetooth by short press . 8.Make A Call (1).You can make a call and answer the phone through this device after connected by Bluetooth. Double tap redial the last phone number. (2).Reject call: when a call coming, double press to reject a call. 9.Aux Out The unit support music sources output from TF card music or Phone's Bluetooth music, And the music output to the other device by aux out port. 10.Part Description 160.0mm 60.0mm Product Production Product Features Operation Instructions This device is a car Bluetooth MP3 player, which equipped with profes- sional high performance Bluetooth module and MP3 decoder chip. It can transmit your mobile phones music and TF Card music to car stereo via FM radio signal. It can also be used as a hands free car kit during driving. This devices transmits signal by wireless method, no need to modify anything in car. It can be used both as the music player for entertainment purpose or hands free car kit in safety purpose during driving. 1.Support Bluetooth hands free MIC call,so that people answer the phone safety. 2.Noise and wind suppressed by CVC technology to create full duplex sound quality. 3.Support mobiles A2DP function. Music will be played directly while the device is connected with mobile phone. 4.Mobile phone can be reconnected automatically. 1.Device Power on (1).Device turns on automatically when plug its integrated car charger to car cigarette lighter power. (2).Select a frequency. (3).Turn on car FM stereo and keep the frequency same with the device. 2.Frequency and Volume Adjustment. (1).This device supports 206 transmis- sion frequency point:87.5~108.0MHZ, long press bottom into the Frequency setting mode, then rotate to adjust FM transmission frequency. (2).Rotate to adjust the volume 3.Playing Music from TF card. (1).Insert the TF card into the device, it will automatically detect and play the MP3/WMA/WAV format music in the TF card. This devices is compatible with most of the mobile phones, except a few mobile phone that are not available to use parts of above functions. Product features be upgraded without any notice. /Siri function Short press to on Again short press to off Operation Instruction 1.Power On/Off 2.How to pair mobile? 3.How to play and pause? 4.How to adjust volume? 5.How to select music? 6.How to answer and end a call? 7.Switching mode Shot press , then it will switch between TF card and Bluetooth mode. 8.Siri function Long press the “ ” button, the product wakes up the Siri voice assistant function Plug the device into the cigarette lighter, then turn on the phone Bluetooth, find the HK302 pairing name, click to pair Short press to play Press again to pause Adjust the volume by rotate Press to play next song Press to play previous song Short press to answer an incoming call Short press to end the call Double press to refuse incoming call Double press to redial the last phone No. QC3.0&5V/2.4A CAR CHARGER 1234 5678 5.Support an external TF cad, can play music files in MP3/WMA/WAV format. 6.Integrated car charger of output QC3.0 and 5V/2.4A, it is available for charging hand-held devices in car. (2).Music selection: short press or to select songs. 4.Connect to Bluetooth Devices (1).This devices is equipped with built in Bluetooth chip , it can connect to any other hand-held Bluetooth devices. (2).It will enter pairing mode automati- cally when the devices is powered on . Search this devices with name of "HK302", and connect it. (3).Memory function. It will connect to its memorized paired Bluetooth device automatically once the unit is powered on. 5.Automatic reconnect function When the unit is power, the phone beyond the Bluetooth reception range, or leave the unit for some time {more than 3 minutes}. Then the phone back to the product’s Bluetooth reception range, this time, click any key of the unit, then the phone can be connected automatically. Don’t need to power off and reconnect the unit and the mobile phone. 6.Playing Music from Mobile Phone (1).After connecting mobile phone to the device successfully via Bluetooth, you can play music from mobile phone the device will wirelessly transmit the signal to car stereo. (1) L' appareil ne doit pas produire de brouillage; (2) L' appareil doit accepter tout brouillage radioélectrique subi, même si NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including in…

Text truncated - open the document above for the full version.

Scosche Industries Inc 1550 Pacific Ave Oxnard, CA, 93033 Agent Authorization Company: Scosche Industries Inc Address: 1550 Pacific Ave Oxnard, CA, 93033 Product Name: Wireless hands free car kit Model Number(s): SBTFM1 Product Description: Bluetooth FM Wireless hands free car kit We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Oct. 12, 2020 Name: Mark Larson Title: SR Product Manager Company: Scosche Industries Inc

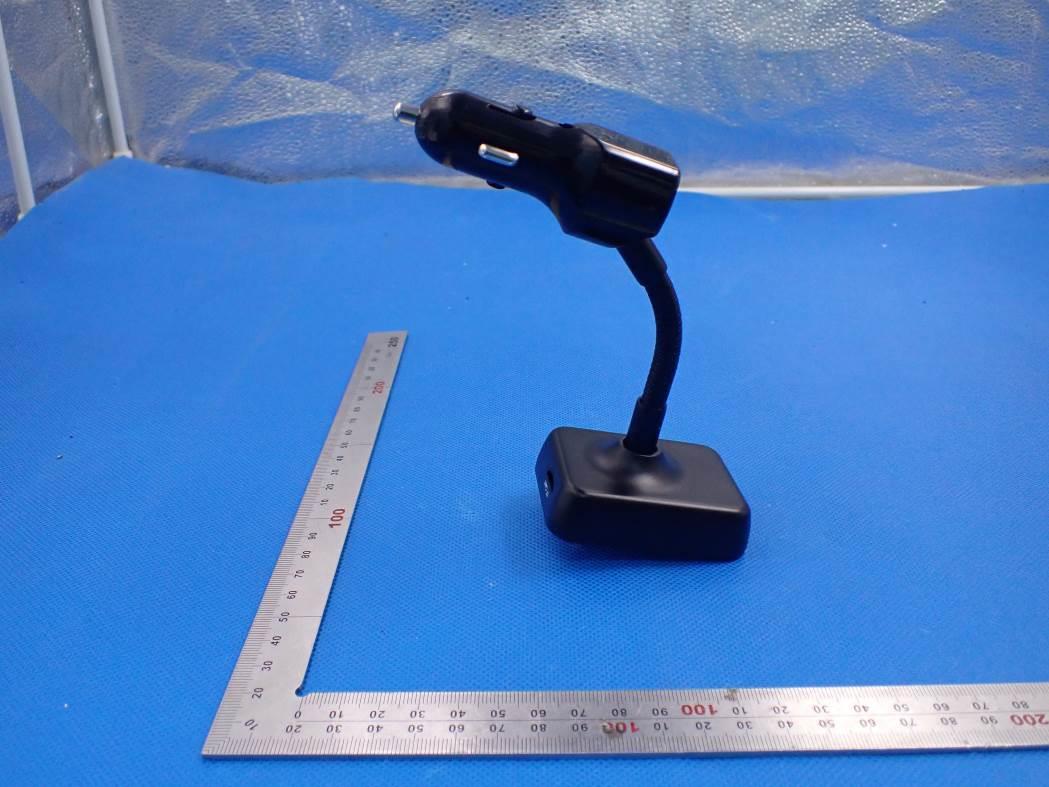

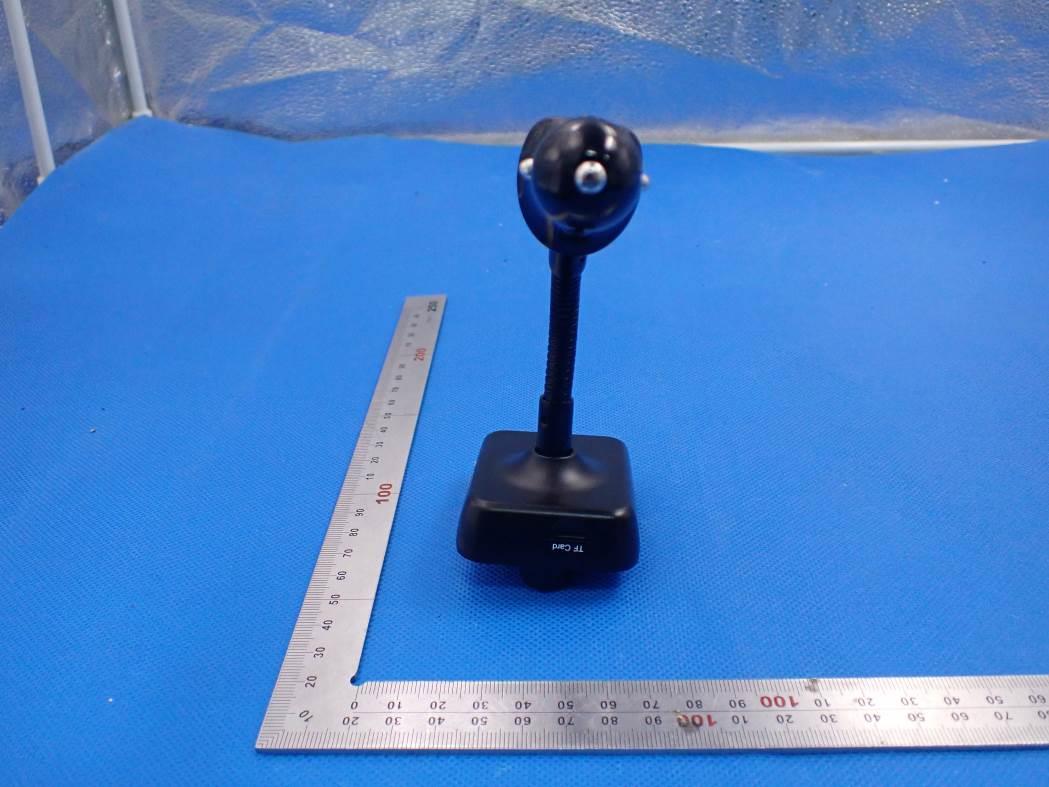

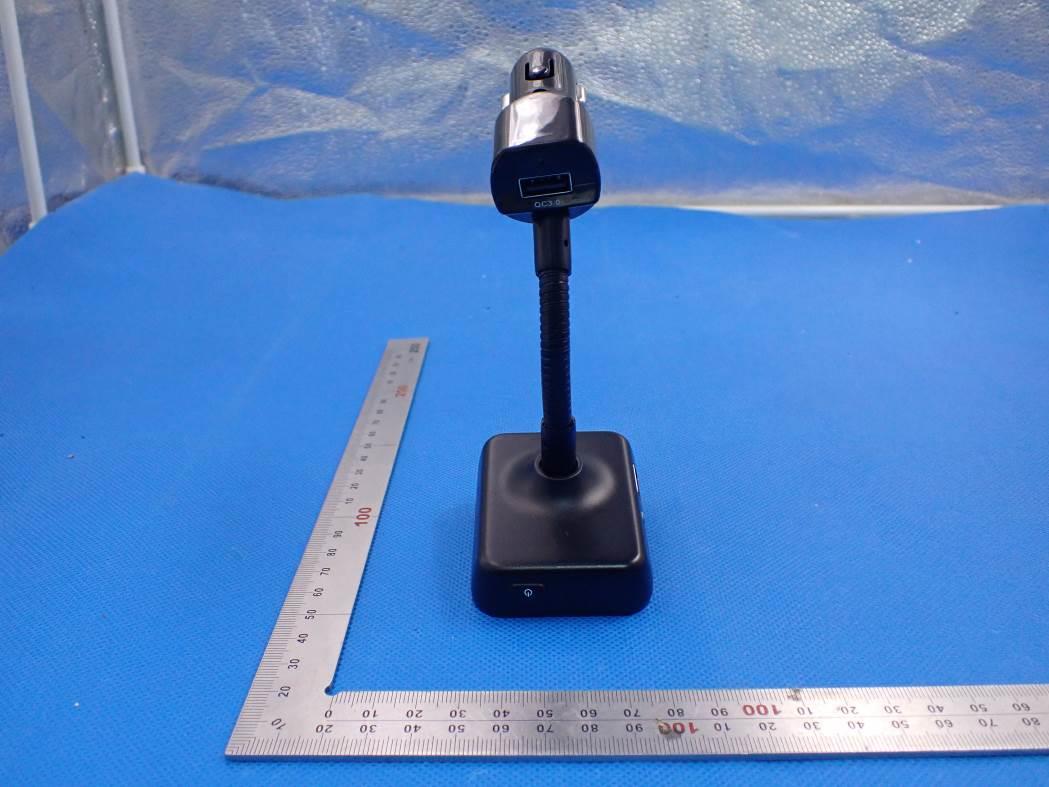

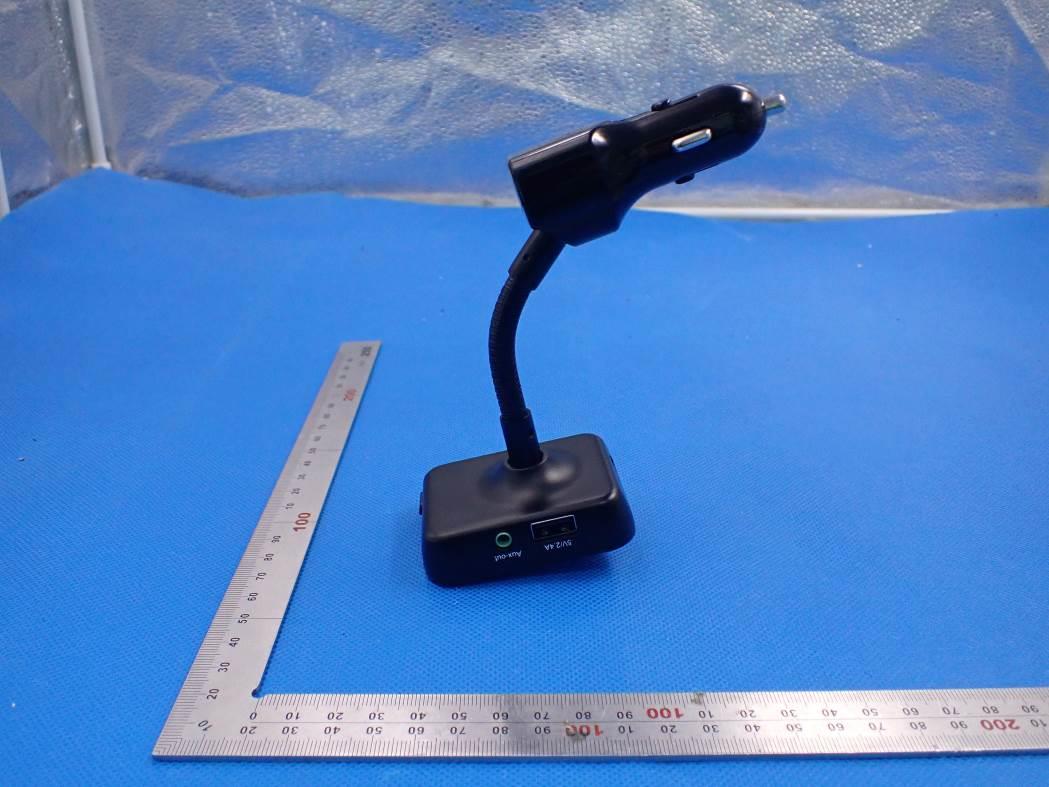

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)-1 VIEW OF EUT(PORT)-2 VIEW OF EUT(PORT)-3

FCC ID and IC Label Location 15mm*5mm FCC ID: IKQSBTFM1 IC: 6955A-SBTFM1 HVIN: SBTFM1

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 BT Antenna INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 FM Antenna port

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Wireless hands free car kit Model Name SBTFM1 FCC ID IKQSBTFM1 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =0.547dBm=1.13mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(1.13mW /5mm) .[√2.441(GHz)]=0.35<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. §15.239 FM Pt= -49.63dBm=0.000011mW The value of the Maximum output power P t is referred to the test report of the CFR47 For frequencies below 100 MHz and test separation distances ≤ 50 mm，the power threshold determined by the following: P max =0.5 * 474 * [1+log(100/f)] mW, where f is MHz For 88.1MHz, P max =250mW. Pt< P max. For 107.9MHz, P = 3 x 5 / 0.1079^0.5 = 45.7 mW P max =45.7mW. Pt< P max. Simultaneous transmission between Bluetooth and FM transmitter: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)]·[√f(GHz)/x] W/kg, for test separation distances ≤ 50 mm; where x = 7.5 for 1-g SAR and x = 18.75 for 10-g SAR. SAR=(0.35+0. 000011)/7.5=0.047W/kg<1.6W/kg 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 25 FCC Test Report Report No.: AGC02180200606FE06 FCC ID : IKQSBTFM1 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless hands free car kit BRAND NAME : SCOSCHE MODEL NAME : SBTFM1 APPLICANT : Scosche Industries Inc DATE OF ISSUE : Oct. 12,2020 STANDARD(S) : FCC Part 15.239 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd Report No.: AGC02180200606FE06 Page 2 of 25 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Oct. 12,2020 Valid Initial Release Report No.: AGC02180200606FE06 Page 3 of 25 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................ 4 2. GENERAL INFORMATION ......................................................................................................................... 5 2.1. PRODUCT DESCRIPTION ................................................................................................................... 5 2.2 TABLE OF CARRIER FREQUENCYS ................................................................................................... 5 3. MEASUREMENT UNCERTAINTY .............................................................................................................. 5 4. DESCRIPTION OF TEST MODES .............................................................................................................. 6 5. SYSTEM TEST CONFIGURATION ............................................................................................................ 6 5.1. EQUIPMENT USED IN EUT SYSTEM .................................................................................................. 6 5.2. SUMMARY OF TEST RESULTS ........................................................................................................... 6 6. TEST FACILITY ........................................................................................................................................... 7 7. RADIATED EMISSION ................................................................................................................................ 8 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 8 7.2.TEST SETUP ........................................................................................................................................ 10 7.3. TEST RESULTFOR FIELD STRENGTH OF FUNDAMENTAL ........................................................... 11 7.4. TEST RESULT FOR FIELD STRENGTH OF BAND EDGE EMISSION ............................................. 11 7.5. TEST RESULT FOR SPURIOUS EMISSION ..................................................................................... 12 8. BANDWIDTH ............................................................................................................................................. 14 8.1. MEASUREMENT PROCEDURE ......................................................................................................... 14 8.2. TEST SETUP ....................................................................................................................................... 14 8.3. TEST RESULT ..................................................................................................................................... 15 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ..................................................................................... 17 APPENDIX B: PHOTOGRAPHS OF EUT .................................................................................................... 18 Report No.: AGC02180200606FE06 Page 4 of 25 1. VERIFICATION OF CONFORMITY Applicant Scosche Industries Inc Address 1550 Pacific Ave, Oxnard, CA 93033 Manufacturer Scosche Industries Inc Address 1550 Pacific Ave, Oxnard, CA 93033 Factory Scosche Industries Inc Address 1550 Pacific Ave, Oxnard, CA 93033 Product Designation Wireless hands free car kit Brand Name SCOSCHE Test Model SBTFM1 Date of test Aug. 06,2020 to Oct. 12,2020 Deviation No any deviation from the test method Condition of Test Sample Normal Test Result Pass Report Template AGCRT-US-BR/RF (2013-03-01) We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC part 15.239. Prepared By Sky Dong (Project Engineer) Oct. 12,2020 Reviewed By Max Zhang (Reviewer) Oct. 12,2020 Approved By Forrest Lei (Authorized Officer) Oct. 12,2020 Report No.: AGC02180200606FE06 Page 5 of 25 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 88.1MHz-107.9MHz Test Frequency Low: 88.1 MHz; Middle:98.0 MHz; High: 107.9 MHz Field Strength(3m) 45.57dBuV/m(AVG)@3m Modulation FM Number of channels 199(Channel spacing 100kHz) Hardware Version V1 Software Version V1 Antenna Designation Integral Antenna (Met 15.203 Antenna requirement) Antenna Gain 0dBi Power Supply DC 12/24V by car battery NOTE: About the EUT, please refer to User’s Manual. 2.2 TABLE OF CARRIER FREQUENCYS Frequency Band Channel Number Frequency 88.1MHz-107.9MHz 1 88.10 2 88.20 -- -- 100 98.00 101 98.10 -- -- 198 107.80 199 107.90 3. MEASUREMENT UNCERTAINTY - Uncertainty of Radiated Emission below 1GHz, Uc = ±4.0 dB - Uncertainty of Radiated Emission above 1GHz, Uc = ±4.8 dB Report No.: AGC02180200606FE06 Page 6 of 25 4. DESCRIPTION OF TEST MODES NO. TEST MODE DESCRIPTION 1 Transmitting mode(Low channel) 2 Transmitting mode(Middle channel) 3 Transmitting mode(High channel) Note: 1. For Radiated Emission, 3axis were chosen for testing for each applicable…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1G RADIATED EMISSION TEST SETUP ABOVE 1G
