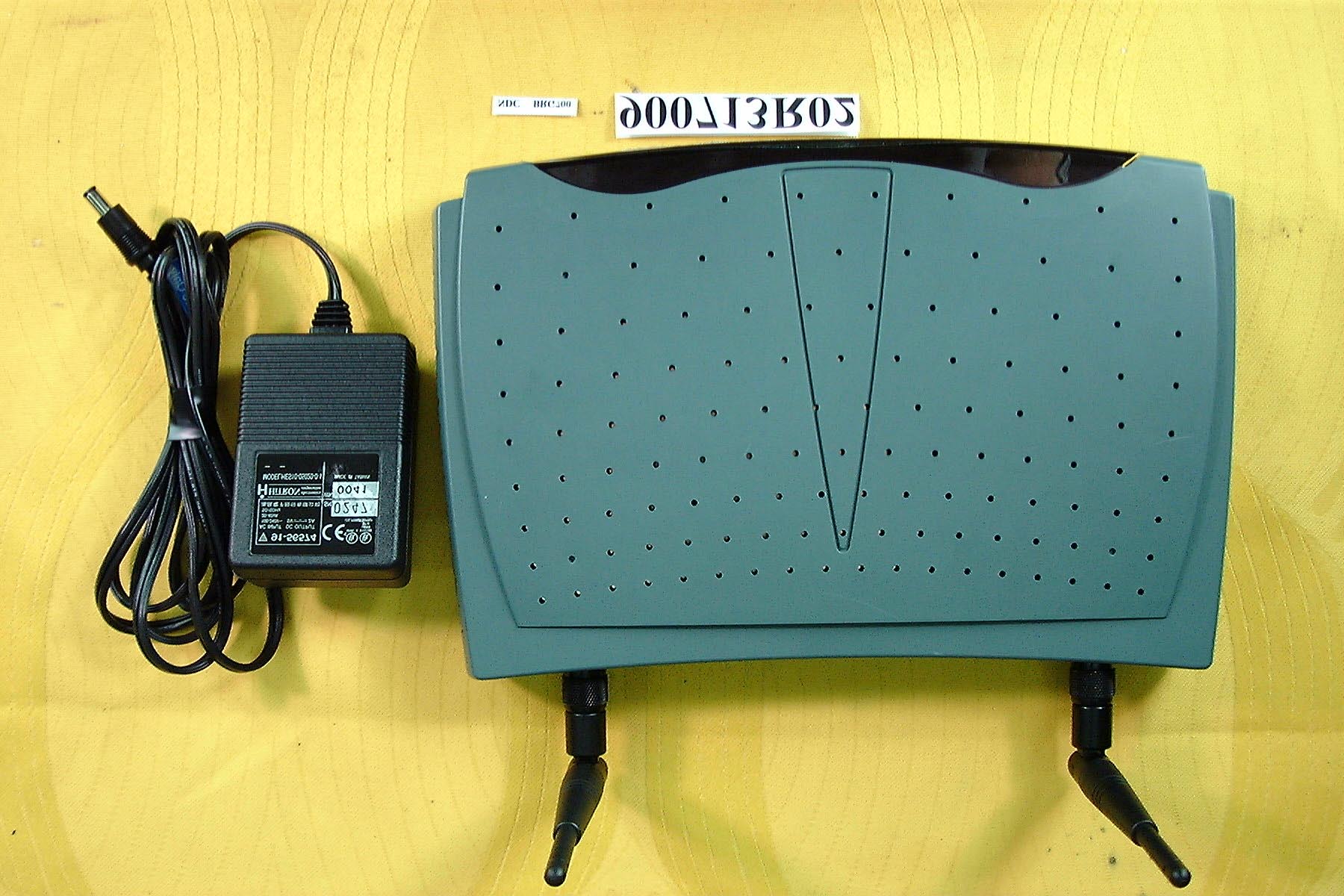

FCC ID: IOU0700S01 Report No.: RF900713R02 1 Issued: July 25, 2001 ANNEX PHOTOGRAPHS OF EUT FCC ID: IOU0700S01 Report No.: RF900713R02 2 Issued: July 25, 2001 FCC ID: IOU0700S01 Report No.: RF900713R02 3 Issued: July 25, 2001

FCC ID: IOU0700S01 Report No.: RF900713R02 4 Issued: July 25, 2001 FCC ID: IOU0700S01 Report No.: RF900713R02 5 Issued: July 25, 2001 FCC ID: IOU0700S01 Report No.: RF900713R02 6 Issued: July 25, 2001 FCC ID: IOU0700S01 Report No.: RF900713R02 7 Issued: July 25, 2001 FCC ID: IOU0700S01 Report No.: RF900713R02 8 Issued: July 25, 2001

Antenna specification 1. Customer : NATIONAL DATACOMM CORPORATION 2. Model name : IW-144RT-507 3. Antenna type : Dipole antenna 4. Gain : 1 dBi 5. Connector : TNC (Reverse)

ADT Number: 900713R02 1 FCC TEST REPORT REPORT NO.: RF900713R02 MODEL NO.: BRG700 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:NATIONAL DATACOMM CORPORATION ADDRESS: 4F, No.24-2, Industry East 4 th Road, Science Park, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 Lab Code: 200102-0 ADT Number: 900713R02 2 RF Exposure Measurement 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz ADT Number: 900713R02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5 Climate Condition The temperature and related humidity: 30 deg. C and 60 % RH 6. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. ADT Number: 900713R02 4 7 Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1dBi or 1.26 (numeric). 7.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) EIRP OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241265.612.56 6243772.112.69 11246256.102.37 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20 cm separation distance with the antenna.

FCC ID: IOU0700S01 Report No.: RF900713R02 1 Issued: July 25, 2001 FCC TEST REPORT REPORT NO.: RF900713R02 MODEL NO.: BRG700 RECEIVED: July 13, 2001 TESTED: July 13 ~ July 23, 2001 APPLICANT:NATIONAL DATACOMM CORPORATION ADDRESS:4F, No.24-2, Industry East 4 th Road, Science Park, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 51 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 Lab Code: 200102-0 FCC ID: IOU0700S01 Report No.: RF900713R02 2 Issued: July 25, 2001 Table of Contents 1CERTIFICATION........................................................................................... 4 2SUMMARY OF TEST RESULTS .................................................................. 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ............................................................. 6 3.2DESCRIPTION OF TEST MODES ............................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .............................. 7 3.4DESCRIPTION OF SUPPORT UNITS ......................................................... 8 4TEST TYPES AND RESULTS ...................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................................... 9 4.1.2TEST INSTRUMENTS ...........................................................................................................9 4.1.3TEST PROCEDURES .......................................................................................................... 10 4.1.4TEST SETUP ....................................................................................................................... 10 4.1.5EUT OPERATING CONDITIONS......................................................................................... 11 4.1.6TEST RESULTS ................................................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 18 4.2.2TEST INSTRUMENTS ......................................................................................................... 19 4.2.3TEST PROCEDURES .......................................................................................................... 20 4.2.4TEST SETUP ....................................................................................................................... 21 4.2.5EUT OPERATING CONDITIONS......................................................................................... 21 4.2.6TEST RESULTS ................................................................................................................... 22 4.36DB BANDWIDTH MEASUREMENT ......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 27 4.3.2TEST INSTRUMENTS ......................................................................................................... 27 4.3.3TEST PROCEDURE ............................................................................................................28 4.3.4TEST SETUP ....................................................................................................................... 28 4.3.5EUT OPERATING CONDITIONS......................................................................................... 28 4.3.6TEST RESULTS ................................................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER.......................................................... 33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 33 4.4.2INSTRUMENTS.................................................................................................................... 33 4.4.3TEST PROCEDURES .......................................................................................................... 34 4.4.4TEST SETUP ....................................................................................................................... 34 4.4.5EUT OPERATING CONDITIONS......................................................................................... 34 4.4.6TEST RESULTS ................................................................................................................... 35 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ........................................... 36 4.5.2TEST INSTRUMENTS ......................................................................................................... 36 4.5.3TEST PROCEDURE ............................................................................................................37 4.5.4TEST SETUP ....................................................................................................................... 37 4.5.5EUT OPERATING CONDITION ........................................................................................... 37 4.5.6TEST RESULTS ................................................................................................................... 38 4.6BAND EDGES MEASUREMENT .........................................................…

Text truncated - open the document above for the full version.

FCC ID: IOU0700S01 Report No.: RF900713R02 36 Issued: July 25, 2001 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE & SCHWARZ TEST RECEIVER ESMI839379/002Dec. 28, 2001 HP ATTENUATOR8496B3247A18505 Cal. on use HP PLOTTER7475A2641V27755 N/A NOTE:1. The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: IOU0700S01 Report No.: RF900713R02 37 Issued: July 25, 2001 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 30 kHz VBW, set sweep time = span/3 kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3 kHz for a full response of the mixer in the spectrum analyzer. 4.5.4 TEST SETUP 4.5.5 EUT OPERATING CONDITION Same as Item 3.4.5 EUT SPECTRUM ANALYZER Attenuator FCC ID: IOU0700S01 Report No.: RF900713R02 38 Issued: July 25, 2001 4.5.6 TEST RESULTS EUT Broadband Residential Gateway MODEL BRG700 INPUT POWER (SYSTEM) 230Vac, 50 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 65%RH, 1005 hPa TESTED BY: Steven Lu CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-10.978PASS 62437-12.728PASS 112462-11.028PASS FCC ID: IOU0700S01 Report No.: RF900713R02 39 Issued: July 25, 2001 CH1 FCC ID: IOU0700S01 Report No.: RF900713R02 40 Issued: July 25, 2001 CH6 FCC ID: IOU0700S01 Report No.: RF900713R02 41 Issued: July 25, 2001 CH11

FCC ID: IOU0700S01 Report No.: RF900713R02 42 Issued: July 25, 2001 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE & SCHWARZ TEST RECEIVER ESMI 848926/005 846839/018 Dec 28, 2001 HP ATTENUATOR8496B3247A18505 Cal. on use HP PLOTTER7475A2641V27755 N/A NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. FCC ID: IOU0700S01 Report No.: RF900713R02 43 Issued: July 25, 2001 4.6.4 EUT OPERATING CONDITION Same as Item 3.4.5 4.6.5 TEST RESULTS The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE: The band edge emission plot on the following 2 pages shows 42.25dB delta between carrier maximum power and local maximum emission in restrict band (2489.28GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.6 (Page 26) is 96.0dBuV/m, so the maximum field strength in restrict band is 96.0-48.25=47.75dBuV/m which is under 54 dBuV/m limit. FCC ID: IOU0700S01 Report No.: RF900713R02 44 Issued: July 25, 2001 FCC ID: IOU0700S01 Report No.: RF900713R02 45 Issued: July 25, 2001 FCC ID: IOU0700S01 Report No.: RF900713R02 46 Issued: July 25, 2001 FCC ID: IOU0700S01 Report No.: RF900713R02 47 Issued: July 25, 2001 FCC ID: IOU0700S01 Report No.: RF900713R02 48 Issued: July 25, 2001 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION The antenna used in this product is dual dipole antenna and its connector type is Reversed TNC. The maximum Gain of the antenna is 1dBi only. FCC ID: IOU0700S01 Report No.: RF900713R02 49 Issued: July 25, 2001 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: IOU0700S01 Report No.: RF900713R02 50 Issued: July 25, 2001 RADIATED EMISSION TEST FCC ID: IOU0700S01 Report No.: RF900713R02 51 Issued: July 25, 2001 6 INFORMATION ON THE TESTING LABORATORIES We, ADT Corp., were founded in 1988 to provide our best service in EMC and Safety consultation. Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025, Guide 25 or EN 45001: USAFCC, NVLAP, UL GermanyTUV Rheinland JapanVCCI New ZealandMoC NorwayNEMKO R.O.C.BSMI, DGT, CNLA Copies of accreditation certificates of our laboratories obtained from approval agencies can be downloaded from our web site: www.adt.com.tw/index.5/phtml. If you have any comments, please feel free to contact us at the following: Lin Kou EMC Lab: Tel: 886-2-26052180 Fax: 886-2-26052943 Hsin Chu EMC Lab: Tel: 886-35-935343 Fax: 886-35-935342 Lin Kou Safety Lab: Tel: 886-2-26093195 Fax: 886-2-26093184 Lin Kou RF&Telecom Lab Tel: 886-3-3270910 Fax: 886-3-3270892 Email: [email protected] Web Site: www.adt.com.tw The address and road map of all our labs can be found in our web site also.

FCC ID: IOU0700S01 Report No.: RF900713R02 1 Issued: July 25, 2001 ANNEX 1 PROCESSING GAIN OF DIRECT SEQUENCE SPREAD SPECTRUM MEASUREMENT 1. 1.1. 1. LIMITS OF PROCESSING GAIN OF A DIRECT SEQUENCE SPREAD SPECTRUM MEASUREMENT The limit of processing gain is 10dB 1.1 TEST INSTRUMENTS & SUPPORT UNIT Description & ManufacturerModel No.Serial No. Anritsu Spectrum Analyzer, 9kHz to 30GHz MS2667CM10281 Anritsu Signal Generator, 10kHz to 20GHz 68247B984703 Hewlett Packard Power Meter,HP438A2743A04416 Hewlett Packard Power Sensor, -30 to 20dBm 8485A2942A08387 Hewlett Packard Step Attenuator, 10dB steps HP8496B3247A18505 Mini-Circuits Power SplitterZN2PD-9GNA DELL Laptop ComputerInspiron 5000eNA Campaq Laptop ComputerPPX99125 FCC ID: IOU0700S01 Report No.: RF900713R02 2 Issued: July 25, 2001 1.2 METHOD OF MEASUREMENT The processing gain may be measured using the CW jamming margin method. Section 4.7.4 shows the test configuration. The test consists of stepping a signal generator in 50 kHz increments across the passband of the system. At each point, the generator level required to produce the recommended Bit Error Rate (BER) is recorded. This level is jammer level. The output power of the transmitting unit is measured at the same point. The jammer to Signal (J/S) ratio is then calculated. Discard the worst 20% of the J/S data points. The lowest remaining J/S ratio is used when calculating the Process Gain. The reference PER is specified as 8%. The corresponding Es/No (signal to noise ratio per symbol) is 16.4 dB. The curve is attached as below. This value and the measured J/S ratio are used in the following equation to calculate the Process Gain (Gp) of the system. Where: (S/N) o : Signal to noise ratio for the chosen BER. Gp = (S/N) o +Mj+Lsys FCC ID: IOU0700S01 Report No.: RF900713R02 3 Issued: July 25, 2001 Mj : Maximum jammer to Signal Ratio recorded at the detected BER. Lsys : System losses . For the purpose of this processing gain calculation, we assume Lsys at its minimum value of 2 dB. TEST SETUP 7 NOTEBOOK EUT ANRITSU SIGNAL GENERATOR EUT NOTEBOOK PWR SENSOR 8485A Power meter HP 438A Mini-Circuits 15542 ZNZPD-9G HP8496D STEP ATTN 110dB (10dB steps) Matched Cables RECEIVER Transmitter FCC ID: IOU0700S01 Report No.: RF900713R02 4 Issued: July 25, 2001 1.3 TEST PROCEDURES Obtain the simplex link shown. Perform all independent instrumentation calibrations prior to this procedure. Set operating power levels using fixed and variable attenuators in system to meet the following objectives: Signal Power at receiver approximately –55dBm (above thermal sensitivity such that thermal noise does not cause bit errors. Signal Power at power meter between –20 and –30dBm for optimal linearity. Use spectrum analyzer to monitor test. Ensure that CW Jammer generator RF output is disabled and measure the power at the power meter port using the power meter. This is the relative signal power, Sr. Disable Transmitter, and set CW Jammer generator RF output frequency equal to the carrier frequency and enable generator output. Set reference CW Jammer power level at power meter port 8.4dB below Sr (minimum J/S, or 10dB processing gain reference level). Note the power level setting on the generator, this is the reference CW Jammer power setting, Jr. Disable CW Jammer, re-establish link. PER test should be operating essentially error -free. Enable CW Jammer at the reference power level and verify that the PER test indicates a PER of less than 8%. Alternatively, adjust the CW Jammer level to that which causes 8% PER and verify that the S/J is less than 8.4dB. Repeat step 7 for uniform steps in frequency increments of 50 kHz across the receiver passband with the CW Jammer. In this case the receiver passband is +/- 8.5 MHz. The numerical data associated with the following radio channel is tabulated and presented for Channel 1,6, and 11. Note:Since the jamming signal will be blocked by the IF filter if the jamming frequency is far form the center of the carrier frequency. So, only those frequencies around carrier frequency are shown here. FCC ID: IOU0700S01 Report No.: RF900713R02 5 Issued: July 25, 2001 1.4 EUT OPERATING CONDITION The software provided by client to set the EUT to transmit at lowest, middle and highest channel. 1.5 TEST RESULTS EUTBroadband Residential GatewayModelBRG700 Environmental Conditions25°C, 60%RHTe s t e d B ySteven Lu Although the theoretical processing gain is lower than 10 dB, but the CCK coding provides an extra coding gain of 2.2dB. 11Mbps CHANNEL 1 Processing Gain FrequencyGp(S/N)Mj = J/SLsys (GHz)(dB)(dB)(dB)(dB) 2.4080013.016.4-4.41 2.4080512.916.4-4.51 2.4081013.516.4-3.91 2.4081513.616.4-3.81 2.4082013.216.4-4.21 2.4082513.216.4-4.21 2.4083013.016.4-4.41 2.4083512.516.4-4.91 2.4084012.416.4-5.01 2.4084512.816.4-4.61 2.4085012.916.4-4.51 2.4085512.016.4-5.41 2.4086011.916.4-5.51 2.4086511.816.4-5.61 2.4087012.016.4-5.41 2.4087512.616.4-4.81 2.4088012.116.4-5.31 2.4088512.516.4-4.91 2.4089011.816.4-5.61 2.4089511.616.4-5.81 2.4090012.016.4-5.41 2.4095011.716.4-5.71 FCC ID: IOU0700S01 Report No.: RF900713R02 6 Issued: July 25, 2001 11Mbps CHANNEL 1 Processing Gain FrequencyGp(S/N)Mj = J/SLsys (GHz)(dB)(dB)(dB)(dB) 2.4095511.816.4-5.61 2.4096011.916.4-5.51 2.4096511.816.4-5.61 2.4097011.516.4-5.91 2.4097511.616.4-5.81 2.4098010.916.4-6.51 2.4098510.916.4-6.51 2.4099011.216.4-6.21 2.4099511.516.4-5.91 2.4100011.316.4-6.11 2.4100511.216.4-6.21 2.4101010.816.4-6.61 2.4101510.916.4-6.51 2.4102011.516.4-5.91 2.4102511.616.4-5.81 2.4103011.516.4-5.91 2.4103511.816.4-5.61 2.4104011.516.4-5.91 2.4104511.016.4-6.41 2.4105011.316.4-6.11 2.4105511.416.4-6.01 2.4106011.016.4-6.41 2.4106511.516.4-5.91 2.4107011.716.4-5.71 2.4107511.816.4-5.61 2.4108011.016.4-6.41 2.4108511.916.4-5.51 2.4109012.116.4-5.31 2.4109511.616.4-5.81 2.4110011.816.4-5.61 2.4110511.216.4-6.21 2.4111011.316.4-6.11 2.4111511.816.4-5.61 2.4112011.416.4-6.01 FCC ID: IOU0700S01 Report No.: RF900713R02 7 Issued: July 25, 2001 11Mbps CHAN…

Text truncated - open the document above for the full version.

FCC ID: IOU0700S01 Report No.: RF900713R02 49 Issued: July 25, 2001 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: IOU0700S01 Report No.: RF900713R02 50 Issued: July 25, 2001 RADIATED EMISSION TEST
