  1. Home/
  2. Garmin International Inc/
  3. IPH-00568

IPH-00568FRS/GMRS Transceiver with GPS

Garmin International Inc
FRS/GMRS Transceiver with GPS - FCC ID IPH-00568 - Garmin International Inc
Click to zoom

Application Details

Equipment Class
FRF - Part 95 Family Radio Face Held Transmitter
Date of Grant
Sep 03, 2002
Application Purpose
Original Equipment
Date of Application
May 06, 2002
Equipment Note
FRS/GMRS Transceiver with GPS
Frequency Range
467.55000000 - 467.72500000
Company
Garmin International Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Parts List/Tune Up Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Preliminary 120 2-way radio & personal navigator ® owner’s manual and reference guide © 2002 GARMIN LTD. or its subsidiaries GARMIN International, Inc. 1200 E 151 st Street, Olathe, Kansas 66062 U.S.A. Tel. 913/397.8200 Fax. 913/397.8282 GARMIN (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9AQ U.K. Tel. 44/1794.519944 Fax.44/1794.519222 GARMIN Corp. No. 68, Jangshu 2 nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax. 886/2.2642.9099 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without prior written consent of GARMIN. GARMIN hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed for personal use, pro- vided that such electronic or printed copy of this manual or revision must contain the complete text of this copyright notice and provided further that any unauthor- ized commercial distribution of this manual is strictly prohibited. Information in this manual is subject to change without notice. GARMIN reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes. Visit the GARMIN web site (www.garmin.com) for current updates and supplemental infor- mation concerning the use and operation of this and other GARMIN products. GARMIN, AutoLocate, Personal Navigator, and TracBack are registered trademarks, Rino, MapSource , and Click Stick are trademarks of GARMIN Ltd. or its subsidiaries and may not be used without the express permission of GARMIN Corporation. May 2002 Part Number 190-00259-00 Rev. A Printed in Taiwan 3 Preliminary Thank you for choosing the GARMIN Rino. To get the most from your new Rino, take time to read through this owner’s manual in order to understand all of the operating features. This manual is organized into four sections. The Introduction section provides FCC and safety information and the Table of Contents. The Getting Started section introduces you to the Rino features, main operating pages and basic navigation methods. The Reference section provides details about using the features of the Rino according to topic. The explana- tions for each feature in this section are divided into: (1) An overview that discusses the feature and how it functions and (2) A detailed Step-by-Step instruction for using the feature. Reading the overview may be all that you require to operate features, however, the Step-by-Step instructions are available, if needed. The Appendices contain information on items such as Accessories, Specifi cations, a Troubleshooting Guide, and an Index by Subject. Standard Package Contents: 1 Rino Unit 1 Belt Clip 1 Carrying Lanyard 1 Owner’s Manual 1 Quick Start Guide 1 PC Interface Cable About This Manual Introduction 4 Preliminary FCC Compliance & GMRS Licensing Introduction FCC Compliance The Rino 120 complies with Part 15 of the FCC regulatoins and with Canadian ICES-003 for Class B digital devices. Operation of this device is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a par- ticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The Rino 120 does not contain any user-service- able parts. Repairs should only be made by an autho- rized GARMIN service center. Unauthorized repairs or modifi cations could result in permanent damage to the equipment, and void your warranty and your authority to operate this device. FCC LICENSING INFORMATION The Rino 120 two-way radio operates on General Mobile Radio Service (GMRS) frequencies that are regulated by the Federal Communications Commission (FCC). In order to transmit on these frequencies, you are required to obtain a license from the FCC. An individual 18 years of age or older, who is not a representative of 5 Preliminary Warnings & Precautions Introduction a foreign government, is eligible to apply for a GMRS license. To apply for a GMRS license, you will need FCC Form 605 (605 Main Form and Schedule F) and FCC Form 159. You can download the application forms from the FCC website at http://www.fcc.gov/Forms/. You can also request them through the FCC forms hotline at 1-800-418-FORM (1-800-418-3676). You can fi le Form 605 on-line at http://wireless.fcc.gov/uls/. There is a fi ling fee associated with this application, which may change from time to time. For information on fees, see the FCC fee information webpage at http://wireless.fcc.gov/csinfo/ feeinfo.html.” For questions concerning the license application, contact the FCC at 1-888-CALL-FCC (1-888-225-5322) Warnings and Precautions The GPS system is operated by the United States government, which is solely responsible for its accuracy and maintenance. The system is subject to changes which could affect the accuracy and performance of all GPS equipment. Although the GARMIN GPSMAP 182C is a precision electronic NAVigation AID (NAVAID), any NAVAID can be misused or misinterpreted and, theref…

Text truncated - open the document above for the full version.

Cover Letter(s)

May 7, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Equipment: FCC ID: IPH-00568 FCC Rules: Part 2 and 95 Gentlemen: The 731 form and application have been electronically submitted and any attachments will be up loaded to your web page site to be used in obtaining a grant of certification. It is requested that the information contained in the block diagram, operational description, and schematics of the application be held confidential per Section 0.459. A statement of confidentiality will be attached with the application at the time of submittal. The special fee for request of confidentiality will be submitted with the application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

Cover Letter(s)

June 11, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Equipment: FCC ID: IPH-00568 FCC Rules: Part 2 and 95 RE: Request for additional information A portion of the request is reproduced below. To: Scot Rogers, Rogers Labs, Inc. From: Diane Poole [email protected] FCC Application Processing Branch Re: FCC ID IPH-00568 Applicant: Garmin International Inc Correspondence Reference Number: 23086 731 Confirmation Number: EA910136 1. Please submit a copy of the Garmin's waiver DA 00-2234. 2. Please submit ERP Power measurement for FRF and GMRS mode using Substitution method (as described in the ANSI/TIA/EIA -603-1992 document) 3. Please show the emission Mask plot as required by 95.635(b). RESPONSE: 1. A copy of the waiver has been uploaded to the web site for this application. 2. The ERP information is given in the test report on pages 16 and 17. Please advise if this information is not what you requested. 3. The emission mask for the unit has been added to the plots (figures 10 through 13) of the report. A revised report has been uploaded to your web site. Please refer to the pdf file RINO1TstRpt.pdf and use this fi9le for the submittal. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

Cover Letter(s)

June 24, 2002 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 RE: Request for additional information Equipment: FCC ID: IPH-00568 FCC Rules: Parts 2, and 95. Gentlemen: A portion of the request is reproduced below. To: Scot Rogers, Rogers Labs, Inc. From: Diane Poole [email protected] FCC Application Processing Branch Re: FCC ID IPH-00568 Applicant: Garmin International Inc Correspondence Reference Number: 23207 731 Confirmation Number: EA910136 1. Please submit ERP Power measurement for FRF and GMRS mode using Substitution method (as described in the ANSI/TIA/EIA -603-1992 document) 2. Please show the emission Mask plot as required by 95.635(b). RESPONSE: 1. ERP power measurements for FRS and GMRS mode. Channel frequency 462.5625 MHz (FRS) Amplitude of emission Signal level to dipole required to reproduce Frequency of Emission Horizontal Vertical Horizontal Vertical (MHz) dBμV dBμV dBm dBm 462.562 89.3 102.7 11.5 24.0 ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 Channel frequency 462.6000 MHz (GMRS) Amplitude of emission Signal level to dipole required to reproduce Frequency of Emission Horizontal Vertical Horizontal Vertical (MHz) dBμV dBμV dBm dBm 462.600 93.0 108.0 14.0 29.0 2. Emission mask B of 95.635(b) specifies (1) on any frequency removed the assigned frequency by more than 50% but not more than 100% of the authorized bandwidth at least 25 dB. (2) 100% to 250% 35 dB and (3) greater than 250% at least 43 + 10log(P) dB. This emission mask has been added and is displayed below. Thank you for your help in resolving these issues. Please continue with the grant of certification process. Scot Rogers Rogers Labs, Inc.

Cover Letter(s)

July 1, 2002 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-00568 PRODUCT: GMRS/FRS combination unit with GPS receiver operating under part 95. Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459 (1998), following grant of the application. In support of this request, Garmin International, Inc. submits the following: 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-00568 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation and circuit diagrams, (schematic diagrams). As such, this material is treated as highly confidential business information. 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment will be used for more than a decade in some cases. Moreover, this equipment will be used in revenue collection and secure access control applications (e.g. volume and pressurized piping facilities). As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. 9. Any other information that the party seeking confidential treatment believes may be useful in assessing whether its request for confidentiality should be granted: See item eight above. Note that the equipment for which approval is being sought will be employed in applications that inherently place a premium on security. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

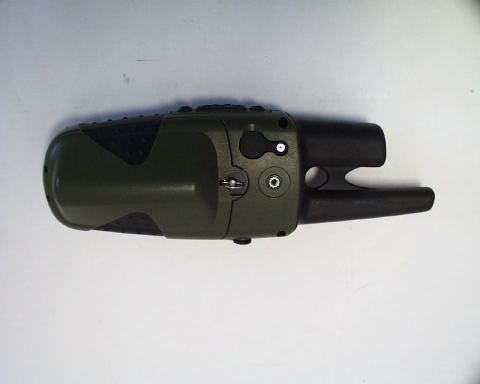

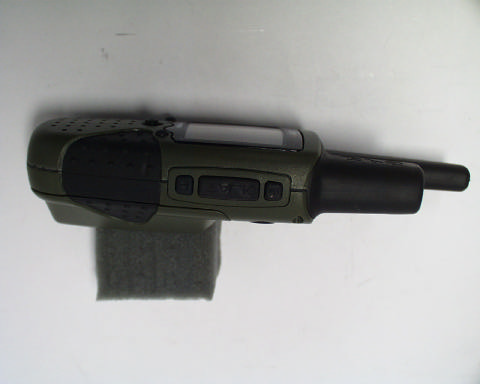

External Photos

ROGERS LABS, INC. GARMIN INTERNATIONAL, INC. 4405 W. 259th Terrace MODEL: RINO Louisburg, KS 66053 Test #: 020419 FCC ID: IPH-00568 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 2 RinoExtPho.doc 5/6/2002 External Photographs of for RINO ROGERS LABS, INC. GARMIN INTERNATIONAL, INC. 4405 W. 259th Terrace MODEL: RINO Louisburg, KS 66053 Test #: 020419 FCC ID: IPH-00568 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 2 of 2 RinoExtPho.doc 5/6/2002

ID Label/Location Info

ROGERS LABS, INC. GARMIN INTERNATIONAL, INC. 4405 W. 259th Terrace MODEL: Rino Louisburg, KS 66053 Test #: 020419 FCC ID: IPH-00568 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 2 RINOIdLbl.doc 5/6/2002 FCC ID Label Location and information for Rino ROGERS LABS, INC. GARMIN INTERNATIONAL, INC. 4405 W. 259th Terrace MODEL: Rino Louisburg, KS 66053 Test #: 020419 FCC ID: IPH-00568 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 2 of 2 RINOIdLbl.doc 5/6/2002 Artwork for RINO.

Internal Photos

ROGERS LABS, INC. GARMIN INTERNATIONAL, INC. 4405 W. 259th Terrace MODEL: Rino Louisburg, KS 66053 Test #: 020419 FCC ID: IPH-00568 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 2 RinoIntPho.doc 5/6/2002 Internal Photographs for Rino ROGERS LABS, INC. GARMIN INTERNATIONAL, INC. 4405 W. 259th Terrace MODEL: Rino Louisburg, KS 66053 Test #: 020419 FCC ID: IPH-00568 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 2 of 2 RinoIntPho.doc 5/6/2002

Parts List/Tune Up Info

Rino 110/120 Transmitter Tune-up Procedure 1. As part of the manufacturing process, the unit will be powered on and the transmitter will be enabled. R401 will be adjusted to center the transmit signal to the desired test frequency. 2. A computer will command the unit under test to vary the voltage on I407 pin 1 until the transmit power on FRS channels is between 450mW ~ 499mW. It will then command the unit to a GMRS channel and adjust the power to be between 500mW ~ 1 watt. These voltage levels will then be stored in non-volatile memory. These values can be recalled by the unit as necessary, depending on whether the user decides to operate on FRS or GMRS channels. 3. The computer will command a function generator to output a 100mV, 500Hz audio signal to the unit under test. The computer will then command the unit to adjust I400 so modulation is between 2300Hz ~ 2499Hz. 4. The computer will command the unit to generate a 1111... data pattern and adjust I400 so modulation is between 2300Hz ~ 2499Hz. 5. The computer will command the unit to generate a sub-audible squelch tone of 156.7MHz and adjust I400 until modulation is between 350Hz ~ 600Hz.

Test Report

TEST REPORT For APPLICATION of CERTIFICATION For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance MODEL: RINO Family Radio Service (FRS) / General Mobile Radio Services (GMRS) Combination UHF TRANSCEIVER FREQUENCY: 462 MHz and 467 MHz FCC ID: IPH-00568 Test Date: April 19, 2002 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: Rino FRS / GMRS Combination UHF Transceiver Louisburg, KS 66053 Test #:020419 FCC ID#: IPH-00568 SN: ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 2 of 24 RINOTstRpt.Doc 5/6/2002 TABLE OF CONTENTS FORWARD: 3 LIST OF TEST EQUIPMENT 3 2.1033(C) APPLICATION FOR CERTIFICATION 4 2.1046 RF POWER OUTPUT 5 Measurements Required: 5 Test Arrangement: 5 Results: 5 2.1047 MODULATION CHARACTERISTICS 7 Measurements Required: 7 Test Arrangement: 7 Results: 7 2.1049 OCCUPIED BANDWIDTH 9 Measurements Required: 9 Test Arrangement: 9 Results: 9 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 12 Measurements Required: 12 Test Arrangement: 12 Results: 15 2.1053 FIELD STRENGTH OF SPURIOUS RADIATION 15 Measurements Required: 15 Test Arrangement: 16 Results: 17 Radiated Emissions from EUT 18 2.1055 FREQUENCY STABILITY 18 Measurements Required: 18 Test Arrangement: 19 Results: 20 APPENDIX 21 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: Rino FRS / GMRS Combination UHF Transceiver Louisburg, KS 66053 Test #:020419 FCC ID#: IPH-00568 SN: ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 3 of 24 RINOTstRpt.Doc 5/6/2002 FORWARD: In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 2001, Part 2 Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.915, 2.925, 2.926, 2.1031 through 2.1057, applicable paragraphs of Parts 15, and 95, the following is submitted: List of Test Equipment A Hewlett Packard 8591EM and or 8562A Spectrum Analyzer was used as the measuring device for the emissions testing. The analyzer settings used are described in the following table. Refer to the Appendix for a complete list of Test Equipment. HP 8591EM SPECTRUM ANALYZER SETTINGS CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 9 kHz 30 kHz Peak/Quasi Peak RADIATED EMISSIONS (30 – 1000 MHz): RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak/Quasi Peak HP 8562A SPECTRUM ANALYZER SETTINGS RADIATED EMISSIONS (1 – 40 GHz): RBW AVG. BW DETECTOR FUNCTION 1 MHz 1 MHz Peak/Average ANTENNA CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: Rino FRS / GMRS Combination UHF Transceiver Louisburg, KS 66053 Test #:020419 FCC ID#: IPH-00568 SN: ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 4 of 24 RINOTstRpt.Doc 5/6/2002 2.1033(c) Application for Certification (1) Manufacturer: GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 PHONE: (913) 397-8200A (2) FCC Identification: Model: RINO S/N: ENG- 1 FCC I.D.: IPH-00568 (3) Instruction Book: Refer to exhibit for Draft Instruction Manual. (4) Emission Types: 6K0F3E and 6K0F2D (5) Frequency Range: 462 MHz and 467 MHz (6) Operating Power Level: 1.0 Watts (GMRS channels) 0.5 Watts (FRS channels) (7) Max Power allowed as defined in 95.639 rule: 50.0 Watts (GMRS) and 0.5 Watts (ERP)(FRS channels) (8) Power into final amplifier: 1.0 Watt GMRS: 1.6 Watts (4.0V @ 0.4A) 0.5 Watt FRS: 1.2 Watts (4.0V @ 0.3A) (9) Tune Up Procedure for Output Power: Refer to Exhibit for Transceiver Alignment Procedure. (10) Circuit Diagrams; description of circuits, frequency stability, spurious suppression, and power and modulation limiting: Refer to Exhibit for Circuit Diagrams. Refer to Exhibit for Theory of Operation. (11) Photograph or drawing of the Identification Plate: Refer to Exhibit for Photograph or Drawing. (12) Drawings of Construction and Layout: Refer to Exhibit for Drawings of Components Layout and Chassis Drawings. (13) Detail Description of Digital Modulation: Refer to exhibit for description of modulation. NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: Rino FRS / GMRS Combination UHF Transceiver Louisburg, KS 66053 Test #:020419 FCC ID#: IPH-00568 SN: ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 5 of 24 RINOTstRpt.Doc 5/6/2002 2.1046 RF Power Output Measurements Required: Measurements shall be made to establish the radio frequency power delivered by the transmitter into the standard output termination. The power output shall be monitored and recorded and no adjustment shall be made to the transmitter after the test has begun, except as noted below: If the power output is adjustable, measurements shall be made for the highest and lowest power levels. Test Arrangement: The radio frequency power output was measured at the antenna terminal by replacing the antenna with a spectrum analyzer and 3-dB attenuation. The spectrum analyzer had an impedance of 50W to match the impedance of the standard antenna. A HP 8591EM and/or 8562A Spectrum Analyzer was used to measure the radio frequency power at the antenna port. The data was taken in dBm and converted to watts as shown in the following Table. The unit was also measured for radiated emissions on the t…

Text truncated - open the document above for the full version.

Test Report

TEST REPORT For APPLICATION of CERTIFICATION For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance MODEL: RINO Family Radio Service (FRS) / General Mobile Radio Services (GMRS) Combination UHF TRANSCEIVER FREQUENCY: 462 MHz and 467 MHz FCC ID: IPH-00568 Test Date: April 19, 2002 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: Rino FRS / GMRS Combination UHF Transceiver Louisburg, KS 66053 Test #:020419 FCC ID#: IPH-00568 SN: ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 2 of 24 RINO1TstRpt.Doc 6/112002 TABLE OF CONTENTS FORWARD: 3 LIST OF TEST EQUIPMENT 3 2.1033(C) APPLICATION FOR CERTIFICATION 4 2.1046 RF POWER OUTPUT 5 Measurements Required: 5 Test Arrangement: 5 Results: 5 2.1047 MODULATION CHARACTERISTICS 7 Measurements Required: 7 Test Arrangement: 7 Results: 7 2.1049 OCCUPIED BANDWIDTH 9 Measurements Required: 9 Test Arrangement: 9 Results: 9 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 12 Measurements Required: 12 Test Arrangement: 12 Results: 15 2.1053 FIELD STRENGTH OF SPURIOUS RADIATION 15 Measurements Required: 15 Test Arrangement: 16 Results: 17 Radiated Emissions from EUT 18 2.1055 FREQUENCY STABILITY 18 Measurements Required: 18 Test Arrangement: 19 Results: 20 APPENDIX 21 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: Rino FRS / GMRS Combination UHF Transceiver Louisburg, KS 66053 Test #:020419 FCC ID#: IPH-00568 SN: ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 3 of 24 RINO1TstRpt.Doc 6/112002 FORWARD: In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 2001, Part 2 Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.915, 2.925, 2.926, 2.1031 through 2.1057, applicable paragraphs of Parts 15, and 95, the following is submitted: List of Test Equipment A Hewlett Packard 8591EM and or 8562A Spectrum Analyzer was used as the measuring device for the emissions testing. The analyzer settings used are described in the following table. Refer to the Appendix for a complete list of Test Equipment. HP 8591EM SPECTRUM ANALYZER SETTINGS CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 9 kHz 30 kHz Peak/Quasi Peak RADIATED EMISSIONS (30 – 1000 MHz): RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak/Quasi Peak HP 8562A SPECTRUM ANALYZER SETTINGS RADIATED EMISSIONS (1 – 40 GHz): RBW AVG. BW DETECTOR FUNCTION 1 MHz 1 MHz Peak/Average ANTENNA CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: Rino FRS / GMRS Combination UHF Transceiver Louisburg, KS 66053 Test #:020419 FCC ID#: IPH-00568 SN: ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 4 of 24 RINO1TstRpt.Doc 6/112002 2.1033(c) Application for Certification (1) Manufacturer: GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 PHONE: (913) 397-8200A (2) FCC Identification: Model: RINO S/N: ENG- 1 FCC I.D.: IPH-00568 (3) Instruction Book: Refer to exhibit for Draft Instruction Manual. (4) Emission Types: 6K0F3E and 6K0F2D (5) Frequency Range: 462 MHz and 467 MHz (6) Operating Power Level: 1.0 Watts (GMRS channels) 0.5 Watts (FRS channels) (7) Max Power allowed as defined in 95.639 rule: 50.0 Watts (GMRS) and 0.5 Watts (ERP)(FRS channels) (8) Power into final amplifier: 1.0 Watt GMRS: 1.6 Watts (4.0V @ 0.4A) 0.5 Watt FRS: 1.2 Watts (4.0V @ 0.3A) (9) Tune Up Procedure for Output Power: Refer to Exhibit for Transceiver Alignment Procedure. (10) Circuit Diagrams; description of circuits, frequency stability, spurious suppression, and power and modulation limiting: Refer to Exhibit for Circuit Diagrams. Refer to Exhibit for Theory of Operation. (11) Photograph or drawing of the Identification Plate: Refer to Exhibit for Photograph or Drawing. (12) Drawings of Construction and Layout: Refer to Exhibit for Drawings of Components Layout and Chassis Drawings. (13) Detail Description of Digital Modulation: Refer to exhibit for description of modulation. NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: Rino FRS / GMRS Combination UHF Transceiver Louisburg, KS 66053 Test #:020419 FCC ID#: IPH-00568 SN: ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 5 of 24 RINO1TstRpt.Doc 6/112002 2.1046 RF Power Output Measurements Required: Measurements shall be made to establish the radio frequency power delivered by the transmitter into the standard output termination. The power output shall be monitored and recorded and no adjustment shall be made to the transmitter after the test has begun, except as noted below: If the power output is adjustable, measurements shall be made for the highest and lowest power levels. Test Arrangement: The radio frequency power output was measured at the antenna terminal by replacing the antenna with a spectrum analyzer and 3-dB attenuation. The spectrum analyzer had an impedance of 50W to match the impedance of the standard antenna. A HP 8591EM and/or 8562A Spectrum Analyzer was used to measure the radio frequency power at the antenna port. The data was taken in dBm and converted to watts as shown in the following Table. The unit was also measured for radiated emissions on t…

Text truncated - open the document above for the full version.

Test Setup Photos

ROGERS LABS, INC. GARMIN INTERNATIONAL, INC. 4405 W. 259th Terrace MODEL: Rino Louisburg, KS 66053 Test #: 020419 FCC ID: IPH-00568 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 1 RinoTsup.doc 5/6/2002 …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Ben Karsak(Manager, Compliance Engineering)
[email protected]9134401946Fax: 913 397-8282

Technical Contact

Rogers Labs, Inc.Scot D Rogers
[email protected]913 837-3214

4405 West 259th Terrace · Louisburg, Kansas · United States

Non-Technical Contact

Rogers Labs, Inc.Scot D Rogers
[email protected]913 837-3214

Test Firm

Rogers Labs, Inc.Scot Rogers
[email protected]913-837-3214Fax: 913-837-3214

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
695A467.55 MHz - 467.725 MHz1 W6K00F2D2.5 ppm
Confidentiality
Long Term
