September 8, 2003 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 CORES number: 0005-0885-88 Equipment: FCC ID: IPH-00726 FCC Rules: Part 2 and 95 Gentlemen: The 731 form and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. It is requested that the information contained in the operational description, and schematics of the application be held confidential per Section 0.459. A statement of confidentiality will be attached with the application at the time of submittal. The special fee for request of confidentiality will be submitted with the application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

September 8, 2003 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-00726 PRODUCT: FRS/GMRS UHF Transceiver operated under part 95. Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459 (1998), following grant of the application. In support of this request, Garmin International, Inc. submits the following: 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-00726 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. 4. Explanation of the degree to which the information concerns a service that is subject to competition: ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

October 3, 2003 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 CORES number: 0005-0885-88 Equipment: FCC ID: IPH-00726 FCC Rules: Part 2 and 95 Gentlemen: This letter is set in response to the request for information, a portion of which is copied below. To: Scot Rogers, From: Stan Lyles [email protected] FCC Application Processing Branch Re: FCC ID IPH-00726 Applicant: Garmin International Inc Correspondence Reference Number: 25788 731 Confirmation Number: EA607856 1.) How is the power control between the two modes. Response: The power in FRS mode is set to 0.5 watts and is not variable. The user has the option to set the GMRS channels to “high” power (1.0 watt) through software in the radio setup menu. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

October 14, 2003 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 CORES number: 0005-0885-88 Equipment: FCC ID: IPH-00726 10k6F3E emissions designator for GMRS channels FCC Rules: Part 2 and 95 Gentlemen: We are requesting the emission designator be changed for the GMRS (Part95A) bands of this unit. The requested information displaying the 10.6 kHz wide occupied bandwidth and frequency deviation information has been supplied in a report addendum uploaded to the web site. The 731 form will need to be modified to support this request. Please change the emission designation for the Part 95A, 462.55-462.725 MHz, and 467.55-467.725 MHz, 1.0-Watts output power, 2.5-PPM tolerance to 10K6F3E. Please refer to the IPH00726ED.pdf file for supporting documentation of this request. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

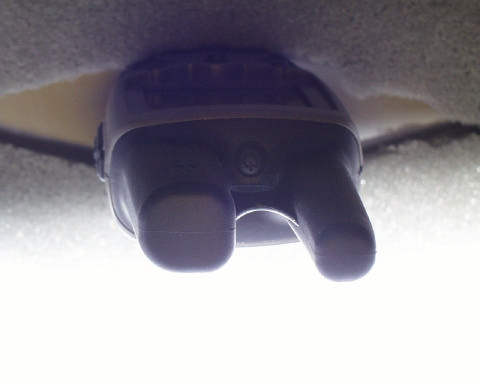

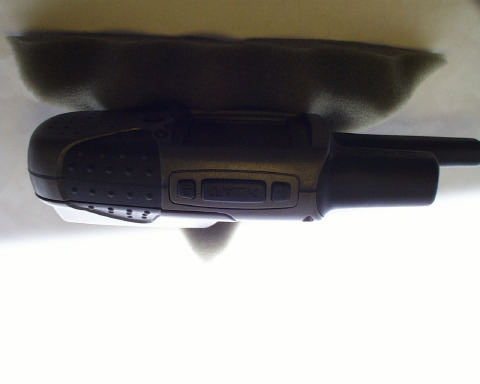

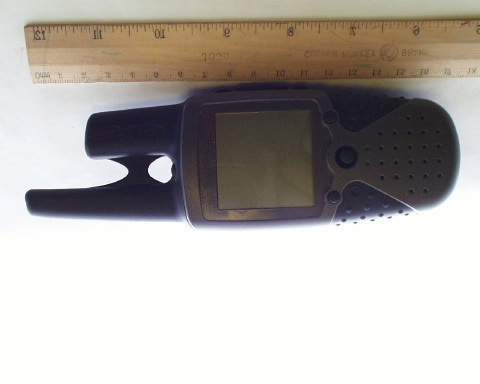

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: Rino 130 Louisburg, KS 66053 Test #: 030829 FCCID#: IPH-00726 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 2 IPH00726Photos.doc 9/8/2003 Equipment photographs for Rino 130. ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: Rino 130 Louisburg, KS 66053 Test #: 030829 FCCID#: IPH-00726 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 2 of 2 IPH00726Photos.doc 9/8/2003

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: Rino 130 Louisburg, KS 66053 Test #: 030829 FCCID#: IPH-00726 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 1 IPH00726Label.doc 9/8/2003 FCC ID label and location photographs for Rino 130.

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: Rino 130 Louisburg, KS 66053 Test #: 030829 FCCID#: IPH-00726 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 1 IPH00726IntPhot.doc 9/8/2003 Internal photographs of Rino 130.

TEST REPORT For APPLICATION of CERTIFICATION For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance MODEL: RINO Family Radio Service (FRS) / General Mobile Radio Services (GMRS) Combination UHF TRANSCEIVER FREQUENCY: 462 MHz and 467 MHz FCC ID: IPH-00726 Test Date: September 4, 2003 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: Rino 130 FRS/GMRS Combination UHF Transceiver Louisburg, KS 66053 Test #:030829 FCC ID#: IPH-00729 SN: ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 2 of 26 RINO 130 TstRpt.Doc 9/8/2003 TABLE OF CONTENTS FORWARD: 3 LIST OF TEST EQUIPMENT 3 2.1033(C) APPLICATION FOR CERTIFICATION 4 2.1046 RF POWER OUTPUT 5 Measurements Required: 5 Test Arrangement: 5 Results: 5 2.1047 MODULATION CHARACTERISTICS 7 Measurements Required: 7 Test Arrangement: 7 Results: 7 2.1049 OCCUPIED BANDWIDTH 9 Measurements Required: 9 Test Arrangement: 10 Results: 10 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 13 Measurements Required: 13 Test Arrangement: 13 Results: 17 2.1053 FIELD STRENGTH OF SPURIOUS RADIATION 18 Measurements Required: 18 Test Arrangement: 18 Results: 19 Radiated Emissions from EUT 20 2.1055 FREQUENCY STABILITY 20 Measurements Required: 20 Test Arrangement: 21 Results: 22 APPENDIX 23 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: Rino 130 FRS/GMRS Combination UHF Transceiver Louisburg, KS 66053 Test #:030829 FCC ID#: IPH-00729 SN: ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 3 of 26 RINO 130 TstRpt.Doc 9/8/2003 FORWARD: In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 2002, Part 2 Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.915, 2.925, 2.926, 2.1031 through 2.1057, applicable paragraphs of Parts 15, and 95, the following is submitted: List of Test Equipment A Hewlett Packard 8591EM and or 8562A Spectrum Analyzer was used as the measuring device for the emissions testing. The analyzer settings used are described in the following table. Refer to the Appendix for a complete list of Test Equipment. HP 8591EM SPECTRUM ANALYZER SETTINGS CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 9 kHz 30 kHz Peak/Quasi Peak RADIATED EMISSIONS (30 – 1000 MHz): RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak/Quasi Peak HP 8562A SPECTRUM ANALYZER SETTINGS RADIATED EMISSIONS (1 – 40 GHz): RBW AVG. BW DETECTOR FUNCTION 1 MHz 1 MHz Peak/Average ANTENNA CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: Rino 130 FRS/GMRS Combination UHF Transceiver Louisburg, KS 66053 Test #:030829 FCC ID#: IPH-00729 SN: ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 4 of 26 RINO 130 TstRpt.Doc 9/8/2003 2.1033(c) Application for Certification (1) Manufacturer: GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 PHONE: (913) 397-8200 (2) FCC Identification: Model: RINO 130 FCC I.D.: IPH-00726 S/N: ENG-1 (3) Copy of the installation and operating manual: Refer to exhibit for Draft Instruction Manual. (4) Emission Types: 6K0F3E and 7K5F2D (5) Frequency Range: 462 MHz and 467 MHz (6) Operating Power Level: 1.0 Watts (GMRS only channels) 0.5 Watts (FRS channels) (7) Max Power allowed as defined in 95.639: 50.0 Watts (GMRS) and 0.5 Watts (ERP) for (FRS channels). (8) Power into final amplifier: 1.0 Watt GMRS: 2.2 Watts (4.0V @ 0.56A) 0.5 Watt FRS: 1.4 Watts (4.0V @ 0.35A) (9) Tune Up Procedure for Output Power: Refer to Exhibit for Transceiver Alignment Procedure. (10) Circuit Diagrams; description of circuits, frequency stability, spurious suppression, and power and modulation limiting: Refer to Exhibit for Circuit Diagrams. Refer to Exhibit for Theory of Operation. (11) Photograph or drawing of the Identification Plate: Refer to Exhibit for Photograph or Drawing. (12) Drawings of Construction and Layout: Refer to Exhibit for Drawings of Components Layout and Chassis Drawings. (13) Detail Description of Digital Modulation: Refer to exhibit for description of modulation. (14) Data required by 2.1046 through 2.1057 is reported in this document. NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: Rino 130 FRS/GMRS Combination UHF Transceiver Louisburg, KS 66053 Test #:030829 FCC ID#: IPH-00729 SN: ENG-1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 5 of 26 RINO 130 TstRpt.Doc 9/8/2003 (15) Application for certification of an external radio power amplifier operating under part 97of this chapter. This specification is not applicable to this device. (16) Application for certification of AM broadcast transmitter. This specification is not applicable to this device. (17) A single application may be filed for a composite system that incorporates devices subject to certification under multiple rule parts; however, the appropriate fee must be included for each device. The device is governed by CFR rule Part 95 subpart A (GMRS) and 95 subpart B (FRS). 2.1046 RF Power Output Measurements Required: Measurements shall be made to establish the radio frequency power delivered by the transmitter into the standard output termination. The power output shall be monitored and r…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: Rino 130 Louisburg, KS 66053 Test #: 030829 FCCID#: IPH-00726 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 6 IPH00726ED.doc 10/14/2003 2.1047 Modulation Characteristics Measurements Required: A curve or equivalent data, which shows that the equipment will meet the modulation requirements of the rules, under which the equipment is to be licensed, shall be submitted. Test Arrangement: The radio frequency output was coupled to a HP Spectrum Analyzer and a modulation meter. The spectrum analyzer was used to observe the radio frequency spectrum with the transmitter operating in its various modes. The modulation meter was used to measure the percent modulation or frequency deviation. Results: Figure 1 displays the graph made showing the audio frequency response of the modulator. The frequency generator was set to 1 kHz and injected into the audio input port of the EUT. The input voltage amplitude was adjusted to obtain 50% modulation at 1000 Hz. This level was then taken as the 0-dB reference. The frequency of the generator was then varied and the voltage input level recorded while holding the output modulation level constant. Audio Frequency Response -55.00 -50.00 -45.00 -40.00 -35.00 -30.00 -25.00 -20.00 -15.00 -10.00 -5.00 0.00 5.00 100100010000100000 Frequency (Hz) Inpuit Voltage (dB) Response normalized to 1000 Hz (dB) Figure 1 Audio Frequency Response Characteristics. TRANSMITTER SPECTRUM ANALYZER MODULATION METER AUDIO INPUT AC VOLT METER ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: Rino 130 Louisburg, KS 66053 Test #: 030829 FCCID#: IPH-00726 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 2 of 6 IPH00726ED.doc 10/14/2003 Figure 2 shows the deviation response for FRS operation each of four frequencies while the input voltage was varied. Figure 3 shows the deviation response for GMRS channels. The frequency is held constant and the frequency deviation is read from the deviation meter. Frequency Deviation Response 0 500 1000 1500 2000 2500 -20-1001020 Audio Input Level (dB) Deviation (Hz) Deviation at 100 Hz Deviation at 1000 Hz Deviation at 2500 Hz Deviation at 5000 Hz Figure 2 Frequency Deviation Characteristics (FRS). Frequency Deviation Response 0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 -25-15-551525 Audio Input Level (dB) Deviation (Hz) Deviation at 100Hz Deviation at 1000Hz Deviation at 2500Hz Deviation at 5000Hz Figure 3 Frequency Deviation Characteristics (GMRS). Figure 4 shows the frequency response of the audio low pass filter. Frequency Response of Audio LPF -60 -50 -40 -30 -20 -10 0 10 k1k2k3k4k5k6k7k8k9k10k11k12k13k14k15k Frequency (Hz) Audio Response (dB) Figure 4 Frequency Response of Audio low Pass Filter. The specifications of Paragraph 2.1047 and applicable parts of 95 are met. ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: Rino 130 Louisburg, KS 66053 Test #: 030829 FCCID#: IPH-00726 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 3 of 6 IPH00726ED.doc 10/14/2003 2.1049 Occupied Bandwidth Measurements Required: The occupied bandwidth, that is the frequency bandwidth such that below its lower and above its upper frequency limits, the mean powers radiated are equal to 0.5 percent of the total mean power radiated by a given emission. Plots were taken with the unit operating in audio and digital data modes. Test Arrangement : Results: Channel f c (MHz) O.B.(kHz) 10 (FRS Audio) 467.6125 5.75 10 (with CTCSS) 467.6125 6.00 10 (FRS digital 1111) 467.5625 7.06 10 (FRS digital 1010) 467.5625 7.50 18 (GMRS Audio) 462.6250 10.6 A spectrum analyzer was used to observe the radio frequency spectrum with the transmitter operating in a normal modes, modulated by a frequency of 2500 Hz at a level 16 dB above 50% modulation for voice and either a 1010 or 1111 digital code for transmitting GPS data. The power ratio in dB representing 99.5% of the total mean power was recorded from the spectrum analyzer. Refer to figures 5 through 10 for plots showing the occupied bandwidth of 99.5% power and emission mask. TRANSMITTER SPECTRUM ANALYZER MODULATION METER ATTENUATION ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: Rino 130 Louisburg, KS 66053 Test #: 030829 FCCID#: IPH-00726 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 4 of 6 IPH00726ED.doc 10/14/2003 Figure 5 Occupied Band Width (voice FRS). Figure 6 Occupied Band Width (voice with CTCSS). ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: Rino 130 Louisburg, KS 66053 Test #: 030829 FCCID#: IPH-00726 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 5 of 6 IPH00726ED.doc 10/14/2003 Figure 7 Occupied Band Width (Data 1111). Figure 8 Occupied Band Width (Data 1010). ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: Rino 130 Louisburg, KS 66053 Test #: 030829 FCCID#: IPH-00726 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 6 of 6 IPH00726ED.doc 10/14/2003 Figure 9 Occupied Band Width (voice GMRS). Figure 10 Occupied Band Width (voice).

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: Rino 130 Louisburg, KS 66053 Test #: 030829 FCCID#: IPH-00726 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 2 IPH00726TstPhot.doc 9/8/2003 Test setup photographs for Rino 130. ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: Rino 130 Louisburg, KS 66053 Test #: 030829 FCCID#: IPH-00726 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 2 of 2 IPH00726TstPhot.doc 9/8/2003 Photograph with substitution antenna in place of EUT.
