June 6, 2006 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 CORES number: 0005-0885-88 Re: Short-term and permanent Confidentiality for submittal information regarding FCC ID number IPH-00991 PRODUCT: Marine Radar operated under part 80. Dear Sirs: Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos Internal Photos Test Setup Photos User Manual Permanent Garmin International, Inc. also requests that the material in the Schematics, Operational Description, Parts list and Block diagram be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. In support of this request, Garmin International, Inc. submits the following information. 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, Schematics, Parts list, and block diagram, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-00991 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, confidential Parts list, and schematics. As such, this material is treated as highly confidential business information and not available as general information. 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

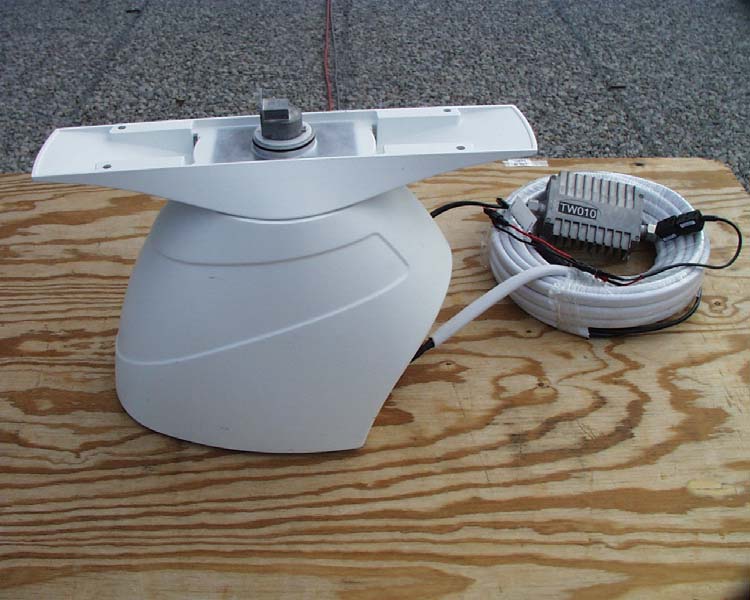

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR 404, GMR 406 IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80, RSS-138 Page 1 of 2 IPH00991 Extphotos.doc 5/22/2006 Equipment photographs for GMR 40x. ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR 404, GMR 406 IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80, RSS-138 Page 2 of 2 IPH00991 Extphotos.doc 5/22/2006

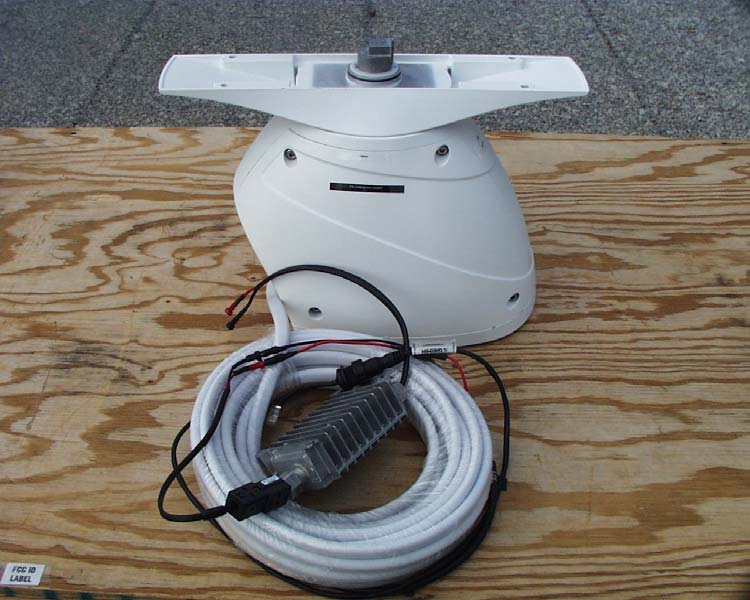

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR40X IC:1792A-00991 Louisburg, KS 66053 Test #:060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 1 of 1 IPH00991 Label.doc 5/22/2006 FCC ID label location photograph for GMR40X.

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR40X IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 1 of 9 IPH00991 Internal Photo.doc 5/22/2006 Internal photographs of GMR 40X. Modulator Top and Bottom ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR40X IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 2 of 9 IPH00991 Internal Photo.doc 5/22/2006 IF Board 1 Top and Bottom ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR40X IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 3 of 9 IPH00991 Internal Photo.doc 5/22/2006 IF Board 2 Top and Bottom ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR40X IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 4 of 9 IPH00991 Internal Photo.doc 5/22/2006 Rotation detector top and bottom ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR40X IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 5 of 9 IPH00991 Internal Photo.doc 5/22/2006 Main Board top and bottom ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR40X IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 6 of 9 IPH00991 Internal Photo.doc 5/22/2006 Voltage Converter top and bottom ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR40X IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 7 of 9 IPH00991 Internal Photo.doc 5/22/2006 Down Converter top and bottom ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR40X IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 8 of 9 IPH00991 Internal Photo.doc 5/22/2006 Voltage converter top and bottom ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR40X IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 9 of 9 IPH00991 Internal Photo.doc 5/22/2006 Motor control top and bottom

CONFIDENTIAL JRC MAGNETRON, 9410MHz, 4.0kW, E2V 4 1 690-A0003-05 690-A0003-05 A B SEE NOTE 2 HEATER/CATHODE LEAD (YELLOW), SEE NOTE 4 HEATER LEAD (GREEN) SEE NOTE 4 C Q R M P 4 HOLES1D SEE NOTE 1 2 HOLES1E SEE NOTE 1 F F G HH N (All dimensions without limits are nominal) Outline Notes 1. Positional tolerance 0.4 mm diameter. 2. Anode temperature measured at this point. 3. The mating surface of the magnetron baseplate will be flat A minimum clearance of 25 mm must be maintained between the magnetron and any magnetic materials. A clearance of at least 50 mm is needed to prevent mutual attraction between magnetrons when removed from protective packaging. Warning! 4. contained to within 0.2 mm. within dimension P. S (SEE NOTE 5) 195±10 together Silicone rubber insulated leads, 2.05 mm diameter, Color Element Connector Pin # Green Heater 1 Yello w Heater, Cathode 2 2 Pin #1 R e f M i l l i m e t r e s A 7 3 . 0 m a x B 4 2 . 0 m a x C 4 0 . 0 m a x D 4 . 3 9 m a x 4 . 2 4 m i n E 4 . 5 2 m a x 4 . 3 7 m i n F 1 5 . 5 G 5 . 2 H 1 6 . 2 6 J 2 0 . 2 m a x K 4 3 . 7 4 M 3 0 . 0 m a x N 1 9 . 0 P 1 6 . 0 Q 8 . 0 m i n R 1 5 . 5 m a x S 1 9 . 0 + 1 . 0 R e f M i l l i m e t r e s 5/25/05 5/25/05 Connector ma tes with GPN 336-00075-0 2 5. Wires to be secured with shrink tubing. CONFIDENTIAL 4 2 690-A0003-05 690-A0003-05 ABRIDGED DATA Compact, rugged, lightweight, fixed frequency pulse magnetron with very low levels of unwanted emissions. Operating frequency.....9410+30MHz Typical peak output power.......4.0kW Magnet...............integral Cooling.........conduction and natural GENERAL Electrical Cathode............indirectly heated Heater voltage (see note 1).......6.3V Heater current at 6.3 V (see note 2)....0.55A Cathode pre-heating time (minimum) (see note 3).......... 60s Input capacitance..........8.0 pFmax Temperature coefficient of frequency....seenote 4 Mechanical Overall dimensions...........seeoutline Net weight............ 250gapprox Mounting position............. any Output............ no.16waveguide Coupler............. IECUBR100 A minimum clearance of 25 mm must be maintained between the magnetron and any magnetic materials. A clearance of at least 50 mm is needed to prevent mutual attraction between magnetrons when removed from protective packaging. Cooling.........conduction and natural MAXIMUM AND MINIMUM RATINGS (Absolute values) These ratings cannot necessarily be used simultaneously, and no individual rating should be exceeded. MinMax Heater voltage (see note 1).....5.7 6.9 V Heater starting current (peak)....–3.0 A Anode voltage (peak).......3.4 3.9 kV Anode current (peak).......2.0 4.0 A Input power (mean) (see note 5) . . . –25W Duty cycle..........–0.0025 Pulse duration.........–2.5ms Rate of rise of voltage pulse (see notes 6 and 7).......– 100 kV/ms VSWR at the output coupler....–1.5:1 Anode temperature.....7551208C TYPICAL OPERATION Operating Conditions Heater voltage (for operation)......6.3V Anode current (peak).........3.0A Pulse duration...........1.0ms Pulse repetition rate.......1000pps Rate of rise of voltage pulse...... 40 kV/ms Typical Performance Anode voltage (peak).........3.7kV Output power (peak).........4.0kW Output power (mean).........4.0W TEST CONDITIONS AND LIMITS The magnetron is tested to comply with the following electrical specification. Test Conditions Heater voltage (for test)........6.3V Anode current (mean).........3.0mA Duty cycle............0.001 Pulse duration (see note 8).......1.0ms VSWR at the output coupler......1.15:1 max Rate of rise of voltage pulse (see note 6): using hard tube pulser.......100kV/ms min alternatively using line type pulser . . . 50 kV/ms min Limits MinMax Anode voltage (peak) (see note 9) . . . 3.53.8kV Output power (mean).......3.6 –W Frequency (see note 10)....9380 9440MHz RF bandwidth at 1 / 4 power (see note 11).........–2.5 MHz Frequency pulling (VSWR not less than 1.5:1) (see note 11).....– 30 MHz Stability (see note 12).......–0.1 % Heater current............seenote 2 LIFE TEST The quality of all production is monitored by the random selection of tubes which are then life-tested under the above Test Conditions. If the tube is to be operated under conditions consulted to verify that the life of the magnetron will not be impaired. End of Life Criteria (Under the above Test Conditions) Anode voltage (peak)...... 3.4to3.9kV Output power (mean).........3.4 Wmin RF bandwidth at 1 / 4 power.......3.5MHzmax Frequency........9350 to 9440MHz other than those specified herein, the manufacturer should be CONFIDENTIAL 4 3 690-A0003-05 690-A0003-05 NOTES 1. No reduction of heater voltage is required at any value of mean input power. For optimum performance a value within the specified ratings must be maintained. The magnetron heater must be protected against arcing by the use of a minimum capacitance of 4000 pF shunted across the heater directly at the input terminals; in some cases a capacitance as high as 2mF may be necessary depending on the equipment design. For further details see the Magnetron Preamble. 2. Measured with heater voltage of 6.3 V and no anode input power, the heater current limits are 0.5 A minimum, 0.6 A maximum. 3. For ambient temperatures above 08C. For ambient temperatures between 0 and7558C, cathode pre-heating time is 75 seconds minimum. 4. Design test only. The maximum frequency change with anode temperature change (after warming) is 70.25 MHz/8C. 5. The various parameters are related by the following formula: Pi = i apk xv apk xDu where Pi = mean input power in watts i apk = peak anode current in amperes v apk = peak anode voltage in volts and Du = duty cycle. 6. Defined as the steepest tangent to the leading edge of the voltage pulse above 80% amplitude. Any capacitance in the viewing system must not exceed 6.0 pF. 7. The maximum rate of rise of voltage for stable operation depends upon detailed characteristics of the applied pulse and the pulser design. The specified maximum rating applies to typ…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR 40X IC:1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-009910 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 1 of 1 IPH00991 Tune.doc 5/22/2006 Tuning procedure for GMR404/406. There are no field adjustable tuning options. The only adjustment is to the 300vdc supply voltage for the magnetron driver circuitry, which is set at the factory. Refer to file 690-A0003-05 for details of the magnetron for the GMR404 and GMR406.

ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR40X IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 1 of 3 IPH00610 MPE Claculations.doc 5/23/2006 RF Exposure for GMR40X The GMR40X is a marine mount radar system operating in the marine services authorized under part 80 of CFR 47. Per 2.1091(c) of CFR 47, the equipment is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use. The radiating structure for the device is typically mounted more than 265 centimeters away and located outside the crafts helm. Due to the location of the antenna, normal operating conditions, and use the unit will satisfy the requirements for RF Exposure per CFR rule 1.1311. MPE calculations are shown below demonstrating compliance. ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR40X IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 2 of 3 IPH00610 MPE Claculations.doc 5/23/2006 GMR404 MPE calculations. MPE CalculatorMPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Antenna Gain (dBi)28.5 Output PowerdBd + 2.17 = dBidBi to dBd2.17 Tx Frequency (MHz)9400Average (Watts)4.0000Antenna Gain (dBd)26.33 Cable Loss (dB)0.0(dBm)36.02Antenna minus cable (dBi)28.50 Calculated ERP (mw) 1718145.707EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 2831783.138Radiated (EIRP) dBm64.521 ERP = EIRP - 2.17 dB Occupational LimitRadiated (ERP) dBm62.351 5.00000 mW/cm 2 General Public Limit 1.00000 mW/cm 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2) Public Limit @ Tx Freq (mW/cm^2) 300-1,50031.333333336.266666667 1,500-10,00051 EIRPDistanceDistanceSDistance milliwattscminches mW/c m 2 Feet 2831783.1381000.00393.700.2253532.808399 2831783.138900.00354.330.2782129.5275591 2831783.138800.00314.960.3521026.2467192 2831783.138700.00275.590.4598922.9658793 2831783.138600.00236.220.6259619.6850394 2831783.138500.00196.850.9013816.4041995 2831783.138400.00157.481.4084113.1233596 2831783.138375.00147.641.6024612.3031496 2831783.138370.00145.671.6460612.1391076 2831783.138365.00143.701.6914711.9750656 2831783.138360.00141.731.7387811.8110236 2831783.138350.00137.801.8395611.4829396 2831783.138325.00127.952.1334510.6627297 2831783.138300.00118.112.503859.84251969 2831783.138275.00108.272.979789.02230971 2831783.138250.0098.433.605548.20209974 2831783.138225.0088.584.451287.38188976 2831783.138220.0086.614.655917.21784777 2831783.138215.0084.654.874987.05380577 2831783.138212.0083.465.013936.95538058 2831783.138210.0082.685.109896.88976378 2831783.138200.0078.745.633656.56167979 2831783.138190.0074.806.242286.2335958 2831783.138180.0070.876.955135.90551181 2831783.138160.0062.998.802585.24934383 2831783.138150.0059.0610.015384.92125984 2831783.138140.0055.1211.497254.59317585 2831783.138130.0051.1813.334094.26509186 2831783.138120.0047.2415.649043.93700787 2831783.138110.0043.3118.623653.60892388 2831783.138100.0039.3722.534613.2808399 Frequency (MHz) Occupational Limit minimum Distance (feet) Public Limit minimum distance (feetm) 300-1,500N/AN/A 1,500-10,0007.0016.40 FCC radio frequency radiation exposure limits per 1.1310 FCC radio frequency radiation exposure limits per 1.1310 Power density (S) EIRP ------- = mW/cm^2 4 π r^2 r (cm) EIRP (mW) ROGERS LABS, INC. Garmin International, Inc. 4405 W. 259th Terrace MODEL: GMR40X IC: 1792A-00991 Louisburg, KS 66053 Test #: 060406 FCCID#: IPH-00991 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 80 Page 3 of 3 IPH00610 MPE Claculations.doc 5/23/2006 GMR406 MPE calculations. MPE CalculatorMPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Antenna Gain (dBi)30.5 Output PowerdBd + 2.17 = dBidBi to dBd2.17 Tx Frequency (MHz)9400 Average (Watts)4.0000Antenna Gain (dBd)28.33 Cable Loss (dB)0.0(dBm)36.02Antenna minus cable (dBi)30.50 Calculated ERP (mw) 2723077.435EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 4488073.817Radiated (EIRP) dBm66.521 ERP = EIRP - 2.17 dB Occupational LimitRadiated (ERP) dBm64.351 5.00000 mW/cm 2 General Public Limit 1.00000 mW/cm 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2) Public Limit @ Tx Freq (mW/cm^2) 300-1,50031.333333336.266666667 1,500-10,00051 EIRPDistanceDistanceSDistance milliwattscminchesmW/c m 2 Feet 4488073.8171000.00393.700.3571532.80839895 4488073.817900.00354.330.4409329.52755906 4488073.817800.00314.960.5580526.24671916 4488073.817700.00275.590.7288822.96587927 4488073.817600.00236.220.9920819.68503937 4488073.817500.00196.851.4286016.40419948 4488073.817400.00157.482.2321813.12335958 4488073.817375.00147.642.5397312.30314961 4488073.817370.00145.672.6088412.13910761 4488073.817365.00143.702.6808011.97506562 4488073.817360.00141.732.7557811.81102362 4488073.817350.00137.802.9155111.48293963 4488073.817325.00127.953.3813010.66272966 4488073.817300.00118.113.968339.842519685 4488073.817275.00108.274.722649.022309711 4488073.817270.00106.304.899178.858267717 4488073.817265.00104.335.085798.694225722 4488073.817250.0098.435.714398.202099738 4488073.817240.0094.496.200517.874015748 4488073.817225.0088.587.054817.381889764 4488073.817210.0082.688.098636.88976378 4488073.817200.0078.748.928746.56167979 4488073.817190.0074.809.893346.233595801 4488073.817180.0070.8711.023135.905511811 4488073.817160.0062.9913.951155.249343832 4488073.817150.0059.0615.873314.921259843 4488073.817140.0055.1218.221924.593175853 4488073.817130.0051.1821.133114.265091864 4488073.817120.0047.2424.802053.9…

Text truncated - open the document above for the full version.

APPLICATION For FCC And INDUSTRY CANADA GRANT OF CERTIFICATION FOR Model: GMR 40X Model numbers GMR 404 AND GMR 406 Marine Radar Equipment P/N 011-01272-2x Test Report Number: 060406 FOR GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 TEST REPORT For APPLICATION of CERTIFICATION Marine transmitter (CFR 47 part 80, RSS-138) For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance MODELS: GMR 404 AND GMR 406 GPN: 011-01272-2x Marine Radar Equipment FREQUENCY: 9300 – 9500 MHz FCC ID: IPH-00991 IC: 1792A-00991 Test Date: April 6, 2006 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID#: IPH-00991 4405 West 259 th Terrace MODEL: GMR 404 and GMR 406 IC:1792A-00991 Louisburg, KS 66053 Test #:060406 SN: TW005 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 80, RSS-138 Page 3 of 22 GMR 40x FCC IC application Test Report.Doc 5/23/2006 TABLE OF CONTENTS TABLE OF CONTENTS 3 FORWARD 4 LIST OF TEST EQUIPMENT 4 EQUIPMENT CONFIGURATION 5 2.1033(C) APPLICATION FOR CERTIFICATION 6 2.1046 RF POWER OUTPUT 7 Measurements Required 7 Test Arrangement 7 2.1047 MODULATION CHARACTERISTICS 11 Measurements Required 11 Test Arrangement 11 Results 11 2.1049 OCCUPIED BANDWIDTH 11 Measurements Required 11 Results 11 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 12 Measurements Required 12 Test Arrangement 12 Results 13 2.1053 FIELD STRENGTH OF SPURIOUS RADIATION 13 Measurements Required 13 Test Arrangement 13 Results 17 2.1055 FREQUENCY STABILITY 18 Measurements Required 18 Results 18 APPENDIX 19 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID#: IPH-00991 4405 West 259 th Terrace MODEL: GMR 404 and GMR 406 IC:1792A-00991 Louisburg, KS 66053 Test #:060406 SN: TW005 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 80, RSS-138 Page 4 of 22 GMR 40x FCC IC application Test Report.Doc 5/23/2006 FORWARD In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 2005, Part 2 Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.915, 2.925, 2.926, 2.1031 through 2.1057, applicable paragraphs of Parts 15, 80(E), and RSS-138 the following information is submitted. List of Test Equipment A Hewlett Packard 8591EM and or 8562A Spectrum Analyzer was used as the measuring device for the emissions testing. The analyzer settings used are described in the following table. Refer to the Appendix for a complete list of Test Equipment. HP 8591EM SPECTRUM ANALYZER SETTINGS CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 9 kHz 30 kHz Peak/Quasi Peak RADIATED EMISSIO…
