IPH-01060LOW POWER COMMUNICATIONS TRANSMITTER

Important Safety and Product Information ....................pages 2–5 Consignes de sécurité et informations importantes sur le produit ...............................................pages 6–9 Importanti informazioni sulla sicurezza e sul prodotto ...............................................................pagine 10–13 Wichtige Sicherheits- und Produkti nformationen .....Seiten 14–17 Información importante de seguridad y producto ..................................................................páginas 18–21 Informações Importantes sobre o Produto e a Segurança ............................................................páginas 22–25 Belangrijke veiligheids- en productinformatie ......pagina’s 26–29 Vigtig sikkerheds- og produkti nformation ....................side 30–33 Tärkeää turvallisuus- ja tuotetietoa ..........................sivuilla 34–37 Viktig sikkerhets- og produkti nformasjon ....................side 38–41 Viktig information om säkerhet och produkter ........sidorna 42–45 2 IMPORTANT SAFETY AND PRODUCT INFORMATION Warnings Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury. • When installing the unit in a vehicle, place the unit securely so it does not obstruct the driver’s view of the road or interfere with vehicle operating controls, such as the steering wheel, foot pedals, or transmission levers. Do not place in front of or above any airbag. (See diagram.) Do not mount where driver’s field of vision is blocked. Do not place unsecured on the vehicle dashboard. Do not mount in front of an airbag field of deployment. • When navigating, carefully compare information displayed on the unit to all available navigation sources, including information from street signs, visual sightings, and maps. For safety, always resolve any discrepancies or questions before continuing navigation and defer to posted road signs. • Always operate the vehicle in a safe manner. Do not become distracted by the unit while driving, and always be fully aware of all driving conditions. Minimize the amount of time spent viewing the unit’s screen while driving and use voice prompts when possible. Do not input destinations, change settings, or access any functions requiring prolonged use of the unit’s controls while driving. Pull over in a safe and legal manner before attempting such operations. • The unit is designed to provide route suggestions. It is not designed to replace the need for driver attentiveness regarding road closures or road conditions, traffic congestion, weather conditions, or other factors that may affect safety while driving. Battery Warnings If these guidelines are not followed, the internal lithium-ion battery may experience a shortened life span or may present a risk of damage to the GPS unit, fire, chemical burn, electrolyte leak, and/or injury. • Contact your local waste disposal department to properly dispose of the unit/battery. • Do not leave the unit exposed to a heat source or in a high temperature location, such as in the sun in an unattended vehicle on a hot day. To prevent damage, remove the unit from the vehicle or store it out of direct sunlight, such as in the glove box. • Do not incinerate. 3 • When storing the unit for a limited length of time, store within the following temperature range: -4° to 140°F (-20° to 60°C). When storing the unit for an extended time, store within the following temperature range: 32° to 77°F (0° to 25°C). • Do not operate the unit outside of the following temperature range: -4° to 131°F (-20° to 55°C). NOTE: Refer to the Specifications section in your product’s owner’s manual to determine if the lithium-ion battery in your specific Garmin product is replaceable. If this unit contains a non-user-replaceable, rechargeable lithium-ion battery, do not remove or attempt to remove the battery. If this unit contains a replaceable, rechargeable lithium-ion battery, the following warnings also apply: • Do not recharge the battery out of the unit or disassemble the battery. • Keep the used battery away from children. Do not disassemble, puncture, or damage the battery. • Only replace with a Garmin lithium-ion battery pack. Using another battery presents a risk of fire or explosion. To purchase a replacement battery, see your Garmin dealer or the Garmin Web site. WARNING: This product, its packaging, and its components contain chemicals known to the State of California to cause cancer, birth defects, or reproductive harm. This notice is provided in accordance with California’s Proposition 65. See www.garmin.com/prop65 for more information. Important Information MAP DATA INFORMATION: One of the goals of Garmin is to provide customers with the most complete and accurate cartography that is available to us at a reasonable cost. We use a combination of governmental and private data sources, which we identify in product literature and copyright messages displayed to the consumer. Virtually all data sources contain some inaccurate or incomplete data. In some countries, complete and accurate map information is either not available or is prohibitively expensive. The California Electronic Waste Recycling Act of 2003 requires the recycling of certain electronics. For more information on the applicability to this product, see www.erecycle.org. NOTICE REGARDING WINDSHIELD MOUNTING; SPECIAL NOTICE TO DRIVERS IN CALIFORNIA AND MINNESOTA: State law prohibits drivers in California and Minnesota from using suction mounts on their windshields while operating motor vehicles. Check your state and local laws and ordinances for similar restrictions. Other Garmin dashboard or friction mounting options should be used. Garmin does not take any responsibility for any fines, penalties, or damages that may be incurred as a result of disregarding this notice or as a result of any other state or local law or ordinance relating to use of the unit. (See California Vehicle Code Section 26708(a…

Text truncated - open the document above for the full version.

nüvi ™ 610/660 Owner’s Manual © 2006 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, USA Tel. 913/397.8200 or 800/800.1020 Fax 913/397.8282 Garmin (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, UK Tel. +44 (0) 870.8501241 (outside the UK) or 0808 2380000 (UK only) Fax 44/0870.8501251 Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin ® and MapSource ® are registered trademarks, and nüvi™, myGarmin™, and Garmin Lock™ are trademarks of Garmin Ltd. or its subsidiaries and may not be used without the express permission of Garmin. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such name by Garmin is under license. Windows ® is a registered trademark of Microsoft Corporation in the United States and/or other countries. Mac is a registered trademark of Apple Computer, Inc. SiRF, SiRFstar, and the SiRF logo are registered trademarks, and SiRFstarIII and SiRF Powered are trademarks of SiRF Technology, Inc. Audible.com ® and AudibleReady ® are registered trademarks of Audible, Inc. © Audible, Inc. 1997-2005. Multilingual Wordbank © Oxford University Press 2001. Multilingual Phrasebank © Oxford University Press 2001. Pocket Oxford-Hachette French Dictionary © Oxford University Press and Hachette Livre 2005. Pocket Oxford-Duden German Dictionary © Oxford University Press and Bibliographisches Institut & F.A. Brockhaus 2003. Pocket Oxford Spanish Dictionary © Oxford University Press 2005. Pocket Oxford Italian Dictionary © Oxford University Press 2004. Oxford Portuguese Minidictionary © Oxford University Press 2002. August 2006 Part Number 190-00668-00 Rev. A Printed in Taiwan nüvi 610/660 Owner’s Manual iii PREFACE PREFACE Thank you for purchasing the Garmin ® nüvi ™ . This manual includes information for nüvi 610 and nüvi 660 products. Manual Conventions When you are instructed to “touch” something, use your finger to touch an item on the screen. Small arrows (>) appear in the text. They indicate that you should touch a series of items on the nüvi screen. For example, if you see “touch Where to > Favorites,” you should touch the Where to button, and then touch the Favorites button. Contact Garmin Contact Garmin if you have any questions while using your nüvi. In the USA contact Garmin Product Support by phone: 913/397.8200 or 800/800.1020, Monday–Friday, 8 AM–5 PM Central Time; or go to www.garmin.com/support/, and click Product Support. In Europe, contact Garmin (Europe) Ltd. at +44 (0) 870.8501241 (outside the UK) or 0808 2380000 (UK only). iv nüvi 610/660 Owner’s Manual TABLE OF CONTENTS TABLE OF CONTENTS Preface .................................................iii Manual Conventions ...............................iii Contact Garmin .......................................iii Basic Operation ....................................3 Turning the nüvi On or Off .......................3 Charging the nüvi .....................................3 Acquiring Satellites ..................................3 Changing the Volume, Brightness, and Screen Lock .......................................4 Resetting Your nüvi ..................................4 Clearing User Information ........................4 Using the Anti-Theft Feature ....................5 myGarmin™ ............................................vi Tips and Shortcuts .................................. vi Getting Started ......................................1 What Is in the Box? ..................................1 Mounting the nüvi on the Windshield .......2 Main Pages ............................................6 Understanding the Menu Page ................6 Understanding the Map Page .................7 Understanding the Trip Information Page ................................7 Understanding the Turns Preview Page .....................................8 Understanding the Next Turn Page .........8 Where to ...............................................9 Finding Your Destination ..........................9 Finding an Address ................................10 Finding a Place Using Coordinates .......10 Finding a Place by Spelling the Name ..11 Finding a Place Using the Map ..............11 Expanding Your Search .........................12 Adding a Stop to Your Route .................13 Adding a Detour to Your Route ..............13 Stopping Your Route .............................. 13 Favorites .............................................14 Understanding Favorites ........................14 Saving Places You Find ......................... 14 Finding Saved Places ............................14 Saving Your Current Location ................14 Setting a Home Location .......................14 Editing Saved Places .............................15 Travel Kit .............…

Text truncated - open the document above for the full version.

August 16, 2006 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 CORES number: 0005-0885-88 Equipment: FCC ID: IPH-01060 FCC Rules: Parts 2, 15.239 and 15.249 Gentlemen: The 731 form and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Confidentiality is requested as outlined below. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos, Internal Photos, Test Setup Photos, User Manual Permanent Garmin International, Inc. requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. It is requested that the information contained in the operational description, block diagram, parts list, and schematics of the application be held confidential per Section 0.459. A statement of confidentiality will be attached with the application at the time of submittal. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

In Korea Contact: In Hong Kong; Timco-Thru Engineering Timco Engineering, Inc. Mr. K. T. Kang Mr. Gilbert Lui (02)846-5002 (852)2330-6604 C:\Ready_To_Convert\Doc\699964.DOC TIMCO ENGINEERING INC. TCB & FCB 849 NW State Road 45 FCC Approvals Newberry, Florida 32669 Industry Canada Approvals http://www.timcoengr.com Notified Body for Europe 888.472.2424 352 472 5500 Fax. 352.472.2030 email: [email protected] August 31, 2006 FCC [email protected] SUBJECT: Request to Supercede Exhibit To Whom It May Concern: We would like request the removal/ supercede of an exhibits that was accidentally filed under the incorrect file type and contains confidential information. The application information is as follows- GARMIN INTERNATIONAL INC. FCC ID: IPH-01060 Confirmation #: TC788411 The file name description that we are requesting to be removed is “TEST REPORT”, which was submitted on August 21 st . The Test Report was uploaded today. The Users Manual was accidentally submitted under this description type of Test Report and should be held under Short-Term Confidentiality. This request has also been uploaded. If you need any further information or questions feel free to contact me. Regards, Gretchen Torres [email protected]

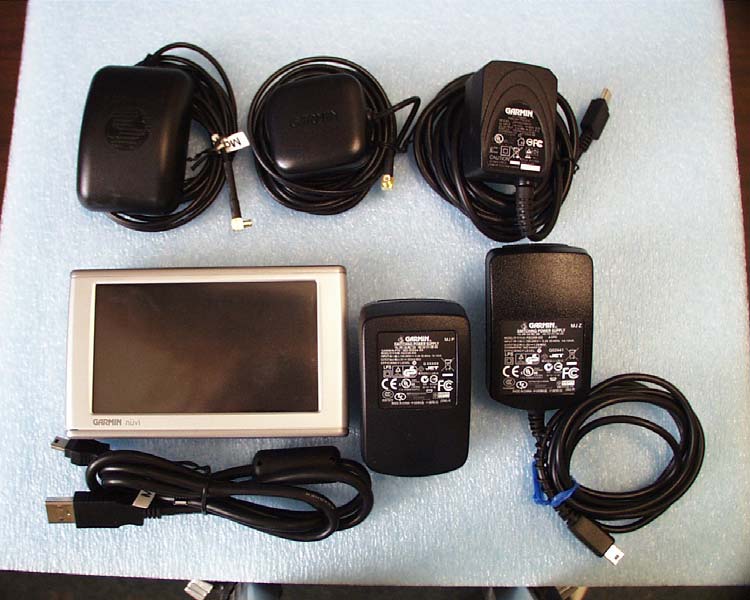

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01410-xx FCC ID#: IPH-01060 Louisburg, KS 66053 Test #:060726 SN: P00 IC:1792A-01060 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.239 and 15.249, RSS-210 Page 1 of 2 IPH 01060 Tx Ext Photos.Doc 8/16/2006 External photographs of equipment under test. ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01410-xx FCC ID#: IPH-01060 Louisburg, KS 66053 Test #:060726 SN: P00 IC:1792A-01060 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.239 and 15.249, RSS-210 Page 2 of 2 IPH 01060 Tx Ext Photos.Doc 8/16/2006

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01410-xx FCC ID#: IPH-01060 Louisburg, KS 66053 Test #:060726 SN: P00 IC:1792A-01060 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.239, and 15.249, RSS-210 Page 1 of 1 IPH 01060 Tx ID Label location 1.Doc 8/16/2006 FCC/IC ID label and location.

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01410-xx FCC ID#: IPH-01060 Louisburg, KS 66053 Test #:060726 SN: 45 IC:1792A-01060 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.239 and 15.249, RSS-210 Page 1 of 2 IPH 01060 Tx Internal Photos.Doc 8/16/2006 Photographs showing PCB locations inside case. ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01410-xx FCC ID#: IPH-01060 Louisburg, KS 66053 Test #:060726 SN: 45 IC:1792A-01060 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.239 and 15.249, RSS-210 Page 2 of 2 IPH 01060 Tx Internal Photos.Doc 8/16/2006 Printed Circuit boards with covers removed Upper Left Corner is SD card memory slot.

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01410-xx FCC ID#: IPH-01060 Louisburg, KS 66053 Test #:060726 SN: P00 IC:1792A-01060 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Page 1 of 1 IPH 01060 Tx Tune.Doc 8/16/2006 Each units TX and RX functionality is tested and judged with a pass/fail criteria.

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01410-xx FCC ID#: IPH-01060 Louisburg, KS 66053 Test #:060726 SN: P00 IC:1792A-01060 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Page 1 of 1 IPH 01060 Tx MPE.Doc 8/17/2006 MPE Calculation page for 011-01410-xx. MPE CalculatorGarmin Nuvi 6xxTest 60726 MPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2Antenna Gain (dBi)1 Output PowerdBd + 2.17 = dBidBi to dBd2.17 Tx Frequency (MHz)2457(Watts)0.0009Antenna Gain (dBd)-1.17 Cable Loss (dB)0.0(dBm)-0.32Antenna minus cable (dBi)1.00 Calculated ERP (mw) 0.710EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 1.171Radiated (EIRP) dBm0.685 ERP = EIRP - 2.17 dB Occupational LimitRadiated (ERP) dBm-1.485 5.00000 mW/cm 2 General Public Limit 1.00000 mW/cm 2 Frequency (MHz)ccupational LimPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2) Public Limit @ Tx Freq (mW/cm^2) 300-1,5008.191.638 1,500-10,00051 EIRPDistanceDistanceS milliwattscminchesmW/cm 2 1.17150.0019.690.00004 1.17140.0015.750.00006 1.17130.0011.810.00010 1.17125.009.840.00015 1.17120.007.870.00023 1.17115.005.910.00041 1.17114.005.510.00048 1.17113.005.120.00055 1.17112.004.720.00065 1.17111.004.330.00077 1.17110.003.940.00093 1.1719.003.540.00115 1.1718.003.150.00146 1.1717.002.760.00190 1.1716.002.360.00259 1.1715.001.970.00373 1.1714.001.570.00582 1.1713.001.180.01035 1.1712.000.790.02329 1.1711.750.690.03042 1.1711.500.590.04141 1.1711.250.490.05963 1.1711.000.390.09317 1.1710.750.300.16563 1.1710.500.200.37268 Frequency (MHz) Occupational Limit minimum Distance (cm) Public Limit minimum distance (cm) 300-1,500N/AN/A 1,500-10,000N/AN/A FCC radio frequency radiation exposure limits per 1.1310 FCC radio frequency radiation exposure limits per 1.1310 Power density (S) EIRP ------- = mW/cm^2 4 π r^2 r (cm) EIRP (mW)

APPLICATION For GRANT OF CERTIFICATION FOR MODEL: Nūvi 6xx, 011-01410-xx Low Power Transmitter FCC ID: IPH-01060 IC: 1792A-01060 FOR GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Test Report number 060726 TEST REPORT For APPLICATION of CERTIFICATION For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance MODEL: Nūvi 6xx GPN 011-01410-xx Low Power Transmitter Frequency Ranges: 88-107, 2,400-2,483.5 MHz FCC ID: IPH-01060 IC: 1792A-01060 Test Report Number: 060726 Test Date: July 26, 2006 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Telephone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID:IPH-01060 4405 West 259 th Terrace MODEL: Nuvi 6xx 011-01410-xx IC:1792A-01060 Louisburg, KS 66053 Test #:060726 SN: P00 GPN: 011-01410-xx Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 15.239 and 249, RSS 210 Page 3 of 43 Nuvi 6xx BT FM Transmitter FCC IC Test Report.Doc 8/3/2006 TABLE OF CONTENTS TABLE OF CONTENTS 3 FORWARD 5 APPLICABLE STANDARDS & TEST PROCEDURES 5 EQUIPMENT TESTED 6 LIST OF TEST EQUIPMENT 6 2.1033(B) APPLICATION FOR CERTIFICATION 7 EQUIPMENT AND CABLE CONFIGURATION 8 Test Setup 8 EQUIPMENT FUNCTION AND TESTING PROCEDURES 8 Configuration options for the EUT 9 AC Line Conducted Emission Test Procedure 10 Radiated Emission Test Procedure 10 Units of Measurements 10 Test Site Locations 11 SUBPART C - INTENTIONAL RADIATORS 11 15.203 ANTENNA REQUIREMENTS 11 15.205 RESTRICTED BANDS OF OPERATION 12 Radiated Emissions in Restricted Bands Data per 15.205 12 Summary of Results for Radiated Emissions in Restricted Bands 15.205 13 15.207 CONDUCTED EMISSIONS LIMITS; GENERAL REQUIREMENTS 13 AC Line Conducted EMI 15.207 13 Data Conducted Emissions (7 Highest Emissions) (JET) 19 Data Conducted Emissions (7 Highest Emissions) (Delta) 19 Data Conducted Emissions (7 Highest Emissions) (Jet USB) 19 Data Conducted Emissions (7 Highest Emissions) (CPU) 20 Summary of Results for AC Line Conducted General Emissions 15.207 20 15.209 RADIATED EMISSIONS LIMITS; GENERAL REQUIREMENTS 20 General Radiated EMI per 15.209 20 General Radiated Emissions Data per 15.209 24 Summary of Results for General Radiated Emissions per 15.209 24 15.239 OPERATION IN THE BAND 88-108 MHZ 25 Intentional and Spurious Radiated Emissions Data per 15.239 26 Summary of Results for Radiated Emissions per 15.239 30 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID:IPH-01060 4405 West 259 th Terrace MODEL: Nuvi 6xx 011-01410-xx IC:1792A-01060 Louisburg, KS 66053 Test #:060726 SN: P00 GPN: 011-01410-xx Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 15.239 and 249, RSS 210 Page 4 of 43 Nuvi 6xx BT FM Transmitter FCC IC Test Report.Doc 8/3/2006 15.249 OPERATION IN THE BAND 2,400-2,483.5 MHZ 30 Transmitter Radiated Emissions Data per 15.249 35 Power from Antenna Substitution Method for 15.249 35 Transmitter Antenna Conducted Emissions Data 36 Summary of Results for Transmitter Radiated Emissions per 15.249 36 FREQUENCY STABILITY 36 Measurements Required 36 Test Arrangement 37 Frequency Stability Data 38 Summary of Results for Frequency Stability 38 Statement of Modifications and Deviations 38 APPENDIX 39 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID:IPH-01060 4405 West 259 th Terrace MODEL: Nuvi 6xx 011-01410-xx IC:1792A-01060 Louisburg, KS 66053 Test #:060726 SN: P00 GPN: 011-01410-xx Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 15.239 and 249, RSS 210 Page 5 of 43 Nuvi 6xx BT FM Transmitter FCC IC Test Report.Doc 8/3/2006 FORWARD The following information is submitted for consideration in obtaining a Grant of Certification for low power intentional radiator per CFR Paragraphs 15.239 and 15.249 operation in the 88-108 MHz and Blue Tooth operation in 2400 – 2483.5 MHz band and Industry Canada RSS-210 Low Power Transmitter. Name of Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Model: Nūvi 6xx, GPN 011-01410-xx FCC ID: IPH-01060 Industry Canada ID: 1792A-01060 Frequency Range: 88-108 MHz and 2400-2483.5 MHz. Operating Power: Less than 250 Microvolts per meter (88-108 MHz) and 1 mW (as design specification, measured 91.7 dBμV/m @ 3 meters)(2400- 2483.5 MHz). Applicable Standards & Test Procedures a) In accordance with the Federal Communications Commission, Code of Federal Regulations CFR47, dated October 1, 2005, Part 2, Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.925, 2.926, 2.1031 through 2.1057, applicable parts of paragraph 15, Part 15C paragraph 15.239 and 15.249, and Industry Canada RSS-210, the following information is submitted. b) Test procedures used are the established Methods of Measurement of Radio-Noise Emissions as described in the ANSI 63.4-2003 Document. NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID:IPH-01060 4405 West 259 th Terrace MODEL: Nuvi 6xx 011-01410-xx IC:1792A-01060 Louisburg, KS 66053 Test #:060726 SN: P00 GPN: 011-01410-xx Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 15.239 and 249, RSS 210 Page 6 of 43 Nuvi 6xx BT FM Transmitter FCC IC Test Report.Doc 8/3/2006 Equipment Tested Equipment Serial Number FCC I.D.# Nūvi 6xx P00 IPH-01060 AC Power Adapter(Jet) 17.4K ID N/A AC Power Adapter(Delta) 1 N/A AC Power Adapter(Jet (USB)) P53601985A1 N/A GA 25 MCX E1 N/A GA 27C E1 N/A GTM 20 ENG 1 N/A Dell Computer 2574199639 DoC Printer B94C2121X N/A List of Test Equipment A Hew…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01410-xx FCC ID#: IPH-01060 Louisburg, KS 66053 Test #:060726 SN: P00 IC:1792A-01060 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.239 and 15.249, RSS-210 Page 1 of 4 IPH 01060 Tx Test Setup Photo.Doc 8/16/2006 Test setup photographs for 011-01410-xx. ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01410-xx FCC ID#: IPH-01060 Louisburg, KS 66053 Test #:060726 SN: P00 IC:1792A-01060 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.239 and 15.249, RSS-210 Page 2 of 4 IPH 01060 Tx Test Setup Photo.Doc 8/16/2006 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01410-xx FCC ID#: IPH-01060 Louisburg, KS 66053 Test #:060726 SN: P00 IC:1792A-01060 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.239 and 15.249, RSS-210 Page 3 of 4 IPH 01060 Tx Test Setup Photo.Doc 8/16/2006 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01410-xx FCC ID#: IPH-01060 Louisburg, KS 66053 Test #:060726 SN: P00 IC:1792A-01060 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.239 and 15.249, RSS-210 Page 4 of 4 IPH 01060 Tx Test Setup Photo.Doc 8/16/2006
