March 3, 2006 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Equipment Approval Services Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-01081 PRODUCT: FM Transmitter operated under part 15.249. Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, Operational Description, block diagram, and parts list be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459 (1998), following grant of the application. In support of this request, Garmin International, Inc. submits the following: 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-01081 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

March 3, 2006 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 CORES number: 0005-0885-88 Equipment: FCC ID: IPH-01081 FCC Rules: Part 2 and 15.249 Gentlemen: The 731 form and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. It is requested that the information contained in the operational description, block diagram, parts list, and schematics of the application be held confidential per Section 0.459. A statement of confidentiality will be attached with the application at the time of submittal. NOTE: Request for deferral, please issue the Grant of Certification on March 7, 2006 and upload the required exhibits no earlier than March 8, 2006. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

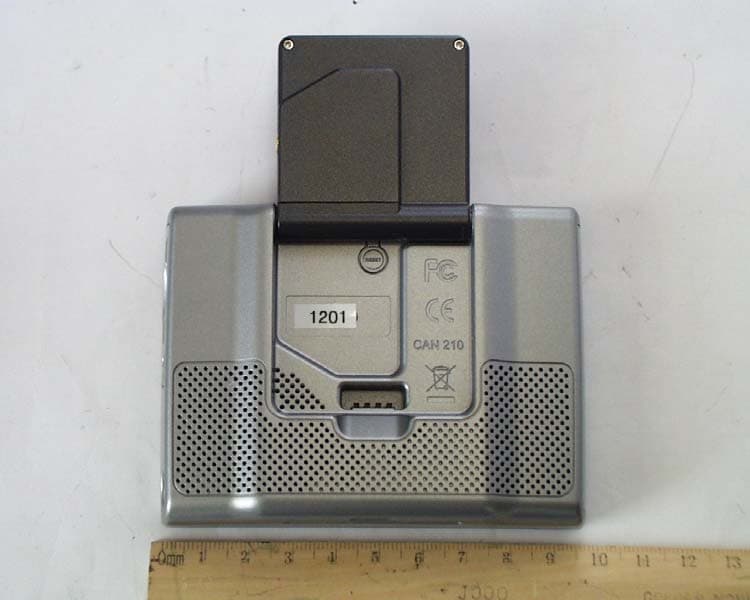

ROGERS LABS, INC. Garmin International, Inc. SN: 1201 4405 West 259 th Terrace MODEL: Nuvi 310/360 GPN:011-01404-xx Louisburg, KS 66053 Test #:060221 FCC ID#: IPH-01081 IC:1792A-01081 Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15.249, RSS-210 Page 1 of 2 Nuvi Tx Ext Photos.Doc 3/3/2006 External photographs of equipment under test. ROGERS LABS, INC. Garmin International, Inc. SN: 1201 4405 West 259 th Terrace MODEL: Nuvi 310/360 GPN:011-01404-xx Louisburg, KS 66053 Test #:060221 FCC ID#: IPH-01081 IC:1792A-01081 Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15.249, RSS-210 Page 2 of 2 Nuvi Tx Ext Photos.Doc 3/3/2006

ROGERS LABS, INC. Garmin International, Inc. SN: 1201Eng 1 4405 West 259 th Terrace MODEL: Nuvi 310/360 GPN:011-00861-xx Louisburg, KS 66053 Test #:060221 FCC ID#: IPH-01081 IC:1792A-01081 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Page 1 of 1 Nuvi Tx ID Label location.Doc 3/3/2006 FCC/IC ID label and location.

ROGERS LABS, INC. Garmin International, Inc. SN: 1201 4405 West 259 th Terrace MODEL: Nuvi 310/360 GPN:011-01404-xx Louisburg, KS 66053 Test #:060221 FCC ID#: IPH-01081 IC:1792A-01081 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Page 1 of 3 Nuvi Tx Int Photographs.Doc 3/6/2006 Internal photographs of transmitter section of equipment under test. Inside with unit opened. Transmitter board. ROGERS LABS, INC. Garmin International, Inc. SN: 1201 4405 West 259 th Terrace MODEL: Nuvi 310/360 GPN:011-01404-xx Louisburg, KS 66053 Test #:060221 FCC ID#: IPH-01081 IC:1792A-01081 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Page 2 of 3 Nuvi Tx Int Photographs.Doc 3/6/2006 Transmitter printed circuit board solder side. ROGERS LABS, INC. Garmin International, Inc. SN: 1201 4405 West 259 th Terrace MODEL: Nuvi 310/360 GPN:011-01404-xx Louisburg, KS 66053 Test #:060221 FCC ID#: IPH-01081 IC:1792A-01081 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Page 3 of 3 Nuvi Tx Int Photographs.Doc 3/6/2006

ROGERS LABS, INC. Garmin International, Inc. SN: 1201Eng 1 4405 West 259 th Terrace MODEL: Nuvi 310/360 GPN:011-00861-xx Louisburg, KS 66053 Test #:060221 FCC ID#: IPH-01081 IC:1792A-01081 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Page 1 of 1 Nuvi Tx Tune.Doc 3/3/2006 The unit has no provisions for tuning. It is produced and tested with a pass on pass operation.

ROGERS LABS, INC. Garmin International, Inc. SN: 1201 4405 West 259 th Terrace MODEL: Nuvi 310/360 GPN:011-01404-xx Louisburg, KS 66053 Test #:060221 FCC ID#: IPH-01081 IC:1792A-01081 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Page 1 of 1 Nuvi Tx MPE.Doc 3/3/2006 MPE Calculation page for Nuvi 310/360. MPE CalculatorGarmin Nuvi 310/360Test 060221 MPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2Antenna Gain (dBi)1 Output PowerdBd + 2.17 = dBidBi to dBd2.17 Tx Frequency (MHz)2441(Watts)0.0012Antenna Gain (dBd)-1.17 Cable Loss (dB)0.0(dBm)0.79Antenna minus cable (dBi)1.00 Calculated ERP (mw) 0.917EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 1.511Radiated (EIRP) dBm1.792 ERP = EIRP - 2.17 dB Occupational LimitRadiated (ERP) dBm-0.378 5.00000 mW/cm 2 General Public Limit 1.00000 mW/cm 2 Frequency (MHz)ccupational LimPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2) Public Limit @ Tx Freq (mW/cm^2) 300-1,5008.13666667 1.62733333 1,500-10,00051 EIRPDistanceDistanceS milliwattscminches mW/cm 2 1.51150.0019.690.00005 1.51140.0015.750.00008 1.51130.0011.810.00013 1.51125.009.840.00019 1.51120.007.870.00030 1.51115.005.910.00053 1.51114.005.510.00061 1.51113.005.120.00071 1.51112.004.720.00083 1.51111.004.330.00099 1.51110.003.940.00120 1.5119.003.540.00148 1.5118.003.150.00188 1.5117.002.760.00245 1.5116.002.360.00334 1.5115.001.970.00481 1.5114.001.570.00751 1.5113.001.180.01336 1.5112.000.790.03005 1.5111.750.690.03926 1.5111.500.590.05343 1.5111.250.490.07694 1.5111.000.390.12022 1.5110.750.300.21372 1.5110.500.200.48087 Frequency (MHz) Occupational Limit minimum Distance (cm) Public Limit minimum distance (cm) 300-1,500N/AN/A 1,500-10,000N/AN/A FCC radio frequency radiation exposure limits per 1.1310 FCC radio frequency radiation exposure limits per 1.1310 Power density (S) EIRP ------- = mW/cm^2 4 π r^2 r (cm) EIRP (mW)

APPLICATION For GRANT OF CERTIFICATION FOR MODEL: NUVI 310/360 Low Power Transmitter GP/N 011-01404-xx FCC ID: IPH-01081 IC: 1792A-01081 FOR GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Test Report number 060221 TEST REPORT For APPLICATION of CERTIFICATION For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance MODEL: NUVI 310/360 GPN 011-01404-xx Low Power Transmitter FREQUENCY: 2,400-2,483.5 MHz FCC ID: IPH-01081 IC: 1792A-01081 Test Report Number: 060221 Test Date: February 21, 2006 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Telephone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID:IPH-01081 4405 West 259 th Terrace MODEL: Nuvi 310/360 IC:1792A-01081 Louisburg, KS 66053 Test #:060221 SN: 1201 GPN: 011-01404-xx Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS 210 Page 3 of 34 Nuvi Transmitter FCC IC Test Report.Doc 2/27/2006 TABLE OF CONTENTS TABLE OF CONTENTS 3 FORWARD 4 APPLICABLE STANDARDS & TEST PROCEDURES 4 EQUIPMENT TESTED 5 LIST OF TEST EQUIPMENT 5 2.1033(B) APPLICATION FOR CERTIFICATION 6 EQUIPMENT AND CABLE CONFIGURATION 7 Test Setup 7 EQUIPMENT FUNCTION AND TESTING PROCEDURES 7 Configuration options for the EUT 8 AC Line Conducted Emission Test Procedure 9 Radiated Emission Test Procedure 9 Units of Measurements 9 Test Site Locations 10 SUBPART C - INTENTIONAL RADIATORS 10 15.203 ANTENNA REQUIREMENTS 10 15.205 RESTRICTED BANDS OF OPERATION 11 Data 15.205 12 Summary of Results for Radiated Emissions in Restricted Bands 15.205 12 15.207 CONDUCTED EMISSIONS LIMITS; GENERAL REQUIREMENTS 12 AC Line Conducted EMI 15.207 12 Data Conducted Emissions (7 Highest Emissions) EUT 16 Data Conducted Emissions (7 Highest Emissions) CPU and EUT 16 Summary of Results for AC Line Conducted General Emissions 15.207 16 15.209 RADIATED EMISSIONS LIMITS; GENERAL REQUIREMENTS 17 General Radiated EMI 15.209 17 General Radiated Emissions Data 15.209 20 Summary of Results for General Radiated Emissions 15.209 20 15.249 OPERATION IN THE BAND 2,400-2,483.5 MHZ 21 Transmitter Radiated Emissions 26 Power from Antenna Substitution Method for 15.249 27 Transmitter Antenna Conducted Emissions 27 TRANSMITTER EMISSIONS SUMMARY OF RESULTS 27 Summary of Results for Transmitter Radiated Emissions 15.249 27 FREQUENCY STABILITY 28 Measurements Required 28 Test Arrangement 28 Results 29 Summary of Results for Frequency Stability 30 Statement of Modifications and Deviations 30 APPENDIX 31 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID:IPH-01081 4405 West 259 th Terrace MODEL: Nuvi 310/360 IC:1792A-01081 Louisburg, KS 66053 Test #:060221 SN: 1201 GPN: 011-01404-xx Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS 210 Page 4 of 34 Nuvi Transmitter FCC IC Test Report.Doc 2/27/2006 FORWARD The following information is submitted for consideration in obtaining a Grant of Certification for low power intentional radiator per CFR Paragraph 15.249 operation in the 2400 – 2483.5 MHz band. Name of Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Model: Nuvi 310/360, GPN 011-01404-xx FCC ID: IPH-01081 Industry Canada ID: 1792A-01081 Frequency Range: 2400-2483.5 MHz. Operating Power: Less than 1 mW (as design specification, measured 96.0 dBμV/m @ 3 meters). Applicable Standards & Test Procedures a) In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 2004, Part 2, Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.925, 2.926, 2.1031 through 2.1057, applicable parts of paragraph 15, Part 15C paragraph 15.249, and Industry Canada RSS-210, the following information is submitted. b) Test procedures used are the established Methods of Measurement of Radio-Noise Emissions as described in the ANSI 63.4-2003 Document, and FCC documents DA00-1407 and DA00-705. NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID:IPH-01081 4405 West 259 th Terrace MODEL: Nuvi 310/360 IC:1792A-01081 Louisburg, KS 66053 Test #:060221 SN: 1201 GPN: 011-01404-xx Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS 210 Page 5 of 34 Nuvi Transmitter FCC IC Test Report.Doc 2/27/2006 Equipment Tested Equipment Serial Number FCC I.D.# NUVI 310/360 1201 IPH-01081 GA 27 GA27-1 N/A GTM 20 GTM20-1 N/A Dell Computer 2574199639 DoC Printer B94C2121X N/A List of Test Equipment A Hewlett Packard 8591EM and or 8562A Spectrum Analyzer was used as the measuring device for the emissions testing. The analyzer settings used are described in the following table. Refer to the Appendix for a complete list of Test Equipment. HP 8591EM SPECTRUM ANALYZER SETTINGS CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 9 kHz 30 kHz Peak/Quasi Peak RADIATED EMISSIONS (30 – 1000 MHz): RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak/Quasi Peak HP 8562A SPECTRUM ANALYZER SETTINGS RADIATED EMISSIONS (1 – 40 GHz): RBW AVG. BW DETECTOR FUNCTION 1 MHz 1 MHz Peak/Average ANTENNA CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak EQUIPMENT MFG. MODEL CAL. DATE DUE. LISN Comp. Design FCC-LISN-2-MOD.CD 10/05 10/06 LISN FCC FCC-LISN-50-16-2-08 6/05 6/06 LISN Comp. Design 1762 2/06 2/07 Antenna ARA BCD-235-B 10/05 10/06 Antenna EMCO 3147 10/05 10/06 Antenna EMCO 3143 5/05 5/06 Analyzer HP 8591EM 5/05 5/06 Analyzer HP 8562A 2/06 2/07 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, In…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. Garmin International, Inc. SN: 1201 4405 West 259 th Terrace MODEL: Nuvi 310/360 GPN:011-01404-xx Louisburg, KS 66053 Test #:060221 FCC ID#: IPH-01081 IC:1792A-01081 Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 15.249, RSS-210 Page 1 of 1 Nuvi Tx Test Setup Photo.Doc 3/3/2006 Test setup photographs for Nuvi 310/360.
