IPH-01097LOW POWER COMMUNICATIONS TRANSMITTER

Tracking System P/N 012-01097-00 Receiver P/N 012-01113-00 Transmitter owner’s manual DRAFT Not for reproduction Tracking System Owner's Manual F1 11/16/2007 1:51:36 PM All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin ® , AutoLocate ® , TracBack ® , BlueChart ® , and MapSource ® are registered trademarks of Garmin Ltd. or its subsidiaries and may not be used without the express permission of Garmin. This product includes technology owned by SiRF Technology, Inc. SiRF’s technology is protected by U.S. and foreign patents pending and issued. SiRF, SiRFstar and the SiRF logo are registered trademarks of SiRF Technology, Inc. SiRFstarIII and SiRF Powered are trademarks of SiRF Technology, Inc. miroSD ™ is a trademark of The SD Card Association. TransFlash ™ is a trademark of the SanDisk Corporation January 2007 Part Number 190-00714-00 Draft Rev B Printed in Taiwan © 2007 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151 st Street, Olathe, Kansas 66062, U.S.A. Tel. 913/397.8200 or 800/800.1020 Fax 913/397.8282 Garmin (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, U.K. Tel. 44/0870.8501241 Fax 44/0870.8501251 Garmin Corporation No. 68, Jangshu 2 nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 Tracking System Owner's Manual F2 21/16/2007 1:51:36 PM Tracking System Owner’s Manual - Draft i IntroductIon > IntroductIon Thank you for choosing the Garmin ® 010-001097- 00 Receiver/010-01113-00 Transmitter Tracking System. This system uses the proven performance of Garmin GPS and full-featured mapping to create an unsurpassed portable GPS receiver. When the receiver is in communication with the transmitter it becomes a highly accurate tracking device, capable of monitoring up to ten transmitters at a time. Compare the contents of this package with the packing list on the box. If any pieces are missing, contact your Garmin dealer immediately. To get the most out of your new navigation/tracker system, take time to read this manual and learn the operating procedures for your unit in detail. This manual is organized into the following sections. The Introduction contains manual conventions, the Table of Contents, the software license agreement, product registration, and product care information. The Getting Started section provides an overview of the unit, how to turn the unit on, and acquire satellites. The Basic Operation section provides information about setting up waypoints, routes, and tracks. The Main Pages section contains an overview of the Satellite, Trip Computer, Map, Compass and Altimeter Pages. The Main Menu section describes features found on the Main Menu and information about settings. The Appendix contains information such as specifications, optional accessories, and maintenance information. You can also find warranty and FCC information in the Appendix. An Index is provided at the end of the manual. Manual Conventions This manual uses the term Warning to indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury. This manual uses the term Caution to indicate a potentially hazardous situation, which, if not avoided, may result in minor injury or property damage. It may also be used without the symbol to alert you to avoid unsafe practices. Tracking System Owner's Manual F1 11/16/2007 1:51:37 PM ii Tracking System Owner’s Manual - Draft IntroductIon > Table of Contents Introduction .......................................................i Manual Conventions ................................................i Software License Agreement ............................v Product Registration ..........................................v Contact Garmin ........................................................v Caring for the Tracking System .....................viii Cleaning the Cases ..............................................viii Cleaning the Screen .............................................viii Storage .................................................................viii Water Immersion .................................................viii Warning ..............................................................ix Caution ................................................................x Getting Started .................................................1 Receiver Overview .............................................1 Installing the Batteries .............................................2 Using the Keypad ...............................................3 Charging the Transmitter battery .............................4 Transmitter Overview .........................................4 Turning on the Receiver.....................................5 Adjusting the Backlight ...........................................5 Initializing the GPS Receiver .............................6 Using the Receiver ..............................…

Text truncated - open the document above for the full version.

January 15, 2007 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-01097 PRODUCT: Low power Transmitter operated under part 15.249. Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, Operational Description, block diagram, and parts list be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459 (1998), following grant of the application. In support of this request, Garmin International, Inc. submits the following: Parts List IPH 01097 BOM.pdf Schematic IPH 01097 schematic.pdf block diagram IPH 01097 block diagram.pdf Operational Description IPH 01097 Op Description.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-01097 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

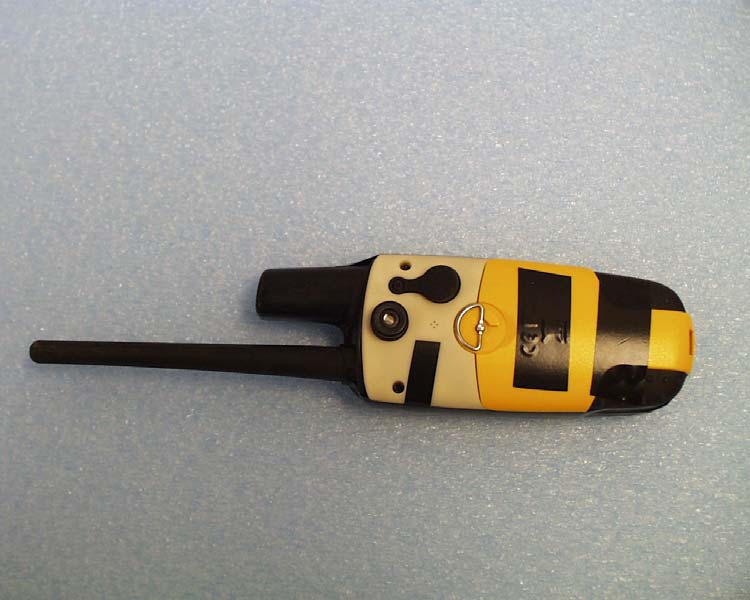

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01419-00 FCC ID#: IPH-01097 Louisburg, KS 66053 Test #:061213 SN: ENG 1 Phone/Fax: (913) 837-3214 Test to: CFR47, 2 and 15.249 Page 1 of 1 IPH 01097 Tx Ext Photos 01/12/2007 External photographs of equipment under test.

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01419-00 FCC ID#: IPH-01097 Louisburg, KS 66053 Test #:061213 SN: ENG 1 Phone/Fax: (913) 837-3214 Test to: CFR47, 2 and 15.249 Page 1 of 1 IPH 01097 ID Label information 01/12/2007 FCC/IC ID label and location. The FCC ID label is placed in the AA battery compartment. We did this to make sure that the user will be forced to look at the ID number before using the product since he will be required to install batteries in the unit. In addition, we felt that this location would be more durable, thereby guaranteeing that the label will remain with the unit for the duration of its lifetime. Finally, the user will be forced to look at the FCC ID number each time he/she swaps batteries or accesses the microSD card slot. FCC ID: IPH-01097

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01419-xx FCC ID#: IPH-01097 Louisburg, KS 66053 Test #:061213 SN: ENG 1 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, and 15.249 Page 1 of 1 IPH 01097 Internal Photos 1/12/2007 Internal Photographs. Bottom side Component Side

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01419-00 FCC ID#: IPH-01097 Louisburg, KS 66053 Test #:061213 SN: ENG 1 Phone/Fax: (913) 837-3214 Test to: CFR47, 2 and 15.249 Page 1 of 1 IPH 01097 Tune 01/12/2007 Transmitter Tune-Up Procedure The only point of transmitter tune-up required for this transceiver is to adjust the frequency reference. Power and deviation are calibrated in the Cypress factory at the time of IC assembly. To adjust the frequency reference, Y1200, the factory probes the output of the clock buffer, I1201 and adjusts the digital POT, I1200, up or down until the reference frequency is within ±10Hz of its target, 12MHz.

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01419-00 FCC ID#: IPH-01097 Louisburg, KS 66053 Test #:061213 SN: ENG 1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249 Page 1 of 1 IPH 01097 MPE 1/12/2007 MPE Calculation page MPE CalculatorTest 061213 MPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2Antenna Gain (dBi)0.5 Output PowerdBd + 2.17 = dBidBi to dBd2.17 Tx Frequency (MH2457(Watts)0.000006Antenna Gain (dBd)-1.67 Cable Loss (dB)0.0(dBm)-22.22Antenna minus cable (dBi)0.50 Calculated ERP (mw) 0.004EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 0.007Radiated (EIRP) dBm-21.718 ERP = EIRP - 2.17 dB Occupational LimitRadiated (ERP) dBm-23.888 5.00000 mW/cm 2 General Public Limit 1.00000 mW/cm 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2) Public Limit @ Tx Freq (mW/cm^2) 300-1,5008.191.638 1,500-10,00051 EIRPDistanceDistanceS milliwattscminchesmW/cm 2 0.00750.0019.690.00000 0.00740.0015.750.00000 0.00730.0011.810.00000 0.00725.009.840.00000 0.00720.007.870.00000 0.00715.005.910.00000 0.00714.005.510.00000 0.00713.005.120.00000 0.00712.004.720.00000 0.00711.004.330.00000 0.00710.003.940.00001 0.0079.003.540.00001 0.0078.003.150.00001 0.0077.002.760.00001 0.0076.002.360.00001 0.0075.001.970.00002 0.0074.001.570.00003 0.0073.001.180.00006 0.0072.000.790.00013 0.0071.750.690.00017 0.0071.500.590.00024 0.0071.250.490.00034 0.0071.000.390.00054 0.0070.750.300.00095 0.0070.500.200.00214 Frequency (MHz) Occupational Limit minimum Distance (cm) Public Limit minimum distance (cm) 300-1,500N/AN/A 1,500-10,000N/AN/A FCC radio frequency radiation exposure limits per 1.1310 FCC radio frequency radiation exposure limits per 1.1310 Power density (S) EIRP ------- = mW/cm^2 4 π r^2 r (cm) EIRP

APPLICATION FOR GRANT of CERTIFICATION REPORT FOR MODEL: 011-01419-00 GPN 011-01419-00 FOR GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Test Report Number 061213 TEST REPORT For APPLICATION of CERTIFICATION For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Doug Kealey Compliance Engineer Model: 011-01419-00 Low Power Transmitter Frequency: 2,400-2,483.5 MHz FCC ID: IPH-01097 Test Date: December 13, 2006 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 2.4 GHz Transmitter 4405 West 259 th Terrace Model: 011-01419-00 FCC ID: IPH-01097 Louisburg, KS 66053 Test #: 061213 SN: #ENG 1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15C Page 3 of 27 IPH01097 Test Report 1/15/2007 TABLE OF CONTENTS TABLE OF CONTENTS 3 FORWARD 5 Equipment Tested 5 EQUIPMENT FUNCTION AND CONFIGURATION 5 Equipment Function 5 Equipment Configuration 6 LIST OF TEST EQUIPMENT 7 CFR47 2.1033(B) APPLICATION FOR CERTIFICATION 8 CFR47 15 SUBPART C - INTENTIONAL RADIATORS 9 CFR47 15.203 ANTENNA REQUIREMENTS 9 CFR47 15.205 RESTRICTED BANDS OF OPERATION 9 CFR47 15.205 Emissions Data in Restricted Bands 9 CFR47 15.205 Summary of Results for Radiated Emissions in Restricted Bands 9 CFR47 15.207 CONDUCTED EMISSIONS LIMITS; GENERAL REQUIREMENTS 10 CFR47 15.207 AC Line Conducted EMI 10 CFR47 15.207 Data Conducted Emissions (7 Highest Emissions) 10 Figure one Conducted emissions of EUT line 1 (configuration #2) 11 Figure two Conducted emissions of EUT line 2 (configuration #2) 11 CFR47 15.207 Summary of Results for AC Line Conducted General Emissions 12 CFR47 15.209 RADIATED EMISSIONS LIMITS; GENERAL REQUIREMENTS 12 CFR47 15.209 General Radiated EMI 12 CFR47 15.209 General Radiated Emissions Data Configuration #2 @ 10meters 13 CFR47 15.209 General Radiated Emissions Data @ 3meters 13 Figure three Radiated Emissions taken at 1 meter in screen room configuration #2. 14 Figure four Radiated Emissions taken at 1 meter in screen room configuration #2. 14 Figure five Radiated Emissions taken at 1 meter in screen room configuration #2. 15 CFR47 15.209 Summary of Results for General Radiated Emissions 15 CFR47 15.249 OPERATION IN THE BAND 2,400-2,483.5 MHZ 16 CFR47 15.249 Transmitter Radiated Emissions Data 17 CFR47 15.249 Power from Antenna Substitution Method Data 18 Figure six Radiated Emissions taken at 1 meter in screen room. 18 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 2.4 GHz Transmitter 4405 West 259 th Terrace Model: 011-01419-00 FCC ID: IPH-01097 Louisburg, KS 66053 Test #: 061213 SN: #ENG 1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15C Page 4 of 27 IPH01097 Test Report 1/15/2007 Figure seven Radiated Emissions taken at 1 meter in screen room. 19 Figure eight Radiated Emissions taken at 1 meter in screen room. 19 Figure nine Radiated Emissions taken at 1 meter in screen room. 20 Figure ten Radiated Emissions taken at 1 meter in screen room. 20 Figure eleven Radiated Emissions taken at 1 meter in screen room. 21 Figure twelve Radiated Emissions taken at 1 meter in screen room. 21 Figure thirteen Radiated Emissions taken at 1 meter in screen room. 22 CFR47 15.249 Summary of Results for Transmitter Radiated Emissions 22 APPENDIX 23 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 2.4 GHz Transmitter 4405 West 259 th Terrace Model: 011-01419-00 FCC ID: IPH-01097 Louisburg, KS 66053 Test #: 061213 SN: #ENG 1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15C Page 5 of 27 IPH01097 Test Report 1/15/2007 FORWARD In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 2005, Part 2 Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.915, 2.925, 2.926, and applicable paragraphs of Part 15C, the following report is submitted. Test procedures used are the established Methods of Measurement of Radio-Noise Emissions as described in the ANSI 63.4- 2003 Document, CFR47, and FCC documents DA00-1407 and DA00-705. Applicant Gamin International, Inc. 1200 East 151 st Street Olathe, KS 66062 Model 011-01419-00 FCC ID IPH-01097 Equipment Tested Equipment Serial Number FCC ID 011-01419-00 ENG 1 IPH-01097 Dell Computer 2574199639 DoC Printer B94C2121X N/A Equipment Function and Configuration Equipment Function The EUT incorporates a low power transceiver allowing communications to a remote device for control functions of the other devices. The equipment is a handheld GPS receiver allowing location and direction monitoring. The equipment may interface to a computer allowing for software updating of the GPS map system. The transmitter is fully enclosed in a sealed case. The unit does not offer modification or adjustment by the end user. The rear of the case opens to allow for battery replacement and view of the FCC ID label. The transmit antenna is incorporated on the printed circuit board and does not allow for modification or alteration. The transmitter operates as a low power license exempt intentional radiator operating between 2.4- 2.4835 GHz governed by CFR47 15.249. The design incorporates a VHF receiver allowing reception of transmitted data from a remote MURS transmitter. The transmissions are received on the synchronized receiver carried by the sports enthusiast allowing them to monitor the location of the MURS transmitter. NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. 2.4 GHz Transmitter…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01419-00 FCC ID#: IPH-01097 Louisburg, KS 66053 Test #:061213 SN: ENG 1 Phone/Fax: (913) 837-3214 Test to: CFR47, 2 and 15.249 Page 1 of 3 IPH 01097 Test Setup Photo 01/12/2007 Test setup photographs for 011-01419-00. ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01419-00 FCC ID#: IPH-01097 Louisburg, KS 66053 Test #:061213 SN: ENG 1 Phone/Fax: (913) 837-3214 Test to: CFR47, 2 and 15.249 Page 2 of 3 IPH 01097 Test Setup Photo 01/12/2007 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01419-00 FCC ID#: IPH-01097 Louisburg, KS 66053 Test #:061213 SN: ENG 1 Phone/Fax: (913) 837-3214 Test to: CFR47, 2 and 15.249 Page 3 of 3 IPH 01097 Test Setup Photo 01/12/2007
