IPH-01113LOW POWER COMMUNICATIONS TRANSMITTER

Tracking System P/N 012-01097-00 Receiver P/N 012-01113-00 Transmitter owner’s manual DRAFT Not for reproduction Tracking System Owner's Manual F1 11/16/2007 1:51:36 PM All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin ® , AutoLocate ® , TracBack ® , BlueChart ® , and MapSource ® are registered trademarks of Garmin Ltd. or its subsidiaries and may not be used without the express permission of Garmin. This product includes technology owned by SiRF Technology, Inc. SiRF’s technology is protected by U.S. and foreign patents pending and issued. SiRF, SiRFstar and the SiRF logo are registered trademarks of SiRF Technology, Inc. SiRFstarIII and SiRF Powered are trademarks of SiRF Technology, Inc. miroSD ™ is a trademark of The SD Card Association. TransFlash ™ is a trademark of the SanDisk Corporation January 2007 Part Number 190-00714-00 Draft Rev B Printed in Taiwan © 2007 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151 st Street, Olathe, Kansas 66062, U.S.A. Tel. 913/397.8200 or 800/800.1020 Fax 913/397.8282 Garmin (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, U.K. Tel. 44/0870.8501241 Fax 44/0870.8501251 Garmin Corporation No. 68, Jangshu 2 nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 Tracking System Owner's Manual F2 21/16/2007 1:51:36 PM Tracking System Owner’s Manual - Draft i IntroductIon > IntroductIon Thank you for choosing the Garmin ® 010-001097- 00 Receiver/010-01113-00 Transmitter Tracking System. This system uses the proven performance of Garmin GPS and full-featured mapping to create an unsurpassed portable GPS receiver. When the receiver is in communication with the transmitter it becomes a highly accurate tracking device, capable of monitoring up to ten transmitters at a time. Compare the contents of this package with the packing list on the box. If any pieces are missing, contact your Garmin dealer immediately. To get the most out of your new navigation/tracker system, take time to read this manual and learn the operating procedures for your unit in detail. This manual is organized into the following sections. The Introduction contains manual conventions, the Table of Contents, the software license agreement, product registration, and product care information. The Getting Started section provides an overview of the unit, how to turn the unit on, and acquire satellites. The Basic Operation section provides information about setting up waypoints, routes, and tracks. The Main Pages section contains an overview of the Satellite, Trip Computer, Map, Compass and Altimeter Pages. The Main Menu section describes features found on the Main Menu and information about settings. The Appendix contains information such as specifications, optional accessories, and maintenance information. You can also find warranty and FCC information in the Appendix. An Index is provided at the end of the manual. Manual Conventions This manual uses the term Warning to indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury. This manual uses the term Caution to indicate a potentially hazardous situation, which, if not avoided, may result in minor injury or property damage. It may also be used without the symbol to alert you to avoid unsafe practices. Tracking System Owner's Manual F1 11/16/2007 1:51:37 PM ii Tracking System Owner’s Manual - Draft IntroductIon > Table of Contents Introduction .......................................................i Manual Conventions ................................................i Software License Agreement ............................v Product Registration ..........................................v Contact Garmin ........................................................v Caring for the Tracking System .....................viii Cleaning the Cases ..............................................viii Cleaning the Screen .............................................viii Storage .................................................................viii Water Immersion .................................................viii Warning ..............................................................ix Caution ................................................................x Getting Started .................................................1 Receiver Overview .............................................1 Installing the Batteries .............................................2 Using the Keypad ...............................................3 Charging the Transmitter battery .............................4 Transmitter Overview .........................................4 Turning on the Receiver.....................................5 Adjusting the Backlight ...........................................5 Initializing the GPS Receiver .............................6 Using the Receiver ..............................…

Text truncated - open the document above for the full version.

January 13, 2007 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-01113 PRODUCT: Low power Transmitter operated under part 15.249, 2-watt part 95. Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, Operational Description, block diagram, and parts list be permanently withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459 (1998), following grant of the application. In support of this request, Garmin International, Inc. submits the following: Parts List IPH 01113 Parts_list.pdf Schematic IPH 01113 schematic.pdf block diagram IPH 01113 block diagram.pdf Operational Description IPH 01113 Op Description.pdf Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos IPH 01113 Tx Ext Photos.pdf Internal Photos IPH 01113 Internal Photos.pdf Setup Photos IPH 01113 Test Setup Photo.pdf User Manual IPH 01113 manual.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-01113 ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

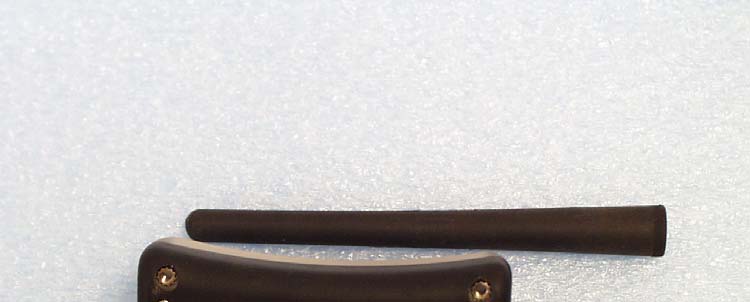

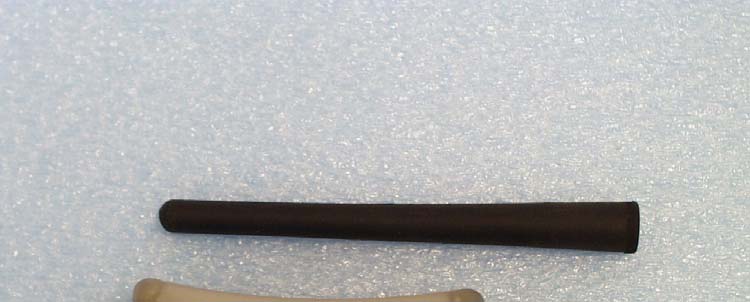

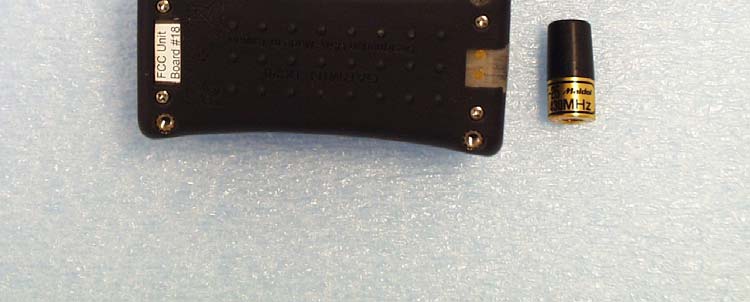

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01434-00 FCC ID#: IPH-01113 Louisburg, KS 66053 Test #:061213D SN: #18 Phone/Fax: (913) 837-3214 Test to: CFR47, 2 and 15.249 Page 1 of 1 IPH 01113 Tx External Photos 01/12/2007 External photographs of equipment under test.

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01434-00 FCC ID#: IPH-01113 Louisburg, KS 66053 Test #:061213D SN: #18 Phone/Fax: (913) 837-3214 Test to: CFR47, 2 and 15.249 Page 1 of 1 IPH 01113 ID Label information 01/12/2007 FCC/IC ID label and location. FCC ID: IPH-01113

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01434-00 FCC ID#: IPH-01113 Louisburg, KS 66053 Test #:061213D SN: #18 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.249, 95 Page 1 of 2 IPH 01113 Internal Photos 1/12/2007 Photographs inside case. ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01434-00 FCC ID#: IPH-01113 Louisburg, KS 66053 Test #:061213D SN: #18 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.249, 95 Page 2 of 2 IPH 01113 Internal Photos 1/12/2007

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01434-00 FCC ID#: IPH-01113 Louisburg, KS 66053 Test #:061213D SN: #18 Phone/Fax: (913) 837-3214 Test to: CFR47, 2 and 15.249 Page 1 of 1 IPH 01113 ID Label information 01/12/2007 MURS Transmitter Tune-Up Procedure As part of the manufacturing process, the unit will be powered on and the transmitter will be enabled. A computer will control the microcontroller to adjust the DC control voltage applied to Y300 (12.000MHz VCTCXO) to align the 12.000MHz frequency reference to within ±10Hz. The PC will then be used to command the unit to transmit a continuous “0101” data pattern and adjust I303 (digital potentiometer) so that the modulation is between 3300Hz and 3599Hz. WUSB Transmitter Tune-Up Procedure The only point of transmitter tune-up required for this transceiver is to adjust the frequency reference. Power and deviation are calibrated in the Cypress factory at the time of IC assembly. The reference frequency is tuned during the MURS tune-up procedure.

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01434-00 FCC ID#: IPH-01113 Louisburg, KS 66053 Test #:061213D SN: #18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 95, and 15.249 Page 1 of 1 IPH 01113 MPE 1/12/2007 MPE Calculation MPE CalculatorTest 061213D MPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2Antenna Gain (dBi)0.5 Output PowerdBd + 2.17 = dBidBi to dBd2.17 Tx Frequency (MHz)2457(Watts)2.00Antenna Gain (dBd)-1.67 Cable Loss (dB)0.0(dBm)33.01Antenna minus cable (dBi)0.50 Calculated ERP (mw) 1361.539EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 2244.037Radiated (EIRP) dBm33.510 ERP = EIRP - 2.17 dB Occupational LimitRadiated (ERP) dBm31.340 5.00000 mW/cm 2 General Public Limit 1.00000 mW/cm 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2) Public Limit @ Tx Freq (mW/cm^2) 300-1,5008.191.638 1,500-10,00051 EIRPDistanceDistanceS milliwattscminchesmW/c m 2 2244.03750.0019.690.07143 2244.03740.0015.750.11161 2244.03730.0011.810.19842 2244.03725.009.840.28572 2244.03720.007.870.44644 2244.03715.005.910.79367 2244.03714.005.510.91110 2244.03713.005.121.05666 2244.03712.004.721.24010 2244.03711.004.331.47582 2244.03710.003.941.78575 2244.0379.003.542.20463 2244.0378.003.152.79023 2244.0377.002.763.64438 2244.0376.002.364.96041 2244.0375.001.977.14299 2244.0374.001.5711.16092 2244.0373.001.1819.84164 2244.0372.000.7944.64370 2244.0371.750.6958.31013 2244.0371.500.5979.36657 2244.0371.250.49114.28786 2244.0371.000.39178.57478 2244.0370.750.30317.46628 2244.0370.500.20714.29913 Frequency (MHz) Occupational Limit minimum Distance (cm) Public Limit minimum distance (cm) 300-1,5006.0013.00 1,500-10,000N/AN/A FCC radio frequency radiation exposure limits per 1.1310 FCC radio frequency radiation exposure limits per 1.1310 Power density (S) EIRP ------- = mW/cm^2 4 π r^2

APPLICATION FOR GRANT of CERTIFICATION REPORT FOR MODEL: 011-01434-00 GPN 011-01434-00 FOR GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Test Report Number 061213D TEST REPORT For APPLICATION of CERTIFICATION For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Doug Kealey Compliance Engineer Model: 011-01434-00 MURS Transmitter Frequency: 151.820, 151.880, 151.940, 154.570, and 15.600 MHz Low Power Transmitter Frequency: 2,400-2,483.5 MHz FCC ID: IPH-01113 Test Date: December 13, 2006 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. MURS / 2.4 GHz Transmitter 4405 West 259 th Terrace MODEL: 011-01434-00 FCC ID: IPH-01113 Louisburg, KS 66053 Test #: 061213D SN: #18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 3 of 38 IPH 01113 Test Report rev1 1/19/2007 TABLE OF CONTENTS TABLE OF CONTENTS 3 FORWARD 5 EQUIPMENT FUNCTION AND CONFIGURATION 5 Equipment Function 5 Equipment Configuration 6 LIST OF TEST EQUIPMENT 7 CFR47 2.1033(C) APPLICATION FOR CERTIFICATION 7 CFR47 2.1046 RF POWER OUTPUT 9 Measurements Required 9 Test Arrangement 9 Results MURS Transmitter Output Power 10 Figure 1 Power Output at antenna terminal of MURS Transmitter 11 CFR47 2.1047 MODULATION CHARACTERISTICS 11 Measurements Required 11 Test Arrangement 11 Results 12 CFR47 2.1049 OCCUPIED BANDWIDTH 12 Measurements Required 12 Test Arrangement 12 Results 12 Figure 2 Occupied Band Width (Data 0000). 13 Figure 3 Occupied Band Width (Data 1111). 13 Figure 4 Occupied Band Width (Data 1010). 14 CFR47 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 14 Measurements Required 14 Test Arrangement 14 Figure 5 Spurious Emissions at Antenna Terminal 15 Results 16 CFR47 2.1051 2.0 Watt MURS Spurious Emissions Data 16 CFR47 2.1053 FIELD STRENGTH OF SPURIOUS RADIATION 17 Measurements Required 17 Test Arrangement 17 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. MURS / 2.4 GHz Transmitter 4405 West 259 th Terrace MODEL: 011-01434-00 FCC ID: IPH-01113 Louisburg, KS 66053 Test #: 061213D SN: #18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 4 of 38 IPH 01113 Test Report rev1 1/19/2007 Results 18 CFR47 2.1053 Spurious Emission Data Channel frequency 151.880 18 CFR47 2.1053 Spurious Emission Data Channel frequency 154.600 19 CFR47 2.1053 Spurious Emission Data (General) 19 2.1055 FREQUENCY STABILITY 20 Measurements Required 20 Test Arrangement 20 Results 21 CFR47 15 SUBPART C - INTENTIONAL RADIATORS 22 CFR47 15.203 ANTENNA REQUIREMENTS 22 CFR47 15.205 RESTRICTED BANDS OF OPERATION 22 CFR47 15.205 Emissions Data in Restricted Bands 22 CFR47 15.205 Summary of Results for Radiated Emissions in Restricted Bands 22 CFR47 15.207 CONDUCTED EMISSIONS LIMITS; GENERAL REQUIREMENTS 23 CFR47 15.207 AC Line Conducted EMI 23 CFR47 15.207 Data Conducted Emissions (7 Highest Emissions) 23 Figure 7 Conducted emissions of EUT line 1 24 Figure 8 Conducted emissions of EUT line 2 24 CFR47 15.207 Summary of Results for AC Line Conducted General Emissions 25 CFR47 15.209 RADIATED EMISSIONS LIMITS; GENERAL REQUIREMENTS 25 CFR47 15.209 General Radiated EMI 25 CFR47 15.209 General Radiated Emissions Data 26 Figure nine Radiated Emissions taken at 1 meter in screen room. 26 Figure ten Radiated Emissions taken at 1 meter in screen room. 27 Figure eleven Radiated Emissions taken at 1 meter in screen room. 27 Figure twelve Radiated Emissions taken at 1 meter in screen room. 28 Figure thirteen Radiated Emissions taken at 1 meter in screen room. 28 CFR47 15.209 Summary of Results for General Radiated Emissions 29 CFR47 15.249 OPERATION IN THE BAND 2,400-2,483.5 MHZ 29 Figure fourteen Radiated Emissions taken at 1 meter in screen room. 30 Figure fifteen Radiated Emissions taken at 1 meter in screen room. 30 Figure sixteen Radiated Emissions taken at 1 meter in screen room. 31 Figure seventeen Radiated Emissions taken at 1 meter in screen room. 31 CFR47 15.249 Transmitter Radiated Emissions Data 32 CFR47 15.249 Power from Antenna Substitution Method Data 33 CFR47 15.249 Summary of Results for Transmitter Radiated Emissions 33 APPENDIX 34 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Garmin International, Inc. MURS / 2.4 GHz Transmitter 4405 West 259 th Terrace MODEL: 011-01434-00 FCC ID: IPH-01113 Louisburg, KS 66053 Test #: 061213D SN: #18 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 5 of 38 IPH 01113 Test Report rev1 1/19/2007 FORWARD In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 2005, Part 2 Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.915, 2.925, 2.926, 2.1031 through 2.1057, applicable paragraphs of Part 15C and 95, the following report is submitted. Applicant Gamin International, Inc. 1200 East 151 st Street Olathe, KS 66062 Model 011-01434-00 FCC ID IPH-01113 Equipment Function and Configuration Equipment Function The EUT incorporates two separate transmitter sections, one operating on the approved MURS frequencies governed by rule of CFR47 95.632. The other operating as a low power license exempt intentional radiator operating between 2.4-2.4835 GHz governed by CFR47 15.249. The low power transmitter allows for channel selection and synchronization of the transmitter and remote receiver. The unit functions while attached to a collar or harness allowing a sports enthusiast to locate and track an animal wearing the harness and transmitter. The MURS transmiss…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01434-00 FCC ID#: IPH-01113 Louisburg, KS 66053 Test #:061213D SN: #18 Phone/Fax: (913) 837-3214 Test to: CFR47, 2 and 15.249 Page 1 of 3 IPH 01113 Test Setup Photo 01/12/2007 Test setup photographs for 011-01434-00. ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01434-00 FCC ID#: IPH-01113 Louisburg, KS 66053 Test #:061213D SN: #18 Phone/Fax: (913) 837-3214 Test to: CFR47, 2 and 15.249 Page 2 of 3 IPH 01113 Test Setup Photo 01/12/2007 ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace MODEL: 011-01434-00 FCC ID#: IPH-01113 Louisburg, KS 66053 Test #:061213D SN: #18 Phone/Fax: (913) 837-3214 Test to: CFR47, 2 and 15.249 Page 3 of 3 IPH 01113 Test Setup Photo 01/12/2007
