IPH-01156LOW POWER TRANSMITTER (2400-2483.5 MHz)

1 GLO ™ GLONASS and GPS Sensor Instructions May 2012 190-01492-90_01 Printed in Taiwan DRAFT 2 Installing the Battery  WarnIng This product contains a lithium-ion battery. See page 5 for important battery safety information. 1 With your thumbnail, slide the battery cover release tab ➊ toward the end of the sensor. ➌ ➊ ➋ 2 Remove the battery cover ➋. 3 Locate the metal contacts on the end of the lithium-ion battery. 4 Insert the battery ➌ so the metal contacts on the battery align with the metal contacts inside the battery compartment. 5 Press the battery down into place. 6 Replace the battery cover by inserting the tabs into the notches and pressing the battery cover closed. The release tab locks the cover in place. replacement Battery You can purchase a replacement battery (010-10840-00) at http://buy.garmin.com. Charging the Battery You can use the sensor while you are charging it. 1 Plug the small end of the power cable into the mini-USB connector on the end of the sensor. 2 Plug the other end of the power cable into an appropriate source of power for the cable type. It takes about three hours to charge the battery. A fully charged battery lasts about 12 hours. DRAFT 3 Pairing the Sensor 1 Hold to turn on the sensor. 2 Turn on the other device and enable the Bluetooth component. You can refer to the device’s documentation for specific instructions about enabling Bluetooth wireless technology. 3 Bring the sensor within 30 feet (10 meters) of the mobile device. 4 Using the mobile device, pair the sensor with the mobile device. The sensor PIN is 1234. The blue LED flashes slowly or is on solid when the sensor is connected to the other device. If the sensor has not established a Bluetooth connection for several minutes, it turns off automatically. Bluetooth LED Status LED Description Rapid flashing blue Power on, Bluetooth on Solid blue Bluetooth connection to the mobile device established, satellites not acquired Slow flashing blue Bluetooth connection to the mobile device established, satellites acquired Power LED Status LED Description Flashing yellow/green Charging Solid yellow/green Battery is charged Flashing orangeLow battery Solid orangeFaulty battery or system error acquiring Satellite Signals 1 Ensure that the blue LED on the sensor is slowly flashing blue or on solid blue, indicating a wireless connection. 2 Place the sensor where it has a clear view of the sky. Acquiring satellite signals may take a few minutes. DRAFT 4 Customizing Your Mobile Device’s Settings Set your mobile device’s auto-off and other power management settings to be suitable for your navigation experience. Refer to the mobile device’s documentation for instructions. Product Compatibility Made for iPod ® touch (4th generation), iPod touch (3rd generation), iPhone ® 4S, iPhone 4, iPhone 3GS, iPad ® 2, and iPad. "Made for iPod, iPhone, iPad” means that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. The GLO sensor is also compatible with many Android ® , Windows ® or Blackberry ® smartphones, tablets and notebook computers. When using the GLO GPS/GLONASS sensor with an Android device, you may need to use an application to allow the sensor to properly communicate with the Android system over Bluetooth technology. The application will allow the Android system to accept non-system (or mock) GPS/GLONASS signals. registering the Device • Go to http://my.garmin.com. • Keep the original sales receipt, or a photocopy, in a safe place. Specifications Case: Rugged, but not water-resistant Power Supply: Rechargeable lithium-ion battery, 12 hours (typical use) Update rate: 10 Hz, but not all mobile devices support a 10 Hz update rate. Vehicle Power Cable* Input Voltage: 12–28 Vdc (*available in some packages) Operating Temperature: -4°F to 140°F (-20°C to 60°C) Charging Temperature: 32°F to 113°F (0°C to 45°C) DRAFT 5 Short-Term (1 month) Storage Temperature: -4°F to 140°F (-20°C to 60°C) Long-Term (1 year) Storage Temperature: -4°F to 68°F (-20°C to 20°C) Important Safety and Product Information  WarnIng Installation Warnings When installing the device in a vehicle, place the device securely so it does not obstruct the driver’s view of the road ➊ or interfere with vehicle operating controls, such as the steering wheel, foot pedals, or transmission levers. Do not place unsecured on the vehicle dashboard ➋. Do not place the device in front of or above any airbag ➌. ➋ ➌ ➊ Battery Warnings If these guidelines are not followed, the batteries may experience a shortened life span or may present a risk of damage to the unit, fire, chemical burn, electrolyte leak, and/or injury. • Do not leave the unit exposed to a heat source or in a high temperature location, such as in the sun in an unattended vehicle. To prevent the possibility of damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box. • Do not use a sharp object to remove the batteries. • Do not puncture or incinerate the device or battery. • Keep the batteries away from children. • Do not disassemble, puncture, or damage the batteries. • If using an external battery charger, only use the Garmin accessory approved for your product. • Only replace the battery with the correct replacement battery . Using another battery presents a risk of DRAFT 6 fire or explosion. To purchase a replacement battery, see your Garmin dealer or the Garmin website. • When storing the device for an extended time, store within the following temperature range: from -22° to 140°F (from -30° to 60°C). • Do not operate the device outside of the following temperature range: from 14° to 140°F (from -10° to 60°…

Text truncated - open the document above for the full version.

Page 1 of 2 June 12, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-01156 PRODUCT: Low power Transmitters operated under paragraph 15.249. Dear Sirs: Garmin International, Inc. requests that the material in the Parts List, Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES Conf BlkDia GLO.pdf Conf OpDes GLO.pdf Conf Schem GLO.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-01156 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

June 12, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-01156 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 FCC Rules: Parts 2 and 15.249 To Whom It May Concern: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site for use in obtaining a grant of certification. Confidentiality is requested as outlined below. Permanent Garmin International, Inc. requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. Exhibit File Schematics Conf Schem GLO.pdf Block diagram Conf BlkDia GLO.pdf Operational Description Conf OpDes GLO.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

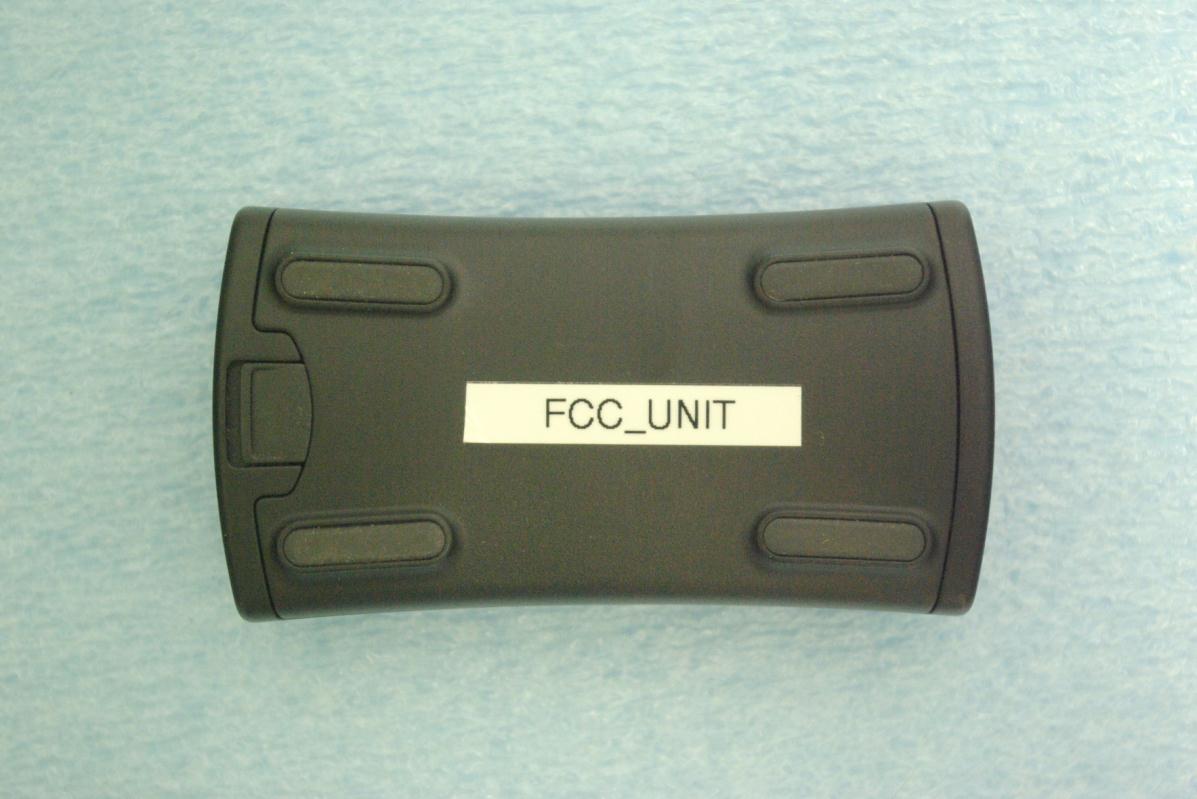

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-01156 4405 West 259 th Terrace Model: GLO IC: 1792A-01156 Louisburg, KS 66053 Test #:120508 SN: 3845646906b GPN: 011-02921-xx Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: June 28, 2012 Revision 1 File: ExtPho GLO Page 1 of 1 External photographs of equipment under test

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-01156 4405 West 259 th Terrace Model: GLO IC: 1792A-01156 Louisburg, KS 66053 Test #:120508 SN: 3845646906b GPN: 011-02921-xx Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: June 29, 2012 Revision 1 File: IntPho GLO Page 1 of 2 Internal Photographs Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-01156 4405 West 259 th Terrace Model: GLO IC: 1792A-01156 Louisburg, KS 66053 Test #:120508 SN: 3845646906b GPN: 011-02921-xx Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: June 29, 2012 Revision 1 File: IntPho GLO Page 2 of 2

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-01156 4405 West 259 th Terrace Model: GLO IC: 1792A-01156 Louisburg, KS 66053 Test #:120508 SN: 3845646906b GPN: 011-02921-xx Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: June 4, 2012 Revision 1 File: GLO TstRpt 120508 Page 1 of 34 Application For Grant of Certification FOR Model: GLO GPN 011-02921-xx Low Power Transmitter FCC ID: IPH-01156 IC: 1792A-01156 FOR GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Test Report Number 120508 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-01156 4405 West 259 th Terrace Model: GLO IC: 1792A-01156 Louisburg, KS 66053 Test #:120508 SN: 3845646906b GPN: 011-02921-xx Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: June 4, 2012 Revision 1 File: GLO TstRpt 120508 Page 2 of 34 Test Report for Application of Certification For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance Model: GLO GPN 011-02921-xx Low Power Transmitter Frequency Range: 2,402-2,480 MHz FCC ID: IPH-01156 IC: 1792A-01156 Test Report Number: 120508 Test Date: May 8, 2012 Authorized Signatory: Scot D. Rogers Rogers Labs, Inc. 4405 West 259th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the Federal Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-01156 4405 West 259 th Terrace Model: GLO IC: 1792A-01156 Louisburg, KS 66053 Test #:120508 SN: 3845646906b GPN: 011-02921-xx Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: June 4, 2012 Revision 1 File: GLO TstRpt 120508 Page 3 of 34 Table of Contents TABLE OF CONTENTS .................................................................................................... 3 FORWARD ....................................................................................................................... 5 APPLICABLE STANDARDS & TEST PROCEDURES .................................................... 5 OPINION / INTERPRETATION OF RESULTS ................................................................. 5 STATEMENT OF MODIFICATIONS AND DEVIATIONS ................................................. 6 ENVIRONMENTAL CONDITIONS.................................................................................... 6 UNITS OF MEASUREMENTS .......................................................................................... 6 TEST SITE LOCATIONS .................................................................................................. 6 LIST OF TEST EQUIPMENT ............................................................................................ 7 APPLICATION FOR CERTIFICATION ............................................................................. 8 EQUIPMENT TESTED SETUP, FUNCTION AND CONFIGURATIONS .......................... 9 Equipment Function and Test Setup ....................................................................................................................... 9 EUT Configuration Options .................................................................................................................................... 10 SUBPART C - INTENTIONAL RADIATORS .................................................................... 10 AC Line Conducted Emission Test Procedure ....................................................................................................... 10 Radiated Emission Test Procedure ......................................................................................................................... 11 ANTENNA REQUIREMENTS ........................................................................................... 11 RESTRICTED BANDS OF OPERATION ......................................................................... 11 Radiated Emissions in Restricted Bands Data ....................................................................................................... 12 Summary of Results for Radiated Emissions in Restricted Bands ....................................................................... 12 AC Line Conducted EMI Procedure ....................................................................................................................... 13 Figure One AC Line Conducted emissions of EUT line 1 (EUT AC Adapter) ..................................................... 14 Figure Two AC Line Conducted emissions of EUT line 2 (EUT AC Adapter) ..................................................... 14 Figure Three AC Line Conducted emissions of EUT line 1 (EUT USB to CPU) .................................................. 15 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-01156 4405 West 259 th Terrace Model: GLO IC: 1792A-01156 Louisburg, KS 66053 Test #:120508 SN: 3845646906b GPN: 011-02921-xx Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: June 4, 2012 Revision 1 File: GLO TstRpt 120508 Page 4 of 34 Figure Four AC Line Conducted emissions of EUT line 2 (EUT USB to CPU) ................................................... 15 Data AC Line Conducted Emissions ...................................................................................................................... 16 Summary of Results for AC Line Conducted Emissions ....................................................................................... 17 General Radiated EMI Testing Procedure ............................................................................................................. 18 General Radiated Emis…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-01156 4405 West 259 th Terrace Model: GLO IC: 1792A-01156 Louisburg, KS 66053 Test #:120508 SN: 3845646906b GPN: 011-02921-xx Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.249, RSS 210 Date: June 28, 2012 Revision 1 File: TSup GLO Page 1 of 1 Test setup photographs
