IPH-01175LOW POWER COMMUNICATIONS TRANSMITTER

Colorado ™ Series Owner’s Manual all-terrain GPS navigator All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin ® is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. myGarmin ™ Colorado ™ , Dynastream ™ , ANT ™ , and MapSource ® are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. Other trademarks and trade names are those of their respective owners. September 2007 Part Number 190-00751-00 Rev. A Printed in Taiwan © 2007 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, USA Tel. (913) 397.8200 or (800) 800.1020 Fax (913) 397.8282 Garmin (Europe) Ltd. Liberty House Hounsdown Business Park, Southampton, Hampshire, SO40 9RB UK Tel. +44 (0) 870.8501241 (outside the UK) 0808 2380000 (within the UK) Fax +44 (0) 870.8501251 Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 Colorado Series Owner’s Manual i Preface Preface Thank you for choosing the Garmin ® Colorado™. The Colorado uses the proven performance of Garmin GPS and full-featured mapping to create an unsurpassed portable GPS receiver. Manual Conventions When you are instructed to “select” something, press the Left soft key or Right soft key and highlight the item using the Rock ‘n’ Roller. The small arrows (>) used in the text indicate that you should select a series of items. For example, if you see “select Shortcuts > Others > Recent Finds” you press the Shortcuts key, and using the Rock ‘n’ Roller, select Others, and Recent Finds. Colorado Tips and Shortcuts Use the Rock ‘n’ Roller to scroll to and select items. • Press the Left or Right soft keys to advance to another list or return to a previous page. To extend battery life, turn off the GPS when not using the Colorado for navigation. Also, decrease the backlight. myGarmin Help us better support you by completing our online registration today. Go to http://my.garmin.com. and register your Colorado. Keep the original sales receipt, or a photocopy, in a safe place. • • Contact Garmin Contact Garmin if you have any questions while using your Colorado. In the USA, contact Garmin Product Support by phone: (913) 397-8200 or (800) 800-1020, Monday–Friday, 8 AM–7 PM Central Time; or go to www.garmin.com/support. In Europe, contact Garmin (Europe) Ltd. at +44 (0) 870.8501241 (outside the UK) or 0808 2380000 (within the UK). ii Colorado Series Owner’s Manual Preface Table of conTenTs Preface...............................................................i Manual Conventions ...........................................i Colorado Tips and Shortcuts .............................i myGarmin .............................................................i Contact Garmin ...................................................i Getting Started .................................................3 What’s in the Box? .............................................3 Your Colorado Unit .............................................4 Installing the Batteries .............................................5 Turning On and Off the Colorado ............................5 First Time Turning On the Colorado ..................5 Operating the Colorado ...........................................6 Understanding Terms .........................................6 Using the Rock ‘N’ Roller .......................................6 Adjusting the Backlight ...........................................7 Using and Installing an SD Card .............................7 Connecting Your Colorado to a Computer .......8 Information about USB Drivers .........................8 Transferring tracks or waypoints .............................8 Attaching the Carabiner ...........................................9 Basic Operation .............................................10 Creating and Using Waypoints .......................10 Marking Your Current Location ............................10 Creating Waypoints Using the Map .......................10 Creating a Waypoint Using Coordinates ...............11 Editing Waypoints..................................................11 Deleting Waypoints................................................11 Appendix ........................................................13 Specifications ...................................................13 Physical ..................................................................13 Performance ...........................................................13 Power .....................................................................13 Accuracy ................................................................13 Optional Accessories .......................................14 FCC Compliance ...............................................15 Declaration of Conformity (DoC) ....................15 Industry Canada Compliance ....…

Text truncated - open the document above for the full version.

November 15, 2007 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-01175 PRODUCT: Low power Transmitters operated under part 15.249. Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, Operational Description, block diagram, and parts list be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. In support of this request, Garmin International, Inc. submits the following: CONFIDENTIAL FILES Conf BlkDia 01175.pdf Conf OpDes 01175.pdf Conf Schem 01175.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-01175 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

September 11, 2007 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that Garmin International, Inc. has authorized Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Sincerely, Douglas Kealey Compliance Engineer

November 15, 2007 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Short-term Confidentiality request for submittal information regarding FCC ID number IPH-01175 Product: License Exempt Low Power Transmitter operating under part 15.249. Dear Sirs: Garmin International, Inc. requests that the following information be withheld from public disclosure until 45 days after the Grant of Equipment Authorization in accordance with DA-04-1705 of the Commission’s public notice. Short term confidential files External Photographs ExtPho 01175.pdf Internal Photographs IntPho 01175.pdf Test Setup TSup 01175.pdf User Manual UserMan 01175.pdf Permanent Confidential files Block Diagram Conf BlkDia 01175.pdf Operational Description Conf OpDes 01175.pdf Schematics Conf Schem 01175 .pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053

November 15, 2007 Timco Engineering Inc. Federal Communications Commission 849 NW State Road 45 Equipment Approval Services Newberry, FL 32669 P.O. Box 35815, Pittsburgh, PA 15251-3315 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-01175 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 FCC Rules: Parts 2 and 15.249 Gentlemen: The 731 form and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Confidentiality is requested as outlined below. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos ExtPho 01175.pdf Internal Photos IntPho 01175.pdf Test Setup Photos Tsup 01175.pdf User Manual UserMan 01175.pdf Permanent Garmin International, Inc. requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. It is requested that the information contained in the operational description, block diagram, parts list, and schematics of the application be held confidential per Section 0.459. A statement of confidentiality will be attached with the application at the time of submittal. Schematics Conf Schem 01175.pdf Block diagram Conf BlkDia 01175.pdf Operational Description Conf OpDes 01175.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

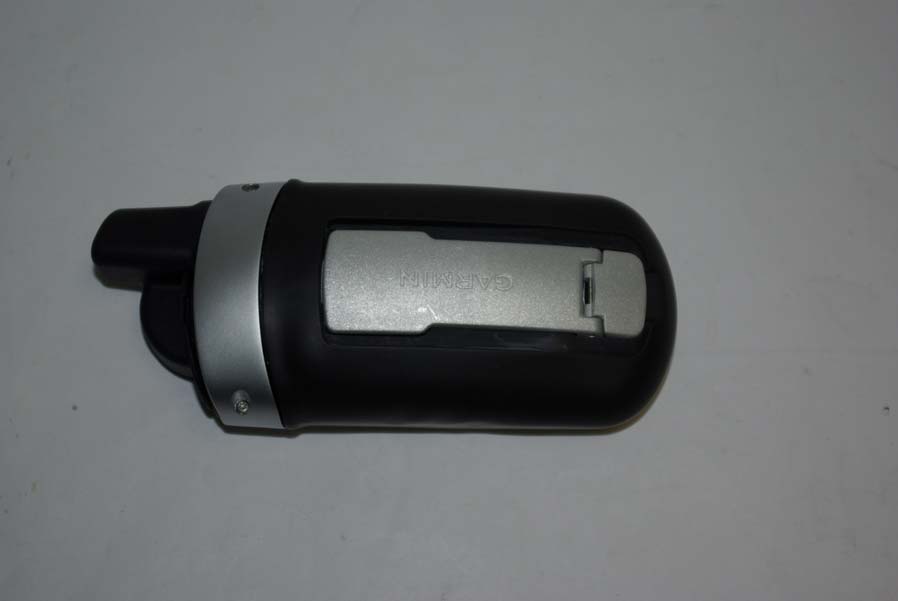

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace Model: Colorado FCC ID#: IPH-01175 Louisburg, KS 66053 Test #: 070927 SN: FPI-50 IC: 1792A-01175 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249, RSS-210 Page 1 of 1 ExtPho 01175 11/15/2007 External photographs of equipment under test. Front Back

MGR. PROJ. RELEASED BY UNLESS NOTED OTHERWISE ANGLES +/- 0 DEG./30 MIN. HOLES +/-.003”, .08 mm .XXX +/-.005”, .13 mm .XX +/-.010”, .25 mm TOLERANCE CHKD. DRAWN DATE OFSHT. REV. DWG. NO. SCALE SIZE TITLE CONFIDENTIAL This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. TAG, COMPLIANCE MARKING, COLORADO 161-01447-01 A A 1 1 1X RNL 4/5/07 PRODUCTION RELEASE 4/5/07 A REV. DATE DESCRIPTION APPRVD. REVISIONS ---- SPECIFICATION CONTROL DRAWING c/o Garmin International, Inc. Garmin Ltd. or its subsidiaries 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. NOTES: 1. MATERIAL: VINYL LAMINATE. SECOND SURFACE PRINTED, BACKGROUND IS PANTONE BLACK, WITH WHITE COPY. ACRYLIC PERMANENT ADHESIVE ON BACK SIDE WITH PEEL OFF RELEASE LINER. TOTAL PACKAGE THICKNESS EXCLUDING RELEASE LINER IS .002-.005 (0.05-0.13). 2. TAG TO BE “KISS CUT” ON ROLL. 3. PARTS TO BE FABRICATED USING DIGITAL CORELDRAW FILE. 4. ARTWORK VERSION 1 48.0 9 . 0 2x R1.0 FCC ID: IPH-01175 IC:1792A-01175 N9 ÌÏ02

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace Model: Colorado FCC ID#: IPH-01175 Louisburg, KS 66053 Test #: 070927 SN: FPI-50 IC: 1792A-01175 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249, RSS-210 Page 1 of 1 LabelSample 01175 12/3/2007 FCC/IC ID label and location located Model

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace Model: Colorado FCC ID#: IPH-01175 Louisburg, KS 66053 Test #: 070927 SN: FPI-50 IC: 1792A-01175 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249, RSS-210 Page 1 of 2 IntPhoto 01175 12/3/2007 Internal Photographs of transmitter ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace Model: Colorado FCC ID#: IPH-01175 Louisburg, KS 66053 Test #: 070927 SN: FPI-50 IC: 1792A-01175 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249, RSS-210 Page 2 of 2 IntPhoto 01175 12/3/2007

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace Model: Colorado FCC ID#: IPH-01175 Louisburg, KS 66053 Test #: 070927 SN: FPI-50 IC: 1792A-01175 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249, RSS-210 Page 1 of 1 TunPro 01175 11/15/2007 Each unit’s functionality is tested and judged with pass/fail criteria during production. Units meeting the criteria continue through production and others are returned for diagnostics.

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace Model: Colorado FCC ID#: IPH-01175 Louisburg, KS 66053 Test #: 070927 SN: FPI-50 IC: 1792A-01175 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249, RSS-210 Page 1 of 1 RFExp 01175 11/15/2007 MPE Calculation page MPE CalculatorGarmin IPH-01175Test Number070927 MPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2Antenna Gain (dBi)1 Output PowerdBd + 2.17 = dBi dBi to dBd2.17 Tx Frequency (MHz)2460(Watts)0.000002-1.17 Cable Loss (dB)0.0(dBm)-26.99Antenna minus cable (dBi)1.00 Calculated ERP (mw) 0.002 Calculated EIRP (mw) 0.003Radiated (EIRP) dBm-25.990 Occupational Limit Radiated (ERP) dBm-28.160 5.00000 mW/cm 2 General Public Limit 1.00000 mW/cm 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2) Public Limit @ Tx Freq (mW/cm^2) 300-1,5008.21.64 1,500-10,00051 EIRPDistanceDistanceS milliwattscminches mW/c m 2 0.00350.0019.690.00000 0.00340.0015.750.00000 0.00330.0011.810.00000 0.00325.009.840.00000 0.00320.007.870.00000 0.00315.005.910.00000 0.00314.005.510.00000 0.00313.005.120.00000 0.00312.004.720.00000 0.00311.004.330.00000 0.00310.003.940.00000 0.0039.003.540.00000 0.0038.003.150.00000 0.0037.002.760.00000 0.0036.002.360.00001 0.0035.001.970.00001 0.0034.001.570.00001 0.0033.001.180.00002 0.0032.000.790.00005 0.0031.000.390.00020 0.0030.500.200.00080 0.0030.100.040.02004 0.0030.050.020.08015 0.0030.030.010.32058 0.0030.020.010.50091 Frequency (MHz) Occupational Limit minimum Distance (cm) Public Limit minimum distance (cm) 300-1,500N/AN/A 1,500-10,000N/A0.02 FCC radio frequency radiation exposure limits per 1.1310 FCC radio frequency radiation exposure limits per 1.1310 Power density (S) = EIRP ------- = mW/cm^2 4 π r^2 [ r (cm), EIRP (mW)]

NVLAP Lab Code 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID: IPH-01175 4405 West 259 th Terrace Model: Colorado IC: 1792A-01175 Louisburg, KS 66053 Test #:070927 SN: FPI-50 GPN: 011-01646-XX Phone/Fax: (913) 837-3214 Test to: CFR47-2&15.249, RSS-210 Page 1 of 30 Report Revision 1 File: Colorado Tx FCC IC TstRpt 11/15/2007 APPLICATION For GRANT OF CERTIFICATION FOR MODEL: Colorado Low Power Transmitter FCC ID: IPH-01175 IC: 1792A-01175 FOR GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Test Report number 070927 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID: IPH-01175 4405 West 259 th Terrace Model: Colorado IC: 1792A-01175 Louisburg, KS 66053 Test #:070927 SN: FPI-50 GPN: 011-01646-XX Phone/Fax: (913) 837-3214 Test to: CFR47-2&15.249, RSS-210 Page 2 of 30 Report Revision 1 File: Colorado Tx FCC IC TstRpt 11/15/2007 TEST REPORT For APPLICATION of CERTIFICATION For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance Model: Colorado Low Power Transmitter Frequency Range: 2402-2478 MHz FCC ID: IPH-01175 IC: 1792A-01175 Test Report Number: 070927 Test Date: September 27, 2007 Authorized Signatory: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Telephone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the Federal Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID: IPH-01175 4405 West 259 th Terrace Model: Colorado IC: 1792A-01175 Louisburg, KS 66053 Test #:070927 SN: FPI-50 GPN: 011-01646-XX Phone/Fax: (913) 837-3214 Test to: CFR47-2&15.249, RSS-210 Page 3 of 30 Report Revision 1 File: Colorado Tx FCC IC TstRpt 11/15/2007 TABLE OF CONTENTS TABLE OF CONTENTS.................................................................................................. 3 FORWARD..................................................................................................................... 4 OPINION / INTERPRETATION OF RESULTS............................................................... 4 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 4 EQUIPMENT TESTED.................................................................................................... 4 LIST OF TEST EQUIPMENT .......................................................................................... 5 ENVIRONMENTAL CONDITIONS.................................................................................. 5 2.1033(B) APPLICATION FOR CERTIFICATION .......................................................... 6 EQUIPMENT AND CABLE CONFIGURATION.............................................................. 7 Test Setup ................................................................................................................................................................7 EQUIPMENT FUNCTION AND TESTING PROCEDURES ............................................ 7 Configuration options for the EUT .......................................................................................................................7 AC Line Conducted Emission Test Procedure.....................................................................................................7 Radiated Emission Test Procedure .......................................................................................................................8 Units of Measurements...........................................................................................................................................8 Test Site Locations..................................................................................................................................................8 INTENTIONAL RADIATORS .......................................................................................... 9 ANTENNA REQUIREMENTS ......................................................................................... 9 RESTRICTED BANDS OF OPERATION ....................................................................... 9 Radiated Emissions in Restricted Bands Data ...................................................................................................10 Summary of Results for Radiated Emissions in Restricted Bands...................................................................10 GENERAL RADIATED EMISSIONS LIMITS................................................................ 11 General Radiated EMI Procedure ......................................................................................................................11 General Radiated Emissions Data.......................................................................................................................15 Summary of Results for General Radiated Emissions ......................................................................................15 OPERATION IN THE BAND 2,400-2,483.5 MHZ ......................................................... 16 Transmitter Radiated Emissions Data................................................................................................................19 Power Obtained from Antenna Substitution Method .......................................................................................20 Summary of Results for Transmitter Radiated Emissions ...............................................................................21 Statement of Modifications and Deviations........................................................................................................21 FREQUENCY STABILITY .................................…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace Model: Colorado FCC ID#: IPH-01175 Louisburg, KS 66053 Test #: 070927 SN: FPI-50 IC: 1792A-01175 Phone/Fax: (913) 837-3214 Test to: CFR47 15.249, RSS-210 Page 1 of 1 TSup 01175 11/15/2007 Test setup photographs
