IPH-01249LOW POWER COMMUNICATIONS TRANSMITTER

TITLE SIZE PART NO: REV: SCALE Sht. Of Dimensions and drawings for reference only. Drawings are not to scale. 4.75” 4.75” 4.75” 9.5” Trimmed dimensionsTrimmed and bound dimensions Cover Spread layout SPECIFICATION CONTROL DRAWING Revisions Rev.DateDescriptionECO No. A8/10/06Production Release– – – – B8/6/07Revised and Redrawn; Added statement to Warranty46507 C11/5/07Revised and Redrawn; Added FM Transmitter statement48452 Specifications 1. Description Product documentation, ISPI, Lithium, Auto, EN 2. Size Finished, Bound: Width = 4.75”, Height = 4.75”. 3. Tolerance ±0.0787” (±2 mm) 4. Pagination 4 pages 5. Material 80-lb Woodfree, white 6. Finish None 7. Color Text: Black and white 8. Bindery N/A 9. Folds N/A 10. Electronic Artwork Shall conform to Garmin Archive 190-00720-01_0C.zip 11. Notes CONFIDENTIAL This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. Garmin Ltd. or its subsidiaries C/O Garmin International, Inc. 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. InitialsDateISPI, Lithium, Auto, EN Drawn By: KEG8/3/06 A190-00720-01C Checked By: JHM8/3/06 Project Manager: BP8/3/06 N/A Approved By: SMP8/4/06 15 Files The following files have been archived under the above ARCHIVE FILENAME. File NameFile Contents 190-00720-01_0C.inddInDesign CS2 for PC, Formatted manual 190-00720-01_0C_Spec.inddInDesign CS2 for PC, Document specification sheet 190-00720-01_0C.pdfPortable Document Format, Manual and specification sheet LinksGraphic files (eps, bmp, etc.) FontsFont files ISPI_Lith_Auto_EN.pdfPortable Document Format, for online Important Safety and product InformatIon Warnings Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury. • When installing the unit in a vehicle, place the unit securely so it does not obstruct the driver’s view of the road or interfere with vehicle operating controls, such as the steering wheel, foot pedals, or transmission levers. Do not place in front of or above any airbag. (See diagram.) Do not mount where driver’s field of vision is blocked. Do not place unsecured on the vehicle dashboard. Do not mount in front of an airbag field of deployment. • When navigating, carefully compare information displayed on the unit to all available navigation sources, including information from street signs, visual sightings, and maps. For safety, always resolve any discrepancies or questions before continuing navigation and defer to posted road signs. • Always operate the vehicle in a safe manner. Do not become distracted by the unit while driving, and always be fully aware of all driving conditions. Minimize the amount of time spent viewing the unit’s screen while driving and use voice prompts when possible. Do not input destinations, change settings, or access any functions requiring prolonged use of the unit’s controls while driving. Pull over in a safe and legal manner before attempting such operations. • The unit is designed to provide route suggestions. It is not designed to replace the need for driver attentiveness regarding road closures or road conditions, traffic congestion, weather conditions, or other factors that may affect safety while driving. Battery Warnings If these guidelines are not followed, the internal lithium- ion battery may experience a shortened life span or may present a risk of damage to the GPS unit, fire, chemical burn, electrolyte leak, and/or injury. • Contact your local waste disposal department to properly dispose of the unit/battery. • Do not leave the unit exposed to a heat source or in a high temperature location, such as in the sun in an unattended vehicle on a hot day. To prevent damage, remove the unit from the vehicle or store it out of direct sunlight, such as in the glove box. • Do not puncture or incinerate. 190-00720-01_0C.indd 111/5/2007 11:11:41 AM vehicle. • Never use a hard or sharp object to operate the touch screen or damage may result. European FM Transmitter Licensing Information The FM transmitter in this unit (if this unit contains an FM transmitter) is intended for operation under a general license or license exemption in the countries listed below. The spectrum authority in each country has been notified of the marketing of this product in the country. Belgique Česká republika Danmark Deutschland Eesti Éire España France Ísland Italia Latvija Lietuva Luxembourg Magyarország Malta Nederland Norge Österreich Portugal Slovenija Slovensko Suisse Suomi Sverige United Kingdom Ελλάδα Κύπρος FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet that is on a different circuit from the GPS unit. • Consult the dealer or …

Text truncated - open the document above for the full version.

Permit but ask procedure FM transmitters (FCC 15.239) (Reminder) TCBs must use the Permit but ask procedure prior to issuing a grant. Submit information required by the Permit but ask procedure. Also, submit the following information. 1) How does this device operate? 2) Provide information on the device and its antenna. 3) How is it installed? 4) What test procedure was used? 5) If tested in a car, how was it configured/tested? At the present time, FM transmitters (subject to 15.239) tested in vehicles must also be tested on a test table. Provide both sets of data. All data must be compliant 6) Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. 7) Was the bandwidth properly tested with maximum audio input? Use a typical audio file from a typical device. e.g. Do not use a 1 kHz signal from a signal generator. 8) Provide the test report. Before sending the information to the FCC, ensure that the above information is complete and sent with the request. Also, the TCB must do the initial review to ensure that the device complies with the rules and all previous review guidance on FM transmitters and Section 15.239 devices and that all issues are resolved prior to the request for TCB grant. 1. The equipment may be set to transmit audio in the 88.1 MHz to 107.9 MHz range. The user may select an unoccupied FM channel for use in the automotive configuration. 2. The FM transmitter has an internal, non-replaceable, non-user serviceable antenna mounted inside the sealed plastic enclosure. 3. Typically the unit is placed on the dash board or suction cup mounted to the windshield. 4. Testing was performed as directed by ANSI 63.4-2003. 5. The unit was not tested while mounted inside a vehicle. The equipment was placed on a wooden turn table as directed in ANSI 63.4-2003 and testing performed on a three meter OATS. 6. Tuning was performed to verify operation in the 88.1-107.9 MHz. The equipment will only transmit on approved channels in the FM band. 7. Maximum occupied band width measurements were taken during testing. 8. The test report was offered with the application.

December 20, 2007 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-01249 PRODUCT: Low power Transmitter operated under part 15.239 Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, Operational Description, block diagram, and parts list be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. In support of this request, Garmin International, Inc. submits the following: CONFIDENTIAL FILES Conf BlkDia 01249.pdf Conf OpDes 01249.pdf Conf Schem 01249.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-01249 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

September 11, 2007 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that Garmin International, Inc. has authorized Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Sincerely, Douglas Kealey Compliance Engineer

December 20, 2007 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Short-term Confidentiality request for submittal information regarding FCC ID number IPH-01249 Product: License Exempt Low Power Transmitter operating under part 15.239 Dear Sirs: Garmin International, Inc. requests that the following information be withheld from public disclosure until 45 days after the Grant of Equipment Authorization in accordance with DA-04-1705 of the Commission’s public notice. Short term confidential files External Photographs ExtPho 01249.pdf Internal Photographs IntPho 01249.pdf Test Setup TSup 01249.pdf User Manual UserMan 1 01249.pdf User Manual UserMan 2 01249.pdf Permanent Confidential files Block Diagram Conf BlkDia 01249.pdf Operational Description Conf OpDes 01249.pdf Schematics Conf Schem 01249 .pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053

December 20, 2007 Timco Engineering Inc. Federal Communications Commission 849 NW State Road 45 Equipment Approval Services Newberry, FL 32669 P.O. Box 35815, Pittsburgh, PA 15251-3315 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-01249 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 FCC Rules: Parts 2, 15.239 Gentlemen: The 731 form and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Confidentiality is requested as outlined below. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos ExtPho 01249.pdf Internal Photos IntPho 01249.pdf Test Setup Photos Tsup 01249.pdf User Manual UserMan 1 01249.pdf User Manual UserMan 2 01249.pdf Permanent Garmin International, Inc. requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. It is requested that the information contained in the operational description, block diagram, parts list, and schematics of the application be held confidential per Section 0.459. A statement of confidentiality will be attached with the application at the time of submittal. Schematics Conf Schem 01249.pdf Block diagram Conf BlkDia 01249.pdf Operational Description Conf OpDes 01249.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

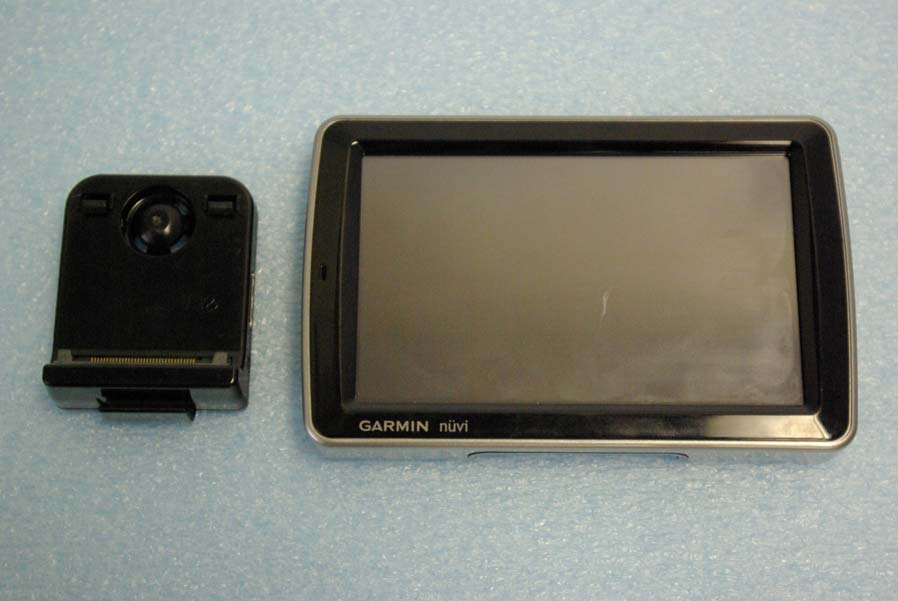

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 01101697 FCC ID#: IPH-01249 Louisburg, KS 66053 Test #: 071116 SN: B8 IC: 1792A-01249 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15.239, RSS-210 Page 1 of 1 Revision 1 File ExtPho 01249 Date: 12/19/2007 External photographs of equipment under test

ROGERS LABS, INC. Garmin International, Inc. 4405 West 259 th Terrace Model: 01101697 FCC ID#: IPH-01249 Louisburg, KS 66053 Test #: 071116 SN: B8 IC: 1792A-01249 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15.239, RSS-210 Page 1 of 1 LabelSmpl 01249 Date: 1/9/2008 Photograph of equipment Label Placement and drawing of label

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 01101697 FCC ID#: IPH-01249 Louisburg, KS 66053 Test #: 071116 SN: B8 IC: 1792A-01249 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15.239, RSS-210 Page 1 of 2 Revision 1 File IntPho 01249 Date: 12/20/2007 Internal Photographs of printed circuit board without shields Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 01101697 FCC ID#: IPH-01249 Louisburg, KS 66053 Test #: 071116 SN: B8 IC: 1792A-01249 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15.239, RSS-210 Page 2 of 2 Revision 1 File IntPho 01249 Date: 12/20/2007 Photographs of Printed Circuit Board Transmitter section

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 01101697 FCC ID#: IPH-01249 Louisburg, KS 66053 Test #: 071116 SN: B8 IC: 1792A-01249 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15.239, RSS-210 Page 1 of 1 Revision 1 File TunPro 01249 Date: 12/20/2007 Each units TX functionality is tested and judged with a pass/fail criteria during production. Units meeting the criteria continue through production and others are returned for diagnostics. The design offers no provision for tune up procedure.

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 01101697 FCC ID#: IPH-01249 Louisburg, KS 66053 Test #: 071116 SN: B8 IC: 1792A-01249 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15.239, RSS-210 Page 1 of 1 Revision 1 File RFExp 01249 Date: 12/20/2007 MPE Calculation page for IPH-01249 MPE CalculatorTest Number: 071116 MPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2Antenna Gain (dBi)1 Output Power dBd + 2.17 = dBidBi to dBd2.17 Tx Frequency (MHz)88.1(Watts)0.00000002-1.17 Antenna minus cable (dBi)1.00 Cable Loss (dB)0.0(dBm)-47.93 Calculated ERP (mw) 0.000Radiated (EIRP) dBm -46.932 Calculated EIRP (mw) 0.000 Radiated (ERP) dBm -49.102 Occupational Limit 1.00000 mW/cm 2 General Public Limit 0.20000 mW/cm 2 Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2) Public Limit @ Tx Freq (mW/cm^2) 30-30010.2 300-1,5000.2936666670.058733333 1,500-10,00051 EIRPDistanceDistanceS milliwattscminchesmW/cm 2 0.00050.0019.690.00000 0.00040.0015.750.00000 0.00030.0011.810.00000 0.00025.009.840.00000 0.00020.007.870.00000 0.00015.005.910.00000 0.00014.005.510.00000 0.00013.005.120.00000 0.00012.004.720.00000 0.00011.004.330.00000 0.00010.003.940.00000 0.0009.003.540.00000 0.0008.003.150.00000 0.0007.002.760.00000 0.0006.002.360.00000 0.0005.001.970.00000 0.0004.001.570.00000 0.0003.001.180.00000 0.0002.000.790.00000 0.0001.000.390.00000 0.0000.500.200.00001 0.0000.400.160.00001 0.0000.350.140.00001 0.0000.250.100.00003 0.0000.100.040.00016 Frequency (MHz) Occupational Limit minimum Distance (cm) Public Limit minimum distance (cm) 30-300N/A(N/A) <0 1 300-1,500N/AN/A 1,500-10,000N/AN/A FCC radio frequency radiation exposure limits per 1.1310 Power density (S) = EIRP ------- (mW/cm^2) 4 π r^2 [ r (cm), EIRP (mW)]

NVLAP Lab Code 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID: IPH-01249 4405 West 259 th Terrace MODEL: 01101697 IC: 1792A-01249 Louisburg, KS 66053 Test #:071116 SN: B8 GPN: 011-01697-xx Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 15.239, RSS-210 Page 1 of 35 Revision 1 File: TstRpt 01249 Date: 12/20/2007 APPLICATION For GRANT OF CERTIFICATION FOR MODEL: 01101697 Low Power Transmitter FCC ID: IPH-01249 IC: 1792A-01249 FOR GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Test Report number 071116 Authorized Signatory: NVLAP Lab Code 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID: IPH-01249 4405 West 259 th Terrace MODEL: 01101697 IC: 1792A-01249 Louisburg, KS 66053 Test #:071116 SN: B8 GPN: 011-01697-xx Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 15.239, RSS-210 Page 2 of 35 Revision 1 File: TstRpt 01249 Date: 12/20/2007 TEST REPORT For APPLICATION of CERTIFICATION For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance MODEL: 01101697 Low Power Transmitter Frequency Ranges: 88-107 MHz FCC ID: IPH-01249 IC: 1792A-01249 Test Report Number: 071116 Test Date: November 16, 2007 Authorized Signatory: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Telephone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID: IPH-01249 4405 West 259 th Terrace MODEL: 01101697 IC: 1792A-01249 Louisburg, KS 66053 Test #:071116 SN: B8 GPN: 011-01697-xx Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 15.239, RSS-210 Page 3 of 35 Revision 1 File: TstRpt 01249 Date: 12/20/2007 TABLE OF CONTENTS TABLE OF CONTENTS 3 FORWARD 5 OPINION / INTERPRETATION OF RESULTS 5 APPLICABLE STANDARDS & TEST PROCEDURES 5 EQUIPMENT TESTED 6 LIST OF TEST EQUIPMENT 6 ENVIRONMENTAL CONDITIONS 6 2.1033(B) APPLICATION FOR CERTIFICATION 7 EQUIPMENT AND CABLE CONFIGURATION 8 Test Setup 8 EQUIPMENT FUNCTION AND TESTING PROCEDURES 8 Configuration options for the EUT 9 AC Line Conducted Emission Test Procedure 10 Radiated Emission Test Procedure 10 Units of Measurements 10 Test Site Location 11 INTENTIONAL RADIATORS 11 ANTENNA REQUIREMENTS 11 RESTRICTED BANDS OF OPERATION 12 Radiated Emissions in Restricted Bands Data 12 Summary of Results for Radiated Emissions in Restricted Bands 12 AC LINE CONDUCTED EMISSIONS LIMITS; GENERAL REQUIREMENTS 13 AC Line Conducted EMI 13 Figure one Conducted emissions of EUT line 1 (configuration #2, PSC30R-120) 14 Figure two Conducted emissions of EUT line 2 (configuration #2, PSC30R-120) 14 Figure three Conducted emissions of EUT line 1 (configuration #3, CPU) 15 Figure four Conducted emissions of EUT line 2 (configuration #3, CPU) 15 Data Conducted Emissions (7 Highest Emissions) (PSC30R-120) 16 Data Conducted Emissions (7 Highest Emissions) (CPU) 16 Summary of Results for AC Line Conducted General Emissions 15.207 16 RADIATED EMISSIONS LIMITS; GENERAL REQUIREMENTS 17 General Radiated EMI 17 Figure five Radiated Emissions @ 1 Meter in Screen Room (configuration #2) 18 Figure six Radiated Emissions @ 1 Meter in Screen Room (configuration #2) 19 Figure seven Radiated Emissions @ 1 Meter in Screen Room (configuration #2) 19 Figure eight Radiated Emissions @ 1 Meter in Screen Room (configuration #3) 20 NVLAP Lab Code 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID: IPH-01249 4405 West 259 th Terrace MODEL: 01101697 IC: 1792A-01249 Louisburg, KS 66053 Test #:071116 SN: B8 GPN: 011-01697-xx Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 15.239, RSS-210 Page 4 of 35 Revision 1 File: TstRpt 01249 Date: 12/20/2007 Figure nine Radiated Emissions @ 1 Meter in Screen Room (configuration #3) 20 Figure ten Radiated Emissions @ 1 Meter in Screen Room (configuration #3) 21 Figure eleven Radiated Emissions @ 1 Meter in Screen Room (configuration #3) 21 Figure twelve Radiated Emissions @ 1 Meter in Screen Room (configuration #3) 22 General Radiated Emissions Data (Worst-case) 22 Summary of Results for General Radiated Emissions per 15.209 22 OPERATION IN THE BAND 88-108 MHZ 23 Intentional and Spurious Radiated Emissions Data per 15.239 24 Figure thirteen Output power across the operational band 25 Figure fourteen Band Edge and bandwidth (at 88.1 MHz) 25 Figure fifteen 200 kHz Occupied Bandwidth 26 Figure sixteen Band Edge and bandwidth (at 107.9 MHz) 26 Figure seventeen Radiated Emissions 30-230 MHz 27 Figure eighteen Radiated Emissions 200-1200 MHz 27 Summary of Results for Radiated Emissions per 15.239 28 ANNEX 29 Annex A Measurement Uncertainty Calculations 30 Annex B Test Equipment List For Rogers Labs, Inc. 32 Annex C Qualifications 33 Annex D FCC Test Site Registration Letter 34 Annex E Industry Canada Test Site Registration Letter 35 NVLAP Lab Code 200087-0 ROGERS LABS, INC. Garmin International, Inc. FCC ID: IPH-01249 4405 West 259 th Terrace MODEL: 01101697 IC: 1792A-01249 Louisburg, KS 66053 Test #:071116 SN: B8 GPN: 011-01697-xx Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 15.239, RSS-210 Page 5 of 35 Revision 1 File: TstRpt 01249 Date: 12/20/2007 FORWARD The following information is submitted for consideration in obtaining a Grant of Certification for low power intentional radiator per CFR47 Paragraph 15.239, and Industry Canada RSS-210 Low Power Transmitter, operation in the 88-108 MHz band. Name of Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Model: 01101697 FCC ID: IPH-01249 Industry Canada ID: 1792A-01249 Frequency Range: 88.1-107.9 MHz Operating Power: Less than 250 Microvolt per meter (88-108 MHz) Opinion / Interpretation of Results Em…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 01101697 FCC ID#: IPH-01249 Louisburg, KS 66053 Test #: 071116 SN: B8 IC: 1792A-01249 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15.239, RSS-210 Page 1 of 3 Revision 1 File TSup 01249 Date: 12/20/2007 Test setup photographs for IPH-01249 Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 01101697 FCC ID#: IPH-01249 Louisburg, KS 66053 Test #: 071116 SN: B8 IC: 1792A-01249 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15.239, RSS-210 Page 2 of 3 Revision 1 File TSup 01249 Date: 12/20/2007 Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: 01101697 FCC ID#: IPH-01249 Louisburg, KS 66053 Test #: 071116 SN: B8 IC: 1792A-01249 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15.239, RSS-210 Page 3 of 3 Revision 1 File TSup 01249 Date: 12/20/2007
