IPH-0126000LICENSED NON-BROADCAST BASE STATION TRANSMITTER

Garmin International Inc
LICENSED NON-BROADCAST BASE STATION TRANSMITTER - FCC ID IPH-0126000 - Garmin International Inc
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Aug 05, 2012
Application Purpose
Original Equipment
Date of Application
Aug 05, 2012
Equipment Note
LICENSED NON-BROADCAST BASE STATION TRANSMITTER
Frequency Range
9323.00000000 - 9486.00000000
Company
Garmin International Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Parts List/Tune Up Info

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

PRELIMINARY Garmin G5000 ™ Pilot’s Guide (Preliminary)335 HAZARD AVOIDANCE PRELIMINARY GARMIN G5000 ™ PILOT’S GUIDE INCLUDING THE GARMIN GWX 70 AIRBORNE COLOR WEATHER RADAR The following contents have been extracted from a draft Garmin G5000 Pilot’s Guide. This excerpt describes pilot operation of the Garmin GWX 70 Airborne Color Weather Radar. This information is preliminary and is subject to change. GWX 70 Prelim.indd 3357/25/2012 3:14:44 PM PRELIMINARY Garmin G5000 ™ Pilot’s Guide (Preliminary) 336 HAZARD AVOIDANCE 6.3 AIRBORNE COLOR WEATHER RADAR SYSTEM DESCRIPTION The Garmin GWX 70 Airborne Color Weather Radar is a solid-state doppler radar with forty watts of output power. It combines excellent range and adjustable scanning profiles with high-definition target displays. The effective pulse length is 27.31 microseconds (μs), and the system optimizes the pulse length to maximize resolution at each range setting. This reduces the targets smearing together on the displays for better target definition at close range. The aircraft uses a phased array antenna that is fully stabilized to accommodate 30º of pitch and roll. To focus radar scanning on specific areas, Sector Scanning offers pilot-adjustable horizontal scan angles of 20º, 40º, 60º, or 90º. A vertical scanning function helps to analyze storm tops, gradients, and cell buildup activity at various altitudes. Radar features include: • Extended Sensitivity Time Constant (STC) logic that automatically correlates distance of the return echo with intensity, so cells do not suddenly appear to get larger as they get closer. • Turbulence Detection presents areas of turbulence associated with precipitation using the color magenta. • WATCH ® (Weather ATtenuated Color Highlight) helps identify possible shadowing effects of short-range cell activity, identifying areas where radar return signals are weakened or attenuated by intense precipitation (or large areas of lesser precipitation) and may not fully reflect the weather behind a storm. • Weather Alert that looks ahead for intense cell activity in the 80-320 nm range, even if these ranges are not being monitored. • Altitude-Compensated Tilt (ACT) management which automatically adjusts the antenna tilt as the aircraft altitude changes. • Ground Clutter Suppression (GCS) removes ground clutter from the displays. PRINCIPLES OF AIRBORNE WEATHER RADAR The term RADAR is an acronym for RAdio Detecting And Ranging. Pulsed radar locates targets by transmitting a microwave pulse beam that, upon encountering a target, is reflected back to the radar receiver as a return echo. The microwave pulses are focused and radiated by the antenna, with the most intense energy in the center of the beam and decreasing intensity near the edge. The same antenna is used for both transmitting and receiving. Radar detection is a two-way process that requires 12.36 μs for the transmitted microwave pulses to travel out and back for each nautical mile of target range. It takes 123.6 μs for a transmitted pulse to make the round trip if a target is ten nautical miles away. The GWX 70, has the capability to detect the velocity of precipitation moving toward or away from the radar antenna. As the radar pulse beam strikes a moving object, the frequency of the returned echo shifts in relation to the speed at which the object is moving. This effect is analogous to the audibile pitch change observed when an emergency vehicle’s siren gets closer and then moves further away. Doppler radar employs this effect to detect areas of precipitation moving at a high rate of speed (indicative of turbulence), and to determine when an object, such as the ground, is stationary. This information can be used to suppress ground clutter. Airborne weather radar should be used to avoid severe weather, not for penetrating severe weather. The decision to fly into an area of radar targets depends on target intensity, spacing between the targets, aircraft GWX 70 Prelim.indd 3367/25/2012 3:14:44 PM PRELIMINARY Garmin G5000 ™ Pilot’s Guide (Preliminary)337 HAZARD AVOIDANCE capabilities, and pilot experience. Airborne weather radar detects rain or hail, not clouds or mist. The display may indicate clear areas between intense returns, but this does not necessarily mean it is safe to fly between them. In addition, Doppler radar measurement of precipitation velocity only occurs when rain or hail is moving along the radar beam and either toward or away from the antenna. The system cannot detect Clear Air Turbulence as there are no radar echoes to process. Airborne weather radar has other capabilities beyond weather detection. It also has the ability to detect and provide distance to cities, mountains, coastlines, rivers, lakes, and oceans. NEXRAD AND AIRBORNE WEATHER RADAR Both Airborne Weather Radar and NEXRAD measure weather reflectivity in decibels (dB). A decibel is a logarithmic expression of the ratio of two quantities. Airborne Weather Radar measures the ratio of power against the gain of the antenna, while NEXRAD measures the energy reflected back to the radar, or the radar reflectivity ratio. Both systems use colors to identify the different echo intensities, but the colors are not interchangeable. Airborne color radar values used by Garmin Airborne Color Weather Radar should not be confused with NEXRAD radar values. ANTENNA BEAM ILLUMINATION The radar beam is much like the beam of a spotlight. The further the beam travels, the wider it becomes. The radar is only capable of seeing what is inside the boundaries of the beam. The figure below depicts a radar beam’s characteristics. The figure illustrates vertical dimensions of the radar beam, although the same holds true for the horizontal dimensions. In other words, the beam is as wide as it is tall. Note that it is possible to miss areas of precipitation on the radar display because of the antenna tilt setting. With the antenna tilt set to zero in this illustration, the beam overshoots the precipitation a…

Text truncated - open the document above for the full version.

Cover Letter(s)

Page 1 of 2 July 30, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number IPH-0126000 Product: Licensed Non-Broadcast Base Station Transmitter operated under paragraph 87 Dear Sirs: Garmin International, Inc. requests that the material in the Parts List, Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES Conf BlkDia GMN00676.pdf Conf OpDes GMN00676.pdf Conf Schem GMN00676.pdf Conf PartList GMN00676.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-0126000 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

Cover Letter(s)

July 30, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-0126000 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 Re: Short-term Confidentiality request for submittal information regarding FCC ID: IPH-0126000 Product: Licensed Non-Broadcast Base Station Transmitter operated under paragraph 87 Dear Sirs: Garmin International, Inc. requests that the following information be withheld from public disclosure pursuant to CFR47 paragraphs 0.457 and 0.459, and KDB 726920 until 45 days after the Grant of Equipment Authorization. Disclosure of information would offer competitors additional unwarranted insight into the state of the product development. Short-term confidential files Exhibit File External Photos Short Term Conf ExtPho GMN00676.pdf Internal Photos Short Term Conf IntPho GMN00676.pdf Test Setup Photos Short Term Conf TSup GMN00676.pdf User Manual Short Term Conf UserMan GMN00676.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053

Cover Letter(s)

July 30, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-0126000 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 FCC Rules: Parts 2 and 87 (Aviation Transmitter) To Whom It May Concern: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site for use in obtaining a grant of certification. Confidentiality is requested as outlined below. Short-term confidential files Garmin International, Inc. requests that the following information be withheld from public disclosure pursuant to CFR47 paragraphs 0.457 and 0.459, and KDB 726920 until 45 days after the Grant of Equipment Authorization. Exhibit File External Photos Short Term Conf ExtPho GMN00676.pdf Internal Photos Short Term Conf IntPho GMN00676.pdf Test Setup Photos Short Term Conf TSup GMN00676.pdf User Manual Short Term Conf UserMan GMN00676.pdf Permanent Garmin International, Inc. requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. Exhibit File Schematics Conf Schem GMN00676.pdf Block diagram Conf BlkDia GMN00676.pdf Operational Description Conf OpDes GMN00676.pdf Parts List Conf PartList GMN00676.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

External Photos

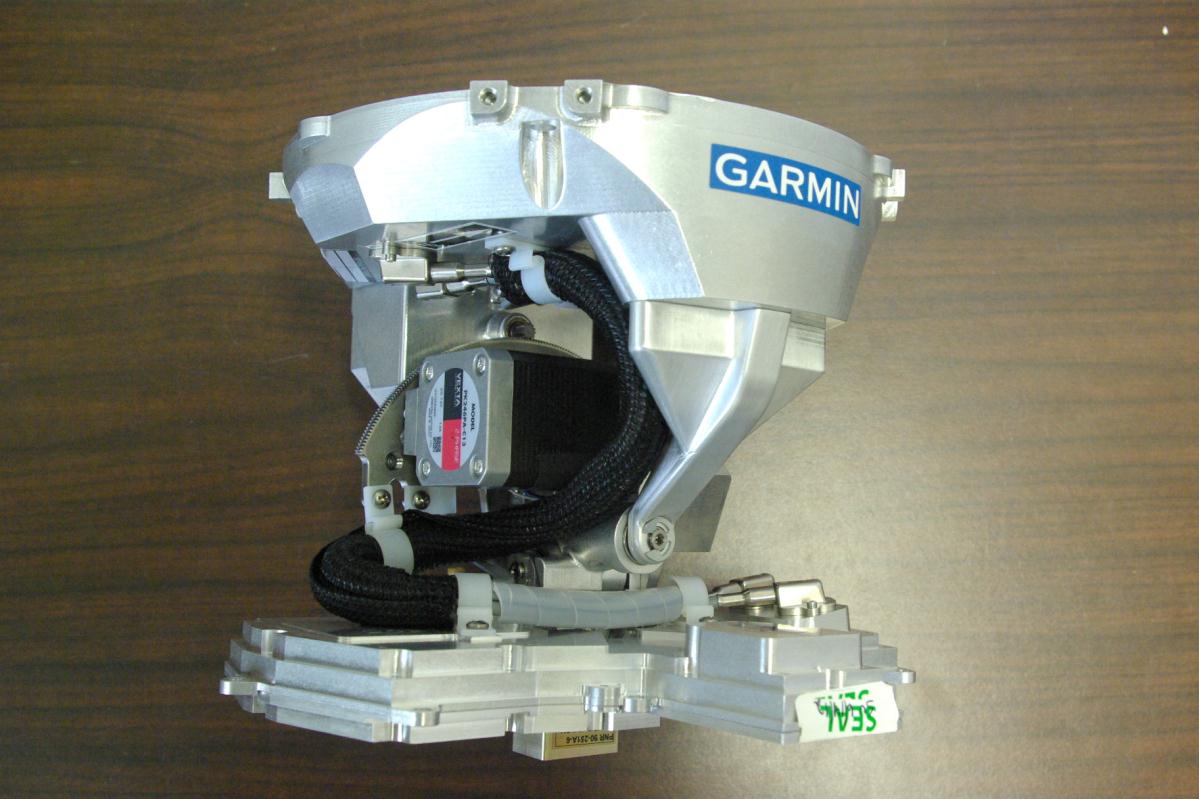

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: GMN-00676 SN: 1DP000323 Louisburg, KS 66053 Test #: 120619 FCC ID: IPH-0126000 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 87 Date: July 16, 2012 Revision 1 File: Short Term Conf ExtPho GMN00676 Page 1 of 1 External photographs of equipment under test Side Top

ID Label/Location Info

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: GMN-00676 SN: 1DP000323 Louisburg, KS 66053 Test #: 120619 FCC ID: IPH-0126000 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 87 Date: July 16, 2012 Revision 1 File: LabelSmpl GMN00676 Page 1 of 1 FCC ID label and location Label Location

Internal Photos

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: GMN-00676 SN: 1DP000323 Louisburg, KS 66053 Test #: 120619 FCC ID: IPH-0126000 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 87 Date: August 3, 2012 Revision 1 File: Short Term Conf IntPho GMN00676 Page 1 of 1 Internal Photographs PCB Top without shield PCB Bottom

Parts List/Tune Up Info

GWX70 Transmitter Tuning There is no transmitter tuning available to customers for the GMN00676. The units are tested in the factory on a pass/fail criteria.

RF Exposure Info

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: GMN-00676 SN: 1DP000323 Louisburg, KS 66053 Test #: 120619 FCC ID: IPH-0126000 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 87 Date: July 16, 2012 Revision 1 File: RFExp GMN00676 Page 1 of 1

Test Report

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. GPN: 011-01768-0( ) 4405 West 259 th Terrace Model: GMN-00676 SN: 1DP000323 Louisburg, KS 66053 Test #: 120619 FCC ID: IPH-0126000 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 87 Date: July 30, 2012 Revision 1 File: TstRpt GMN00676 120619 Page 1 of 29 Application for Grant of Certification FCC CFR47 Part 87 GMN-00676 Market Label: GWX 70 GPN: 011-01768-0( ) 9300-9500 MHz Aviation Weather Radar FCC ID: IPH-0126000 For Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Test Report Number 120619 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. GPN: 011-01768-0( ) 4405 West 259 th Terrace Model: GMN-00676 SN: 1DP000323 Louisburg, KS 66053 Test #: 120619 FCC ID: IPH-0126000 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 87 Date: July 30, 2012 Revision 1 File: TstRpt GMN00676 120619 Page 2 of 29 Test Report For Application of Certification For Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance GMN-00676 Market Label: GWX 70 GPN: 011-01768-0( ) Aviation Weather Radar Frequency Range: 9300-9500 MHz FCC ID: IPH-0126000 Test Date: June 19, 2012 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. Rogers Labs, Inc. 4405 West 259th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. GPN: 011-01768-0( ) 4405 West 259 th Terrace Model: GMN-00676 SN: 1DP000323 Louisburg, KS 66053 Test #: 120619 FCC ID: IPH-0126000 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 87 Date: July 30, 2012 Revision 1 File: TstRpt GMN00676 120619 Page 3 of 29 Table of Contents TABLE OF CONTENTS .................................................................................................. 3 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 5 ENVIRONMENTAL CONDITIONS.................................................................................. 5 APPLICATION FOR CERTIFICATION ........................................................................... 6 SYSTEM DESCRIPTION ................................................................................................ 7 UNITS OF MEASUREMENTS ........................................................................................ 7 TEST SITE LOCATIONS ................................................................................................ 7 LIST OF TEST EQUIPMENT .......................................................................................... 8 RADIO FREQUENCY POWER OUTPUT ....................................................................... 9 Measurements Required ........................................................................................................................................ 9 Test Arrangement ................................................................................................................................................... 9 Figure 1 Maximum Power Output ..................................................................................................................... 10 Radio Frequency Power Output Results ............................................................................................................ 10 MODULATION CHARACTERISTICS ........................................................................... 11 Measurements Required ...................................................................................................................................... 11 Modulation Characteristics Results .................................................................................................................... 11 OCCUPIED BANDWIDTH ............................................................................................ 12 Measurements Required ...................................................................................................................................... 12 Test Arrangement ................................................................................................................................................. 12 Figure 2 Occupied Band Width, Carrier frequency 9323 MHz .......................................................................... 13 Figure 3 Occupied Band Width, Carrier frequency 9375 MHz .......................................................................... 13 Figure 4 Occupied Band Width, Carrier frequency 9486 MHz .......................................................................... 14 Occupied Bandwidth Results ............................................................................................................................... 14 SPURIOUS EMISSIONS AT ANTENNA TERMINALS ................................................. 15 Measurements Required ...................................................................................................................................... 15 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. GPN: 011-01768-0( ) 4405 West 259 th Terrace Model: GMN-00676 SN: 1DP000323 Louisburg, KS 66053 Test #: 120619 FCC ID: IPH-0126000 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 87 Date: July 30, 2012 Revision 1 File: TstRpt GMN00676 120619 Page 4 of 29 Test Arrangement ..............................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Model: GMN-00676 SN: 1DP000323 Louisburg, KS 66053 Test #: 120619 FCC ID: IPH-0126000 Phone/Fax: (913) 837-3214 Test to: CFR47 Parts 2, 87 Date: July 16, 2012 Revision 1 File: Short Term Conf TSup GMN00676 Page 1 of 1 Test setup photographs

Contact Information

Applicant

Ben Karsak(Manager, Compliance Engineering)
[email protected]9134401946Fax: 913 397-8282

Test Firm

Rogers Labs, Inc.Scot Rogers
[email protected]913-837-3214Fax: 913-837-3214

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
1879.32 GHz - 9.49 GHz40 W2M07Q7N0.0010000000 ppm
Confidentiality
Long Term
Grant Notes
Power output listed is at the antenna connector. The antenna(s) of this radar system is mounted in the nose of the aircraft. These locations are accessible to airport maintenance personnel only and are in general not accessible to the general population. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3).
