IPH-0140000AIRBORNE COMMUNICATIONS TRANSCEIVER

The following files have been archived under the above ARCHIVE FILENAME. Filename File Contents Date: Drafter: Checker: Project Engineer: Released By: TITLE: PART NO: SIZE A Scale: N/A REV. Sheets of REVISIONS SPECIFICATION CONTROL DRAWING REV. DATE DESCRIPTION ECO NO. Garmin Ltd. or its subsidiaries c/o Garmin International, Inc. 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. CONFIDENTIAL This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission . 48 190-00303-05.pdf 190-00303-05.pdf John Sherman 190-00303-05 GIA 63/GIA 63W Installation Manual S 1 1 GIA 63/GIA 63W Installation Manual 11 Daniel Cobb Craig Parker SDT 11/17/03 11/17/03 11/17/03 11/18/03 Q 12/29/09 Added antenna note 68178 R 03/23/10 Added Standalone Rack info 70476 S 07/29/10 Added updated NAV/COM unit 73976 NOTES: 1. DESCRIPTION: G1000 Installation Documentation - 2. PAGE SIZE: Letter: Width = 8.5 inches, Height = 11 inches Tabloid: Width = 11.0 inches, Height = 17.0 inches 3. PAGINATION: double-sided letter sheets. single-sided tabloid sheets. 4. MATERIAL: 24 pound bond. Approved equivalents allowed. 5. COLOR: Black Ink on White Paper Stock. 6. BINDERY: Three-hole punch, shrink-wrap. Digital output preferred 7. FOLDS: Z-Fold tabloid sheets at end of document. 8. ELECTRONIC ARTWORK: Shall Conform to Garmin Archive, Filename: Portable Document Format, contains Installation Manual and Release Specification release.indd Adobe InDesign Format, Release Specification Manual Elements Word 97 for PC, Formatted Files and Figures *.* Various supporting illustrations, drawings, and artwork. 8.5" 11" 3-Hole Punch GIA 63/GIA 63W Installation Manual DER REVIEW REQUIRED DER REVIEW REQUIRED 190-00303-05 July, 2010 Revision S GIA 63/GIA 63W Installation Manual Page A GIA 63/GIA 63W Installation Manual Revision S 190-00303-05 © Copyright 2010 Garmin Ltd. or its subsidiaries All Rights Reserved Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual and of any revision to this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual or revision must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Garmin International, Inc. 1200 E. 151 st Street Olathe, KS 66062 USA Telephone: 913-397-8200 Aviation Dealer Technical Support Line (Toll Free): (888) 606-5482 www.garmin.com Garmin (Europe) Ltd Liberty House Bulls Copse Road Hounsdown Business Park Southampton, SO40 9RB, UK Telephone: 44/ (0) 870.8501241 RECORD OF REVISIONS Revision Revision Date Description A 11/15/04 Production Release B 3/16/05 Updated pinout list, removed EQF and ETSO 2C37e deviation C 6/23/05 Added additional interconnects, TSO-C9c, and TSO-C52b D 10/26/05 Added TSO-C151b and boot block instructions E 6/8/06 Edited document to include the GIA 63W F 7/21/06 Corrected WAAS TSO G 9/19/06 Added RTCA/DO-229C deviation H 10/18/06 Added Comant antennas J 4/10/07 Added Comant antenna and revised ICAW K 6/6/07 Added the 011-01105-01 unit L 8/23/07 Changed operational limitations and added antennas M 2/29/08 Added ETSO information N 5/27/09 Added TSO-C92c and other TSO info P 09/09/09 Added Level A CLD information Q 12/29/09 Added antenna note R 03/23/10 Added standalone rack info S 7/29/10 Added updated NAV/COM unit GIA 63/GIA 63W Installation Manual Page i 190-00303-05 Revision S CURRENT REVISION DESCRIPTION Revision Page Number(s) Section Number Description of Change Clarified RS-485 channel information 1-2 1.3.1 Added annunciator outputs 1-4 1.4.5 Corrected Antenna power supply at GPS port spec 1-5 1.4.6 Clarified transmitter power spec 1-8 1.4.10 Clarified power requirements 1-9 1.4.11 Added 011-01105-20 1-14 – 1-16 1.6.3 Updated software part number range 1-21 – 1-25 1.6.5 Added updated NAV/COM TSO compliance info 1-27 1.6.9 Clarified regulatory criteria 2-1 2.1.1 Added updated NAV/COM unit 2-10 2.4 Removed wire guidance and added barrel contacts info 3-4 3.8 Added 011-01105-20 4-1 4.1.1 4-3 4.1.2 4-4 4.1.2 Added -20 pins 4-7 4.1.4 Corrected pin 3 to read “OUT” 4-15 4.4.1.2 Corrected labeling of RS-485/422 pins 4-17 4.5 Corrected ANNUNCIATE pin designation and spec 4.6.2.3 Deleted “GROUND” and added VOICE ALERT AUDIO specs 4-19 4.6.2.4 Added -20 pins 4-20 4.7.1 Added GLIDESLOPE COMPOSITE OUT explanation and -20 pins Added -20 pins 4-1 – 4-30 4 Added note indicating some pins are not currently supported and removed pins that are not supported from descriptions C-1 C-1 Added wire length guidance C-3 C-1 Added references to Note 7 and 8 S C-5 C-1 Added cross side interconnects DOCUMENT PAGINATION Section Page Range Table of Contents i – vi Section 1 1-1 – 1-32 Section 2 2-1 – 2-16 Section 3 3-1 – 3-6 Section 4 4-1 – 4-30 Appendix A A-1 – A-4 Appendix B B-1 – B-8 Appendix C C-1 – C-14 Page ii GIA 63/GIA 63W Installation Manual Revision S 190-00303-05 This manual reflects the operation of main software version 5.31 for the GIA 63 and main software version 6.00 for the GIA 63W. Some differences in operation may be observed when comparing the information in this manual to earlier or later software versions. INFORMATION SUBJECT TO EXPORT CONTROL LAWS This document may contain information which is subject to the Export Administration Regulations (“EAR”) issued by the United States Department of Commerce (15 CFR, Chapter VII Subchapter C) and which may not be exported, released or disclosed to foreign nati…

Text truncated - open the document above for the full version.

October 16, 2010 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-0140000 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 FCC Rules: Parts 2 and 87 Gentlemen The form 731 and application have been electronically submitted and any attachments up loaded to your web site for use in obtaining grant of certification. Confidentiality is requested as outlined below. Permanent Garmin International, Inc. requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. Exhibit File Schematics Conf Schem GIA63W.pdf Parts List Conf PartList GIA63W.pdf Block diagram Conf BlkDia GIA63W.pdf Operational Description Conf OpDes GIA63W.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

October 27, 2010 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. 1200 East 151st Street Olathe, KS 66062 Re: Confidentiality for application submittal information regarding FCC ID: IPH-0140000 PRODUCT: Aviation Transmitter operated under part CFR 47 part 87 Dear Sirs: Garmin International, Inc. requests that the material in the Schematics, Operational Description, Block diagram, and parts list be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. In support of this request, Garmin International, Inc. submits the following information. CONFIDENTIAL FILES Conf BlkDia GIA63W.pdf Conf OpDes GIA63W.pdf Conf Schem GIA63W.pdf Conf PartsList GIA63W.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: IPH-0140000 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Garmin International, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Garmin International, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Garmin International, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

November 4, 2010 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Garmin International, Inc. Equipment: FCC ID: IPH-0140000 1200 East 151st Street CORES number: 0005-0885-88 Olathe, KS 66062 FCC Rules: Parts 2 and 87 Men Please find exhibits uploaded for use in replacing exhibits and correction for the grant of certification (FCC ID: IPH-0140000). Garmin desires the removal of the RF compliance statements currently placed on the grant of certification. There is precedence for this as defined in CFR47 for aviation transceivers. Garmin states the Grant note should read as follows “Power output is conducted and measured at the antenna terminal. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operation.” This removes the second through fourth sentences in the current grant note. In addition, type errors have been discovered and corrected in test report originally submitted. Please replace originally submitted documentation for these exhibits with the revised files uploaded with this request. 1) Test report exhibit – file: GIA63w TstRpt 100929 r3.pdf to replace original test report exhibit (type errors and model reference addition of GIA 63H) 2) Add this cover letter if required requesting these corrections Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

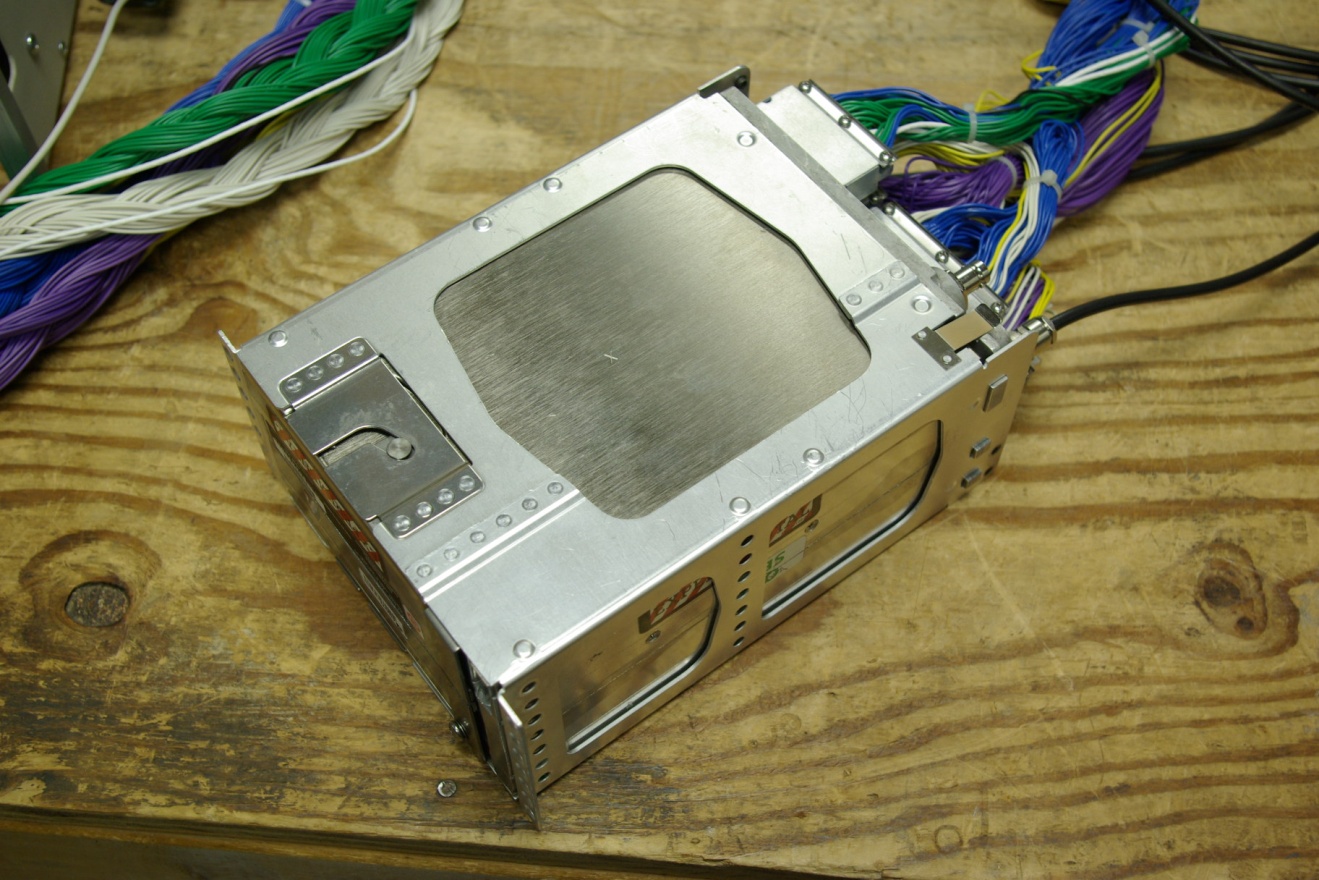

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-0140000 4405 West 259 th Terrace Model: GIA 63W IC: 1792A-0140000 Louisburg, KS 66053 Test #:100929 SN: 1HQ000011 GPN: 011-01105-2( ) Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15, 87 and RSS-141 Date: October 16, 2010 Revision 1 File: ExtPho GIA63W Page 1 of 2 External photographs of equipment under test Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-0140000 4405 West 259 th Terrace Model: GIA 63W IC: 1792A-0140000 Louisburg, KS 66053 Test #:100929 SN: 1HQ000011 GPN: 011-01105-2( ) Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15, 87 and RSS-141 Date: October 16, 2010 Revision 1 File: ExtPho GIA63W Page 2 of 2

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-0140000 4405 West 259 th Terrace Model: GIA 63W IC: 1792A-0140000 Louisburg, KS 66053 Test #:100929 SN: 1HQ000011 GPN: 011-01105-2( ) Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15, 87 and RSS-141 Date: October 16, 2010 Revision 1 File: LabelSmpl GIA63W Page 1 of 1 FCC ID label and location Label Location

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-0140000 4405 West 259 th Terrace Model: GIA 63W IC: 1792A-0140000 Louisburg, KS 66053 Test #:100929 SN: 1HQ000011 GPN: 011-01105-2( ) Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15, 87 and RSS-141 Date: October 16, 2010 Revision 1 File: IntPho GIA63W Page 1 of 2 Internal photographs of equipment under test Com PCB top Com PCB Bottom Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-0140000 4405 West 259 th Terrace Model: GIA 63W IC: 1792A-0140000 Louisburg, KS 66053 Test #:100929 SN: 1HQ000011 GPN: 011-01105-2( ) Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15, 87 and RSS-141 Date: October 16, 2010 Revision 1 File: IntPho GIA63W Page 2 of 2 Com PCB with shielding in chassis

GIA 6X COMM TRANSCEIVER ALIGNMENT PROCEDURE 005-00148-08 Rev. H Page 1 GIA6X COMM TRANSCEIVER ALIGNMENT PROCEDURE Garmin Ltd. or its subsidiaries c/o Garmin International, Inc. 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. 005-00148-08 Rev. H Approvals Date Revisions Rev. Date Description of Change Apprvd. 01 05/19/03 Experimental Release ------- A 12/08/03 Production Release 23549 B 02/02/04 Remove auto align for TX. Add 25 KHz RX IF alignment. Change TX power alignment to 20W. Adjust TX mod depth to just below 90% 24276 C 7/26/05 Change equipment list 32380 D 04/07/06 Resolve discrepancies between align proc and Align 400 37192 E 04/26/06 Change MIC alignment target to 91% - 95% 37544 F 07/31/06 Correct references, add Q-Dope compensation 39340 G 07/24/09 Update to include 012-01400-XX 64102 H 08/13/09 Update T201 tuning procedure to reference Test Select. Corrected VCO coil voltage reference for Q-Dope comp. 64630 Drawn: MDD 05/19/03 Checked: NJH 05/19/03 Approved: SDT 05/21/03 Project Mgr.: CBP 05/19/03 CONFIDENTIAL This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. GIA 6X COMM TRANSCEIVER ALIGNMENT PROCEDURE 005-00148-08 Rev. H Page 2 TABLE OF CONTENTS I I . . 012-00585-XX AND 012-01400-XX................................................................3 1. SCOPE OF DOCUMENT ................................................................................................................... 3 2. REFERENCE DOCUMENT............................................................................................................... 3 3. EQUIPMENT ....................................................................................................................................... 3 4. SETUP PROCEDURE ......................................................................................................................... 4 4.1 Interconnections ............................................................................................................................. 4 4.2 External Power Supply Settings ..................................................................................................... 5 5. ALIGNMENT ....................................................................................................................................... 7 5.1 VCO Alignment.............................................................................................................................. 7 5.2 Receiver IF Alignment ................................................................................................................... 8 5.3 Automated Alignment .................................................................................................................. 10 6. DIGITAL ADJUSTMENTS .............................................................................................................. 10 6.1 Receiver Preselector Alignment ................................................................................................... 10 6.2 Receiver Noise Squelch Calibration - 25 KHz Mode................................................................... 11 6.3 Receiver Noise Squelch Calibration – 8.33 KHz Mode (012-01400-XX only) ........................... 12 6.4 Receiver Carrier Squelch Calibration - 25 KHz Mode................................................................. 13 6.5 Receiver Carrier Squelch Calibration 8.33 KHz Mode ............................................................... 13 6.6 Transmitter Driver and Amplifier Adjust ..................................................................................... 14 6.7 28 V Transmitter Output Power Calibration ................................................................................ 15 6.8 28 V Transmitter Modulator Adjust ............................................................................................. 15 6.9 28 V Transmitter Sidetone Adjust ................................................................................................16 6.10 14 V Transmitter Output Power Calibration (for 012-01400-XX only)....................................... 17 6.11 14 V Transmitter Modulator Adjust (for 012-01400-XX only) ................................................... 18 6.12 14 V Transmitter Sidetone Adjust (for 012-01400-XX only) ...................................................... 18 GIA 6X COMM TRANSCEIVER ALIGNMENT PROCEDURE 005-00148-08 Rev. H Page 3 I I . . 012-00585-XX AND 012-01400-XX 1. SCOPE OF DOCUMENT This alignment procedure is provided to calibrate the GIA COMM transceiver sub-assembly, 012-00585-XX and 012-01400-XX at unit level. Verify the board number, 105-00585-XX and 105-01400-XX located on the COMM Board to ensure the proper procedure is being used. 2. REFERENCE DOCUMENT 004-00145-03 MPS,GIA6X Comm Assy 3. EQUIPMENT DESCRIPTION VENDOR/PART NO. QTY 0-30VDC/0-6A VARIABLE POWER SUPPLY HP 6267B OR EQUIV 1 350Mhz PC or higher W / SERIAL PORT and GPIB card Dell PII W / SERIAL PORT And GPIB card 1 Software – GNC400 Serial Interface and Automated Comm Alignment Program T06-A0029-00 T06-A0062-00 1 1 MANUAL TEST PANEL GARMIN GPS/GNC MANUAL TEST PANEL T11-00040-00 1 RADIO TEST SET HP 8920A WITH OPTIONS 003/019/050/102 OR HP8920B WITH OPTIONS 001/102 1 Ca, Banana Pl-Spade (Red) 310-00011-00 1 Ca, Banana Pl-Spade (Blk) 310-00011-01 1 Banana Plug Test Cable (BLK) Probe Master 3435-60-0 or equivalence 2 Banana Plug Test Cable (RED) Probe Master 3435-60-2or equivalence 1 430 Main to GIA Main adapter cable GT0432 1 430 Comm to GIA Comm adapter cable GT0430 1 Conn, Male/Female BNC 330-00053-01 1 3 ft RG-223 RF cable 320-00121-03 3 1 meter IEEE488 cable Nat’l Inst. P/N 763061-01or equivalence 2 Conn, Male/Female, DB9 320-00045-00 or equivalence 1 DIGITAL MULTIMETER HP-34401A 1 .9mm Tuning Tool C.K. OR EQUIV 1 1.8mm T…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-0140000 4405 West 259 th Terrace Model: GIA 63W IC: 1792A-0140000 Louisburg, KS 66053 Test #:100929 SN: 1HQ000011 GPN: 011-01105-2( ) Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15, 87 and RSS-141 Date: October 16, 2010 Revision 1 File: RFExp GIA63W Page 1 of 1 MPE Calculation page

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Models: GIA 63W, GIA 63H SN: 1HQ000011 FCC ID: IPH-0140000 Louisburg, KS 66053 Test #: 100929 IC: 1792A-0140000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15 and 87, RSS-141 Date: November 2, 2010 Revision 3 File: GIA63w TstRpt 100929 r3 Page 1 of 32 Application Submittal Test Report FOR FCC CFR47 Part 87 and Industry Canada RSS-141 Application for Grant of Certification For Models: GIA 63W and GIA 63H GPN’s: 011-01105-2( ), 011-01105-3( ) 118-136.992 MHz Aviation Communications Transceiver FCC ID: IPH-0140000 IC: 1792A-0140000 For GARMIN INTERNATIONAL, INC. 1200 East 151st Street OLATHE, KS 66062 Test Report Number 100929 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Models: GIA 63W, GIA 63H SN: 1HQ000011 FCC ID: IPH-0140000 Louisburg, KS 66053 Test #: 100929 IC: 1792A-0140000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15 and 87, RSS-141 Date: November 2, 2010 Revision 3 File: GIA63w TstRpt 100929 r3 Page 2 of 32 Test Report For Application of Certification For GARMIN INTERNATIONAL, INC. 1200 East 151st Street Olathe, KS 66062 Phone: (913) 397-8200 Mr. Van Ruggles Director of Quality Assurance Models: GIA 63W and GIA 63H GPN’s: 011-01105-2( ), 011-01105-3( ) Aviation Communications Transceiver Frequency Range: 118-136.992 MHz FCC ID: IPH-0140000 IC: 1792A-0140000 Test Date: September 29, 2010 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Models: GIA 63W, GIA 63H SN: 1HQ000011 FCC ID: IPH-0140000 Louisburg, KS 66053 Test #: 100929 IC: 1792A-0140000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15 and 87, RSS-141 Date: November 2, 2010 Revision 3 File: GIA63w TstRpt 100929 r3 Page 3 of 32 Table of Contents TABLE OF CONTENTS .................................................................................................. 3 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 5 ENVIRONMENTAL CONDITIONS.................................................................................. 5 APPLICATION FOR CERTIFICATION ........................................................................... 6 UNITS OF MEASUREMENTS ........................................................................................ 7 TEST SITE LOCATIONS ................................................................................................ 7 LIST OF TEST EQUIPMENT .......................................................................................... 7 SYSTEM DESCRIPTION ................................................................................................ 8 TRANSMITTER POWER OUTPUT ................................................................................ 9 Measurements Required ........................................................................................................................................ 9 Test Arrangement ................................................................................................................................................... 9 Transmitter Power Results .................................................................................................................................. 10 Figure 1 Maximum Power Output (28 Volt Input) ............................................................................................ 10 Figure 2 Maximum Power Output (14 Volt Input) ............................................................................................ 11 MODULATION CHARACTERISTICS ........................................................................... 11 Measurements Required ...................................................................................................................................... 11 Test Arrangement ................................................................................................................................................. 11 Modulation Characteristic Results ...................................................................................................................... 12 Figure 3 Audio Frequency Response / Modulation Characteristics ................................................................... 12 Figure 4 Modulation Characteristics .................................................................................................................. 13 Figure 5 Frequency Response of Audio Low pass Filter ................................................................................... 13 OCCUPIED BANDWIDTH ............................................................................................ 14 Measurements Required ...................................................................................................................................... 14 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Garmin International, Inc. 4405 West 259 th Terrace Models: GIA 63W, GIA 63H SN: 1HQ000011 FCC ID: IPH-0140000 Louisburg, KS 66053 Test #: 100929 IC: 1792A-0140000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15 and 87, RSS-141 Date: November 2, 2010 Revision 3 File: GIA63w TstRpt 100929 r3 Page 4 of 32 Test Arrangement ................…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Garmin International, Inc. FCC ID: IPH-0140000 4405 West 259 th Terrace Model: GIA 63W IC: 1792A-0140000 Louisburg, KS 66053 Test #:100929 SN: 1HQ000011 GPN: 011-01105-2( ) Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15, 87 and RSS-141 Date: October 16, 2010 Revision 1 File: TSup GIA63W Page 1 of 1 Test setup photographs
