IPH-01766PORTABLE GMRS/FRS PTT RADIO TRANSCEIVER WITH GPS

1 Important Safety and Product Information  WARNING Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury. Installation Warnings • When installing the device in a vehicle, place the device securely so it does not obstruct the driver’s view of the road ➊ or interfere with vehicle operating controls, such as the steering wheel, foot pedals, or transmission levers. Do not place unsecured on the vehicle dashboard ➋. Do not place the device in front of or above any airbag ➌. ➋ ➌ ➊ • The windshield mount may not stay attached to the windshield in all circumstances. Do not place the mount where it will become a distraction if it should become detached. Keep your windshield clean to help ensure that the mount stays on the windshield. Off-Road Navigation Warnings Some Garmin recreational products are able to suggest off-road routes for various outdoor activities, such as biking, hiking, and all-terrain vehicles. Follow these guidelines to ensure safe off-road navigation. • Always use your best judgment and exercise common sense when making off-road navigational decisions. The Garmin device is designed to provide route suggestions only. It is not a replacement for attentiveness and proper preparation for outdoor activities. Do not follow the route suggestions if they suggest an illegal course or would put you in an unsafe situation. • Always carefully compare information displayed on the device to all available navigation sources, including trail signs, trail conditions, weather conditions, and other factors that may affect safety while navigating. For safety, always resolve any discrepancies before continuing navigation, and defer to posted signs and conditions. • Always be mindful of the effects of the environment and the inherent risks of the activity before embarking on off-road activities, especially the impact that weather and weather- related trail conditions can have on the safety of your activity. Ensure that you have the proper gear and supplies for your activity before navigating along unfamiliar paths and trails. Street Navigation Warnings Some Garmin recreational products are able to accept street maps and suggest routes that follow roads. Follow these guidelines to ensure safe on-road navigation. • Always use your best judgment, and operate the vehicle in a safe manner. Do not become distracted by the device while driving, and always be fully aware of all driving conditions. Minimize the amount of time spent viewing the device screen while driving. • Do not input destinations, change settings, or access any functions requiring prolonged use of the device controls while driving. Pull over in a safe and legal manner before attempting such operations. • When navigating, carefully compare information displayed on the device to all available navigation sources, including road signs, road closures, road conditions, traffic congestion, weather conditions, and other factors that may affect safety while driving. For safety, always resolve any discrepancies before continuing navigation, and defer to posted signs and conditions. • The device is designed to provide route suggestions. It is not a replacement for driver attentiveness and good judgement. Do not follow route suggestions if they suggest an illegal maneuver or would place the vehicle in an unsafe situation. Battery Warnings Your GPS device uses user-replaceable batteries. If these guidelines are not followed, the batteries may experience a shortened life span or may present a risk of damage to the device, fire, chemical burn, electrolyte leak, and/or bodily injury. • Do not leave the device exposed to a heat source or in a high-temperature location, such as in the sun in an unattended vehicle. To prevent damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box. • Do not use a sharp object to remove the batteries. 190-01183-90_0A.indd 16/8/2011 1:52:46 PM 2 • Do not puncture or incinerate the device or battery. • Keep the batteries away from children. • Do not disassemble, puncture, or damage the batteries. • Only replace the battery with the correct replacement battery. Using another battery presents a risk of fire or explosion. • Replaceable coin cell batteries may contain perchlorate material. Special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. • Contact your local waste disposal department to dispose of the device/battery in accordance with applicable local laws and regulations. • In addition, the GPS device may use an internal, non-user- replaceable battery for various purposes, such as the real-time clock. Do not remove or attempt to remove the non-user- replaceable battery. Pacemakers and Other Medical Devices Studies have shown that there may be a potential interaction between mobile devices and normal pacemaker operation. The pacemaker industry recommends that people with pacemakers follow these guidelines to minimize any risk of interference with pacemaker operation: • Always maintain a distance of 6 inches (15 cm) between the pacemaker and any mobile device that is turned on. • Store the device on the opposite side of the pacemaker. Do not carry the device in a breast pocket. • Use the ear furthest from the pacemaker in order to minimize any potential for interference. • If you think that interference may be occurring, turn off the device immediately. For other medical devices, consult with your physician or the manufacturer to determine if your mobile device may interfere with the medical device, and to determine any precautions that you can take to avoid interference. Map Data Information Garmin uses a combination of governmental and private data sources. Virtually all data sources contain some inaccurate or incomplete data. In some countries, complete and accurate map information is either not available or is prohibitively expensive. FCC Compliance This device comp…

Text truncated - open the document above for the full version.

rino ® 600 series owner’s manual © 2011 Garmin Ltd. or its subsidiaries All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product. Garmin ® , the Garmin logo, Rino ® , BlueChart ® , and City Navigator ® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. HomePort ™ , BaseCamp ™ , ANT ™ , and ANT+ ™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. Windows ® is a registered trademark of Microsoft Corporation in the United States and/or other countries. Mac ® is a registered trademarks of Apple Computer, Inc. microSD ™ is a trademark of SD-3C, LLC. Other trademarks and trade names are those of their respective owners. Rino 600 Series Owner’s Manual 1 Table of Contents Table of Contents Getting Started ������������������������3 Keys3 Manual Conventions 4 Battery Information 4 Acquiring Satellite Signals 6 Registering Your Device 6 Turning On the Backlight 6 Locking the Screen 7 Radio ����������������������������������������8 About the Radio 8 Choosing a Channel 8 Radio Settings 9 About Contacts 10 Notes 10 About Peer-to-Peer Positioning  11 Using SAME Weather Alerts 12 Radio Page Status Indicators 13 Waypoints and Tracks ����������15 Waypoints 15 About Sharing Data 16 Tracks 16 Navigating a Saved Track17 Navigation �����������������������������18 Navigating to a Destination 18 Map18 Compass 19 Navigating to a Contact 20 Geocaches 21 Routes 21 Using Sight ‘N Go 23 Camera and Photos ��������������24 Taking a Photo 24 Viewing Photos 24 Customizing Your Device ����26 Customizing the Data Fields 26 Customizing the Home Screen 26 Creating a Custom Profile 26 Customizing Specific Pages 27 System Settings27 Display Settings 28 Setting the Device Tones 29 2 Rino 600 Series Owner’s Manual Table of Contents Map Settings29 Tracks Settings 30 Changing the Units of Measure 31 Time Settings 31 Position Format Settings 31 Heading Settings 31 Altimeter Settings 32 Geocache Settings 33 Routing Settings 33 Marine Map Settings34 Fitness 35 Resetting Data 35 Tools ��������������������������������������36 Trip Computer 36 Elevation Plot36 Viewing the Calendar and Almanacs 36 Calculating the Size of an Area 36 Setting an Alarm 37 Opening the Stopwatch 37 Device Information ���������������38 Updating the Software 38 Viewing Device Information 38 Specifications 38 About the Batteries 39 Caring for the Device 40 Data Management 41 Additional Maps 44 Optional Accessories 44 Data Field Options 45 Troubleshooting 50 FCC Licensing Information 52 Index ��������������������������������������54 Rino 600 Series Owner’s Manual 3 Getting Started Getting Started  WaRNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. When using your device the first time, you should complete the following tasks to set up the device and get to know the basic features. 1. Install the batteries (page 4). 2. Register the device (page 6). 3. Acquire satellites (page 6). 4. Set up the radio (page 9). 5. Mark a waypoint (page 15). 6. Record a track (page 17). 7. Navigate to a destination (page 18). 8. Calibrate the compass (page 19). Keys ➌ ➊ ➋ KeyDescription ➊ Select to send out a call tone If enabled (page 11), the call key sends your position when released 4 Rino 600 Series Owner’s Manual Getting Started ➋ Hold to turn on or off the device Select to adjust backlight, volume, squelch level, and to lock or unlock the screen ➌ Hold to talk PTT stands for push-to-talk Manual Conventions All the pages are found on the home screen. Use or to scroll through the pages. The small arrows (>) used in the text indicate that you should select a series of items in order, for example, “Select Delete > Yes.” Battery Information The device operates on the included lithium-ion battery pack or four AA batteries. For tips on maximizing battery life and other battery information, see page 39. Installing the Lithium-ion Battery note: The lithium-ion battery pack can be used only with the Rino ® 650 and 655t. 1. Locate the battery pack ➊ that came in the pr…

Text truncated - open the document above for the full version.

Celltech Labs Inc. 21-364 Lougheed Road, Kelowna, B.C. Canada V1X 7R8 Tel. 250-765-7650 • Fax. 250-765-7645 • e-mail: [email protected] www.celltechlabs.com Date: July 13, 2011 Timco Engineering, Inc. Telecommunication Certification Body 849 NW State Road 45 Newberry, FL 32669 SUBJECT: Garmin International Inc. FCC ID: IPH-01766 Parts 95A/B - Certification On behalf of Garmin International Inc. is an application for Parts 95A/B Certification of the Portable FRS/GMRS Push-To- Talk (PTT) Radio Transceiver described below. This device has been tested and complies with the requirements for certification under FCC Rule Parts 95A/B. Device Classification: Part 95 Family Radio Face Held Transmitter (FRF) Device Description: Portable FM FRS/GMRS PTT Radio Transceiver Model Name / No.(s): Rino 610 Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (GMRS/FRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channel 8-14) Antenna Type: Helix (Non-detachable) Manufacturer’s Rated Power: 1 Watt Conducted (+0/-0.45 dB) RF Output Power Measured: 1 Watt Conducted 1.78 Watts ERP (GMRS) 0.44 Watts ERP (FRS) Submitted within this application is the TCB Form 731, applicant’s authorization letter, applicant’s long-term confidentiality request, FCC Parts 95A/B measurement report and test setup photographs, SAR RF Exposure measurement report and test setup photographs, FCC ID label and location, internal and external device photographs, block diagram (confidential), schematic diagrams (confidential), circuit description (confidential), parts list (confidential), tune-up information (confidential), user manual and Important Safety and Product Information. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes Project Manager Celltech Labs Inc. cc: Garmin International Inc.

Federal Communications CommissionDA 10–2037 Before the Federal Communications Commission Washington, D.C. 20554 In the Matter of GARMIN INTERNATIONAL, INC. Request for Waiver of Sections 95.29(f)(1), 95.119(a)(1), 95.181(a), 95.183(a)(4), and 95.631(a) and (f) of the Commission’s Rules to Authorize Manufacture, Sale, and Use of GPS Transmission Enhanced GMRS Units ) ) ) ) ) ) ) ) ) ORDER Adopted: October 22, 2010Released: October 22, 2010 By the Deputy Chief, Mobility Division, Wireless Telecommunications Bureau: I.INTRODUCTION 1.In this Order, we consider a request to extend a waiver of the General Mobile Radio Service (GMRS) rules permitting Garmin International, Inc. (Garmin) to market GMRS transceivers with the capability of transmitting Global Positioning System (GPS) coordinates as non-voice data. In 2004, the Public Safety and Critical Infrastructure Division (PSCID), 1 Wireless Telecommunications Bureau (Bureau) granted Garmin a two-year conditional waiver of Sections 95.29(f)(1), 95.119(a)(1), 95.181(a), 95.183(a)(4), and 95.631(a) and (f) of the Commission’s Rules. 2 In 2006, the Bureau’s Mobility Division (Division) granted a two-year extension of the waiver until December 29, 2008. 3 In 2008, the Division granted an additional two-year extensionof the waiver until December 29, 2010. 4 On September 22, 2010, Garmin requested a further extension. 5 For the reasons stated below, we grant Garmin’s 2010 1 Pursuant to a Commission reorganization effective September 25, 2006, certain duties of the Public Safety and Critical Infrastructure Division were assumed by the Mobility Division. SeeEstablishment of the Public Safety and Homeland Security Bureau, Order, 21 FCC Rcd 10867 (2006). 2 SeeGarmin International, Inc., Order, 20 FCC Rcd 982 (WTB PSCID 2004) (2004 Order). The Division granted Garmin a waiver of the GMRS rules that (1) require the transmission of station identification information following every communication or series of communications, (2) allowthe transmission of voice type emissions only, (3) relate to permissible GMRS communications, (3) limit the types of emissions and data a GMRS transmitter may transmit, and (4) prohibit coded messages. Id.; seealso47 C.F.R. §§ 95.29(f)(1), 95.119(a)(1), 95.181(a), 95.183(a)(4), 95.631(a), (f). 3 SeeGarmin International, Inc., Order, 21 FCC Rcd 15072 (WTB MD 2006) (2006 Order). 4 SeeGarmin International, Inc., Order, 23 FCC Rcd 18325 (WTB MD 2008) (2008 Order) 5 Petition for Extension of Waiver filed by Garmin International, Inc. on Sept. 22, 2010 (2010 Extension Petition). Federal Communications CommissionDA 10-2037 2 Extension Petition. Garmin’s conditional waiver is now extended pending the outcome of a rulemaking proceeding on the issue,under the same terms and conditions as the initial waiver. II.BACKGROUND 2.The Commission adopted rules establishing the future GMRS over fifty years agoas a short- distance two-way land mobile radio service available for communicationsthat facilitate personal or business activities of licensees and their immediate family members. 6 In 1988, the Commission amended the GMRS rules to provide flexibility to the individual user and limit eligibility for new GMRS licenses to individuals. 7 In 1996, the Commission established the Family Radio Service (FRS) as a very short range, two-way voice personal radio service that provides an affordable and convenient means of communications among small groups of persons, including families, with minimal regulation. 8 The FRS shares seven frequencies in the 462 MHz band with the GMRS and has seven channels that are offset from GMRS channels in the 467 MHz band. 9 3.In 2000, Garmin, a designer and manufacturer of consumer electronic devices, requested a waiver of the FRS rules to allow it to manufacture standard FRS voice communication radios incorporating an enhancement that would permit transmission of GPS location information. 10 On September 29, 2000, the Bureau’s Public Safety and Private Wireless Division (PSPWD) 11 granted Garmin a partial waiver of Sections 95.193(b) and 95.631(d) of the Commission's Rules to allow it to manufacture and market transceivers capable of transmitting GPS location information on FRS channels. 12 6 GMRS began as the Class A Service in the Citizens Radio Service in 1949. Creation of an Additional Personal Radio Service, Notice of Inquiry, PR Docket 79-140, 72 F.C.C. 2d 453, 454 ¶ 3 (1979); Creation of a NewClass of Citizens Radio Service and the Reallocation of Frequencies between 224 MHz and 225 MHz in the Band 220-225 MHz NowAllocated for Shared Use by Stations in the Amateur Radio Service and Government Radiolocation Stations for that Purpose, Notice of Inquiry and Notice of Proposed Rulemaking, Docket No. 19759, 41 F.C.C. 2d 147, 149 ¶ 6 (1973). In 1976, the Commission redesignated the Citizens Radio Service as the Personal Radio Services and redesignated the Class A Service as the GMRS. Revision of Operating Rules for Class D Stations in the Citizens Radio Service, Docket 20120, Third Report and Order, 63 F.C.C.2d 32, 32-33 ¶ 4 (1976);see also Amendment of Subparts A and E of Part 95 to Improve the General Mobile Radio Service (GMRS), Report and Order, PR Docket No. 87-265, 3 FCC Rcd 6554, 6554 ¶ 3 (1988) (GMRS R&O); 47 C.F.R. §§ 95.1(a), 95.181. 7 GMRS R&O, 3 FCC Rcd at 6554 ¶ 1. 8 SeeAmendment of Part 95 of the Commission’s Rules to Establisha Very Short Distance Two-way Voice Radio Service, Report and Order, WT Docket No. 95-102, 11 FCC Rcd 12977, 12977 ¶ 2, 12983 ¶ 17, 12984 ¶ 19 (1996). 9 Specifically, FRS channels 1-7 are also GMRS frequencies and FRS channels 8-14 are offset from GMRS frequencies. Compare47 C.F.R. § 95.621 (GMRS frequencies) with 47 C.F.R. § 95.627 (FRS frequencies). 10 Garmin International, Inc., Order, 15 FCC Rcd 19143, 19145 ¶ 5 (WTB PSPWD 2000) (2000 Order) (citing Letter from Garmin International, Inc. to D'wana Terry, Chief, Public Safety and Private Wireless Division, Wireless Telecommunica…

Text truncated - open the document above for the full version.

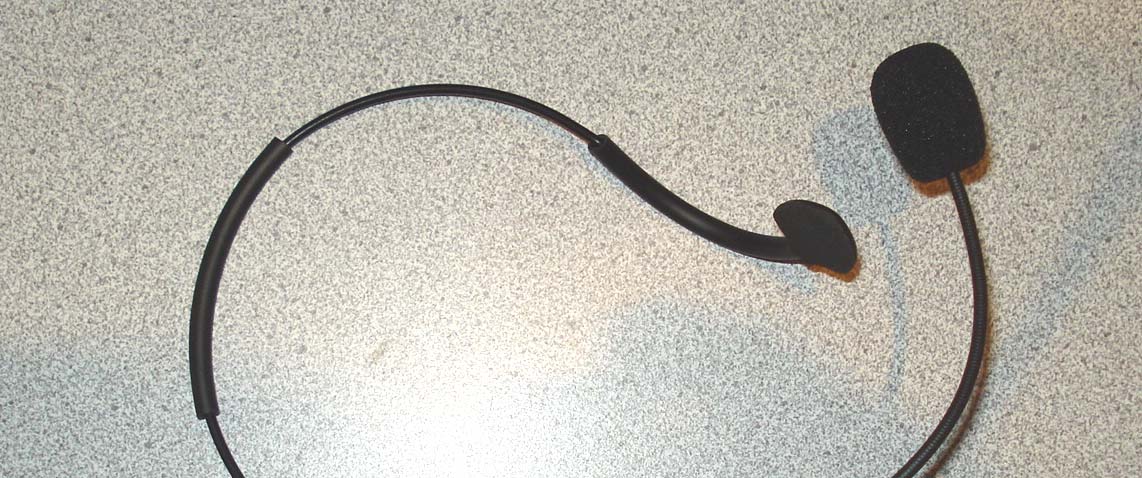

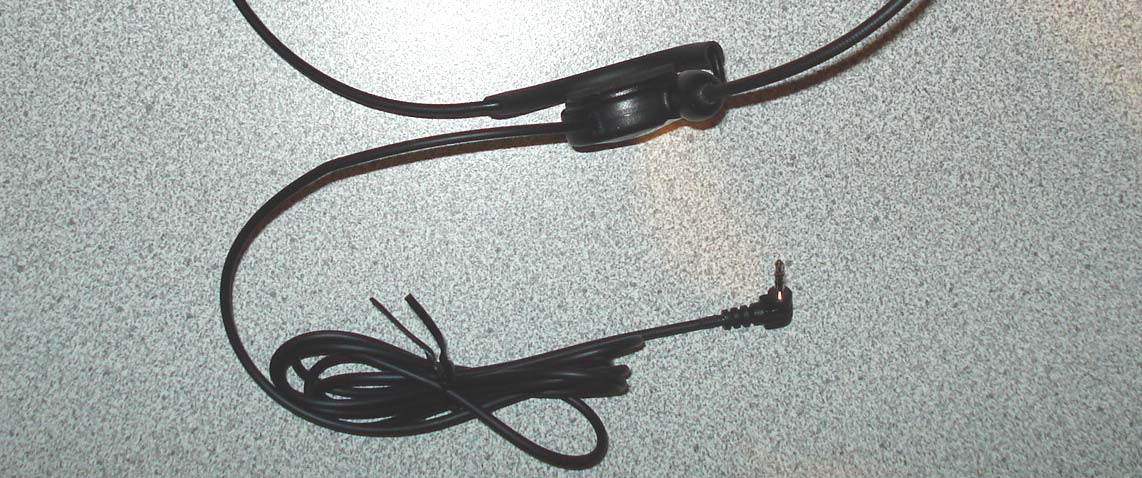

Front of Rino610 Back of Rino610 Side of Rino610 Back of DUT with Swivel Belt-Clip accessory Side of DUT with Swivel Belt-Clip accessory Back of DUT with Carabiner Clip accessory Side of DUT with Carabiner Clip accessory DUT with Ear Receiver audio accessory DUT with Earbud w/ PTT audio accessory DUT with Headset audio accessory AA Battery Pack P/N: 011-02526-40 AA Battery Pack open – (Alkaline or Rechargeable Ni-MH AA batteries) Swivel Belt-Clip accessory P/N: 013-00063-00 (with spine mount) Carabiner Clip accessory P/N: 011-01750-20 Flexible Ear Receiver audio accessory P/N: 013-00071-00 Earbud w/ PTT Mic audio accessory P/N: 013-00072-00 Headset w/ Mic audio accessory P/N: 013-00392-00

FCC ID LABEL LOCATION & IC LABEL LOCATION (SEE NEXT PAGES) MGR. PROJ. RELEASED BY UNLESS NOTED OTHERWISE ANGLES +/- 0 DEG./30 MIN. HOLES +/-.003”, .08 mm .XXX +/-.005”, .13 mm .XX +/-.010”, .25 mm TOLERANCE CHKD. DRAWN DATE OFSHT. REV. DWG. NO. SCALE SIZE TITLE CONFIDENTIAL This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. 161-01582-00 A A 1 1 1X Aries W. 04/26/11 PRODUCTION RELEASE REMOVE NOM, ADD “MODEL” 04/26/11 3/24/11 80004 A B REV. DATE DESCRIPTION APPRVD. REVISIONS ---- SPECIFICATION CONTROL DRAWING c/o Garmin International, Inc. Garmin Ltd. or its subsidiaries 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. 3. MAIN TAG AND ADDITIONAL TAG ARE SUPPLIED ON ONE ROLL WITH EQUIVALENT SERIAL NO.S ADJACENT TO EACH OTHER. ALL TAGS ARE "KISS CUT" ON ROLL. 4. PARTS TO BE FABRICATED USING DIGITAL CORELDRAW FILE. 5. THIS PART SHALL COMPLY WITH GARMIN BANNED & RESTRICTED SUBSTANCES DOCUMENT GPN 001-00211-00 NOTES: 1. MATERIAL: VINYL LAMINATE, SECOND SURFACE PRINTED. BACKGROUND - BLACK. NOMENCLATURE (SEE CHART), SERIAL NUMBERS TO BE BLACK. ACRYLIC PERMANENT ADHESIVE ON BACK SIDE WITH PEEL OFF RELEASE LINER. TOTAL PACKAGE THICKNESS EXCLUDING RELEASE LINER IS .002-.005 (0.05-0.13). SCALE: 1X 29U000000 2. 9 DIGIT SERIAL NUMBER TO BE PRINTED SEQUENTIALLY IN FIELDS AS SHOWN (2D, CODE 39 W/HUMAN READABLE OR HUMAN READABLE ONLY WHEN APPLICABLE). PRINT ADDITIONAL TAGS (30 X 7.5) IN QTY INDICATED (BARCODE 39 WITH HUMAN READABLE ONLY). ALL TAGS PRINTED WITH INDELIBLE BLACK INK. S/N RANGE FOR THIS ITEM: 29U000000-29U999999 AS INDICATED ON GARMIN PURCHASE ORDER. Pantone Cool Grey 6C M/N: Rino 610 Made in Taiwan FCC ID:IPH-01766 29U000000 18.0 mm 22.5 mm Tag,S/N,Rino 610,US M/N: Rino 610 Made in Taiwan FCC ID:IPH-01766 MGR. PROJ. RELEASED BY UNLESS NOTED OTHERWISE ANGLES +/- 0 DEG./30 MIN. HOLES +/-.003”, .08 mm .XXX +/-.005”, .13 mm .XX +/-.010”, .25 mm TOLERANCE CHKD. DRAWN DATE OFSHT. REV. DWG. NO. SCALE SIZE TITLE CONFIDENTIAL This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. 161-01582-03 A A 1 1 1X Aries W. 04/26/11 PRODUCTION RELEASE REMOVE NOM, ADD “MODEL” 04/26/11 3/24/11 80004 A B REV. DATE DESCRIPTION APPRVD. REVISIONS ---- SPECIFICATION CONTROL DRAWING c/o Garmin International, Inc. Garmin Ltd. or its subsidiaries 1200 E. 151st Street Olathe, Kansas 66062 U.S.A. 3. MAIN TAG AND ADDITIONAL TAG ARE SUPPLIED ON ONE ROLL WITH EQUIVALENT SERIAL NO.S ADJACENT TO EACH OTHER. ALL TAGS ARE "KISS CUT" ON ROLL. 4. PARTS TO BE FABRICATED USING DIGITAL CORELDRAW FILE. 5. THIS PART SHALL COMPLY WITH GARMIN BANNED & RESTRICTED SUBSTANCES DOCUMENT GPN 001-00211-00 NOTES: 1. MATERIAL: VINYL LAMINATE, SECOND SURFACE PRINTED. BACKGROUND - BLACK. NOMENCLATURE (SEE CHART), SERIAL NUMBERS TO BE BLACK. ACRYLIC PERMANENT ADHESIVE ON BACK SIDE WITH PEEL OFF RELEASE LINER. TOTAL PACKAGE THICKNESS EXCLUDING RELEASE LINER IS .002-.005 (0.05-0.13). SCALE: 1X 29Y000000 2. 9 DIGIT SERIAL NUMBER TO BE PRINTED SEQUENTIALLY IN FIELDS AS SHOWN (2D, CODE 39 W/HUMAN READABLE OR HUMAN READABLE ONLY WHEN APPLICABLE). PRINT ADDITIONAL TAGS (30 X 7.5) IN QTY INDICATED (BARCODE 39 WITH HUMAN READABLE ONLY). ALL TAGS PRINTED WITH INDELIBLE BLACK INK. S/N RANGE FOR THIS ITEM: 29Y000000-29Y999999 AS INDICATED ON GARMIN PURCHASE ORDER. Pantone Cool Grey 6C IC: 1792A-01766 Made in Taiwan M/N: Rino 610 29Y000000 CAN 310 18.0 mm 22.5 mm Tag,S/N,Rino 610,Canada IC: 1792A-01766 Made in Taiwan M/N: Rino 610 CAN 310

Applicant: Garmin International Inc. FCC ID: IPH-01766 IC: 1792A-01766 DUT Model: Rino 610 DUT Type: Portable 1 Watt FM UHF FRS/GMRS PTT Radio Transceiver 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 75 Date(s) of Evaluation May 20 - Jun 13, 2011 Test Report Serial No. 041511IPH-T1093-S95U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date July 11, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE - SAR RF EXPOSURE EVALUATION - FCC/IC Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, British Columbia V1X 7R8 Canada Test Lab Accreditation(s) A2LA ISO/IEC 17025:2005 (A2LA Test Lab Certificate No. 2470.01) Name GARMIN INTERNATIONAL INC. Applicant Information Address 1200, East 151 st Street, Olathe, KS, 66062 Application Type(s) FCC TCB Certification IC CB Certification Standard(s) Applied FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C FCC KDB 447498 IEEE 1528-2003 IC RSS-102 Issue 4 Procedure(s) Applied IEC62209-1:2005 IEC 62209-2:2010 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) - GMRS Device Classification(s) IC Licence-exempt Radio Apparatus: Category I Equipment (RSS-210) - GMRS Device Identifier(s) FCC ID: IPH-01766 IC: 1792A-01766 Date of Sample Receipt April 15, 2011 Date(s) of EvaluationMay 20, 25-26, June 10, 13, 2011 Device Model Tested Rino 610 Test Sample Serial No. 1766382196551000 (Identical Prototype) Device-Under-Test Description (DUT) Portable GMRS/FRS Push-To-Talk (PTT) Radio Transceiver Device Mode(s) of Operation Analog FM 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (GMRS/FRS Channels 1-7) Transmitter Frequency Range(s) 467.5625 - 467.7125 MHz (FRS Channels 8-14) Manufacturer’s Rated Output Power 1 Watt Conducted (+0/-0.45 dB) RF Output Power Measured 1.0 W 30.0 dBm Conducted Average 462.5625 MHz GMRS Ch. 1 Ni-MH Battery Pack 1.2 V (x4) 1600 mAh (x4) P/N: 011-02526-40 Battery Type(s) Tested Alkaline Battery Pack 1.5 V (x4) Energizer Industrial P/N: 011-02526-40 Antenna Type Tested Helix (Internal) 1.5 dBi Gain Length : 62.3 mm P/N: 700-00040-00 Swivel Belt-Clip (contains metal) P/N: 013-00063-00 Body-worn Accessories Tested Carabiner Clip (contains metal) P/N: 011-01750-20 Earbud w/ PTT Mic P/N: 013-00072-00 Flexible Ear Receiver P/N 013-00071-00 Audio Accessories Tested Headset w/ Mic, no PTT P/N: 013-00392-00 Face-held 0.727 W/kg 1g50% PTT duty cycle Max. SAR Level(s) Evaluated Body-worn 0.513 W/kg 1g50% PTT duty cycle FCC/IC Spatial Peak SAR Limit Head/Body 1.6 W/kg1g50% PTT duty cycle General Population / Uncontrolled Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 4 and IEEE Standard 1528-2003. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of m y knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved BySean JohnstonLab ManagerCelltech Labs Inc Applicant: Garmin International Inc. FCC ID: IPH-01766 IC: 1792A-01766 DUT Model: Rino 610 DUT Type: Portable 1 Watt FM UHF FRS/GMRS PTT Radio Transceiver 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 75 Date(s) of Evaluation May 20 - Jun 13, 2011 Test Report Serial No. 041511IPH-T1093-S95U Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date July 11, 2011 Description of Test(s) Specific Absorption Rate RF Exposure Category Gen. Pop. / Uncontrolled Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION ___________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 4 3.0 RF CONDUCTED OUTPUT POWER MEASUREMENT_____________________________________ 4 4.0 FCC POWER THRESHOLDS FOR PTT DEVICES (f< 0.5 GHz) _____________________________ 5 5.0 NO. OF TEST CHANNELS (N C ) _______________________________________________________ 5 6.0 SAR PROBE CALIBRATION & MEASUREMENT FREQUENCIES ___________________________ 5 7.0 MANUFACTURER’S DISCLOSED ACCESSORY LISTING _________________________________ 5 8.0 FLUID DIELECTRIC PARAMETERS ___________________________________________________ 6 9.0 SAR MEASUREMENT SUMMARY____________________________________________________ 11 10.0 DETAILS OF SAR EVALUATION____________________________________________________ 12 11.0 SAR EVALUATION PROCEDURES__________________________________________________ 12 12.0 SYSTEM PERFORMANCE CHECK______________________________…
