IPH-01955Hardware adapter

Garmin® ANT+ TM adapter for iPhone® Introduction The Garmin® ANT+ TM adapter for iPhone® will be used in conjunction with the iOS mobile fitness application to allow iPhone/iPod to communicate with ANT+ compatible devices, such as heart rate monitors, speed/cadence sensors, foot pods and power meters. Operation Connect Garmin® ANT+TM adapter for iPhone® directly to the bottom of the iPhone Specifications ANT specification Radio Standard ANT+ AP2 Frequency Band 2.457GHz Channel Spacing 1MHz Channel 1 Transmission GFSK Modulation GFSK Antenna Type Chip antenna with max gain 1.7dBi (peak) Temperature ‐15 to 60°C Voltage 3.3V (provided by iPhone) Output Power 0~‐18dBm Interface UART to iPhone Model Name : Garmin ANT + adapter for iPhone Brand Name : Garmin FCC Statement : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC Statement : This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 2.0 SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw 9/9/2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SPORTON International Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Hardware adapter Model Number: Garmin ANT + adapter for iPhone FCC ID: IPH-01955 We affirm that between SIEMIC and SPORTON International Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name / title: Wayne Hsu / Vice Manager Contact information / address: No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. / Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw

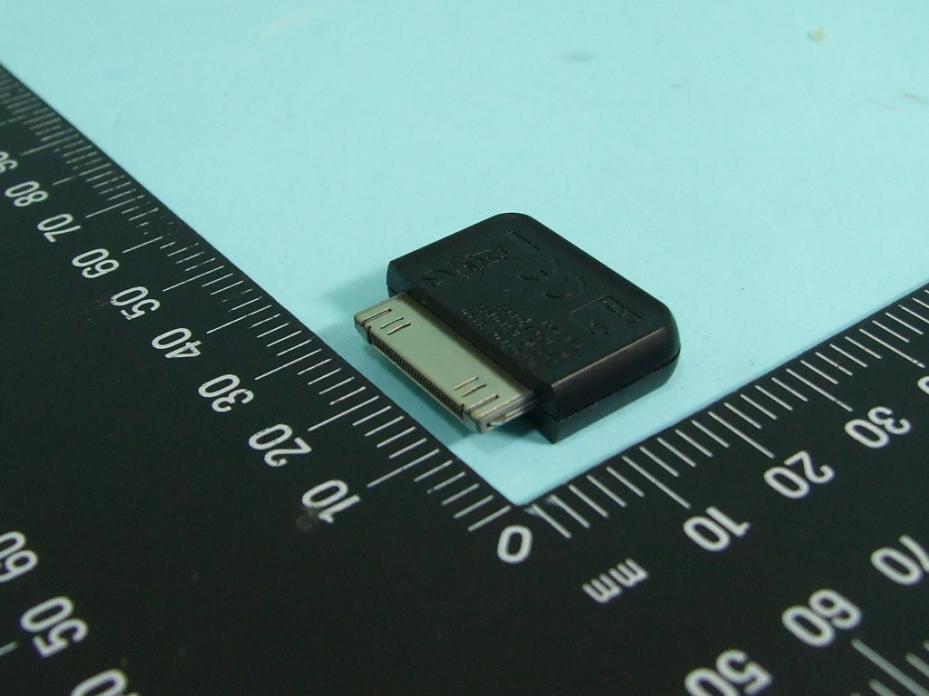

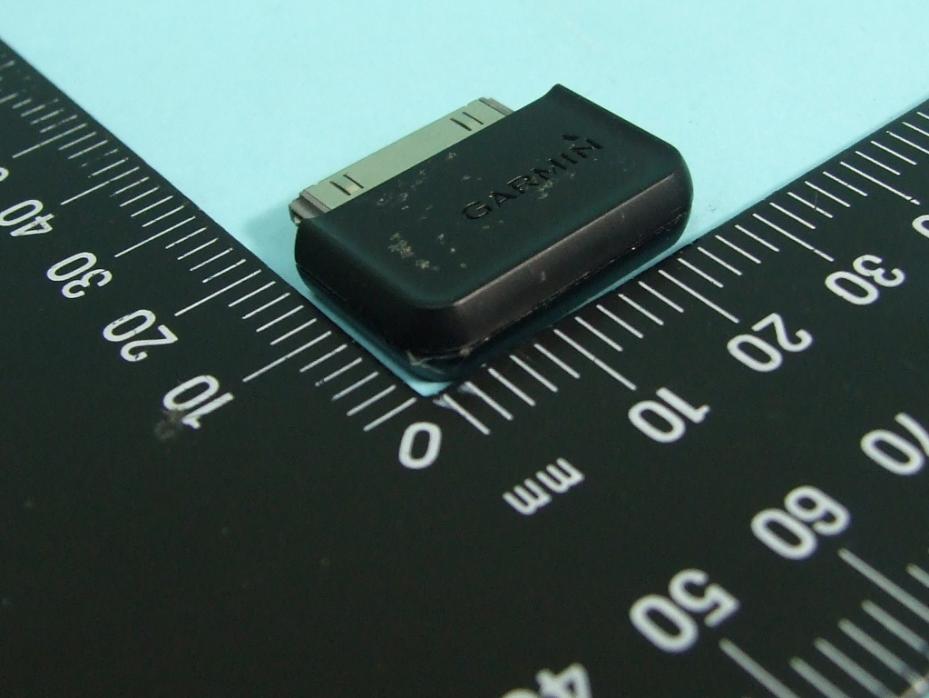

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255

R0.52 2.55 2.48 3.02 R0.45 0.95 8.558.552.45 *26.29±0.05 A A BB 3.38 3.45 5.15 D SECTION A-A *28.09 *17.65 C SECTION B-B 0.68 0.87 0.47 0.70 DETAIL C SCALE 4 : 1 0.30 4.524.52 1.89X4 1.20 1.20 0.66 0.59 0.72 DETAIL D SCALE 4 : 1 NOTES: UNLESS OTHERWISE SPECIFIED: 1. MATERIAL: LEXAN 141R-701, BLACK, GPN 140-00006-09 2. :FINISH TEXTURED PER MT11005 3. UNITS: mm 4. UNDIMENSIONED GEOMETRY IS CONTROLLED BY THE RELEASED SOLIDWORKS FILE. SURFACE PROFILE TO BE WITHIN 0.20 5. THIS PART SHALL NOT CONTAIN HAZARDOUS SUBSTANCES EXCEEDING LEVELS DEFINED BY EU DIRECTIVE 2002/95/EC (RoHS). 6. THIS PART SHALL COMPLY WITH GARMIN BANNED & RESTRICTED SUBSTANCES DOCUMENT GPN 001-00211-00 REV REVISIONS DESCRIPTION DATE ECO Ø<25± HOLE Ø<1± ANGLES± RLS BY UNLESS OTHERWISE NOTED TOLERANCE .XXX± .XX± INCH .XX± .X± mm PROJ. MGR. CHKD. DRAWN DATE TITLE SCALESHTOF SIZE DWG. NO.REV. DWG. NO. SHT This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. CONFIDENTIAL A PMP,Bottom Case,i-phone dongle 145-01343-10 A 11 3:2 JSC 04/22/11 DVL 04/25/11 JKF 04/25/11 BW 04/25/11 145-01343-10 1 1 EXPERIMENTAL RELEASE 2 A UPDATE GEOMETRY UPDATE GEOMETRY, PROD. REL. 04/22/11 ---- 05/18/11 81688 07/14/11 83225 APPROVALS Garmin Ltd. or its subsidiaries c/o Garmin International, Inc. 1200 E. 151st Street Olathe, Kansas 66062 USA 0.3 0.13 0.08 0.01 0.005 0.003 1.0° *28.09 *17.65 3.35 4.65 4.65 1.61X4 4.90X2 3.00 R0.35 2.57X2 R0.53 4.40X2 7.20 2.40 *25.25±0.05 8.558.55 A A 1.58 0.30 1.65 B SECTION A-A 4.05 21.59 19.31 0.60 1.05 0.50 0.16 0.40 0.59 1.37 DETAIL B SCALE 3 : 1 (6 PLACES) NOTES: UNLESS OTHERWISE SPECIFIED: 1. MATERIAL: LEXAN 141R-701, BLACK, GPN 140-00006-09 2. :FINISH TEXTURED PER MT11005 3. UNITS: mm 4. UNDIMENSIONED GEOMETRY IS CONTROLLED BY THE RELEASED SOLIDWORKS FILE. SURFACE PROFILE TO BE WITHIN 0.20 5. THIS PART SHALL NOT CONTAIN HAZARDOUS SUBSTANCES EXCEEDING LEVELS DEFINED BY EU DIRECTIVE 2002/95/EC (RoHS). 6. THIS PART SHALL COMPLY WITH GARMIN BANNED & RESTRICTED SUBSTANCES DOCUMENT GPN 001-00211-00 REV REVISIONS DESCRIPTION DATE ECO Ø<25± HOLE Ø<1± ANGLES± RLS BY UNLESS OTHERWISE NOTED TOLERANCE .XXX± .XX± INCH .XX± .X± mm PROJ. MGR. CHKD. DRAWN DATE TITLE SCALESHTOF SIZE DWG. NO.REV. DWG. NO. SHT This drawing and the specifications contained herein are the property of Garmin Ltd. or its subsidiaries and may not be reproduced or used in whole or in part as the basis for manufacture or sale of products without written permission. CONFIDENTIAL A PMP,Top Case,i-phone dongle 145-01343-00 A 11 3:2 JSC 04/22/11 DVL 04/25/11 JKF 04/25/11 BW 04/25/11 145-01343-00 1 1 EXPERIMENTAL RELEASE 2 A UPDATE GEOMETRY UPDATE GEOMETRY, PROD. REL. 04/22/11 ---- 05/18/11 81688 07/14/11 83225 APPROVALS Garmin Ltd. or its subsidiaries c/o Garmin International, Inc. 1200 E. 151st Street Olathe, Kansas 66062 USA 0.3 0.13 0.08 0.01 0.005 0.003 1.0°

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B5 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B6 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255

SPORTON INTERNATIONAL INC. Page Number : 1 of 5 TEL : 886-3-327-3456 Report Issued Date : Oct. 11, 2011 FAX : 886-3-328-4978 FCC ID : IPH-01955 Justification of SAR compliance APPLICANT : Garmin International Inc. EQUIPMENT : Hardware adapter BRAND NAME : Garmin MODEL NAME : Garmin ANT+adapter for iPhone FCC ID : IPH-01955 Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 5 TEL : 886-3-327-3456 Report Issued Date : Oct. 11, 2011 FAX : 886-3-328-4978 FCC ID : IPH-01955 1. Administration Data 1.1 Testing Laboratory Test Site SPORTON INTERNATIONAL INC. Test Site Location No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL: +886-3-327-3456 FAX: +886-3-328-4978 1.2 Applicant Company Name Garmin International Inc. Address 1200 East 151st Street, Olathe, Kansa 66062 1.3 Manufacturer Company Name Garmin International Inc. Address No. 68, Zhangshu 2nd Rd., Xizhi Dist., New Taipei City 221, Taiwan(R.O.C) SPORTON INTERNATIONAL INC. Page Number : 3 of 5 TEL : 886-3-327-3456 Report Issued Date : Oct. 11, 2011 FAX : 886-3-328-4978 FCC ID : IPH-01955 2. General Information 2.1 Description of Device Under Test (DUT) Product Feature & Specification DUT Type Hardware adapter Brand Name Garmin Model Name Garmin ANT+adapter for iPhone FCC ID IPH-01955 Tx Frequency ANT+: 2457 MHz Rx Frequency ANT+: 2457 MHz Maximum Output Power to Antenna ANT+: 0 dBm Antenna Type Chip Antenna Type of Modulation GFSK Dimension 28.09mm(W) * 17.6mm (L) Remark: The above DUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. SPORTON INTERNATIONAL INC. Page Number : 4 of 5 TEL : 886-3-327-3456 Report Issued Date : Oct. 11, 2011 FAX : 886-3-328-4978 FCC ID : IPH-01955 3. Justification of SAR compliance 3.1 Introduction DUT is designed for Apple iPhone 3Gs and iPhone 4, to enable ANT+ feature. Per KDB 388624, the DUT should be categorized as PBA list, and DUT should be verified not affecting RF exposure compliance of the host device, when DUT connected to the host. Since DUT ANT+ transmission characteristic is of very low duty cycle and mostly it acts as an ANT+ receiver, the size is small, and the DUT antenna distance to host SAR peak is large than 1.5cm, therefore SAR compliance is not a concern. The detailed DUT transmission characteristic is described in “operational description” exhibit, and the antenna distance to host peak SAR is summarized in the next section. 115.15 mm 58.55 mm 28.09 mm 11.25 mm iPhone SPORTON INTERNATIONAL INC. Page Number : 5 of 5 TEL : 886-3-327-3456 Report Issued Date : Oct. 11, 2011 FAX : 886-3-328-4978 FCC ID : IPH-01955 3.2 SAR Peak Distance Analysis Head SAR (W/kg) Body-Worn SAR (W/kg) Test Distance: 1cm 850 1900 2450 850 1900 2450 FCC ID SAR Distance (cm) SAR Distance (cm) SAR Distance (cm) SAR Distance (cm) SAR Distance (cm) SAR Distance (cm) iPhone 3Gs A1303A 0.563 3.5 1.19 3.8 0.52 11.3 0.67 5.3 0.329 1.5 0.061 9 iPhone 4 -WCDMA E2380A 1 4.2 1.17 4.5 0.871 11.3 1.11 4.5 0.433 2.3 0.073 11.5 iPhone 4 -WCDMA E2380B 0.987 4.2 1.17 4.5 0.881 11 1.11 4.2 0.424 2.5 0.067 12.6 iPhone 4 -CDMA E2422A 1.06 3.5 1.18 4.3 0.459 10.5 1.08 6 0.552 1.7 0.152 10.5 iPhone 4 -CDMA E2422B 1.06 3.5 1.15 4 0.538 10.5 1.1 3.5 0.574 1.5 0.226 9.8 Remark: 1. The distance is DUT antenna distance to host peak SAR distance. 2. The distance for BCGA1303A is obtained, based on DUT antenna location, and BCGA1303A SAR report exhibit 09U12393-5 page 35,36,39,40,43,44. 3. The distance for BCG-E2380A is obtained, based on DUT antenna location, and BCG-E2380A SAR report exhibit 10U13135-2C1 page 31,32,33,34,35,36. 4. The distance for BCG-E2380B is obtained, based on DUT antenna location, and BCG-E2380B SAR report exhibit 10U13135-1C3 page 35,36,37,38,39,40 5. The distance for BCG-E2422A is obtained, based on DUT antenna location, and BCG-E2422A SAR report exhibit 10U13472-7B2 page 49,51,53,55,59,61 6. The distance for BCG-E2422B is obtained, based on DUT antenna location, and BCG-E2422B SAR report exhibit 10U13472-6B2 page 49,51,53,55,59,61 7. Through the analysis, the distance of “peak SAR to DUT antenna” is not less than 1.5cm.

SPORTON International Inc. Report Format Version: a F FCC TEST REPORT Report No. : FR160133 FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.249 Equipment : Hardware adapter Model No. : Garmin ANT+adapter for iPhone Brand Name : Garmin Filing Type : New Application Applicant : Garmin International Inc. 1200 East 151st Street, Olathe, Kansa 66062 FCC ID : IPH-01955 Manufacturer : Garmin International Inc. No.68, Zhangshu 2nd Rd.,Xizhi Dist.,New Taipei City 221, Taiwan(R.O.C) Received Date : Jul. 14, 2011 Final Test Date : Jul. 21, 2011 Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Aug. 03, 2011 FAX : 886-2-2696-2255 FCC ID : IPH-01955 F FCC TEST REPORT Report No. : FR160133 Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details .........................................................................................................................................................................................3 2.2 Table for Filed Antenna ............................................................................................................................................................................3 2.3 Table for Test Modes ...............................................................................................................................................................................3 2.4 Table for Testing Locations ......................................................................................................................................................................3 2.5 Table for Supporting Units .......................................................................................................................................................................3 2.6 Test Configuration ....................................................................................................................................................................................4 3 TEST RESULT ......................................................................................................................................................... 5 3.1 AC Power Line Conducted Emissions Measurement ..............................................................................................................................5 3.2 Field Strength of Fundamental Emissions Measurement ........................................................................................................................7 3.3 20dB Spectrum Bandwidth Measurement .............................................................................................................................................10 3.4 Radiated Emissions Measurement ........................................................................................................................................................12 3.5 Band Edge Emissions Measurement .....................................................................................................................................................20 3.6 Antenna Requirements ..........................................................................................................................................................................22 4 LIST OF MEASURING EQUIPMENTS .................................................................................................................. 23 5 TEST LOCATION ................................................................................................................................................... 24 6 TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 25 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A5 APPENDIX B. PHOTOGRAPHS OF EUT ....................................................................................................... B1 ~ B6 SPORTON International Inc. Page No. : ii of ii TEL : 886-2-2696-2468 Issued Date : Aug. 03, 2011 FAX : 886-2-2696-2255 FCC ID : IPH-01955 F FCC TEST REPORT Report No. : FR160133 History of This Test Report Original Issue Date: Aug. 03, 2011 Report No.: FR160133 ■ No additional attachment. □ Additional attachment were issued as following record: Attachment No. Issue Date Description 15.205(a) 15.209(a) 47 CFR FCC Part 15 Subpart C Further, this requirement does not apply to intentional radiators that must be professionally installed. SPORTON International Inc. Page No. : 1 of 25 TEL : 886-2-2696-2468 Issued Date : Aug. 03, 2011 FAX : 886-2-2696-2255 FCC ID : IPH-01955 F FCC TEST REPORT Report No. : FR160133 CERTIFICATE OF COMPLIANCE according to 47 CFR FCC Part 15 Subpart C § 15.249 Equipment : Hardware adapter Model No. : Garmin ANT+adapter for iPhone Brand Name : Garmin Applicant : Garmin International Inc. 1200 East 151st Street, Olathe, Kansa 66062 Sporton International as requested by the applicant to evaluate the EMC performance of t…

Text truncated - open the document above for the full version.

Page No. : A1 of A5 FCC ID : IPH-01955 F FCC TEST REPORT Report No. : FR160133 Appendix A. Test Photos Page No. : A2 of A5 FCC ID : IPH-01955 F FCC TEST REPORT Report No. : FR160133 1 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW Page No. : A3 of A5 FCC ID : IPH-01955 F FCC TEST REPORT Report No. : FR160133 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW Page No. : A4 of A5 FCC ID : IPH-01955 F FCC TEST REPORT Report No. : FR160133 For radiated emissions above 1GHz FRONT VIEW REAR VIEW Page No. : A5 of A5 FCC ID : IPH-01955 F FCC TEST REPORT Report No. : FR160133 FRONT VIEW
